57507 - Pressure washer HYUNDAI - Free user manual and instructions

Product type	High pressure cleaner
Brand	Hyundai
Model	57507
Mains voltage	230 V ~
Frequency	50 Hz
Power	1500 W
Working pressure	80 bar
Max. working pressure	120 bar
Water consumption	6,0 L/min
Max. water temperature	50 °C
Weight	7,1 kg
Water inlet	Garden hose connection
Main functions	High pressure cleaning, soap injection, adjustable jet (point or surface), automatic shut-off, thermal protection
Included accessories	Lance, gun, high pressure hose, terrace cleaner, pipe unclogger, turbo nozzle, fixed brush, soap tank, cleaning pin
Maintenance and cleaning	Regular cleaning of ventilation openings, inlet filter and nozzle; use of antifreeze if prolonged storage
Safety	Automatic shut-off when releasing trigger, thermal protection, trigger lock, mandatory use of protective gear (goggles, gloves, mask, hearing protection)
Spare parts and repairability	Spare parts recommended by manufacturer; contact dealer for worn or damaged parts
General information	Warranty according to enclosed conditions; do not discard with household waste, recycle according to European directive

Frequently Asked Questions - 57507 HYUNDAI

What is the maximum pressure of this high pressure cleaner?

The maximum working pressure is 120 bar, with a continuous working pressure of 80 bar.

Can I use a cleaning product with this device?

Yes, you can use a cleaning agent by pouring it into the soap tank. Use only products with a pH between 6 and 8. Activate soap mode by pulling the nozzle.

How to adjust the water jet?

Turn the nozzle to the left for a point jet (high pressure) or to the right for a surface jet (wider).

What to do if the machine does not start?

Check that the gun trigger is pressed to release pressure, that the plug is properly connected, that the voltage is correct (230 V) and that the thermal circuit breaker has not tripped. Let the motor cool if necessary.

How to use the terrace cleaner?

Attach the terrace cleaner to the lance, then place it on the surface to be cleaned before starting the machine. Move it evenly without bringing hands near the rotating part.

What regular maintenance is required?

Regularly clean the ventilation openings, water inlet filter and nozzle with the supplied cleaning pin.

Can I use an extension cord?

Yes, but it must be waterproof and suitable for the power. Avoid extension cords that are too long or of insufficient diameter, as this can cause a voltage drop.

What to do if detergent is not injected?

Clean the soap tank with hot water and make sure it is properly in place. Also check that soap mode is activated (nozzle pulled).

How to store the device in winter?

Before prolonged storage (more than 3 months), have the pump draw in some antifreeze to prevent freezing and oxidation. Store it in a dry and frost-free place.

The device emits smoke, what to do?

Turn off the device immediately and contact your dealer. This may indicate overheating or a damaged motor.

USER MANUAL 57507 HYUNDAI

Line drawing of a cleaning power tool with two washers (no text or symbols)

HYUNDAI

Nederlands 6

English 11

Français 16

Deutsch 21

Svenska 26

Dansk 30

• Verklaring van overeenstemming 35
- Declaration of conformity
- Certificat de conformité
- Konformitätserklärung
- Förklaring om överensstämmelse
• Overensstemmelseserklæring

9 8 4 7 1 3 2 6 5 10 HYUNDAI

A

MYUNDAI 8 7 5 HYUNDAI B

HYUNDAI HYUNDAI 11 13 12 C

9 D

5 8 10 HYUNDAI HYUNDAI HYUNDAI E

14 9 F

HOGEDRUKREINIGER 57507

WAARSCHUWING

VEILIGHEIDSWAARSCHUWINGEN

BESCHRIJVING (FIG. A)

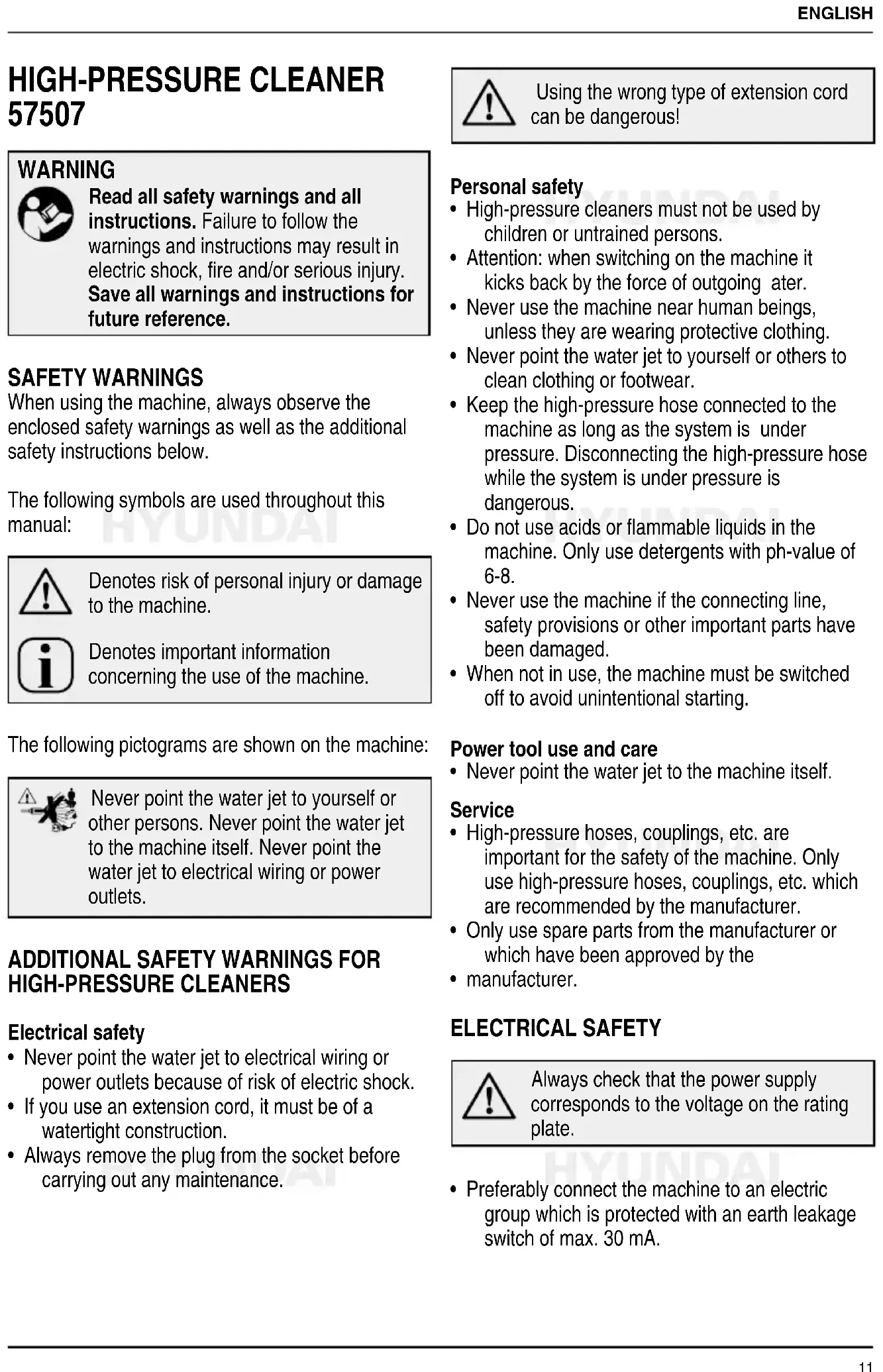

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY WARNINGS

When using the machine, always observe the enclosed safety warnings as well as the additional safety instructions below.

The following symbols are used throughout this manual:

Denotes risk of personal injury or damage to the machine.

Denotes important information concerning the use of the machine.

The following pictograms are shown on the machine:

Never point the water jet to yourself or other persons. Never point the water jet to the machine itself. Never point the water jet to electrical wiring or power outlets.

ADDITIONAL SAFETY WARNINGS FOR HIGH-PRESSURE CLEANERS

Electrical safety

• Never point the water jet to electrical wiring or power outlets because of risk of electric shock.
• If you use an extension cord, it must be of a watertight construction.
• Always remove the plug from the socket before carrying out any maintenance.

Using the wrong type of extension cord can be dangerous!

Personal safety

• High-pressure cleaners must not be used by children or untrained persons.
• Attention: when switching on the machine it kicks back by the force of outgoing ater.
• Never use the machine near human beings, unless they are wearing protective clothing.
• Never point the water jet to yourself or others to clean clothing or footwear.
• Keep the high-pressure hose connected to the machine as long as the system is under pressure. Disconnecting the high-pressure hose while the system is under pressure is dangerous.
• Do not use acids or flammable liquids in the machine. Only use detergents with ph-value of 6-8.
• Never use the machine if the connecting line, safety provisions or other important parts have been damaged.
• When not in use, the machine must be switched off to avoid unintentional starting.

Power tool use and care

- Never point the water jet to the machine itself.

Service

• High-pressure hoses, couplings, etc. are important for the safety of the machine. Only use high-pressure hoses, couplings, etc. which are recommended by the manufacturer.
• Only use spare parts from the manufacturer or which have been approved by the
• manufacturer.

ELECTRICAL SAFETY

Always check that the power supply corresponds to the voltage on the rating plate.

- Preferably connect the machine to an electric group which is protected with an earth leakage switch of max. 30 mA.

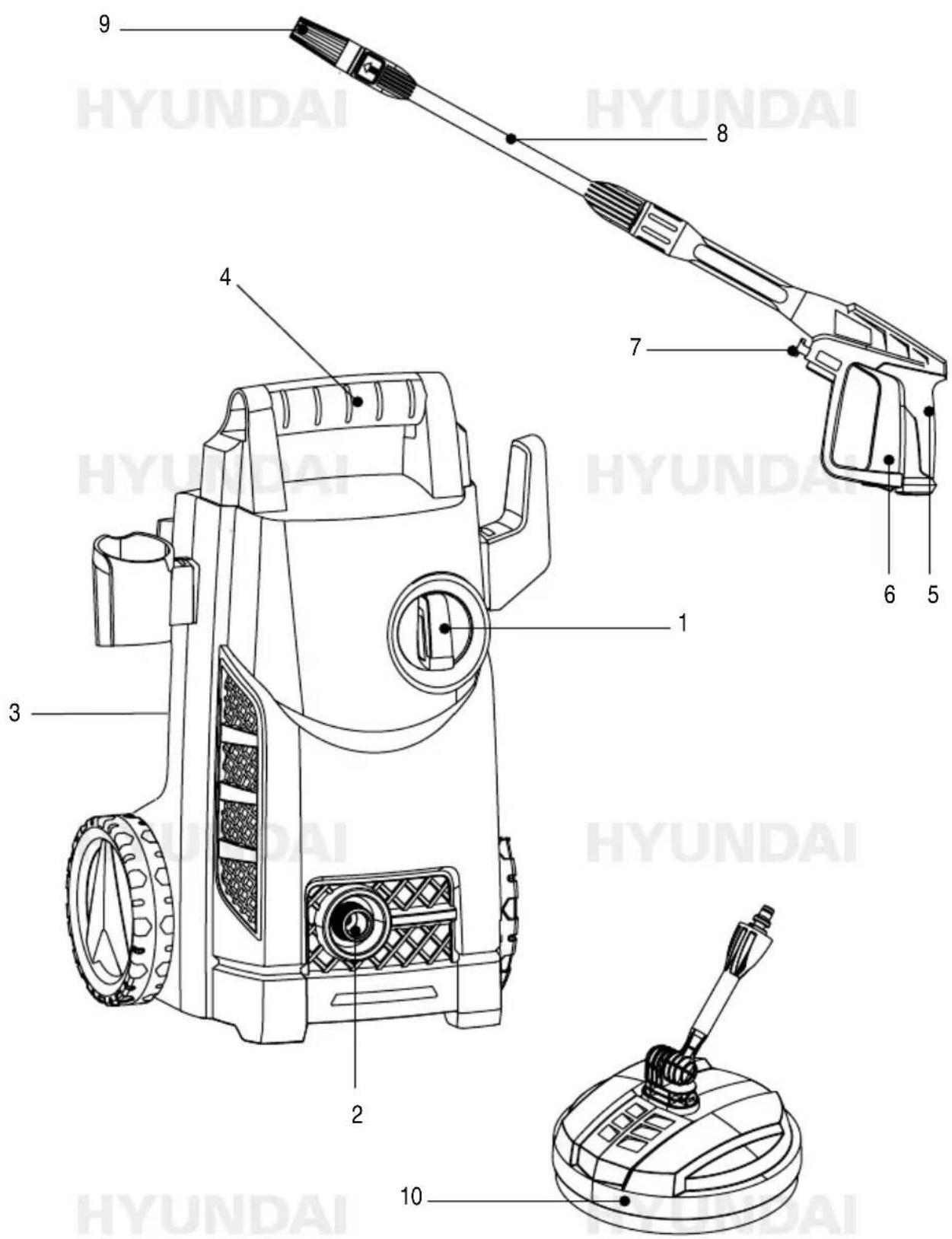

DESCRIPTION (FIG. A)

Your high-pressure cleaner has been designed for outdoor cleaning of stone, wood, metal and plastic materials.

1. On/off switch
2. Connection for high-pressure hose
3. Connection for water supply
4. Handle
5. Pistol grip
6. Trigger
7. Safety catch
8. Lance
9. Nozzle
10. Patio brush

Package contents

• High-pressure cleaner
- Patio brush
- Soap reservoir
• High-pressure hose
- Pistol grip
- Lance
- Coupler
- Fixed bush
- Drain cleaner
- Turbo nozzle
- Cleaning pin

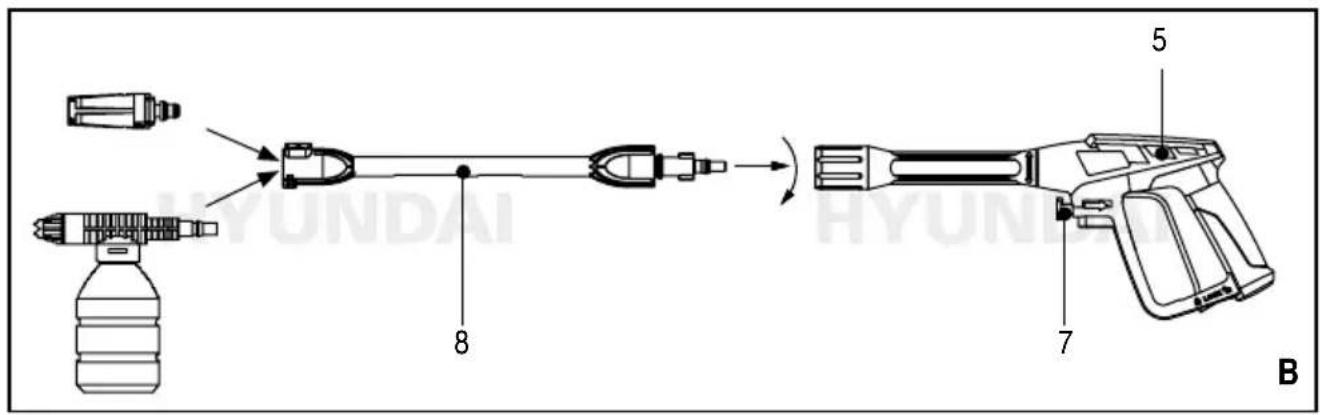

Mounting the lance (fig. B)

- Tighten the bayonet of the lance (8) in the connection of the pistol grip (5).

Before mounting or removing the lance, always remove the plug from the wall socket and make sure that the pressure is off the system.

Mounting an accessory (fig. B)

- Tighten the bayonet of the accessory in the connection of the lance (8).

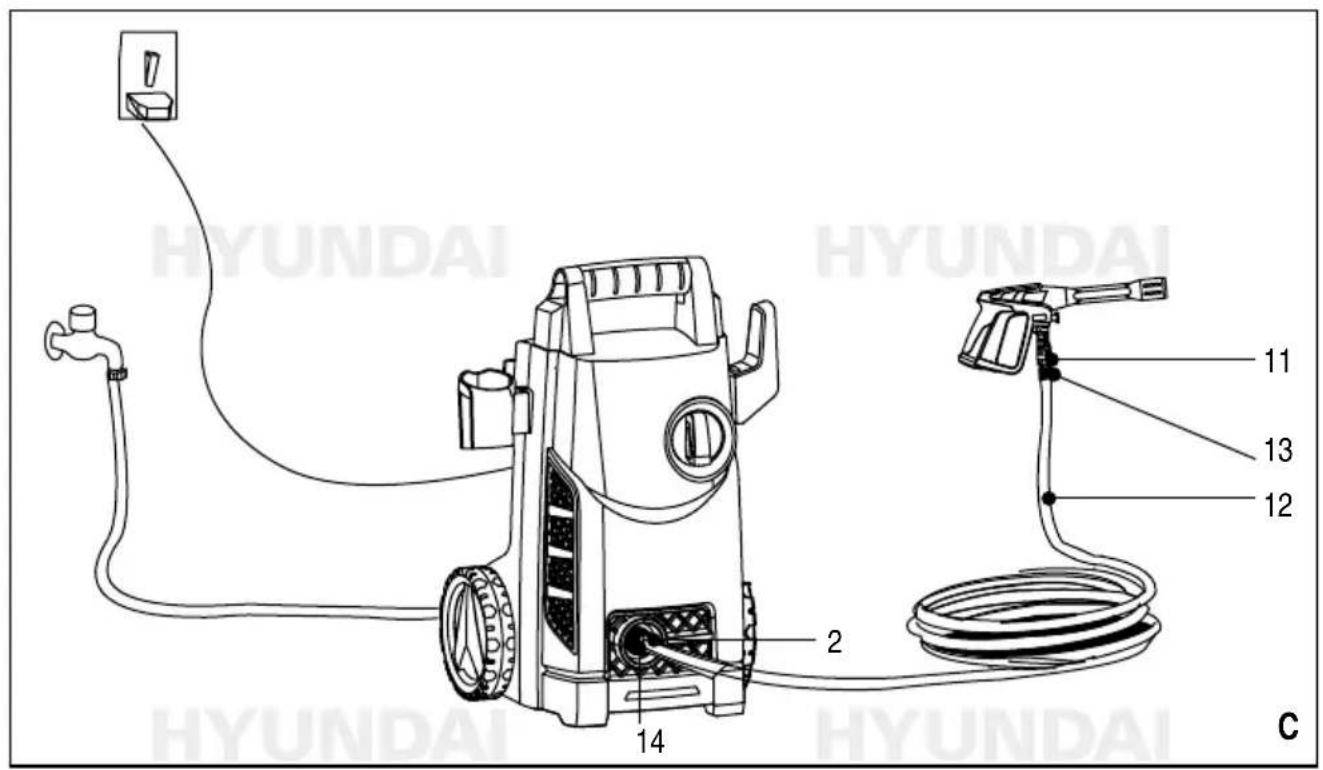

Connecting the high-pressure hose (fig. C)

• Screw the coupling nut (11) to the one end of the high-pressure hose (12) onto the
• connection (13) on the pistol grip (5).
• Screw the coupling nut (14) to the other end of the high-pressure hose onto the connection (2) on the machine.
• Tighten the coupling nuts firmly.

Connecting to the water supply

• Remove the protective cap.
• Connect a garden hose which has been connected to the water mains directly or via a reducing nipple to the connection (3).

Adding a cleaning agent

• Loosen the cap and add a measured amount of cleaning agent to the tank.
• Re-install the cap (8) and tighten it securely.

Only add a cleaning agent if the machine is switched off and the tap of the water mains has been closed.

Instructions for use

• Fully open the tap of the water mains before switching on the machine.
• Hold the trigger of the pistol grip until all air is released from the hose.
• As soon as water starts flowing out of the nozzle, release the trigger and switch on the machine.
  • Take hold of the pistol grip and move the lance evenly along the surface to be cleaned.
• Direct the nozzle as required in order to achieve optimal cleaning results. Determining the correct distance for the water jet is a matter of experience.
• Close the tap of the water mains after having switched off the machine.
• Hold the trigger of the pistol grip until the pressure is off the system.
• Lock the trigger using the safety catch.

Never let the machine run idle for more than 2 minutes. Within that period the temperature of the water in the system can become so high that the pump will be damaged beyond repair.

Switching on and off (fig. A)

• To switch the machine on, set the on/off switch (1) to 'ON/I'.
• To switch the machine off, set the on/off switch (1) to 'OFF/0'.

Auto-stop

The auto-stop switch avoids that the maximum operating pressure is exceeded. When releasing the trigger of the pistol grip, the auto-stop switch switches off the pump and the water jet stops spraying. When pressing the trigger of the pistol grip, the auto-stop switch switches on the pump again.

Allow no part of the body anywhere near the rotor when the high-pressure cleaner is switched on.

Assembling the patio cleaner

• Tighten the bayonet of the patio cleaner (10) into the socket of the lance (8).
• Tighten the bayonet of the lance (8) into the socket of the pistol grip (5).

Overheating protection

The machine has been fitted with a thermal protection. In case of overheating, the machine switches off automatically. After the motor has cooled down the machine automatically switches on again.

Before connecting or removing the patio cleaner, always remove the mains plug of the high-pressure cleaner from the socket and make sure that the pressure is released from the system.

Always use the original lance and hoses to decrease the risk of overheating.

Instructions for use

Clean the nozzle using the cleaning pin to decrease the risk of overheating.

Start the high-pressure cleaner only once the pavement scrubber is positioned on the surface to be cleaned.

Soap supply

• Pull out the nozzle to put the soap supply into operation.
• Press the nozzle to put the soap supply out of operation.

Never put the soap supply into operation while holding the trigger of the pistol grip.

- Hold the pistol grip of the high-pressure cleaner and move the pavement scrubber evenly across the surface to be cleaned.

Using the drain cleaner (fig. A)

• Tighten the bayonet of the drain cleaner in the connection of the pistol grip (5).
• Insert the drain cleaner till the mark into the pipe.
• Switch on the machine.

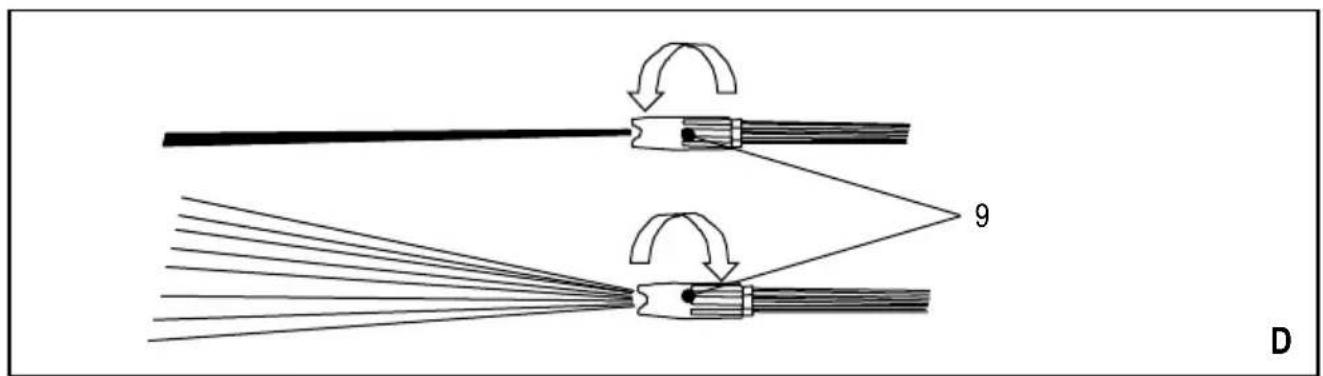

Adjusting the water jet (fig. D)

• Turn the nozzle (15) counterclockwise for a pointed jet.
• Turn the nozzle clockwise for a flat jet.

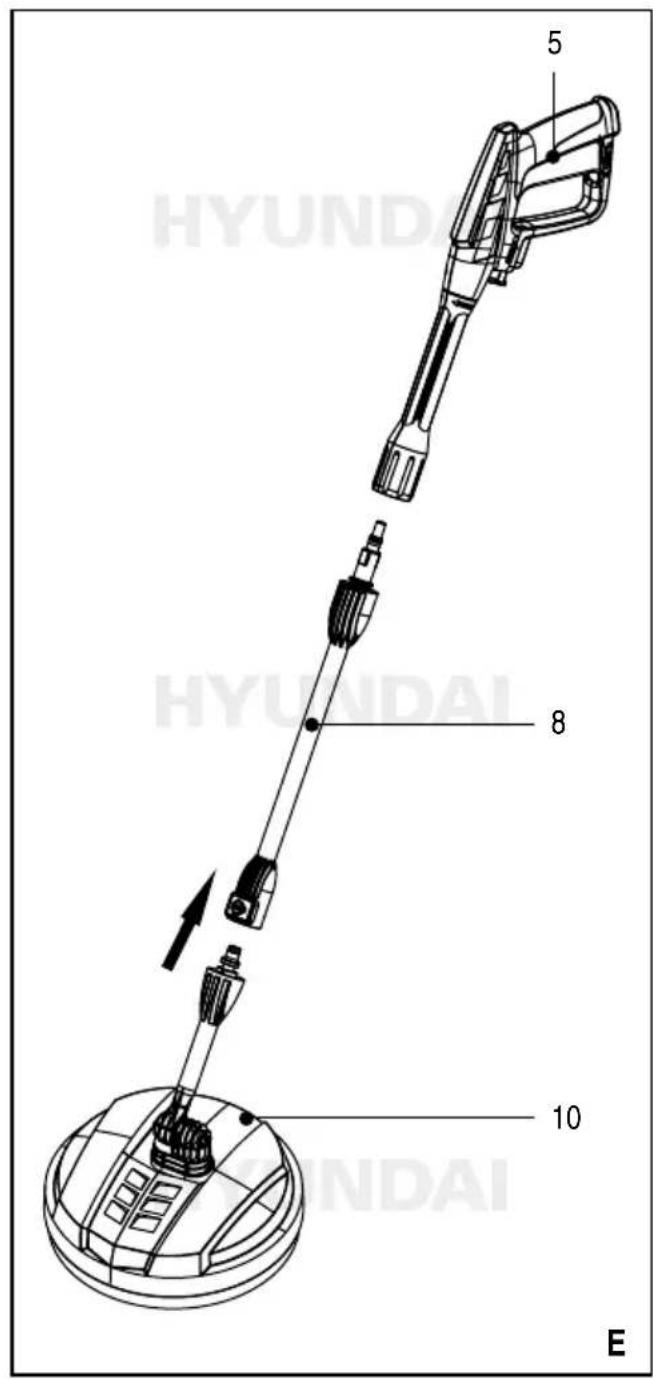

USING THE PATIO CLEANER (FIG. E)

The patio cleaner is ideally suited for cleaning floor and wall surfaces made of different materials, such as wood, concrete, tiles and natural stone. Not suitable for commercial use.

Do not switch on the machine until the drain cleaner is in the pipeline.

• Trigger the pistol grip.
• As soon as the drain cleaner stops at a clogged place release the trigger several times and press again.
• Repeat several times in case of severe soiling.
• Switch off the high-pressure cleaner and the pull the drain cleaner out of the pipe.

CLEANING AND MAINTENANCE

The machine does not require any special maintenance.

- Regularly clean the ventilation slots.

- If the machine is not used for a longer period of time (3 months or more) or if it is stored in an unheated area, then let the motor before storage suck some anti-freeze to prevent the risk of freezing and oxidation.

Cleaning the inlet filter

Before use always check the inlet filter and clean it if necessary.

• Use your fingers to remove the filter from the connection. Beware not to damage the filter.
• Use your fingers to re-install the filter.

- Check whether the filter has been placed into the connection correctly.

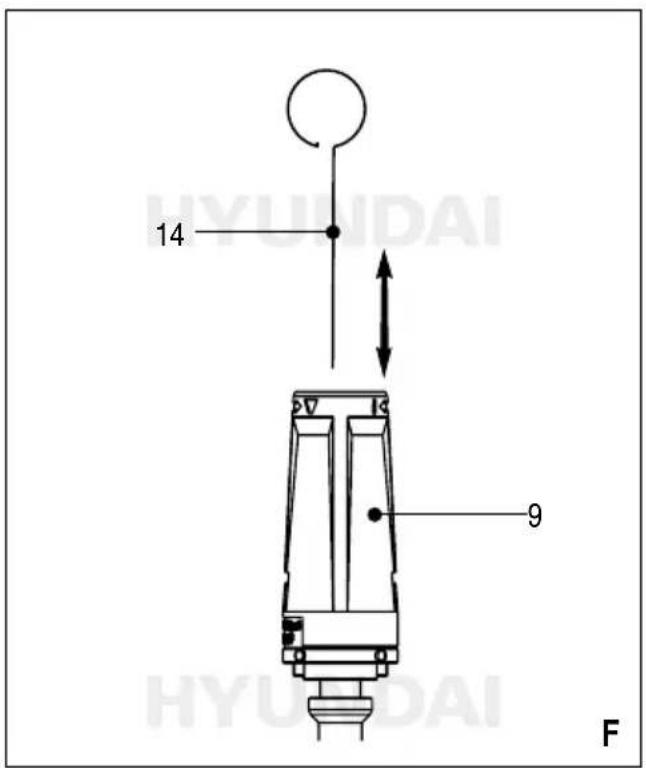

Cleaning the nozzle (fig. F)

During use, if the water jet decreases or stops, the nozzle needs to be cleaned.

- Make sure that the machine is switched off and that the tap of the water mains has been closed. Use the pricking tool (16) provided, to clean the opening (17) in the nozzle (9).

POSSIBLE PROBLEMS AND SOLUTIONS

Symptom	Possible causes	Corrective actions
No detergent 1. Soap holder	is clogged 1. Clean soap holder with	warm water2. Replace soap holder
Unit begins to smoke 1. Overheated, overloaded or damaged motor		1. Turn off unit and call the dealer
Pressure cleaner does not start up	Unit is pressurizedPlug is not well connected or electric socket is faultyExtension cord is too long or wire size too smallMain voltage supply is too lowThermal safety switch has tripped	Squeeze trigger on gunCheck plug, socket and fuseRemove extension cordCheck that main supply voltage age is adequateSwitch off unit and allow motor to cool down
Pump does not reach necessary pressure	Water inlet filter is cloggedPump is sucking air from hose connectionsNozzle is worn or not correct sizeUnloader is clogged or wornValves is clogged or worn	Clean water inlet filterCheck that connections and locking ring are properly tightenedCall the dealerCall the dealerCall the dealer
Fluctuating pressure 1. Pump	is sucking airClogged nozzleValves dirty, worm or stuckWater seals worn	Check that hoses and connections are tightClean with pricking toolCall the dealerCall the dealer

TECHNICAL DATA

Mains voltage V\~ 230

Mains frequency Hz 50

Power input W 1,500

Operating pressure bar 80

Max. operating pressure bar 120

Water consumption l/min 6,0

Max. pressure water supply bar 4

Max. water temperature °C 50

Weight kg 7.1

GUARANTEE

Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.

ENVIRONMENT

Your product, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Subject to change; specifications can be changed without further notice.
