57504 - Pressure washer HYUNDAI - Free user manual and instructions

Brand	Hyundai
Model	57504
Product type	High-pressure cleaner
Power	1600 W
Supply voltage	230 V ~ 50 Hz
Working pressure	90 bar
Max. working pressure	135 bar
Water consumption	5.5 L/min
Max. incoming water pressure	5 bar
Max. water temperature	50 °C
Weight	8.5 kg
High-pressure hose length	Not specified (estimated 8 m)
Soap tank	Yes, integrated
Jet type	Adjustable (point or fan)
Safety functions	Automatic shutdown in case of overheating, safety lock on trigger
Included accessories	Lance, nozzle, nozzle cleaning tool, high-pressure hose
Maintenance	Cleaning of inlet filter and nozzle, antifreeze draining for prolonged storage
Recommended use	Exterior cleaning of stone, wood, metal, plastic
Warranty	According to provided conditions

Frequently Asked Questions - 57504 HYUNDAI

How to connect the Hyundai 57504 high-pressure cleaner?

Connect a garden hose to the water inlet (3), screw the high-pressure hose (12) to the gun handle and the machine, then plug into a 230 V socket protected by a 30 mA residual-current circuit breaker.

How to use the soap tank?

Unscrew the tank cap (11), add a non-flammable detergent (pH 6-8), then screw back on. Pull the nozzle to activate soap refill and push to deactivate. Never press the trigger during filling.

What to do if pressure is low or unstable?

Check the water inlet filter and clean it. Make sure the garden hose is fully open. Clean the nozzle with the provided tool. If the problem persists, check the connections to avoid air leaks.

How to clean a clogged nozzle?

Stop the machine and close the tap. Use the cleaning tool (16) to unclog the nozzle opening (17). If the spray is still uneven, disassemble the lance and clean it.

What are the essential safety instructions?

Always wear goggles, hearing protection, a dust mask, and gloves. Never point the spray at yourself, others, the machine, or electrical sources. Disconnect the device before any maintenance.

How to adjust the water spray?

Turn the nozzle (10) left for a point jet (high pressure) or right for a fan jet (reduced pressure). Adjust the distance to the surface for optimal results.

What does automatic motor shutdown mean?

In case of overheating, the motor stops. Wait 5 to 10 minutes for it to cool before restarting. If the problem recurs, contact your dealer.

How to store the device after use?

Close the tap, press the trigger to release pressure, lock the trigger with the safety catch. Unplug. For storage over 3 months, circulate antifreeze in the pump.

Can I use hot water?

Yes, but the water temperature must not exceed 50 °C (technical specification). Hotter water may damage the pump.

What to do if detergent doesn't come out?

Clean the soap tank with hot water. Check that the nozzle is in 'soap' position (pulled). Make sure the tank is properly engaged and the filter is not clogged.

USER MANUAL 57504 HYUNDAI

VEILIGHEIDSWAARSCHUWINGEN

BESCHRIJVING (FIG. A)

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

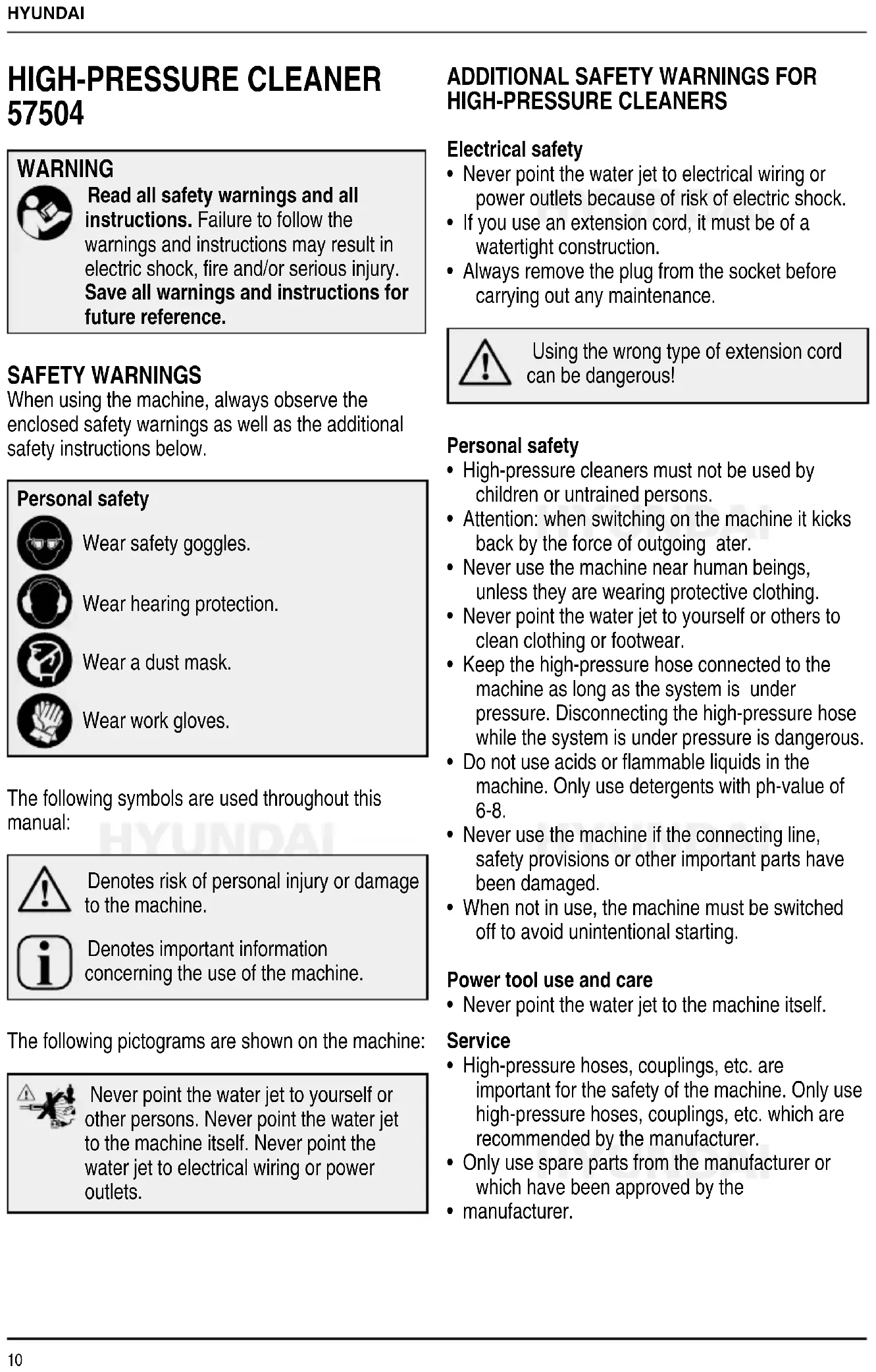

SAFETYWARNINGS

When using the machine, always observe the enclosed safety warnings as well as the additional safety instructions below.

Personal safety

Wear safety goggles.

Wear hearing protection.

Wear a dust mask.

Wear work gloves.

The following symbols are used throughout this manual:

Denotes risk of personal injury or damage to the machine.

Denotes important information concerning the use of the machine.

The following pictograms are shown on the machine:

Never point the water jet to yourself or other persons. Never point the water jet to the machine itself. Never point the water jet to electrical wiring or power outlets.

ADDITIONAL SAFETY WARNINGS FOR HIGH-PRESSURE CLEANERS

Electrical safety

• Never point the water jet to electrical wiring or power outlets because of risk of electric shock.
• If you use an extension cord, it must be of a watertight construction.
• Always remove the plug from the socket before carrying out any maintenance.

Using the wrong type of extension cord can be dangerous!

Personal safety

• High-pressure cleaners must not be used by children or untrained persons.
• Attention: when switching on the machine it kicks back by the force of outgoing ater.
• Never use the machine near human beings, unless they are wearing protective clothing.
• Never point the water jet to yourself or others to clean clothing or footwear.
• Keep the high-pressure hose connected to the machine as long as the system is under pressure. Disconnecting the high-pressure hose while the system is under pressure is dangerous.
• Do not use acids or flammable liquids in the machine. Only use detergents with ph-value of 6-8.
• Never use the machine if the connecting line, safety provisions or other important parts have been damaged.
• When not in use, the machine must be switched off to avoid unintentional starting.

Power tool use and care

• Never point the water jet to the machine itself.

Service

• High-pressure hoses, couplings, etc. are important for the safety of the machine. Only use high-pressure hoses, couplings, etc. which are recommended by the manufacturer.
• Only use spare parts from the manufacturer or which have been approved by the
• manufacturer.

ELECTRICAL SAFETY

Always check that the power supply corresponds to the voltage on the rating plate.

• Preferably connect the machine to an electric group which is protected with an earth leakage switch of max. 30mA .

DESCRIPTION (FIG. A)

Your high-pressure cleaner has been designed for outdoor cleaning of stone, wood, metal and plastic materials.

1. On/off switch
2. Connection for high-pressure hose
3. Connection for water supply
4. Handle
5. Pistol grip
6. Trigger
7. Safety catch
8. Lance
9. Nozzle

Mounting the lance (fig. B)

• Connect both parts of the lance (8) by fitting the bayonet on the nozzle in the joint of the pistol (5).

Before mounting or removing the lance, always remove the plug from the wall socket and make sure that the pressure is off the system.

Mounting the soap holder (fig. C)

• Fasten the bayonet on the soap holder (10) in the joint of the connecting piece of the lance (8).

Connecting the high-pressure hose (fig. D)

• Screw the coupling nut (11) to the one end of the high-pressure hose (12) onto the
• connection (13) on the pistol grip (5).
• Screw the coupling nut (14) to the other end of the high-pressure hose onto the connection (2) on the machine.
• Tighten the coupling nuts firmly.

Connecting to the water supply

• Remove the protective cap.

• Connect a garden hose which has been connected to the water mains directly or via a reducing nipple to the connection (3).

Adding a cleaning agent

• Loosen the cap and add a measured amount of cleaning agent to the tank.
• Re-install the cap (8) and tighten it securely.

Only add a cleaning agent if the machine is switched off and the tap of the water mains has been closed.

Instructions for use

• Fully open the tap of the water mains before switching on the machine.
• Hold the trigger of the pistol grip until all air is released from the hose.
• As soon as water starts flowing out of the nozzle, release the trigger and switch on the machine.
  Take hold of the pistol grip and move the lance evenly along the surface to be cleaned.
• Direct the nozzle as required in order to achieve optimal cleaning results. Determining the correct distance for the water jet is a matter of experience.
• Close the tap of the water mains after having switched off the machine.
• Hold the trigger of the pistol grip until the pressure is off the system.
• Lock the trigger using the safety catch.

Never let the machine run idle for more than 2 minutes. Within that period the temperature of the water in the system can become so high that the pump will be damaged beyond repair.

• As soon as the pistol grip is released, the machine automatically shuts off the water supply.

Switching on and off (fig. A)

To switch the machine on, set the on/off switch (1) to 'ON/I'.
- To switch the machine off, set the on/off switch (1) to 'OFF/0'.

The machine automatically switches off in case of overheating. Wait 5 to 10 minutes before switching on the machine again. Contact your supplier if the machine stops again.

Soap supply

• Pull out the nozzle to put the soap supply into operation.
• Press the nozzle to put the soap supply out of operation.

Never put the soap supply into operation while holding the trigger of the pistol grip.

Adjusting the water jet (fig. E)

• Turn the nozzle (15) counterclockwise for a pointed jet.
• Turn the nozzle clockwise for a flat jet.

CLEANING AND MAINTENANCE

The machine does not require any special maintenance.

• Regularly clean the ventilation slots.
  If the machine is not used for a longer period of time (3 months or more) or if it is stored in an unheated area, then let the motor before storage suck some anti-freeze to prevent the risk of freezing and oxidation.

Cleaning the inlet filter

Before use always check the inlet filter and clean it if necessary.

• Use your fingers to remove the filter from the connection. Beware not to damage the filter.
• Use your fingers to re-install the filter.
• Check whether the filter has been placed into the connection correctly.

Cleaning the nozzle (fig. F)

During use, if the water jet decreases or stops, the nozzle needs to be cleaned.

• Make sure that the machine is switched off and that the tap of the water mains has been closed.
• Use the pricking tool (16) provided, to clean the opening (17) in the nozzle (9).

POSSIBLE PROBLEMS AND SOLUTIONS

Symptom	Possible causes	Corrective actions
No detergent 1. Soap holder is clogged 1. Clean soap holder with warm water2. Replace soap holder
Unit begins to smoke 1. Overheated, overloaded or damaged motor		1. Turn off unit and call the dealer
Pressure cleaner does not start up	1. Unit is pressurized2. Plug is not well connected or electric socket is faulty3. Extension cord is too long or wire size too small4. Main voltage supply is too low5. Thermal safety switch has tripped	1. Squeeze trigger on gun2. Check plug, socket and fuse3. Remove extension cord4. Check that main supply voltage age is adequate5. Switch off unit and allow motor to cool down
Pump does not reach necessary pressure	1. Water inlet filter is clogged2. Pump is sucking air from hose connections3. Nozzle is worn or not correct size4. Unloader is clogged or worn5. Valves is clogged or worn	1. Clean water inlet filter2. Check that connections and locking ring are properly tightened3. Call the dealer4. Call the dealer5. Call the dealer
Fluctuating pressure 1. Pump	p is sucking air	1. Check that hoses and connections are tight
	2. Clogged nozzle	2. Clean with pricking tool
	3. Valves dirty, worm or stuck	3. Call the dealer
	4. Water seals worn	4. Call the dealer

TECHNICAL DATA

Mains voltage V~ 230

Mains frequency Hz 50

Power input W 1.600

Operating pressure bar 90

Max. operating pressure bar 135

Water consumption l/min 5,5

Max. pressure water supply bar 4

Max. water temperature ^ C 50

Weight 8,5

GUARANTEE

Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.

ENVIRONMENT

Your product, accessories and packaging should be sorted for environmental-friendlyly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Subject to change; specifications can be changed without further notice.
