USER MANUAL HWW1300 SCHEPPACH

House water system Translation of the original instruction manual

Explanation of the symbols on the equipment The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. Read instruction manual and safety instructions before starting up and pay attention! Use hearing protection. m Attention! In this operating manual, we have used this sign to mark all sections that concern your safety. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Table of contents: Page:

The operating instructions contain im- portant information on how to operate the machine safely, professionally and economically, how to avoid danger, cost- ly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and careful- ly follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating woodworking machines must also be ob- served. We accept no liability for accidents or damage that occur due to a failure to ob- serve this manual and the safety instruc- tions.

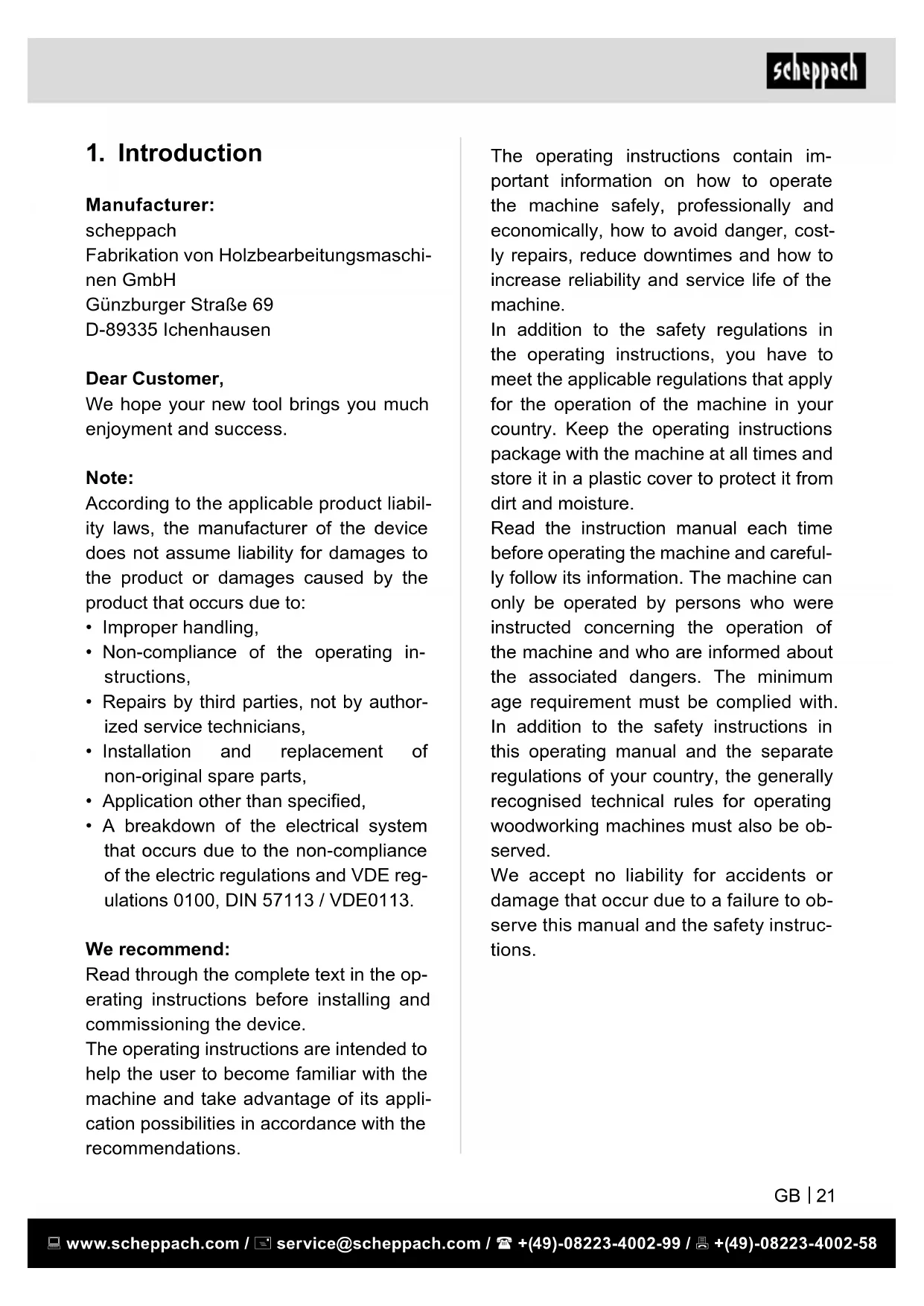

Manufacturer: scheppach Fabrikation von Holzbearbeitungsmaschi- nen GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liabil- ity laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating in- structions,

• Repairs by third parties, not by author- ized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE reg- ulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the op- erating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its appli- cation possibilities in accordance with the recommendations. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. This domestic water system is intended for private use in the house and garden. The device is intended for domestic water supplies and garden irrigation. It is designed exclusively for the supply of claried water and rain water up to a tem- perature of max. 35°C. Any other use that is not expressly permit- ted in this instruction manual (e.g. supply of food, salt water, motor fuels, chemical products or water with abrasive substanc- es) may result in damage to the device and pose a serious hazard to the user. The domestic water system is not suitable for continuous operation. Continuous op- eration will shorten its service life and void the warranty. The machine may only be operated with original parts and original accessories from the manufacturer. Any other use is considered to be not in- tended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our war- ranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

2. Device description

1. Pressure connection

4. Bracket for screws

7. Suction connection

3. Scope of delivery

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufactur- er will be liable for any damage or in- juries of any kind caused as a result of this. To use the equipment properly you must also observe the safety informa- tion, the assembly instructions and the operating instructions to be found in this manual. All persons who use and ser- vice the equipment have to be acquaint- ed with this manual and must be informed about the equipment’s potential hazards. It is also imperative to observe the ac- cident prevention regulations in force in your area. The same applies for the gen- eral rules of health and safety at work. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

• Only use the device for the purpose specied in these original operating in- structions.

• You are responsible for safety in the work area.

• If the connection cable of this unit is damaged, it must be replaced by the manufacturer or their service depart- ment or a similar qualied person in or- der to avoid hazards. The voltage of 230 volts AC indicated on the type plate of the pump must correspond to the mains voltage present.

• Never lift, transport or fasten the pump by the mains cable.

• Make sure that the electrical plug con- nections are located in a ood-proof ar- ea or are protected against moisture.

• Before any work on the pump, pull out the mains plug.

• Ensure that the pump is not exposed to a direct water jet.

• The operator is responsible for compli- ance with local safety and installation regulations (ask a qualied electrician if necessary).

• The user must implement suitable measures (e.g. installation of an alarm system, reserve pump or similar) to pre- vent consequential damage caused by ooding of rooms in the event of pump faults.

• If the pump fails, repair work may only be carried out by a qualied electrician or by customer service.

• Only use original spare parts.

• The pump must never be allowed to run dry or be operated with a fully closed suction line. Damage to the pump caused by dry running will invalidate the manufacturer’s warranty.

• This device is not designed to be op- erated by persons (including children) with impaired physical, sensory or men- tal capabilities, or who have insu󰀩cient experience and/or insu󰀩cient knowl- edge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Children should not be left unattended, to ensure they do not play with the de- vice.

• Keep packaging lms out of the reach of babies and children. Risk of su󰀨oca- tion!

• The user is responsible for third parties in the working area of the device.

• Prior to commissioning, it must be en- sured by means of expert testing that the required electrical protective meas- ures are in place.

• m Warning! The pump may only be used in and around stagnant water, gar- den and swimming ponds with a resid- ual current circuit breaker with a rated residual triggering current of up to 30 mA (per VDE 0100 parts 702 and 738).

• The pump is not suitable for use in swimming pools, paddling pools of any kind and other waters where persons or animals may be present during opera- tion.

• Operating the pump while humans or animals are in the danger zone is not permitted. Ask your electrician!

• Always carry out a visual inspection of the unit before use. Do not use the unit if safety devices are damaged or worn out. Never disable safety devices. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Warning! This electric tool generates an electromagnetic eld during opera- tion. This eld can impair active or pas- sive medical implants under certain con- ditions. In order to prevent the risk of se- rious or deadly injuries, we recommend that persons with medical implants con- sult with their physician and the manufac- turer of the medical implant prior to oper- ating the electric tool.

• The pump must not be used for swim- ming pool operation.

• The pump must not be installed in the drinking water circuit. Remaining hazards The machine has been built using modern technology in accordance with recognized safety rules. Some remaining hazards, however, may still exist.

• Injury through electric current if incor- rect electric connection leads are used.

• Even when all safety measures are tak- en, some remaining hazards which are not yet evident may still be present.

• Remaining hazards can be minimized by following the safety instructions as well as the instructions in the chapter Authorized use and in the entire oper- ating manual.

• Health hazard due to electrical power, with the use of improper electrical con- nection cables.

• Release the handle button and switch o󰀨 the machine prior to any operations.

• Avoid accidental starts of the machine: Do not press the start button while in- serting the plug into the socket.

• Use the tools recommended in this manual to obtain the best results from your machine.

• Always keep hands away from the work area when the machine is running. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

8. Attachment / Before start-

ing the equipment Installation of a suction line

• Screw a suction hose (plastic hose min. 19 mm (3/4”) directly or with a threaded nipple, approx. 30,75 mm (G1”), to the suction line connection on the pump.

• Lay the suction line from the water pick- up point to the pump in a continuous- ly rising slope. Ensure that the suction line is not laid above the pump height; air bubbles in the suction line delay and prevent the suction process.

• The suction and pressure lines must be installed in such a way that they do not exert any mechanical pressure on the pump.

• The suction valve should be located deep enough in the water to prevent the pump from running dry if the water lev- el drops.

• A leaking suction line will prevent the water from being sucked in due to air ingress.

• Avoid sucking in foreign bodies (sand etc.). Installation of a pressure line

• The pressure line (should be at least 19 mm (3/4”)) must be connected directly or via a threaded nipple approx. 30,75 mm (G1”) to the pressure line connec- tion on the pump.

• During the suction process the shut-o󰀨 devices (spray nozzles, valves etc.) in the delivery line must be fully opened to allow the air in the suction line to es- cape freely. Noise m Warning: Noise can have serious ef- fects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection. Noise data Sound power level L

Open the packaging and remove the de- vice carefully. Remove the packaging material as well as the packaging and transport bracing (if available). Check that the delivery is complete. Check the device and accessory parts for transport damage. In case of complaints the dealer must be informed immediate- ly. Subsequent complaints will not be ac- cepted. If possible, store the packaging until the warranty period has expired. Read the op- erating manual to make yourself familiar with the device prior to using it. Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer. Specify our part numbers as well as the type and year of construction of the device in your orders. m ATTENTION The device and packaging materials are not toys! Children must not be al- lowed to play with plastic bags, lm and small parts! There is a risk of swallowing and su󰀨ocation! www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Damaged electrical connection cable The insulation on electrical connection cables is often damaged. This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improperly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection ca- bles must not be used and are life-threat- ening due to the insulation damage. Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provi- sions. Only use connection cables with the marking „H05RN-F“. The printing of the type designation on the connection cable is mandatory. For single-phase AC motors, we recommend a fuse rating of 16A (C) or 16A (K) for ma- chines with a high starting current (start- ing from 3000 watts)! AC motor 230 V~/ 50 Hz Mains voltage 230 V~ / 50 Hz. The mains connection and the extension cable have to be three-core cables = P + N + SL. - (1/N/PE). Extension cables up tp 25m long must have a minimum cross-section of 1.5 mm². Mains fuse pro- tection is 16 A maximum.

9. Initial operation

m IMPORTANT! You must fully assemble the appliance before using it for the rst time!

• Install the equipment on a solid and lev- el surface.

• Unscrew the coarse lter screw (8) and remove the coarse lter (9) as shown in Figure 3. Now you can ll the pump housing with water via the coarse lter screw (8). Filling the intake line acceler- ates the in take process.

• Assemble in reverse order.

• Switch on the equipment with the power switch (12) water can be suctioned in for up to 5 minutes (max mum suction height).

• After pressure drop due to water con- sumption switches the unit automatically on (switch-on pressure approx. 1.5 bar)

• The domestic waterworks can be used for domestic water supply in the inner area also be permanently installed. To avoid vibrations and noise should be minimised. the pump with exible hose lines connected to the pipe network will be. Anti-vibration material is also rec- ommended, z. e.g. a rubber layer, be- tween pump and base to lay. Ensure a stable Fixing of the container by means of Screws that pass through the holes t in the stand. Electrical connection The electrical motor installed is connect- ed and ready for operation. The connec- tion complies with the applicable VDE and DIN provisions. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

• The pressure in the pressure vessel should be approx. 1.5 bar max. If the air pressure is too low, it should be in- creased again. To do this unscrew the valve cover (10) on the container and add the missing pressure with a tyre inator gauge via the valve (11). Then screw the valve cover back on. Connections and repairs Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following informa- tion in the event of any enquiries:

• Type of current for the motor

• Machine data - type plate

• Machine data - type plate Service information Please note that the following parts of this product are subject to normal or nat- ural wear and that the following parts are therefore also required for use as con- sumables. Wear parts*: Seals, pre-lter

• Not necessarily included in the scope of delivery!

Use only the transport handle (2) for transporting the device.

10. Cleaning and Maintenance

Attention! Only carry out maintenance, cleaning and adjustment work when the mains plug is pulled out. We recommend that you clean the device directly after every use. Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or sol- vents - they could attack the plastic parts of the universal machine stand. Make sure that no water can penetrate the de- vice interior.

• The pump is largely maintenance-free. However, for a long service life, we rec- ommend regular checking and care.

• Before extended periods of inactivity or through the winter, the pump should be thoroughly ushed through with water, emptied completely and then stored dry.

• To empty the pump housing, loosen the water drain screw (5) and tilt the pump slightly.

• If there is a risk of frost the pump must be completely emptied.

• After longer periods of storage check the pump by switching on/o󰀨 briey in order to check that the rotor turns normally.

• In the event of the pump being jammed connect the pressure line to the wa- ter supply line and remove the suc- tion hose. Open the water supply line. Switch the pump on for ca. two seconds several times. This method recties blockages in most cases.

• To clean the pre-lter (9), unscrew the pre-lter cap (8) and remove the lter unit. Clean the pre-lter with warm wa- ter. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Store the device and its accessories in a dark, dry and frost-proof place that is in- accessible to children. The optimum stor- age temperature is between 5 and 30˚C. Cover the electrical tool in order to pro- tect it from dust and moisture.Store the operating manual with the electrical tool.

13. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in tran- sit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council. Old devices must not be disposed of with household waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/ EU) pertaining to waste electrical and electronic equipment (WEEE). This prod- uct must be disposed of at a designated collection point. This can occur, for exam- ple, by handing it in at an authorised col- lecting point for the recycling of waste electrical and electronic equipment. Im- proper handling of waste equipment may have negative consequences for the en- vironment and human health due to po- tentially hazardous substances that are often contained in electrical and electron- ic equipment. By properly disposing of this product, you are also contributing to the e󰀨ective use of natural resources. You can obtain in- formation on collection points for waste equipment from your municipal adminis- tration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

The table below contains a list of error symptoms and explains what you can do to solve the problem if your tool fails to work properly. If the problem persists after working through the list, please contact your nearest service workshop. Problem Possible Cause Remedy Motor does not start No mains voltage Netzspannung überprüfen Pump impeller jammed Pumpe zerlegen und reinigen Pump does not suck Suction valve not in the water Saugventil im Wasser anbringen No water in the pump housing Wasser in Pumpengehäuse füllen Air in the suction line Dichtigkeit der Saugleitung überprüfen Suction valve leaking Saugventil reinigen Suction strainer (suction valve) clogged Saugkorb reinigen Max. suction height exceeded Check suction height Inadequate pump delivery Suction height too high Check suction height Suction strainer clogged Clean suction strainer Water level dropping rapidly Position suction valve lower Pump performance reduces due to hazardous substances Clean pump and replace worn parts Thermostat shuts pump down Motor overloaded, friction from foreign matter too high. Disassemble and clean the pump, prevent foreign matter from being sucked in (lter) www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58
