USER MANUAL Nordlys Skandika

1. Keep children and pets away from the appliance. This

device is suitable for adult use only. Do not leave children unattended in the same room with the machine.

2. Do not operate the appliance on deeply padded, plush or

shag carpet. Damage to both carpet and device may result.

3. Only one person at a time should use the machine.

4. During the exercise, grasp the movable handles rmly with

your hands and secure your feet with the straps on the pedal.

5. If the user experiences dizziness, nausea, chest pain, or

any other abnormal symptoms, stop the workout at once. Consult a physician immediately.

6. Place the device on a solid and level and surface only and

use an underlay to protect the oor. Only use the unit in enclosed spaces. Only use in cool, dry environments.

7. Do not place ngers or objects in the range of moving parts

8. Always wear appropriate clothing and shoes which are

suitable for your workout on the device. The clothes must be designed in a way so that they will not get caught in any part of the device during the work-out due to their form (for example, length). Be sure to wear appropriate shoes which are suitable for the work-out, rmly support the feet and which are provided with a non-slip sole.

9. Use the machine only for its intended use as described in

this manual. Do not use attachments not recommended by the manufacturer.

10. Do not place any sharp object around the machine. Never

drop or insert any object into any openings.

11. Children, disabled and handicapped persons should use the

device only under supervision and in presence of another person who may give support and useful instructions.

12. Before using the machine to exercise, always do stretching

exercises to properly warm up. Never exercise directly before or after meals.

13. Never operate the machine if the machine is not func-

tioning properly. The safety level of the device can only be maintained if it is regularly checked for wear and damage.

14. No liquid may penetrate the device! Do not use strong

detergents to clean the unit.

15. Keep the cord away from heated surfaces.

16. To disconnect, turn all controls to the o position, then

remove the plug from the outlet.

17. The service or replacement of parts regarding the power

system can only be conducted by certied professionals. Service without certied professional is prohibited.

18. The max. user capacity of this speed-independent class

HC device is 120 kgs (264 lb). The device is not suitable for medical purposes.

19. Please only exercise with a

minimum clearance area of 2 meters around the device. Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for indi- viduals over the age of 35 or persons with pre-existing health problems. SAFETY PRECAUTIONS WARNING To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use. 2 meter 2 meter2 meter 2 meter30

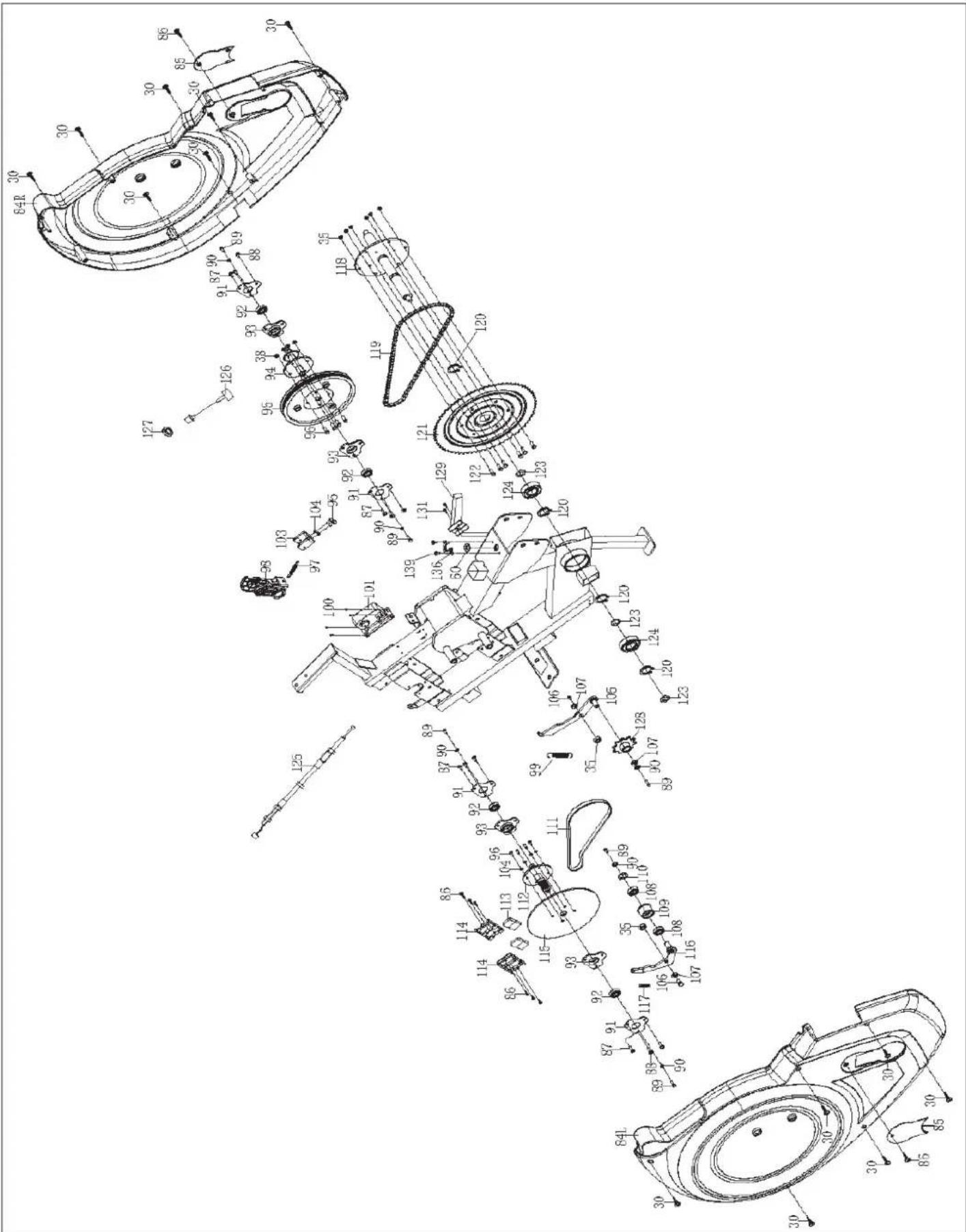

PRE-ASSEMBLY CHECK LIST

Main frame 1 pc. Computer 1 pc. Adaptor 1 pc. Covers 2 pcs. Seat 1 pc. Rear stabilizer 1 pc. Pedals 2 pcs. Covers 2 pcs. Front stabilizer 1 pc. Rowing arms 2 pcs. Covers 2 pcs. Aluminium rail 1 pc. Assembly blister card Instruction manual 1 pc. 2 pcs. Computer support 1 pc. Rowing arm support 1 pc.31

1. We recommend setting up the device with 2 persons!

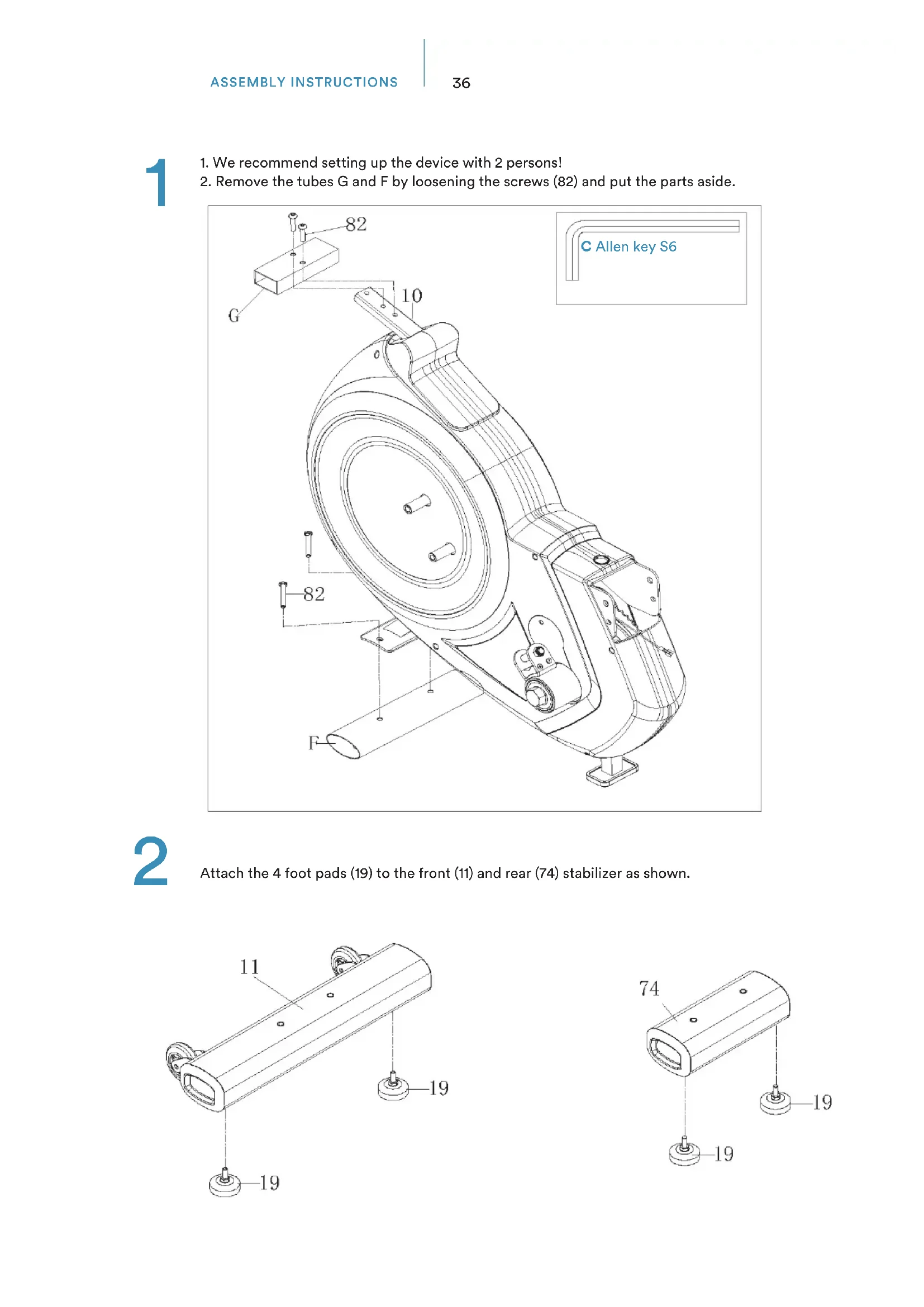

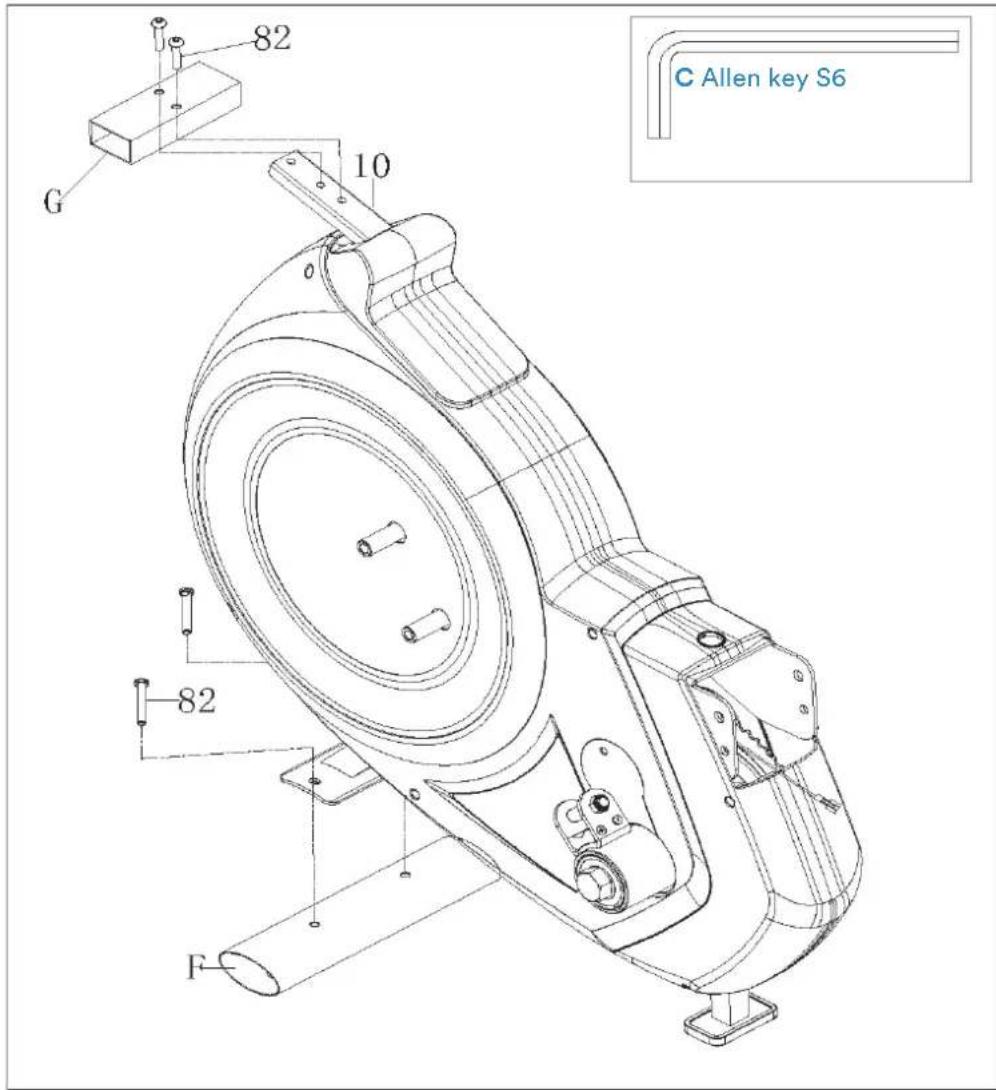

2. Remove the tubes G and F by loosening the screws (82) and put the parts aside.

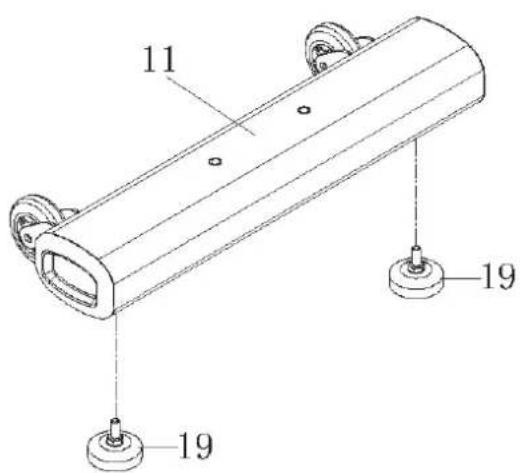

Attach the 4 foot pads (19) to the front (11) and rear (74) stabilizer as shown.37

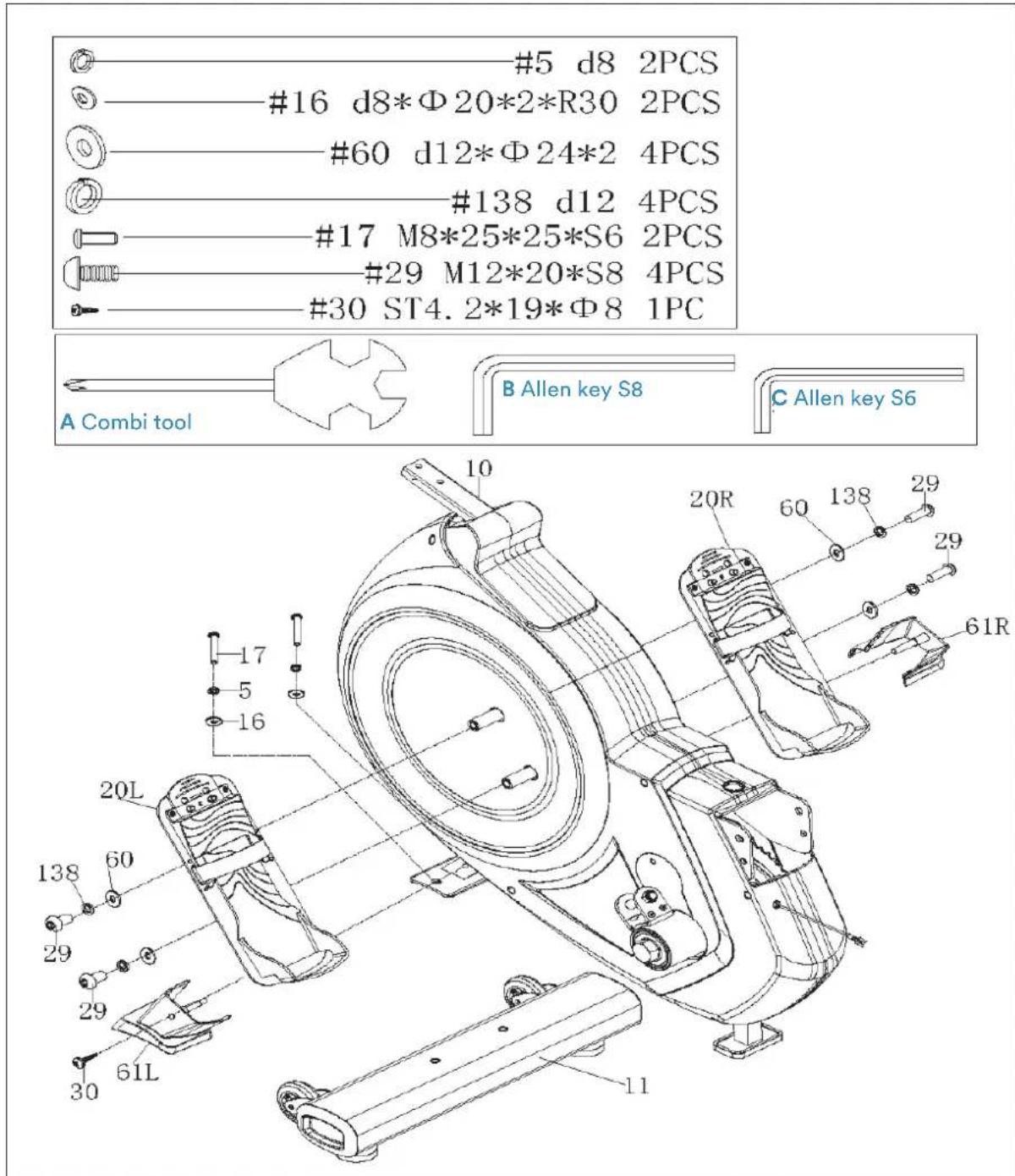

1. Attach the front stabilizer (11) to main frame (10) using the screws (17), spring washers (5) and

washers (16). Loosen the pre-assembled screws (30) and then fit the covers (61 L/R) to the main frame (10) using these.

2. Attach the pedals (20 L/R) to main frame (10) using the screws (29), spring washers (138) and

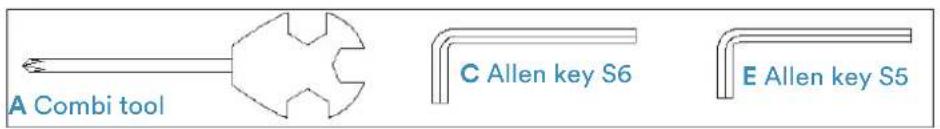

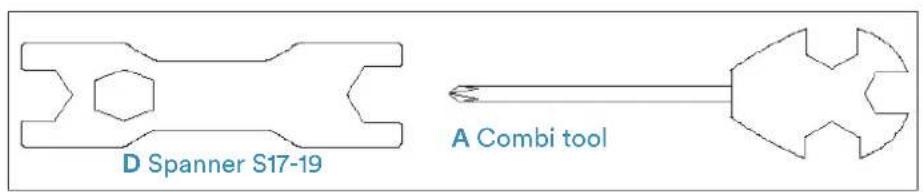

washers (60). Use the included tools for all steps. C Allen key S6 B Allen key S8 A Combi tool38 ASSEMBLY INSTRUCTIONS

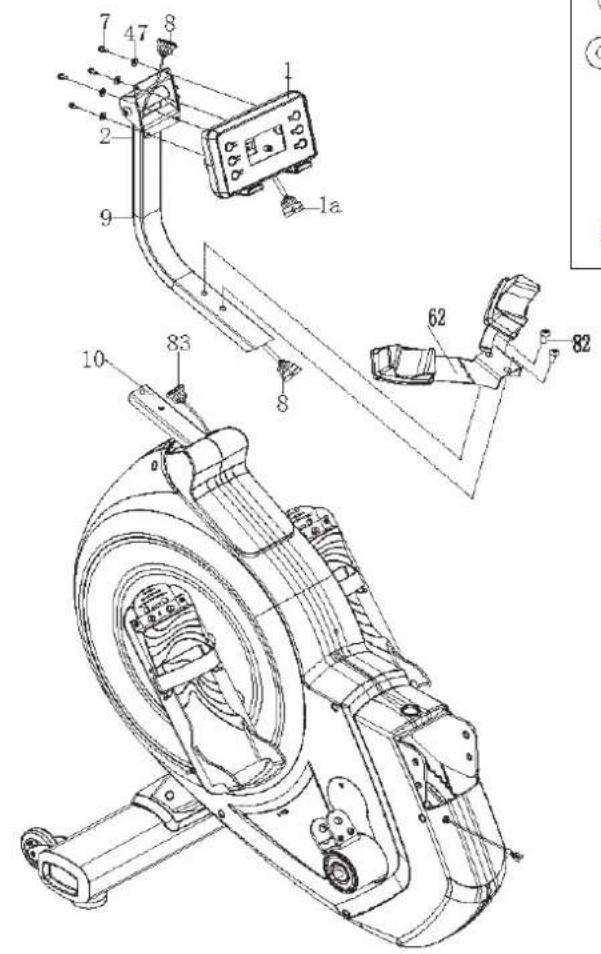

1. Connect the cable parts (8) and (83) and carefully fit the computer support (9) and the rod holder

(62) with the screws (82) on the main frame (10) as shown.

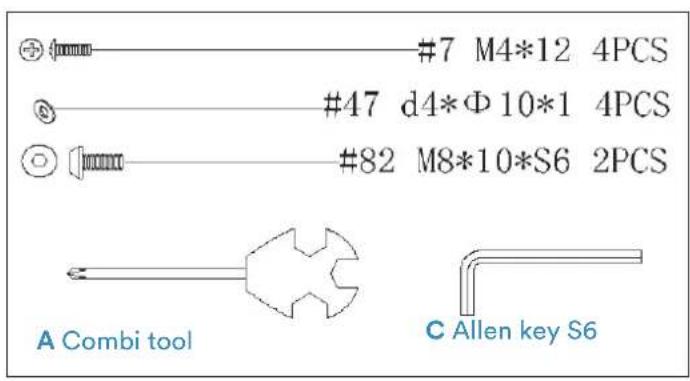

2. Loosen the pre-assembled screws (7) and washers (47) on the back of the computer (1) and connect

the computer cable (1a) to the cable part 1 (8). Then carefully place the cable connection inside the tube of the computer support (9). Finally mount the computer (1) on the computer support (9) with the screws (7) and washers (47). C Allen key S6 A Combi tool39

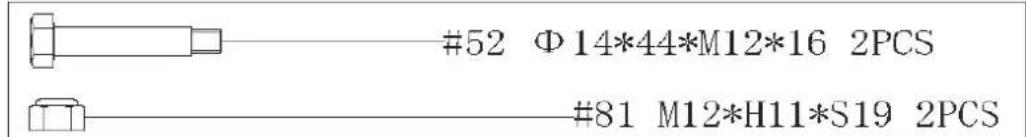

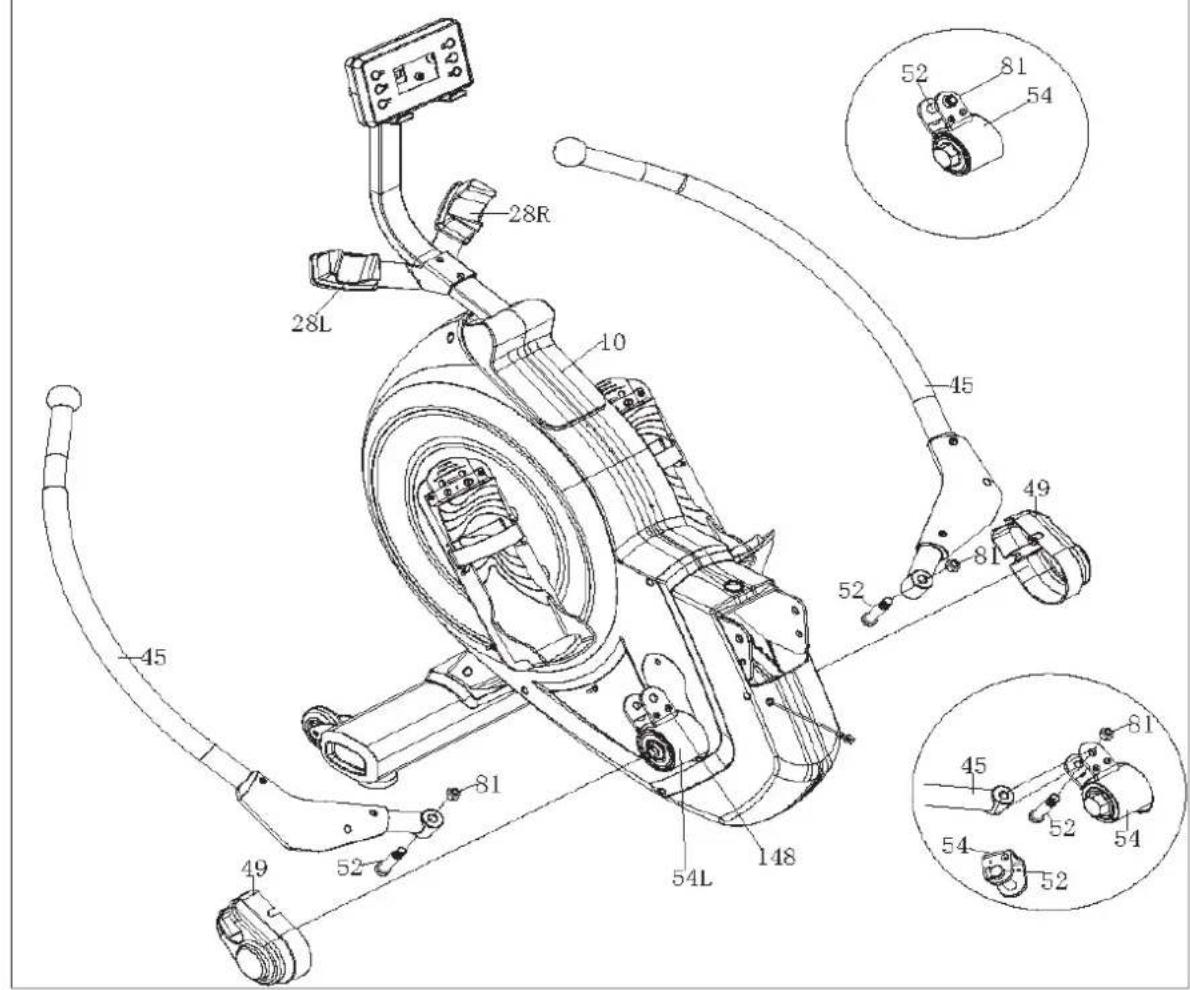

1. Loosen the screws (52) and nuts (81) and install the control rods as shown with the screws (52)

2. Place the rod ends on the left and right rowing arm support (28 L/R).

3. Then fit the cover (49) onto the shaft sleeve (54) with the screws (148, pre-assembled).

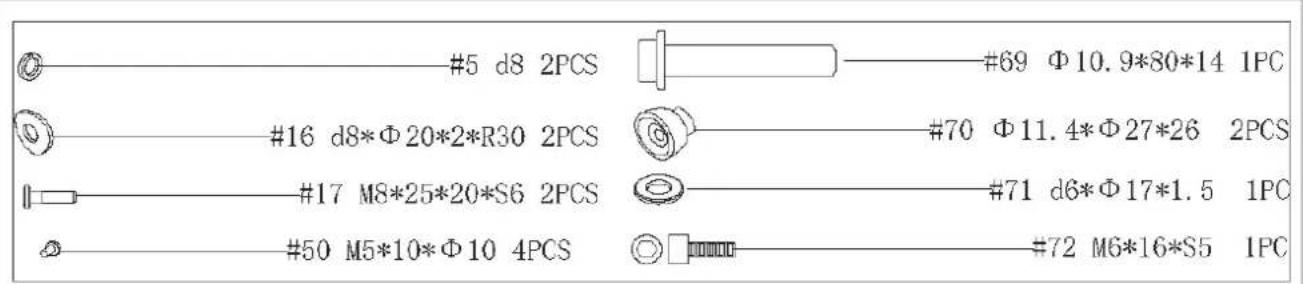

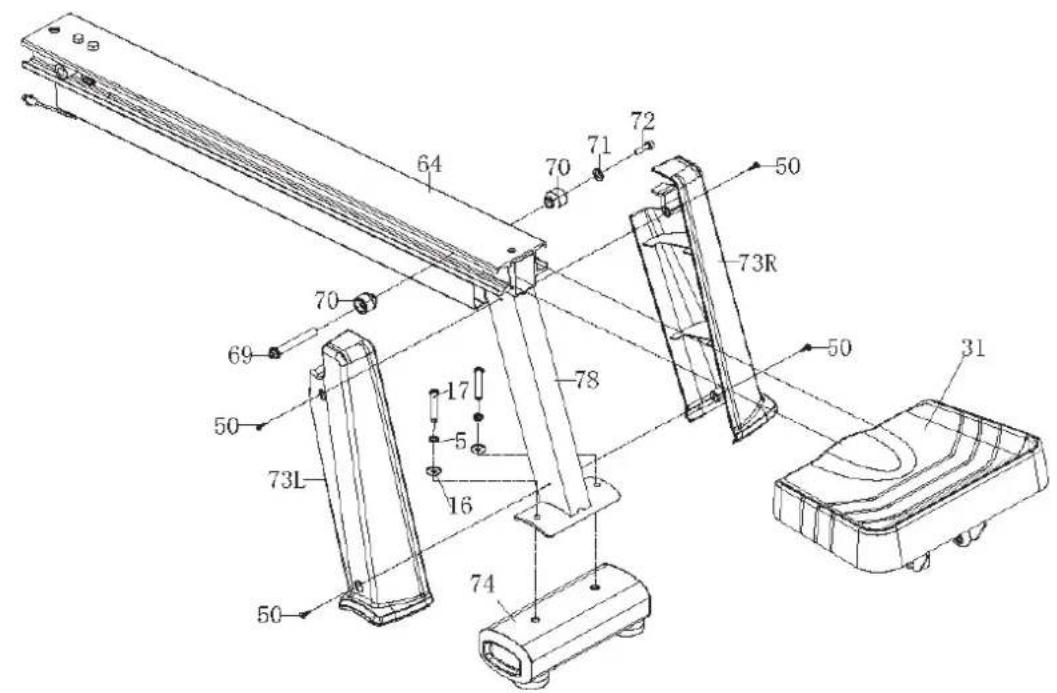

1. Guide the seat (31) onto the aluminium rail (64) and attach the limiting axles (69) and bushings (70)

to the aluminium rail (64) with the screws (72) and washers (71).

2. Fix the rear stabilizer (74) on the aluminium support frame (78) using the screws (17), spring washers

(5) and washers (16).

3. Loosen the pre-assembled screws (50) to fix the covers (73 L/R) on both sides of the aluminium

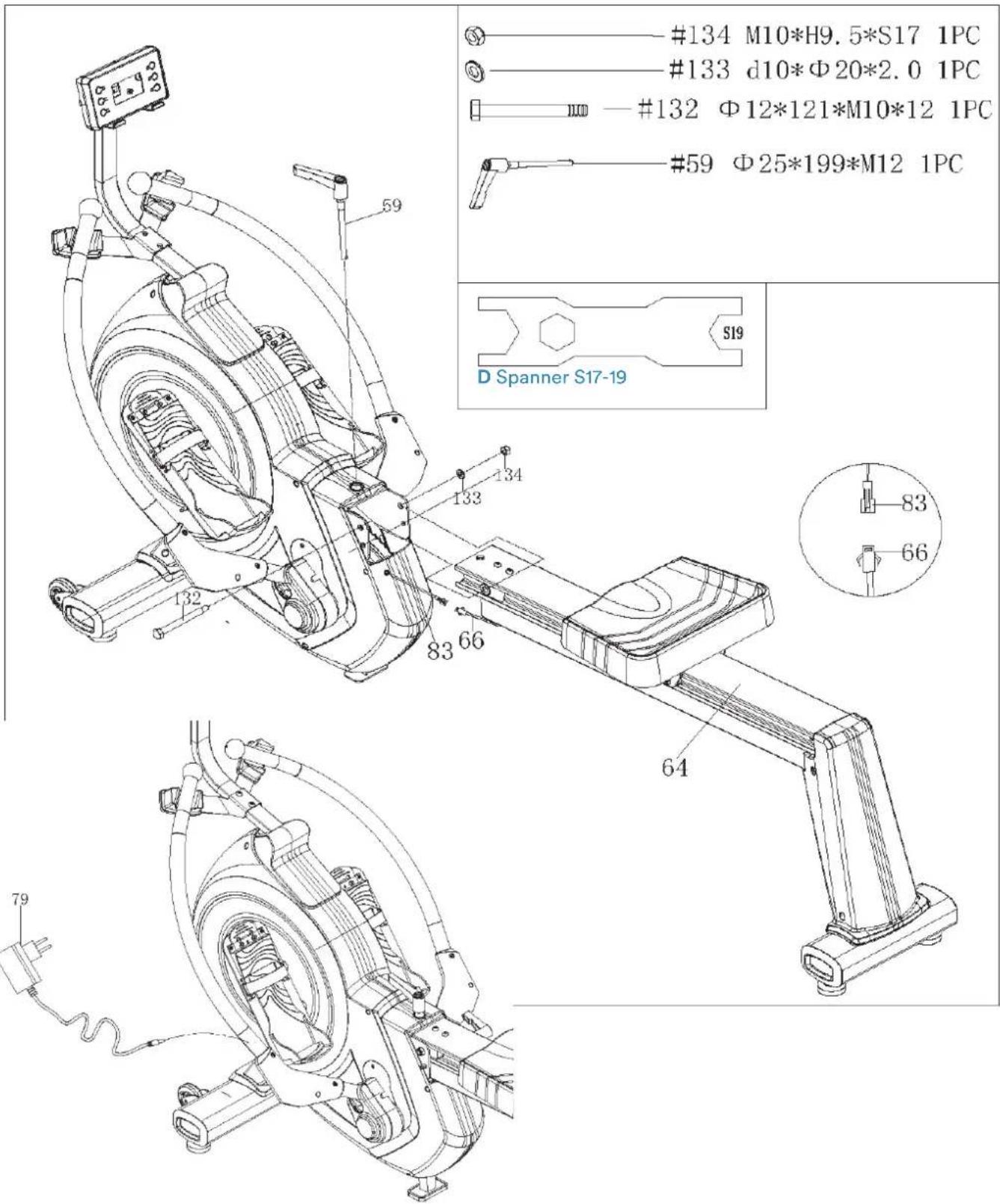

1. Connect the inductor (66) to the cable part 2 (83). Fit the aluminium rail (64) to the main frame

as shown with the screw (132), washer (133) and nut (134). Secure the rail additionally with the L-bolt (59).

2. The adaptor (79) is connected to the unit at the front end above the stabilizer.

ADJUSTMENT GUIDE / FOLDING

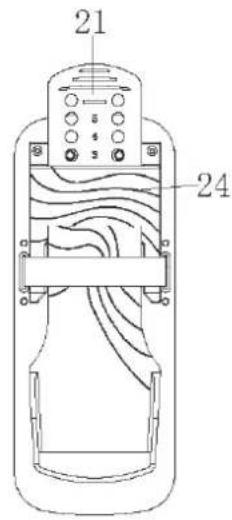

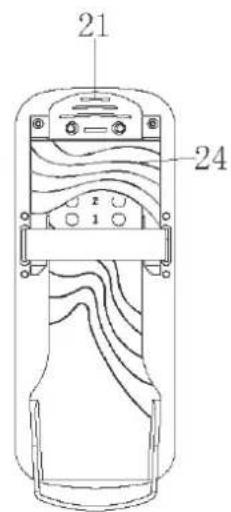

Adjust pedal strap To adjust the pedal strap, remove the Velcro end of the strap from the mesh side by pulling it upward then to the left. Once removed, you may increase the opening of the pedal strap by pulling the mesh end up and to the right. To tighten, pull the Velcro end of the pedal strap upward then to the right and down to secure it to the mesh side of the strap. Adjusting the pedal To adjust the upper part of the pedal (21), pull these upwards away from the pedal board (24). You can now adjust it as desired and then press down again. Folding

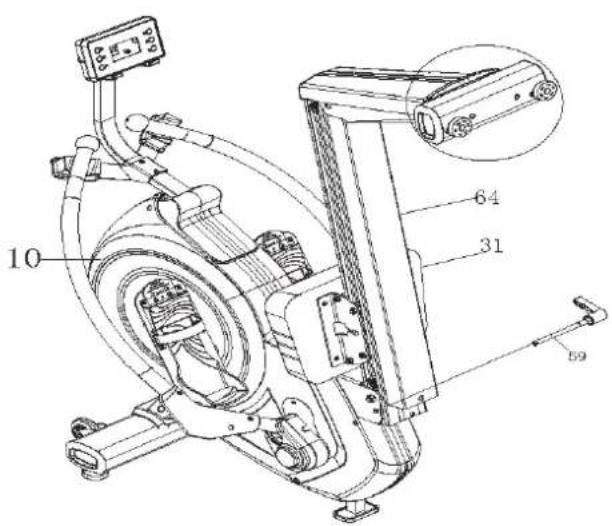

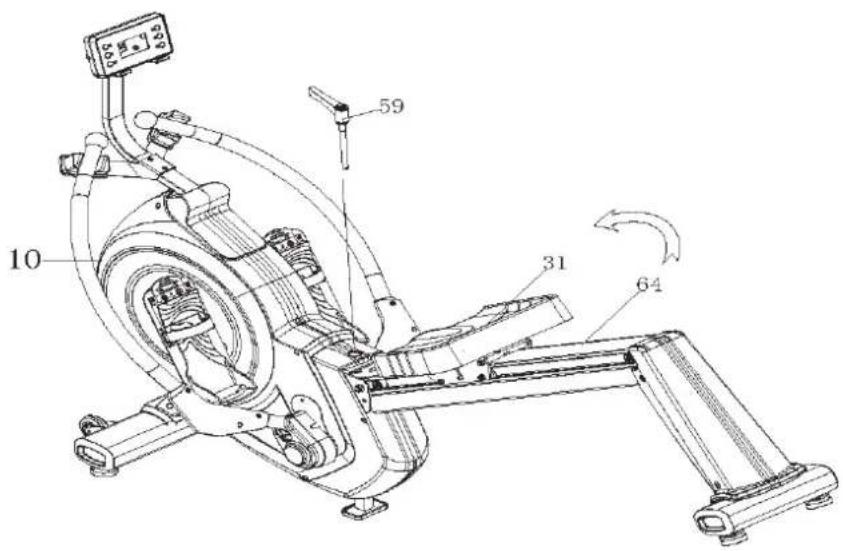

1. Push the seat (31) forward.

2. Loosen and pull the L-screw (59)

from the main frame (10).

3. Fold the aluminium rail (64) upwards

and fix it in the folded position with the L-bolt (59).43

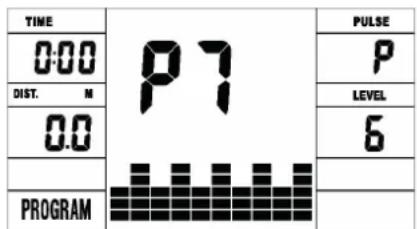

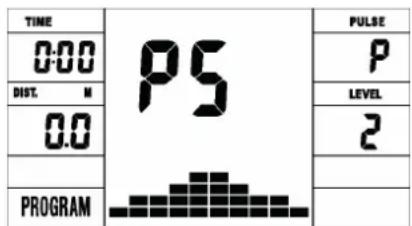

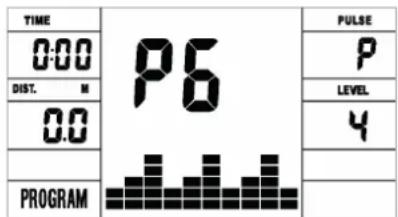

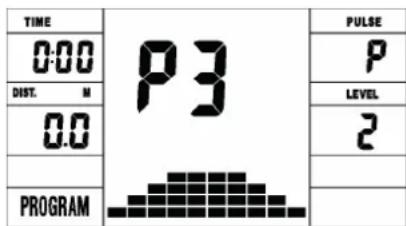

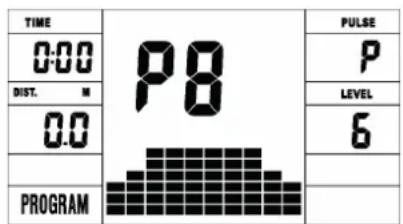

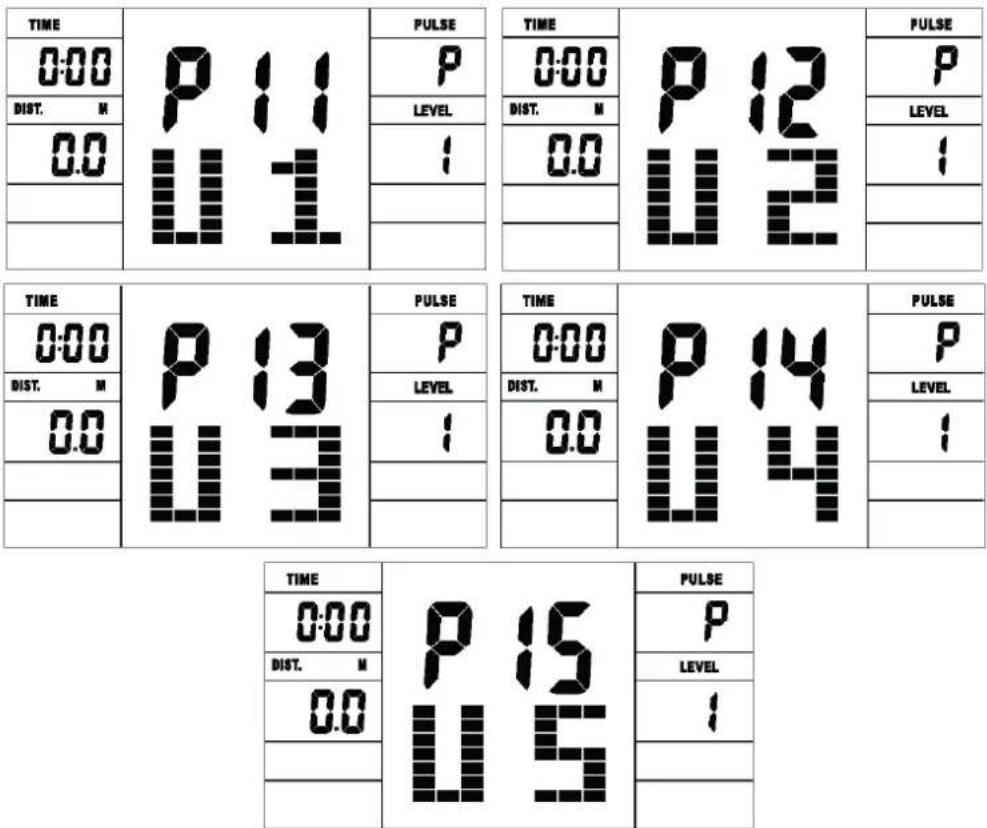

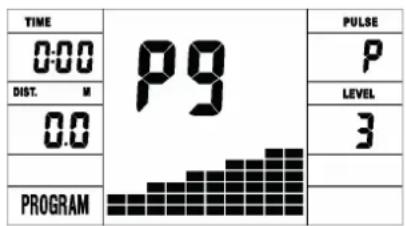

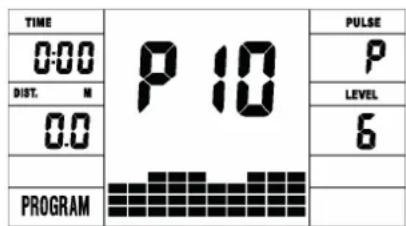

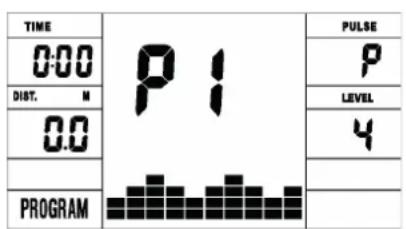

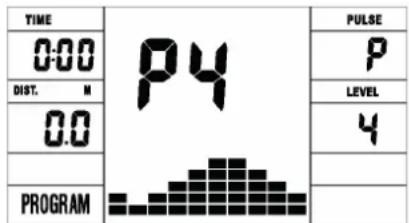

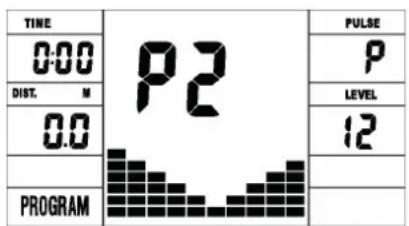

COMPUTER INSTRUCTIONS Depending on the mode, you may set the training time (TIME), distance (DISTANCE) or calories burned (CALO- RIES) before the start of the training session. Use the UP / DOWN keys and ENTER to confirm. Press START/STOP to start the training. If target values have been entered (time, distance, calories burned), the machine will automati- cally stop when the first target value reaches 0 (countdown). Always press START/STOP to end the workout and return to standby mode. Programme profiles of the permanently stored programmes P1 to P10: NOTE The computer switches o automatically after 4 minutes if no signal is received. P1 Rolling P2 Valley P3 Fatburn P4 Ramp P5 Mountain P6 Interval P7 Cardio P8 Endurance P9 Slope P10 Rallye46 COMPUTER INSTRUCTIONS For the user-definable programmes (P11 to P15) you must also enter the resistance preset for each of the 10 segments using the UP / DOWN keys and ENTER to confirm. Once programmed, profiles are stored under the user IDs U1 to U5. For the watt-controlled programme (P16) a wattage must be specified. The unit will then automatically adjust the resistance during the training, depending on whether the power needs to be higher or lower. Programmes P17 to P20 are heart rate controlled programmes (a proper heart rate signal is mandatory). A target heart rate must be set. The device then attempts to automatically control the resistance according to the desired heart rate level. After selecting the appropriate mode, your age is asked:47

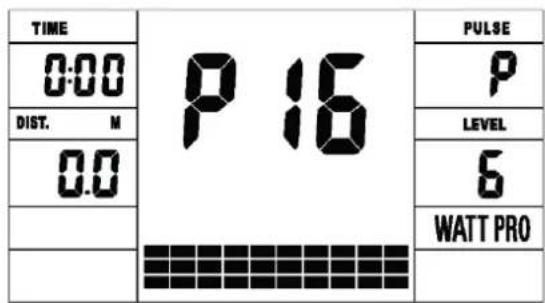

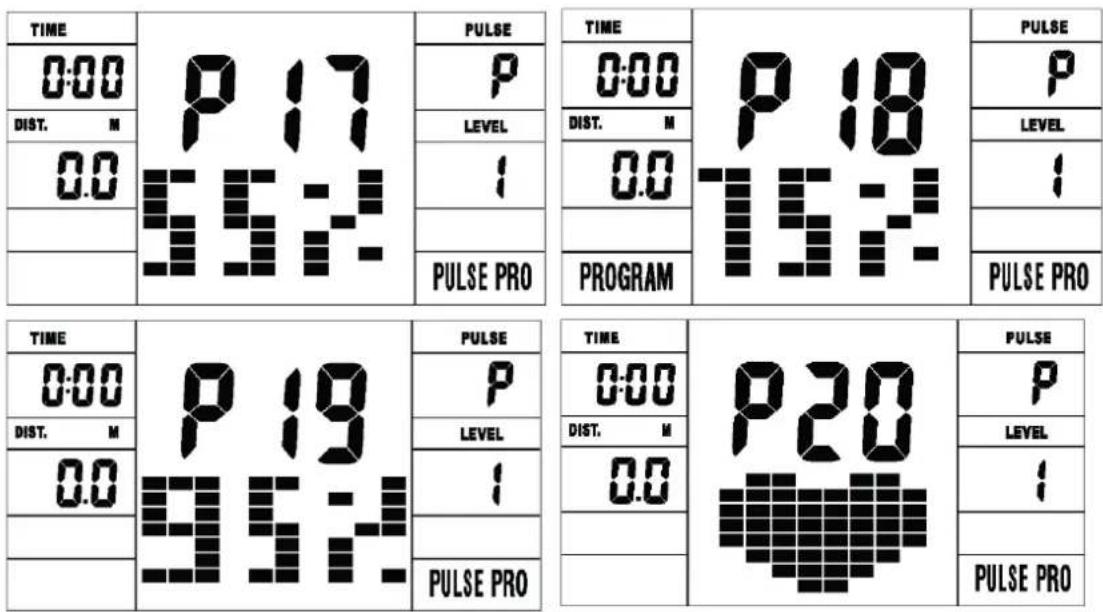

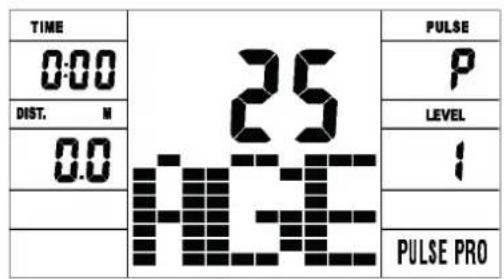

COMPUTER INSTRUCTIONS Set your correct age in years using the UP / DOWN keys and ENTER to confirm. The prompt does not appear when mode P20 is selected, as a target heart rate must be entered directly. However, in programmes P17 to P19 the target heart rate is calculated according to the following formula depending on your age: x% (e.g. 75%) x (220 - your age). Programme P17 calculates with 55%, P18 with 75% and P19 with 95%. After starting the programme, the resistance is automatically controlled during the workout and cannot be adjusted manually. In these modes, target values for time, distance or calorie consumption can be set additionally if required as well.48 Using a chest-belt The computer is equipped with a built-in receiver for the wireless receipt of the pulse freqeuncy with a compa- tible SKANDIKA chest-belt (frequency: 5.3 kHz, not included in the scope of delivery). Recommended range:

If you want to transmit your pulse frequency via chest-belt, follow these instructions:

1. Make sure, the correct battery is inserted into the chest belt (button cell of type CR-2032, 3 volts).

Battery replacement: Open the battery case cover on the back side of your transmitter (you may use a coin for easier handling) and replace the old battery by a tting new one. The „+“ symbol should point upwards. Make sure, the sealing ring ist correctly placed. Close the case cover properly.

2. The transmitter needs to be attached to the belt with the 2 buttons. Moisten the electrodes slightly before

wearing the belt. This increases the contact sensibility and enables a better wireless signal transmitting.

3. Put on the chest belt and make sure the electrodes are touching your breast directly. You may adjust the

belt to a comfortable length. However, the electrodes must have contact with your skin in order to measure your heart rate correctly.

4. The 5.3 kHz-chest-belt communicates with the computer via the built-in receiver. It may last up to one mi-

nute before a correct display can be seen. Safety hint: Do not use the chest-belt if you have a pacemaker, unless you double-checked with the producer of the pace- maker and with your doctor! Battery-Disposal: Batteries should not be considered as regular garbage. As consumer you are obliged to return nished batteries. The nished batteries can be returned to a collection base at your residential area or at places, where batteries can be bought.

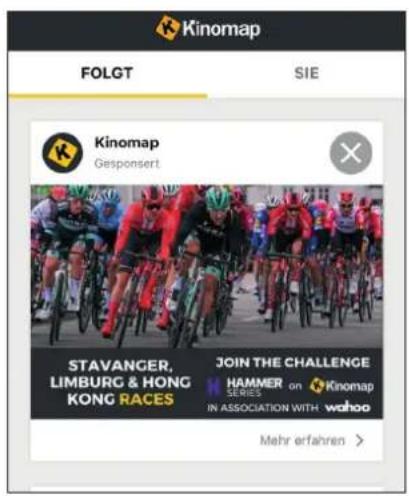

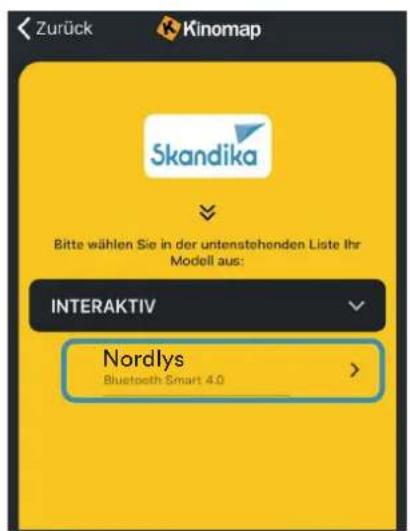

BLUETOOTH CONNECTION KINOMAP The device computer can be connected to the „KinoMap“ app via Bluetooth (frequency:

2.4 GHz). The free KinoMap app turns your

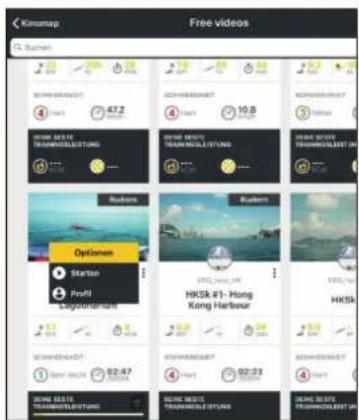

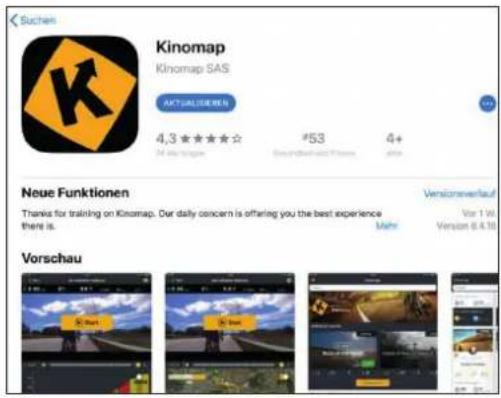

device into a powerful and fun tness product! Choose from the geotagged video on Kinomap and go! Your position is shown in the video and as icon on the map. Download the Kinomap Fitness app in the app or play store by searching for ‘Kinomap Fitness’ or follow one of the links below. Install and open the app and register resp. log in. Activate Bluetooth. Now add the training device as follows: Apple StoreGoogle Play

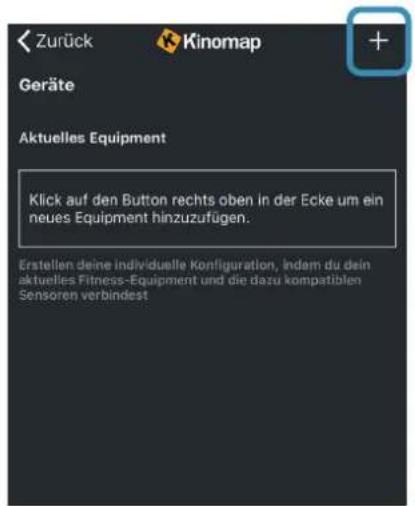

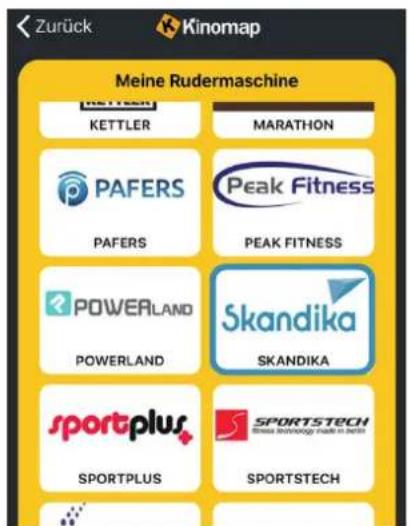

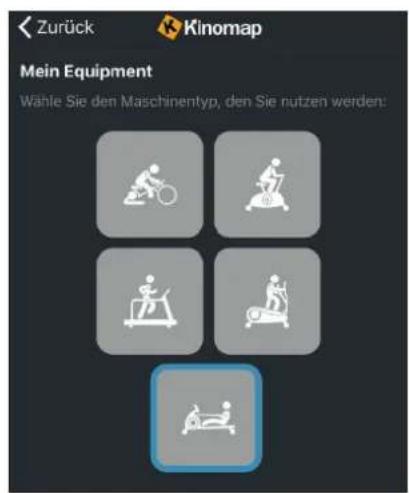

1. 2. Tap on „+“ 3. Rowing machine

5. Tap on the device

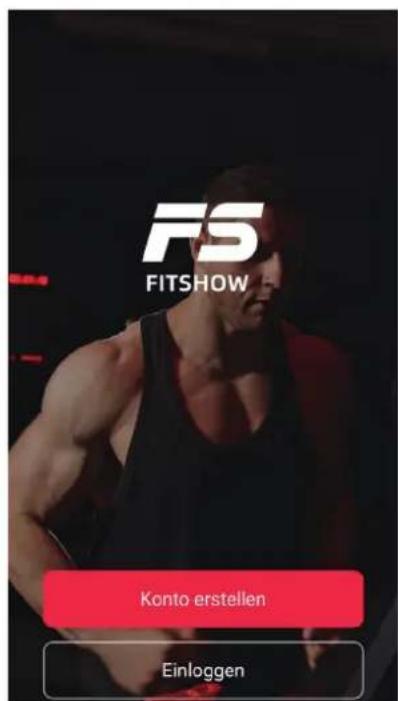

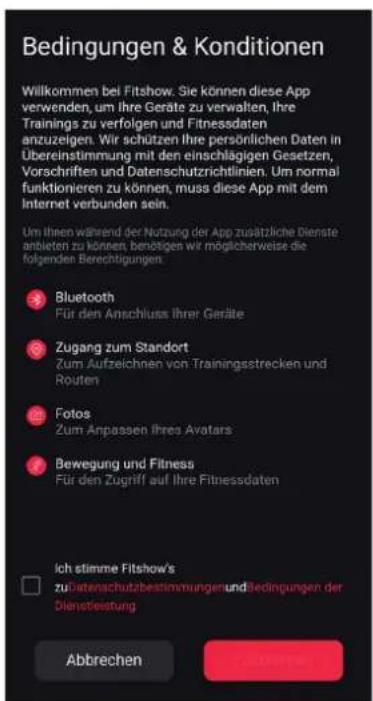

Nordlys Now tap on OK and return to main menu. You can now choose a course for your exercise (depending on your type of KinoMap account maybe only some free courses). Press Start and begin to exercise!50 BLUETOOTH CONNECTION FITSHOW Activate Bluetooth on your mobile device, download the app and install it on your iOS or Android device. You can nd it via the app search function of your device or use the QR code shown here. After successful installation, you can start the app on your mobile device. To be able to record training data, you must register in the app. Step 1: Open the FitShow app and agree to FitShow‘s privacy policy and terms of use. Step 2: Tap the „Create Account“ button to register a new account. Step 3: Fill out the basic user information. Step 4: In the FitShow app, go to the Workout tab and tap the Quick start button. Step 5: After searching, the name of your device should appear in the device list. Press ‚Connect‘ next to the name of your device. If the training computer of your device is not found, please check whether the Bluetooth functions on the device computer and mobile device are activated. If you want to stop the training, tap and hold the red STOP button in the app. (Screenshots from German version)51
