| Product type | 4-stroke petrol lawn mower |
| Brand and model | Parkside PBM 125 A1 |
| Engine | Briggs & Stratton 125cc Series, 4-stroke, 125 cm³ |
| Power | 1.82 kW (2.47 HP) |
| Maximum speed | 2900 min⁻¹ |
| Fuel tank capacity | 0.8 l (octane 95-98) |
| Oil tank capacity | 0.5 l (SAE 30) |
| Spark plug | Champion XC92YC |
| Cutting width | 420 mm |
| Cutting height | 7 levels: 25, 30, 38, 45, 55, 65, 75 mm |
| Grass box volume | 55 l |
| Weight (with grass box, empty tank) | 21 kg |
| Sound pressure level | 71.9 dB(A) (K=3.0 dB) |
| Guaranteed sound power level | 94 dB(A) |
| Vibration (handle) | 5.1 m/s² (K=2.0 m/s²) |
| Housing material | Steel sheet |
| Main functions | Mowing, grass box with level indicator, cutting height adjustment by lever, foldable handlebar, safety bar, rear flap, exhaust protection |
| Routine maintenance | Cleaning after use, checking and changing oil, replacing air filter and spark plug, sharpening or replacing blade |
| Safety devices | Safety bar (engine stop), rear flap, exhaust protection, engine cover with vents |
| Available spare parts | Grass box, wheels, blade, Bowden cable, levers, air filter, spark plug |
| Warranty | 3 years (France/Belgium) |
Frequently Asked Questions - PBM 125 A1 PARKSIDE
User questions about PBM 125 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual PBM 125 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PBM 125 A1 by PARKSIDE.
USER MANUAL PBM 125 A1 PARKSIDE


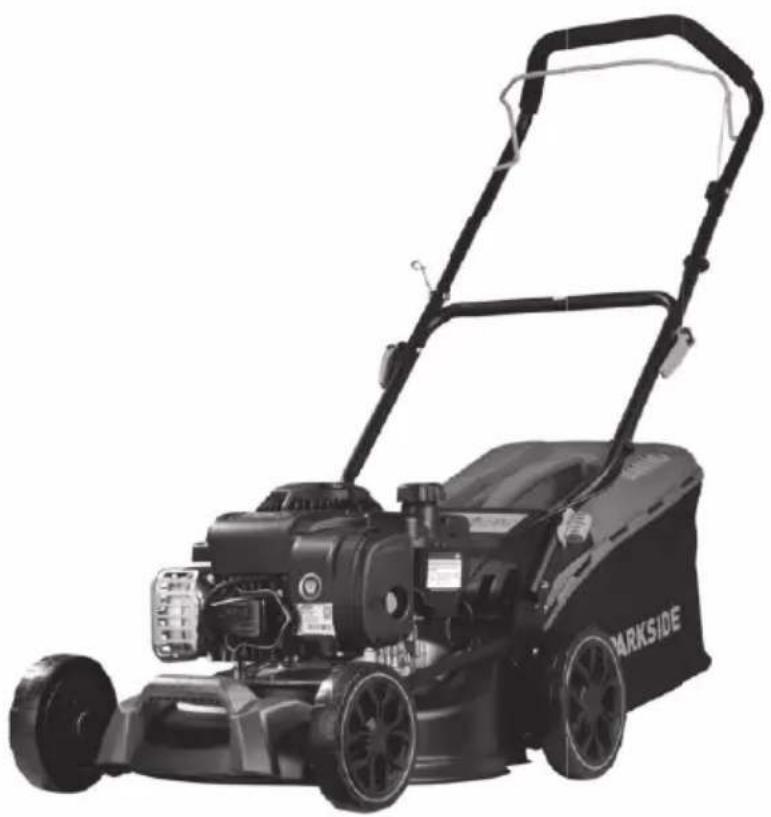

Benzin-Rasenmäher / Petrol Lawn Mower / Tondeuse à essence PBM 125 A1
DE AT CH
Benzin-Rasenmäher
Translation of the original instructions
NL BE
Benzine-gazonmaaier
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Translation of the original instructions Page
Einleitung......4
Bestimmungsgemäße
Verwendung 5
Service-Center......23
Importeur 23
Original-
Motor ....4-Takt B&S 125cc Series
Motorhubraum....125 cm ^3 (cc)
General description......25
Scope of delivery 25
Overview....25
Description of functions....26
Safety equipment 26
Technical data 26
Safety information 26
Signs/symbols 27
General safety instructions.... 28
Initial start-up 31
Mounting the lower bar 31
Mounting the handlebar.... 31
Fitting the starter cable....31
Removing/attaching the grass collection box .... 32
Filling the engine oil 32
Checking the oil level 32
Filling with petrol 32
Operation 33
Starting/stopping the engine 33
Mowing 33
Working instructions 34
General working instructions ...... 34
Setting the cutting height 34
Emptying the grass collection box ..... 34
Cleaning and Servicing......34
Cleaning and general maintenance work .... 35
Service intervals....35
Replacingtheairfilter....36
Spark plug maintenance 37
Changing the engine oil 37
Replacing blades 37
Adjusting the carburettor 38
Storage....38
General storage instructions 38
Folding up the device 38
Storage during winter 38
Disposal/ environmental protection ......39
Spare parts/accessories ......39
Troubleshooting ....40
Guarantee 41
Repair Service......42
Service-Center......42
Importer 42
Translation of the original EC declaration of conformity...... 148
Exploded Drawing ......155

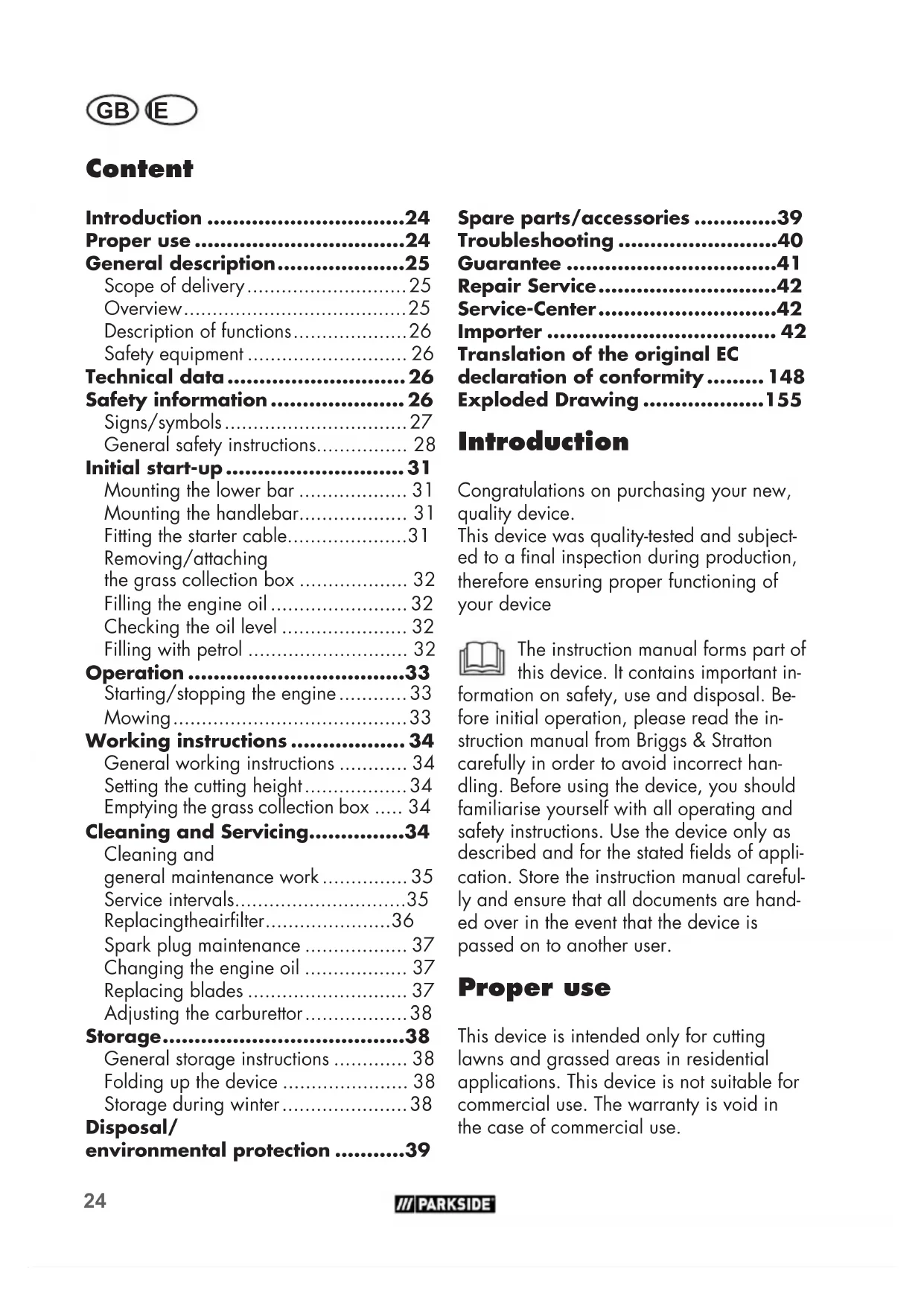

Introduction
Congratulations on purchasing your new, quality device.
This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device
The instruction manual forms part of this device. It contains important information on safety, use and disposal. Before initial operation, please read the instruction manual from Briggs & Stratton carefully in order to avoid incorrect handling. Before using the device, you should familiarise yourself with all operating and safety instructions. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.
Proper use
This device is intended only for cutting lawns and grassed areas in residential applications. This device is not suitable for commercial use. The warranty is void in the case of commercial use.
Any other use that is not expressly permitted in this instruction manual may result in damage to the device and pose a serious hazard to the user.
The device is intended for use by adults.
Children and people who are not familiar with this instruction manual must not use the device.
The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.
General description
An illustration of the most important functional components can be found on the front and the back fold-out pages.
Scope of delivery
Carefully remove the device from the packaging and check whether all the parts listed below are present and complete:
- Petrol lawnmower
- Lower bar
- Mounting accessories for the handlebar
- Grass collection box
- Cable clamp
- Spare spark plug
- Spark plug wrench
- Quick guide
- Instruction manual
- Instruction manual from Briggs & Stratton
Overview
1 Handlebar
2 Safety bracket
3 Bowden cable
4 Lower bar
5 Mounting accessories, handlebar 5a Washer
5b Quick release levers 5c Screw
6 Cable clamp
7 2 quick release levers
8 Engine cover with ventilation holes (finger protection)
9 Tank cap
10 Air filter box
11 Air filter (not visible)
12 Spark plug connector
13 Spark plug (not visible)
14 2 front wheels
15 Sheet plate housing
16 Exhaust guard
17 Lever for setting the cutting height
18 2 rear wheels
19 Oil tank cap with dipstick
20 Rear impact protection
21 Grass collection box
22 Grass collection box carrying handle
22a Bottom handle, grass collection box
23 Fill level indicator
24 Starter handle with starter cable
25 Starter cable guide
26 Spare spark plug
27 Spark plug wrench
28 Grass collection box attachment
29 Filler plugs
30 Petrol pump (primer)
31 Cutting height position

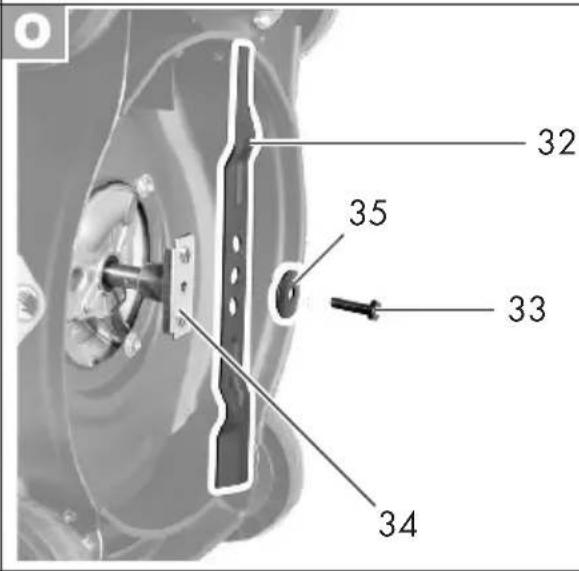

32 Blade
33 Blade bolt
34 Engine spindle
35 Clamping disk
Description of functions
The device is powered by a powerful 4-stroke engine (Briggs & Stratton 125 cc series).
The device is equipped with a high quality steel plate housing, a grass collection box and a foldable grip handle.
Please refer to the descriptions below for information on how the operating elements work.
Safety equipment
2 Safety bracket
The device stops when the safety bracket is released.
16 Exhaust guard
Prevents hands or flammable materials from coming into contact with the hot exhaust.
20 Rear impact protection
Protects the operator from ejected parts and against unintended contact with the blade when mowing without the grass collection box.
Technical data
Petrol lawn mower .....PBM 125 A1
Engine......4-stroke B&S 125cc Series
Engine displacement.....125 cm ^3 (cc)
Power....1.82 kW (2,47 PS)
Max. speed ( n_0 ) 2900 min ^-1
Blade tightening torque....45 Nm
Petrol tank volume 0.8 l
Octane rating 95-98
Engine oil tank volume....0.5 l
Spark plug .... Champion XC92YC
Cutting circle .... 420 mm
Cutting height....7-level, .....25/30/38/45/55/65/75 mm
Grass collection box volume....55 l
Weight (incl. grass collection box, with an empty tank)....21 kg
Sound pressure level
$$ \left(L _ {p A}\right) \dots 7 1. 9 \mathrm{dB(A)}; K _ {p A} = 3 \mathrm{dB} $$
Sound power level ( L_WA )
measured.....91.9 dB(A); K_WA = 1.89dB
guaranteed 94 dB(A)
Vibration on handle
(a_h) 5.1 m/s²; K=2.0 m/s²
Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.
The vibration emission value has been measured according to a standardised testing method and may be used for comparison with another device.
The indicated vibration emission value may also be used for an introductory assessment of the exposure.
Warning: The vibration emission value whilst actually using the device may vary from the given values regardless of the type and way in which the device is used.
Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).
Safety information
This section describes the basic safety rules when working with the device.
Signs/symbols
Symbols on the device
Caution!
Read the instruction manual
Risk of injury due to ejected parts;
Keep persons in the vicinity away from the device
Risk of injury due to sharp blade! Keep away from feet and hands
Caution - Toxic vapours!
Do not operate device in closed rooms
Caution - Petrol is flammable!
Do not smoke and keep away from heat sources
Do not expose the device to moisture.
Never operate the device in rain.
ion! The lawnmower blade continues to move
Switch off the engine when you leave the device.
mow if there are people, particularly children or animals, nearby.
Switch off the engine before maintenance work and unplug the spark plug connector
Caution - Hot surfaces!
Risk of burn injury
Wear eye and hearing protection
The sound power level L_WA is indicated in dB
Danger! Keep hands and feet at a safe distance
Tank cap symbols:
Reference to the petrol filler neck Do not fuel any E85-mixtures!
Caution! Check the oil level before starting
Symbol on the oil tank cap:
Reference to the oil filler neck
Symbol on the petrol tank:
Attention!
Read the instruction manual
Caution - Petrol is flammable! Allow the engine to cool for about 2 minutes before refuelling.
Caution - Toxic CO vapours! Do not operate device in closed rooms
Caution - Hot surfaces! Risk of burn injury
Symbol on petrol pump:
Press petrol pump (primer) 3x before starting.
Symbol on handlebar:
Switch device on (ON): Pull up safety bracket
GB IE
Switch device off (OFF): Release safety bracket
Fill level indicator:
Fill level indicator open: Grass collection box empty
Fill level indicator closed: Grass collection box filled
Symbols used in the instruction manual
Hazard symbol with information on the prevention of personal injury or property damage.
Hazard symbol with information on damage prevention.
Stand behind the device when starting it.
Advisory symbol with information on how to best use the device.
Read the instruction manual
Wear gloves when handling the blade.
highly flammable
toxic
environmentally hazardous
General safety instructions
WARNING! Read all safety instructions and guidelines carefully. Failure to follow the safety instructions
and guidelines may result in fire and/or serious injuries.
Note:
- Read the instruction manual carefully. Familiarise yourself with the adjustment settings and how to use the machine correctly.
- In case of uncertainties, consult someone for instruction concerning the use of the device and prohibited operations.
- Pay attention, be aware of what you are doing and take the utmost care when working. Do not use the device if you are tired or ill or you are under the influence of drugs, alcohol or other medication. A moment of inattention whilst using the device can result in serious injuries.
- This device is not intended for use by people with restricted physical, sensory or mental capabilities; those who do not have sufficient experience in using the device or knowledge of the device must not use it unless they are supervised by an individual responsible for their safety, or receive instructions from this person on how to use the device.
• Children must be supervised to ensure that they do not play with the device.
- Never allow children or other people who are unfamiliar with the instruction manual to use the device. Local regulations may specify the minimum age of the user.
- Never mow if there are people, particularly children or animals, nearby. Distractions can cause you to lose control of the device.
- Remember that the user is responsible for accidents involving other people or their property.
- Observe noise protection rules and other local regulations.
Preparations:
- Always wear slip-resistant shoes and long trousers when mowing. Do not mow barefoot or in light sandals. Loose clothing, jewellery or long hair may get caught in moving parts. Wearing suitable clothing reduces the risk of injuries.
- Check the terrain on which the device will be used and remove all objects (e.g. stones, sticks, wires, toys) which may be drawn into the device and ejected.
-
Warning: Petrol is highly flammable. Fire or explosions can lead to severe burns:
-
Store petrol only in the specially provided containers;
- Refuel only in open areas and never smoke while refuelling the device;
- Petrol has to be added before starting the engine. The fuel tank cap must not be opened and petrol must not be added while the engine is running or the device is still hot.
- If there was an accidental petrol spill, do not attempt to start the engine. Instead, remove the device from the petrol contaminated surface. Do not try to ignite the engine until all petrol vapours have evaporated;
-
If the fuel tank or other tank caps are damaged, replace them for safety reasons.
-
Replace defective mufflers.
- Before use, always perform a visual inspection to check whether the cutting tools, fastening bolts and the entire cutting unit are worn out or damaged. Worn or damaged tools and bolts must only be replaced as a set to prevent imbalance.
- Take care when using devices with several cutting tools as the movement of one blade can lead to rotation of the other blades.
- Use replacement and accessory parts supplied or recommended by the manufacturer only. Using externally produced parts can cause injury, and void any warranty claims.
Operation:
- Never let the internal combustion engine run in a confined space, as dangerous carbon monoxide can accumulate.
- Use the machine only in daylight or with good artificial lighting. Working in areas without lighting can result in accidents.
- If possible, do not use the device on wet grass.
-
Always ensure secure positioning, particularly on hillsides, landfills, ditches or dykes. This will help you to have better control of the device in unexpected situations.
-
Always move crosswise across slopes, never up or down.
- Take special care when changing the direction of travel on slopes.
-
Do not mow on overly steep slopes (max. 10°).
-
Only operate the device at walking speed.
• Take special care when turning the device around or pulling it towards you. - Stop the cutting tool when the device has to be tipped for transport over other areas than grass and when the device is moved from and to the area to be mowed.
- Never use the device with damaged protective equipment or protective grating or without installed protective equipment, e.g. impact protection and/or grass collection equipment. This ensures the safety of the device is not adversely affected.
GB IE
- Do not change the controller settings of the motor and do not overturn it. This could damage the device.
- Before starting the engine, release all cutting tools and drives.
- Turn on the device with care in accordance with the manufacturer instructions. Ensure your feet are at a sufficient distance from the cutting tool. There is a risk of injury.
- When starting or turning the engine on, the device must not be tilted, unless it is required to lift the device in the process. In this event, tilt the device only as far as absolutely necessary and lift it only on the side facing away from the user.
- Do not start the motor when standing in front of the ejector opening.
- Switch the engine on as directed and only if your feet are a safe distance away from the cutting tools.
- Never place your hands or feet on or below rotating parts. Always keep away from the ejector opening. A moment of inattention when using the device can result in serious injuries.
- Never lift or carry the device when the engine is running.
- Shut off the engine, disconnect the spark plug connector, remove the ignition key if present, and make sure that all movable parts have stopped moving:
- before removing obstructions, or loosening blockages from the ejector opening;
- before checking the device, cleaning it or performing maintenance work on it;
- when a foreign object has been hit. Check for damages to the device and perform any required repairs before starting and working with the machine again;
- if the device starts to vibrate abnor-
mally strong, an immediate inspection is required.
- when leaving the device;
- before refuelling.
- Never leave the device unattended at the workplace.
- Do not work with a damaged or incomplete device or one which has been converted without the permission of the manufacturer. Using the device for anything other than its intended use can lead to dangerous situations.
- Do not work with the device if there is a risk of lightning strike. Danger of electric shock.
The throttle valve must be closed when the motor comes to a stop. If the engine has a petrol shut-off valve, it must be closed after mowing.
Maintenance and storage:
- Make sure that all nuts, bolts and screws are properly tightened, and that the device is in safe working order. Many accidents are caused by poorly maintained appliances.
- Never store the device with fuel in its petrol tank inside a building, where fuel vapours may be coming in contact with fire or sparks.
- Give the engine time to cool off before you store the device in an enclosed space. Possible fire hazard.
- To avoid risk of fire, keep engine, exhaust and the area around the petrol tank free of grass, leaves or leaking grease (engine oil).
- Check the grass collection unit regularly for wear or loss of function.
- Replace worn or damaged parts for safety reasons. Replace defective mufflers.
- If you need to drain the petrol tank, you must do so outside.
- Treat your device with care. Keep the tools sharpened and clean in order to be able to work better and safer. Follow the maintenance instructions.
- Do not try to repair the device yourself, unless you have professional training. All work not specified in this instruction manual may only be carried out by customer service centres authorised by us.
- Store the device in a dry place and out of reach of children. Devices can be dangerous if operated by inexperienced persons.
Initial start-up
Caution! Risk of injury due to rotating blade. Only perform work on the device when the engine is switched off and has come to a stop.
Please observe the delivered instruction manual from Briggs & Stratton.
Before starting the device, you must
- Remove all transport safety devices,
- fold up the grip rod and lock the quick release levers,
- fill the engine oil,
- fill the petrol,
- mount the grass collection box if necessary,
- set the cutting height if necessary.
Mounting the lower bar
Make sure that the Bowden cable (A 3) is not crushed during the assembly of the grip rod.
- Fold the lower bar (4) up.
- Turn the quick release levers (7) cross-wise towards the bar. Gently pull the
quick release levers (7) away from the lower bar (4).
- Move the lower bar (4) to the desired position.
There are three possible positions.
- Turn the quick release levers (7) back to their original position. The quick release levers click into place.
Mounting the handlebar
- Place the handlebar (1) onto the lower bar (4).
- Slide a screw (5c) through the holes on the grip rods on both sides.
- Slide one washer (5a) on each of the screws (5c). The grooved side of the washer (5a) should face the handlebar (1).
- Screw the quick release levers (5b) on the screws (5c).
- Lock the quick release levers (5b) by pressing them towards the handlebar (1).
The quick release levers must rest against the bar in such a way that tightening can be carried out with medium force. Otherwise, the quick release levers must be turned clockwise for tensioning them or anti-clockwise to loosen them. - Fasten the Bowden cable (3) using a cable clamp (A 6) to the lower bar (4).
Fitting the starter cable
- Pull the safety bracket (2) towards the upper handlebar (1) and hold it in this position.
- Slowly pull the starter cable by the starter handle (24) towards the bar.
- Guide the starter cable into the starter cable guide (25).
- Release the safety bracket (2).
Removing/attaching the grass collection box
Caution: Do not run the device if the grass collection box or impact protection are not attached properly. Risk of injury!
Attaching the grass collection box to the device:
- Lift the rear impact protection (20).
- Hold the grass collection box (21) by the carrying handle (22).
- Hang the grass collection box (21) into the grass collection box attachment (28) on the rear of the device.
- Remove the impact protection (20); it keeps the grass collection box (21) in place.
Removing the grass collection box:
- Lift the impact protection (20).
- Remove the grass collection box (21) by the carrying handle (22).
Filling the engine oil
Place the device on an even base.
- Screw off the oil tank cap with dipstick (19).
- Fill the engine oil in the oil tank. The engine oil tank holds 0.5 l of oil. Use brand-name oil (e.g. SAE 30).
- Close the oil tank cap (19) again.
Checking the oil level
- Screw off the oil tank cap with dipstick (19).
-
Wipe the dipstick (19) using a clean cloth.
-
Return the oil tank cap with dipstick (19) back in the oil tank as far as it will go.
-
After removing the dipstick, read the oil level.
The oil level must be in the marked field between the minimum and maximum mark (maximum: 0.5 l engine oil in the oil tank). -
Wipe away any spilt engine oil.
- Close the oil tank cap (19) again.
Each time before you mow, check the oil level and top up the engine oil before it reaches the bottom mark.
Filling with petrol
Warning! Petrol is flammable and harmful to health and the environment:
- Store petrol in vessels intended for this;
- Only refuel in the open air and never while the engine is running or hot;
- Carefully open the fuel cap so that overpressure can be relieved;
- Do not smoke while refuelling; Avoid skin contact and inhalation of fumes;
- Remove spilled petrol;
- Keep petrol away from sparks, open flames and other ignition sources.
- Dispose of any petrol remnants in an environmentally friendly way (see "Disposal/environmental protection").
- Do not use any petrol/oil mixture.
- Use lead-free normal or premium-grade petrol; If using organic fuel, do not mix more than 10% ethanol.
- Only use clean, fresh petrol.
-
Do not store petrol for longer than one month, as its quality will deteriorate.
-
Unscrew the tank cap (A 9).
- Add petrol up to the lower edge of the filler neck (29). Do not fill the petrol tank fully, so that the petrol has space to expand.
- Wipe petrol residues off the tank cap.
- Close the tank cap.
Operation
Some level of noise emission with this equipment is unavoidable. Postpone noisy work until designated periods when it is permitted. Take rest periods when needed and limit working time to the minimum necessary. For your personal protection and the protection of people working nearby a suitable form of hearing protection must be worn.
Starting/stopping the engine
Warning! Petrol is flammable. Start the engine at least 3 m away from where you refuelled. Possible fire hazard.
Place the device on a solid, even base, avoiding high grass if possible. Make sure that the cutting tool does not touch either other objects or the ground.
For your safety: Stand behind the device when starting it.
Regularly check the petrol and oil levels (see "Checking the oil level") and top up promptly.
Cold start:
- Press the petrol pump (30) (primer) 3x.
- Pull the safety bracket (2) towards the handlebar (1) and hold it.
- Pull the starter handle (24).
- If the motor starts, slowly release the starter handle into the starter cable guide (25).
For a warm start it is not necessary to press the primer (30).
If the primer is pressed too often, too much petrol will enter the carburettor and the motor is difficult to start.
Stopping the engine:
- Release the safety bracket (2). The engine switches off and the blade is braked.
Blade stopping device:
Regularly examine the blade stopping device:
- Release the safety bracket (2). The engine switches off and the blade is braked.
The blade must stop within 7 seconds.
Mowing
- Start the engine (see "Starting/ stopping the engine").
- Hold the handlebar (1) and the safety bracket (2) with both hands while mowing.
Working instructions
General working instructions
- If possible, mow dry grass to go gentle on the sod.
- Adjust the cutting height so that the device is not overloaded.
- Move the device at walking speed and in lines as straight as possible. For a flawless mowing result, the lines should always overlap by a few centimetres.
- Do not move backwards.
• Always move across the slope when working on hills. - If the blades come into contact with a foreign object, turn the engine off immediately. Wait until the blade comes to a stop and check the device for damage. Only continue working if the device is undamaged.
- Switch off the device during longer breaks or when transporting it and wait until the blade has stopped moving.
- Clean the device after each use, as described in the section "Cleaning/storage".
J Setting the cutting height
The device has 7 positions for setting the cutting height:
| 1 | 25 mm | 4 | 45 mm | 7 | 75 mm | ||
| 2 | 30 mm | 5 | 55 mm | ||||
| 3 | 38 mm | 6 | 65 mm |
-
Turn the lever (17) outward to set the cutting height.
-
Move the lever to the desired position (31) to set the cutting height.
-
Release the lever (17) for setting the cutting height.
The correct cutting height is between 30 and 45 mm for an ornamental lawn and about 40 - 65 mm for a utility lawn.
A high cutting height should be selected for the first mowing of the season.
Emptying the grass collection box
Fill level indicator:
You can see when the grass collection box (21) is full through the fill level indicator (23) on the top of the grass collection box (21).
Fill level indicator (23) open: Grass collection box empty
Fill level indicator (23) closed: Grass collection box filled
The fill level indicator (23) only works while the device is in operation.
- Switch off the engine and wait for the blade to come to a stop.
- Lift the rear impact protection (20).
- Remove the grass collection box (21).
- To empty the grass collection box (21), grab it at the carrying handle (22) and the bottom handle (22a) (see also "Disposal/environmental protection").
- Mount the grass collection box again.
Cleaning and Servicing
Have any service and maintenance work on the device that is not described in this instruction manual performed by a professional. Only use original spare parts. Accident hazard!
Maintenance and cleaning work must always be carried out with the engine switched off and the spark plug connector removed. Risk of injury!
Allow the device to cool off before performing any maintenance or cleaning. Engine elements are hot. There is a danger of burns!
Wear gloves when handling the blade.
Please observe the cleaning and maintenance work and also the instruction manual provided by Briggs & Stratton.
We recommend contacting a contractual Briggs & Stratton dealer for engine maintenance work. You can find a contractual dealer near you on the Briggs & Stratton website.
Cleaning and general maintenance work
Cleaning and maintenance work on the underside of the appliance:
Place an underlay under the petrol lawnmower.
- Fold the upper handlebar (1) up
- Release the quick release levers (7) and fold up the upper bar (4).
- Tilt the device back so that the spark plug faces upwards.
Make sure that a second person holds the device because there is a danger of tipping backwards.
Do not tilt the device to the side or forwards. Operating fluids could escape and the engine could be damaged.
- Always keep the device clean. Use a brush or cloth for cleaning, but do not use any aggressive cleaning agents or solvents.
Do not use any water to clean the engine, it could contaminate the fuel system. - After mowing, remove any plant remains using a piece of wood or plastic. Clean the ventilation holes in particular (A 8), the ejector opening and the blade area. Do not use any hard or sharp objects, as these could damage the device.
- Check the device before each use for obvious defects such as loose, worn or damaged parts. Ensure that all nuts, bolts and screws are firmly in place.
- Check the covers and protective devices (A 2, 8, 16, 20) for damage and correct fit. Replace these if necessary.
Service intervals
Carefully perform the maintenance tasks listed in the table on a regular basis. Regular servicing will extend the life of your device. Additionally, you will achieve optimum cutting performance and prevent accidents.
| Maintenance tasks(see "Cleaning and Servicing") | before after | after the first 5 hours | after 8 hours | after 50 hours | annually | |
| work | ||||||
| Check and tighten the screws, nuts and bolts | ✓ | |||||
| Check the engine oil level/petrol level and add engine oil/petrol as needed | ✓ | ✓ | ||||
| Clean the operating elements/area surrounding the muffler | ✓ | ✓ | ||||
| Clean the finger protectionb | ✓ | |||||
| Replace the engine oil | ✓ ✓ | ✓ | ||||
| Replace the air filtera | ✓ | |||||
| Clean/adjust/replace the spark plug | ✓ | ✓ | ||||
| Clean/check blade sharpen blade | ✓ | ✓ | ||||
| Check the muffler and spark arrestorb | ✓ | ✓ | ||||
| Clean the air cooling systema,b | ✓ | |||||
^a Replace more frequently in a high dust environment or in case of heavy contamination
^b See the instruction manual from Briggs & Stratton
Replacing the air filter
Never run the device without an air filter. Dust and dirt may otherwise enter the engine and cause damage.
Removing the air filter
- Disconnect the spark plug connector (M 12) (see "Spark plug maintenance").
- Open the air filter box (10).
- Remove the air filter (11).
-
Clean the air filter (11) in a soap solution.
-
Allow the air filter (11) to dry. Put a few drops of fresh engine oil into the air filter.
- Replace the faulty air filter with a new air filter (see „Spare parts/Accessories“).
Inserting the air filter
- Insert the air filter (11) into the air filter box (10).
- Close the air filter box (10) back up.
Spark plug maintenance
Worn spark plugs, or a spark plug gap that is too large, will lead to a reduction in engine power.
- Remove the spark plug connector (12) by pulling and turning the spark plug (13).
- Unscrew the spark plug (13) counterclockwise with the enclosed spark plug wrench (A 27).
- Check the spark plug gap with the help of a feeler gauge (available from specialised dealers). The spark plug gap must be 0.7-0.8 mm.
- Reset the gap if necessary, by carefully bending the ground/side electrode of the spark plug.
- Clean the spark plug with a wire brush.
- Insert the cleaned and set spark plug or replace a damaged spark plug with a spare spark plug (A 26) (recommended tightening torque 20 Nm, determined with torque wrench) (see "Spare parts/accessories").
Changing the engine oil
Change the engine oil when the petrol tank is empty and the engine is warm.
- Perform the first engine oil change after about 5 operating hours and then every 50 operating hours or annually.
- Dispose of the used oil in an environmentally-responsible way (see „Disposal/Environmental Protection“).
-
Disconnect the spark plug connector (M 12) (see "Spark plug maintenance").
-
Open the oil tank cap (A 19).
- Pump out the engine oil with an oil pump (not included in delivery).
- Top up the engine oil (see "Filling the engine oil").
Replacing blades
Improper installation can cause severe injury.
Never tilt the lawnmower to the side or forwards when the petrol or oil tank is filled! could damage the engine, voiding the warranty.
Check the blade for wear and damage. If dull or damaged, replace the blade!
Always have a specialist workshop sharpen a dull blade, as they can perform imbalance testing.
Wear gloves when handling the blade.
Once you have loosened the blade screw (33), you have to replace the clamping disk (35).
The tightening torque of the blade is 45 Nm.
- Disconnect the spark plug connector (12).
- Put the device in the maintenance position (see Figure K).
- Use firm gloves and keep hold of the blade (32). Use a spanner to turn the blade bolt (33) counter-clockwise from the motor spindle (34).
- Reassemble the new blade in the reverse order.
GB IE
Make sure that the blade is positioned correctly and resting flush on the engine spindle.
The clamping disk (35) must be positioned between the blade screw and blade.
- Tighten the blade with 45 Nm.
Adjusting the carburettor
The carburettor has been preconfigured for ideal performance at the factory. If any readjustments are necessary (see "Troubleshooting"), have the adjustments made by a specialist workshop.
Storage
General storage instructions
Never store the device with the grass collection box full. If the weather is too hot, the grass will begin to ferment under heat. Possible fire hazard.
- Clean and maintain the device prior to storage.
- Give the engine time to cool off before you store the device in an enclosed space.
- Use suitable, permissible containers for storing the fuel.
- Store the device in a dry and dustproof location and out of reach of children.
- Do not enclose the device in nylon sacks as this may cause moisture or mould to form.
N Folding up the device
For space-saving storage the grip rod can be folded twice.
- Remove the grass collection box (A 21).
- Unhinge the starter cable (24).
- Open the quick release lever (5b) on the upper bar (1). Quick release lever (5b), washer (A 5a) and screws (5c) can remain mounted.
- Turn the quick release levers (7) cross-wise towards the bar. Gently pull the quick release levers (7) away from the lower bar (4).
- Fold both handles down again.
The Bowden cable (3) must not be jammed when you do this.
Storage during winter
Failure to follow the storage instructions may leave fuel remnants in the carburettor, which in turn can cause start-up problems or permanent damage.
- Start the engine and allow it to run until it goes out due to a lack of petrol.
- Perform an oil change (see "Changing the engine oil").
- Preserve the engine:
- Remove the spark plug (M 13) (see "Cleaning and servicing");
- Fill a tablespoon of engine oil into the engine compartment through the spark plug opening;
- Slowly pull the starter cable (H 24) several times with the safety bracket (H 2) pulled to distribute the oil inside the engine;
Screw the spark plug (M 13) back in.
- Dispose of used oil and petrol residues in an environmentally-responsible way (see „Disposal/Environmental Protection“).
The petrol tank does not have to be emptied if you add a fuel additive to the petrol (see "Spare parts" and the Briggs & Stratton instruction manual).
Disposal/environmental protection
- The device, accessories and packaging should be properly recycled.
- Carefully empty the petrol and oil tank and take your device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. - Dispose of used oil and petrol residues at a disposal site and do not pour into sewers or down the drain. - Please contact our service centre for more information.
- Disposal of your sent in defective devices is carried out free of charge.
- Do not throw cut grass into the rubbish bin; instead, take it for composting or spread it as a mulch below shrubs and trees.
Spare parts/accessories
You can get spare parts and accessories from www.grizzly-service.eu
If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 42).
| Position manual | Name | Order no. |
| A 3 | Bowden cable 91105622 | |
| A 14 | Front wheel (set) 91105615 | |
| A 18 | Rear wheel (set) 91105616 | |
| A 21 | Grass collection box | 91105618 |
| A 7 | Quick release levers with mounting accessories | 91105134 |
| O 32-35 | Blade/blade support/blade screw/Clamping disk | 13700458 |
You can also order spare parts and accessories for the motor (e.g. air filter and spark plugs) directly from Briggs & Stratton. If additional spare parts are required, please refer to the part number in the exploded view.
Troubleshooting
| Problem Possible cause Troubleshooting | ||
| Engine won't start | Not enough petrol in the petrol tank | Fill petrol |
| Incorrect starting sequence | Observe the instructions for starting the engine (see “Operation”) | |
| Spark plug connector (A 12) not plugged in correctly, sooty spark plug | Plug in the spark plug connector Clean, set or replace spark plug (see “Cleaning and Servicing”) | |
| Carburettor set incorrectly | Have the carburettor reset by a specialist workshop | |
| Engine starts, but the device does not run at full power | Dirty air filter (L 11) | Replace the air filter (see “Cleaning and Servicing”) |
| Carburettor set incorrectly | Have a specialist workshop reset the carburettor | |
| Engine sputters, slows down | Carburettor set incorrectly | Have a specialist workshop reset the carburettor |
| Sooty spark plug (13) | Clean, set or replace spark plugs (see “Cleaning and Servicing”) | |
| Engine over-heated | Ventilation holes (A 8) plugged | Clean the ventilation holes |
| Incorrect spark plug (M 13) Replace the spark plug | ||
| Not enough engine oil in the engine | Top up engine oil (see “Initial start-up”) | |
| Engine giving off smoke | Dirty air filter (L 11) | Replace the air filter (see “Cleaning and Servicing”) |
| Not enough engine oil in the engine | Top up engine oil (see “Initial start-up”) | |
| Output not satisfactory or engine is difficult to operate | Grass too short or high | Change the cutting height (see “Setting the cutting height”) |
| Blade blunt see „Replacing blades“ | ||
| Blade blocked by grass, grass collection box full, ejector opening plugged | Remove grass (see “Cleaning and Servicing”) | |
| Blade not rotating | Blade blocked by grass Remove | grass |
| Blade not mounted correctly | Fit the blade correctly (see “Replacing blades”) | |
| Abnormal sounds, clattering or vibrations | Blade not mounted correctly | see „Replacing blades” |
| Blade damaged | ||
Guarantee
Dear Customer,
This device comes with a 3-year warranty from the date of purchase.
Please observe the different warranty conditions for the engine, and read carefully the enclosed "Briggs & Stratton" engine manufacturer's instruction manual. Your statutory warranty claims are not affected by this warranty.
Should the device have defects, you are entitled to further rights vis-a-vis the device vendor. These statutory rights are not limited by the guarantee described in the following.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. cylinders, v-belt or attachments) or to cover damage to breakable parts (z. B. Cutting unit, spark plug, air filter, starter cable). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and item number (IAN 345555_2004) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate, an engraved plate on the front page of your manual (bottom left) or as a sticker on the back or bottom.
- Should functional errors or other defects occur, please initially contact the
GB IE
service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
The "Briggs & Stratton" service is responsible for any engine problems with your petrol lawnmower. You can find a contractual dealer near you on the Briggs & Stratton website.
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 345555_2004
IF Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzly@lidl.ie
IAN 345555_2004
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Service Réparations ......65
Service-Center......65
Importeur 65
Importer 106
Service-Center....126
Dovozce....126
Service-Center......146
Dovozca....146
  |
| We hereby confirm that thePetrol Lawn Mowermodel PBM 125 A1Serial number000001 - 011000conforms with the following applicable relevant version of the EU guidelines: |
| 2006/42/EC • 2014/30/EU • 2000/14/EC • 2005/88/EC • 2011/65/EU* |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: |
| EN ISO 5395-1:2013/A1:2018 • EN ISO 5395-2:2013/A2:2017EN ISO 14982:2009 • EN 62321-1:2013 |
| We confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power level:guaranteed: 94 dB(A)measured: 91,9 dB(A)Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/ECRegistered Office: NB 0036; TÜV SÜD Industrie Service GmbH,Westendstrasse 199, 80686 München, Germany |
| Výhradní odpovědnost za vystavení tohoto prohlášení o shodě nese výrobce: |
| CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany20.10.2020Christian FrankDocumentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

