USER MANUAL POWXG2017 PowerPlus

Yellow and black hatched hairless tool against white background (no text or symbols)

i

NL	NEDERLANDS	VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING
FR	FRANÇAIS	TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN	ENGLISH	ORIGINAL INSTRUCTION MANUAL
DE	DEUTSCH	ÜBERSETZUNG DER ORIGINALBETRIEBSANLEITUNG
ES	ESPAÑOL	TRADUCCIÓN DEL MANUAL DE INSTRUCCIONES ORIGINAL
IT	ITALIANO	TRADUZIONE DEL MANUALE DI ISTRUZIONI ORIGINALE
PT	PORTUGUÊS	TRADUÇÃO DO MANUAL DE INSTRUÇÕES ORIGINAL
NO	NORSK	OVERSETTELSE AV ORIGINAL BRUKERVEILEDNING
DA	DANSK	OVERSÆTTELSE AF DEN ORIGINALE BRUGSVEJLEDNING
CS	ČESKY	PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ
RO	ROMÂNÃ	TRADUCEREA MANUALULUI DE INSTRUCTIUNI ORIGINALE
BG	БЪЛГАРСКИ	ПРЕВОД НА ОРИГИНАЛНОТО РЬКОВОДСТВО

Fig. 1 18 1

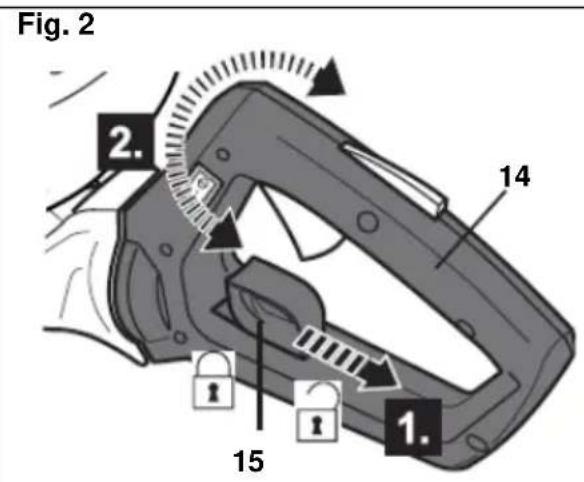

Fig. 2 2. 14 15 1.

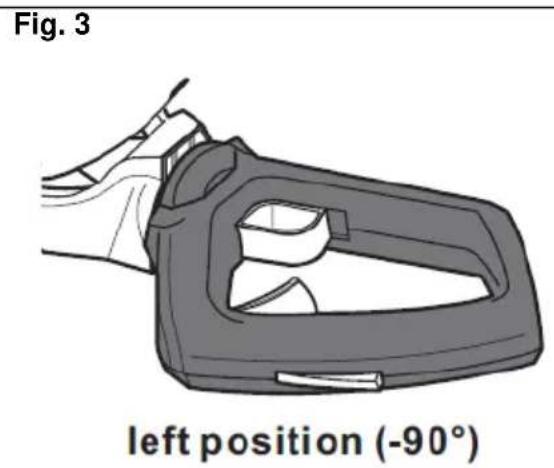

Fig. 3 left position (-90°)

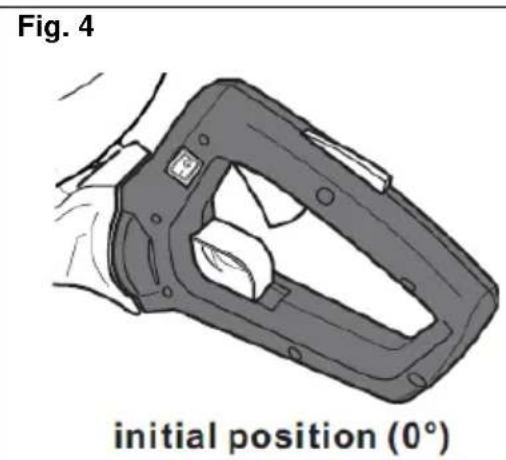

Fig. 4 initial position (0°)

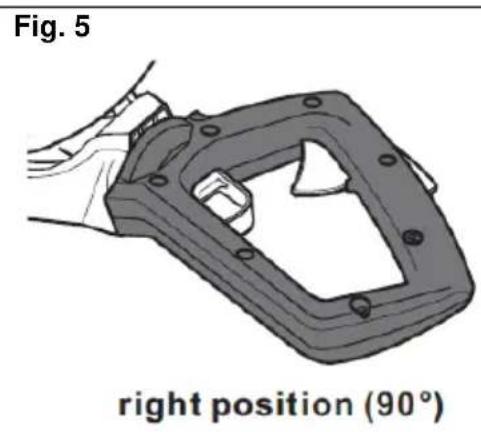

Fig. 5 right position (90°)

Fig. 6

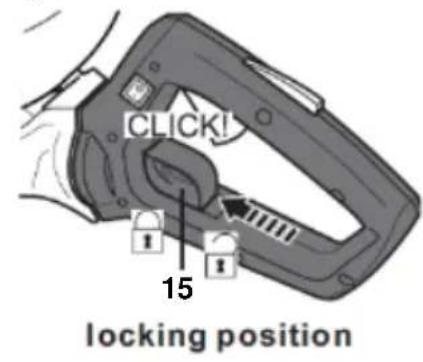

CLICK! 15 locking position

Fig. 7

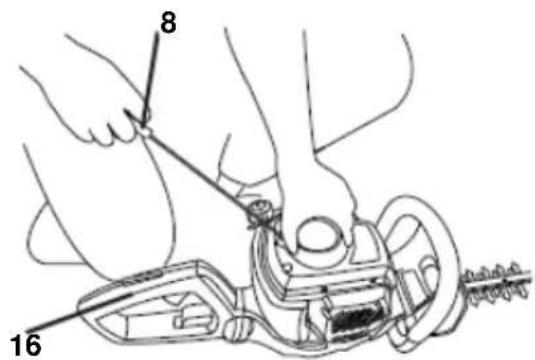

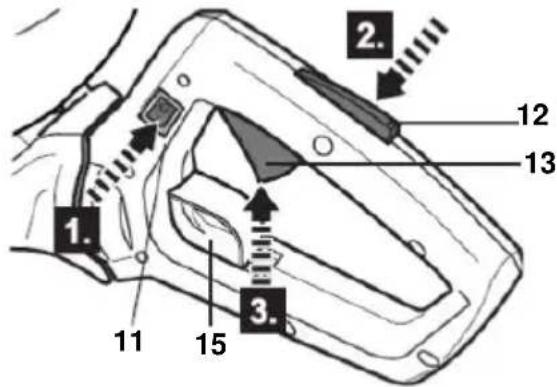

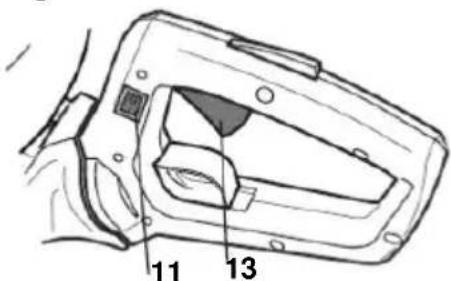

1. 2. 12 13 11 15 3.

Fig. 8

Technical diagram of a car air intake system with numbered components for identification

Fig. 9

8 16

Fig. 10

11 13

Fig. 13

21

right position (90°)

Fig. 14

Illustration of a hand using a tool to cut a hair clip, with no text or symbols present.

right position (90°)

Fig. 15

Hand holding a mechanical tool with a screw and a checkmark indicating action (no text or symbols present)

left position (-90°)

Fig. 16

Illustration of a hand holding a mechanical tool with a screw and a cross mark, no text or symbols present

left position (-90°)

Fig. 17

Illustration of a person spraying water with arrows indicating flow direction (no text or symbols)

Fig. 18

0-15

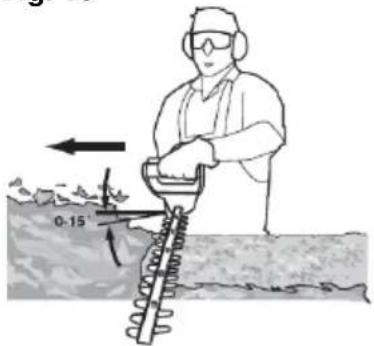

Fig. 19

Abstract gray shape with irregular edges, no text or symbols visible

Fig. 20

Technical illustration of railway tracks with a hammer and screw (no text or symbols)

Fig. 21

25 17 6 6A

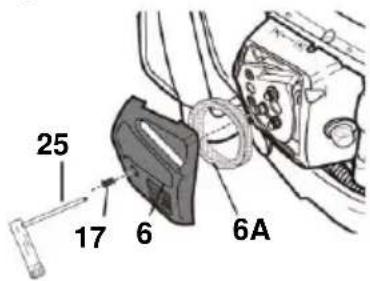

Fig. 22

19 20

Fig. 23

25

Fig. 24

0,6 - 0,7 mm

Fig. 25

23 24

1 BEOOGD GEBRUIK 3

2 BESCHRIJVING....3

3 INHOUD VAN DE VERPAKKING....3

4 TOELICHTING VAN DE SYMBOLEN 4

5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN....4

5.1 Werkplaats....4

8.2 Starten/stoppen....8

8.2.1 Koude start (Fig. 8-9) 8

8.2.2 Warme start (Fig. 8-9)....9

15 PROBLEEMOPLOSSING

Simple line drawing of a rounded rectangular shape with a small circular mark on top (no text or symbols)

Philippe Vankerkhove

Regelgevings- en compliancemanager

11/09/20

1 UTILISATION PREVUE 3

2 DESCRIPTION 3

3 LISTE DES PIÈCES CONTENUES DANS L'EMBALLAGE....3

4 PICTOGRAMMES....4

5 CONSIGNES DE SÉCURITÉ GÉNÉRALES ...... 4

17 DÉCLARATION DE CONFORMITÉ

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

Simple line drawing of a rounded rectangular shape with a small circular mark on top (no text or symbols)

Philippe Vankerkhove

5 GENERAL SAFETY WARNINGS....4

5.1 Work area 4

5.2 Personal safety 4

5.3 Engine tool use and care....5

5.4 Service....5

6 PETROL SAFETY WARNINGS....5

7 FUEL 6

7.1 Fuel and oil mixture....6

7.1.1 Mixing fuel....6

7.2 Refueling 6

7.3 Storage of fuel....7

7.4 Recommended petrol....7

8 OPERATING INSTRUCTIONS....7

8.1 Getting started 7

8.1.1 Blade cover (Fig. 1)....7

8.1.2 Handle adjustment 7

8.1.3 Handle controls (Fig. 7)....7

8.2 Starting/stopping 8

8.2.1 Cold starting (Fig. 8-9)....8

8.2.2 Hot starting (Fig. 8-9)....8

8.2.3 Stopping the engine 9

8.3 Trimming 9

8.4 After use 10

9 MAINTENANCE & CARE 10

9.1 General cleaning 10

9.2 Cutting device....10

9.3 Air filter (Fig. 21)....11

POWERPLUS® HIGH QUALITY TOOLS

POWXG2017 EN

9.4 Fuel tank....11
9.5 Fuel filter....11
9.6 Spark plug 11
9.7 Gear box 11
9.8 Carburettor....12
9.9 Repair 12
10 STORAGE....12
11 STARTING UP AFTER LONGER PERIODS OF INACTIVITY ..... 12
12 MAINTENANCE TABLE....12
13 TECHNICAL DATA....13
14 NOISE....13
15 TROUBLE SHOOTING....14
16 WARRANTY....15
17 ENVIRONMENT 15
18 DECLARATION OF CONFORMITY....16

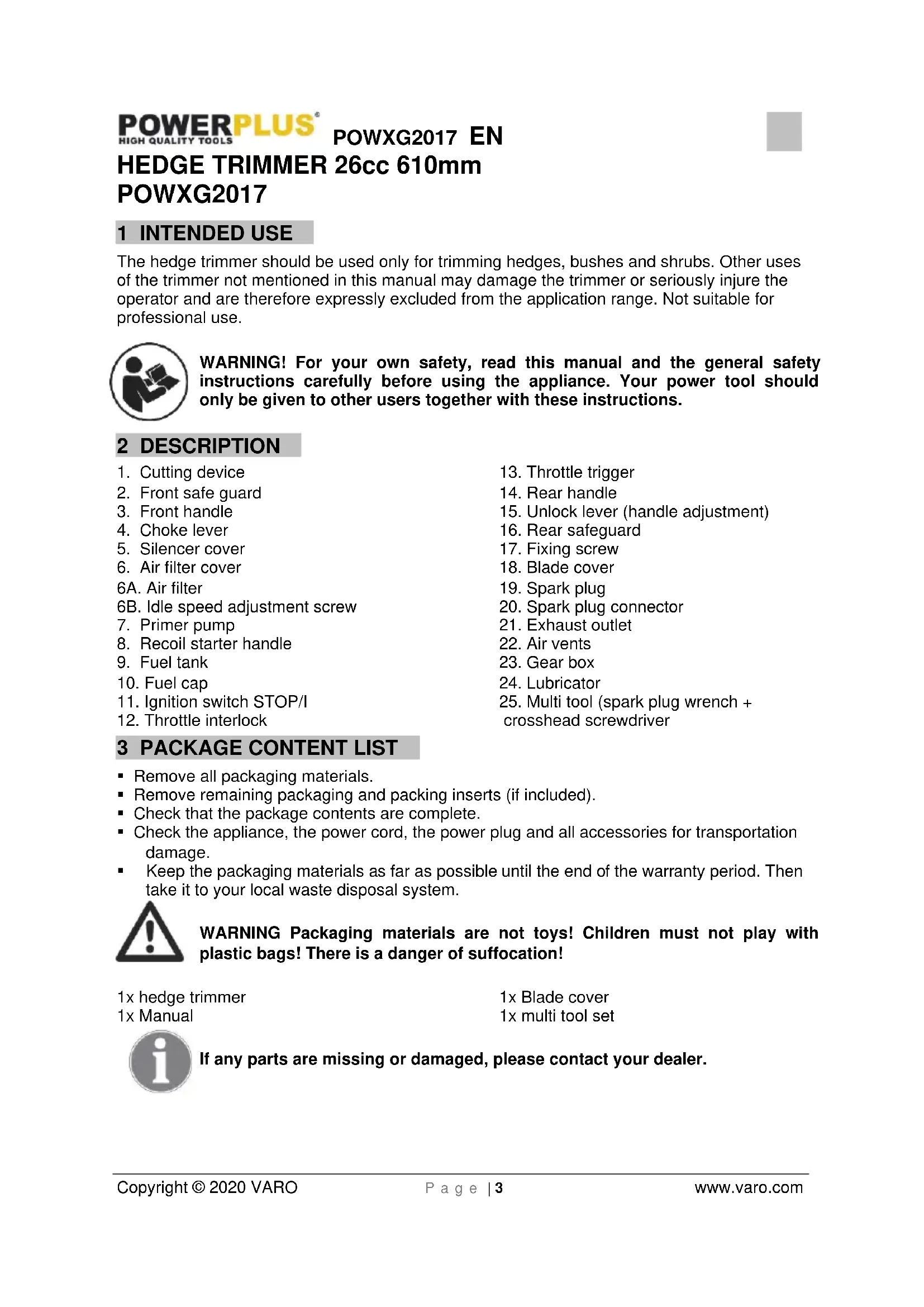

HEDGE TRIMMER 26cc 610mm POWXG2017

1 INTENDED USE

The hedge trimmer should be used only for trimming hedges, bushes and shrubs. Other uses of the trimmer not mentioned in this manual may damage the trimmer or seriously injure the operator and are therefore expressly excluded from the application range. Not suitable for professional use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

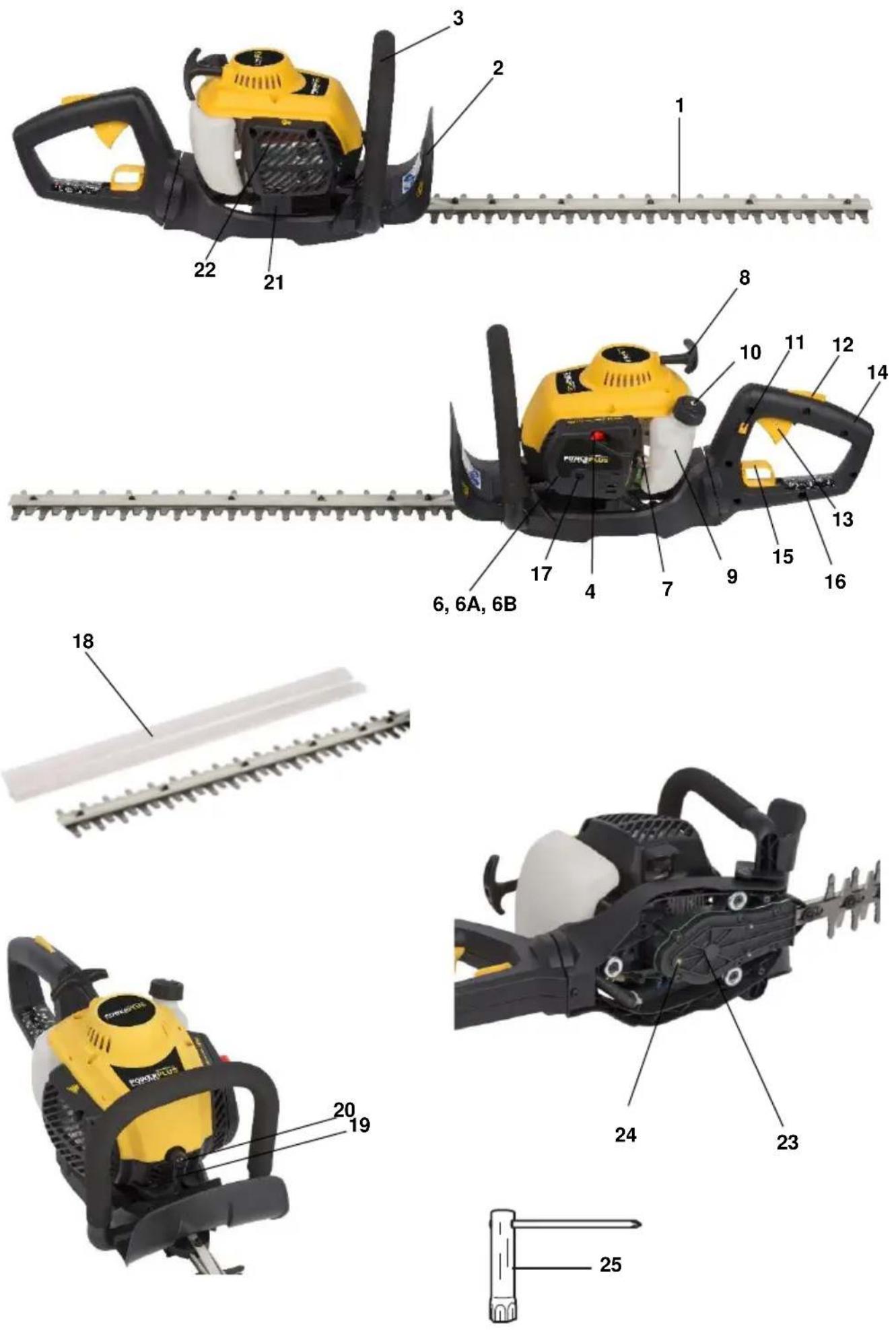

2 DESCRIPTION

1. Cutting device
2. Front safe guard
3. Front handle
4. Choke lever
5. Silencer cover
6. Air filter cover
   6A. Air filter
   6B. Idle speed adjustment screw
7. Primer pump
8. Recoil starter handle
9. Fuel tank
10. Fuel cap
11. Ignition switch STOP/I

12. Throttle interlock

13. Throttle trigger

14. Rear handle
15. Unlock lever (handle adjustment)
16. Rear safeguard
17. Fixing screw
18. Blade cover
19. Spark plug
20. Spark plug connector

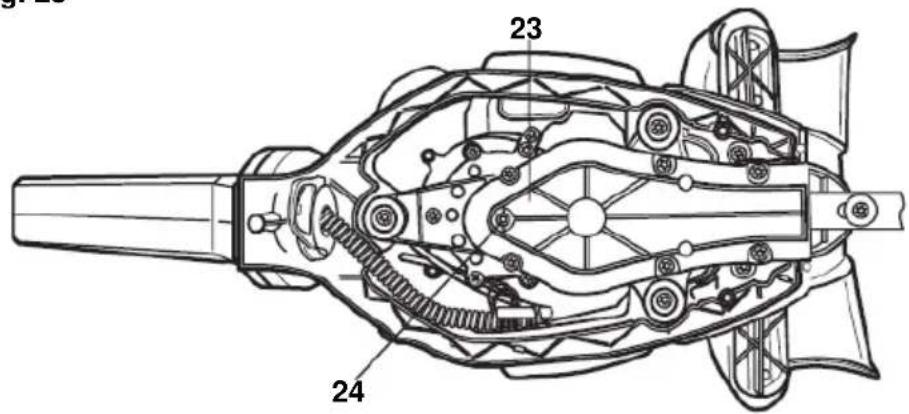

21. Exhaust outlet
22. Air vents
23. Gear box
24. Lubricator
25. Multi tool (spark plug wrench + crosshead screwdriver

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packaging and packing inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system.

WARNING Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1x hedge trimmer
1x Manual

1x Blade cover
1x multi tool set

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

The following symbols are used in this manual and/or on the machine:

	Denotes risk of personal injury or damage to the tool.		Wear a mask In dusty conditions
	Read manual before use		Never operate the machine in the rain or in damp or wet conditions. Moisture is an electrical shock hazard.
	Wear noise protection		Wear gloves
	Wear eye protection		Wearing of protective shoes advised
	In accordance with essential safety standards of applicable European directives		No smoking
	No naked flame		Fuel and oil mixture
	Keep hands away from blades. Do not touch the blades when starting or while operating the unit.

5 GENERAL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

5.1 Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a tool. Distractions can cause you to lose control.

5.2 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

POWXG2017 EN

• Remove any adjusting key or wrench before turning the tool on. A wrench or a key left attached to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.3 Engine tool use and care

• Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it was designed.
• Store idle tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate the tool. The tools are dangerous in the hands of untrained users.
• Maintain tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the tool's operation. If damaged, have the tool repaired before use. Many accidents are caused by poorly maintained tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.
• Use the tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of tool, taking into account the working conditions and the work to be performed. Use of the tool for operations different from intended could lead to a hazardous situation.

5.4 Service

- Have your tool serviced by a qualified person using only identical replacement parts. This will ensure that the safety of the tool is maintained.

6 PETROL SAFETY WARNINGS

• Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust.
• Do not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations.
• Protect your tool. This hedge trimmer is NOT WEATHERPROOF and should not be exposed to direct sunlight, high ambient temperature and damp, wet or high humidity conditions.
• Do not smoke while refueling. This is potentially dangerous as it may ignite the fuel and cause an explosion.
• Take care not to spill fuel. When refueling the hedge trimmer ensure that the motor has been switched off. Prevent the spilling of fuel as this may also ignite with the hot motor. Never refuel whilst the engine running.
• Be careful where you store the hedge trimmer. Store the hedge trimmer in a dry area away from flammable liquids.
• Keep your distance. The hedge trimmer emits exhaust fumes. Ensure bystanders keep a safe distance.
• Ensure you use oil-mix fuel. Ensure that you mix 40 parts unleaded fuel to 1 part 2-stroke oil. If not, the engine will overheat and cause damage to your hedge trimmer.

7 FUEL

Note: this product is not supplied with fuel-oil mixture in the engine! Before operating this product it is essential to fill it with fuel-oil mixture!

7.1 Fuel and oil mixture

For best results use regular unleaded petrol mixed with 2-stroke air-cooled engine oil on a ratio of 40:1.

WARNING: Never use unmixed petrol in your engine. This will cause permanent damage and void the manufacturer's warranty for the product. Never use a fuel mixture that has been stored for more than 30 days.

WARNING: 2-stroke lubricant must be a premium grade oil for 2-stroke air-cooled engines mixed at a 40:1 ratio. Do not use any 2-stroke oil product with a recommended mix ratio of 100:1. If insufficient lubrication is the cause of engine damage, it voids the manufacturer's engine warranty.

7.1.1 Mixing fuel

Pour oil into an approved fuel canister followed by the petrol so that the petrol can mix with the oil. Shake container to ensure a thorough mix.

WARNING: Lack of lubrication voids engine warranty. Petrol and oil must be mixed at a 40:1 ratio.

7.2 Refueling

■ The engine must be switched off.
- Stop the engine during refueling, keep away from naked flames and do not smoke.
Take care not to spill either fuel or oil in order to prevent soil contamination (environmental protection). Clean the hedge trimmer immediately after fuel has been spilt.
- Do not spill any fuel onto the engine. Wipe up if necessary to avoid fire.
- Avoid any fuel contact with your clothing. Change your clothing instantly if fuel has been split on it (to prevent it catching fire).
- Inspect the fuel cap at regular intervals, making sure that it can be securely fastened and does not leak.
- Carefully tighten the fuel tank cap. Change location to start the engine (at least 3 metres away from the place of refuelling).
- Never refuel in enclosed rooms. Fuel vapors accumulate at ground level. (risk of potential explosions).
- Transport and store fuel only in approved containers. Make sure the fuel stored is not accessible to children.
- Thoroughly clean the area around the tank cap to prevent dirt from getting into the fuel tank.
- Unscrew the plug and fill the tank with fuel. Use a gauge funnel to filter the fuel.
■ Tightly screw on the plug by hand only.
- Clean around the screw plug and the tank after refueling.
■ Always wipe up any spilt fuel to prevent a fire.

7.3 Storage of fuel

• Fuel cannot be stored for an unlimited period of time.
• Purchase only the quantity required for a 4-week operating period.
• Use approved fuel storage containers only.

7.4 Recommended petrol

- Some standard petrol are enriched with oxygen-containing compounds such as alcohol or ether to comply with regulations on clean air. The motor is designed to work well on any car petrol, including these enriched petrol, on the condition that the above mixing ratios are observed!

8 OPERATING INSTRUCTIONS

8.1 Getting started

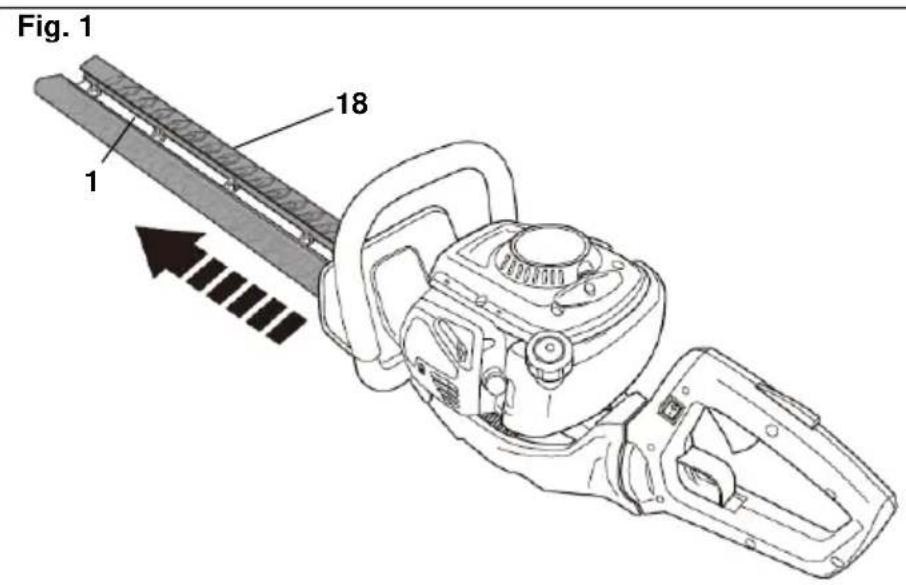

8.1.1 Blade cover (Fig. 1)

Remove the blade cover (18) from the cutting device (1) before operation.

Note: always attach the blade cover (18) when the product is not in use, for storage and transportation. To attach the blade cover, align and push the blade cover onto the cutting device (1).

8.1.2 Handle adjustment

Warning: only adjust the handle position when the engine is switched off! Always ensure that the handle locks in one of the end positions, never use it in any intermediate position!

Adjust the handle to fit the application.

• Pull the unlock lever (15) backward and hold it in position (Fig. 2).
• Adjust the handle (14) to required position and release the unlock lever (15). Keep turning the handle until it snaps securely into place (Fig. 3-6).

8.1.3 Handle controls (Fig. 7)

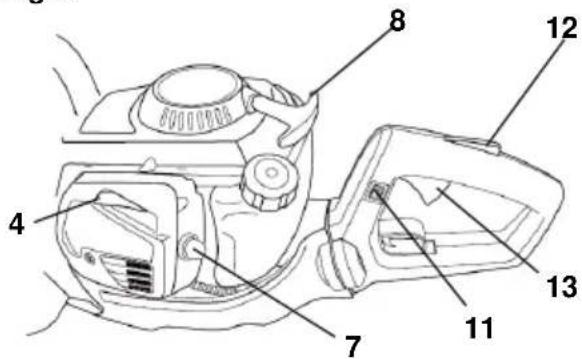

There are three controls at the handle (14) with the following function:

• The ignition switch (11) electrically stops the engine. Before you start the engine, you always need to put the ignition switch (11) to the "I" position.
• The throttle interlock (12) prevents unintentional activation of the throttle trigger (13) until manually pressed.
  ■ Adjust the engine speed with the throttle trigger (13).

Note: the throttle trigger will not work if the unlock lever (15) did not snap securely into place.

8.2 Starting/stopping

Keep the blades clear of everything around, since they will start moving as soon as the engine starts.

8.2.1 Cold starting (Fig. 8-9)

If the engine is cold or if it has been stopped for more than 5 minutes or if fuel has been added to the engine.

• Place the product on level ground and ensure that no objects or obstructions could come in contact with the blades.
• Set ignition switch (11) to "I" (ON) position.
• Press the primer (7) 5-6 times.
• Move the choke lever (4) to "Start" position.
• Hold the top cover firmly with your left hand and put your right knee onto the rear handle (14).
• Pull the recoil starter handle (8) lightly until you feel resistance then pull it briskly 3-4 times. The engine would normally not start at this stage.

Warning: Allow the rope to return slowly and in a controlled manner each time it is pulled!

- Move the choke lever (4) to run position. Pull the recoil starter handle (8) lightly until you feel resistance. Repeat until the engine starts.

Note: Overchoking can make it hard to start the engine due to excess fuel. If the engine fails to start after several attempts, or remove the sparking plug and dry it, open the choke and pull the rope again

8.2.2 Hot starting (Fig. 8-9)

• Set ignition switch (11) to "I" (ON) position.
  ■ Do not press the primer (7).
  ■ Move the choke lever (4) to “|♦| run position”.
• Hold the top cover firmly with your left hand and put your right knee onto the rear handle (14).
• Pull the recoil starter handle (8) lightly until you feel resistance then pull it briskly. Repeat until the engine starts.

Warning: Allow the rope to return slowly and in a controlled manner each time it is pulled!

NOTE: If the engine does not start, the engine may be flooded. Flooding is caused by too much fuel mixture applied at the wrong time and can prevent a product from starting. DO NOT prime the product again. Follow below procedure: Set the ignition switch (11) to "STOP" (OFF) position. Squeeze the throttle interlock (12) and throttle trigger (13) to release the choke. Remove the spark plug (see "Maintenance and care – Spark plug"). Dry the spark plug. Pull the recoil starter handle (8) for several times to drain the fuel from the combustion chamber. Refit the spark plug. Clean up any spilled fuel and move the product at least 3 metres (10') away before starting the engine. Start the product as described in section "Warm start".

8.2.3 Stopping the engine

■ Release the throttle trigger (13) and let the product run at its idle speed for 10-15 seconds.
- Set the ignition switch (11) to its 'STOP' (OFF) position. (Fig. 10)

Warning! The cutting device will continue to run for some time even after the engine has been switched off! Wait until the cutting device has come to a complete stop before placing the product on the ground!

8.3 Trimming

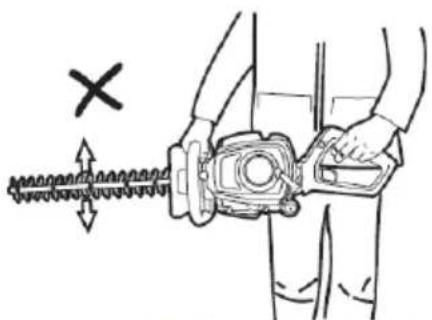

Note: Try to keep the cutting device angled at approximately 15^ to the cutting surface.

• Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation.
• Adjust the handle so that it fits the intended cut.

Warning! When operating the product, keep the exhaust outlet (21) away from your body (Fig. 11-16)

• Start the product as described. Press the throttle interlock, hold it in position and then press the throttle trigger to engage the cutting blade. Operate the engine at full throttle to maintain a proper cutting speed.
• Move the cutting device lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub. A slight tilt down wards of the cutting device in the direction of motion is recommended for optimum cutting performance.
• Do not rush and do not attempt to cut too much with one stroke of the curring device.
• First cut both sides from the bottom cutting upwards to the top. This will prevent any of the trimmings falling into the path of the area still to be cut (Fig. 17)

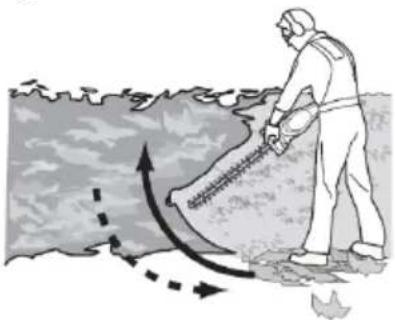

  ■ After cutting the sides proceed to the top (Fig. 18). Try to keep the cutting device angled at approximately 15^ to the cutting surface.
• Cut in a number of stages if the area being cut is particularly long to achieve a better result; smaller trimmings will allow for easy composting.

NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 19). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge.

WARNING! TO STOP THE ENGINE IN AN EMERGENCY: Press and hold the ignition switch (11) to "STOP" position until engine stops.

8.4 After use

• Switch the product off, allow the engine to cool down and then remove the spark plug connector.
• Check, clean and store the product as described below.

WARNING! Always switch the product off, let the product cool down and disconnect the spark plug connector before performing inspection, maintenance and cleaning work!

• Keep the product clean. Remove debris from it after each use and before storage.
• Regular and proper cleaning will help ensure safe use and prolong the life of the product.
• Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts..

WARNING! Only perform repairs and maintenance work according to these instructions! All further work must be performed by a qualified specialist!

9.1 General cleaning

• Clean the product with a damp cloth and mild soap. Use a brush for areas that are hard to reach.
• In particular clean the air vents (22) after every use with a cloth and brush.
• Remove stubborn dirt with high pressure air (max. 3 bar).

Note: do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

- Check for any damage and wear. Repair damages in accordance with this instruction manual or take it to an authorized service centre before using the product again.

9.2 Cutting device

WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e.g. a brush or wooden stick! Never use your bare hands! The replacement of the cutting device should be done by a qualified specialist! Rework or sharpening blades is not recommended unless it is done by a repair service or a similarly qualified specialist!

- Keep the cutting device (1) clean and free of debris. Remove trimmings.

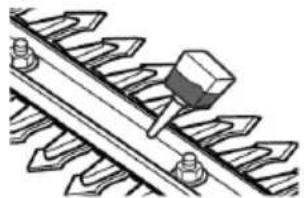

- Apply a small amount of suitable lubricant on the cutting device (1) to retain a good cutting performance (Fig. 20).

- Keep the cutting device (1) sharp. Have a worn or damaged cutting device replaced with a new one of the same type by a qualified specialist.

9.3 Air filter (Fig. 21)

- Inspect the air filter (6A) regularly. Replace it with a new one if necessary.

- Open the air filter case by loosening the fixing screw (17) with the Multi tool (25).

- Remove the screw, cover (18) and take the filter (6a) out.

- Tap the filter on a stable surface to remove dust. Use compressed air (max. 3 bar) to remove stubborn dust.

- Apply a small amount of air filter oil on the filter to increase the performance of the filter. Wring out surplus oil and put the filter into the case.

- Put the air filter cover (6) back in place and fix it with the screw (17).

9.4 Fuel tank

- Empty the fuel tank when storing the product over 30 days to prevent the fuel from deteriorating.

- Unscrew and remove the fuel tank cap (10) and use a proper fuel pump to empty the fuel into a suitable container.

9.5 Fuel filter

The fuel tank (9) of this product is fitted with a filter located at the free end of the fuel pipe. Ask an authorised service centre or similar qualified person to check and where necessary replace it at regular intervals.

9.6 Spark plug

- Inspect the spark plug (19) at least every 25 hours or prior to long-term storage over 30 days if the use has not been this high.

- Clean or replace with a new spark plug if necessary, refer to section "TECHNICAL SPECIFICATIONS".

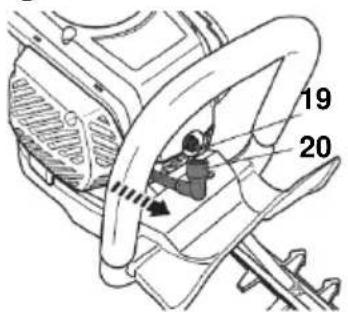

- Unplug the spark plug connector (20) (Fig. 22).

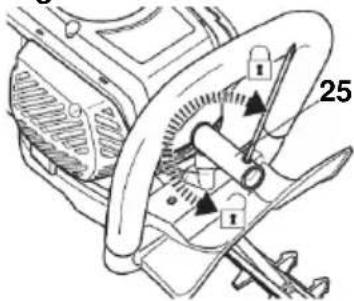

- Loosen the spark plug with the multi tool (25) anticlockwise and carefully remove it (Fig. 23).

- Check the spark plug (19) for damage and wear. The color of the electrode should be light-brown colored.

- Remove debris from the electrode with a soft wired brush; avoid heavy cleaning of the electrode.

- Dry the spark plug (19) with a soft cloth if it is wet from fuel.

- Check the spark plug gap; it should be 0.6 – 0.7 mm (Fig. 24).

- Replace with a new spark plug (19) if either the electrode or the insulation is damaged.

- When replacing the spark plug (19) first screw it in hand tight and then lightly tighten it with the multi tool (25).

9.7 Gear box

- Lubricate the gear box every 30 hours or more frequent at heavy use.

- Add grease through the lubricator (24) with an lubricating gun until the grease comes out between the gear box (23) and the cutting device (1) (Fig. 25).

- Remove any grease from the product.

9.8 Carburettor

The carburettor is pre-set by the manufacturer. Should it be necessary to make any changes please contact an authorised service centre or a similarly qualified person. Do not attempt to make any adjustments by yourself.

9.9 Repair

This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

10 STORAGE

So that the hedge trimmer will work again after a long period of inactivity, you should observe the following points:

• Empty the petrol tank. To do this, start the engine and let it run until it reaches a standstill. Dispose of the remaining petrol in an environmentally friendly way.
• Let the engine cool and take out the sparking plug.
• Pour a small spoonful of 2-stroke mixture into the sparking plug opening and slowly pull the starter cord right through to the end several times. This gets rid of small deposits of rust and lubricates the piston and cylinder.
• Check the sparking plug and replace it if too much of the firing tip has been burnt off.
• Keep the blade in a dry place – out of the reach of fire.

11 STARTING UP AFTER LONGER PERIODS OF INACTIVITY

• Remove the sparking plug.
• Quickly pull the starter cord right through several times in order to remove oil and deposits in the engine compartment.
• Check the sparking plug, replace it if necessary and screw it in.
• Fill the petrol tank with the 2-stroke mixture.

Regularly check and maintain the product in accordance with the maintenance table.

Part	To do	Before / after each use	10 hours	25 hours	50 hours / half year	100 hours / once a year
Spark plug	Check			X
Spark plug	Clean			X
Spark plug	Replace	Whenever necessary
Air filter	Check	X
Air filter	Clean			X
Air filter	Replace	Whenever necessary
Fuel filter	Check			X
Fuel filter	Clean			X
Fuel filter	Replace	Whenever necessary
Cutting blade	Check	X
Cutting blade	Lubricate	X
Cutting blade	Clean	X
Cutting blade	replace	Whenever necessary

13 TECHNICAL DATA

Cylinder capacity	26cc
Engine power	0.75kW
Rotation speed	10000min ^-1
Clutch engagement speed	4000min ^-1
Idle speed	3000min ^-1
Cutting length	550mm
Engine stroke type	2 stroke
Fuel tank capacity	0.46l
Fuel mixing ratio	40:1
Spark plug type	Torch
Knife distance	27mm
Handle type	Rotatable handle
Quick stop	Yes
Vibration reduction system	Yes
Easy start engine	Yes
Full crank engine	yes
Soft grip	Yes
Safety guard	Yes
Laser cut blade	Yes
Two hand operation	yes
Blade nose type	Regular
Double action blade	Yes
E10 fuel proof	yes

14 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	95dB(A)
Acoustic power level LwA	108 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration):

7.2m/s²

K = 1.5 ~m / s^2

15 TROUBLE SHOOTING

Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly.

WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Problem	Possible cause	Solution
Engine does not start	Not enough fuel in fuel tank	Add fuel
	Primer has been not pressed at cold start	Press the primer and restart
	Primer has been pressed at warm start	Dry spark plug
	Spark plug is wet	Dry spark plug
	Spark plug is damaged	Replace spark plug
	Spark plug connector is lose	Attach properly
	Ignition switch (10) is not pressed to ‘I’ position.	Press ignition switch (10) to ‘I’ position
	The engine is too warm.	Wait until the product cools down completely.
Engine stops	Not enough fuel in the tank	Add fuel
	Cutting device is blocked	Remove blockage
Engine starts but will not accelerate	Engine requires to warm up	Allow engine to completely warm up. Let it run at idle speed for 2 or 3 minutes.
Engine does not reach full speed and emits excessive smoke	Fuel mixture is not good	Use fresh fuel and the correct 2-stroke lubricant oil, in a correct fuel/oil ratio.
	Air filter is dirty	Clean air filter. Refer to cleaning the air filter earlier in this manual
Unsatisfactory result	Cutting device is worn.	Have a specialist to sharpen or replace it.
	Thickness of branches exceeds capacity	Only cut branches within the limits
Excessive vibration / noise or exhaust	Cutting device is dull/damaged	Have it replaced with a new one
	Bolts / nuts are loosen	Tighten bolts/nuts
	Petrol / oil is incorrect	Empty unused petrol / oil and refill with the correct petrol/oil

16 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

■ Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

17 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Please dispose of used motor oil in a manner that protects the environment. We suggest you take it in a sealed container to your local service station for recycling. Do not throw it into the refuse or pour it on the ground.

18 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Hedge trimmer 26cc

Trade mark: POWERplus

Podel: POWXG2017

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2006/42/EC

2014/30/EU

2000/14/EC Annex V LwA

Measured 106dB(A)

Guaranteed 108dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN ISO 10517 : 2019

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

11/09/20

8.2.3 Motor stoppen....9

Modell-No: POWXG2017

Simple line drawing of a boat hull (no text or symbols)

Philippe Vankerkhove

Zulassungsabteilung – Compliance Manager 11/09/20

1 USO PREVISTO....3

2 DESCRIPCIÓN....3

Simple line drawing of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

Simple hand-drawn sketch of a rounded rectangular shape with a small arrow on the top right corner (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

11/09/20

Simple hand-drawn sketch of a rounded rectangular shape with a small mark on the right side (no text or symbols)

Philippe Vankerkhove

3 PAKKENS INNHOLD....3

4 SYMBOLFORKLARING .... 4

5 GENERELLE SIKKERHETSADVARSLER....4

12 VEDLIKEHOLDSTABELL

Simple line drawing of a rounded rectangular shape with a small arrow on top (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs (afdelingen for juridiske anliggender) – Compliance Manager 11/09/20

1 ZAMÝŠLENÉ POUŽITÍ ...... 3

2 POPIS....3

3 SEZNAM OBSAHU BALENÍ 3

4 SYMBOLY 4

5 OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO NÁSTROJE......4

1 set multifunctional

Simple line drawing of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

Divizia de reglementare – Director de conformitate

11/09/20

1 ПРЕДНАЗНАЧЕНИЕ НА УПОТРЕБАТА .... 3

2 ОПИСАНИЕ 3

3 СПИСЪК НА СЪДЪРЖАНИЕТО НА ПАКЕТА .... 3

4 СИМВОЛИ....4

Yellow and black manual hedge shaver with metal blades (no text or symbols visible)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:
