USER MANUAL Eikon E4 Merrychef

BrPT LaES IMPORTANT INFORMATION - READ BEFORE USE - FULL GUIDE AVAILABLE FROM THE MERRYCHEF WEBSITE INFORMATION IMPORTANTE - À LIRE AVANT L’UTILISATION - GUIDE COMPLET DISPONIBLE AU SITE WEB DE MERRYCHEF INFORMAÇÕES IMPORTANTES - LEIA ANTES DE USAR - GUIA COMPLETO DISPONÍVEL NO SITE DA MERRYCHEF INFORMACIÓN IMPORTANTE - LEER ANTES DE USAR - GUÍA COMPLETA DISPONIBLE EN EL SITIO WEB DE MERRYCHEF2 Quick Service Guide original instructions Part Number 32Z3802 US Issue 3 INTRODUCTION These ovens oer operators the exibility of combination cooking with additional control over fan speed and microwave power. Combination cooking enables high quality results to be achieved in a fraction of the time taken by conventional cooking, particularly when baking, browning, roasting and grilling dishes. Once established, precise instructions for combination or convection cooking of selected items may be programmed into the oven’s memory so that they can be repeated easily and accurately. Up to 1024 programs can be stored and simply recalled. Multistage Programming The oven controls oer even greater exibility by allowing multistage programming. This enables the exact conditions required for quality results to be set according to the food type. A single cooking program can have up to 6 stages, each stage controlled with its own time, fan speed and microwave power settings, (model dependent).

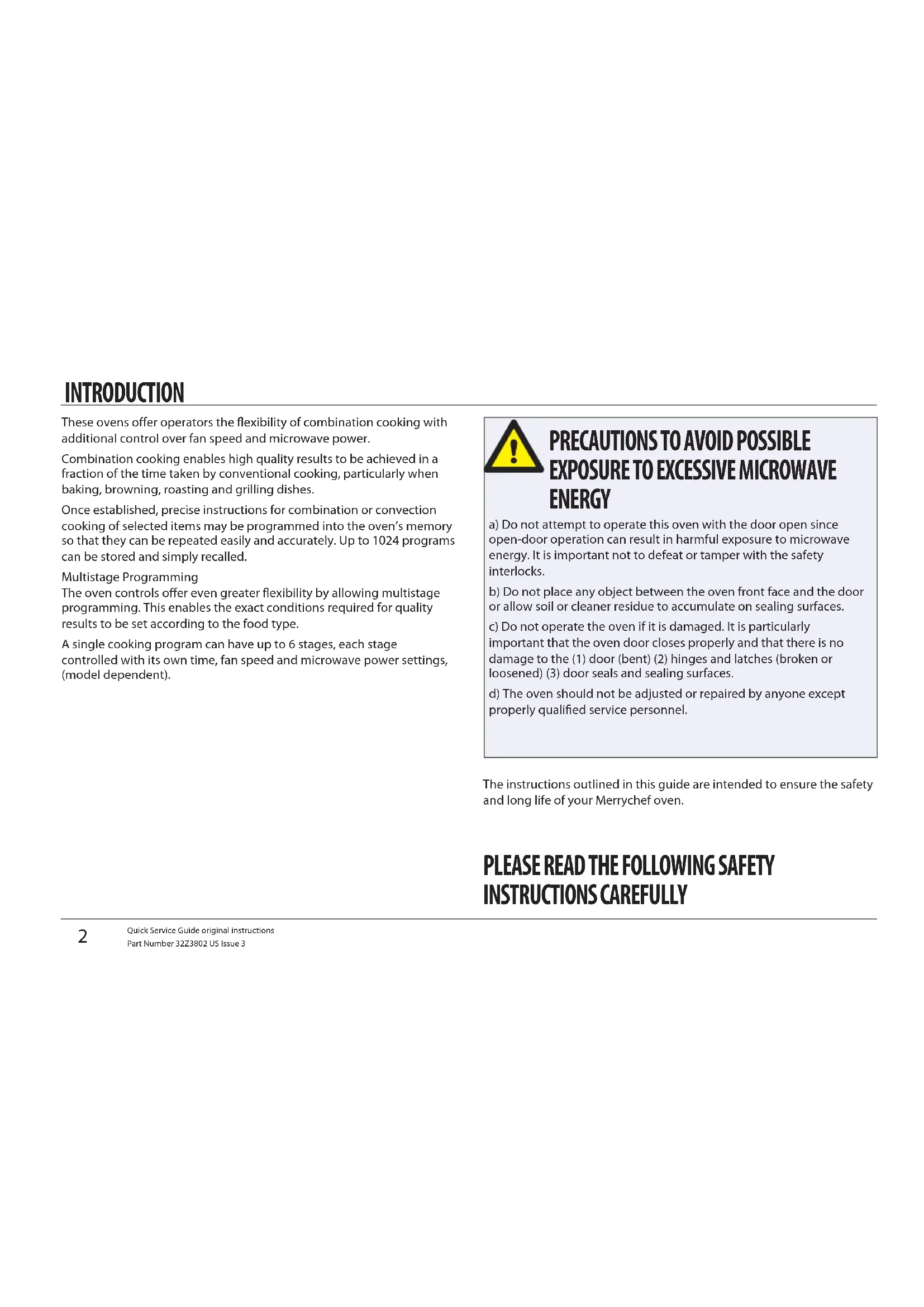

ENERGY a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the (1) door (bent) (2) hinges and latches (broken or loosened) (3) door seals and sealing surfaces. d) The oven should not be adjusted or repaired by anyone except properly qualied service personnel.

PLEASE READ THE FOLLOWING SAFETY

INSTRUCTIONS CAREFULLY The instructions outlined in this guide are intended to ensure the safety and long life of your Merrychef oven.Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3

SAFETY & REGULATIONS PRODUCT DETAILSOPERATION & CONTROLS CLEANING & MAINTENANCE FAULT FINDING This is a Quick Start Guide only. For further information refer to the relevant Installation and Operating instructions available from www.merrychef.com The easyToUCH screen display, layout and icons shown herein, are for guidance purposes only and are not intended to be an exact representation of those supplied with the oven.

IMPORTANT INFORMATION READ BEFORE USE

Users are cautioned that maintenance and repairs should be performed by a Merrychef authorized service agent using genuine Merrychef replacement parts. Merrychef will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modied or repaired using unauthorized parts or by unauthorized service agents. For a list of authorized service agents, please refer to the back page of this booklet. The information contained herein (including design and parts specications) may be superseded and is subject to change without notice. CONTENTS INTRODUCTION 2 SAFETY & REGULATIONS

Quick Service Guide original instructions Part Number 32Z3802 US Issue 3 SAFETY & REGULATIONS

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, re, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specic “PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on the Introduction page.

3. This appliance must be grounded. Connect only to a properly

grounded outlet. See “ELECTRICAL INSTALLATION”.

4. Install or locate this appliance only in accordance with the provided

installation instructions.

5. Some products such as whole eggs and sealed containers — for

example, closed jars — may explode and should not be heated in this oven.

6. Use this appliance only for its intended use as described in the

manual. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7. This appliance should not be used by children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is

not working properly, or if it has been damaged or dropped.

9. This appliance should be serviced only by qualied service

personnel. Contact the nearest authorized service facility for examination, repair or adjustment. 10 Do not cover or block any openings on the appliance including air vents/lters and steam outlet. 11 Do not store this appliance outdoors. Do not use this product near water —– for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

12. Do not immerse the cord or plug in water.

13. Keep the cord away from heated surfaces.

i) When cleaning surfaces of door and oven that come together on

closing the door, use only mild non-abrasive soaps, or detergents applied with a sponge or soft cloth.

ii) When separate cleaning instructions are provided, see door surface

cleaning instructions.

16. To reduce risk of re in the cavity:

i) Do not overcook food. Carefully attend appliance if paper, plastic or

other combustible materials are placed inside the oven to facilitate cooking.

ii) Remove wire twist-ties from paper or plastic bags before placing

iii) If materials inside the oven should ignite, keep oven door closed,

turn oven o, and disconnect the power cord , or shut o power at the fuse or circuit breaker panel.

iv) Do not use the cavity for storage purposes. Do not leave paper

products, cooking utensils or food in the cavity when not in use.

17. Liquids, such as water, coee, or tea are able to be overheated

beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from theQuick Service Guide original instructions Part Number 32Z3802 US Issue 3

SAFETY & REGULATIONS microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

18. DO NOT operate using microwave only or combination function

without food or liquid inside the oven as this may result in overheating and may cause damage.

21. NEVER tamper with the control panel, door, seals, or any other

22. DO NOT obstruct air vents/lters or steam outlet.

23. NEVER hang dish towels or cloths on any part of the oven.

24. If the door seals are damaged, the oven must be repaired by an

approved Service Agent.

25. If the power cable is damaged in any way it MUST be replaced by

an approved Service Agent.

26. When handling hot liquids, foods, and containers, care should be

taken to avoid scalds and burns.

27. When heating liquids using microwave only or combination

function, the contents should be stirred prior to heating to avoid eruptive boiling.

28. Feeding bottles and baby food jars should not be heated with this

containing alcohol can more easily catch re if overheated, observe caution and do not leave the oven unattended.

30. Never attempt to deep fry in the oven.

31. The appliance is not intended for use by infants, children or inrm

persons without supervision.

32. Infants and children should be supervised to ensure that they do

not play with the appliance.

SAVE THESE INSTRUCTIONS6

Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3 SAFETY & REGULATIONS

1. Read this manual before using your oven.

2. As with all electrical appliances, it is wise to have the electrical

connections inspected at least once a year.

3. The oven interior, door seals should be cleaned frequently, following

the instructions described in the cleaning section, failure to do so could possibly result in a hazardous situation.

4. Switch o the oven at the end of all the cooking sessions for that

5. The oven should not be used to dry linen.

6. As with any cooking appliance, care should be taken to avoid

combustion of the items within the oven.

7. Food in combustible plastic or paper containers should be

transferred to a microwave/oven proof containers to avoid the possibility of ignition.

PRECAUTIONS TO BE OBSERVED

If smoke is observed: Switch o ● Isolate from the electrical supply ● Keep the door closed to stie any ames ●

8. Items should be unwrapped when using convection and

combination functions.

9. Eggs in shells and whole hard-boiled eggs should not be heated in

the oven as they may explode.

10. Food with a skin, e.g. Potatoes, apples, sausages etc. should be

pierced before heating.

11. Food should not be heated in a completely sealed container as the

build-up of steam may cause it to explode.

12. Excess fat should be removed during ‘roasting’ and before lifting

heavy containers from the oven.

13. In the event of glass breaking or shattering within the oven, ensure

that food is totally free of glass particles. If in doubt, dispose of any food that was in the oven at the time of the breakage.

14. DO NOT attempt to operate the oven with: object caught in door,

that does not close properly or damaged door, hinge, latch, sealing surface or without food in the oven.Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3

Manufacturer’s instructions should be checked to determine the suitability of individual containers or utensils using each of the cooking functions. The following chart provides general guidelines: Heat resistant containers Toughened glass Vitreous ceramics Earthenware (porcelain/crockery/china etc.) Do not use items with metallic decoration. Metallic & Foil Trays Metallic trays DO NOT USE ANY OTHER METAL OR FOIL CONTAINERS Metallic trays may only be used when placed on the VITREOUS RACK in the oven cavity. Note: Do not cook food directly on the vitreous enamel rack. Plastic containers Dual-ovenable plastic containers (up to certain temperatures) are now available. Check manufacturer’s instructions before use. Disposables

Combustibles (paper/card etc.) Other utensils Tie tags Cutlery Temperature probes No kitchen utensil should be left in food while it is cooking in the oven.8 Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3 PRODUCT DETAILS MAIN FEATURES

When switched ON the easyToUCH screen illuminates the oven controls. Note; turning this switch OFF does not isolate the oven from the electricity supply. easyToUCH SCREEN CONTROL PANEL2 See ‘OPERATION & CONTROLS’ for details. RATING PLATE3 Located on the rear panel of the oven states the serial number, model type & electrical specications. MenuConnect™ 4 A USB socket located under the Merrychef logo allows changes to programs stored on the oven (See USB MenuConnect™ User Manual, and Operation & Controls section of this manual, for details of updating oven programs). AIR OUTLETS5 Air used to cool internal components and steam from the cavity escape through the air outlet vents located on the rear of the oven and side panel of the e5 model. The air outlets must be kept free from obstruction and they will not allow microwave energy to escape into the environment.

The air lter situated at the lower front of the oven is part of the ventilation system and must be kept free of obstruction and cleaned daily as described under ‘Cleaning & Maintenance’. Note, the oven will not operate without the air lter tted. DOOR HANDLE7 This is a rigid bar which is pulled downwards and away from the oven to open. OVEN DOOR8 This is a precision-made energy barrier with three microwave safety interlocks. The door must be kept clean (see ‘CLEANING’) and should NOT be used to support heavy objects. DOOR SEALS9 These ensure a tight seal around the door. They should be kept clean and checked regularly for signs of damage. At the rst sign of wear they should be replaced by a Merrychef approved Service Agent.

CONVECTION FAN, GREASE FILTER & CATALYTIC CONVERTOR 10

(model dependant) The metal grease lter grill covering the convection fan must be kept clean and free of debris. Great care should be taken when cleaning this area of the oven noting the dierent oven requirements shown under ‘Cleaning & Maintenance’ in this manual. OVEN CAVITY11 The oven cavity is constructed from stainless steel and must be kept clean by following the cleaning instructions in the ‘Cleaning & Maintenance’ section of this manual.Quick Service Guide original instructions Part Number 32Z3802 US Issue 3

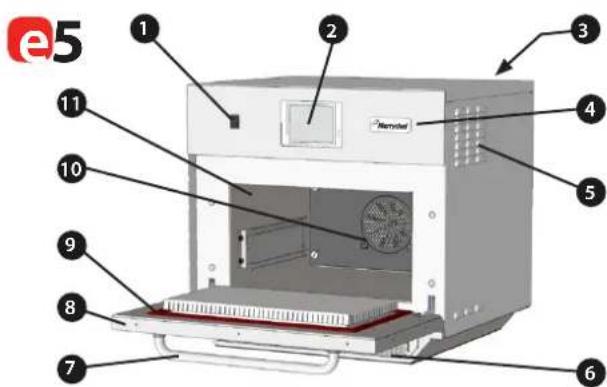

PRODUCT DETAILS INSTALLATION

OVEN LOCATION AND POSITIONING

Choose a site away from major heat sources. DO NOT position so that hot air is drawn in from fryers, grills, griddles, etc. A heat barrier to the height of the oven must be installed if sited next to a burner, stove or range. Place the oven on a permanent nonslip/nonammable at surface that is LEVEL, STABLE and STRONG enough for the oven and contents. Allow a minimum clearance (A) of 2 inches (50mm) around the oven for hot air to escape. Allow sucient clearance (B), in front of the oven for the door to open fully. Position the oven (e4 & e5 models only) at least 36 inches (916mm) (C) above the oor. The air intake is located at the lower front of the oven (1) and it is important that the airow is as cool as possible and not preheated by other appliances such as burners, stoves, ranges, fryers, grills and griddles as this will deteriorate the life and performance of the oven. Do not ax labels/stickers to oven other than those applied or approved by the manufacturer. The oven will not operate without the AIR FILTER correctly tted in place. DANGER!

THIS APPLIANCE MUST BE EARTHED. FAILURE

TO DO SO MAY RESULT IN ELECTRIC SHOCK AND DEATH. HANDLING & STORAGE: When moving an oven always observe and follow National and local requirements for lifting and moving heavy objects. Do not use the oven door handle to lift oven. When not in use, electrically disconnect the oven and store safely in a dry cool place, do not stack ovens. The oven must be connected to an outlet that is properly installed and grounded. If in doubt consult a qualied electrician. Please refer to the Merrychef website www.merrychef.com for full electrical installation details. Should you not have access or require further clarication, please contact a Service Agent.12 Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3OPERATION & CONTROLS

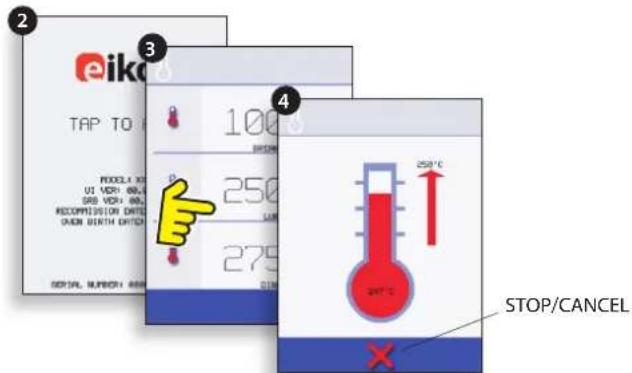

1. Switch the oven on;

Make all the relevant safety checks and ensure the oven is clean and empty before pressing the oven switch down to activate the oven.

2. The easyToUCH screen illuminates with the display briey

showing the serial number and oven data. Lightly tap the screen once to freeze the display, tap again to continue.

3. When the oven is setup with two or more preheating

temperatures a choice is displayed. Scroll arrows at the bottom of the screen indicates there are more temperature choices not shown on screen, if necessary, use the scroll arrows, then select the temperature required to start preheating the oven.

4. During preheating the display shows the progress as the

oven heats up to the set temperature. (To stop the oven heating touch the red ‘X’ symbol.)

5. The oven is ready to use when the ‘COOKBOOK’ is

1. Select a program group, for example, ‘BURGERS’ to display

the individual cooking programs.

2. Select a cook program to start, for example, 2 BURGERS.

3. Follow instructions if displayed on the screen.

4. Touch the green tick to cook.

The cooking time counts down for each program stage.

5. When the program ends a red bar is displayed usually

with an audible sound - open the door or touch the red ‘X’ to return to the cook program. Note; opening the oven door during cooking stops the cooking program and displays a warning. Closing the door allows the user to continue or cancel the cooking program. Taking all the necessary precautions to ensure you do not burn yourself, open the oven door to place the food into the hot oven and close the door. PROGRAM STAGE

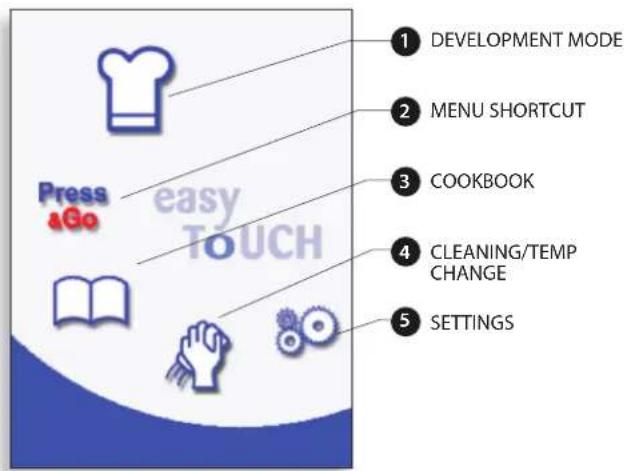

programs to be developed, then stored under a name and symbol for reuse.

2. PRESS & GO allows quick access to use the cooking

programs that are already stored.

3. COOKBOOK contains the oven’s cooking programs.

It displays Favourites, Cooking Program Groups and a complete listing of all cooking programs available.

4. CLEANING/TEMP CHANGE allows the oven temperature to

be changed and the oven to be prepared for cleaning with reminders displayed to assist during the cleaning process.

5. SETTINGS are used to control the oven settings and

functions including time and language, loading cooking programs and for service and maintenance purposes.

6. KEYBOARD SCREEN is used to enter an authorised

password to enter data for programs and may restrict operator access to some functions.

1. Select ‘PRESS & GO’ from the main menu screen.

2. Select the item required to cook.

3. The display shows the temperature, cooking time, microwave

power and fan speed while the timer counts down. The timer bar turns red to indicate the cooking cycle has nished. Choosing which cooking programs are shown in the ‘PRESS & GO’ menu screen.

1. After selecting ‘PRESS & GO’ from the main menu screen,

select the EDIT symbol.

2. Two lists are displayed, the ‘PRESS & GO’ menu items are

shown in the upper list and the lower list shows other menu items which are available. Both lists can be scrolled up or down using the arrows on the extreme right.

3. Select an item, then choose whether to change its order

within the menu or to remove it into the lower list.

4. Select an item to move into the upper list, making it available

in the ‘PRESS & GO’ menu.

5. Select backspace to return to the menu screen when nished.

Change the order of a selected item shown in the Press & Go screen. Move a selected item to or from the Press & Go screen. Select to scroll a list up or down.16 Quick Service Guide original instructions Part Number 32Z3802 US Issue 3 OPERATION & CONTROLS

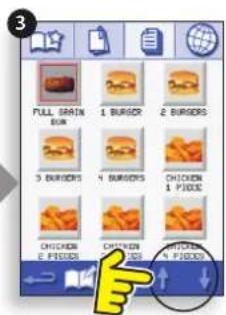

STARTING A COOKING PROGRAM. To nd the required Program in the cookbook.

1. Select ‘COOKBOOK’ from the main menu screen.

2. Select the ALL MENUS symbol.

3. Use scroll up/down arrows to nd the program.

NOTE: if an image has a red line around it the oven temperature is set too high or too low for that recipe. See ‘CHANGING THE OVEN TEMPERATURE’. Taking all the necessary precautions to ensure you do not burn yourself, place the food product into the hot oven cavity and close the door.

4. Select the required cooking program to start cooking.

For example, ‘1 BURGER’.

5. The program either starts immediately displaying a

countdown timer, or an instruction is displayed rst; follow the stage instruction then select OK to start cooking. If the oven door is not opened within 30 seconds a warning message appears.

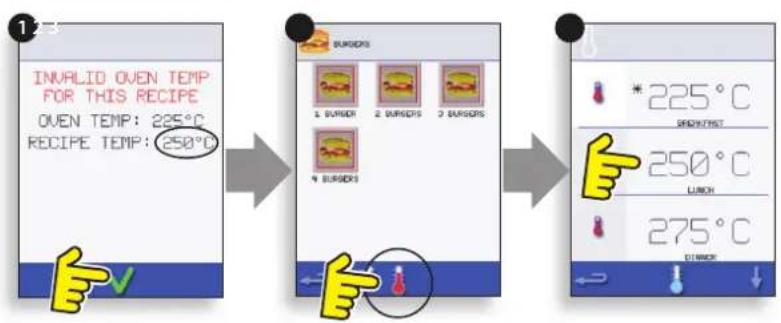

1. Take note of the temperature required for the recipe and

3. An asterisk next to the number indicates the present

oven temperature, select the required oven temperature for the recipe. Once the oven is at the required temperature continue from selecting the ‘COOKBOOK’ in step 1.

6. The cooking timer counts down to zero and makes a

sound to indicate an operator action is required at the end of a cooking stage or the end of a cooking program. Once the cooking program has nished, opening the oven door to remove the food returns the display to the ‘COOKBOOK’ screen. Note; opening the oven door during cooking stops the cooking program and displays a warning. Closing the door allows the user to continue or cancel the cooking program. To check the oven temperature when cooking, lightly tap the temperature displayed, the oven cavity temperature is shown with an asterisk. SCREEN SAVER An active screen saver will mask the screen showing a moving image. To use the touchscreen, tap the screen to deactivate the screen saver.18 Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3 CLEANING & MAINTENANCE

Oven cool down IMPORTANT: the oven must be cooled down before the cleaning processes are carried out.

1. In Full Serve mode, select the CLEANING symbol from the main

symbol to disable heating and start the cooling cycle.

3. Taking all necessary precautions place a suitable heaped

container of ice, into the hot oven cavity. Select the OK symbol to continue.

4. The cooling progress is displayed and takes approximately 30

5. The oven is now ready for cleaning. Select OK on the screen

after completing each stage.

COOLING THE OVEN DOWN BEFORE CLEANING

Preparing to clean the oven For the oven to operate at peak eciency, the cavity, door, air lter and grease lter must be kept clean. A daily cleaning routine will ensure that you comply with the required hygiene standards and will help to maintain and prolong the eciency of your oven.Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3 CLEANING & MAINTENANCE

CLEANING THE OVEN. NEVER use sharp implements or harsh abrasives on any part of the oven. Cold oven CLEANING INSTRUCTIONS e3 REMOVE & CLEAN Oven Parts:

1. Remove the air lter at the base of the oven.

2. Open the oven door and lift out the turntable.

3. For ovens with a catalytic converter; open the oven door and undo

fasteners to remove the catalytic convertor when required or at least once a month. Wash all parts in warm soapy water. Wash o using a clean cloth and plenty of clean, warm water. Dry using a fresh, clean cloth.

Complete COOL DOWN procedure and allow the oven and accessories to cool before commencing cleaning. Equipment required (not supplied): Non-caustic proprietary branded oven cleaner, heat proof gloves, protective rubber gloves, non–abrasive nylon scrub pad, cleaning towel and cloths, eye protection and dust mask (optional).20 Quick Service Guide original instructionsPart Number 32Z3802 US Issue 3CLEANING & MAINTENANCE

Cold oven CLEANING INSTRUCTIONS e5 REMOVE & CLEAN Oven Parts:

1. Remove the air lter at the base of the oven.

2. Open the oven door to remove any cooking trays/rack.

Wash all parts in warm soapy water. Wash o using a clean cloth and plenty of clean, warm water. Dry using a fresh, clean cloth. Cold oven CLEANING INSTRUCTIONS e4 REMOVE & CLEAN Oven Parts:

1. Remove the air lter at the base of the oven.

2. Open the oven door, remove the rack, pull the grease lter handle

downwards and lift out.

Wash all parts in warm soapy water. Wash o using a clean cloth and plenty of clean, warm water. Dry using a fresh, clean cloth.Quick Service Guide original instructions Part Number 32Z3802 US Issue 3

1. Remove any spillages with disposable paper wipes.

Use a dry clean brush to remove any food particles from between the oven oor and the inside of the front door.

2. Wear protective rubber gloves and protective glasses, carefully

spray a non-caustic proprietary branded Oven Cleaner onto all the internal surfaces of the oven except the door seal (A). DO NOT spray directly into the fan opening at the rear inside of the oven.

3. For dicult areas, leave to soak for 10 minutes with the oven

door open. Use a non–abrasive nylon scrub pad/sponge to clean the cavity, roof and the inside of the door. Do not scrub the door seal or use metallic scourers.

4. Wash o using a clean cloth and plenty of clean warm water

and dry using a fresh clean cloth or paper towel. Replace all the cleaned oven parts. Close the oven door and wipe the outside of the oven with a damp cloth. DO NOT USE THE OVEN WITHOUT A CLEAN AIR

1. Only apply to a clean oven. Spray proprietary branded

Oven Protector onto a sponge.

2. Spread Oven Protector lightly onto all internal surfaces of

3. Spread Oven Protector lightly onto the internal surface of

the oven door avoiding the door seal. Switch on the oven and preheat. When the oven has reached operating temperature it will take about 30mins to cure the Oven Protector. Note: Oven protector turns light brown when cured.Quick Service Guide original instructions Part Number 32Z3802 US Issue 3

PROBLEM POSSIBLE CAUSE REMEDY

The oven does not work and the display screen is blank The oven has no power Check if there is a power cut. Check the isolator switch is ON or the oven is plugged in correctly. Check the oven switch is ON. Some screen controls do not work Unauthorised access Contact the authorised user. Display shows a warning message Details are shown on screen Follow the instructions displayed. The oven does not cook the food correctly Oven not clean Food not at correct temperature Modied or wrong program selected Food wrapped Food removed early Clean the oven (see cleaning). Use the correct cooking program. Unwrap food for non-microwave cooking. Check all the cooking stages have been followed correctly. The oven does not nish cooking Warning message displayed Oven door opened No air lter or incorrectly tted Oven overheating Close oven door. Ret air lter. Allow the oven to cool down. Check and remove any restrictions around the air vents. Display shows an error code Oven malfunction Note the error code and contact your Service Agent.

Although every eort is made to ensure your oven will continue to perform to a high standard, please check the chart to see if the problem can be easily resolved before contacting your service agent.24 Quick Service Guide original instructions Part Number 32Z3802 US Issue 3Quick Service Guide original instructions Part Number 32Z3802 US Issue 3

PRODUIT INSTALLATION

PROBLÈME CAUSE POSSIBLE REMÈDE
