WHAT'S IN THE BOX

Vision 4 Lite Mount	Waterproof Housing	Handle Bar/ Pole Mount
Mount 2	Mount 3 Mount	5Mount 4
Mount 6	Mount 7 Mount	8 Mount 9
Protective Backdoor	Helmet Mounts		USB CableBatter
Wrist Strap for Remote	Bandages	Tethers	Lens Cloth
Remote	Quick Start Guide

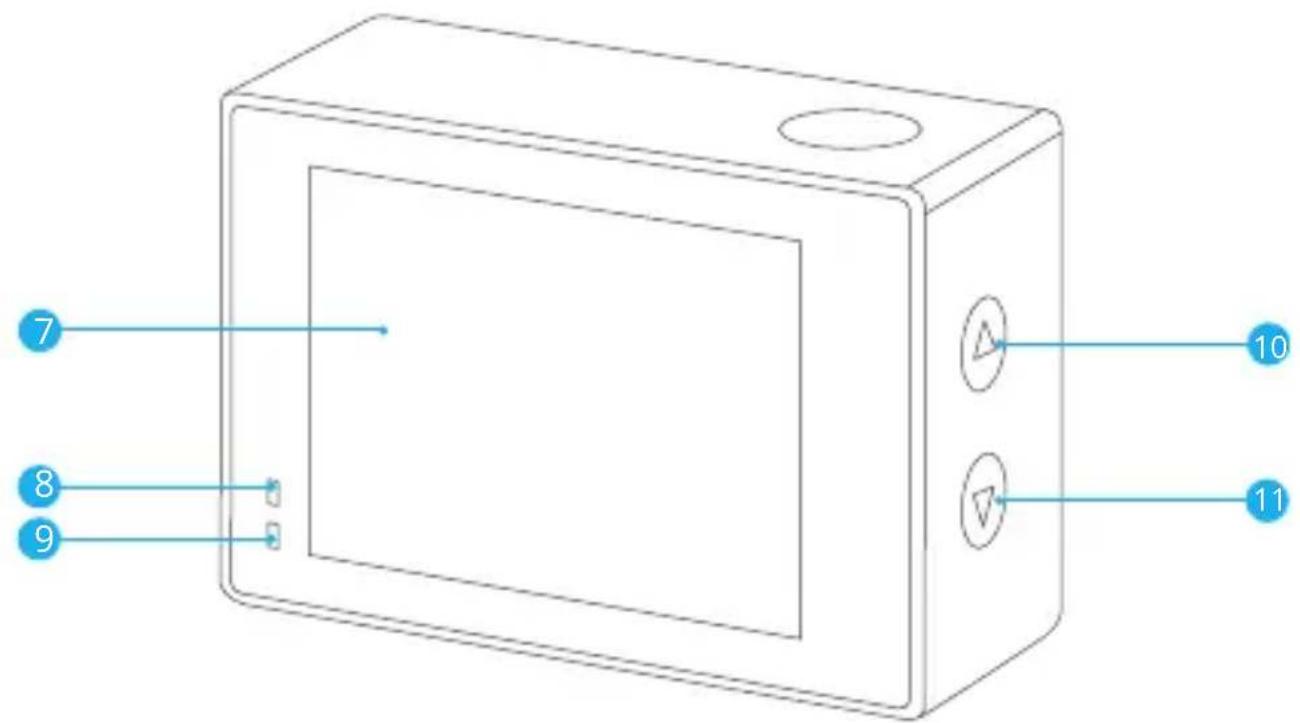

YOUR VISION 4 LITE

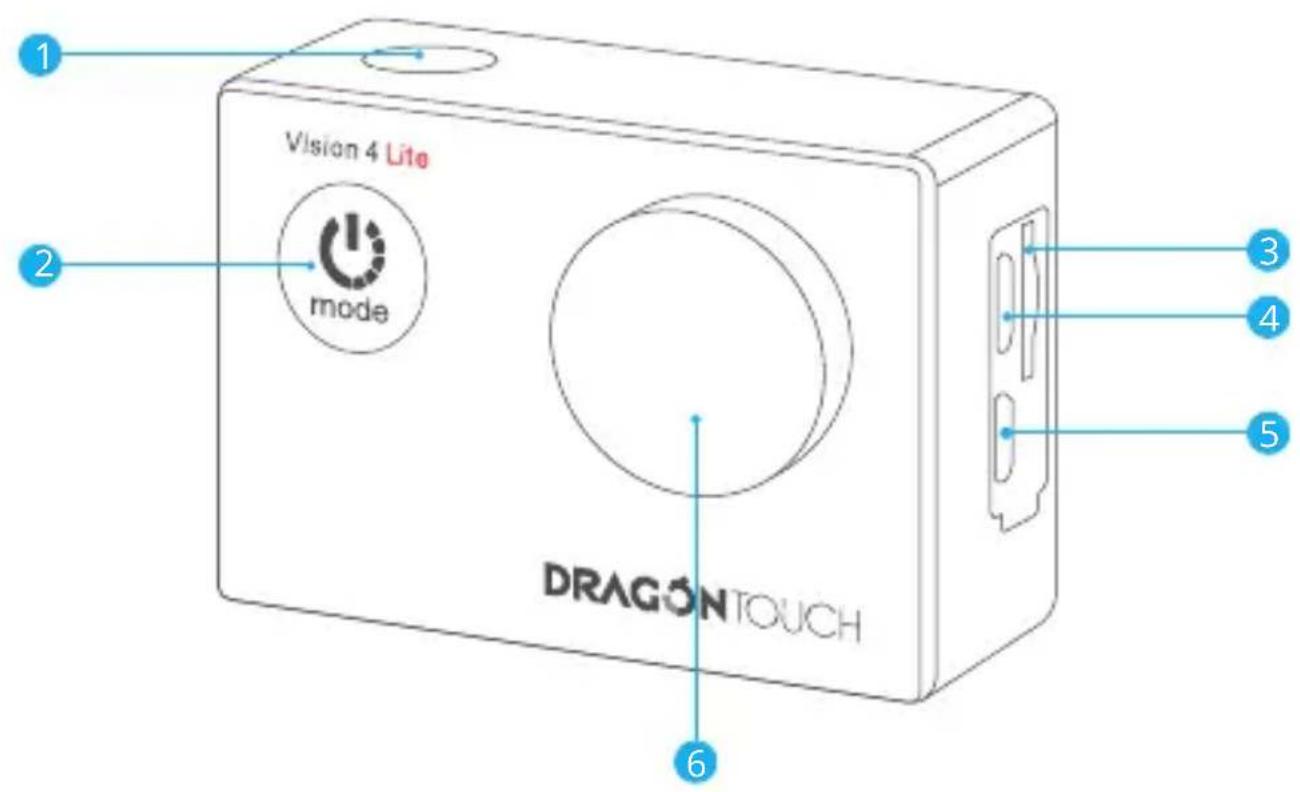

1 Shutter/Select Button
2 Power/Mode/Exit Button
3 Memory Card Slot
4 USB Port/External Mic Jack
Micro HDMI Port
6 Lens

7 Screen
8 Charging Indicator
9 Working Indicator
10 Up/Zoom Out/Wifi Button
11 Down/Zoom in Button
12 Battery Door

Note: The camera does not record sound when it is in the waterproof case.

GETTING STARTED

Welcome to your DragonTouch Vision 4 Lite. To capture videos and photos, you need a memory Card (sold separately) to start recording.

Memory Cards

Please use brand name memory cards that meet these requirements:

Class 10 or UHS-I rating
- Capacity up to 64GB (FAT32)

Note:

1. Format the memory card before using the camera. To keep your memory card in good condition, reformat it on a regular basis. Reformatting erases all your content, so make sure to offload your photos and videos before reformatting.
2. FAT32 format memory card stops recording when the file size reaches 4GB and starts to record again on a new file.

Powering On and Off

Press and hold the Power button for 3 seconds. The camera beeps while the camera status light is on. When information appears on the screen, your camera is on. When the camera is on, press and hold the Power button again to power off.

Switching Modes

Turn on the camera, press the Mode button to switch to video or photo mode. Press and hold the OK button to enter the setting menu, choose the icon and press the OK button again, there are more shooting modes available. Press the Mode button to exit.

Turning On and Off Wifi

To turn on the camera, press and hold the Up button to turn on Wifi, the Wifi name and password will appear on the screen. Press the Up button again to turn off Wifi.

OVERVIEW OF MODES

There are 8 different modes: Video, Slow Motion, Loop Recording, Time Lapse Video, Photo, Auto Photo, Burst Photo, Self-Timer.

Video Mode

Your device is on the video mode - which is the default mode - when you turn on the camera.

In Video Mode, press the Shutter button for the camera to start recording video. Press the Shutter button again to stop recording video.

Slow Motion Mode

In Slow Motion Video mode, press the Shutter button, the camera records slow-motion video.

Loop Recording Mode

Loop recording allows your camera to overwrite old files with new files. Once the memory card becomes full, the camera will delete the first video file to make room for the latest file. For example, if the setting for loop recording is "1 Minute", then the camera will create video clips of 1 minute in length, and a 1-minute clip will be deleted when the camera needs more memory.

Time Lapse Video Mode

In Time Lapse Video mode, press the Shutter button, the camera records video from frames captured at specific intervals.

Photo Mode

In Photo Mode, press the Shutter button to take photos.

Auto Photo Mode

In Auto Photo Mode, press the Shutter button, the camera will automatically take photos at specific intervals. Press the Shutter button again to stop.

Burst Photo Mode

In burst mode, several photographs are captured in quick succession, so it is perfect for capturing fast-moving activities.

Self-Timer Mode

Self-Timer Mode gives a delay between pressing the shutter release and the shutter's firing.

CUSTOMIZING YOUR VISION 4 LITE

Press and hold the OK button, choose the Setting icon to enter Setting Menu.

Press the Mode button to choose video setting, photo setting or system setting.

Press the Up or Down button to scroll through the options. Press OK to confirm and press the Mode button to exit.

Video Settings

Resolution: 4K30fps/2.7K30fps/1080P60fps/1080P30fps/720P120fps/720P60fps/720P30fps

Default setting is 4K30fps.

Note:

1. When capturing video at high resolutions or high frame rates in warm ambient temperatures, the camera may become warm and use more power.
2. After turning on EIS (anti-shake), the video resolution of the recorded video will automatically switch to 3200*1800 when the video resolution you set is 4K30fps.

EIS: Off/On

Default setting is On.

This setting adjusts the footage to offset for motion during capture. The result is smoother footage, especially in relatively small but fast motion activities, including cycling, motorcycling, and handheld uses.

Distortion Correction: On/Off

Default setting is On.

When the Distortion Calibration is on, it can correct the image distortion.

Note: 4K30fps resolution doesn't support Distortion Correction.

White Balance: Auto/Sunny/Cloudy/Incandescent/Fluorescence

Default setting is Auto.

White Balance lets you adjust the color temperature of videos and photos to optimize for cool or warm lighting conditions.

Exposure Setting: -3/-2/-1/0/1/2/3

Default setting is 0.

Exposure lets you select an area that you want the camera to prioritize when determining exposure. This setting is particularly useful in shots where an important region might otherwise be over- or underexposed.

Sharpness: High/Middle/Low

Default setting is Middle.

Video Quality: High/Middle/Low

Default setting is High.

ISO: Auto/100/200/400/800/1600/3200/6400

Default setting is Auto.

ISO determines the camera's sensitivity to light and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image. In low light, higher ISO values result in brighter images, but with greater image noise. Lower values result in lower image noise but darker images.

Time Watermark: On/Off

Default setting is On.

Turn on this setting and this camera will add date stamp to the videos and photos you take.

Record Audio: On/Off

Default setting is On.

Turn on this setting and this camera will record audio during recording a video.

Note: The camera does not record sound when it is in the waterproof case.

FOV: Wide/Middle/Narrow

Default setting is Wide.

The FOV refers to how much of the scene (measured in degrees) can be captured through the camera lens. Wide FOV captures the largest amount of the scene, while Narrow FOV captures the least.

Diving Mode: On/Off

Default setting is Off.

Turn on Diving Mode and it can compensate for the lack of red light in underwater scenes. Diving Mode is designed to be used in tropical and blue water, optimized for use between 10 and 80 feet.

Special Effects: Normal/Black and white/Negative/Retro/Red/Green/Blue Default setting is Normal.

Photo Settings

Pixel Inset: 20M/16M/14M/12M/8M/5M

Default setting is 14M.

White Balance: Auto/Sunny/Cloudy/Incandescent/Fluorescence

Default setting is Auto.

White Balance lets you adjust the color temperature of videos and photos to optimize for cool or warm lighting conditions.

Exposure Setting: -3/-2/-1/0/1/2/3

Default setting is 0.

Exposure lets you select an area that you want the camera to prioritize when determining exposure. This setting is particularly useful in shots where an important region might otherwise be over- or underexposed.

Sharpness: High/Middle/Low

Default setting is Middle.

ISO: Auto/100/200/400/800/1600/3200/6400

Default setting is Auto.

ISO determines the camera's sensitivity to light and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image. In low light, higher ISO values result in brighter images, but with greater image noise. Lower values result in lower image noise but darker images.

Time Watermark: On/Off

Default setting is On.

Turn on this setting and this camera will add a date stamp to the videos and photos you take.

Diving Mode: On/Off

Default setting is Off.

Turn on Diving Mode and it can compensate for the lack of red light in underwater scenes. Diving Mode is designed to be used in tropical and blue water, optimized for use between 10 and 80 feet.

Special Effects: Normal/Black and white/Negative/Retro/Red/Green/Blue

Default setting is Normal.

FOV: Wide/Middle/Narrow

Default setting is Wide.

The FOV refers to how much of the scene (measured in degrees) can be captured through the camera lens. Wide FOV captures the largest amount of the scene, while Narrow FOV captures the least.

System Settings

Image Rotation: On/Off

Default setting is On.

Wifi: On/Off

Default setting is On.

Wifi Information: You can check the Wifi name and password of the camera.

Reset Wifi: You can reset the Wifi of the camera.

Light Source Frequency: Auto/50Hz/60Hz

Default setting is Auto.

LED Indicator: On/Off

Default setting is On.

Turn on this setting and the LED indicator will show different working status.

Auto Screen Saver: Turn Off/1 Minute/3 Minutes/5 Minutes

Default setting is 1 Minute.

Screen saver helps to turn off the display after a period of inactivity to save battery life. To turn on the display again, press any button or tap the screen on the camera.

Auto Power Off: Turn Off/1 Minute/3 Minutes/5 Minutes

Default setting is 3 Minutes.

Button Prompt: High/Middle/Low

Default setting is Middle.

Car Mode: On/Off

If you turn on Car Mode and connect the camera with your car cigarette lighter, the camera will automatically turn on if you start your car and turn off if you stop your car.

Language: Deutsch/English/Espanol/Français/Pycckni/Português/Italiano/简体中文/繁体中文/日本語/韓国어0/лнч

Default setting is English.

Time Format: You can set the date format.

Time Set: You can set the time of the camera.

Date Set: You can set the date of the camera.

Format: You can check the usage of the memory card and format the memory card. To keep your memory card in good condition, reformat it on a regular basis. Reformatting erases all of your content, so make sure offload your photos and videos first.

Factory Reset: This option resets all settings to their default values.

Device Info: You can check the model name and firmware version of your camera.

CONNECTING TO THE APP

Download and install the DV KING 4K app on the App Store or Google Play.

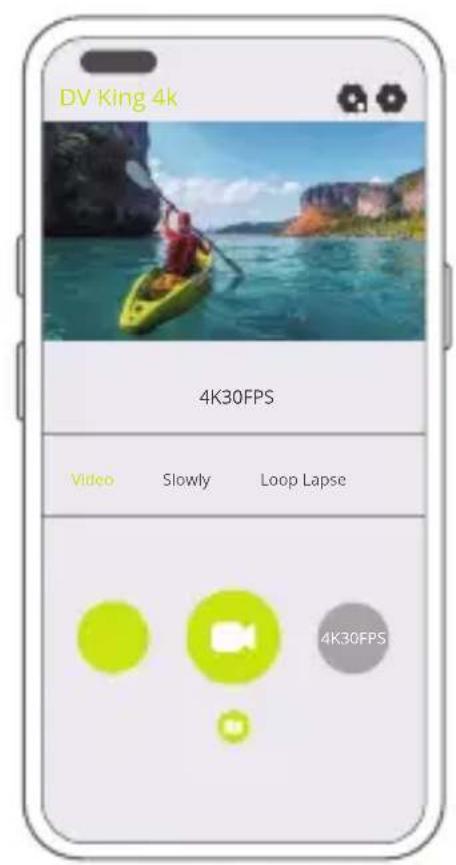

The DV KING 4K app lets you control your camera remotely using a smartphone or tablet. Features include camera control, live preview, playback, download and settings.

1. Turn on the camera, press and hold the Up button to turn on Wifi. The Wifi name and password are shown on the camera screen.

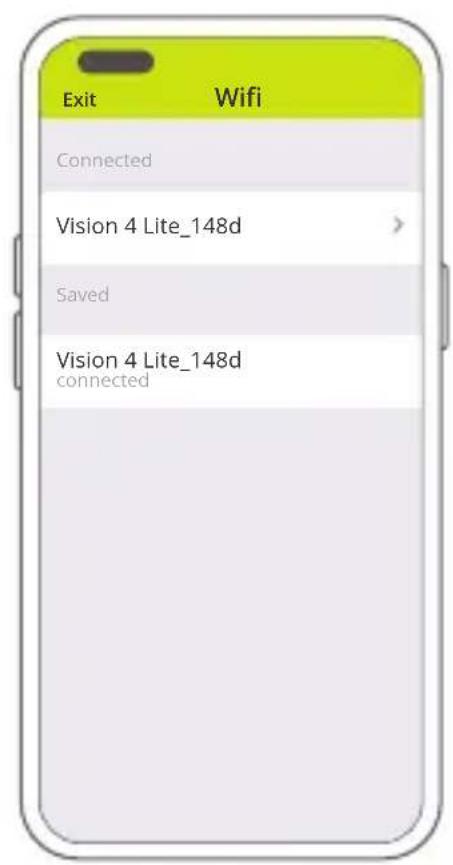

2. Connect the Wifi "Vision 4 Lite" and enter the password on your smartphone WLAN setting.
3. Open the DV KING 4K app, choose the Wifi of the camera and tap the arrow icon on the right, wait for seconds, the camera will automatically connect to the app.

You can playback your content on the camera, your computer, TV, smartphone or tablet. You can also play back content by inserting the memory card directly into a device, such as a computer or a compatible TV. With this method, playback resolution depends on the resolution of the device and its ability to play back that resolution.

Note: To play back your videos and photos on a computer, you must first transfer these files to a computer. Transferring also frees up space on your memory card for new content.

Viewing Files on Your Vision 4 Lite

Turn on the camera, press and hold the OK button, choose the Playback icon to enter Album. Press the Up or Down button to scroll through the files. Press the OK button to play or stop video. Press the Mode button to exit.

DELETING YOUR CONTENT

Deleting Files on Your camera

1. Enter Album mode. If your memory card contains a lot of content, it might take a minute for it to load.
2. Press the Up or Down button to scroll through the files.
3. Select the file you want to delete, press and hold the OK button.
4. "Delete this file?", Choose Confirm to delete.
5. To exit Album mode, press the Mode button.

Deleting Files on the App

1. Open the DV KING 4K app. Connect the camera with the app.
2. Choose the Album on the left to see all the files on the device.
3. Tap the arrow icon on the top, then choose Delete.
4. Select the photo or video you want to delete and then Confirm.

OFFLOADING YOUR CONTENT

Offloading Your Content to A Computer

To offload files to a computer, you need a card reader (sold separately). Connect it to the computer via a USB port and insert the memory card. You can then transfer files to your computer or delete selected files by using file explorer.

Offloading Your Content to Smartphone

1. Open the DV KING 4K app. Connect the camera with the app.
2. Choose the Album on the left to see all the files on the device.
3. Tap the arrow icon on the top, then choose Download.
4. Select the photo or video you want to delete and then Confirm.

Note:

1. If you cannot offload videos or photos to iPhone or iPad, go to Settings Privacy Photos, find "DV KING 4K" and select "Read and Write".
2. iPhone and iPad do not allow you to download 4K or 2.7K video via an app, offload 4K or 2.7K videos via a card reader.

The Zoom function lets you adjust how close or far away the subject appears in your photo.

Press the Up or Down button to adjust the zoom level when you take photos or videos.

MAINTAINING YOUR CAMERA

Follow these guidelines to get the best performance from your camera:

1. For best audio performance, shake the camera or blow on the mic to remove debris from the microphone holes.
2. To clean the lens, wipe it with a soft, lint-free cloth. Do not insert foreign objects around the lens.
3. Don't touch the lens with fingers.

4. Keep the camera away from drops and bumps, which may cause damage to the components.

5. Keep the camera away from high temperature and strong sunshine to avoid being damaged.

6. Do NOT use the camera when charging. Turn off the camera before charging.

MAXIMIZING BATTERY LIFE

If the battery reaches 0% while recording, the camera will save the file before powering off.

To maximize battery life, follow these guidelines when possible:

• Turn off Wireless Connections.
• Capture video at lower frame rates and resolutions.
• Use Screen Saver setting.

BATTERY STORAGE AND HANDLING

The camera contains sensitive components, including the battery. Avoid exposing your camera to very cold or hot temperatures. Low or high temperature conditions may temporarily shorten the battery life or cause the camera to stop working properly temporarily. Avoid dramatic changes in temperature or humidity when using the camera, as condensation may form on or within the camera.

• Do not dry the camera or battery with an external heat source such as a microwave oven or hairdryer. Damage to the camera or battery caused by contact with liquid inside the camera is not covered under the warranty.
• Do not store your battery with metal objects, such as coins, keys or necklaces. If the battery terminals come in contact with metal objects, this may cause a fire.
• Do not make any unauthorized alterations to the camera. Doing so may compromise safety, regulatory compliance, performance, and may void the warranty.

WARNING: Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the camera or battery. Do not insert foreign objects into the battery opening on the camera. Do not use the camera or the battery if it has been damaged - for example, if cracked, punctured or harmed by water. Disassembling or puncturing the battery can cause an explosion or fire.

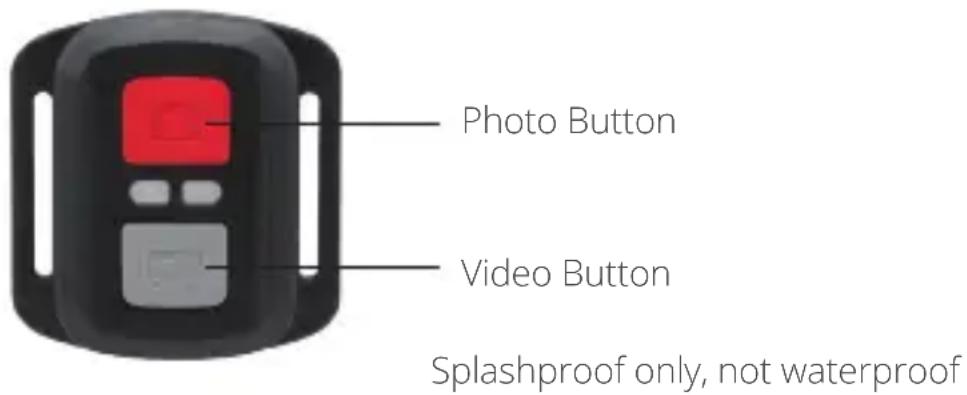

To pair the remote control with the camera, press any button on the remote control.

Video

To record a video, verify the camera is in Video mode.

To start recording:

Press the gray Video Button. The camera will emit one beep, and the camera light will flash while recording.

To stop recording:

Press the gray Video Button again. The camera will emit one beep, and the camera light will stop flashing.


To capture a photo, verify the camera is in Photo mode.

To take a photo:

Press the red Photo Button. The camera will emit a camera shutter sound.

CR2032 BATTERY REPLACEMENT FOR REMOTE

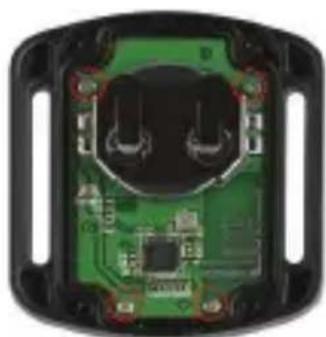

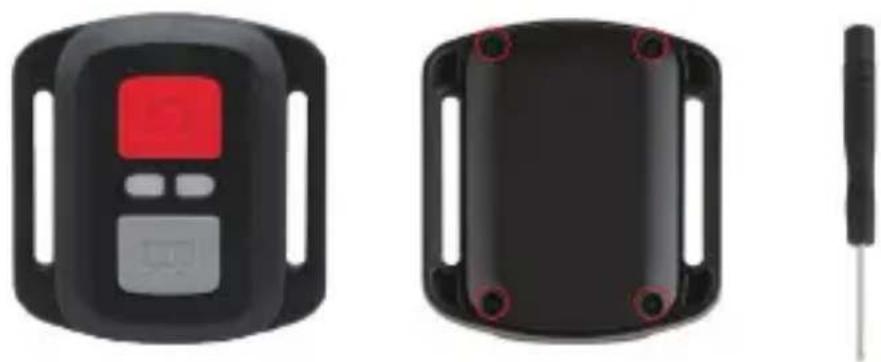

1. Use a 1.8mm Phillips tip screwdriver to remove the 4 screws on the back cover of the remote, allowing you to open it.

1. Remove another 4 screws on the PCB board.

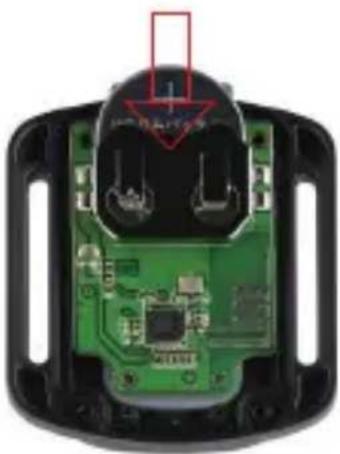

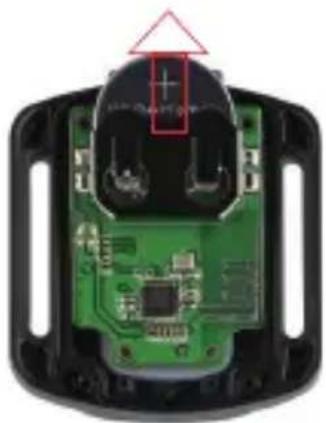

1. Lift the PCB board and slide out the battery, as shown in the picture.

Note: Do NOT rotate the PCB board to avoid reversing the camera and video button functions.

1. Install the new battery, keeping the "+" pole facing up.

2. Install all 4 screws back onto the PCB board.

1. Install all 4 screws back into the cover.

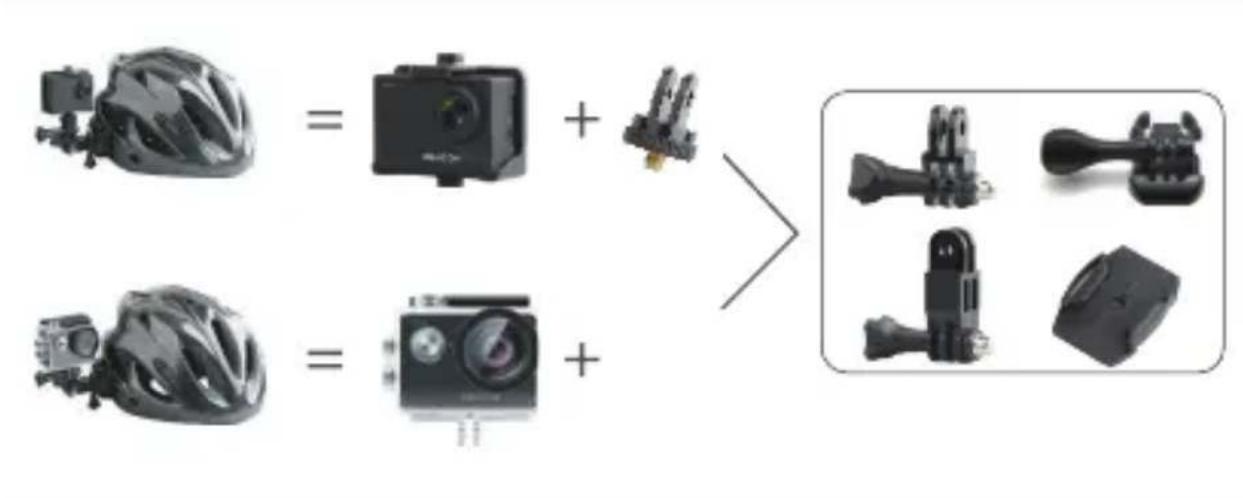

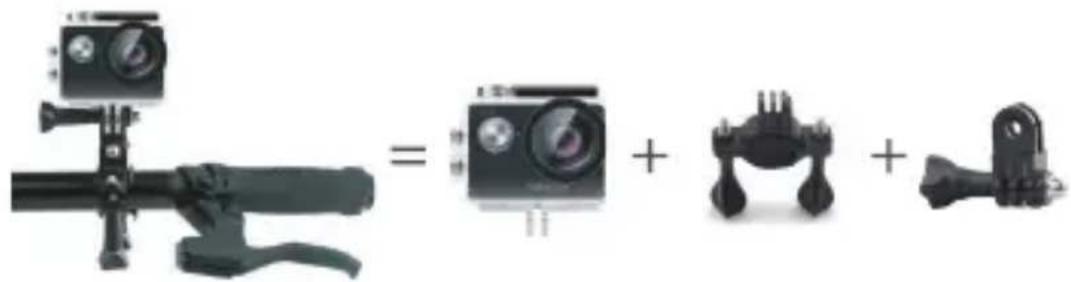

MOUNTING YOUR CAMERA

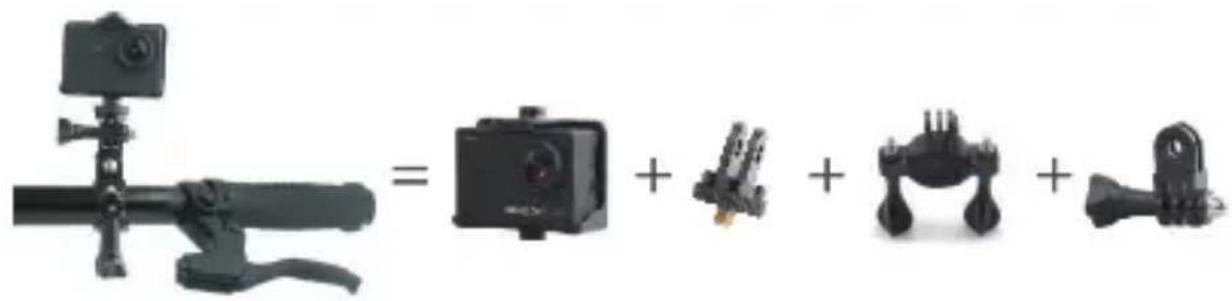

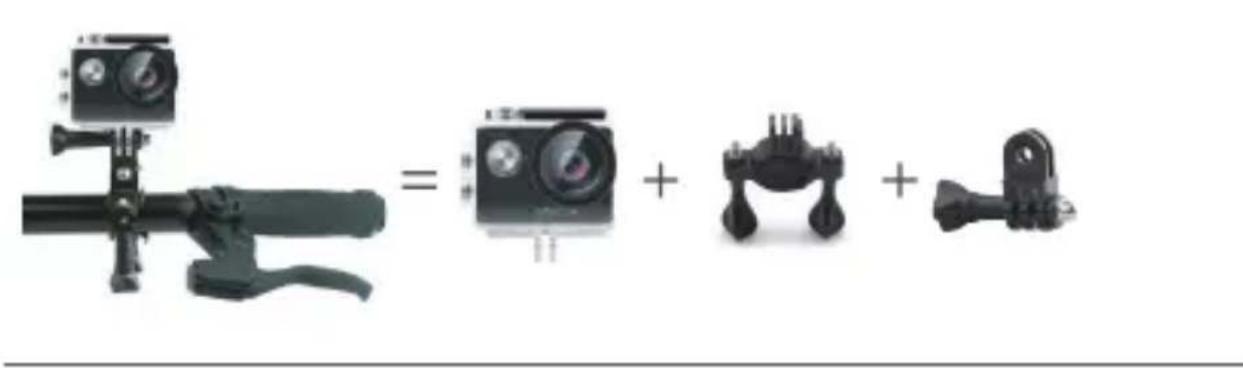

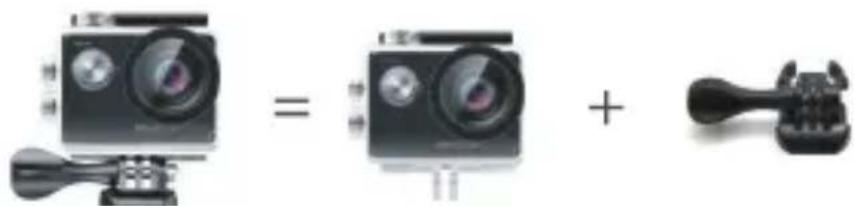

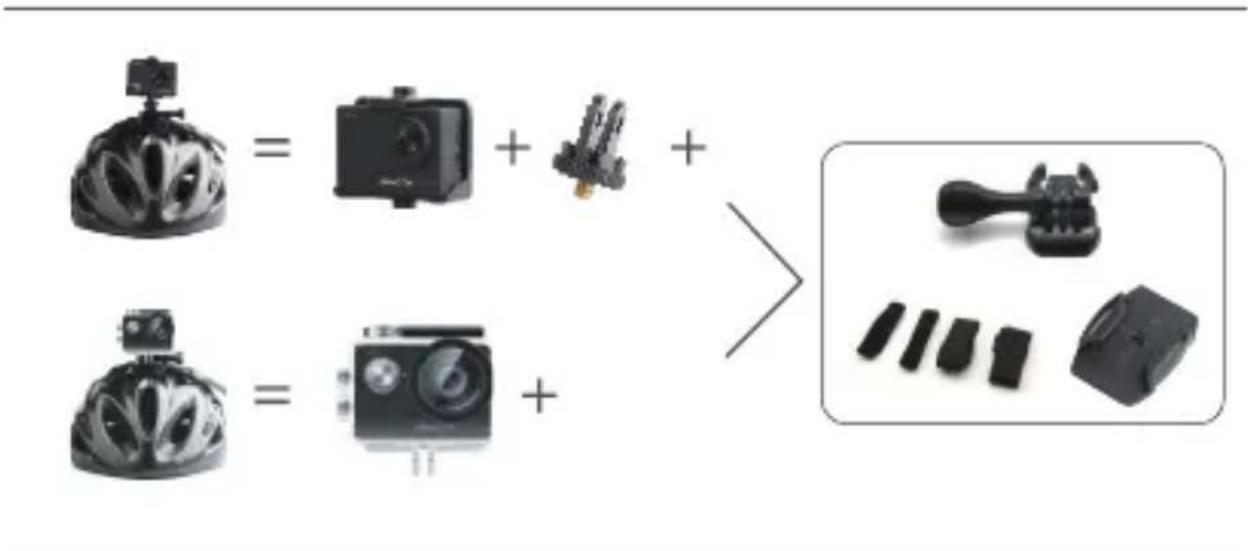

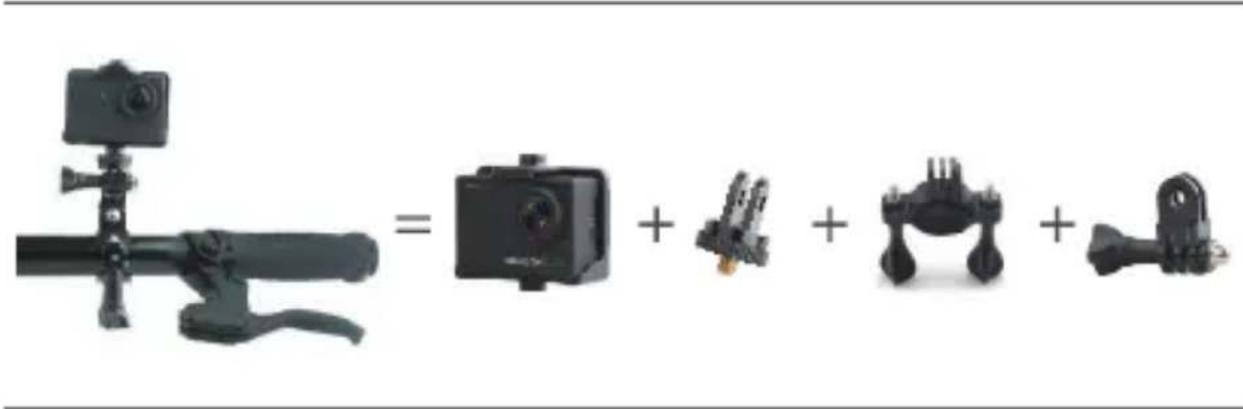

Attach your camera to helmets, gear and equipment.

CONTACT US

For any inquiries about DragonTouch products, please feel free to contact us. We will respond within 24 hours.

Tel: [phone] (US)

Email: [e-mail]

Web: www.dragontouch.com

INHALTE

WasistinderBox 23

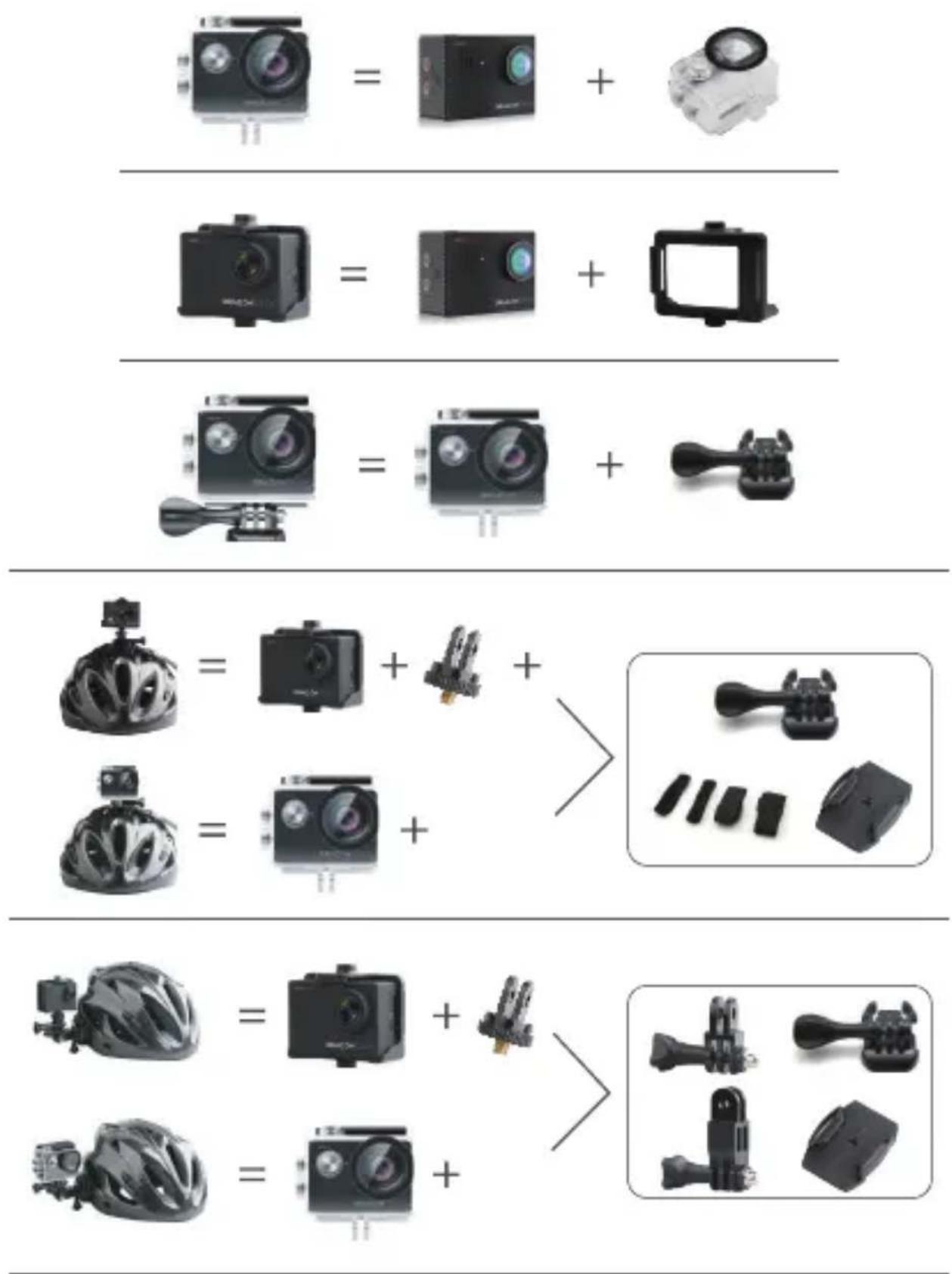

Attach your camera to helmets, gear and equipment.

KONTAKTIERE UNS

Resolution: 4K30fps/2.7K30fps/1080P60fps/1080P30fps/720P120fps/720P60fps/720P30fps

La configuración predeterminada es 4K30fps.

Note:

QU'Y A-T-IL DANS LA BOITE

Risoluzione: 4K30fps/2.7K30fps/1080P60fps/1080P30fps/720P120fps/720P60fps/720P30fps

ISO：才一卜/100/200/400/800/1600/3200/6400

初期設定は才一トになります。

ISO：才一卜/100/200/400/800/1600/3200/6400

初期設定は才一卜になります。
