InstantFun 2 - Camcorder Dragon Touch - Free user manual and instructions

Product Type	Kids Camcorder
Brand	Dragon Touch
Model	InstantFun 2
Screen	2-inch LCD
Video Resolution	FHD, HD
Image Quality	26MP, 12MP, 8MP, 5MP, 3MP, 1MP
Storage	microSD card up to 32GB (not included)
Battery	1000mAh, about 2 hours of battery life
Power Supply	5V/2A input via USB Type-C
Printing	Thermal paper 58mm x 15m, instant printing
Main Functions	Photo, video, print, filters, frames, zoom, self-timer, three photos, loop recording
Care and Cleaning	Clean with a soft dry cloth. Avoid moisture and dust.
Safety	Do not expose to excessive heat. Use under adult supervision. Built-in non-removable battery.
Spare Parts and Repairability	Thermal paper refills available. Contact customer service for repair. Battery not replaceable.
General Information	Multiple languages. Estimated weight 150g. Estimated dimensions 10x7x3 cm.

Frequently Asked Questions - InstantFun 2 Dragon Touch

How to install the printing paper?

Open the paper slot cover, insert the thermal paper roll (58mm x 15m) with the correct printable side orientation. Leave about 5cm of paper protruding, then close the cover. It is recommended to use official refills.

How to charge the battery?

Plug the provided USB Type-C cable into the device port and a 5V/2A power source. The red light indicates charging and turns off when fully charged. Charging should be supervised by an adult.

How to take a photo with instant printing?

In photo mode, press the OK button to activate print mode (printer icon on screen). Then press the shutter to take a photo, which will be printed automatically. Press OK again to exit this mode.

How to switch between front and rear cameras?

Long press the Up/Camera Switch button (▲) to switch between front and rear cameras.

How to apply filters or frames?

In photo mode, press the ▲ or ▼ buttons to browse through the available filters and frames. The effect is displayed live on the screen.

How to reset the camera?

If the device is not working properly, use a pointed tool to press the reset button (Reset) next to the USB port. This restores factory settings.

Which memory card to use?

The device supports microSD cards up to 32GB (not included). It is recommended to format the card before first use via the settings menu.

How to set the self-timer delay?

Go to the settings menu (Power/Menu button), select 'Self-timer' and choose 3s, 5s, or 10s. After confirmation, a photo will be taken automatically after the chosen delay.

How to delete files?

In playback mode (long press Down button), navigate with ▲/▼ to select a file. Press OK and choose 'Delete', then confirm with OK.

What to do if print quality is too light or too dark?

In the settings menu, adjust the 'Print Density' option to High, Medium, or Low to change the print density according to your preference.

USER MANUAL InstantFun 2 Dragon Touch

Line drawing of a backpack with two ears and a button, no text or symbols present

InstantFun 2 Kids Camera × 1

Simple line drawing of a cylindrical object with a circular side element (no text or symbols)

Print Paper Roll × 5

Simple line drawing of a backpack with a front pocket and side handles (no text or symbols)

Carrying Bag × 1

Color Pen Set × 1 Lanyard × Cartoon Sticker × 1

Collection of simple line drawings of various shapes and objects, no text or symbols present

Line drawing of a mechanical tool or tool with a handle and central knob (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Type-C Cable × 1 Quick Start Guide × 1

PRODUCT SPECIFICATIONS

Dimension: 95.5 × 45.5 × 86mm

Weight: 350g

Display: 2" LCD screen

microSD Card: max support 32G microSD card (not included)

Battery: 1000mAh

Working Hours: 2 hours

Input: 5V/2A

Language: English, Deutsch, Español, Français, Italiano, Русский язык, 한국어日本語, 中文简体, 中文繁體

Video Resolution: FHD, HD

Image Quality: 26MP, 12MP, 8MP, 5MP, 3MP, 1MP

GETTING STARTED

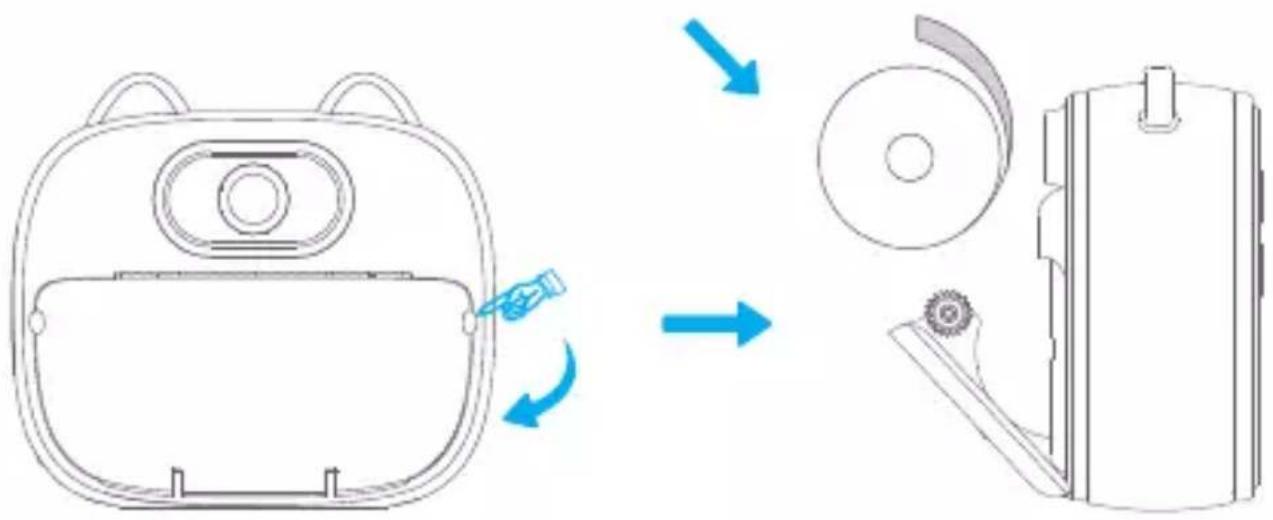

1. Installing Printing Paper

Open the lid and put the paper into the paper slot. The paper should be oriented according to the picture shown below. Make sure 1 in (5cm) of printer paper is sticking out when closing the lid.

Note:

• The size of the thermal print paper is 2 1/4" × 50' (58mm × 15m). We highly recommend you purchase printer paper refills from the product manufacturer to ensure proper function.
• For best results, the camera should be turned on and allowed to warm up for a few minutes before printing photos.

2. Inserting microSD Card

This camera can instantly print a photo without a microSD card, but if you want to save photos and videos, you must install a microSD card (not included) in the microSD card slot. This camera supports up to 32GB memory cards. The memory cards must be formatted before use.

Note: This camera can only support an up to 32GB memory card.

3. Charging and Powering On

Connect the USB Type-C cable to the USB Type-C port on the camera and plug the cable into a powered USB port. The indicator light will turn red when it is charging. The light will turn off when it is fully charged. When the charging is done, press and hold the ⏻ to turn on the camera.

Note: Charging the camera must be done with adult supervision.

4. Taking Photos and Recording Videos

After turning the camera on, it is in photo mode. Press and hold the 📷 to switch between the photo and video mode.

In the photo mode, press the 🔒 to take photos.

In the video mode, press the 📷 to start recording video and press it again to end recording.

5. Playback

Press and hold the OK to enter the playback mode and press the ▲ or ▼ to scroll through your files. You can print or delete the selected file by pressing the OK. Press and hold ▼ to exit.

6. Delete Files

Enter the playback mode and press the ▲ or ▼ button to scroll through your files. You can delete the selected file by pressing the OK and choose Delete, press OK to confirm.

7. Printing Mode

When in the Photo mode, press the OK to turn on the Printing mode, the will appear on the screen. When you press the 📄 to take a photo, the photo will be printed instantly. Press the OK again to exit the instant Printing mode.

You can also print photos saved on the camera. Press and hold the OK to enter playback mode. Press the OK to turn on the Printing mode, the 📄 will appear on the screen. Choose the photo by using the ▲ and ▼, and press OK and confirm printing, the photo will be printed instantly. Press and hold ▼ to exit.

8. Switch Cameras

Press and hold the ⬆ to switch between the front and rear cameras.

9. Filters and Frames

In the photo mode, press the ▲ or ▼ to select different filters and frames.

10. Reset

When the camera cannot work properly, a reset operation is required. Toggle the RESET key once to reset the camera to factory default settings.

11. Settings

Press the ⏻ to enter the settings menu. Press the ▲ or ▼ to select settings and press the Ⓞ to confirm.

Print Shade: High/Mid/Low

Choose different degrees of print density to change how dark the printed photo appears.

Resolution: HD/FHD

You can choose the video resolution.

Image Quality: 1MP/3MP/5MP/8MP/12MP/18MP/26MP

You can choose the image quality.

Delay Photo: Off/3s/5s/10s

You can take a photo with a delay of 3s/5s/10s.

Three Photo: On/Off

Turn on the Three Photo feature, three photos will be taken in quick succession after you press the shutter button.

Cyclic Record: Off/Three Minutes/Five Minutes/Ten Minutes

You can set loop recording time and this camera continues to record videos of the preset time length. When the memory card is full, it will replace the previously recorded material with the new content.

White Balance: Auto/Sunlight/Cloudy/Tungsten/Fluorescent

It can adjust the color temperature of videos and photos to optimize for cool or warm lighting conditions.

Auto Sleep: On/Off

It helps to turn off the display after a period of inactivity to save battery life.

Photo Zoom: On/Off

Turn on Photo Zoom, in the photo or video mode, press 🔒 or ▼ to adjust the zoom level.

Date Tag: On/Off

You can add a date stamp to your photo or video.

Beep Sound: Off/Big/Small

You can adjust the volume of the camera.

Time Setting: You can set the date and time.

Auto Power-off: Off/Three Minutes/Five Minutes/Ten Minutes

To preserve battery life, you can set the auto-off time to make the camera automatically turn off.

Language Setting: English, Deutsch, Español, Français, Italiano, Русский язык, 한국어, 日本語, 中文简体, 中文繁體

Format: To keep your microSD card in good condition, reformat it on a regular basis. Reformatting erases all your content, please make sure to offload your photos and videos first.

Reset System: This option resets all settings to their default values.

Version: You can check the firmware version of the camera.

WARNING

1. This camera includes small components and is not recommended for children under 3 years of age.
2. Children should be under adult supervision while using this product.
3. For your safety, please use the original USB cables provided to charge the camera.
4. Avoid exposing the camera to excessive heat, fire, or hot temperatures.
5. The built-in battery cannot be removed or replaced. If damaged, please contact the customer service. The charging should be done by an adult or under adult supervision.

CONTACT US

For any inquiries with Dragon Touch products, please feel free to contact us, we will respond within 24 hours.

E-mail: [e-mail]

Tel: [phone] (US) Mon-Fri (except holidays) 9am-5pm (EST)

Official website: www.dragontouch.com

The microSD, microSDHC, microSDXC and SD marks and logos are trademarks of SD-3C, LLC.

WAS IST IN DER BOX

Line drawing of a backpack with animal ears and a camera (no text or symbols)

InstantFun 2 Kids Kamera × 1

Simple line drawing of a cylindrical object with a circular end (no text or symbols)

Druckerpapier × 5

Simple line drawing of a backpack with two side pockets (no text or symbols)

Tragetasche × 1

Collection of simple geometric shapes and outlines, no text or symbols present

Line drawing of a mechanical tool or tool with a handle and central knob (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of a basketball glove with a cap and front panel (no text or symbols)

Simple line drawing of a backpack with a pocket (no text or symbols)

Bolsa de Transporte × 1

Grid of simple line drawings of various shapes and circles, no text or symbols present

Line drawing of a mechanical tool or connector with a handle and central knob (no text or symbols)

Correa × 1

Line drawing of a multi-core cable with two connectors (no text or symbols)

QU'Y A-T-IL DANS LA BOITE

Line drawing of a backpack with two ears and a camera (no text or symbols)

Simple line drawing of a cylindrical object with a rounded top and a small circular end (no text or symbols)

Simple line drawing of a backpack with a pocket (no text or symbols)

Sac de Transport × 1

Collection of simple geometric shapes and outlines in various colors and shapes (no text or symbols)

Line drawing of a mechanical tool or tool with a handle and central knob (no text or symbols)

Lanière × 1

Line drawing of a USB cable with two connectors (no text or symbols)

Câble de type C × 1

CARACTÉRISTIQUES DU PRODUIT

SPÉCIFICATIONS DU PRODUIT

Dimension: 95.5 × 45.5 × 86mm

Poids: 350g

Remarque:

Retard photo: Off/3s/5s/10s

Line drawing of a backpack with animal ears and a camera (no text or symbols)

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

Simple line drawing of a backpack with two side pockets (no text or symbols)

Collection of abstract geometric shapes and outlines, no text or symbols present

Line drawing of a USB cable with two connectors (no text or symbols)

Type-C Cavo × 1 Guida Rapida × 1

Line drawing of a mechanical tool or probe with a pointed tip and cylindrical body (no text or symbols)

CARATTERISTICHE DEL PRODOTTO

Dimensione: 95.5 × 45.5 × 86mm

Peso: 350g

microSD Carta: 2" LCD schermo

microSD Card: Supporto massimo 32G micro SD card (non inclusa)

Batteria: 1000mAh

6. Cancellare i file

Line drawing of a dragon hand holding a device (no text or symbols)

Simple line drawing of a cylindrical object with a circular end, no text or symbols present.

印刷用紙ロール×5

Simple line drawing of a backpack with a pocket (no text or symbols)

キャリングバッグ×1

Grid of simple geometric shapes including circles, rectangles, and polygons (no text or symbols)

Line drawing of a mechanical tool or probe with a handle and lever (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

ご注意：
