Product type	Solar charger for trail camera with built-in battery
Brand	Berger & Schröter
Model	31884
Dimensions (L x W x H)	158 x 102 x 14 mm
Weight	188 g
Maximum solar power	1.5 W
Built-in battery	Lithium 1500 mAh
External charging input	DC 5 V / 500 mA
Maximum output	DC 6 V / 1500 mA
Protection rating	IP56 (protected against water splashes)
Operating temperature	-20 °C to +50 °C
Storage temperature	-30 °C to +70 °C
Estimated lifespan	3 to 5 years
Included cables	Charging cable (A) and power cable (B)
Mounting	On tree (strap) or on wall (mounting bracket included)
Recommended installation angle	30 to 45 degrees from horizontal
LED indicators	Blue: ready; Red: charging; Off: charging complete
Compatibility	Power supply for Berger & Schröter trail cameras
Maintenance	Clean the glass with a soft dry cloth
Safety	Do not open the housing; cover unused interfaces
Box contents	Solar panel, strap, wall mount, cables, screws, wall plugs, Allen key

Frequently Asked Questions - 31884 Berger & Schröter

How to install the solar panel on a tree?

Use the included strap to attach the panel to the tree. Make sure the panel is securely fastened and oriented towards the sun at an angle of 30 to 45 degrees.

What is the ideal angle for the solar panel?

The recommended angle is 30 to 45 degrees from horizontal. This optimizes sun capture while preventing debris or water buildup on the glass.

What does the blue LED mean?

The blue LED indicates that the solar panel is ready for use and not charging.

Can I charge the solar panel via a mains adapter?

Yes, use cable A (charging cable) with a DC 5 V / 500 mA power supply. Connect the round end to the 5V IN interface on the panel and the square end to the adapter.

How long does it take to charge the built-in battery?

With sufficient sunlight, charging can be completed in one day. The red LED turns off when charging is complete.

Is the solar panel waterproof?

Yes, it is protected against water splashes with IP56 rating. However, avoid placing it in a flood-prone area.

How to clean the solar panel?

Use a soft dry cloth to remove dust or dirt from the glass. Regular cleaning is necessary to avoid hindering charging.

Can I use the panel with cameras other than Berger & Schröter?

The manufacturer recommends exclusive use with its trail cameras. Use with other devices may cause damage.

What to do if the battery does not charge?

Check that the glass is clean, the panel is well exposed to sunlight, and the cables are properly connected. If the problem persists, contact the retailer.

What accessories are included in the box?

The box contains the solar panel, a strap, a wall mount, two cables (A and B), screws, wall plugs, an Allen key, and a pivot pin.

USER MANUAL 31884 Berger & Schröter

Black rectangular device with a vertical side panel and two black cables attached (no visible text or symbols)

Technical line drawing of a rectangular frame with scalloped edges and labeled points 1 and 2 (no text or symbols beyond labels)

3 5 4 #V ON #V OUT

Technical line drawing of a mechanical component with grid lines and a labeled dimension (6), no readable text or symbols present.

Two black cables labeled Kabel A and Kabel B, shown side by side (no additional text or symbols visible)

Black plastic electronic device with attached cable and a labeled 'Solar Charger' label, placed on a plain surface (no readable text beyond label)

Three black electronic devices with visible internal components and wiring, one labeled 'Solar charger' (no readable text on main body)

Black rectangular device with ribbed top and two black cables attached to its side (no text or symbols visible)

LED Kontrollleuchte

Labeled diagram of a mechanical device with numbered components for identification

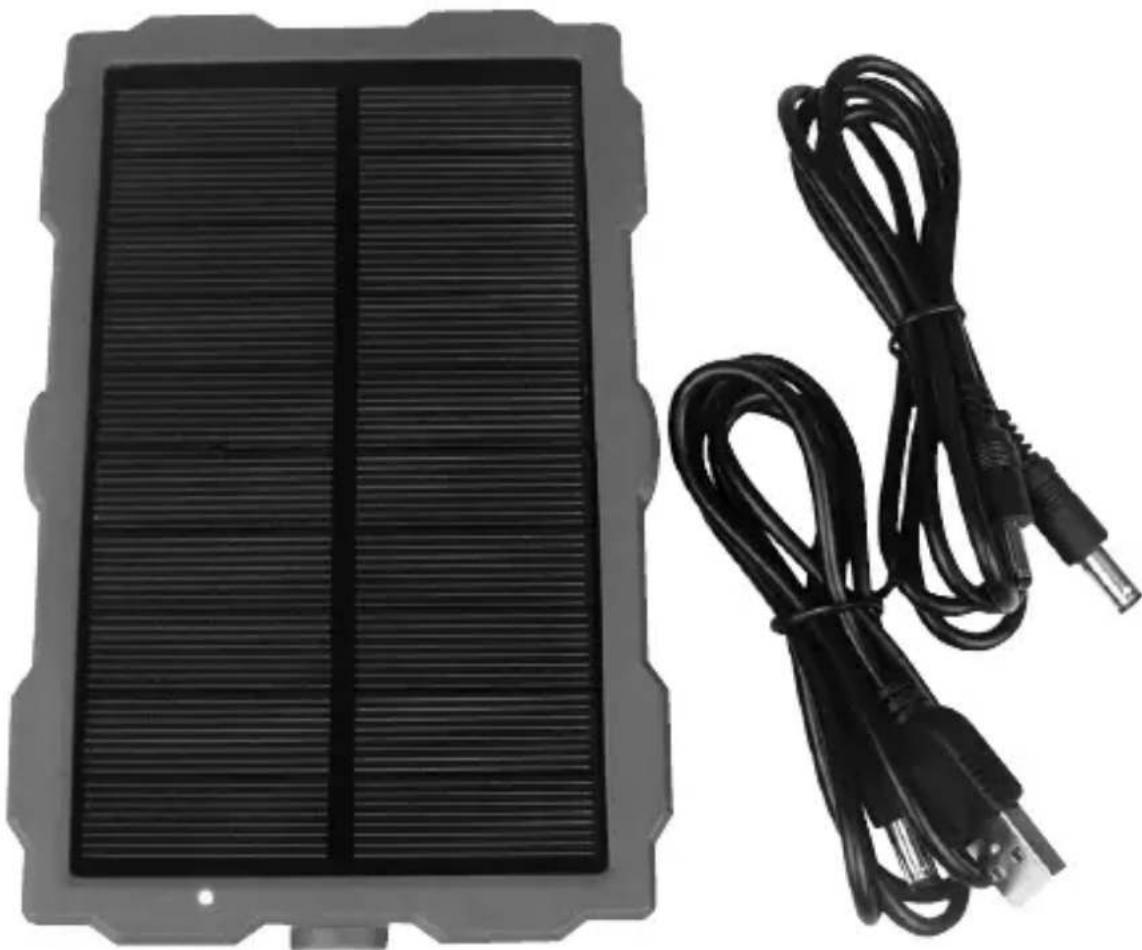

(GB) Operating Instructions Solar Panel Item No. 31884

Black rectangular device with a vertical panel and two black cables, no visible text or symbols.

Introduction: The operating instructions are part of this product. It contains important information about safety, use and disposal. Before using the product, familiarize yourself with all operating and safety instructions. Use this product only as described and only for the stated areas of application.

This documentation is protected by copyright. Reproduction or reproduction, including excerpts, and the reproduction of images (even in a modified state) is only permitted with the written consent of the manufacturer.

Intended use: This device is only for the power supply of our wild cameras. The manufacturer assumes no liability for damage caused by non-compliance with these regulations, improper use or improper repairs.

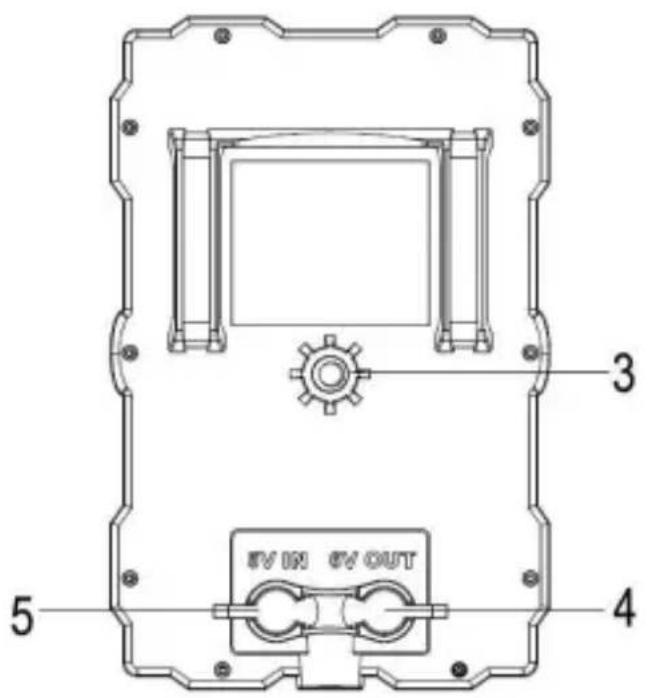

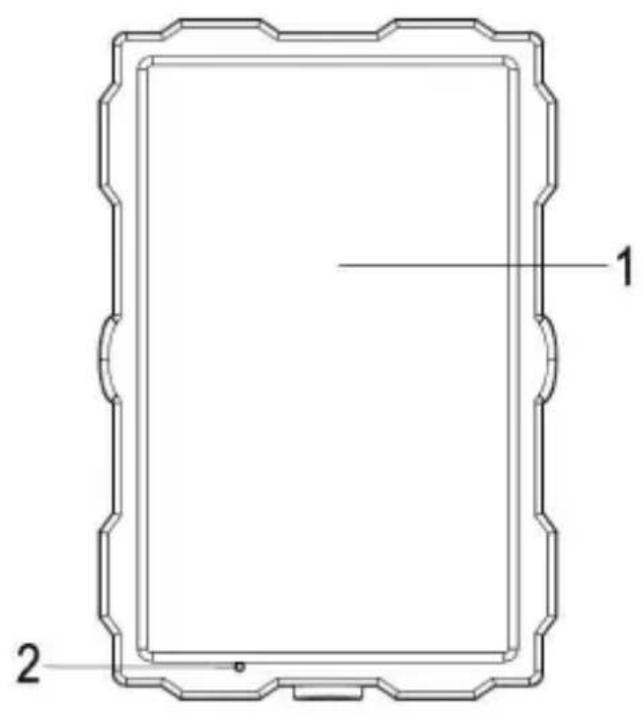

Product Overview

Technical line drawing of a rectangular frame with scalloped edges and labeled points 1 and 2 (no text or symbols beyond labels)

3 5 4 #V ON #V OUT

6

1. Energy absorption glass
2. Indicator light
3. Tripod slot
4. 6V output interface
5. 5V input interface
6. Tripod slot

• Solar maximum charge power:1.5W
• Solar maximum charge electrical current:300mA
• Built-in 1500mAh lithium battery
- External charging input: DC 5V/500mA
• Maximum output: DC 6V/1500mA
- Battery life: Charging can be completed in one day under the condition of enough sunlight.
- Support to take 9418 photos in the daytime or 3741 photos in the night.
- Support to record 2716 video clips in the daytime or 458 video clips in the night. (the default length of one video clip is 5 seconds)
• Operation temperature:-20°C to +50°C
• Storage temperature: -30°C to + 70°C
• Working life:3 to 5 years
• Dimension: approx.158 x 102 x 14 mm
• Weight: approx.188 g
- The solar panel has a spray-water protected (IP protection class 56).

Cautions

1. When powering the hunting camera by solar panel, please make sure you have installed at least 4pcs batteries in the hunting camera as reserve.
2. Never try to open the case of the device or attempt to modify it in any way. Maintenance and repair should be carried out only by authorized service providers. Should repair is required, please contact retailer directly.
3. It is necessary to use a dry and soft cloth to clean the dust or dirt on the solar panel glass regularly to avoid affecting charging.
4. Please keep the rubber cover plug in when not using the interface to avoid water leaking that may lead to short-circuit even damage.

Operation Introduction

Installing

You can fix the solar panel to a tree by the bandage. Or fix it to flat surfaces by bracket.

1. You should mount the solar panel via bandage or bracket in advance.
2. The solar panel should be placed in where has enough sunlight, no barrier and shelter. And the energy absorption glass has to face to the sunlight.
3. Place the solar panel in where above the ground or platform to avoid being inundated by rain.
4. Adjust the angle between the solar panel glass and horizontal plane, suggest to keep an angle of 30-45 degree. If the angle is too small, the panel glass will be easy to water or fall foreign matter. If the angle is too big, sunlight will be not enough.
5. Check and make sure the solar panel is fixed well.

Connection

We supply two cables as below.

Cable A: Used for charging the solar panel by power adapter in 5V.

Square side connect to the adapter and round side connect to the 5V IN interface on the solar panel.

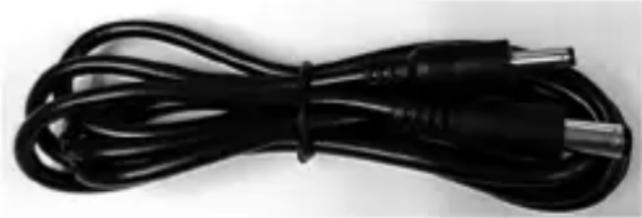

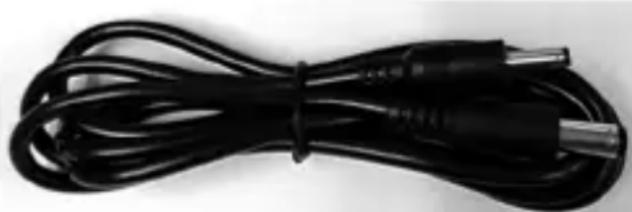

Cable B: Used for powering the hunting camera by solar panel. Smaller side connect to the DC socket of hunting camera. Bigger side connect to the 6V OUT interface on the solar panel.

Cabel A

Black USB cable with connectors, no visible text or symbols

Cabel B

Black cable with metallic connector and USB port, no visible text or symbols

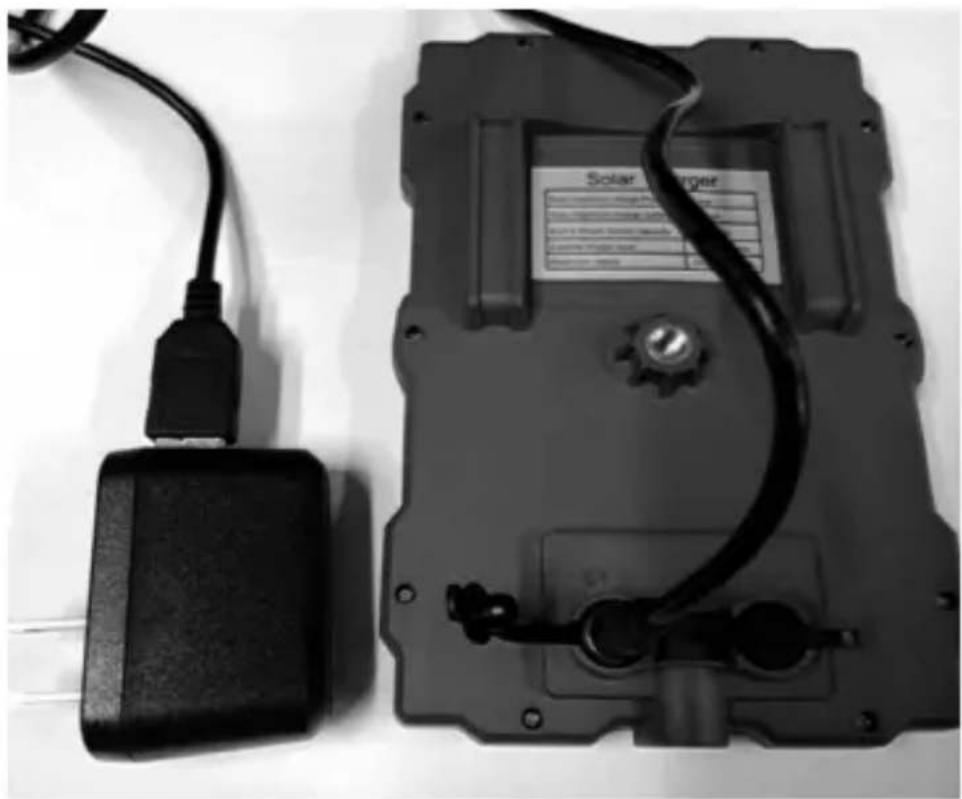

Connect the adapter to charge

Black-and-white photo of a solar charger module with attached cable and connector (no visible text or symbols)

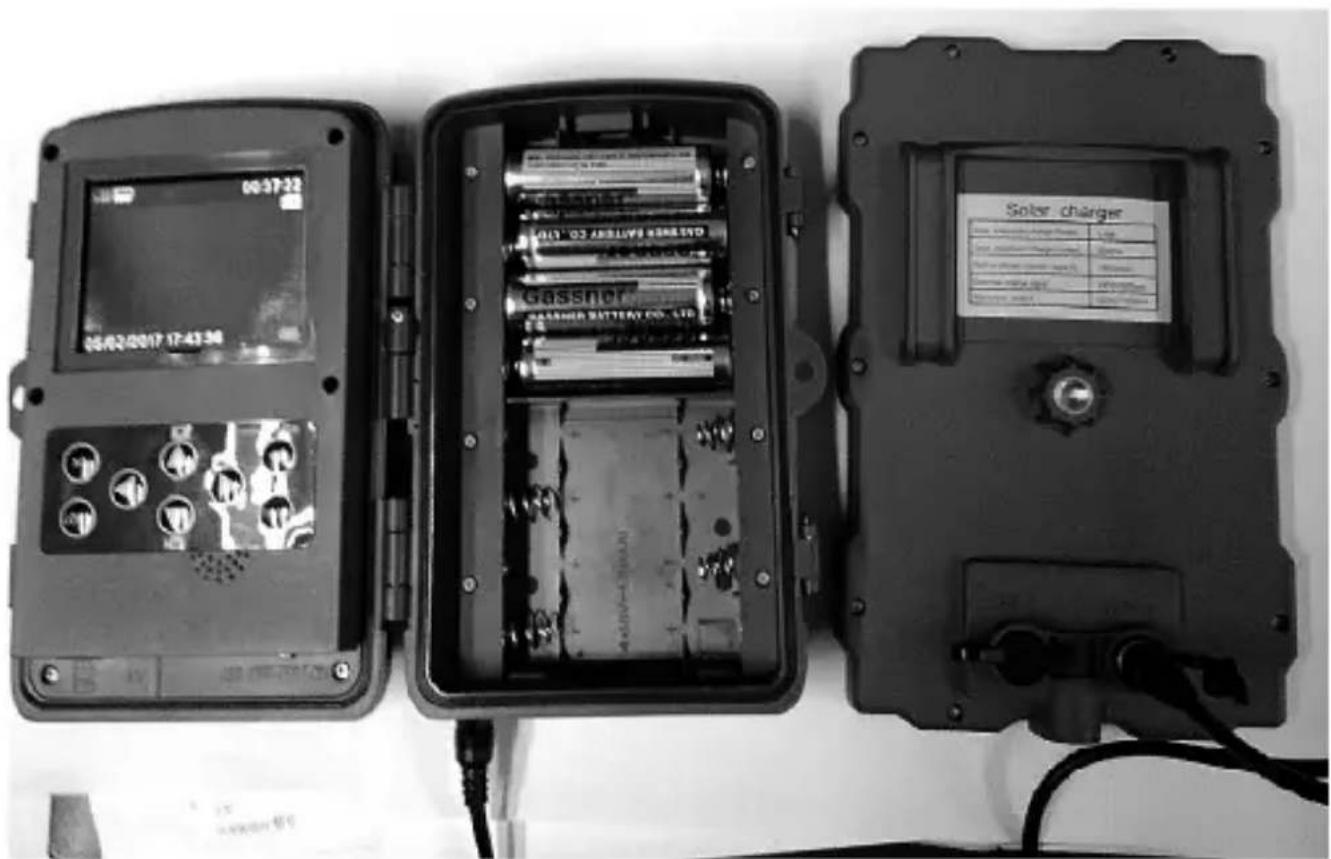

Connect the hunting camera to support power

Three black electronic devices with visible internal components and wiring, no readable text or symbols on the main body.

Black rectangular device with ribbed top and two black cables attached to its side (no text or symbols visible)

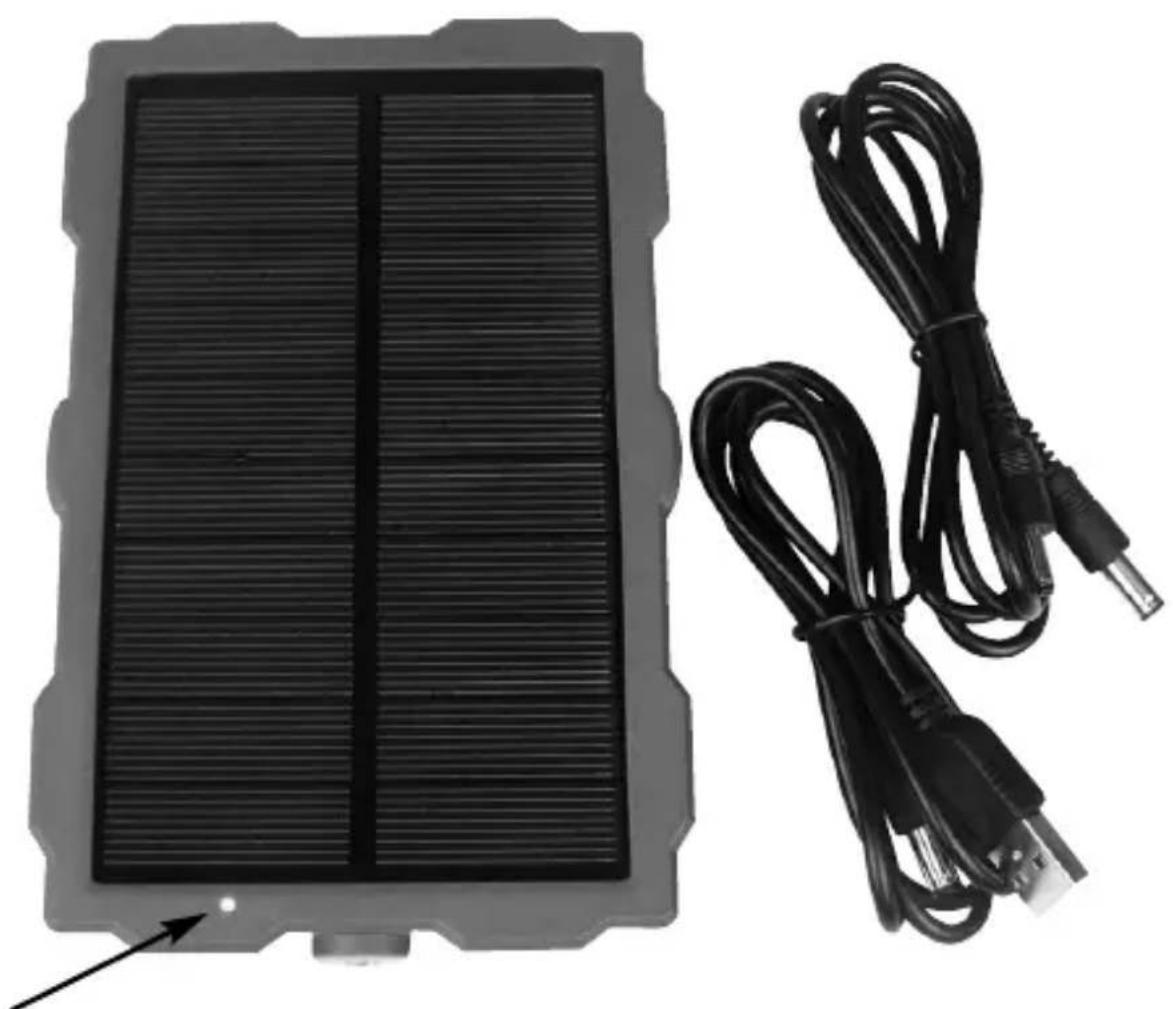

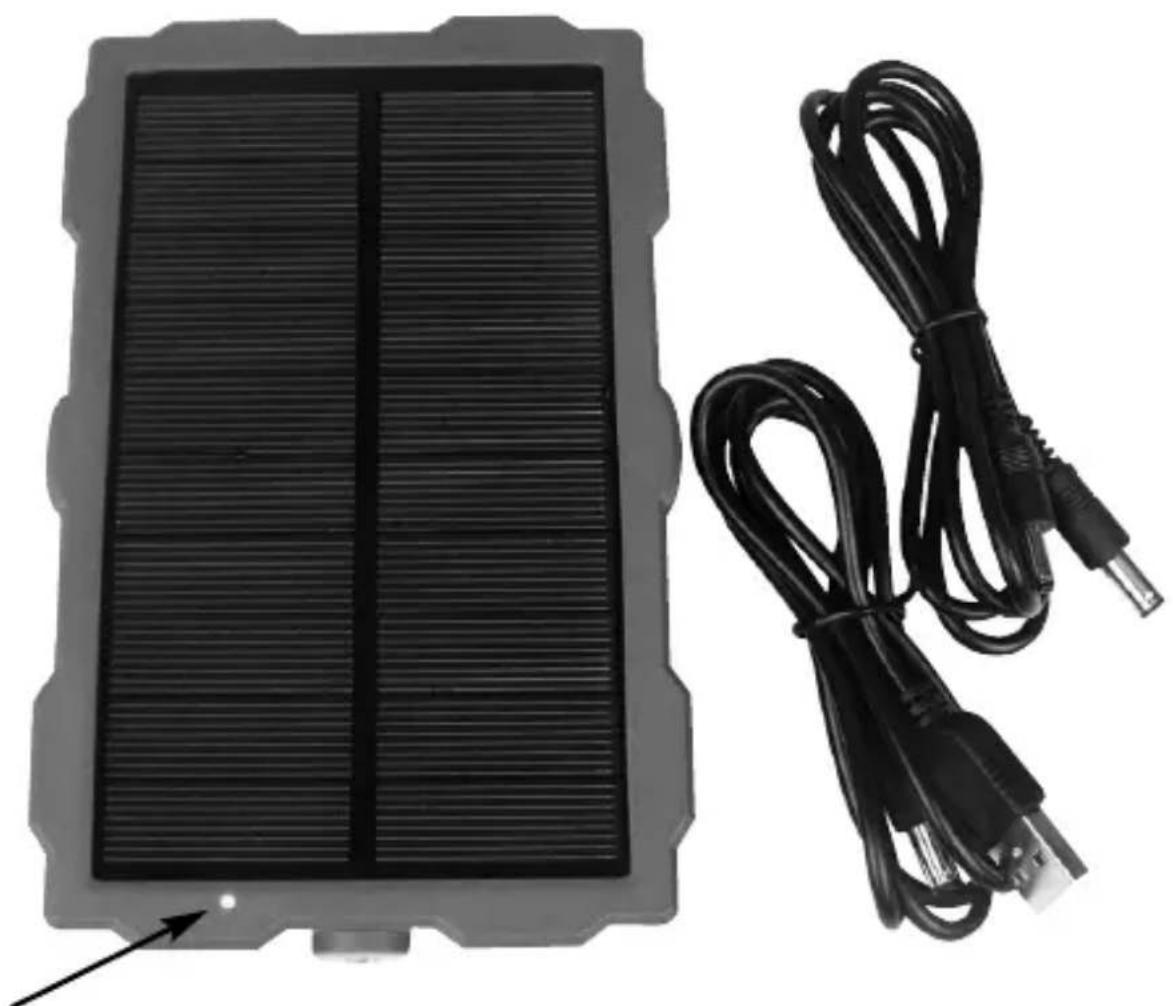

LED Indicator Light

The LED light indicates in which mode the solar panel is located.

1. The solar panel glass faces to light, the indicator light will be blue. Now the panel is working.
2. When charging the solar panel via adapter or sunlight, the indicator light will keep red.
3. After charging completed, the light goes out.

Using the wall bracket

You can mount the solar panel on a wall or tree by the supplied wall bracket. Before mounting the wall bracket you should ensure that all existing screws are tight.

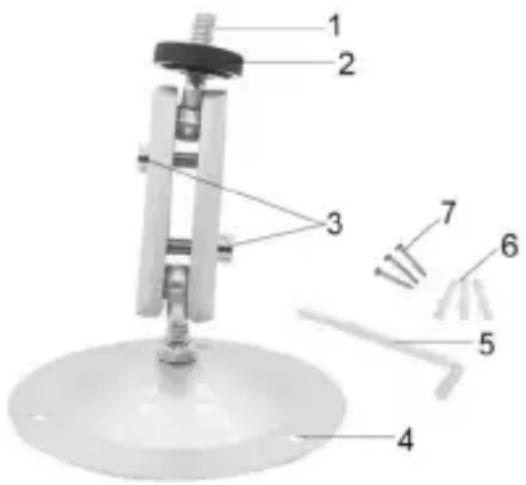

Components

1. Tripod screw
   2 Lock nut
   3 Pivot bolts
   4 Drill holes
   5 Hexagonal screw
   6 Wall plugs
   7 Screws

Labeled diagram of a mechanical device with numbered components for identification

Mounting the wall bracket Required tools

• Drill
• 6 mm masonry/concrete drill bit
  • Phillips head screwdriver

Caution

• Ensure that there are no electric lines, water or heating pipes installed at the proposed drilling location.
• The supplied wall plugs are only suitable for mounting on concrete or stone. Before starting the installation, please check your installation location carefully for its suitability for the plugs. The assembly material used must be suitable for the respective location. If in doubt, consult a professional.

Install Steps

• Mark the drill holes by holding the foot of the wall bracket at the desired mounting location and marking the hole positions.
• Use a drill with a 6 mm drill bit to drill the required holes and insert the plugs and insert the wall plugs flush with the wall.
• Screw the wall bracket to the wall using the supplied screws.
• Mount the solar panel on the tripod screw and screw the solar panel a little way on (about three turns).
• Turn the solar panel in the desired direction and lock it with the lock nut.
• To move the solar panel into its final position, undo the two pivot bolts a little, position the solar panel and fix the position by tightening the two pivot bolts.

Black rectangular device with a vertical side panel and two black cables attached (no visible text or symbols)

Introduction

Technical line drawing of a rectangular frame with scalloped edges and labeled points 1 and 2 (no text or symbols beyond labels)

3 5 4 #V ON #V OUT

6

Black cable with USB port connector, no visible text or symbols

Câble B

Coiled black cable with metallic connectors (no text or symbols visible)

Black-and-white photo of a solar charger module with attached cable and connector (no visible text or symbols)

05/02/2017 17:43:36 Gassner BASHERI BATTERY CO., LTD. Solar charger Solar charger (Electricity) Name: Solar Solar charger (Electricity) Type: Solar Solar charger (Electricity) Color Code: Green Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars

Black rectangular device with ribbed top and two black cables attached to its side (no text or symbols visible)

Voyant LED

Utiliser le support mural

Labeled diagram of a mechanical device with numbered components for identification

Monter le support mural Outils requis

Exterior view of a black rectangular electronic device with a coiled cable, no visible text or symbols

Inleiding

Technical line drawing of a rectangular frame with scalloped edges and labeled points 1 and 2 (no text or symbols beyond labels)

3 5 4 #V ON #V OUT

6

Black USB cable with connector, isolated on white background (no text or symbols)

Kabel B

Black cable with metallic connector and terminal connector, isolated on white background (no text or symbols)

Black-and-white photo of a solar charger module with attached cable and connector (no visible text or symbols)

05/02/2017 17:43:36 Gassner BASHERI BATTERY CO., LTD. Solar charger Solar charger (Electricity) Name: Solar Solar charger (Electricity) Type: Solar Solar charger (Electricity) Color Code: Green Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar charger (Electricity) Color Code: Black Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargers Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargats Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars Solar chargars

Black rectangular device with ribbed top and two black cables attached to its side (no visible text or symbols)

LED-indicatielampje

Labeled diagram of a mechanical device with numbered components for identification
