| Product Type | Battery-powered vacuum (suction cup) |
| Brand | Berger & Schröter |
| Model | 60823 |
| Suction Cup Diameter | 20 cm |
| Maximum Load Capacity | 110 kg |
| Battery Type | Lithium-ion 18350, 900 mAh, 3.7 V |
| Battery Life | Approximately 300 charge cycles |
| Charging | USB-C port (power adapter not included) |
| Suction Pressure | ~0.5 bar / ~400 mmHg |
| Operating Temperature | -10 °C to +45 °C |
| Indicator Lights | Red (suction), Green (vacuum maintained), Orange (release), Blue (charging) |
| Suction Cup Material | Rubber (rubber pad) |
| Included Accessories | USB-C cable, plastic case, safety cover |
| Main Functions | Suction, vacuum hold, quick release, automatic charging |
| Maintenance | Clean suction cup and surface, replace filter if necessary (re-glue) |
| Safety | Do not use on wet/porous surfaces, do not climb, do not lift more than 110 kg |
| Weight (estimated) | Approximately 1 kg (without packaging) |
| Repairability | Replaceable battery, replaceable filter, non-replaceable suction base |
| Intended Use | Lifting smooth, clean, non-porous objects |
Frequently Asked Questions - 60823 Berger & Schröter
User questions about 60823 Berger & Schröter
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual 60823 - Berger & Schröter and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 60823 by Berger & Schröter.
USER MANUAL 60823 Berger & Schröter
QR code image containing encoded data, no visible human-readable textBangen & Schnöten
EN Instruction manual
Battery vacuum lifter


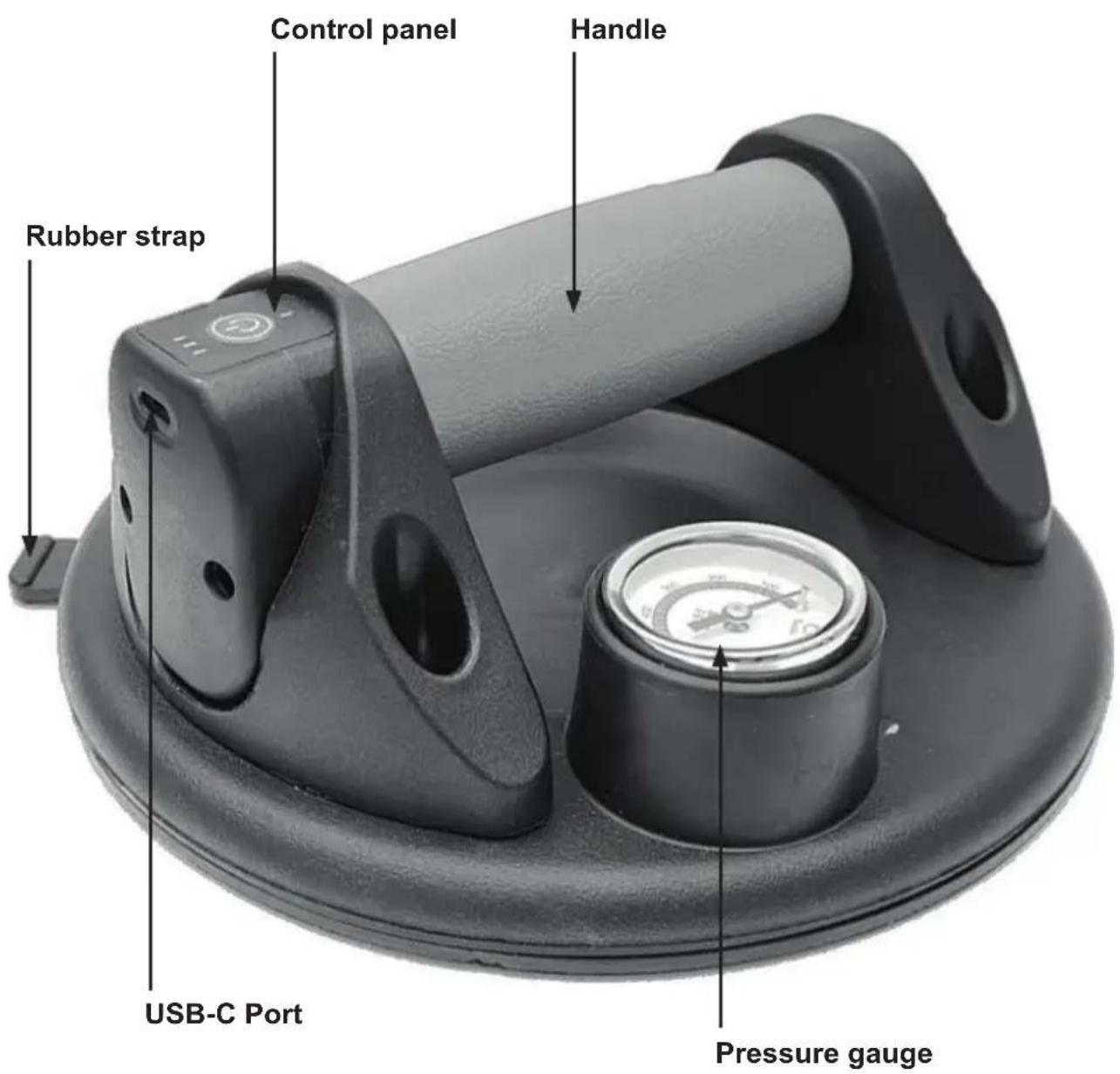

Control panel Handle Rubber strap USB-C Port Pressure gaugeBangen & Schnöten
EN Instruction manual
Battery vacuum lifter
Please read these operating instructions completely and carefully before commissioning and keep them for later reference or for passing the suction lifter on to other persons. The manual provides information on operation, troubleshooting and the prevention of accidents. Please observe the safety instructions given.
Technical data
| Battery Lion battery #18350, 900 mAh, 3,7V | |
| Diameter 20cm | |
| Max. Load capacity (depending on material properties and surface pressure) | 110kg |
| Connection USB-C | |
| Operating temperature -10C° bis +45C° | |
| Suction power ~0,5bar / ~400mmHg | |
Included in delivery:
1x suction lifter with rechargeable battery
1x USB-C charging cable (adapter not included)
1x plastic case
1x safety cover
Safety instructions
The suction lifter should only be used on clean, dry, smooth and non-porous surfaces. Moisture and contamination can reduce the suction power of the lifter or lead to reduced slip resistance. Optimum adhesion can only be assured if the unit and work surface are kept clean.
a. Use the suction lifter only for its intended purpose.
b. This equipment is not designed or intended for climbing or supporting a person's weight. Misuse may result in serious injury or death.
c. Ensure that the suction lifter is securely placed on a firm, level surface to minimize the risk of falling or damage.
Bangen & Schnöten
d. Always unplug the vacuum lifter from the electrical outlet before cleaning or servicing.
e. Make sure the battery is fully charged before use to ensure safe and reliable performance.
f. Use work clothes when using the vacuum lifter.
g. Do not lift objects weighing more than 110kg.
h. Dispose of the vacuum lifter and its batteries properly to prevent environmental pollution.
Manual
Attention: The battery should be fully charged before use.
- Remove the safety cover. Make sure that the suction rubber is clean and dry. Check the device for possible damage.
- Check the object you want to lift: Is it smooth and clean?
- Hold the handle of the suction lifter and press the on/off switch until the left red light is on: the suction pump is working. While the pointer of the manometer turns to the green area (\~400mmHg), the right first green lamp lights up, which means the pump is off. Now you can lift the object.
- If the pressure falls into the red range, the lifter will automatically suck.
- To release the vacuum, confirm the on/off switch again. When you do this, the middle orange lamp lights up briefly. Pull the rubber tab to release the suction lifter more easily.
- Clean the suction lifter, replace the safety cover and store it in the plastic case.
Caution: Before you detach the suction lifter, the air should be completely pumped out and the suction lifter switched off.
The suction base cannot be replaced.
The filters can be replaced, but must be glued again afterwards.
The battery can be used for up to 300 charging cycles.
Simply scan the QR code with your smartphone to get to the product video.
