Product type	Bike carrier (luggage carrier)
Brand	Berger & Schröter
Model	20234
Weight	Approx. 2 kg
Mounting plate dimensions	135 x 80 mm
Material	High-quality steel
Fixing type	Fold-down plug-in connector
Tow ball compatibility	Steel ball quality min. ST52-3
Mounting screw torque	49 Nm
Folding function	Yes, foldable
Theft protection	Holes for padlock
Maintenance	Check screws regularly, clean with a soft cloth
Usage	Transport of bikes on trailer hitch
Online manual	Available free of charge as PDF

Frequently Asked Questions - 20234 Berger & Schröter

How to install the Berger & Schröter 20234 bike carrier on the trailer hitch?

Place the bike carrier on the tow ball, screw the plug-in connector using the mounting kit (4 screws M8.9x30, 4 washers, 4 self-locking nuts) tightening to 49 Nm. Then tighten the manual clamping screw.

What is the maximum load supported by model 20234?

The manual does not specify the payload for this model. For other models, the payload is 59 kg. Make sure not to exceed the maximum authorized load of the trailer hitch (minimum 70 kg).

Is the 20234 bike carrier compatible with aluminum trailer hitches?

No, this model is designed for steel tow balls of minimum quality ST52-3. Do not use on aluminum balls.

How to fold the 20234 bike carrier when not in use?

The 20234 model is foldable: unlock the folding mechanism, fold the bike carrier part up or down depending on the design, then secure it in the folded position.

Can I use a lock on the 20234 bike carrier?

Yes, holes provided for this purpose allow you to place a padlock to secure the bike carrier on the trailer hitch.

How to adjust the 20234 bike carrier so that it is perfectly horizontal?

After placing the bike carrier on the ball, tighten the adjustment screw until the bike carrier is horizontal. Use a torque wrench for precise tightening.

What tools are needed for mounting model 20234?

You will need a torque wrench to tighten the mounting screws to 49 Nm, as well as a screwdriver or Allen key depending on the screws provided.

Does the 20234 bike carrier obscure the license plate or rear lights?

If so, you must install a license plate holder and additional lighting in accordance with current regulations.

How often should I check the fixation of the 20234 bike carrier?

After the first 50 kilometers, check the overall tightness. Subsequently, regularly check the screw tightening and the adjustment of the mechanism.

Where can I find the complete manual for the Berger & Schröter 20234?

The manual is available free of charge as a PDF on notice-facile.com. You can also request a translation by choosing your language on the site.

USER MANUAL 20234 Berger & Schröter

3D wireframe diagram of a rectangular grid structure with an arrow pointing to one side (no text or symbols)

NSAI – National Standards Authority of Ireland – Technical Service No. 91

Mechanical component with a black lever and mounting base (no visible text or symbols)

Mechanical component with black and metallic parts, no visible text or symbols

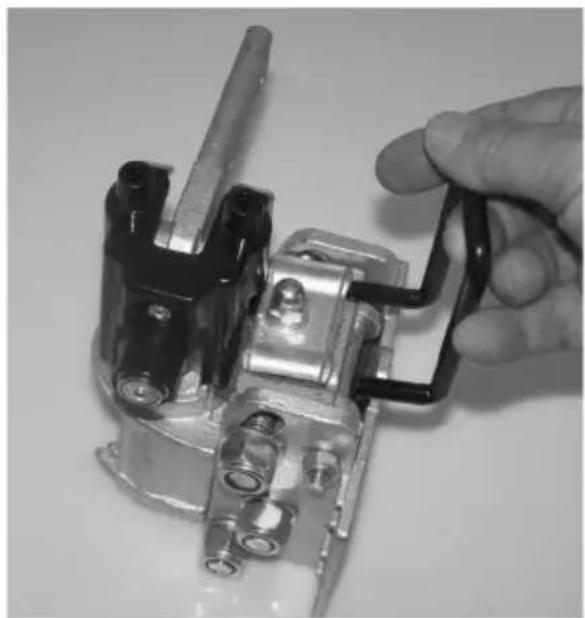

Two black-and-white photos showing a hand holding a mechanical switch, with no visible text or symbols.

Mechanical assembly diagram showing a lever mechanism with a pulley and pivot point (no text or symbols)

Illustration of a hand using a tool to lift a beam, with an inset showing a human arm flexing (no text or symbols present)

Illustration of a person using a bench presser to lift a bed, with motion arrows indicating movement (no text or symbols)

Illustration of a hand gripping a mechanical device with an inset showing a flexing arm (no text or symbols present)

Illustration of a person in protective gear handling equipment with directional arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with directional arrows and a magnified inset of a device component with internal flow arrows.

Mechanical component with threaded shaft and mounting flange (no visible text or symbols)

Cross-sectional view of a mechanical valve assembly (no visible text or labels)

Mechanical component with attached spring and mounting bracket (no visible text or symbols)

Technical diagram of a pipe elbow with labeled components and dashed lines indicating hidden edges

(GB) Assembly and Operating Instructions for rear mounted carrier systems, type: ProfiTech

Please read these operating instructions carefully before use and keep them in a safe place for future reference.

Model: Rear carrier with quick release lever coupler (item no. 20121) Item no. 30726 powder-coated, grey; item no. 31144 galvanised

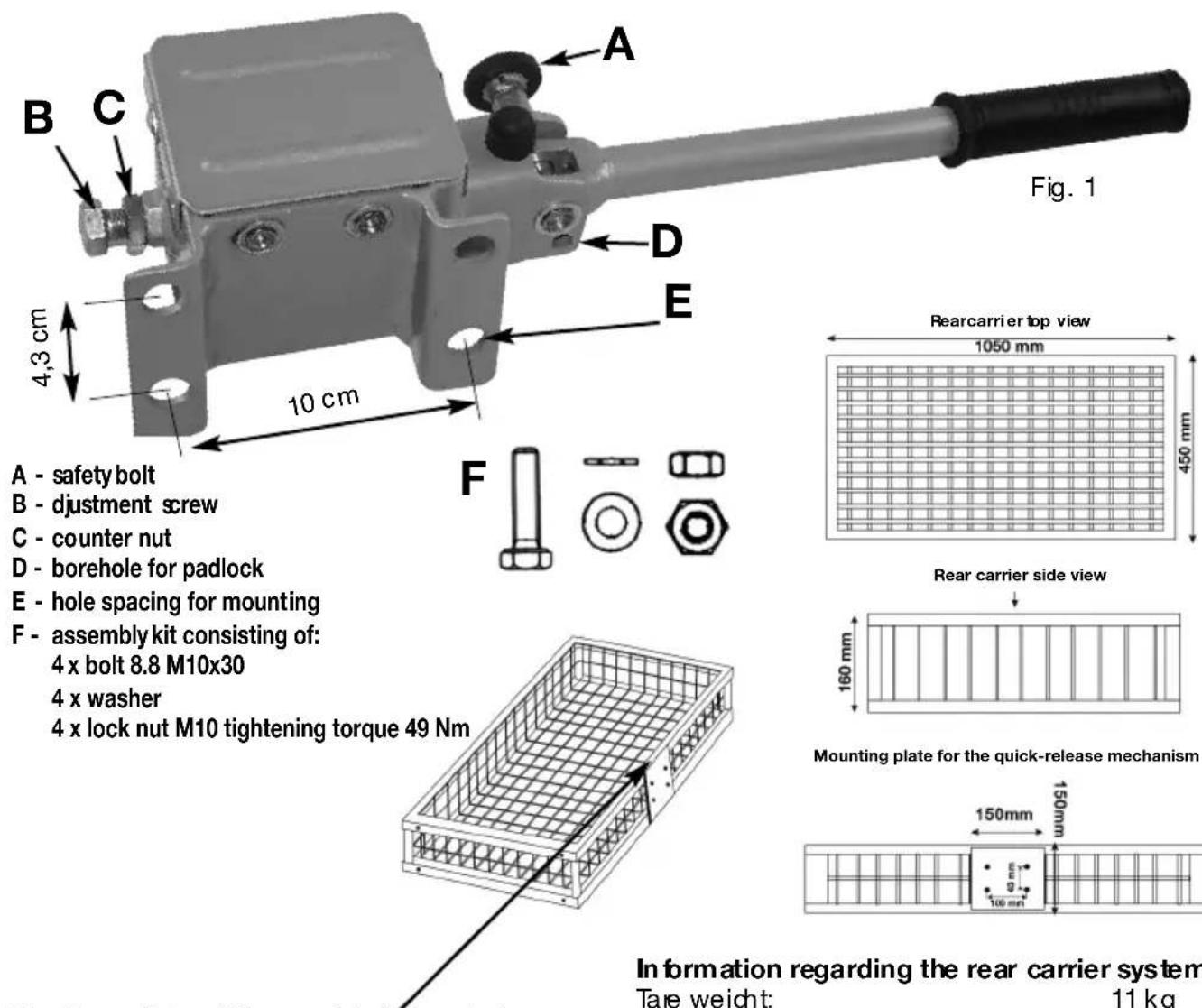

Fig. 1 A - safety bolt B - djustment screw C - counter nut D - borehole for padlock E - hole spacing for mounting F - assembly kit consisting of: 4 x bolt 8.8 M10x30 4 x washer 4 x lock nut M10 tightening torque 49 Nm A C D E 4,3 cm 10 cm F Rearcarrier top view 1050 mm 450 mm Rear carrier side view Mounting plate for the quick-release mechanism 160 mm 150mm 100mm Information regarding the rear carrier system Tare weight: 11 kg

The type plate of the models is located on the inside of the mounting plate for the quick-release mechanism

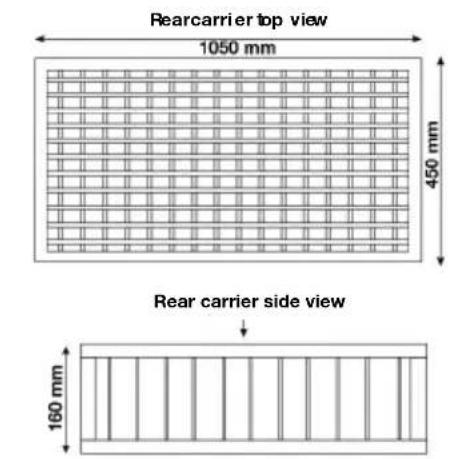

Rearcarrier top view 1050 mm 450 mm Rear carrier side view 160 mm

150mm 150mm 100 mm

Information regarding the rear carrier system

Tare weight: 11 kg

Permissible payload/carrying capacity: 9 kg

Permissible total weight carrier

(Tare weight and payload): 70 kg

DEKRA test report only applies to the models item no. 30726 and item no. 31144

Scope of application

The rear carrier system type ProfiTech is intended to transport game and can only be used in connection with a type approved tow ball with brackets (DIN 74058 / ISO 1302) suitable for mounting the rear carrier system and which is mounted on the motor vehicle.

Some vehicle manufacturers also give approval to use rear carrier systems for the standard tow coupling mounted on the vehicle. For this purpose, the permissible loads and geometries are described in the operating instructions for the vehicles. These are decisive for the use of the rear carrier systems.

If there is no approval to use rear carrier systems for the respective tow coupling, the suitability test must be conducted as described below. The suitability test was prepared based on § 30 of the Road Traffic Licencing Regulations (StVZO) – instructions on the application of rear mounted carrier systems on passenger cars and caravans.

Suitability test for the tow coupling

The rear carrier system can be mounted onto a type approved tow coupling under the following conditions:

1. The ball and the tow bar must consist of one single piece.
2. The material of the tow bar must have a minimum quality of St 52-3 (tow bars are usually made of an St 52-3 material).
3. The area between the ball and the fixing point cannot indicate any weakening. (welding point or the like).
4. The permissible drawbar load on the tow coupling (refer to nameplate on the tow coupling) must amount to at least 70 kg.

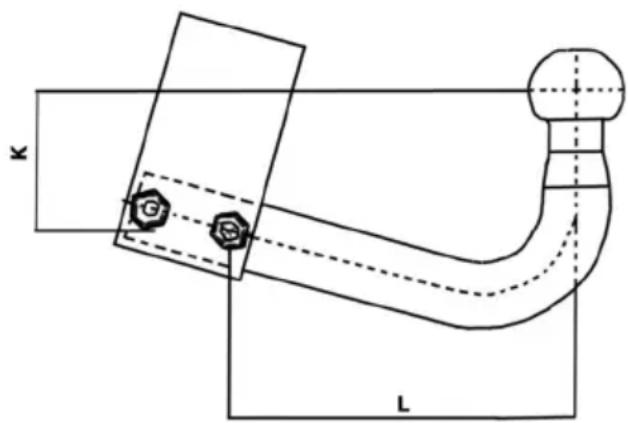

5. Calculation of the minimum D-value, which the tow coupling on the vehicle must have. The permissible D-value of the tow coupling must be equal to or higher than the D-value calculated based on the table on page 21.
   To do so, the measurements K and L of the tow coupling must be determined (measuring the vertical height K and the horizontal length L as shown in Fig. 2 below).

K L

Fig. 2

Calculation of the minimum D-value, which your tow coupling must have:

D-value in kN

Compare the calculated D-value from the table with the information regarding the D-value on the nameplate of the tow coupling (if you are unable to find the nameplate for the tow coupling, request the D-value and the permissible drawbar load from your authorised service centre, the car manufacturer or from the manufacturer of the tow coupling).

Example:

D-value according to nameplate: 10.5 kN

permissible drawbar load: 70 kg

vertical height K: 80 mm

horizontal length L: 250 mm

1. Comparison permissible drawbar load has been met because there is a minimum drawbar load of 70 kg.
2. Now, look at the D-value in the table at the interface 80 mm height/250 mm length, in this case 7.1. With it, the requirement is met; this D-value of the tow coupling is higher than the minimum D-value calculated from the table.
3. That results in the rear carrier being able to carry a payload of 59 kg (max. payload of the rear carrier).

Preparation and assembly of the rear carrier on the tow coupling

Mount the quick coupling on the rear carrier basket using the enclosed mounting materials (4 bolts M10x25, 4x washers,

4 lock nuts). (please refer to page 8, Fig. 1).

Then, mount the quick-release mechanism to the rear carrier basket using the enclosed mounting screws. Please make sure that all screwed connections are tightened appropriately (observe tightening torque). Only use the enclosed lock nuts. All grease must be removed from the tow ball before placing and mounting the rear carrier on the tow coupling.

Pull out the safety bolt (A) and rotate it 1/4 turn.

Now, the lever can be flipped upwards. Both ball clamping jaws in the quick-release mechanism open.

Place the rear carrier onto the tow ball and press the lever halfway down, so that the carrier can still be adjusted horizontally.

If the rear carrier is aligned horizontally behind the car, press the hand lever all the way down and secure it using the safety bolt.

Important: the contact pressure of the ball clamping jaws must be readjusted or readapted to every tow coupling, to achieve the required clamping stability.

To do so, first loosen the counter nut (C), to then tighten the adjustment screw (B) with 32 Nm using a torque wrench. At the same time, the hand lever must be in the clamping position (pressed down).

Then, retighten the counter nut.

The contact pressure of the ball clamping jaws must be checked at regular intervals.

This adjustment must be repeated for every vehicle/coupling change. If you do not have a torque wrench, have this adjustment work conducted in a workshop.

You can protect the rear carrier against theft by inserting a padlock into the holes (D) intended for this purpose.

Safety notice:

After driving approx. 50 km, the fit of the rear carrier including the load must be checked; the adjustment screw (B) may need to be retightened.

Disassembling the rear carrier

• Disconnecting the electrical connection.
• Pull out the safety bolt (A) and rotate it 1/4 turn (refer to Fig. 1).
• Flip the hand lever upwards. In the process, hold onto the basket firmly, so that it cannot flip downwards and damage the vehicle.
• Lift the basket with the quick coupling off the tow coupling in an upward direction. Pay attention not to damage your vehicle by means of fast, uncontrolled movements.

General information

Rear lighting installations and licence number.

If the vehicle's tail lights and/or licence plate number are partially or fully covered by the rear carrier or the load, the vehicle lighting and/or the licence plate number must be revised.

	First registration of the vehicle
Lighting as of 01/01/1987installation prior to 01/01/1987 until 31/12/1990 ab 01.01.1991
Backup lights optional mandatory mandatory
Fog tail lamp optional optional mandatory

The lighting optional at the time of the first registration of the vehicle does not need to be revised.

Securing of loads

The vehicle driver is responsible for the load being properly secured in accordance with the Road Traffic Regulations (StVO). Pay particular attention that the load does not extend farther than 40 cm beyond the outer edge of the light-emitting surface of the tail lights.

Additional information

On the side, the rear carrier cannot project beyond the end of the vehicle.

The axle load distribution specified by the vehicle manufacturer is altered by the load placed on the rear of the vehicle. This alteration cannot lead to the permissible axle load being exceeded.

The manner of driving must be adapted to the load condition and if necessary, changed vehicle handling

Model: Rear carrier for tow couplings, with quick release lever coupler, hinged, (item no. 20215)

Please read these operating instructions carefully before use and keep them in a safe place for future reference.

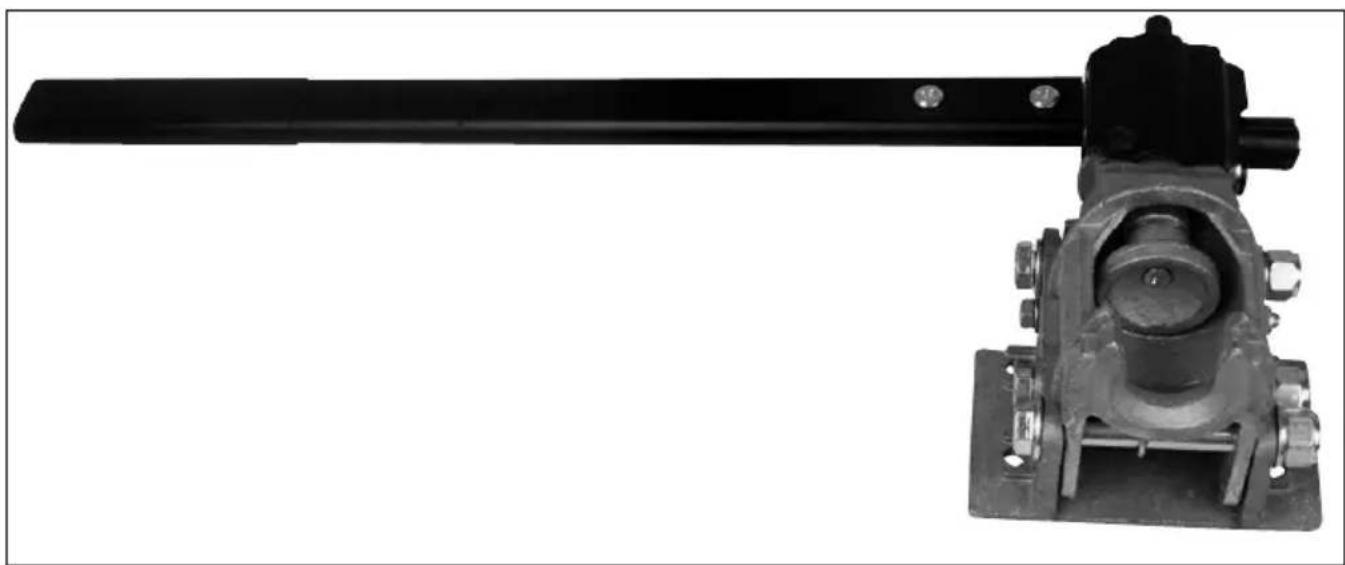

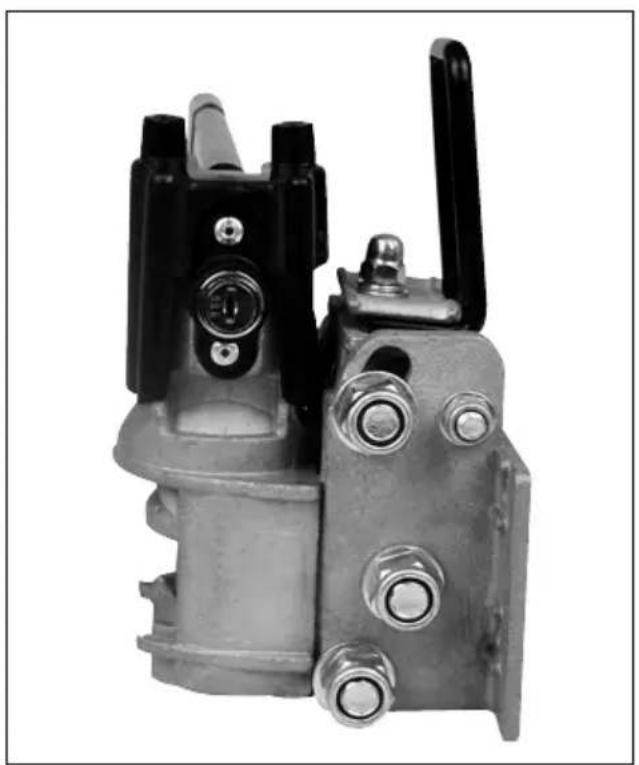

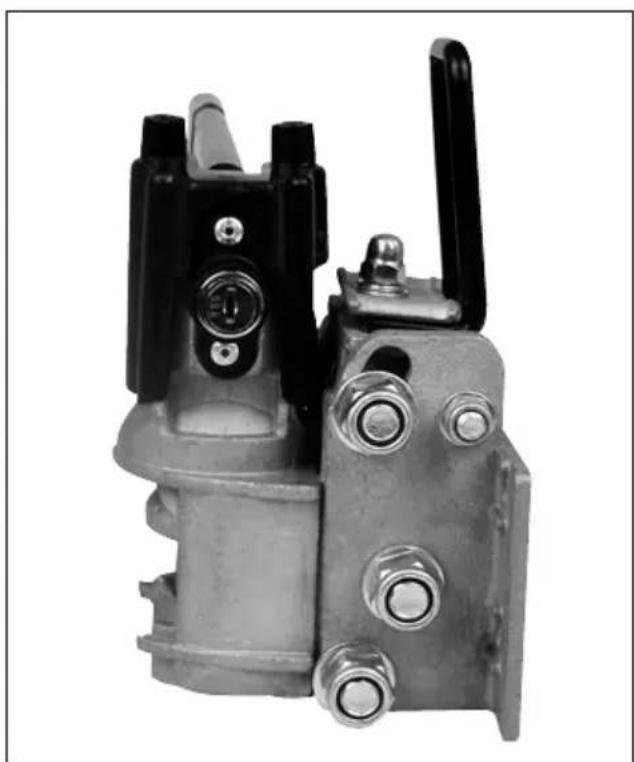

Mechanical component with a black lever and mounting base (no visible text or symbols)

Mechanical component with black and metallic parts, no visible text or symbols

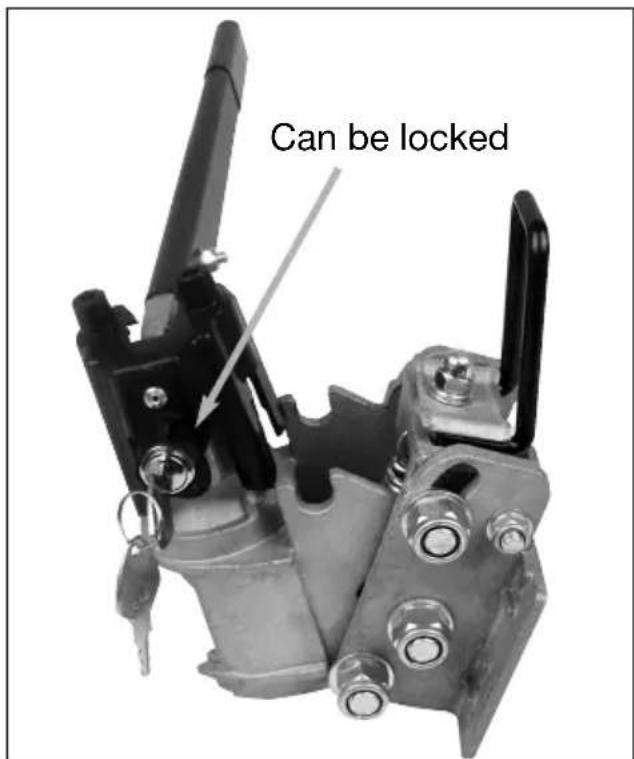

View of the hinged mechanism closed.

Can be locked

View of the hinged mechanism opened.

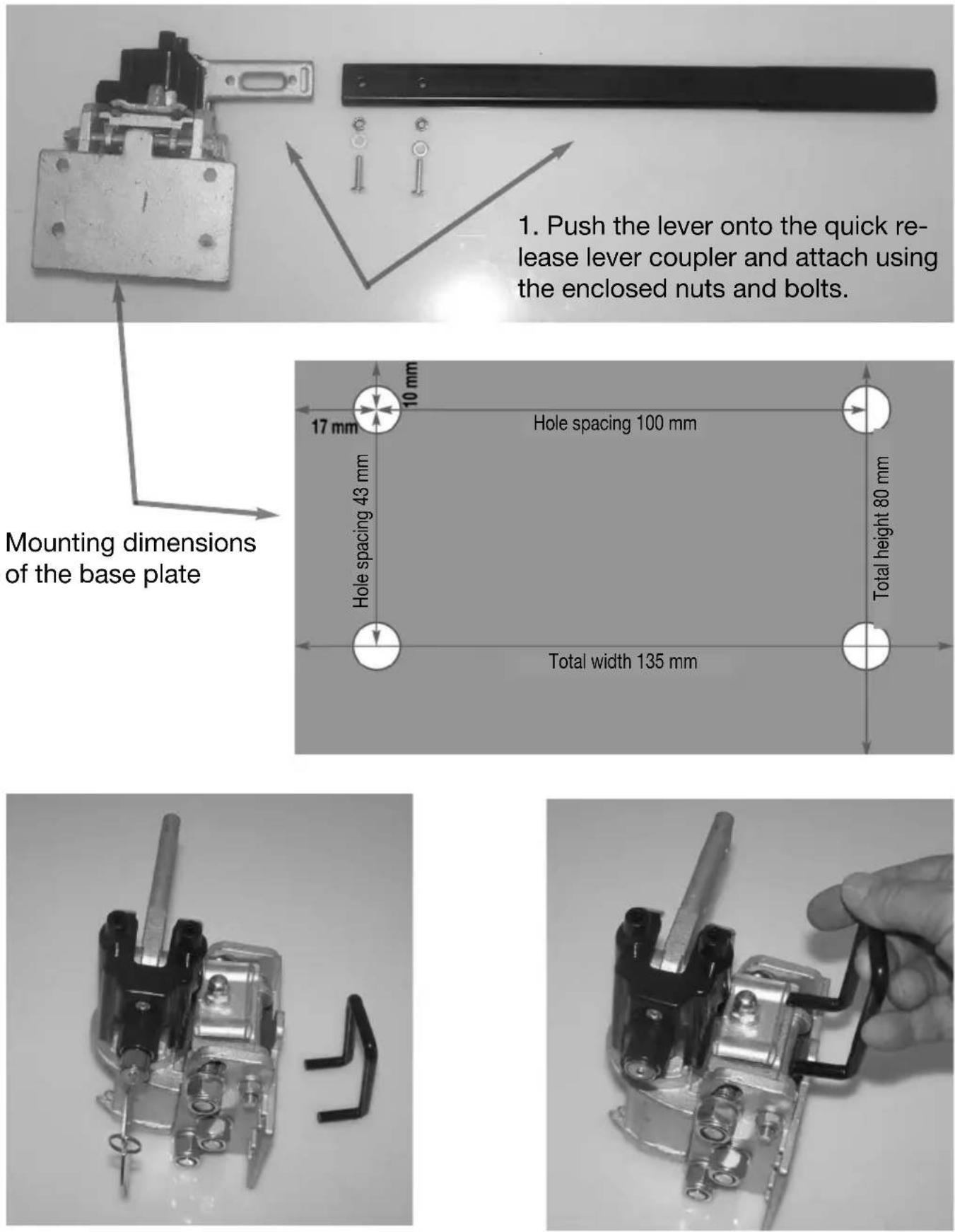

Assembly instructions/Assembly

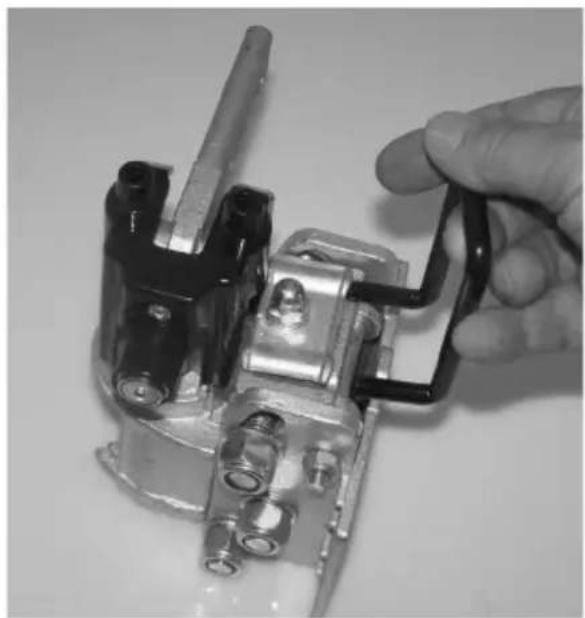

2. Insert the enclosed handle for the hinged mechanism into the quick release lever coupler and tighten with a wrench. Tighten to 6 Nm using a torque wrench.

Adjusting to the tow coupling

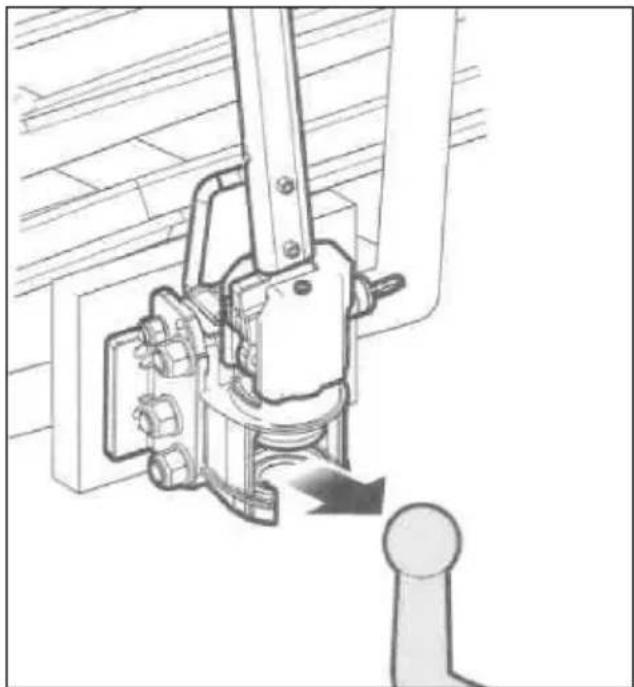

Mechanical assembly diagram showing a lever mechanism with a pulley and pivot point (no text or symbols)

1. Place the quick release lever coupling on the tow coupling.

The quick release lever coupler is suitable for steel tow couplings, not for aluminium tow couplings.

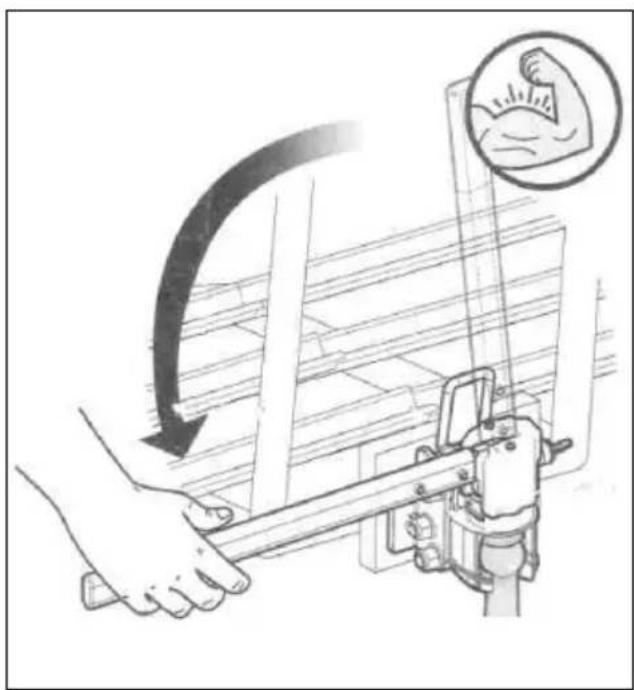

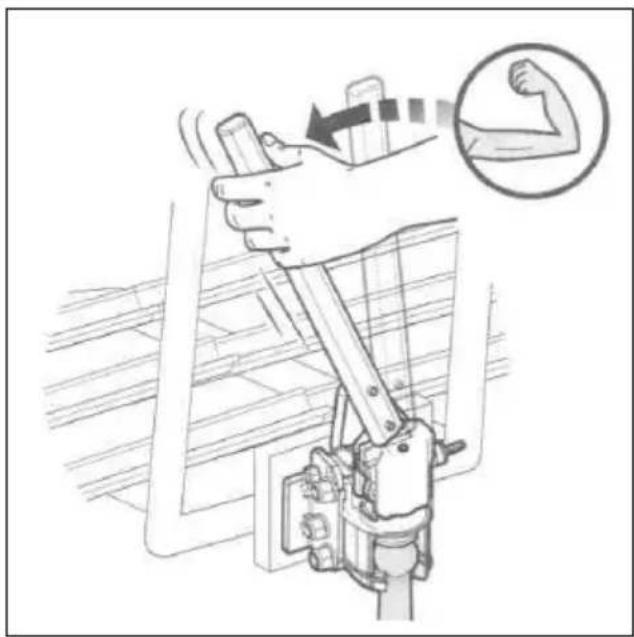

Illustration of a hand using a tool to lift a beam, with an inset showing a human arm flexing (no text or symbols present)

1. Press the lever down until it locks into place.

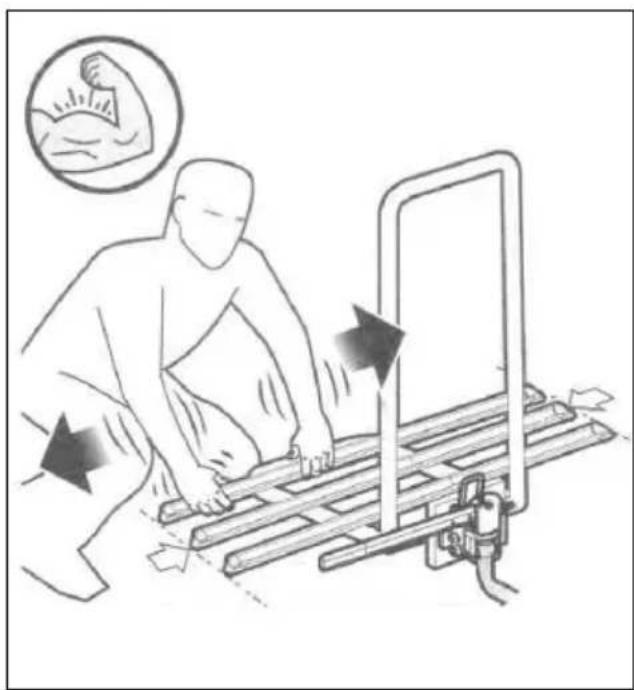

Illustration of a person using a bench presser to lift a bed, with motion arrows indicating movement (no text or symbols)

1. The quick release lever coupler should fit tightly now and cannot be able to move freely to the right/left or up/down.

Illustration of a hand gripping a mechanical device with an inset showing a flexing arm (no text or symbols present)

1. If the lever does not lock into place at the bottom without excessive force, it must be readjusted as shown below.

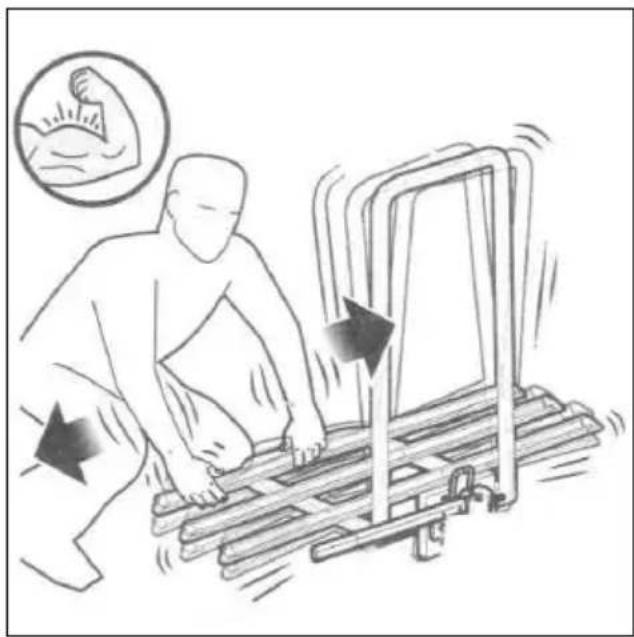

Illustration of a person in protective gear handling equipment with directional arrows indicating movement (no text or symbols)

1. The lever can be easily locked into place at the bottom but the quick release lever coupler freely move to the right/left or up/down. Now, readjustment must take place as shown below.

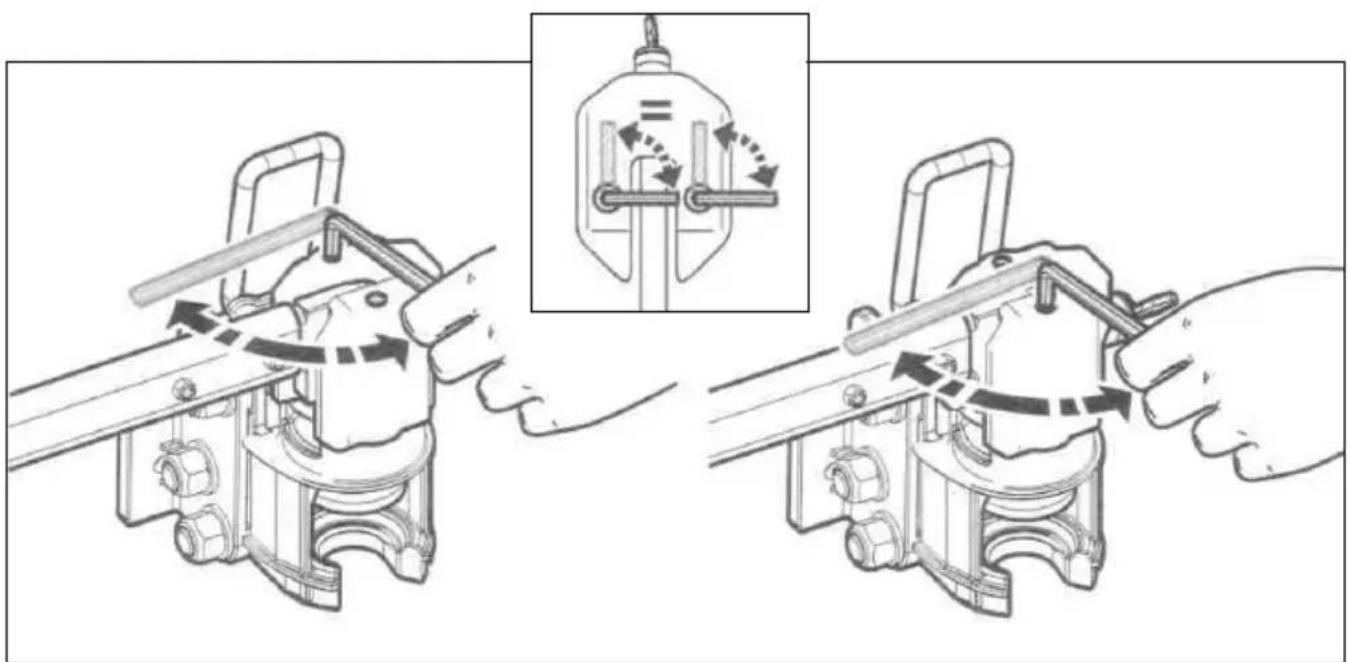

Technical diagram showing mechanical assembly steps with directional arrows and a magnified inset of a component with internal flow arrows.

1. Turn both the top hexagon socket nuts respectively to the right or left using the enclosed Allen wrench, depending on whether the quick release lever coupler is to tightly or loosely fitted on the tow coupling. If the lever now locks into place at the bottom without excessive force and the quick release lever coupler cannot move freely to the right/left or up/down, the quick release lever coupler is adjusted optimally.

Mechanical component with bolted head and flange (no visible text or symbols)

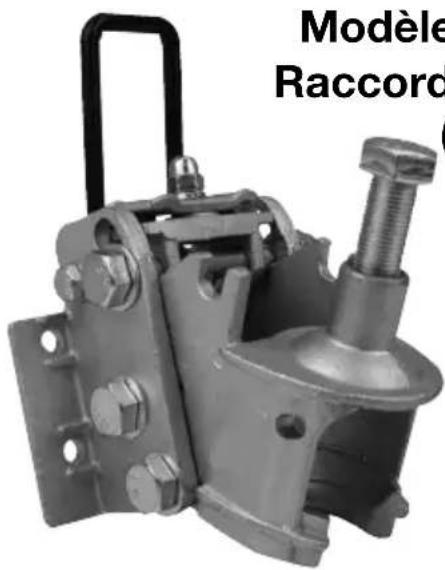

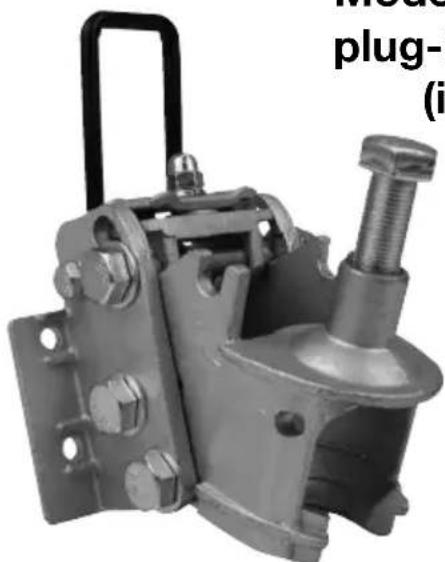

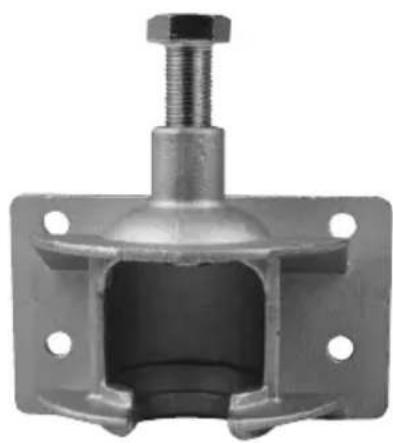

Model: Rear carrier with plug-in coupling (item no. 20233)

Screw the plug-in coupling for rear carriers onto the rear carrier using the enclosed assembly kit.

Assembly kit consisting of:

4 x bolt 8.8 M8,9x30

4 x washer

4 x lock nut M8 tightening torque 49 Nm Now, simply insert the rear carrier, tighten bolt and done!

Weight approx. 2 kg. Mounting plate dimensions 135x80 mm, high quality steel alloy, suitable for steel ball couplings with at least ST52-3.

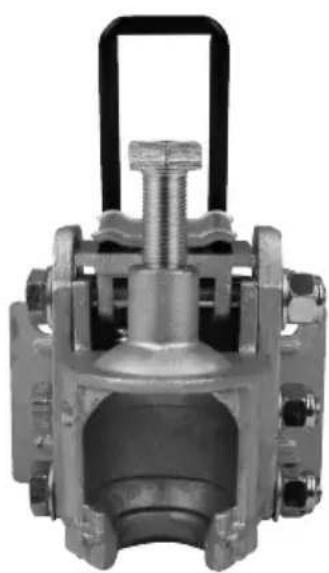

Cross-sectional view of a mechanical valve assembly (no visible text or labels)

Mechanical component with bolts and a threaded shaft (no visible text or symbols)

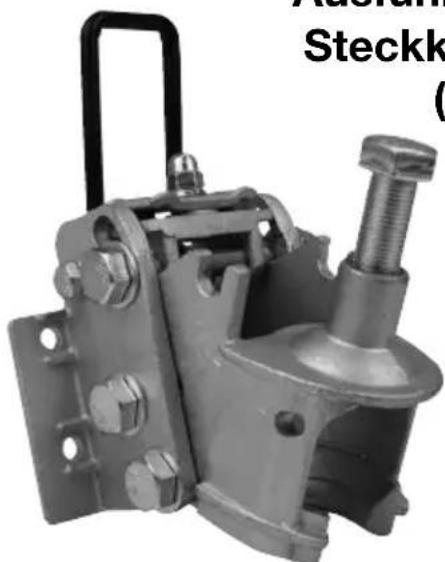

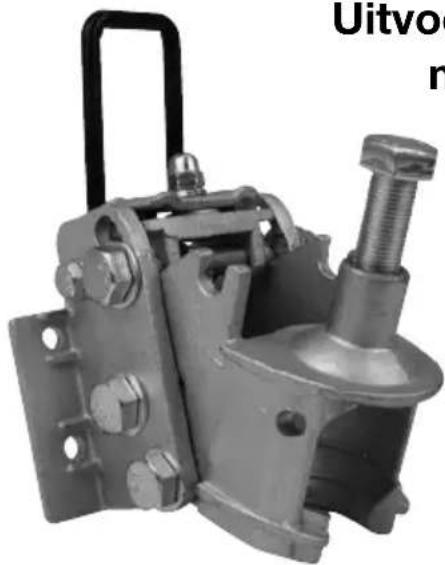

Model: Rear carrier with plug-in coupling, hinged (item no. 20234)

Screw the plug-in coupling, hinged, for rear carriers onto the rear carrier using the enclosed assembly kit.

Assembly kit consisting of:

4 x bolt 8.8 M8,9x30

4 x washer

4 x lock nut M8

tightening torque 49 Nm

Now, simply insert the rear carrier - tighten bolt and done!

Weight approx. 2 kg. Mounting plate dimensions 135x80 mm, high quality steel alloy, suitable for steel ball couplings with at least ST52-3.

Mechanical component with a black lever and mounting base (no visible text or symbols)

Mechanical component with black and metallic parts, no visible text or symbols

Mechanical component with metal parts and a separate black bracket (no visible text or symbols)

Close-up of a hand holding a black mechanical component with metal parts (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pulley and pivot point (no text or symbols)

Illustration of a hand using a tool to lift a beam, with an inset showing a human arm flexing (no text or symbols present)

Illustration of a person using a bench presser to lift a bed, with motion arrows indicating movement (no text or symbols)

Illustration of a hand gripping a mechanical device with an inset showing a flexing arm (no text or symbols present)

Illustration of a person in protective gear handling equipment with directional arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with directional arrows and a magnified inset of a device component with internal flow arrows.

Mechanical component with threaded shaft and flange (no visible text or symbols)

Cross-sectional view of a mechanical valve assembly (no visible text or labels)

Mechanical component with threaded shaft and mounting bracket (no visible text or symbols)

Mechanical component with a black lever and mounting base (no visible text or symbols)

Close-up of a mechanical component with black and metallic parts, no visible text or symbols

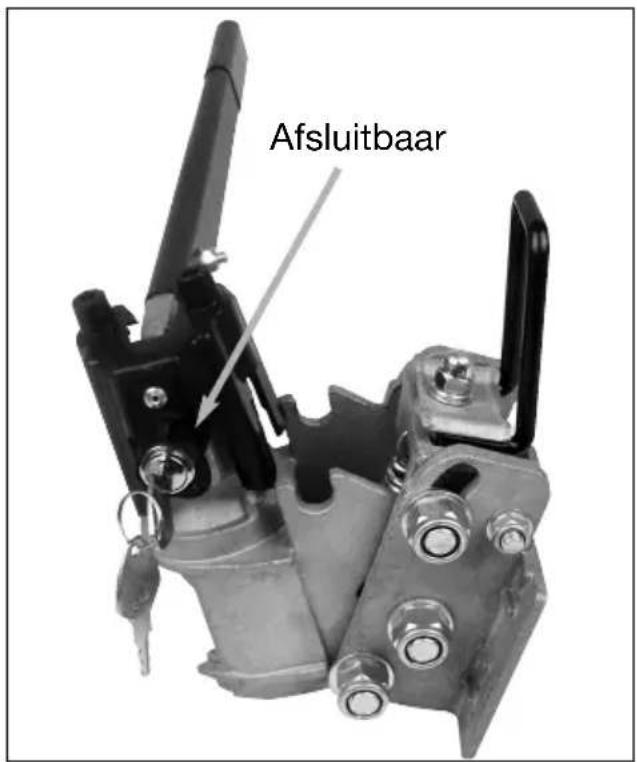

Afsluitbaar

Mechanical component with attached metal parts and a separate black bracket (no visible text or symbols)

Close-up of a hand holding a black cable or wire attached to a mechanical component (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism with a pulley and pivot point (no text or symbols)

Illustration of a hand using a tool to lift a beam, with an inset showing a human arm flexing (no text or symbols present)

Illustration of a person using a bench presser to lift a bed, with motion arrows indicating movement (no text or symbols)

Illustration of a hand gripping a mechanical device with an inset showing a flexing arm (no text or symbols present)

Illustration of a person in protective gear handling equipment with directional arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with directional arrows and a magnified inset of a device component with internal flow arrows.

Mechanical component with bolted head and flange (no visible text or symbols)

Cross-sectional view of a mechanical valve assembly (no visible text or labels)

Mechanical component with bolts and a threaded shaft (no visible text or symbols)
