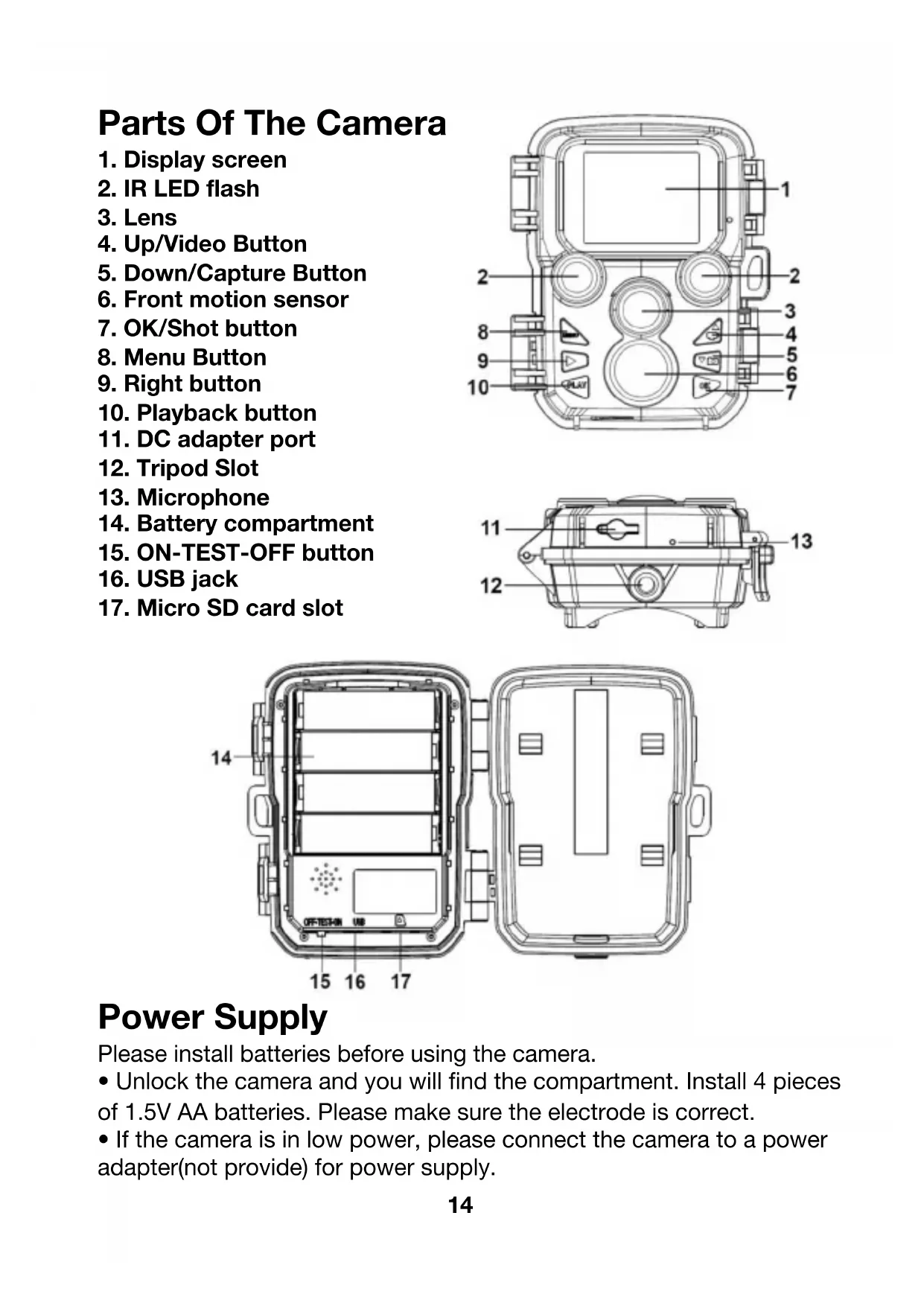

6. Front motion sensor

14. Battery compartment

Power Supply Please install batteries before using the camera.

• Unlock the camera and you will find the compartment. Install 4 pieces of 1.5V AA batteries. Please make sure the electrode is correct.

• If the camera is in low power, please connect the camera to a power adapter(not provide) for power supply.15 Inserting The Memory Card Please prepare a Micro SD card and insert it into the camera for saving files. Before recording, please format the memory card first.

• Support Micro SD card,up to 32GB. Suggest to use class 6 or above high speed card.

• To avoid malfunction, the memory card should be far away from water, strong vibration,dust, hot source and direct sunlight.

• Do not insert the memory card forcibly. Please refer to the marking on the camera.

• For the first time use, please wait for the memory card temperature reach the ambient temperature.The camera will be short-circuit influen- ced by environment temperature and humidity. Please notice protection for the camera when using it outdoor.

• If the capacity of memory card is full, the camera will stop recording automatically.

• Press the edge of the card gently to pop-up the TF card. Basic Operation Turn On And Off The Camera Switch the Mode Button to“Test/On”to turn on the camera. Switch the Mode Button to “Off” to turn off the camera. System Setup Switch Mode Button to “Test”, then you can set the system parame- ters.

5. Press Menu button again to turn back to last menu or exit the setup

menu. Setup menu and function as below:16 Mode Set the working mode. In photo mode,the camera just take pictures. In Video mode,the camera just record video. In photo&video mode, the camera will take a photo first, then start to record video. Options: Photo / Video / Photo&Video. Photo Resolution Set the still image resolution. Options: 16MP(4608x3456P) / 12MP(4000x3000P) / 8MP(3264x2448P) / 5MP(2592x1944P) / 3MP(2048x1536P) / 1MP(1280x960P). Photo series Set the photo number of continuous shooting. In photo mode, the ca- mera will take photos continuously. Options: 1 photo / 2 photos in series / 3 photos in series. Video resolution Set the video resolution. The bigger the resolution is ,the longer the video time can be stored. Options: 1920x1080P / 1280x720P / 720x480P / 640x480P / 320x240P. TL video resolution Set the resolution of time lapse video . Options: 2592x1944P / 2048x1536P. Video length Set the duration of recording a video clip. The shortest time is 3 seconds and the longest time is 10 minutes. Options: 3 seconds~10 minutes. Audio recording Open this function,the camera will record audio when recording video. Options: On / Off.17 Shot lag Set the time of delay shooting when the camera detects the motion. In the selected time, the camera will not record any image or video. This function can avoid to store too much same event and save more ca- pacity. Options: 5 seconds~60 minutes. IR distance Set the distance of infrared induction. Options: Near / Middle / Far. Sensitivity motion sensors indoors, you can choose “Low”. In outdoor, choose “Middle”in normal condition. Choose “High”if the environment impact is huge outdoors. The temperature can also influence the sensor sensitivity. “High Sensi- tivity”applies to mild environment. ”Low Sensitivity ”applies to cold en- vironment. Options: Low / Middle / High. Target recording time Set the target recording time. As shown in below picture, you can set the start and stop time. The camera will work just in the stated time slot. In other time, the camera will keep in standby state. Options: On / Off.18 Time lapse In Time lapse menu, there are three options as below. [Normal]: The camera will take pictures automatically as per set time in- terval. For example,set the interval time to 1 hour, the camera will take a photo each hour. If you want to observe that a plant blooms, the cam- era will take 24 photos in 24 hours to record the whole process of blooming. [TL Video]: You can set the interval time.The time range is from 1 second to 24 hours. For example, set the interval to 1 hour, the camera will take a photo each hour. If the camera works for 24 hours,there will be 24 photos. These photos will be converted into a video. [Off]: Close the time lapse function. Language Set the language display on screen. Options: English / German / Danish / Finnish / Swedish / Spanish / French / Italian / Dutch / Portuguese / Simplified Chinese / Japanese. Endless Capture Set the camera to record video in loop. Options: On / Off.19 Time & date Set the date and time of camera. The date format: dd/mm/yyyy, yyyy/mm/dd, mm/dd/yyyy. The time format: 24h, 12h. Press Right button to choose the item.Press Up/Down button to adjust the value. And press OK button to confirm. Options: Set time&date / Time format / Date format. Photo stamp Stamp the date&time on the photos or not. Options: Time&date / Date / Off. Password protection Set the power-on password of the camera. The password is four digit, each digit ranges from 0 to 9. If you forget the password, please reset the camera. Then all parameters will reset to the factory settings. Options: On / Off. Beep sound Open/close the button sound. Options: On / Off. Format memory card Formatting the memory card will delete all data permanently. Before using a new memory card or a card that has been used in another de- vice previously ,please format the memory card. Options: Yes / No. Serial NO. Set the unique serial number for the camera. The number is four digit, each digit ranges from 0 to 9 and A to Z. Options: On / Off.20 Reset settings Restore the camera to factory default settings including password,serial number and so on. Options: On / Off. Version Look up the Firmware information of the camera. Take Photos, Record Video, Playback Switch the Mode Button to “Test”. In this mode,you can take photos, record video and playback files manually.

• Take Photos: Press Capture button to switch to photo mode. Press Shot button to take a picture.

• Record Video: Press Video button to switch to video mode.Press Shot button to start to record a video clip. Press Shot button again to stop recording.

• Playback: Press Playback button to enter the playback interface. Press Up/Down button to scan photos or video. When playback video, press OK button to play the video. Press OK button again to have a pause. Press Menu button to stop playback. Press Playback button again to exit the playback mode. Playback Menu:

1) Delete current file: Delete the current photo or video.

Options: Cancel / Delete.

2) Delete all files: Delete all photo and video files in the memory card.

Options: Cancel / Delete.

3) Activate slide show: Playback the photos in slide way. Each photo

display 3 seconds. Press OK button to stop playing.

4) Write protect: Lock the file. It can avoid accident deletion.

Optio: Write-protect current file / Write-protect all files / Unlock current file / Unlock all files.21 Working Mode Switch the Mode Button to “On”. After turn on the camera,the screen will display 15 seconds countdown. Then the LEDs and screen will go out. The camera begins to operate independently and enter standby mode. If the wild animals enter the detection range of the motion sensors , the camera will be activated and detect the motion trail. If the wild animals continue to move to the detection zone of the sensor, the camera will take photos or record video automatically. When the wild animals leave the detection zone of the sensors , the camera will be deactivated and turn back to standby mode. Night Mode In night mode,the pictures just can display white and black. When record a video for long time in the evening, the low voltage may have a great influence on the stability of the machine. Do not record video with low voltage in the evening. Using the wall bracket You can mount the camera on a wall or tree by the supplied wall bracket. Before mounting the wall bracket you should ensure that all existing screws are tight.The best installation height distance from the ground about 1 meter. Components 1.Tripod screw 2 Lock nut 3 Pivot bolts 4 Drill holes 5 Hexagonal screw 6 Wall plugs 7 Screws22 Mounting the wall bracket Required tools

• 6 mm masonry/concrete drill bit

• Phillips head screwdriver Caution

• Ensure that there are no electric lines, water or heating pipes installed at the proposed drilling location.

• The supplied wall plugs are only suitable for mounting on concrete or stone. Before starting the installation, please check your in- stallation location carefully for its suitability for the plugs. The assembly material used must be suitable for the respective location. If in doubt, consult a professional. Install Steps

• Mark the drill holes by holding the foot of the wall bracket at the de- sired mounting location and marking the hole positions.

• Use a drill with a 6 mm drill bit to drill the required holes and insert the plugs and insert the wall plugs flush with the wall.

• Screw the wall bracket to the wall using the supplied screws .

• Mount the camera on the tripod screw and screw the camera a little way on (about three turns).

• Turn the camera in the desired direction and lock it with the lock nut.

• To move the camera into its final position, undo the two pivot bolts a little, position the camera and fix the position by tightening the two pivot bolts .23 Download Files To The Computer There are two ways to download files from the memory card to a com- puter:

• By inserting the memory card into a card reader

• By connecting the camera to a computer using the supplied USB cable. Using a Card Reader

1. Pop-up the memory card from the camera and insert it into a card

reader.Then connect the card reader to a computer.

2. Open [My Computer] or [Windows Explorer] and double-click the re-

movable disk icon that represents the memory card.

3. Copy image or video files from the memory card to your computer.

Connecting the Camcorder to a PC by the USB Cable

1. Connect the camera to the computer via USB cable.Turn on the cam-

pears in the drive list. Double-click the "Removable Disk" icon to view its contents. All files are stored in the folder named ”DCIM”.

3. Copy the photos or files to your computer.24

All rights reserved. It is not permitted without written approval from Berger + Schröter to reproduce these operating instructions. It is also not permitted to reproduce extracts in any form that have been crea- ted or processed by use of electronic, mechanical or chemical proce- dures. Technical changes can be made at any time without prior announcement. The operating instructions are corrected regularly. We assume no liability for technical and typographical errors and their re- sults. Copyright by: Berger und Schröter GmbH Voerder Straße 83 - 58135 Hagen Guarantee: We grant on this product a guarantee of 24 months, accor- ding to the pertinent statutory regulations, from the date of the purchase by the initial user. This guarantee covers all material or production defects; however, it does not cover the following: Faults and defects resulting from normal wear, including wearing parts, seals etc.; damages or defects arising or as a result of alteration. We reserve the right to reject a guarantee claim if the purchase cannot be proven, or if the product was improperly serviced or was obviously erroneously maintained (not or insufficiently maintained; cleaning and servicing). Please retain the proof of purchase documentation because this is valid as proof of date of purchase. In case of a guarantee claim, the machine must be returned to the dealer in a clean state, and in its original packaging if possible, and not disas- sembled in any way. Proof of purchase must also be included.25 Instructions d'utilisation Mini caméra 16 MP Ref. Art. 3188126 Éléments de la caméra
