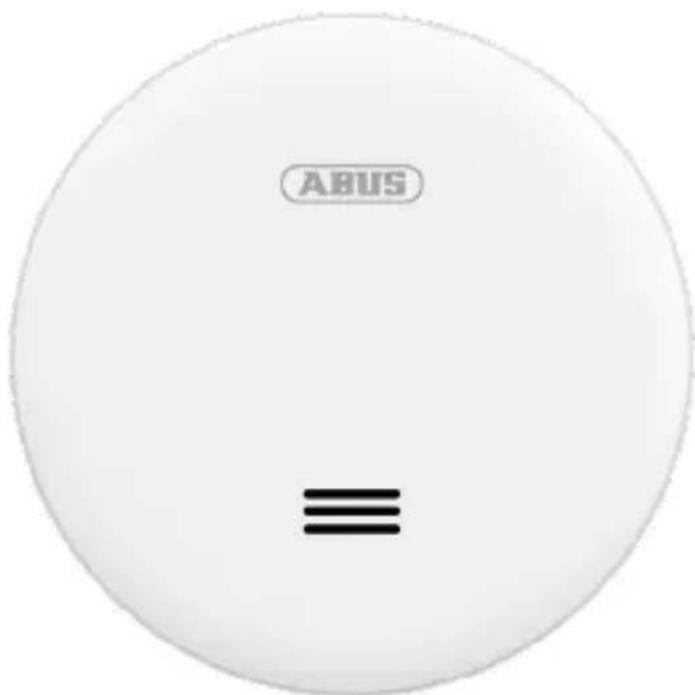

White circular device with 'ABUS' label and three horizontal black lines below (no text or symbols on body)

User manual Smoke alarm device

Please read these operating instructions carefully before commissioning! Smoke alarms help save lives!

Keep these instructions for the entire life of the product.

ABUS August Bremicker Söhne KG

Altenhofer Weg 25, 58300 Wetter, Germany

Tel.: [phone] | Fax: [phone]

Scope of delivery 20

Safety instructions....21

Technical data 22

Functions and technical features 23

Emergency procedure when alarm sounds 23

Location selection 24

Installation and operation 26

Display and functions 28

Care and maintenance 30

Warranty 31

Disposal 32

Declaration of performance 32

Declaration of conformity....32

Notes to accompany user manual

Dear customer,

We are delighted that you have chosen our product and thank you for your trust. You have made a good choice. This smoke alarm device was developed and manufactured with great care in order to help draw your attention to any fire risk in good time. Please read this user manual thoroughly and observe all the instructions provided, as this will enable best use of the device. This manual serves as the fitting and maintenance instructions.

Introduction

Intended use

The device should only be used for its originally intended purpose! The product is not intended for any other use! This device may only be used for the following purpose(s):

• Fire or smoke detection in private households
- This smoke alarm is approved for installation in habitable recreational vehicles.

Limitation of liability

Your rights are limited to the repair or replacement of this product in the same condition that it was delivered. ABUS accepts no liability for any special, incidentally arising or consequential damage, including, but not limited to, loss of revenue, loss of profit, restrictions in use of the software, loss or recovery of data, costs for replacement facilities, down times, damage to property and claims by third parties, including those arising from contractual or legal claims for recovery or those arising under damage legislation, notwithstanding other restricted or legally implicit warranty provisions or in cases where the limited warranty is not valid, the scope of liability of ABUS is limited to the purchase price of the product. The contents of these instructions may be altered without prior notice. © ABUS August Bremicker Söhne KG, 02/2022

Introduction | Scope of delivery

Test / stop button

Sound outlet opening

Control light (LED)

Close-up of a white circular electronic device with three horizontal lines and a logo (no readable text or symbols)

Packaging

Keep packaging materials and components away from children – risk of suffocation!

- Remove all packaging before using device.

Scope of delivery

• ABUS smoke alarm including built-in battery
- Operating instructions
• Installation equipment

Safety information

Symbol explanation

The following symbols are used in this manual and on your device:

Symbol Signal word Meaning
	Danger	Warning message regarding risk of injury or health risk.
	Danger	Warning message regarding risk of injury or health risk due to electrical voltage.
	Important	Safety advice concerning possible damage to device / accessories.
	Note Note regarding important information.

Battery recommendations

This product contains a built-in 3V lithium battery. Built-in batteries may only be replaced or removed by qualified personnel. Do not use the product in environments where there is a risk of explosion, e.g. from flammable liquids, gases or dust. Never burn the product! The battery may explode in the fire. This would also release toxic substances.

Do not store or use the product in areas where the temperature may fall below 0^ C or exceed +40^ C. Do not expose the product to direct sunlight for long periods of time.

Battery is non-rechargeable!

Functions Technical data

Functions

To ensure correct operation of device, please observe the following points:

• Do not cover the device!
• Do not paint or cover device with wallpaper!
• Do not open or attempt to repair the device under any circumstances.
  Non-observance of the above points will render the guarantee void.
• The device is rendered unsuitable for use once it has been dropped or any other damage has been suffered.

Technical data

• Power supply DC 3 V Lithium Battery (built-in)

• Smoke detection photoelectric reflection

• Visual operating display LED flashes approx. every 40 seconds

• Electric consumption 9.8 μA (∅ standby) || 80 mA (∅ alarm)

• Operating temperature 0° to 40°C

• Air humidity 10 % to 90 % (non-condensing)

• Sound pressure > 85 dB (A)@3 m

• Alarm mute mode 5-15 minutes

• Detection range max. 40 m^2 within a single room

• Installation location ceiling (internal rooms only)

Functions and technical features

Emergency procedure when alarm sounds

Functions and technical features

• The smoke alarm does not detect gases, vapours, heat and fire/flames!
- It is possible that people with limited hearing may not hear the alarm! For such cases special alarms with optical signalling are available.
- Especially high electromagnetic radiation may affect unit operation. Therefore, do not install the alarm near devices which emit electromagnetic radiation or close to magnets.
- This smoke alarm works according to the principles of optics (photoelectric reflection) and contains a measuring chamber in which penetrating smoke particles are measured.
- If the alarm threshold is exceeded, a loud, audible alarm will sound.
- The alarm will switch itself off as soon as the measuring chamber becomes smokefree again.

Emergency procedure when alarm sounds

(1) Alert all co-residents
(2) Offer assistance to children, disabled and elderly people and invalids.
(3) Close all windows and doors behind you.
(4) Leave the building immediately.
(5) Do not use the elevators.
(6) Alert the fire service: tel. 112

Choosing a location

Choosing a location

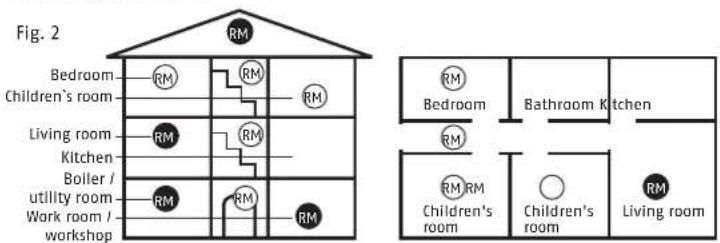

Fig. 2 Bedroom Children's room Living room Kitchen Boller / utility room Work room / workshop RM RM RM RM RM RM RM RM Bathroom kitchen RM RM Children's room Children's room Living room

Smoke alarms should be regarded as a minimum level of equipment RM in all sleeping rooms, children's rooms and corridors or passages used as escape routes; one alarm should be fitted in the centre of each room, always on the ceiling (no wall mounting) (Fig. 2). Select the highest point in the room for mounting, with a minimum distance of 50 cm from any wall, furniture or lamps. Your installation is optimised RM by also installing the devices in all other rooms as well as on all landings. A smoke alarm is not normally required in washrooms (bathroom, WC etc.) owing to the low fire risk in these rooms. Please observe the illustrations in this manual!

The smoke alarm should not be installed in the following areas

• outside (use only in enclosed spaces);
• in areas in which the alarm can be triggered by disturbances (steam,
  condensation, 'normal' smoke, fumes, dust, dirt or grease);
• next to ventilation or similar air inlets (draughts);
• in areas where temperatures may fall below 0^ C or exceed 40^ C .

Choosing a location

Activation

Before commissioning the smoke alarm, it is important to activate it and test it for correct operation.

• The smoke alarm is hung on the mounting bracket, and the product makes a short "beep", indicating that the product is activated successfully.
• Firmly press the test button for at least 3 seconds. The alarm will sound 3 short beeps, 1.5 seconds pause, then repeat it until release the button. The alarm may sound for up to a few seconds after releasing the test button, indicating that the product can be used normally.

Installation and operation

Installation and operation

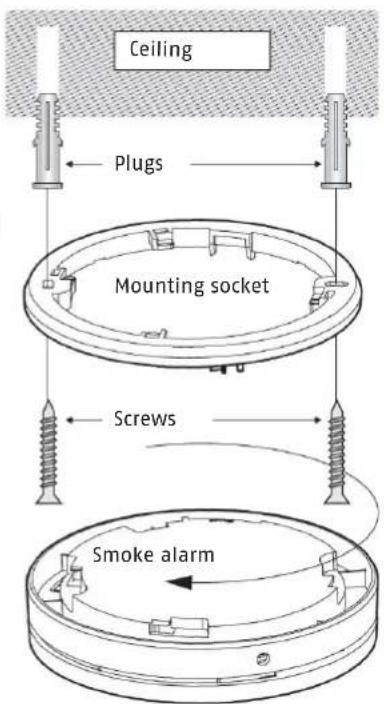

1. Place the mounting plate on the desired installation location and mark the drilling holes through the cover base.
2. Drill the two holes with 5 mm.
3. Fit the rawlplugs into the drill holes.
4. Insert the screws into the mounting socket.
5. Attach smoke alarm by turning clockwise at the detector base.

When marking out your drill holes, ensure that no electrical wires / cables, pipes or other installation components are located behind the installation point!

Ceiling Plugs Mounting socket Screws Smoke alarm

-26--27-

Installation and operation

Setting up

• As soon as the smoke alarm is fixed to the mounting socket, the battery connections will automatically link and the unit will be powered up and ready to use.
• Whenever the smoke alarm is detached from the mounting socket, the battery power will automatically be switched off in order to prevent unwanted sounding of the alarm.

Normal operating mode

The LED light under the cover will flash approx. every 40 seconds in normal operating mode signalling that the alarm is ready for use.

This smoke alarm device has an automatic night mode. In dark rooms, the LED signal will be dimmed to prevent disturbance of the night's sleep.

Electronic test

Perform regular functional tests on your smoke alarm by holding down the test / stop button (for approx. 3 seconds). The warning tone will sound and the 'ALARM' LED light will flash. This does not signal that there is smoke in the room but it is confirmation that the smoke alarm is functioning correctly.

Test / stop button

Display and functions

Always test the functioning of the smoke alarm after installation. Additionally, a regular inspection is recommended. Ensure your hearing is protected by maintaining an arm's length distance between yourself and the device!

Audible and visual signals

Low battery

Whenever the battery falls below a certain voltage level, the alarm will sound a warning signal (every 40 seconds). Whenever the warning signal sounds the alarm must be immediately replaced with a new one! The alarm has a built-in battery that cannot be replaced!

From the moment of the first battery warning, the alarm will still operate at full capability for at least another 30 days!

Self-test with automatic error message

The smoke alarm will perform a periodic self-test and it is able to recalibrate the sensitivity of the smoke measure chamber automatically in case of contamination. If the alarm's sensitivity trigger fails under the minimum required threshold level (e.g. due to excessive contamination of the smoke measure chamber), the unit will beep once every 40 seconds.

The error message does not clear upon cleaning of the alarm, then the alarm should be immediately replaced (see chapter entitled 'Care maintenance')!

Audible and visual signals

Mode Audible Visual Note
Normal operating mode	-	LED flashes every 40 seconds	alarm functioning
Low battery beep approx. every 40 seconds		LED flashes every 40 seconds	Replace alarm
Electronic test beep 1x per second (3x), pause of 1,5 seconds		LED flashes at the same time as alarm sounds
Alarm mute function	-	LED flashes every 8 seconds	Mute function for 5-15 minutes
Alarm mode	beep 1x per second (3x), pause of 1,5 seconds	LED flashes at the same time as alarm sounds	See chapter: "Emergency procedure when alarm sounds"
Sensor fault warning	beep approx. every 40 seconds	LED flashes every 40 seconds	Sensor is not functioning properly, replace device
Buzzer fault warning	-	LED flashes 2x every 40 seconds	Buzzer is not functioning properly, replace device

Alarm mode

Upon detection of smoke, a loud, pulsating alarm tone will sound and the LED light will flash simultaneously at short intervals. In this case, proceed as described under the chapter entitled 'Emergency procedure when alarm sounds'.

Alarm mute function

Once the device is in alarm mode, the alarm sound can be deactivated for 5-15 minutes by pressing the test / stop button.

Display and functions Care and maintenance

If the mute function is active, the LED will flash once approximately every 8 seconds.

If, after this period, fire smoke is still detected in the smoke measuring chamber, the acoustic alarm will sound again.

Only activate the alarm mute function when you are absolutely sure that you can exclude a cause of fire!

Care and maintenance

What to do in case of false alarm?

Possible causes of false alarm include: Welding and cutting, soldering and other hot work, sawing and grinding, dust created from building work, e.g. cleaning, extreme electromagnetic effects, changes in temperature which lead to condensation in the alarm as well as small insects and pollen.

false alarm is being caused by work close to the device, it should be temporarily covered up or removed. Upon completion of the work, it is imperative, however, that the device be returned to its original operating state and be checked!

Cleaning

The operation of every installed smoke alarm must be regularly checked and kept safe through maintenance measures in accordance with German DIN 14676 application standards. This includes an inspection at least once every 12 months ± 3 months, including maintenance and checking the performance of the warning signals. The results and measures taken should be documented accordingly.

• Dust covered alarms must be cleaned. Dust deposits in the alarm's air vents can be sucked up.
• Dust can be removed with a brush if required.
  • The surface area can be cleaned with a slightly damp and soapy cloth.
  • Take care that no liquids get into the apparatus! Do not clean device in a dishwasher!

Care and maintenance Disassembling, Warranty

- Do not use any sharp, pointed, abrasive or caustic cleaning products, chemicals or hard brushes!

Maintenance

The electronic components of each smoke alarm are subject to ageing. In addition, insect screens and smoke measure chambers will inevitably become contaminated over time.

- Operating life of the device: The smoke alarm must be replaced no later than 10 years + 6 months after the manufacturing date.

Disassembling

To disassemble the smoke alarm, take a screw driver and push it into the mounting hole. Then, turn the smoke alarm counterclockwise to remove it from the mounting bracket.

GB

Warranty

ABUS products are designed and manufactured with great care and tested in accordance with applicable regulations.

The warranty extends solely to defects that can be attributed to faulty materials or manufacturing at the time of purchase. If it can be proved that materials or manufacturing are faulty, the warranty provider agrees to repair or replace the smoke alarm at their own discretion.

In such cases the warranty will end upon expiry of the original warranty period of 2 years. Any further claims are expressly excluded. The built-in or included batteries are not covered by the warranty.

ABUS accepts no liability for defects or damage arising from external influences (e.g. through transport, excessive force, incorrect operation), improper use, normal wear and tear or non-observance of this manual.

When making a warranty claim, the faulty smoke alarm should be accompanied by the original proof of purchase including purchase date and a short written

Disposal Declaration of Performance / Conformity

description of the fault. If you discover a fault in the smoke alarm that was present at the time of purchase, please contact your dealer directly within the first two years.

Disposal

This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements. Electrical appliances, rechargeable batteries and batteries must not be disposed of with household waste. Disposal must be carried

out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators.

Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer.

Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling.

Declaration of Performance 2021RWM160

This smoke alarm has been tested and certified as a construction product in accordance with EU Regulation 305/2011. It has been manufactured subject to monitoring by regular and independent inspections for continued compliance with legal and normative requirements. The declaration of performance can be found at www.abus.com/eng/Service/Declarations-of-Performance.

Declaration of Conformity

ABUS August Bremicker Söhne KG hereby declares that the device type RWM160 complies with Directives 2014/30/EU and 2011/65/EU. The full text of the EU Declaration of Conformity can be requested by contacting [e-mail]

Subject to technical alterations. No liability for mistakes and printing errors. * ABUS | D-58292 Wetter (Germany) www.abus.com
