USER MANUAL 78490 Gardigo

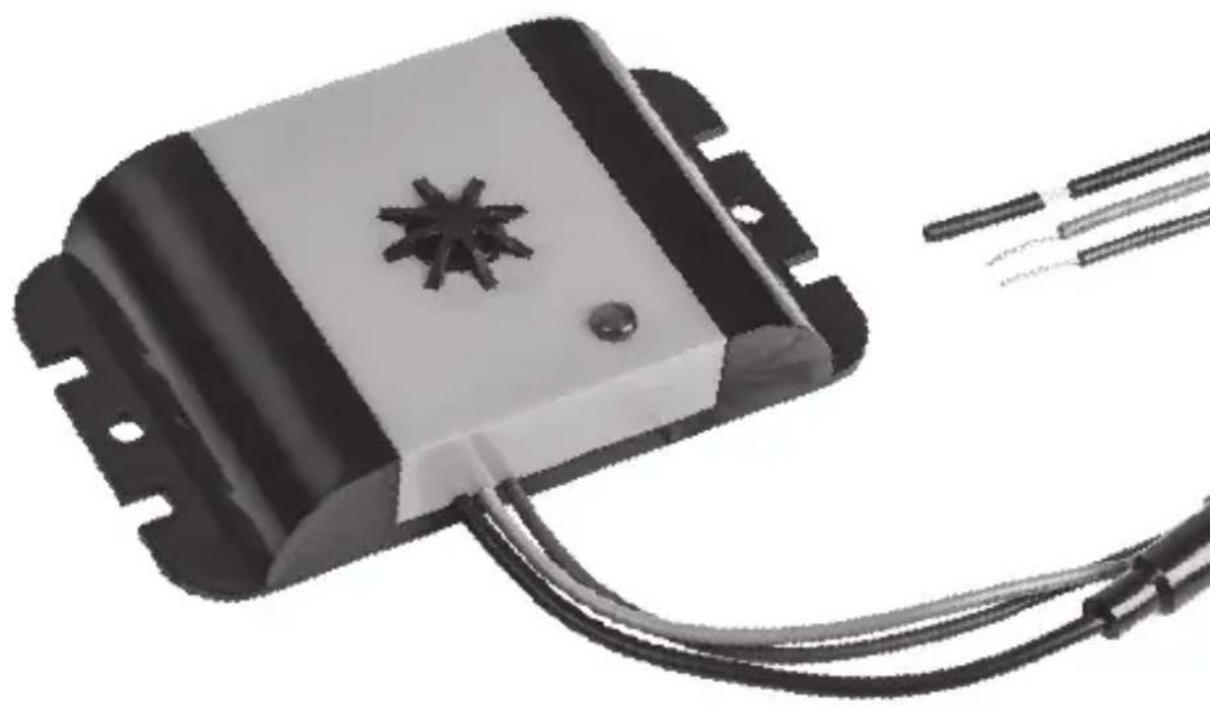

Marder-Frei Auto Ultra

Art.-Nr. 78490

DE Gebrauchsanweisung
GB Instruction manual
FR Notice d'utilisation
ES Manual de instrucciones
Istruzioni per l'uso
NL Instructies
RO Instruetiuni

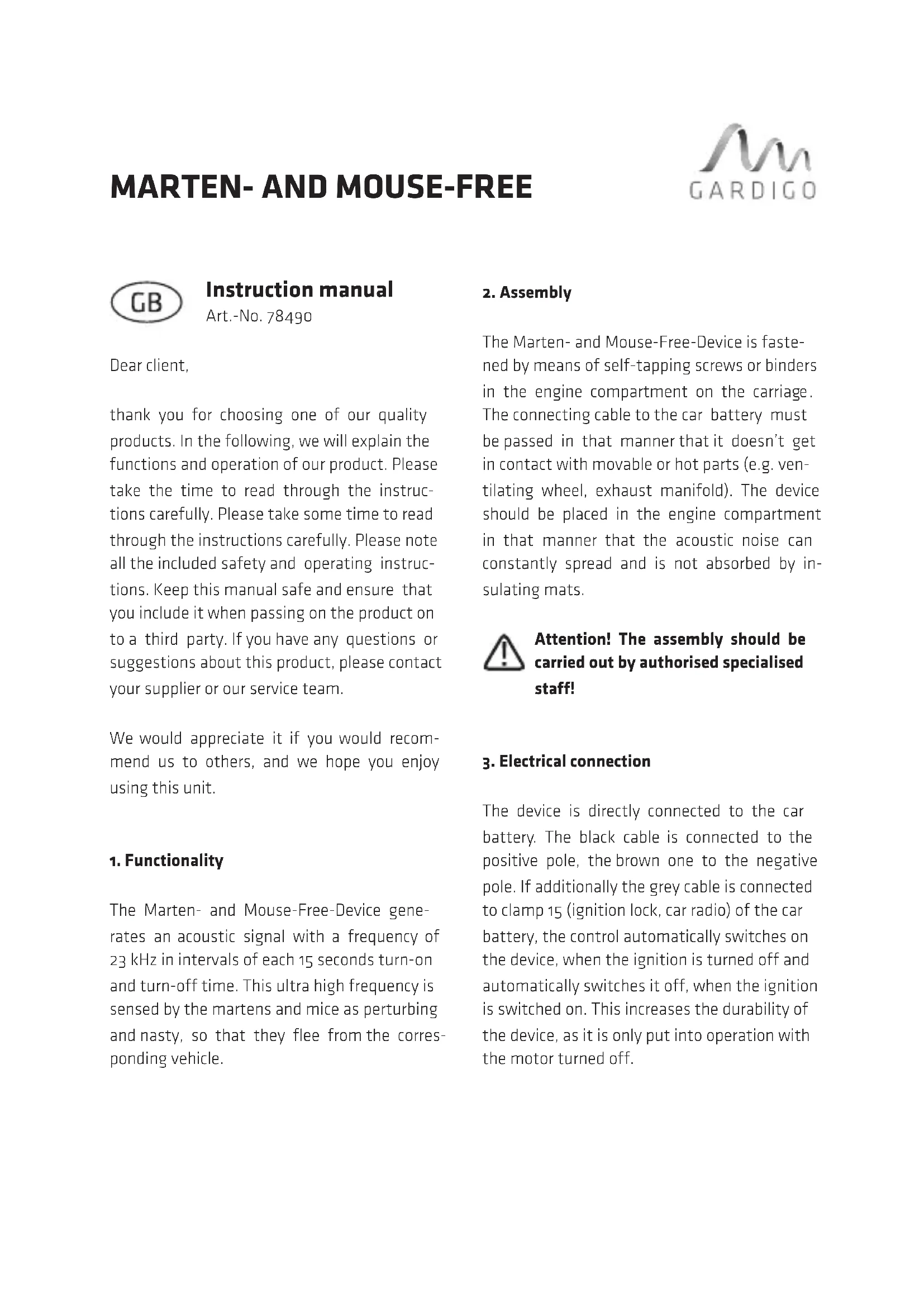

Gebrauchsanweisung

Art.-Nr.78490

thank you for choosing one of our quality products. In the following, we will explain the functions and operation of our product. Please take the time to read through the instructions carefully. Please take some time to read through the instructions carefully. Please note all the included safety and operating instructions. Keep this manual safe and ensure that you include it when passing on the product on to a third party. If you have any questions or suggestions about this product, please contact your supplier or our service team.

We would appreciate it if you would recommend us to others, and we hope you enjoy using this unit.

1. Functionality

The Marten- and Mouse-Free-Device generates an acoustic signal with a frequency of 23kHz in intervals of each 15 seconds turn-on and turn-off time. This ultra high frequency is sensed by the martens and mice as perturbing and nasty, so that they flee from the corresponding vehicle.

2. Assembly

The Marten- and Mouse-Free-Device is fastened by means of self-tapping screws or binders in the engine compartment on the carriage. The connecting cable to the car battery must be passed in that manner that it doesn't get in contact with movable or hot parts (e.g. ventilating wheel, exhaust manifold). The device should be placed in the engine compartment in that manner that the acoustic noise can constantly spread and is not absorbed by insulating mats.

Attention! The assembly should be carried out by authorised specialised staff!

3. Electrical connection

The device is directly connected to the car battery. The black cable is connected to the positive pole, the brown one to the negative pole. If additionally the grey cable is connected to clamp 15 (ignition lock, car radio) of the car battery, the control automatically switches on the device, when the ignition is turned off and automatically switches it off, when the ignition is switched on. This increases the durability of the device, as it is only put into operation with the motor turned off.

Note: If you do not intend to use your car for some time, please disconnect your Marten-Mouse-Free to preserve the battery

Note: Vehicles with CAN/BUS system should be connected to the grey wire of the fuse terminal 15.

4. General information

1. Electric appliances, packaging material etc. should be kept away from children.
2. Dispose packaging and worn out material correctly and in an environmentally friendly way.
3. Do only pass on the device including the operation manual.
4. Subject to change of design and technical data without notice for the sake of constant product improvement.

When your car has already been visited by martens, most likely the animals left their marks for the identification of their area. These odours must unconditionally be removed before the assembly of the Marten-Free-Device, as other martens could possibly enter even to a bite protected engine compartment. The best way to do so is by means of an efficient motor wash. Furthermore, the animals leave their marks frequently under the vehicle, e.g. on the car park. It is therefore recommendable to remove these traces with detergents and mop in

order not to give any reasons to the marten to be forced to defend its area.

5. Technical data

• Operating voltage: 12 V DC
• Charging rate: appr. 0,7 mA
  Frequency: 23kHz + / - 10%
  Power consumption: ca. 0,1 W
• Micro-Fuse: 250 V/0.2 A
• Acoustic pressure: appr. 80 dB
• Connecting line: appr. 50 cm
  Angle of reflected beam: appr. 140^

6. Safety instructions

Important: Damage caused by not adhering to the operating instructions is not covered by guarantee. Cardigo accepts no liability whatsoever for any resulting consequent damages.

• Only operate the device at its intended voltage.
  In case of repairs, only use original sp parts, to avoid serious damage.
• Check feed cables and conducting cables connected to the device for breaks or insulation defects. If you find a defect, or there is visible damage do not use the device.
• Repairs or other works, e.g. changing a fuse, etc. may only be carried out by an appropriately trained, skilled person.

It must be noted that operator or coproper assembly or operation, we can only ting errors lie outside the influence of Cardigo and we cannot accept any liability for resulting damages. guarantee the quality of the components - and that the product is complete. We assume neither a guarantee nor liability for damage or Always check whether the device is suitable resulting damage in connection with this pro- for the respective place where you intend product. This applies in particular when amend using it.
This appliance is not intended for been conducted, circuits have been modified or persons (including children) with reduced other components have been used or damage physical, sensory or mental capabilities, or has been caused through operator errors, negl lack of experience and knowledge, unless ligent handling or misuse.

Your Gardigo-Team

Children should be supervised to ensure that they do not play with the appliance.

7.Guarantee

The guarantee covers the elimination of all shortcomings, which can be attributed to imperfect materials or manufacturing errors. As Gardigo has no influence on the correct and

Environmental protection notice

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.
