FS 40 N - Fan ECG - Free user manual and instructions

Product type	Pedestal fan
Brand	ECG
Model	FS 40 N
Diameter	40 cm
Rated voltage	220–240 V~ 50 Hz
Rated power	50 W
Sound level	63.7 dB
Number of speeds	3 (Low, Medium, High)
Swivel function	Yes, with control button
Tilt adjustment	Yes, via vertical adjustment nut
Thermal protection	Automatic shut-off in case of overload
Intended use	Domestic and similar premises (kitchens, offices, hotels)
Housing material	Plastic
Cleaning	Damp cloth with soapy water; do not immerse
Safety	Do not use outdoors or in a damp room; do not cover
Power cord	With plug, unspecified length
Repairability	Entrust to a professional service; do not disassemble yourself
Compliance	European directives (electromagnetic compatibility and electrical safety)
Recycling	Do not dispose of with household waste; drop off at a collection point
Package contents	Fan, pole, base, grilles, blade, screws, manual

Frequently Asked Questions - FS 40 N ECG

How to assemble the ECG FS 40 N fan?

To assemble the fan, first attach the base to the pole with the joining screws. Then, mount the rear grille onto the motor using the positioning screws. Fit the blade onto the shaft and tighten the screw. Finally, install the front grille and lock with the clips. Reverse the order for disassembly.

How to adjust the fan speed?

The fan has 3 speeds controlled by a rotary switch on the head. Position 0: off, 1: low speed, 2: medium speed, 3: high speed.

How to activate the swivel function?

To activate the swivel, press the swivel control button located on the fan head. To stop it, pull out the button.

How to clean the fan?

Before cleaning, always unplug the fan. Use a damp cloth or sponge soaked in soapy water to clean plastic parts. Never immerse the fan in water and avoid solvents.

What to do if the fan stops automatically?

This may be due to thermal protection in case of overload. In this case, unplug the appliance and contact a specialized after-sales service. Do not attempt to repair it yourself.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not use it in a damp environment or outdoors to avoid any risk of electric shock.

Can children use this fan?

Yes, children aged 8 and older can use it under supervision. Children must not play with the appliance. Cleaning and maintenance must not be done by children without supervision.

How to adjust the fan tilt?

Loosen the vertical adjustment nut on the head, tilt the fan to the desired angle, then retighten the nut.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified professional. Do not remove the protective covers, risk of electric shock.

How to recycle the fan at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for recycling of electrical and electronic equipment. Check with your local council or store for more information.

USER MANUAL FS 40 N ECG

Modern office fan with a metallic stand and four blades, no visible text or symbols

FS 40N

CZ

STOJANOVÝ VENTILÁTOR NÁVOD K OBSLUZE

SK

STOJANOVÝ VENTILÁTOR NÁVOD NA OBSLUHU

PL

WENTYLATOR STOJĄCY INSTRUKCJA OBSŁUGI

HU

ÁLLÓ VENTILÁTOR HASZNÁLATI ÚTMUTATÓ

DE

VENTILATOR SA STALKOM UPUTE ZA UPORABU

SI

STOJEČI VENTILATOR NAVODILA

FR

VENTILATEUR SUR PIED MODE D'EMPLOI

IT

VENTILATORE CON SUPPORTO MANUALE DI ISTRUZIONI

ES

VENTILADOR DE PIE MANUAL DE INSTRUCCIONES

ET

PÖRANDAVENTILAATOR KASUTUSJUHEND

LT

VENTILIATORIUS SU STOVU INSTRUKCIJU VADOVAS

LV

GRĪDAS VENTILATORS ROKASGRĀMATA

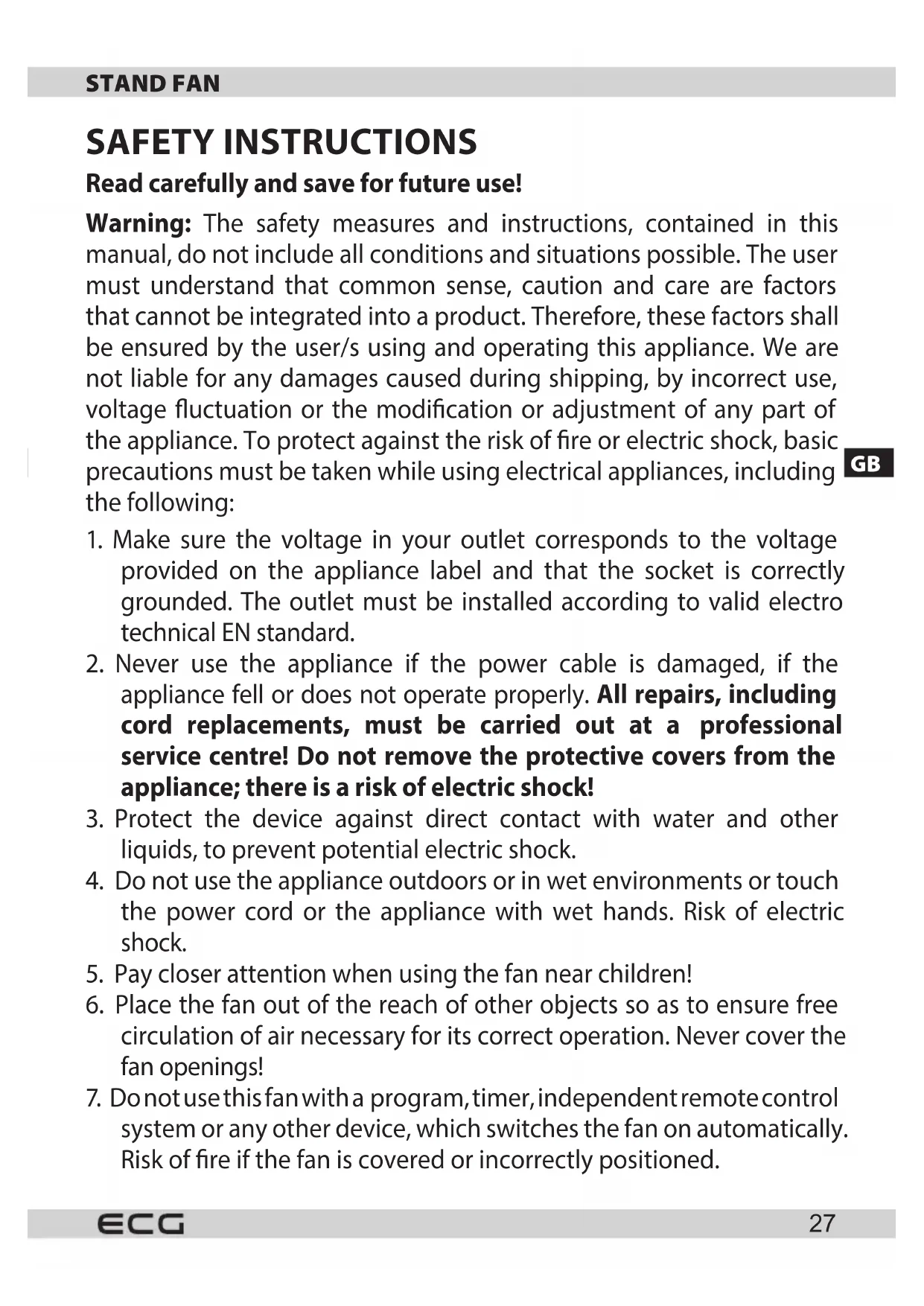

BEZPEČNOSTNÍ POKYNY

Do not immerse in water! – Neponořovat do vody!

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance. To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed according to valid electro technical EN standard.
2. Never use the appliance if the power cable is damaged, if the appliance fell or does not operate properly. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the device against direct contact with water and other liquids, to prevent potential electric shock.
4. Do not use the appliance outdoors or in wet environments or touch the power cord or the appliance with wet hands. Risk of electric shock.
5. Pay closer attention when using the fan near children!
6. Place the fan out of the reach of other objects so as to ensure free circulation of air necessary for its correct operation. Never cover the fan openings!

7. Do not use this fan with a program, timer, independent remote control system or any other device, which switches the fan on automatically. Risk of fire if the fan is covered or incorrectly positioned.

8. Do not use the appliance in the immediate vicinity of places, where heat is accumulated (near the stove, heater etc.).

9. Never place the fan on a soft surface such as a bed, sofa, etc. It must be placed on a firm, level surface.
10. If an unusual smell or smoke begins to come from the appliance, disconnect the appliance immediately and visit a service centre.
11. Do not turn the appliance on or off by plugging or unplugging the power cord. Always switch off the fan using the main switch first, and then pull the power cord out of the outlet.
12. Leaving the fan cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
13. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
14. Do not stick your fingers or some objects in the fan openings.
15. Use the fan only in accordance with instructions in this user manual. The manufacturer is not liable for any damage caused by the improper use of this appliance.

16. This appliance is intended for household use and similar areas, including:

17. kitchenettes in shops, offices and other work places

18. appliances used by guests in hotels, motels and other residential areas.

19. appliances used in bed and breakfast residences

20. This appliance may be used by children under 8 years of age and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed to use the appliance in a safe manner and understand the potential hazards. Children shall not play with the appliance. Cleaning and maintenance operations must not be carried out by children unless supervised by an adult.

Make sure that the power cable or extension cord can not be accidentally pulled out of the socket during operation. Use the handle to carry the appliance.

Do not immerse in water!

Warning: To prevent overheating, do not cover the fan.

DANGER FOR CHILDREN: Children must not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

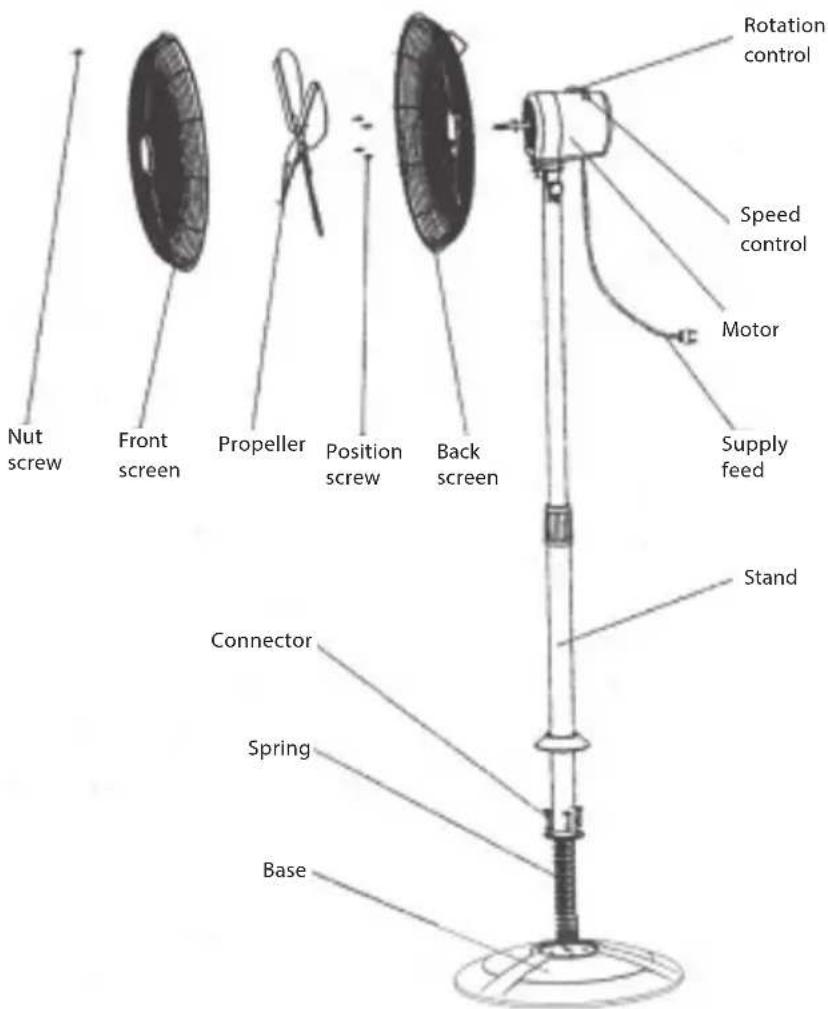

INSTALLATION

1. Remove each part from the packages. If the front and back screens are connected, separate these.
2. Remove the base and parts of the stand from the box and loosen the 4 attachment screws. Attach the stand to the base using the attachment screws.
3. Dismantle the four position screws on the motor, place the back screen against the four holes on the motor (handle facing upward), insert the four position screws into the holes and tighten these.
4. Loosen the nut screw on the propeller, place the propeller on the motor shaft and secure by tightening the screw. Make sure the propeller does not interfere with the screen.
5. Install the front screen on to the back screen. Tighten the screw and nut, secure the retaining clips.

HEAT PROTECTION

Heat protection is activated if an actuating unit is overloaded. The fan

switches off automatically. In this case, refer to a professional service centre.

GB

USE

The fan has 3 speeds, its rotating head ensures smooth rotation. It is quiet, with a low energy consumption, reliable and safe and at the same time, ensures effective air circulation.

The switch is integrated in the speed control on the head of the fan.

0 - Fan is off.

1 - Fan is running at low speed.

2 - Fan is running at medium speed.
3 - Fan is running at high speed.

• The fan can rotate during operation.
• For the fan head to rotate, push the automatic rotation control down.
• To stop the rotation of the fan head, pull the automatic rotation control up.
• The fan head can be set up or down. Loosen the vertical setting nut, adjust the desired angle of the fan and tighten the nut again.

CLEANING AND MAINTENANCE

1. The fan must be switched off and the cord disconnected from the outlet prior to cleaning.
2. Wipe the plastic parts with a towel or moist sponge dipped into a soap agent. Wipe dry. Do not immerse the fan into water!
3. To dismantle the fan, proceed in the opposite sequence as for the assembly process.

We recommend keeping the package for transporting the fan or storage.

GB TECHNICAL INFORMATION

Diameter 40 cm

Nominal voltage: 220-240 V\~ 50 Hz

Nominal input power: 50 W

Noise level: 63.7 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
