Product type	Solar repellent against moles and rodents
Brand	Isotronic
Model	70025
Power supply	1 NiMH AA battery 1.2 V / 850 mAh (included)
Solar panel	Polycrystalline cells
Vibration frequency	400 Hz ± 50 Hz
Range of action	Approximately 700 m² (depending on soil type)
Operating interval	2 seconds active, 25 seconds pause
Power reserve	Up to 7 days without light exposure
Housing	Weather-resistant
Installation	Bury three-quarters into the ground, on/off switch
Maintenance	Check operation regularly, clean the solar panel
Battery replacement	Yes, accessible under the solar panel (AA NiMH type)
Warranty	2 years
Main functions	Quartz vibrations to repel moles and rodents
Recommended use	Gardens, fields, outdoors
Safety and recycling	Do not dispose of in household waste, take to collection point

Frequently Asked Questions - 70025 Isotronic

How to install the Isotronic 70025 solar mole repellent?

Bury the device in the ground up to three-quarters of its height. Make sure the battery is fully charged before first use: place the device in off mode for about 12 hours in the sun. Then press the switch under the housing to turn it on.

What is the range of the Isotronic 70025?

The range is approximately 700 m², but this may vary depending on the soil type (sandy, clayey, etc.). Underground obstacles such as pipes or foundations can reduce effectiveness.

How long does it take for moles to leave?

The vibrations emitted are unbearable for rodents. They usually migrate within a few days to a few weeks. At first, moles may dig more: this is a natural reaction before they leave the area permanently.

How to change the device's battery?

Remove the transparent cover of the housing, then carefully remove the solar panel. Underneath is the battery compartment. Replace the old battery with a NiMH AA battery 1.2 V / 850 mAh respecting the polarities. Then replace the solar panel and cover.

Does the device work in cloudy weather?

Yes, thanks to its power reserve, the device can operate up to 7 days without light exposure. The polycrystalline solar cells recharge the battery even in low light.

Is the Isotronic 70025 rain-resistant?

Yes, the housing is weather-resistant and designed for outdoor use. It can stay in the ground in all weather.

Where to place the device for maximum effectiveness?

Place the device so that animals have an escape route. Avoid encircling them. First install near the house, then move the device 4 to 5 meters every 5 to 6 weeks toward the exit of the property.

Is the device harmful to pets?

No, the 400 Hz frequencies are designed to be unbearable only for rodents. Other beneficial animals are not affected.

What to do if the device stops working?

First check the on/off switch and the cleanliness of the solar panel. If the problem persists, it may be necessary to replace the battery (see manual). In case of failure, contact customer service.

How to recycle the device at end of life?

Do not throw the device in household waste. Take it to a collection center for recycling of electrical and electronic equipment. The packaging and used batteries must also be recycled according to regulations.

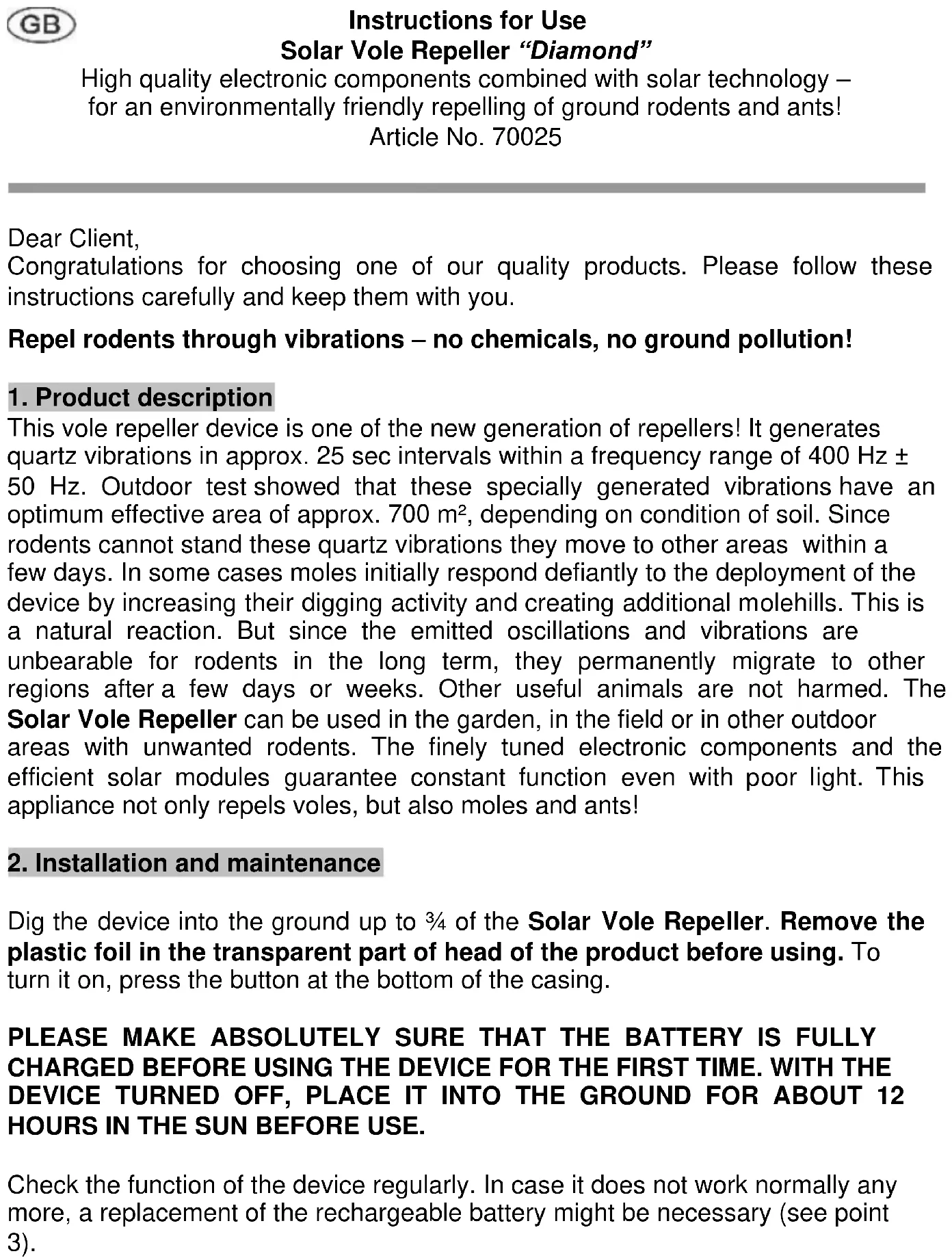

USER MANUAL 70025 Isotronic

Close-up of a transparent cube-shaped object with a green base, mounted on a black cylindrical stand (no text or symbols visible)

DE

Congratulations for choosing one of our quality products. Please follow these instructions carefully and keep them with you.

Repel rodents through vibrations – no chemicals, no ground pollution!

1. Product description

This vole repeller device is one of the new generation of repellers! It generates quartz vibrations in approx. 25 sec intervals within a frequency range of 400 Hz ± 50 Hz. Outdoor test showed that these specially generated vibrations have an optimum effective area of approx. 700 m², depending on condition of soil. Since rodents cannot stand these quartz vibrations they move to other areas within a few days. In some cases moles initially respond defiantly to the deployment of the device by increasing their digging activity and creating additional molehills. This is a natural reaction. But since the emitted oscillations and vibrations are unbearable for rodents in the long term, they permanently migrate to other regions after a few days or weeks. Other useful animals are not harmed. The Solar Vole Repeller can be used in the garden, in the field or in other outdoor areas with unwanted rodents. The finely tuned electronic components and the efficient solar modules guarantee constant function even with poor light. This appliance not only repels voles, but also moles and ants!

2. Installation and maintenance

Dig the device into the ground up to 34 of the Solar Vole Repeller. Remove the plastic foil in the transparent part of head of the product before using. To turn it on, press the button at the bottom of the casing.

PLEASE MAKE ABSOLUTELY SURE THAT THE BATTERY IS FULLY CHARGED BEFORE USING THE DEVICE FOR THE FIRST TIME. WITH THE DEVICE TURNED OFF, PLACE IT INTO THE GROUND FOR ABOUT 12 HOURS IN THE SUN BEFORE USE.

Check the function of the device regularly. In case it does not work normally any more, a replacement of the rechargeable battery might be necessary (see point 3).

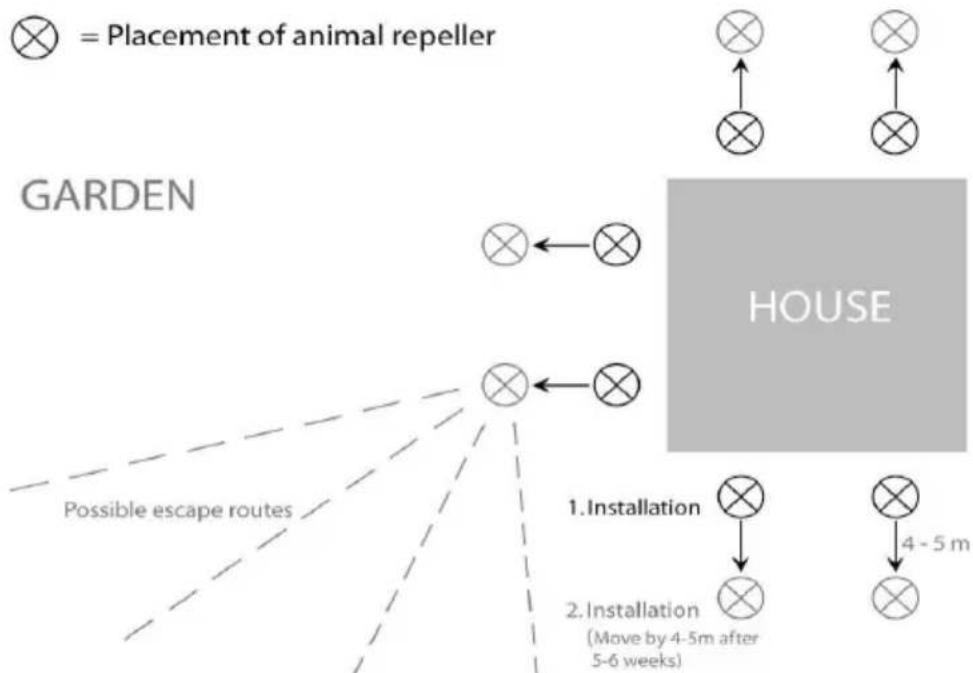

Installation suggestion (see drawing):

Place the repeller in such a position that animals will have the possibility to flee from your land. After about 5-6 weeks the device/s should be moved approximately 4-5 metres in the direction of the escape route.

ATTENTION: Never stick the device directly into the hill. If you are using several devices, never install them in the corners of the plot; you then contain the animals in the middle and block their possible escape routes. Start repelling the animals directly at the house and work your way toward the property boundaries. In very dry and hard soil, drill a hole in the ground and compact the soil around the rod. Look out for underground barriers, such as pipes, foundations, edges and borders, and concrete slabs! These barriers reduce the spreading of the frequency waves and their effectiveness.

3. Replacement of the rechargeable battery

1. Remove the transparent housing cover.
2. Carefully take off the solar panel from the rechargeable battery which is underneath. When doing so, make sure that the cable connection between the solar panel and the circuit board which is underneath the rechargeable battery, is left intact and is not damaged.
3. Remove the old rechargeable battery from its fitting.
4. Insert a new rechargeable battery size Mignon (AA) and type Ni-MH with 1.2 V and 850 mA. When doing so, mind the correct polarity as shown on the bottom inside the battery fitting.
5. Carefully place the solar panel back on the rechargeable battery. Pay attention that the two cable of the solar panel will not conducted above the batteries for closing the casing in the right way.
6. Reattach the transparent casing cover to the casing body.

4. Technical data

Power supply: 1 rechargeable battery, size Mignon (AA), type Ni-MH, 1.2 V, 850 mA (included); can be replaced if necessary

Casing: weather-proof

Effective area: approx. 700 m², depending on condition of soil

Frequency range: 400 Hz ± 50 Hz, self-controlling

Operation: On / Off switch

Electricity supply: Polycrystalline solar cells

Interval: approx. 2 sec on, approx. 25 sec off (break interval)

Voltage reserve: up to 7 days without exposure to light

Readiness for operation: immediate operating and charging function, even at low incidence of light

5. Attention: Important battery notice

- Instructions for battery disposal:

Batteries are subject to legal provisions. After use they must therefore be returned to the point of sale or to a collecting point of public facilities for harmful substances. Batteries may never be disposed as household waste, in the yellow sack or other. Dispose of batteries only when completely discharged into a waste batteries collecting container and take precautions against short circuit (e.g. by masking the poles).

6. General information

1. Electric appliances, packaging material etc. should be kept away from children.
2. Dispose packaging and worn out material correctly and in an environmentally friendly way.
3. Do only pass on the device including the operation manual.
4. Subject to change of design and technical data without notice for the sake of constant product improvement.

7. Safety instructions

Important: Damage caused by not adhering to the operating instructions is not covered by guarantee. ISOTRONIC accepts no liability whatsoever for any resulting consequent damages.

• Only operate the device at its intended voltage.
• In case of repairs, only use original spare parts, to avoid serious damage.
• Repairs or other works, e.g. changing a fuse, etc. may only be carried out by an appropriately trained, skilled person.
• It must be noted that operator or connecting errors lie outside the influence of ISOTRONIC and we cannot accept any liability for resulting damages.
• Always check whether the device is suitable for the respective place where you intend using it.

8. Guarantee

We grant a two year guarantee for this device. Guarantee includes repair of all defects that were not caused by defective material or fabrication mistakes. Guarantee does not apply on wearing parts (for example rechargeable batteries) and damage caused by not adhering to the operating instructions is not covered by guarantee either. ISOTRONIC accepts no liability whatsoever for any resulting consequent damages. Since ISOTRONIC has no influence on correct and appropriate assemblage and operation it is obvious that guarantee applies only on completeness and proper condition. ISOTRONIC takes on neither liability nor guarantee for damages or consequential damages in connection with this product. This applies especially when the device was altered or repaired, when circuits were changed or non-original spare parts were used or when damage was caused by false or negligent operation or abuse.

Your

ISOTRONIC-Team

D- 78727 Oberndorf

ISOTRONIC

Status: 09/18

Environmental protection notice

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.
