Product type	Ultrasonic repeller
Brand	Isotronic
Model	62500 (ULTRASONIC XL 800)
Usage	Pest control (rodents, insects, birds, etc.)
Operating frequency	Continuously adjustable from 5 to 110 kHz
Sound pressure	Approx. 95 dB ±10%
Range	Approx. 200 m²
Power supply	Mains adapter 220V AC/6V DC 500mA or 4 AA NiMH 1.2V 850mA batteries (rechargeable)
Battery operation	Yes, with recharge option via USB adapter
LED lamp	Triple flash at night (photocell), every 54 seconds
Protection rating	IP45 (water jets)
Operating temperature	-20°C to +50°C
Storage temperature	-5°C to +50°C
Allowable humidity	≤90% RH
Wall mount	Integrated
Switch	ON/OFF
LED display	Green flashing slowly (transmission), fast (low battery)
Batteries	4x AA NiMH 850mA (not included), rechargeable via adapter
Warranty	2 years
Safety	Do not use outdoors, keep out of reach of children, avoid contact with water
Maintenance	Clean with a dry cloth, replace batteries if necessary
Spare parts	Mains adapter, batteries (rechargeable) available
Repairability	Entrust to a specialist, use original parts

Frequently Asked Questions - 62500 Isotronic

How to adjust the frequency to repel mice?

Turn the rotary knob to the 12-25 kHz position. This range is effective against mice, rats and other rodents. For optimal effectiveness, adjust gradually.

What is the battery life?

The device runs on 4 AA NiMH 850mA batteries. Battery life depends on usage, but charging time is 8 to 12 hours. With continuous adapter use, the batteries recharge automatically.

What is the range of the device?

The range is approximately 200 m². Ultrasound waves propagate in open space. Avoid obstacles like furniture or curtains that absorb waves.

Is the device dangerous for pets like dogs or cats?

The device is safe for humans and pets. However, it may disturb some animals. Set the frequency to a suitable range (20-40 kHz for dogs/cats) and observe their reaction.

Where to place the device for maximum effectiveness?

Place the device in the infested room, at least 1 meter above the floor, with no obstacles in front. Do not place behind furniture or curtains. Mount it on the wall if possible.

How to recharge the batteries?

Connect the supplied USB mains adapter to the back of the device. Charging starts automatically, even if the switch is OFF. Charging time is 8 to 12 hours.

What does the fast flashing of the green LED mean?

Fast flashing indicates low battery (voltage below 3.5 V). Recharge the device via USB adapter or replace batteries.

Can I use the device outdoors?

No, the device is designed for indoor use. It is protected against water jets (IP45) but must not be exposed to rain or excessive humidity.

What pests can this device repel?

The device is effective against rodents (mice, rats), insects (mosquitoes, fleas, spiders), birds, bats and other pests. The frequency must be adapted to the target species.

How to clean the device?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemicals or water. Avoid touching internal components.

USER MANUAL 62500 Isotronic

Instructions for Use

ULTRASONIC XL 800

Ultrasonic – Rodent – and Animal Repeller Flash

Item 62500

Product description

The ULTRASONIC XL 800 is an effective repellent of mice, rats and other pesky animals and pests. Laboratory analyses have shown that the ultrasonic waves affect the auditory and nervous systems of most common pests, causing them discomfort. At about 95 dB +/- 10% the sound pressure causes the pests and vermin to abandon their search for food, water and shelter and move on. In addition, the bright built-in LED light of the ULTRASONIC XL 800 frightens the animals at night and causes them to flee.

Putting into operation

Connect the included power adapter to the USB port on the back of the unit and turn it on using the switch.

The ULTRASONIC XL 800 has a continuously variable frequency. We recommend the following settings (rotary switch from the left to the right) to repel the following:

Mosquitoes, fleas: 5-7 kHz

Spiders: 10-15 kHz

Mice, rats, marten, dormice: 12-25 kHz

Doves, birds, cats, dogs: 20-40 kHz

Raccoons, foxes, hares, wild boars: 30-45 kHz

Mites, bedbugs: 40-42 kHz

Bats: 110 kHz

Depending on the species, ambient noise can alter the necessary repellent frequency. For this, please change the frequency at will to identify which frequency is the most effective.

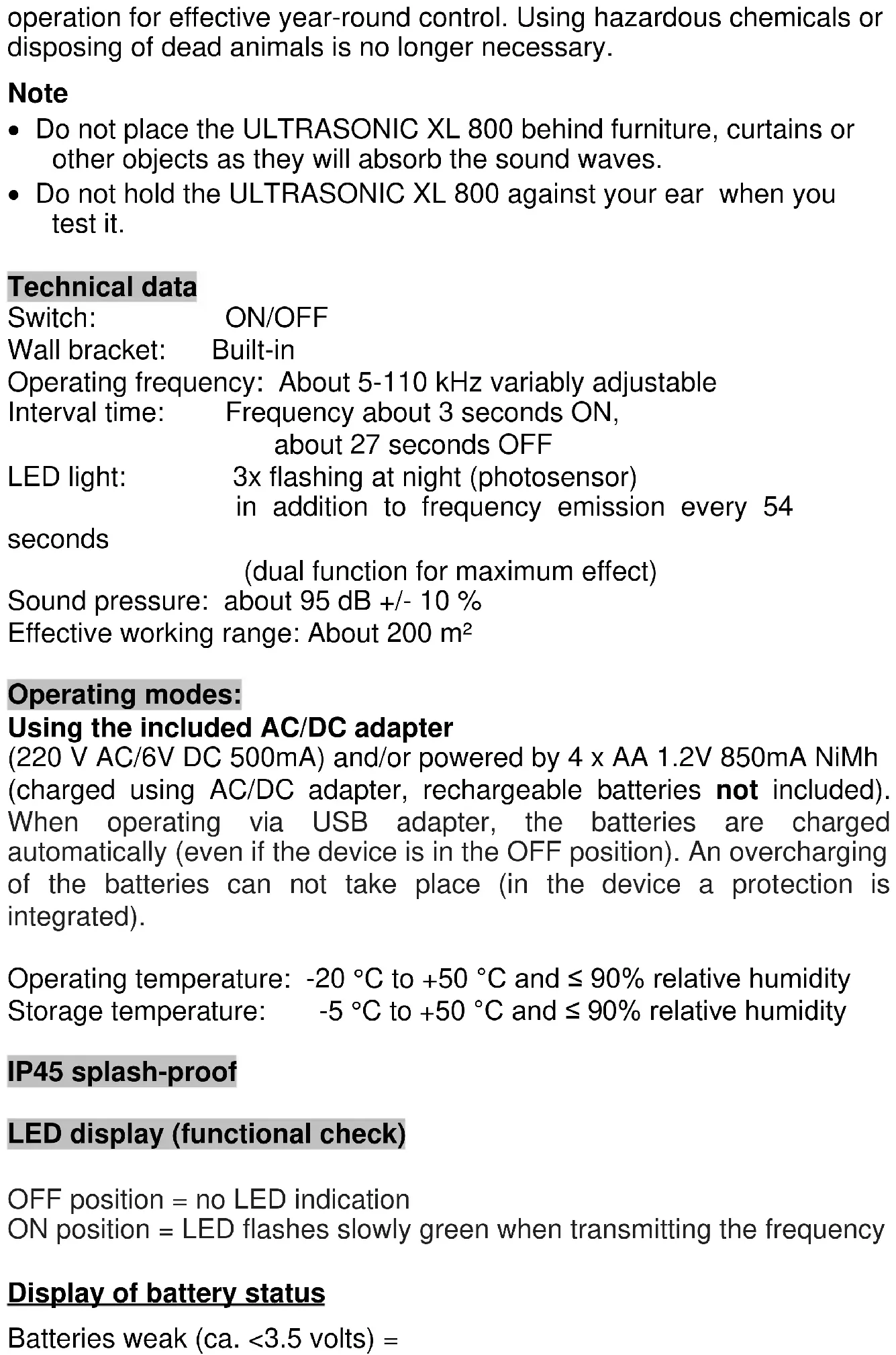

You will notice the effect of the ULTRASONIC XL 800 after a few days. The activity of rodents will stop over time, other animals will avoid their usual living and sleeping habitats. Leave the ULTRASONIC XL 800 in

operation for effective year-round control. Using hazardous chemicals or disposing of dead animals is no longer necessary.

Note

• Do not place the ULTRASONIC XL 800 behind furniture, curtains or other objects as they will absorb the sound waves.
• Do not hold the ULTRASONIC XL 800 against your ear when you test it.

Technical data

Switch: ON/OFF

Wall bracket: Built-in

Operating frequency: About 5-110 kHz variably adjustable

Interval time: Frequency about 3 seconds ON, about 27 seconds OFF

LED light: 3x flashing at night (photosensor)

in addition to frequency emission every 54

seconds

(dual function for maximum effect)

Sound pressure: about 95 dB +/- 10 %

Effective working range: About 200 m²

Operating modes:

Using the included AC/DC adapter

(220 V AC/6V DC 500mA) and/or powered by 4 x AA 1.2V 850mA NiMh (charged using AC/DC adapter, rechargeable batteries not included). When operating via USB adapter, the batteries are charged automatically (even if the device is in the OFF position). An overcharging of the batteries can not take place (in the device a protection is integrated).

Operating temperature: -20 °C to +50 °C and ≤ 90% relative humidity

Storage temperature: -5 °C to +50 °C and ≤ 90% relative humidity

IP45 splash-proof

LED display (functional check)

OFF position = no LED indication

ON position = LED flashes slowly green when transmitting the frequency

Display of battery status

Batteries weak (ca. <3.5 volts) =

Green LED flashes quickly (please charge the device or operate it with a USB adapter).

Charging time is 8 to 12 hours.

Battery replacement

1. Remove the housing cover by loosening the 6 screws.
2. Remove the old batteries.
3. Insert four new rechargeable batteries of size Mignon (AA) 850mA NiMh. Make sure that the polarity is correct as shown on the inside at the bottom of the battery holder.
4. Replace the cover and retighten the screws.

Only use rechargeable batteries or operate the device using the USB adapter. Non-rechargeable batteries may not be charged.

General information

1. Electric appliances, packaging material etc. should be kept away from children.
2. Dispose packaging and worn out material correctly and in an environmentally friendly way.
3. Do only pass on the device including the operation manual.
4. Subject to change of design and technical data without notice for the sake of constant product improvement.

Safety instructions

Important: Damage caused by not adhering to the operating instructions is not covered by guarantee. ISOTRONIC accepts no liability whatsoever for any resulting consequent damages.

• Only operate the device at its intended voltage.
• In case of repairs, only use original spare parts, to avoid serious damage.
• Check feed cables and conducting cables connected to the device for breaks or insulation defects. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Repairs or others works, e.g. changing a fuse, etc. may only be carried out by an appropriately trained, skilled person.
• It must be noted that operator or connecting errors lie outside the influence of ISOTRONIC and we cannot accept any liability for resulting damages.
• Always check whether the device is suitable for the respective place where you intend using it.
• This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

Guarantee

We grant a two years guarantee for this device. Guarantee includes repair of all defects that were not caused by defective material or fabrication mistakes. Guarantee does not apply on wearing parts (for example illuminants). Since ISOTRONIC has no influence on correct and appropriate assemblage and operation it is obvious that guarantee applies only on completeness and proper condition. ISOTRONIC takes on neither liability nor guarantee for damages or consequential damages in connection with this product. This applies especially when the device was altered or repaired, when circuits were changed or non-original spare parts were used or when damage was caused by false or negligent operation or abuse.

Your ISOTRONIC-Team

ISOTRONIC®

D-78727 Oberndorf

Status: 03/18

Environmental protection notice

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.
