Product type	Cross line laser level
Model	PocketPlaneLaser 3G
Brand	Laserliner
Lasers	3 green lasers 360° (horizontal, vertical, tilt)
Laser class	2 (EN 60825-1:2014/AC:2017)
Laser wavelength	515 nm
Laser power	< 1 mW
Visible range (typical)	30 m
Range with manual receiver	60 m
Accuracy	± 0.3 mm/m
Self-leveling range	± 3.5°
Power supply	Li-ion battery 3.7 V / 3.6 Ah / 13.32 Wh
Charging time	Approx. 4 h
Operating time (3 laser planes)	Approx. 9 h
Dimensions (L x W x H)	104 x 97 x 76 mm
Weight (with battery)	388 g
Tripod thread	1/4"
Tilt mode	Yes (with transport lock)
Manual receiver mode	Yes (GRX-READY technology)
Working conditions	0 °C to 50 °C, max. humidity 80% RH
Storage conditions	-10 °C to 70 °C, max. humidity 80% RH
Cleaning	Slightly damp cloth, avoid solvents
Calibration	Annual recommended, contact customer service
After-sales service	Contact UMAREX-LASERLINER or distributor

Frequently Asked Questions - PocketPlaneLaser 3G Laserliner

How to turn on the device and project the lasers?

Slide the sliding switch (2) to the right to release the transport lock. The laser cross lights up. Use the selection button (6) to activate each line individually.

What to do if the laser lines flash?

The lines flash when the device is outside the self-leveling range (±3.5°). Reposition the instrument on a more stable, level surface. The lines become steady again once within range.

How to use tilt mode?

Do not release the transport lock (sliding switch to the left). Press the selection button (6) to choose the laser. In this mode, the lines no longer self-level and allow working on inclined planes.

How to use the GRX laser receiver?

Press button 8 to activate manual receiver mode. The lines become darker but are pulsed at high frequency. The GRX receiver detects these pulses. Follow the receiver's instruction manual.

How to check the laser level calibration?

Place the device in the center between two walls at least 5 m apart. Mark points A1, A2, A3 according to the procedure. The difference between A2 and A3 must not exceed 0.3 mm/m. Otherwise, contact customer service.

How to charge the Li-ion battery?

Connect the supplied mains power adapter to the device connector. The LEDs flash during charging, then remain steady when finished (approx. 4 hours). Use only the original charger.

What are the safety precautions for the Class 2 laser?

The device is Class 2 (< 1 mW). Do not look into the beam, do not point at people. In case of exposure, close eyes and turn head. Do not use optical instruments to view the laser.

How to clean and maintain the device?

Clean with a slightly damp cloth, without cleaning agents or solvents. Remove the battery before long-term storage. Store in a dry, clean place. Annual calibration is recommended.

What to do in case of malfunction or need for repair?

Contact your dealer or UMAREX-LASERLINER customer service. Do not modify the device. The battery is replaceable only by customer service. For adjustment, consult a professional.

What are the dimensions and weight of the device?

The device measures 104 x 97 x 76 mm and weighs 388 g with the included battery pack. It is compact and lightweight, easy to carry.

USER MANUAL PocketPlaneLaser 3G Laserliner

Laser

515nm

AUTOMATIC LEVEL

GRX READY

"lock

1H360° 2V360°

Isometric line drawing of a 3D cube with visible and hidden edges (no text or symbols)

Laserliner

DE

02

EN

10

NL

18

DA

26

FR

34

ES

42

IT

50

PL

FI

PT

SV

NO

TR

RU

UK

CS

ET

RO

BG

EL

HR

!

Warning symbol with a triangular frame and a central sunburst pattern (no text or numbers)

Isometric line drawing of a 3D cube structure with no text or symbols

S1H360°

Close-up of a black USB device with control buttons and a battery icon, labeled 'USB-C' (no other text or symbols visible)

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Intended use

This cross-line laser projects three green 360° laser circles and is suitable for aligning horizontals, verticals and slopes. The upper and lower laser crosses provide a plumb function for working simultaneously on floors and ceilings. Optical signals indicate when the unit is outside its self-levelling range. The product has an integral handheld receiver mode and a 1/4" tripod connection.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 515 nm EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.

• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.

• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Special product features

Automatic alignment of the device with a magnetically dampened pendulum system. The device is brought into initial position and aligns itself autonomously.

Transport LOCK: The device is protected with a pendelum lock during transport.

GRX-READY technology enables line lasers to be used even in unfavourable light conditions. The laser lines pulsate at a high frequency and this can be picked up by special laser receivers over long distances.

Green laser technology

Approx. 6 times brighter than a typical red laser with 630 - 660 nm.

Number and direction of the lasers

H = horizontal laser

V = vertical laser

S = slope function

Isometric line drawing of a 3D cube with visible and hidden edges (no text or symbols)

1H360° 2V360°

S

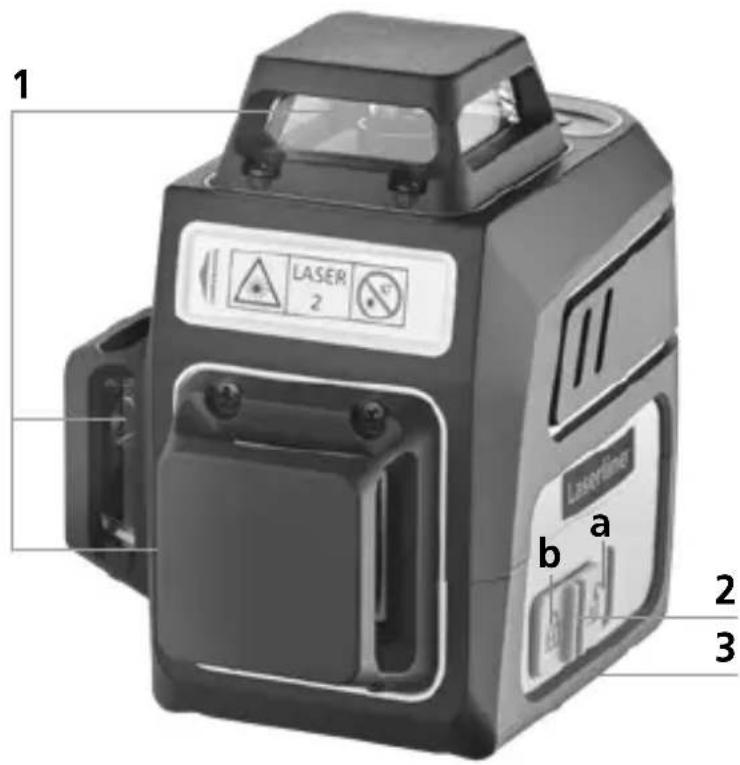

1 Laser output windows
2 Slide switch

a ON

b OFF / Transport lock / Slope mode

3 1/4" tripod threads (bottom)

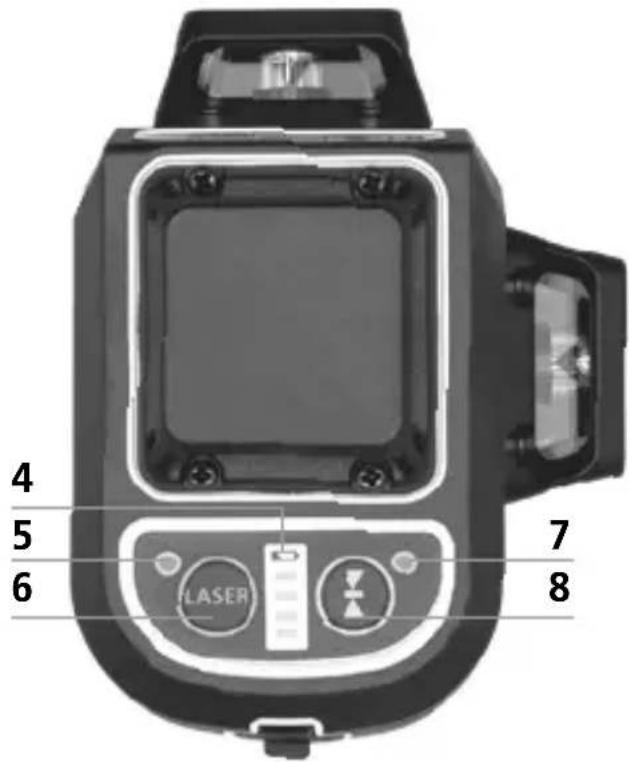

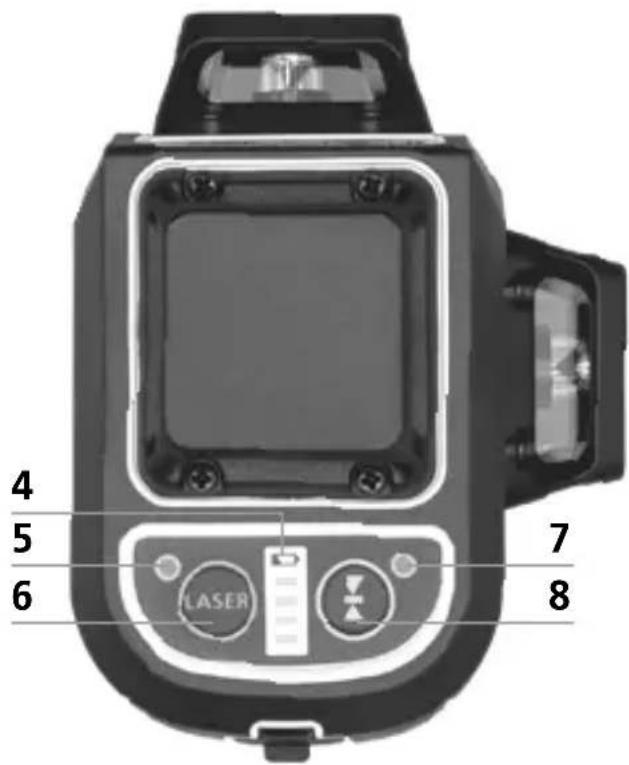

4 Battery status
5 LED levelling
6 Laser line selection button; levelling on / off
7 Hand receiver mode on / off
8 LED hand receiver mode

!

When transporting, always switch off all lasers, secure pendulum and push the slide switch (3) to the left.

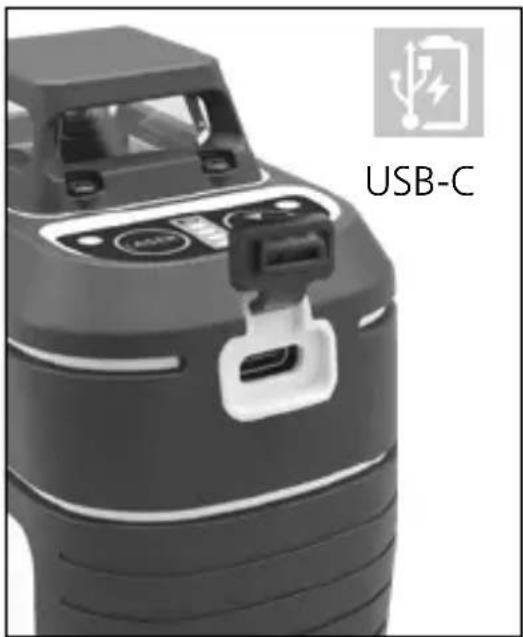

1 Use of lithium-ion rechargeable battery

• Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.
• Ensure the device's battery is fully charged before using the device.
• Connect the power pack/charger to the mains power supply and the socket on the device's battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty.
• The LED display flashes while the device is charging. Charging is complete when the LEDs are continuously lit.

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols on the device itself)

The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER service department.

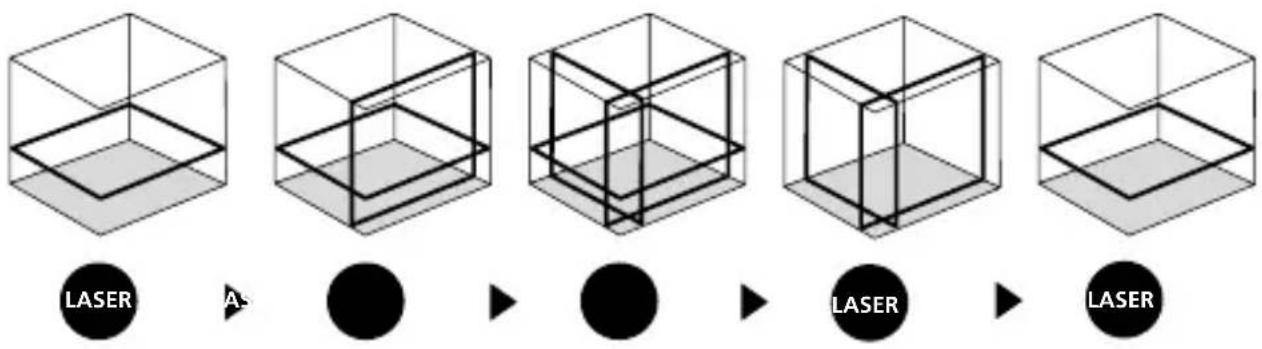

2 Horizontal and vertical levelling

Release the transport restraint, push the slide switch (3) to the right. The laser cross will appear. The laser lines can be switched individually with the selection button.

Laserliner

!

The transport restraint must be released for horizontal and vertical levelling. The laser lines flash as soon as the device is outside the automatic levelling range of 3.5^ . Position the device such that it is within the levelling range. The laser lines stop flashing (steady light).

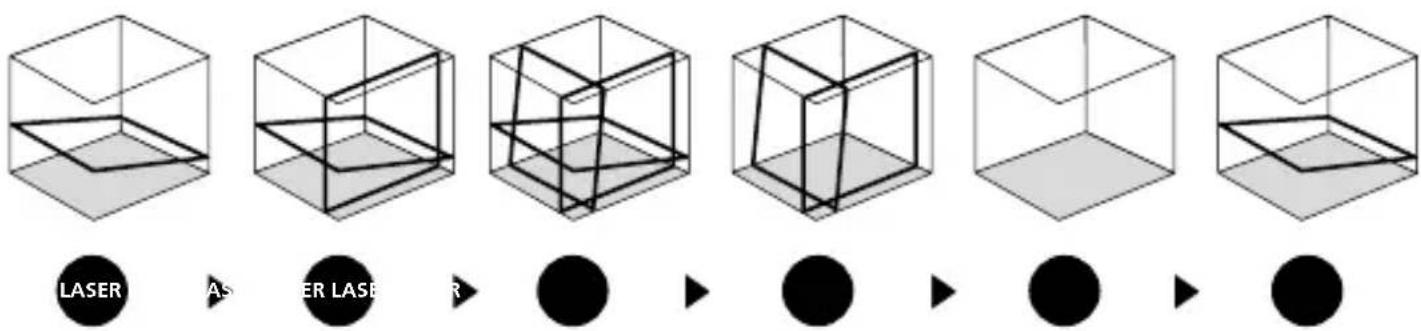

3 Slope mode

Do not release transport restraint, push slide switch (3) to the left. Select the laser with the selector button (7). Sloping planes and tilts can now be measured. In this mode, the laser lines no longer align automatically.

4 Hand receiver mode

Optional: Working with the laser receiver GRX

Use an GRX laser receiver (optional) to carry out levelling at great distances or when the laser lines are no longer visible. To work with a laser receiver, switch the line laser to hand-held receiver mode by pressing button 7 (handheld receiver mode on / off). The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.

!

Observe the laser receiver's operating instructions for line lasers.

!

Due to the special optics required to generate a continuous 360^ laser line, the underlying technology may cause differences in brightness in different areas of the line. This may lead to different ranges in hand receiver mode.

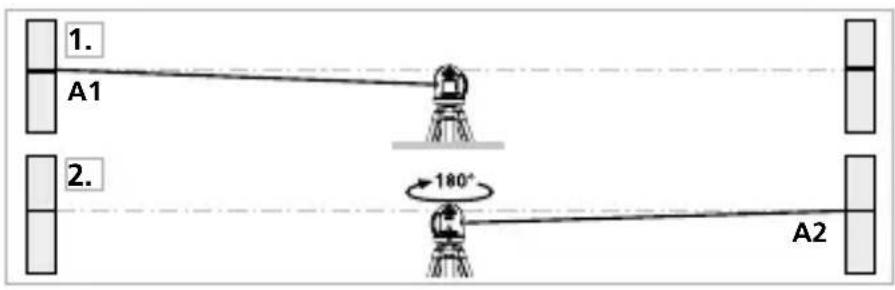

Preparing the calibration check

It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 m apart.

Switch the device on (Laser cross ON). The best calibration results are achieved if the device is mounted on a tripod.

1. Mark point A1 on the wall.

2. Turn the device through 180^ and mark point A2.

You now have a horizontal reference between points A1 and A2.

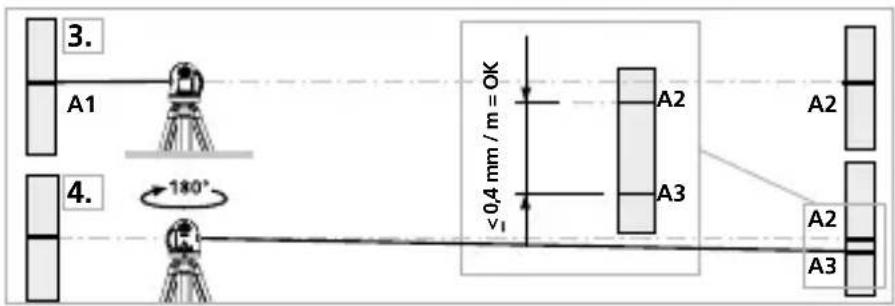

Performing the calibration check

1. Position the device as near as possible to the wall at the height of point A1.

2. Turn the device through 180^ and mark point A3. The difference between points A2 and A3 is the tolerance.

!

When A2 and A3 are more than 0.3 mm / m apart, an adjustment is necessary. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.

Checking the vertical line

Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 2 mm.

Checking the horizontal line

Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ± 2 mm. Repeat the process by turning the laser to the left.

!

Regularly check the calibration before use, after transport and after extended periods of storage.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.

Technical data (Subject to technical changes without notice. 22W28)

Self-levelling range	± 3.5°
Accuracy ± 0.3 mm / m
Levelling automatic
Visibility (typical)*	30 m
Working range with hand receiver	60 m (depends on how the technology affects the difference in brightness)
Laser wavelength	515 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply Li-ion battery pack	3.7V / 3.6Ah / 13.32Wh
Charging time approx. 4 hours
Operating time	with 3 laser levels: approx. 9 hours
Operating conditions	0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-10°C ... 70°C, max. humidity 80% rH
Dimensions (W x H x D)	104 x 97 x 76 mm
Weight	388 g (incl. battery pack)

* at max. 300 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.

Further safety and supplementary notices at:

http://laserliner.com

!
