USER MANUAL FRY518Y BEKO

FRY518Y Deep Fryer User Manual 01M-8810073200-4617-01 EN DE FR RO IT PL TRPlease read this user manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the- art technology. Therefore, please read this entire user manual and all other accompa- nying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Observe all the warnings and information given in the user manual. Meanings of the symbols Following symbols are used in the various sections of this manual:

Important information and useful hints about usage.

Warnings against dan- gerous situations concerning the se- curity of life and property. Warning for hot surfaces. Suitable for contact with food. Do not immerse the appliance in water. This product has been produced in environmentally-friendly, modern facilities without harming the nature. Complies with the WEEE Regulation. It does not contain PCB.3 / EN Deep Fryer / User Manual CONTENT ENGLISH 4-11 DEUTSCH 12-21

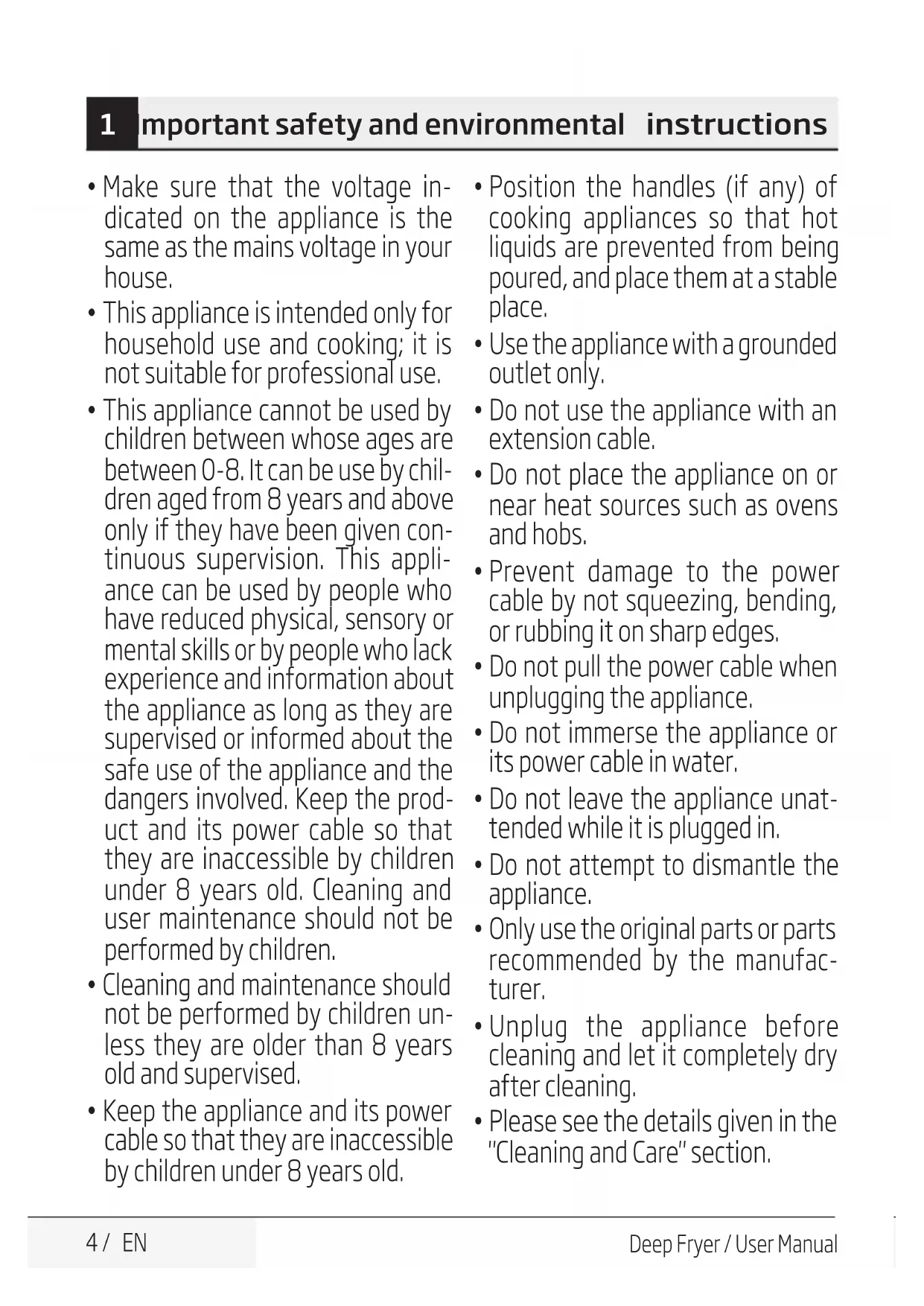

• Make sure that the voltage in- dicated on the appliance is the same as the mains voltage in your house.

• This appliance is intended only for household use and cooking; it is not suitable for professional use.

• This appliance cannot be used by children between whose ages are between 0-8. It can be use by chil- dren aged from 8 years and above only if they have been given con- tinuous supervision. This appli- ance can be used by people who have reduced physical, sensory or mental skills or by people who lack experience and information about the appliance as long as they are supervised or informed about the safe use of the appliance and the dangers involved. Keep the prod- uct and its power cable so that they are inaccessible by children under 8 years old. Cleaning and user maintenance should not be performed by children.

• Cleaning and maintenance should not be performed by children un- less they are older than 8 years old and supervised.

• Keep the appliance and its power cable so that they are inaccessible by children under 8 years old.

• Position the handles (if any) of cooking appliances so that hot liquids are prevented from being poured, and place them at a stable place.

• Use the appliance with a grounded outlet only.

• Do not use the appliance with an extension cable.

• Do not place the appliance on or near heat sources such as ovens and hobs.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

• Do not pull the power cable when unplugging the appliance.

• Do not immerse the appliance or its power cable in water.

• Do not leave the appliance unat- tended while it is plugged in.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufac- turer.

• Unplug the appliance before cleaning and let it completely dry after cleaning.

• Please see the details given in the "Cleaning and Care" section.5 / EN Deep Fryer / User Manual 1 Important safety and environmental instructions

• Do not place big food parts into the appliance to prevent risk of fire.

• Do not touch the plug of the appli- ance with damp or wet hands.

• Do not immerse the appliance or its power cable in water.

• Do not use the appliance in humid environments.

• Do not use the appliance with an extension cable.

• Do not move the appliance when it is in use or when the oil inside it is hot.

• Do not leave the appliance unat- tended while it is plugged in.

• Never use the appliance in or near places where combustible or in- flammable ambience or places are present.

• Do not touch hot surfaces to avoid risk of burning.

• Only use the original parts or parts recommended by the manufac- turer.

• Let the appliance cool down at a safe place inaccessible by children.

• Do not lean over the appliance when it is in use. Hot air will come out from the appliance during op- eration!

• The appliance gets hot while using. Do not touch hot surfaces to avoid risk of burning.

• Make sure that the room is well ventilated when using the appli- ance.

• In case of fire, unplug the appli- ance.

• Do not pour water on the appli- ance to prevent risk of electric shock.

• The appliance should not be oper- ated with an external clock timer or separate remote control sys- tem.

• The level of the oil inside the ap- pliance must be somewhere between the maximum and mini- mum levels indicated.

• Only use metal kitchenware with insulated handles together with the appliance.

• If you keep the packaging materi- als, store them out of the reach of children.Deep Fryer / User Manual 6 / EN

1.1 Compliance with WEEE

Directive and Disposal of the Waste Appliance This product does not include harmful or prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urbanisation. This appliance conforms to the WEEE regula- tion. This appliance was manufactured from high quality parts and materials which are recyclable and re-usable. For this reason, do not dispose of this appliance with the domestic or other types of wastes at the end of its service life. Take it to a collection point which is dedicated to recycling of electric and electronic appliances. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

1.2 Packaging information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.3 Compliance with RoHS

Directive The appliance you have purchased is in compliance with EU RoHS Directive (2011/65/EU). It does not contain dangerous or prohibited materials speci- fied by the directive. 1 Important safety and environmental instructions7 / EN Deep Fryer / User Manual

The markings on the appliance and the values indicated on the other documents provided with the appliance have been obtained under laboratory conditions in accordance with the relevant standards. These values may vary depending on the use of the appliance and environmental conditions. Power values have been tested at 230 V.

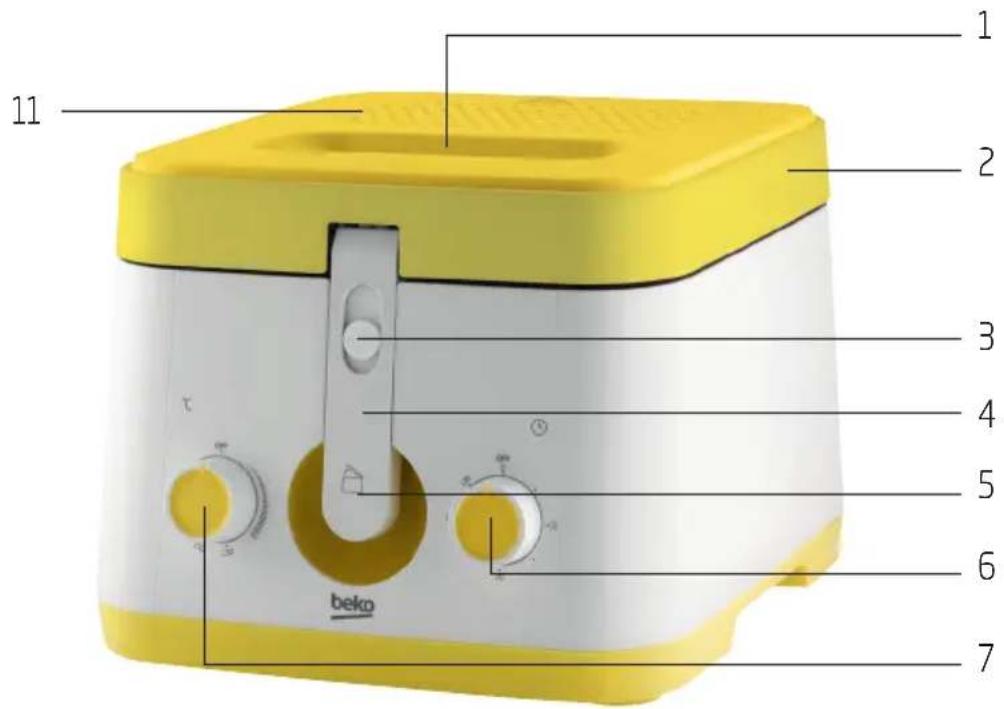

1. Glass view window

5. Cover opening switch

Adjust the cooking duration accord- ing to the chart. Pre-cooked foods require higher temperatures and shorter cooking durations.

• Remove the packaging of the appliance and clean the parts (see 4.1).

1. Place the appliance on a flat and stable surface.

2. Slightly press the cover opening switch (5) to

open the cover (2) of the appliance.

3. Raise the handle (4).

‒ Make sure it is fully raised. A click will be heard.

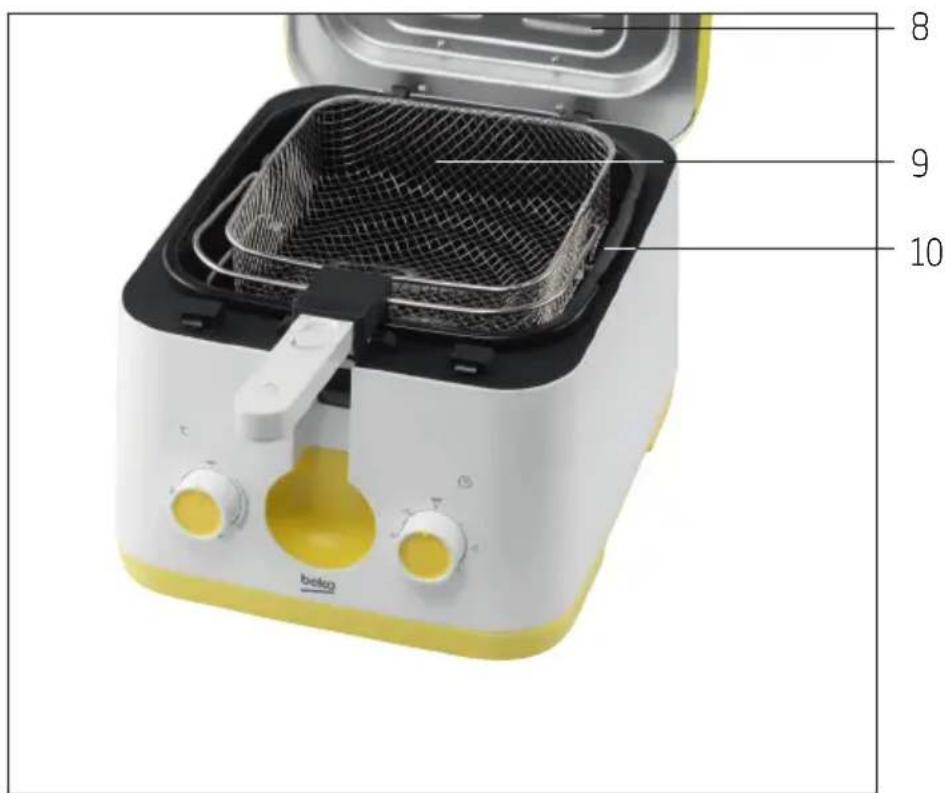

4. Raising from the handle (4), remove the basket

(9) from the inner container.

5. Pour about 2-2.5 liters of water into the in-

ner container and make sure that the oil level remains between the minimum and maximum levels.

Do not use the appliance when the cooking container is not in place or when there is no oil in the cooking container.

Only use good quality oil. It is not recommended to use butter, marga- rine, olive oil or animal oil/fat.

6. Plug in the appliance.

7. Set the Thermostat and On/Off button (7) to

the desired temperature.

Adjust the cooking duration accord- ing to the chart. Pre-cooked foods require higher temperatures and shorter cooking durations. ‒ Once the thermostat's white light has gone off, start frying.

8. Place dry food into the basket (9).

Do not put water or wet food into the basket (9).

9. Place the basket (9) into the appliance and

close the cover (2). Pull down the slide on the basket handle (4). ‒ Immerse the basket in the oil.

10. When the frying process is over, open the

cover (2) of the appliance by slightly pressing the opening switch (5).

11. Hold the handle (4) and raise the basket.

12. Remove the basket from the inner container

by pulling up the handle (4).

3.3 Setting the timer

Turn the knob to set the timer (6) to the desired value (30 minutes maximum). ‒ The appliance will turn off when the set time has elapsed.

3.4 Cooking recommendations

• When frying more than one type of food, fry the food that requires a lower level of temperature first, and then fry the food that requires a higher temperature.

• When frying the same type of food for more than one time, the time difference between the first frying process and the second one must be 3 to 5 minutes. The white indicator will go off when the temperature has been reached again.

• If the food you are frying is pre-cooked, you need to use higher temperatures. Plus, pre- cooked foods require shorter cooking durations compared to completely raw food.

• When frying potatoes, especially when frying fresh or frozen potatoes (these contain more water), lower the auto-raising basket slowly. Otherwise oil may overflow.

• Never fill the auto-raising basket up to 1/2 of the food (best ratio is 1/4 to 1/2). Otherwise, temperature of the oil will drop below the frying temperature and the food will not be as light or crispy as it should be.

Do not mix different types of oil for frying.

• Use only good quality oil for frying; e.g. pure maize oil or light olive oil. We do not recommend to use oils/fats that can spoil quickly, e.g. sun- flower seed oil, lard oil or distilled oil.

• Frying durations given in this chart are only a guide and must be adapted to the amount of the food to be fried. Food Oil temperature Weight (in grams)Approximate cooking dura-tion (In minutes) Prawn 130 300 3 ~ 5 Onions 140 200 3 ~ 4 Mushrooms 140 250 6 ~ 8 Fish fillet 150 350 5 ~ 6 Breaded fish fillet 150 350 6 ~ 8 Fish cakes or fish balls 150 350 6 ~ 8 Meat slices 170 350 7 ~ 10 Steak 170 350 7 ~ 10 Chicken strips 180 500 7 ~ 10 Thin-cut French fries 190 600 8 ~ 10 Thick-cut French fries 190 700 10 ~ 1211 / EN Deep Fryer / User Manual

Never use gasoline, solvent, abra- sive cleaning agents, metal objects or hard brushes to clean the appli- ance.

1. Turn off and unplug the appliance.

2. Wait for the appliance to cool completely.

3. Use the opening button (5) to open the cover

(2) of the appliance.

4. Hold the handle (4) to raise the basket and

remove the basket from the inner container.

It is recommended to replace the oil after every 5-6 use or after the oil has been in the container for 2 weeks.

5. Remove the cooking container and dispose

Filter the oil after every use.

6. Clean the inner container and the basket with

lukewarm water and soap. Then dry them off completely.

7. Remove the filter (11) by slightly pushing

forward the opening latch and take out the filter. You can wash it in the dishwasher.

8. Use a damp cloth to clean the outer surface

of the appliance. Dry off the outer surface thoroughly.

Always keep the base of the cooking container and the heating plate to prevent accumulation of foreign ma- terials. Otherwise, efficiency of the fryer will decrease and its service life will shorten.

9. When in the ON position, slight pull up the

cover (2) of the appliance and remove it.

10. Clean with lukewarm water and some

dishwashing liquid and rinse it.

11. Place the cover (2) into its slots to install it.

• If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance and let it cool down before storing it.

• Store the appliance in a cool and dry place.

• Keep the appliance and cable out of the reach of children.

• During handling and transportation, carry the appliance in its original packaging. The packag- ing of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
