Le Hachoir 1500 ME7001 - Electric chopper TEFAL - Free user manual and instructions

Product type	Electric meat grinder
Brand	Tefal
Model	Le Hachoir 1500 ME7001
Power	1500 W
Power supply	220-240 V, 50/60 Hz
Grinding capacity	Up to 2 kg/min (estimate)
Blade and plate material	Stainless steel
Number of plates	3 (fine, medium, coarse)
Included accessories	Sausage tube, kibbeh attachment, purée and juice attachment
Reverse function	Yes, to unblock food
Thermal protection	Built-in mechanical fuse
Maximum continuous operating time	14 minutes
Cleaning	Motor unit: damp cloth; other parts: warm water and detergent (not dishwasher safe)
Cord storage	Storage compartment under the device
Accessory storage	Rear door with dedicated compartments
Safety	Automatic shut-off in case of overload, door lock
Dimensions (L x W x H)	Approximately 40 x 20 x 30 cm (estimate)
Weight	Approximately 4.5 kg (estimate)
Warranty	2 years (Tefal standard)

Frequently Asked Questions - Le Hachoir 1500 ME7001 TEFAL

How to assemble the grinding block?

Insert the screw (long shaft first) into the grinding block. Place the blade on the short shaft, sharp edges facing outward. Put the chosen plate aligning the tabs with the notches. Tighten the nut fully without forcing. Check that the shaft turns freely.

How to use the reverse function?

In case of jamming, stop the appliance (position 0), open the door, press the 'reverse' switch for a few seconds to clear the food, then restart after closing the door.

What is the maximum continuous operating time?

Do not use the appliance for more than 14 minutes continuously. For recipes requiring high power (approx. 800 W), do not exceed 30 seconds.

How to clean the grinder?

Unplug the appliance. Clean the motor unit with a damp cloth. Wash the other parts (screw, blade, plates, nut, accessories) in hot water with detergent. Do not put the grinding block in the dishwasher. After washing, grease the blade and plates with cooking oil.

Can I grind bones or cartilage?

No, remove all bones, cartilage and sinews before grinding. Cut the meat into pieces of about 2x2 cm to avoid damaging the appliance.

How to use the sausage attachment?

Assemble the sausage tube without plate or blade. Tighten the nut. Soak the casing in warm water, slide it onto the tube. Place the mince on the tray and push with the pusher. Stop to tie a knot, then continue.

What to do if the grinder jams?

Stop the appliance, unplug it, then use the Reverse function (see question 2). If the jam persists, disassemble the grinding block, remove the stuck food and reassemble correctly.

How to store accessories?

Store the accessories in the compartments provided under the rear door of the appliance. The cord can be wound under the appliance.

Can I use the appliance for preparations other than meat?

Yes, the purée and juice attachment allows you to make fruit purées and vegetable juices. Use the appropriate filter and follow the instructions in the manual.

Why should the plates and blade be greased?

The plates and blade are not stainless steel. Greasing them after each cleaning with cooking oil prevents rust and ensures optimal operation.

USER MANUAL Le Hachoir 1500 ME7001 TEFAL

White Tefal meat maker with stainless steel handle and side blade, no visible text or symbols on the device itself.

F

GB

D

DK

S

N

FIN

TR

GR

ARA

IR

www.tefal.com

Exploded view diagram of a food processor with numbered parts for identification

Diagram of a sewing machine with numbered parts indicating mechanical components and directional arrows

Hachage

Line drawing of a small industrial machine with a labeled component (no text or symbols present)

Technical line drawing of a vehicle interior showing dashboard, seat, and exhaust components (no text or symbols)

Technical line drawing of a mechanical device with gears and adjustment knobs (no text or symbols)

Line drawing of a mechanical device with internal components and a terminal block (no text or symbols)

TUBE À SAUCISSES

Technical line drawing of a mechanical assembly with no visible text or symbols

Utilisation :

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

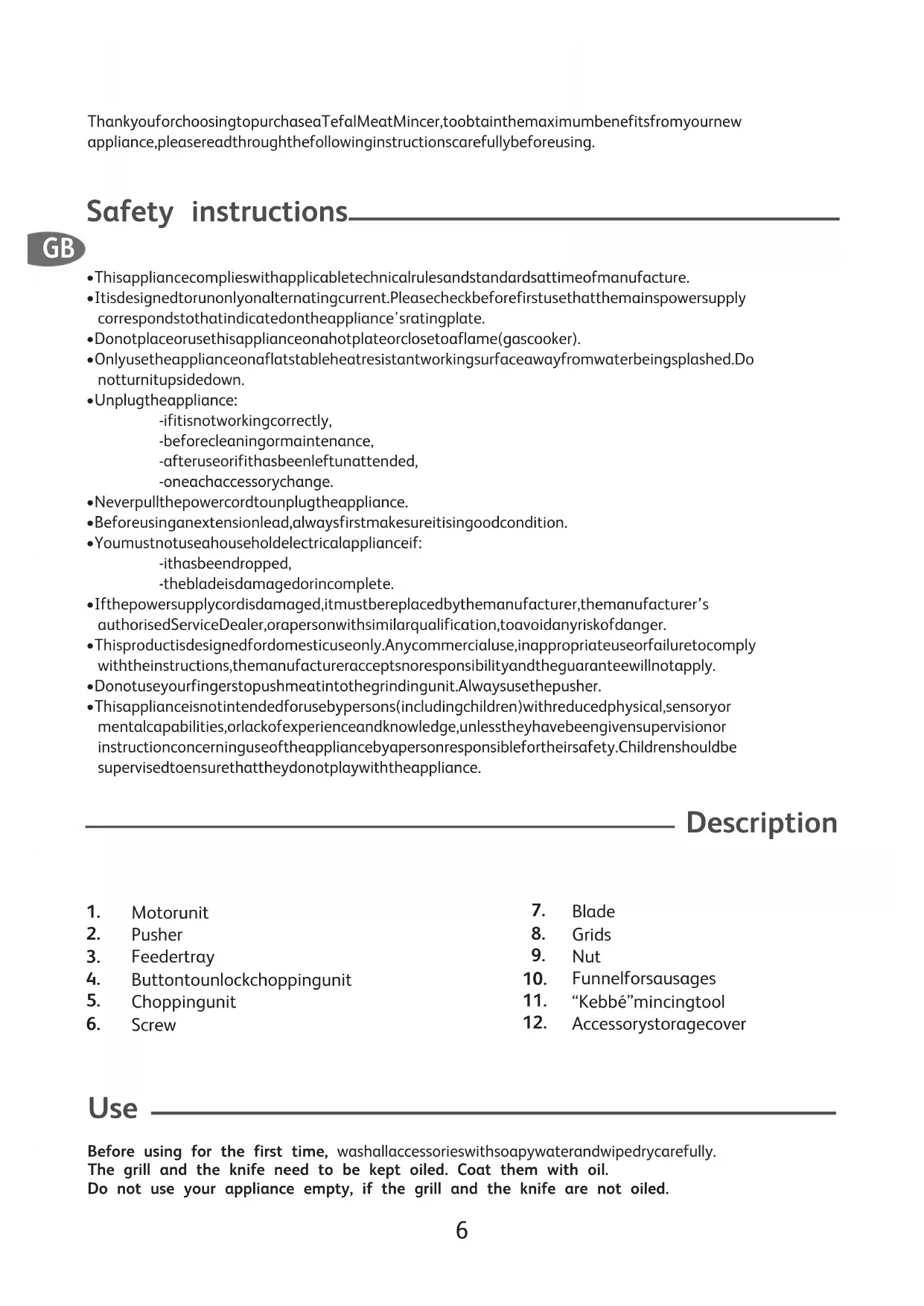

ThankyouforchoosingtopurchaseaTefalMeatMincer,toobtainthemaximumbenefitsfromyournew appliance,pleasereadthroughthefollowinginstructionscarefullybeforeusing.

Safety instructions.

GB

• This appliance complies with applicable technical rules and standards at time of manufacture.
• Itisdesignedtorunonlyonalternatingcurrent.Pleasecheckbeforefirstusethatthemainspowersupply correspondstothatindicatedontheappliance'sratingplate.
• Donotplaceorusethisapplianceonahotplateorclosetoaflame(gascooker).
• Onlyusetheapplianceonaflatstableheatresistantworkingsurfaceawayfromwaterbeingsplashed.Do notturnitupsidedown.
  •Unplugtheappliance:
  -ifitisnotworkingcorrectly,
  -beforecleaningormaintenance,
  -afteruseorifithasbeenleftunattended,
  -oneachaccessorychange.
• Neverpullthepowercordtounplugtheappliance.
• Beforeusinganextensionlead,alwaysfirstmakesureitisingoodcondition.
• Youmustnotuseahouseholdelectricalapplianceif:
  -ithasbeendropped,
  -thebladeisdamagedorincomplete.
• If the powers supply cord is damaged, it must be replaced by the manufacturer, the manufacturer's authorised Service Dealer, or person with similar qualification, to avoid any risk of danger.
• Thisproductisdesignedfordomesticuseonly.Anycommercialuse,inappropriateuseorfailuretocomply withtheinstructions,themanufactureracceptsnoresponsibilityandtheguaranteewillnotapply.
• Donotuseyourfingerstopushmeatintothegrindingunit.Alwaysusethepusher.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety. Children should be supervised to ensure that they donot play with the appliance.

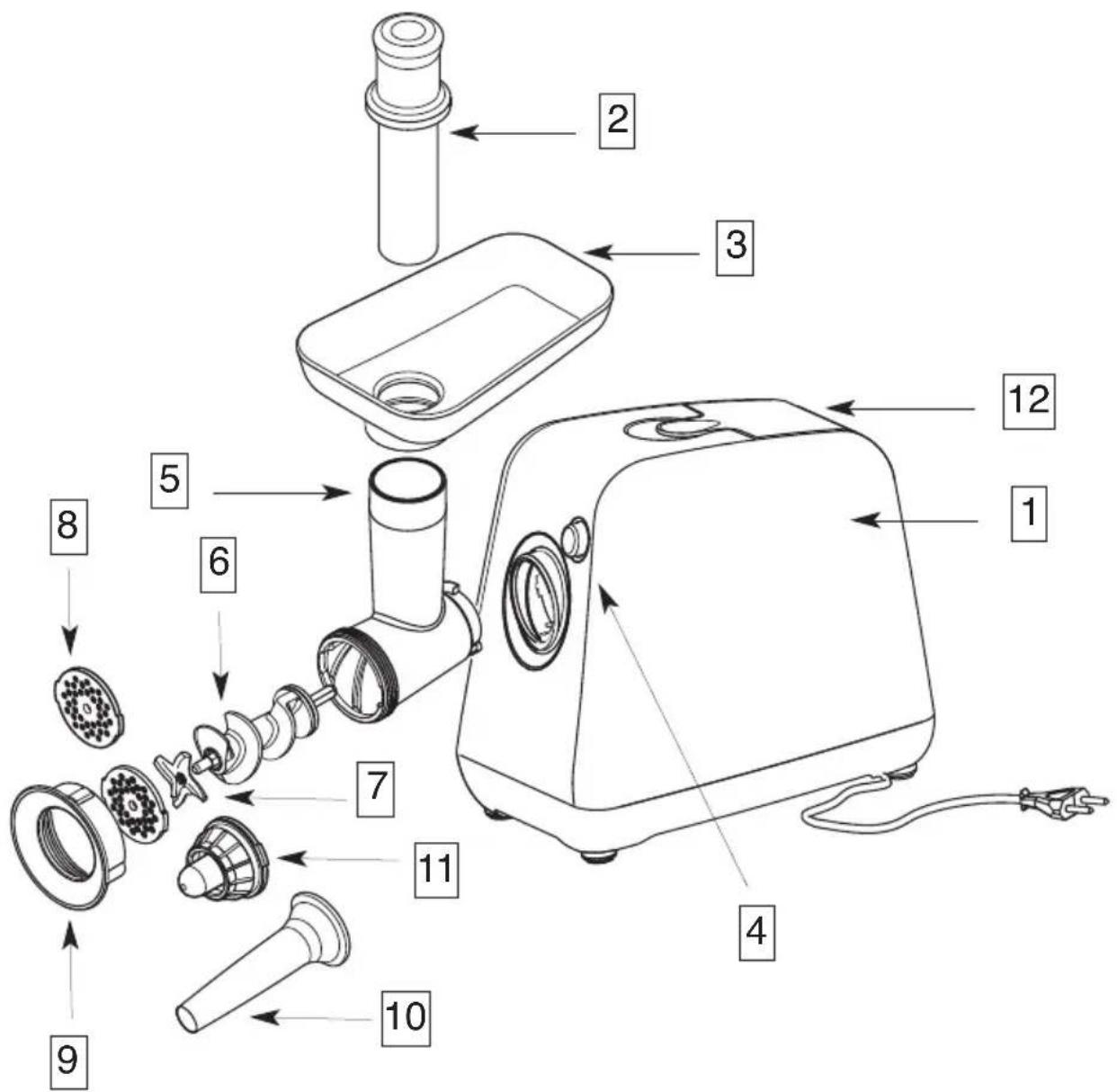

Description

1. Motorunit
2. Pusher
3. Feedertray
4. Buttontounlockchoppingunit
5. Choppingunit
6. Screw
7. Blade
8. Grids
9. Nut
10. Funnelforsausages
11. "Kebbé"mincingtool
12. Accessorystoragecover

Use

Before using for the first time, washallaccessorieswithsoapywaterandwipedrycarefully.

The grill and the knife need to be kept oiled. Coat them with oil.

Do not use your appliance empty, if the grill and the knife are not oiled.

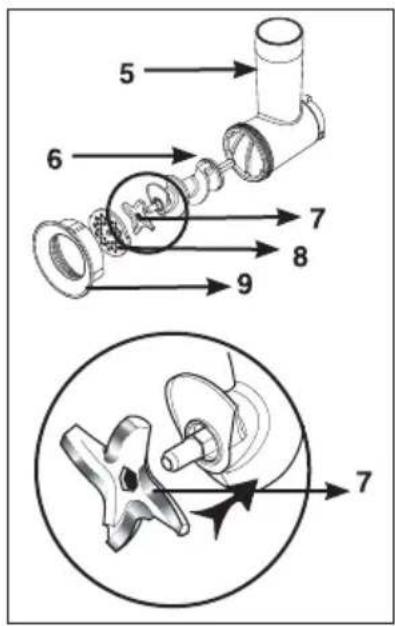

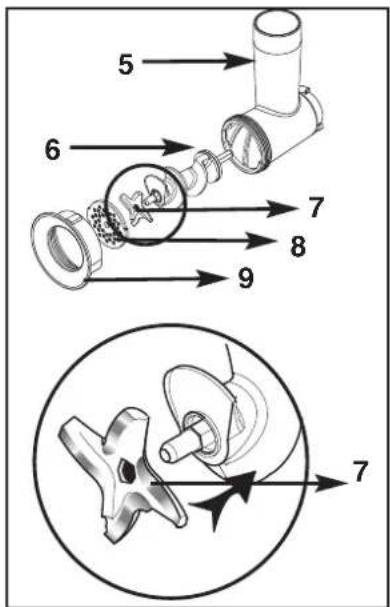

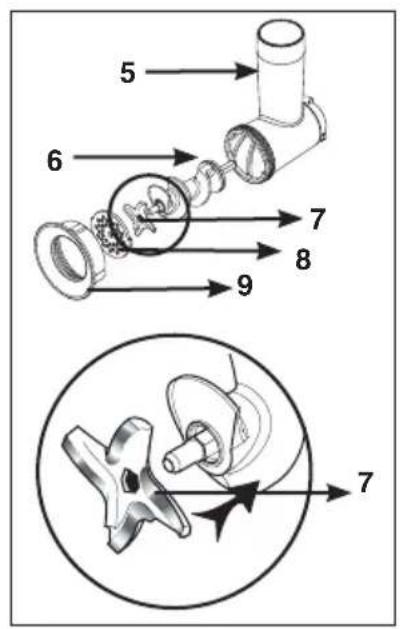

Assembling the chopping unit

• Introduce the screw (6) (long shaft first) into the chopping unit (5).
• Position the blade (7) on the short shaft of the screw setting the cutting edgesfacingoutsideonthegridside.
• Place the selected grid (8) on the blade and slot the two lugs into the twoslotsoftheunit.
• Screwinthenut(9) fullywithoutsticking.
• Checkassembly.Theaxismustneitherbeloosenorstickinrotation. Iflooseorstuck,repeatassemblyoperations.

5 6 7 8 9 7

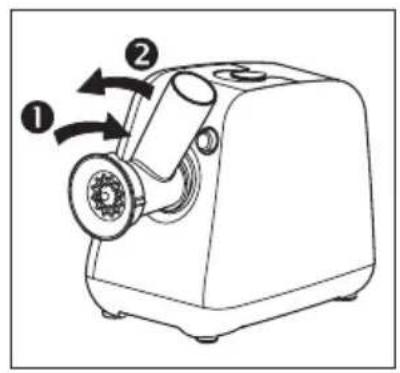

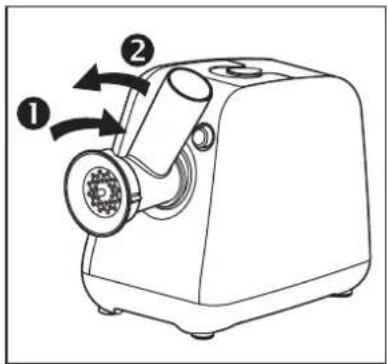

Fitting the chopping unit on the appliance

Makesuretheapplianceisswitchedoffatthemainsorunplugged.

• Tiltthechoppingunittotheright.
- Fullyengagethechoppingunitintothemotorunitandturntotheleft, thenengagethetray.
- Closethedoor.
- Plugintheappliance.

Diagram of a manual kitchen tool with numbered parts and directional arrows indicating motion or movement.

Chopping

• Preparetheingredientstobechopped,firstremovingbones,cartilage andsinews.
- Cutthemeatintopieces(about2x2cm)andplacethemonthefeeder tray.
- Formaximumefficiency, cutthepiecestoasmallersizethanthe funnel.
- Putabowlunderthechoppingunit.

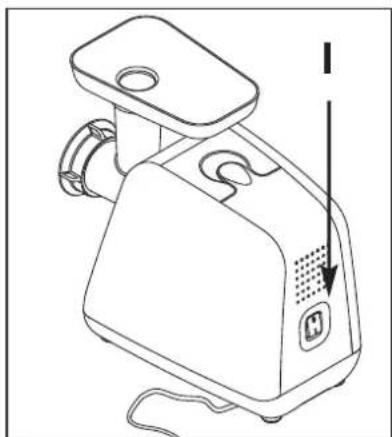

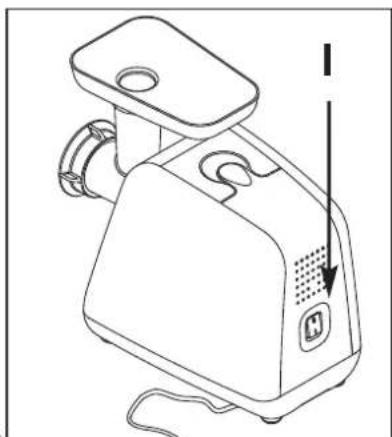

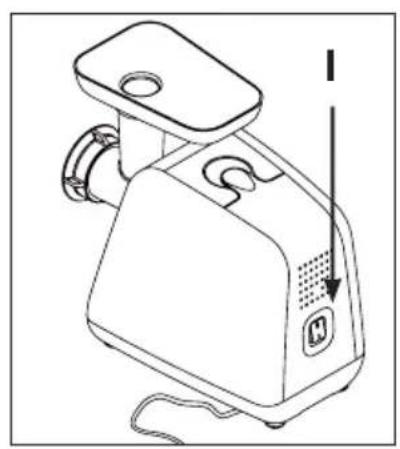

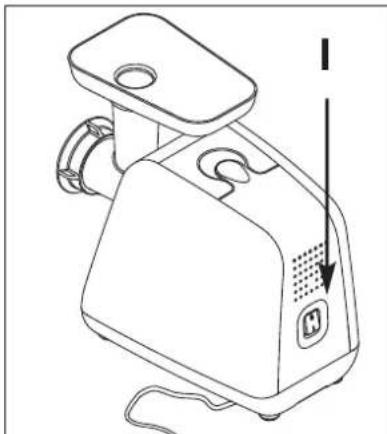

- Settheswitchontherearoftheapplianceto"I".
- Introducethepiecesofmeatintothecchoppingunitandpushinusing thepusher(2) ifnecessary.Never push using your fingers.
- Do not use your appliance for more than 14 minutes at a time.

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

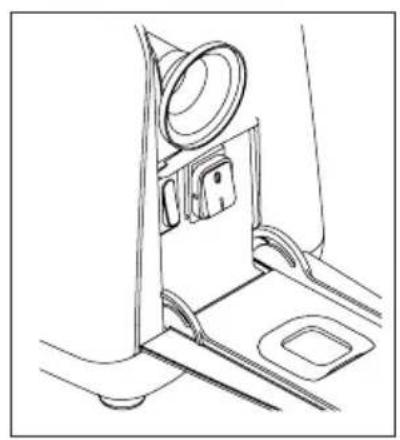

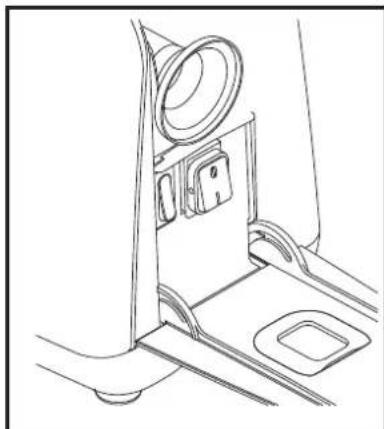

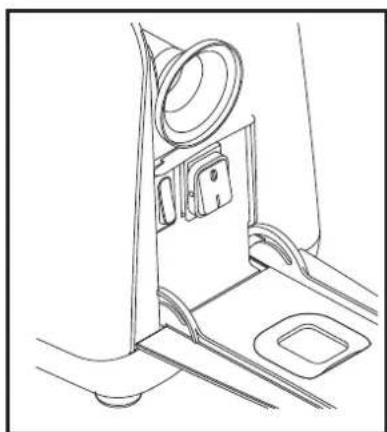

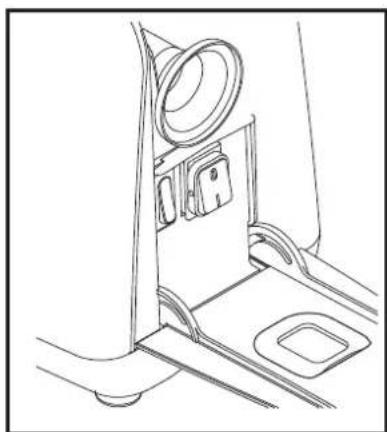

If clogging occurs:

• Settheswitchtothe“0” positiontostopthechoppingunit.
• Opentheaccessorystoragedoor.
• Press the "reverse" switch to release the food and then close the door and start again using them a switch to finish chopping.

IMPORTANT: Wait for the appliance to come to a complete stop before pressing switches.

Line drawing of a vehicle interior showing dashboard, seat, and air vent (no text or symbols)

Note : Some recipes require high power (about 800 W). For such recipes, do not operate for more than 30 seconds at a time.

Example: Purée of split peas with beef bacon or lamb.

Ingredients: 100 g of beef bacon or lamb - 150 g raw split peas - 100 g flour - 50 ml water - 20 g garlic - salt - pepper - olive oil.

• Mix the split peas and flour in a bowl then gradually blend with water to obtain a uniform mix.
• Putthismixtureintothechoppingunitfeedertray.
• Starttheapplianceandgraduallypushthemixintothetubeusingthepusher.
• Thenintroducethebeefbaconorlambcutintopieces2cmx2cmwiththegarlic.
• Pour this mixture into a stewpot containing 1.5 litres of water. Mix and leave to cook for about 20 to 30 min.
• Mixalltheingredientstogetheraftercookingandadd5clofoliveoil.

The chopping unit is protected by a mechanical fuse built into the axis of the screw (6). Read the instructions forchoppingdifferenttypesoffoodbeforeusingthechoppingunittoavoidoverloadingorclogging.

Dismantling your appliance

Switchoffandunplugtheapplianceafteruse.

• Press the release button (4) located on the front panel of the appliance.
  • Turnthechoppingunittotheright.
  • Fullyreleasetheunitandpullout.
• Unscrewthenutfromthechoppingunitandremovetheaccessoriesbypushingontheaxis.
• Unplugtheappliancebeforecleaningandbeforeremovingthevariousaccessories.
• Neverimmersethemotorunitinwater.Cleanitusingadampcloth.
  Allotherpartscanbewashedinhotwaterusingwashingupliquid.Neverusescouringproducts.
• The blade and chopping unit grids are not stainless steel. You are advised to coat them with cooking oil aftereachcleaning.
• Do not put the chopping head (including the chopping unit (5), screw (6), blade (7), the grid (8) and nut (9) intothedishwasher

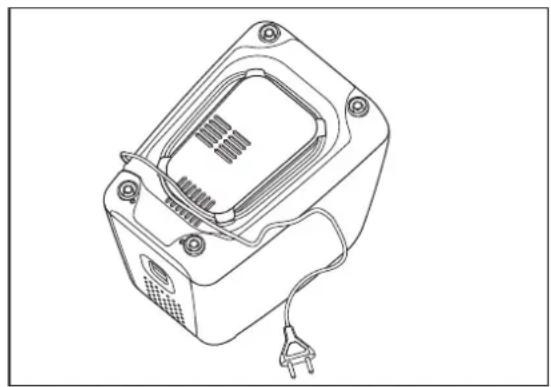

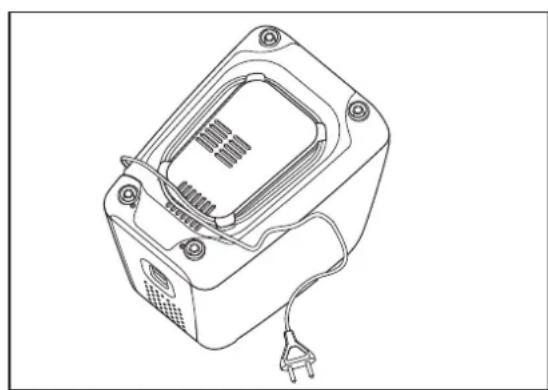

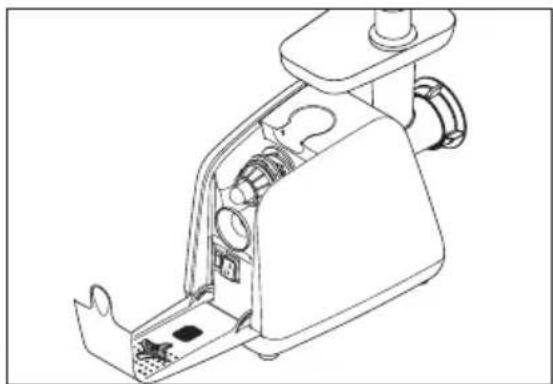

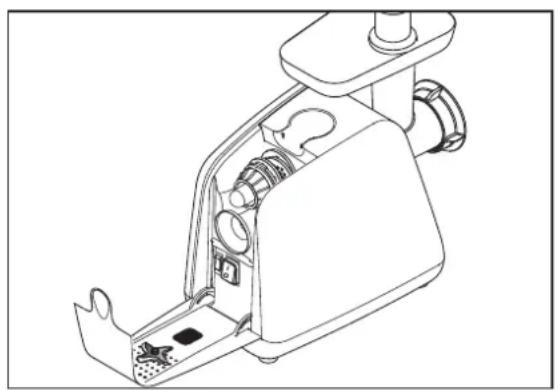

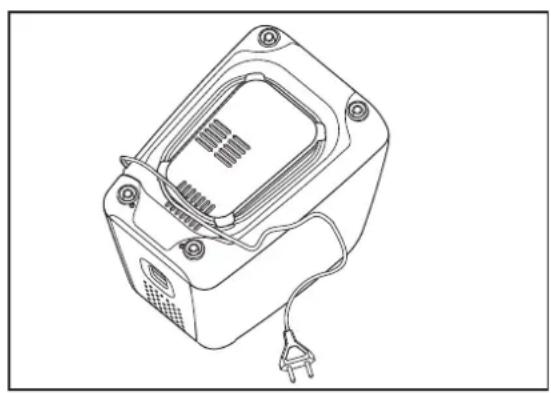

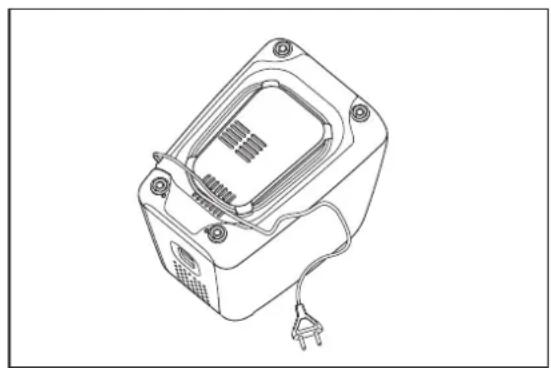

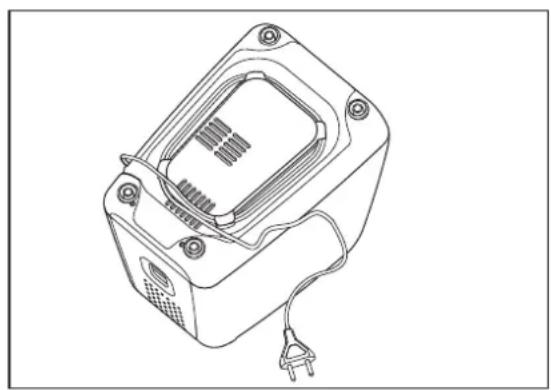

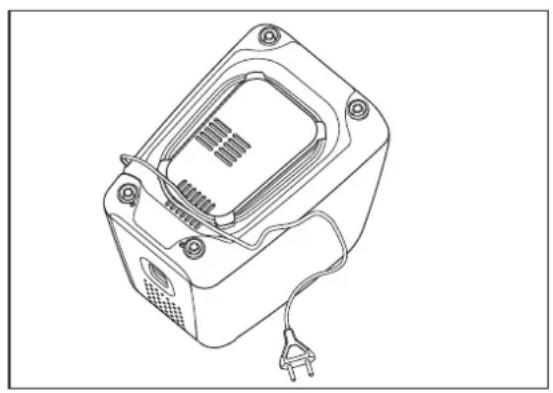

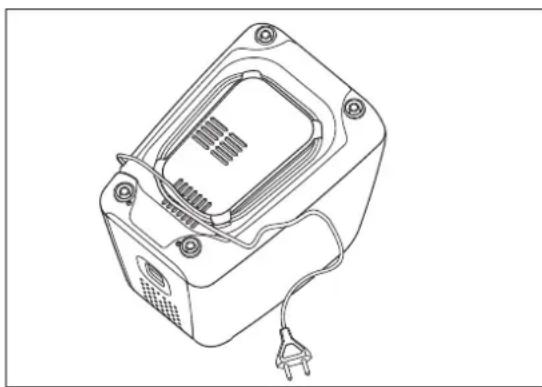

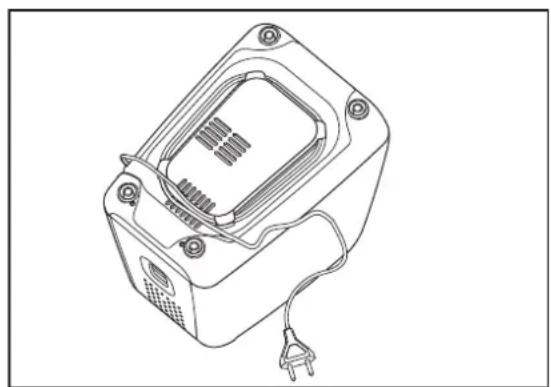

Storage

Storetheaccessoriesintherecesseprovidedundertheaccessorystoragedooroftheappliance.Youcanwind thecordroundunderneaththeappliance.

Technical line drawing of a sewing machine component (no text or symbols)

Line drawing of an electronic device with a grid-like internal structure and connected wires (no text or symbols)

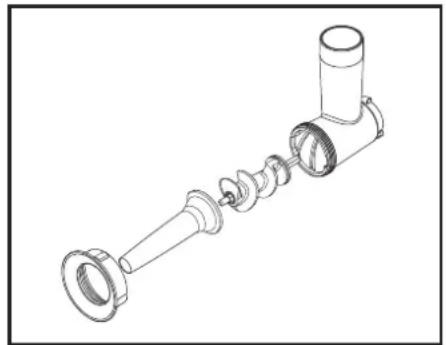

SAUSAGE FUNNEL

Use this accessory without the grid or blade. Fit to the chopping unit foreasysausagemaking.

Assembly:

• Fitthescrewtotheunit.
• Positionthesausagefunnel.
- Screwinthenut.
• Assembletheunitontheappliance.

Technical line drawing of a mechanical assembly with no visible text or symbols

Use :

• Preparethesausagemeatandseasontotaste.
- Soak the casing in water so it regains elasticity then thread it onto the tube (10).
- Put the sausage meat into the feeder tray, start up the appliance and press the meat down using the pusher to keepitfeeding toward the end of the tube.
- Stoptheapplianceandmakeaknotinthecasingtoseal.
- Startupagainandcontinuepushingthesausagemeatwiththepusher.

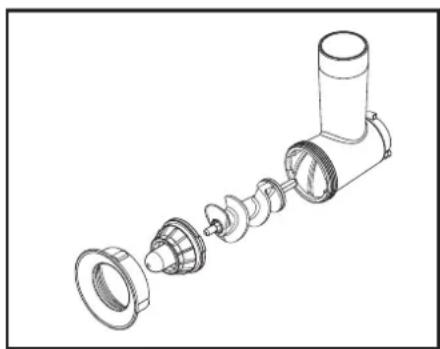

"KEBBE" ACCESSORY

Usethisaccessorywithoutthegridorblade.Itadaptstothe choppingunitsoyoucanpreparemixes(e.g.,lamb+bulgurwheat) inatubeshape.Cutthetubesobtainedintoshortsectionsgarnished withamixtureofmincedmeatandpinchtheends.Frythemeatballs obtained

Assembly : sameaswithsausagetube.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

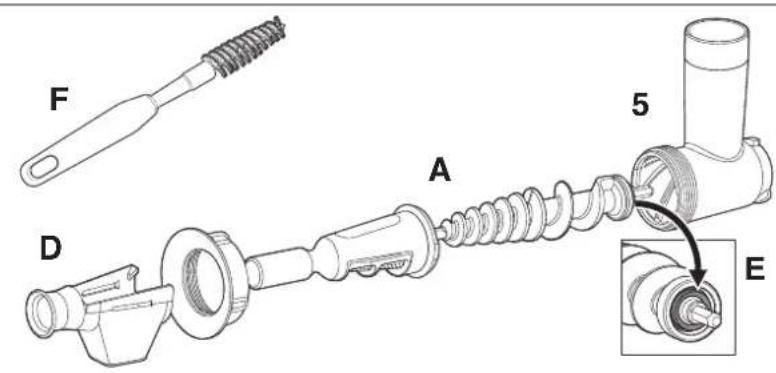

PUREE AND JUICE ACCESSORY

Thisaccessoryisusedtomakeupurées(softfruit,tomatoes)andjuices(apples,pears,oranges,etc.). Itfitsontothechoppingunit(5).

Assembly:

• Install the chopping unit (5) on the motor unit (1 making sure that the seal (E) is in place.).
• Insert the screw (A) into the chopping unit (5).

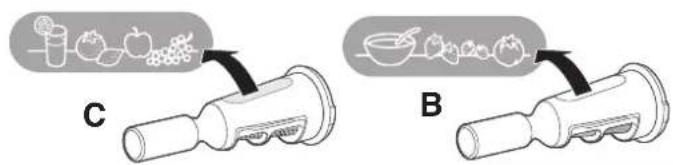

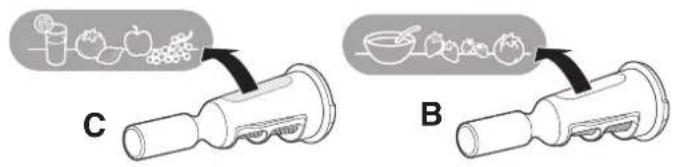

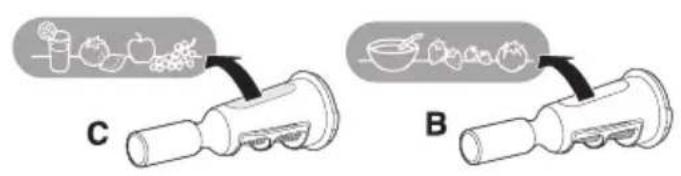

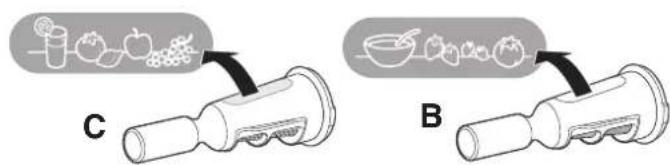

• Positiontheappropriatefilterforyourpreparation: -(B),variable-holefilter,forpurées, -or(C),small-holefilter,forjuices.
• Screwthescrewintothechoppingunit(5).
• Position the juice guide (D) under the installed filter (B or C).

F A 5 D E

C B

Use:

•Purée :

Usefilter(B) whichhas2filtrationholediametersforbetterextraction.

Only fresh fruit should be used when making apurée. Depending on these season and the quality of the fruit, the pulp should be filtered as second timeto extract as much purée as possible.

- Juice:

Usefilter(C) which has a single filtration diameter.

Place one receptacle under the juice guide (D) to catch the juice and another at the end of the filter (B or C) to catch waste.

Oncetheaccessoriesareinstalled,yourappliancecanbeusedasusual.

Cleaning:

Allpartsshouldbecleanedwithhotwaterunderthetapusingwashingupliquid.Neveruseabrasive products.Thefiltersareeasytoclean,usingthebrush(F)supplied(bottlebrushtype).

CAUTION: The parts must not be washed in a dishwasher.

Electrical or electronic product at end of service life

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leaveitatalocalcivicwastecollectionpoint.

If you have any product problems or queries, please contact our Customer Relations Team first for exper help and advice:

HELPLINE:

0845 602 1454 - UK

[phone] - ROI

orconsultourwebsite- www.tefal.co.uk

Sicherheitshinweise

Diagram of a sewing machine with numbered parts and directional arrows indicating motion or assembly.

Zerkleinern

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

Line drawing of an airplane cabin interior showing seat, door, and window (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of an electronic device with a grid-like top and power plug (no text or symbols)

Wurstfüller-Aufsatz

Technical line drawing of a mechanical assembly with no visible text or symbols

Anwendung:

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

F A 5 D E

C B

Anwendung:

• Coulis:

Diagram of a manual milling machine with labeled parts and directional arrows indicating motion

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

Line drawing of a vehicle interior showing dashboard, seatbelt, and air vent (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Line drawing of a small electronic device with internal components and wiring (no text or symbols)

R∅R TIL FREMSTILLING AF P∅LSER

Technical line drawing of a mechanical assembly with no visible text or symbols

Anvendelse:

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

TILBEH∅R TIL FRUGTPURÉ OG SAFT

F A 5 D E

C B

DK

Brug :

- Puré :

Diagram of a manual kitchen tool with numbered parts and directional arrows indicating motion or movement.

Malning

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

Vid tilltäppning:

Line drawing of a vehicle interior showing dashboard, seatbelt, and air vent (no text or symbols)

Technical line drawing of a sewing machine component (no text or symbols)

Line drawing of a small electronic device with internal components and wiring (no text or symbols)

KORVHORN

Technical line drawing of a mechanical assembly with no visible text or symbols

Användning:

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

TILLBEHÖR FÖR JUICE OCH PURÉ

F A 5 D E

C B

Användning :

- Puré :

Before using for the first time, wash all accessories with soapy water and wipe dry carefully. Hullskiven og kniven skal smøres. Dynk dem med matolje.

Diagram of a kitchen electric oven with labeled parts and directional arrows indicating motion or flow.

Line drawing of a small electric shaver device with a label pointing to the side panel (no text or symbols present)

Line drawing of a car interior showing dashboard, seatbelt, and air vent (no text or symbols)

Technical line drawing of a sewing machine component (no text or symbols)

Line drawing of an electronic device with a grid-like internal structure and connected wires (no text or symbols)

P∅LSETUT

Technical line drawing of a mechanical assembly with no visible text or symbols

Bruk:

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

SAFT- OG JUICETILBEH∅R

Diagram of a sewing machine with numbered parts and directional arrows indicating motion or operation

Myllyn käyttö

Line drawing of a small industrial machine with a downward arrow indicating a component (no text or symbols present)

Line drawing of an airplane cabin interior showing seat, front panel, and overhead equipment (no text or symbols)

Technical line drawing of a sewing machine component (no text or symbols)

Line drawing of an electronic device with a grid-like top and connected wires (no text or symbols)

MAKKARAPUTKI

Technical line drawing of a mechanical assembly with no visible text or symbols

Käyttö :

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

SOSE- JA MEHULISÄLAITTEET

Diagram of a sewing machine with numbered parts indicating mechanical components and directional arrows

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

Line drawing of a vehicle interior showing dashboard, seatbelt, and exhaust pipe (no text or symbols)

Technical line drawing of a mechanical device with gears and adjustment knobs (no text or symbols)

Line drawing of an electronic device with a grid-like internal structure and terminal connectors (no text or symbols)

SOSIS APARATI

Technical line drawing of a mechanical assembly with no visible text or symbols

Kullanım :

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

PÜRE VE MEYVE SUYU AKSESUARI

Diagram of a kitchen electric oven with labeled parts and directional arrows indicating motion or flow.

Line drawing of a small industrial sewing machine with a vertical arrow indicating force or movement (no text or symbols present)

Line drawing of a vehicle interior showing dashboard, seatbelt, and exhaust pipe (no text or symbols)

Σημείωση:

Technical line drawing of a sewing machine component (no text or symbols)

Line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Χρήση :

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

ملحق الكبة

Line drawing of an electronic device with a grid-like internal structure and wiring (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

5 6 7 8 9 7

Diagram of a sewing machine with numbered parts indicating rotation direction

Line drawing of a mechanical device with a vertical arrow indicating direction (no text or symbols)

Line drawing of a vehicle interior showing dashboard, seat, and dashboard components (no text or symbols)

تركيب وحددة الفرم

F A 5 D E

C B

استفاده:

. آب ميوه غليظ:

Technical line drawing of a mechanical assembly with no visible text or symbols

لوله تهیه سوسیس

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Line drawing of an electronic device with a grid-like top and power plug (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical diagram showing exploded and assembled views of a mechanical component with numbered parts

Diagram of a sewing machine with numbered arrows indicating motion or sequence, labeled ① and ②.

Line drawing of a mechanical device with a label pointing to a button (no text or symbols present)

چرخ کردن

Line drawing of a vehicle interior showing dashboard, seatbelt, and rearview (no text or symbols)
