FPP 4102 W - Blender BEKO - Free user manual and instructions

Brand	Beko
Model	FPP 4102 W
Product type	Multifunction blender
Power supply	220-240 V~, 50/60 Hz
Power	1000 W
Multifunction bowl capacity	1.2 L
Blender capacity	1 L
Speeds	Variable with Pulse function (P)
Included accessories	Chopping knife, kneading knife, beater, 2 slicing discs, grinding disc, 2 grating discs, support disc, blender with lid
Functions	Chopping, blending, kneading, beating, grating, slicing, liquid blending
Safety	Safety lock on lid; operates only if bowl and lid are correctly assembled
Cleaning	Some accessories dishwasher safe; multifunction bowl and blender hand wash only
Maintenance	Store in a cool, dry place; do not wrap cord around appliance
Compliance	WEEE and RoHS directives; recyclable packaging
Use	Household use only
Repairability	Genuine parts available from authorized service

Frequently Asked Questions - FPP 4102 W BEKO

What is the maximum capacity of the multifunction bowl?

The maximum capacity of the multifunction bowl is 1.2 liters.

Can I blend hot foods in the blender?

No, never fill the blender with ingredients above 60°C.

How do I use the Pulse function?

Set the speed control knob to the P (Pulse) position for pulsed operation, ideal for crushing ice or blending hard foods.

Can I wash the multifunction bowl in the dishwasher?

No, the multifunction bowl and blender are not dishwasher safe. Wash them by hand.

What if the appliance does not start?

Check that the multifunction bowl and lockable lid are properly assembled. The appliance only operates if these parts are in place.

How do I chop meat with this appliance?

Use the chopping knife (ref. 9). Cut the meat into pieces, place in the multifunction bowl and select the P (Pulse) position for about 10 seconds for 300 g.

Can I use the appliance to knead dough?

Yes, use the kneading knife (ref. 10). For 500 g flour and 360 g water, use speed 1 for about 4 minutes.

Are the blades sharp?

Yes, the blades of the chopping knife and discs are very sharp. Do not touch them with bare hands and store the chopping knife in its case after drying.

What is the power of the appliance?

The power is 1000 W.

How do I grate vegetables?

Use the grating discs (fine or coarse). Cut vegetables into pieces suitable for the feed chute and select a slow speed (1) for soft ingredients.

USER MANUAL FPP 4102 W BEKO

Line drawing of a kitchen blender with handle, spout, and control panel (no text or symbols)

FPP 4102 W

EN DE FR TR ES PL IT RO AR

CONTENTS

ENGLISH	09-14
DEUTSCH	15-24
FRANÇAIS	25-33
TÜRKÇE	34-42
ESPAÑOL	43-54
POLSKI	55-66
ITALIANO	67-76
ROMÂNÃ	77-87

Abstract blue gradient shape on white background (no text or symbols)

1

Illustration of a faucet spraying water onto various kitchen utensils and products, with no text or symbols present.

Illustration of a hand cleaning food items including plates, utensils, and a tool (no text or symbols)

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a kitchen cleaning process with a water tap, measuring cup, and measuring cup with granules (no text or symbols)

Line drawing of a kitchen blender with cleaning tool and cooking equipment (no text or symbols)

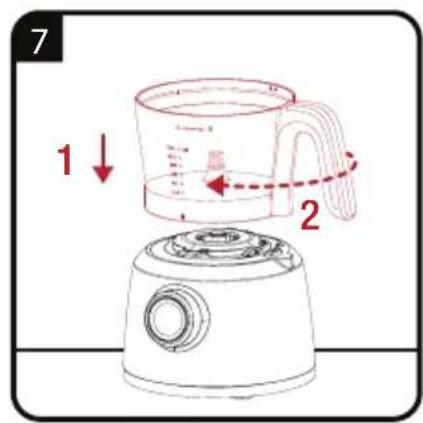

7 1 ↓ 2

8 2 1

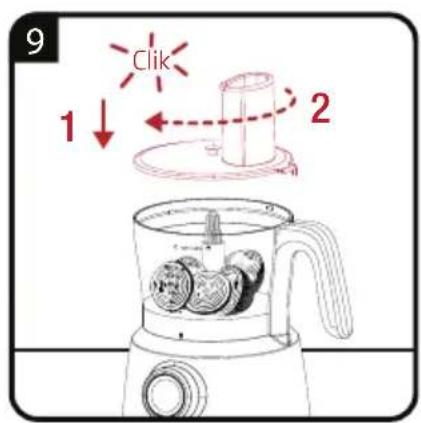

9 1 ↓ Click 2

10 2 1

11 1 2 3 4 5 6 7 8 9 10 11

1 2 3 4

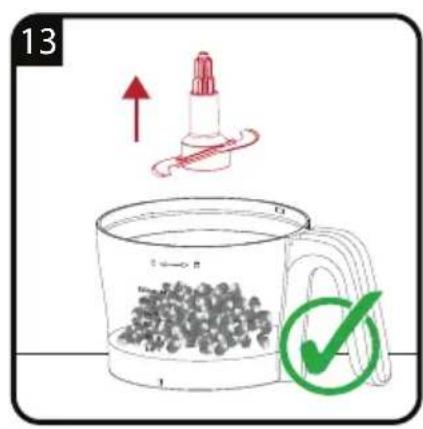

13 E → B B ✓

14 2 ↓ 1

15 2 ↓ 1 ↓ 3 → 2 4 → 1 5 → 0.5 6 → 0.25 7 → 0.125 8 → 0.0625 9 → 0.03125 10 → 0.015625 11 → 0.0078125 12 → 0.00390625 13 → 0.001953125 14 → 0.0009765625 15 → 0.00048828125

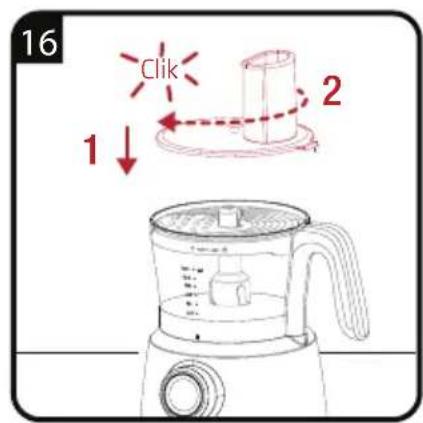

16 Cik 1 ↓ 2

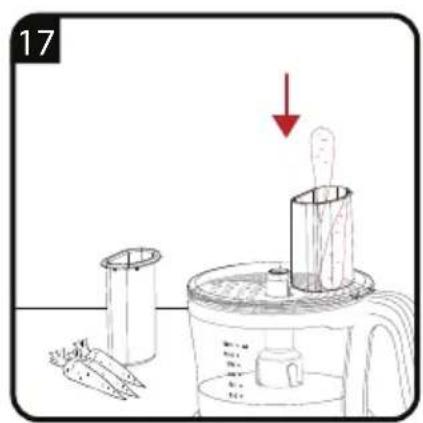

17

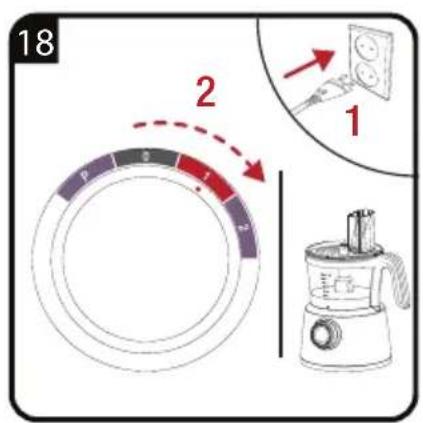

18 2 1 3 7 9 10

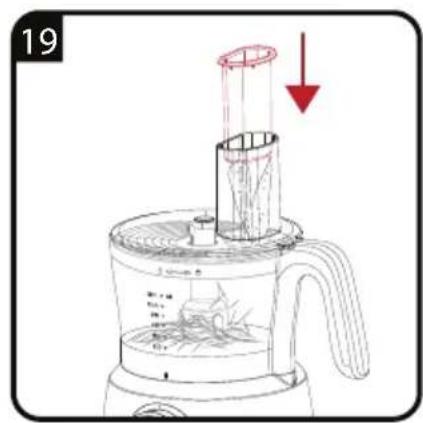

19 MILK 20 MILK 21 MILK 22 MILK 23 MILK 24 MILK 25 MILK 26 MILK 27 MILK 28 MILK 29 MILK 30 MILK 31 MILK 32 MILK 33 MILK 34 MILK 35 MILK 36 MILK 37 MILK 38 MILK 39 MILK 40 MILK 41 MILK 42 MILK 43 MILK 44 MILK 45 MILK 46 MILK 47 MILK 48 MILK 49 MILK 50 MILK 51 MILK 52 MILK 53 MILK 54 MILK 55 MILK 56 MILK 57 MILK 58 MILK 59 MILK 60 MILK 61 MILK 62 MILK 63 MILK 64 MILK 65 MILK 66 MILK 67 MILK 68 MILK 69 MILK 70 MILK 71 MILK 72 MILK 73 MILK 74 MILK 75 MILK 76 MILK 77 MILK 78 MILK 79 MILK 80 MILK 81 MILK 82 MILK 83 MILK 84 MILK 85 MILK 86 MILK 87 MILK 88 MILK 89 MILK 90 MILK 91 MILK 92 MILK 93 MILK 94 MILK 95 MILK 96 MILK 97 MILK 98 MILK 99 MILK 100

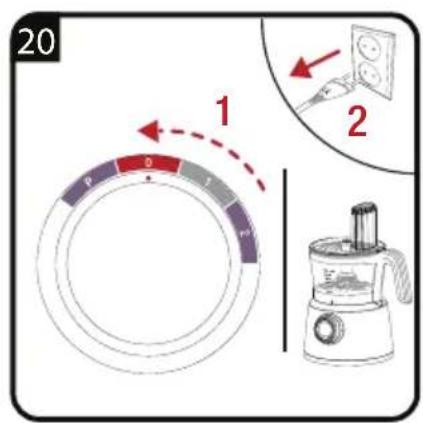

20 1 2

21 2↑ 1 3↑ 4↑

22 1 2 ↑

23 1 2

23 1 2

24 2 1

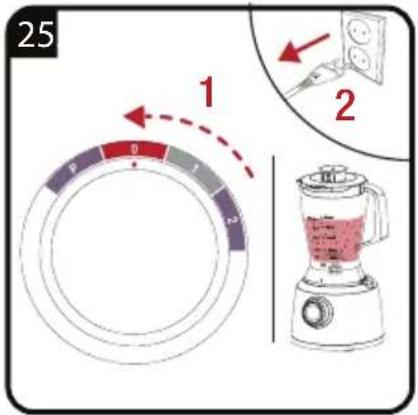

25 1 2

1 2↑ ✓

Illustration of a faucet spraying water onto various household items including a sink, toilet, and soap bubbles (no text or symbols)

Illustration of a hand cleaning food items including plates, utensils, and a tool (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

4

Line drawing of a kitchen appliance with a hand cleaning the lid and measuring cup (no text or symbols)

Illustration of a blender and a kitchen blender with food items, no text or symbols present

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND	PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR	KULLANIM TEMIZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
IT	UTILIZZO PULIZIA E CURA
RO	UTILIZARE CURĂ AREA ŞI ⓇNGRIJIREA
AR	التشغيل

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Do not immerse the appliance, power cord or power plug in water or in other liquids.

Potection class against electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

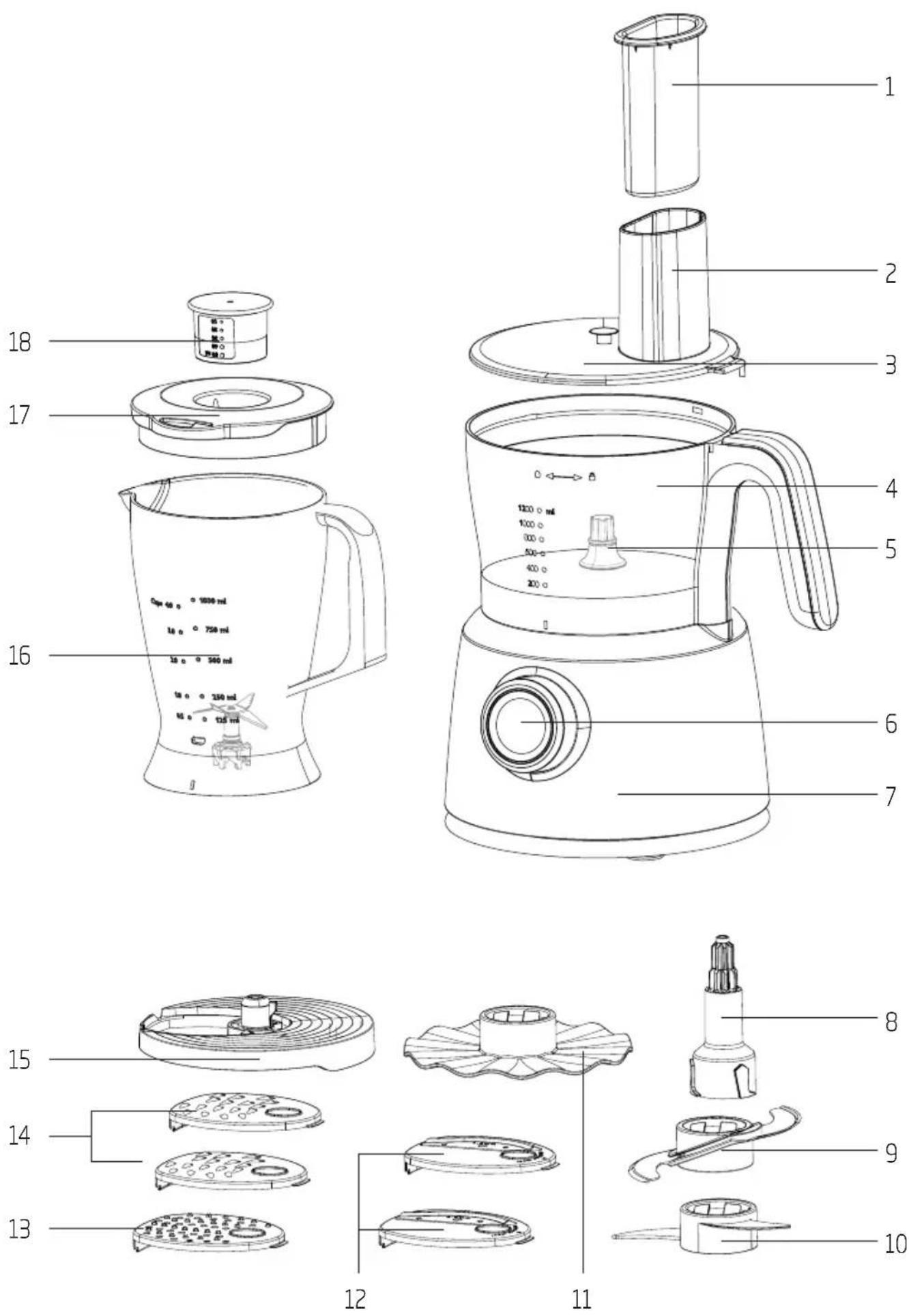

1. Pusher
2. Feeding chute
3. Lockable cover
4. Processing bowl
5. Apparatus slot
6. On/Off, Pulse and Speed button
7. Motor unit
8. Accessory spindle
9. Chopping blade
10. Dough blade
11. Whisker
12. Slicing blade (2x)
13. Grinding blade
14. Grating blade (2x)
15. Carrier disc
16. Blender jar
17. Jar lid
18. Jar lid plug (small lid with measure)

Technical data

Power supply: 220-240 V\~, 50/60 Hz

Power: 1000 W

Technical and design modifications reserved!

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

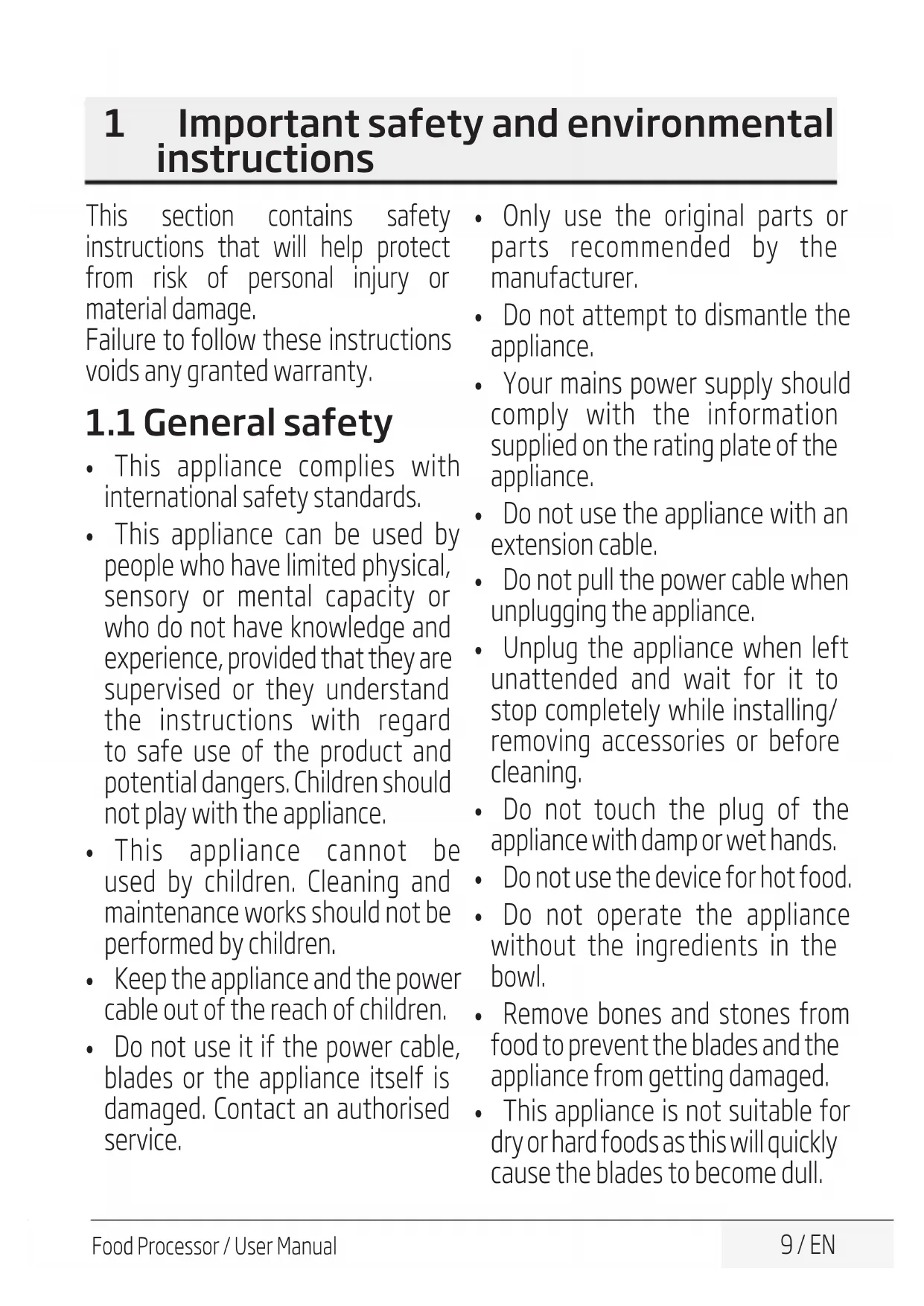

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance.

- This appliance cannot be used by children. Cleaning and maintenance works should not be performed by children.

- Keep the appliance and the power cable out of the reach of children.

- Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.

• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance when left unattended and wait for it to stop completely while installing/removing accessories or before cleaning.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.

1 Important safety and environmental instructions

• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.
  • After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Intended use

• This appliance has been designed for domestic use only. It should not be used for commercial purposes.
• Do not use the appliance for anything other than its intended use.
• It has been designed only for chopping and blending food.

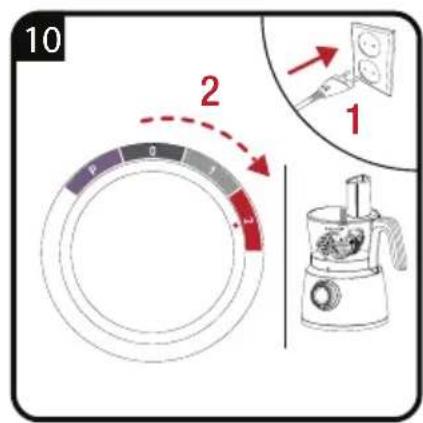

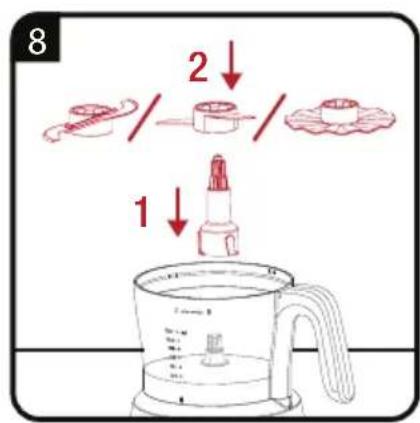

2.2 Chopping and blending

Warnings

• Do not operate the appliance when empty.
  • Maximum blending capacity of the processing bowl (4) is 1.2 litres.
  • Maximum blending capacity of the blender (16) is 1 litre.
• Do not overload the product.

The product will not run unless the processing bowl (4) and the lockable cover (3) are fitted correctly.

Ingredient Maximum	um quantity	Ideal position for use	Running time
Meat	300 g P/2 10 sec.
Onions	700 g P 10 sec.
Dried nuts	250 g 2 40 sec.
Cheese	150 g 2 50 sec.
Bread	100 g 1 40 sec.
Parsley	100 g P 10 sec.
Chocolate	250 g 2 40 sec.
You can match the speed adjustment colour with the accessory colour to obtain good results.

Warnings

• When the chopping blade (9) is not in use, keep it in the plastic blade sheath.
• Never touch blade tips with bare hands.

2.3. Dough kneading

Ingredient Maximum	um quantity	Ideal position for use	Running time
Bread / Pizza	500 g 130 sec.
Cake	500 gr flour 14 min.
	360 g. water
You can match the speed adjustment colour with the accessory colour to obtain good results.

2 Operation

2.4 Whisker

• Do not use the whisker (11) when preparing batters that contain margarine or fat, or when kneading dough. Use the dough blade (10) for the said processes.
• When whisking egg whites, make sure that the bowl (4) and the whisker (11) are dry and oil-free.
• It is recommended to use the product at high speed when making mayonnaise and cream.

Ingredient Maximum	um quantity	Ideal position for use	Running time
Cream	125 - 350 ml 1 15 -20 sec.
Eggs	4 2 2.5 min.
You can match the speed adjustment colour with the accessory colour to obtain good results.

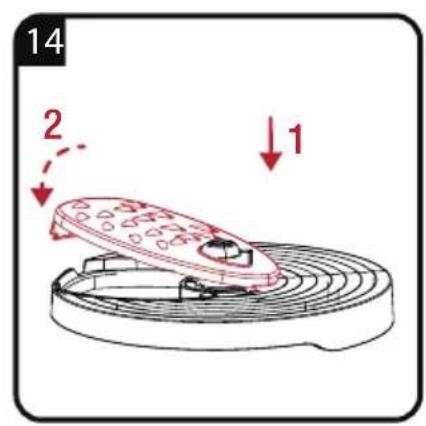

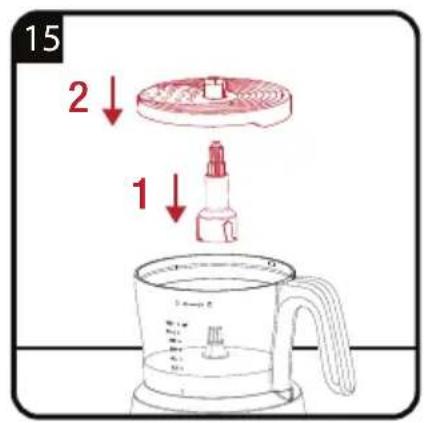

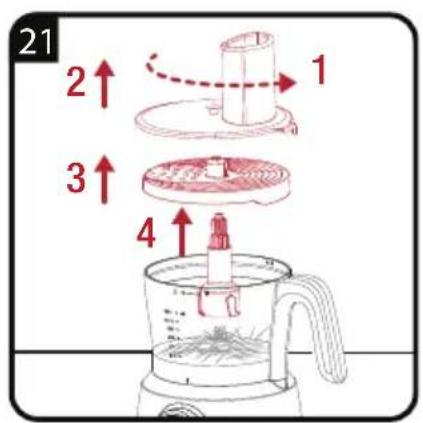

2.5 Grating and slicing

Warnings

• Do not use the blades (12, 14) to crash ice etc.
• Cutting edges of the blades (12, 14) are very sharp. Do not touch with bare hands.

• If the ingredient is too big for the feeding chute (2), cut it into a few pieces.
• Feed them evenly into the chute (2) to get good results.
• If you are going to use a large amount of ingredients, start with small amounts and then empty the bowl (4) after each session.
• When chopping or grating soft ingredients, operate the product at low speed to avoid pureeing the ingredient.
• Do not operate the product for too long when grating hard cheese. Otherwise, cheese will heat up, melt and clump.

Blades Ingredient	Maximum	quantity	Ideal position for use	Running time
Slicing blade (thin-thick)	Cucumber, carrot, courgette, potato	500 g 1 30 sec.
Grinding grater	Cheese, vegetable, fruit puree	200-500 g 1 30 sec.
Fine grater	Vegetables such as carrots, courgettes etc.	500 g 1 30 sec.
Coarse grater	Apple, cucumber etc. 2	1	30 sec.
You can match the speed adjustment colour with the accessory colour to obtain good results.

2 Operation

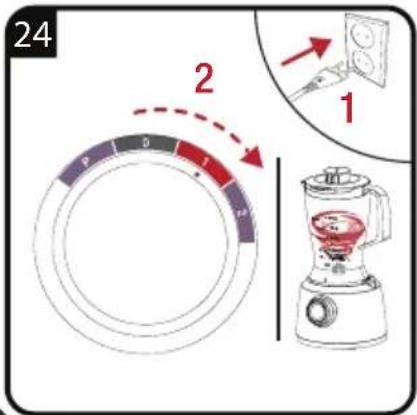

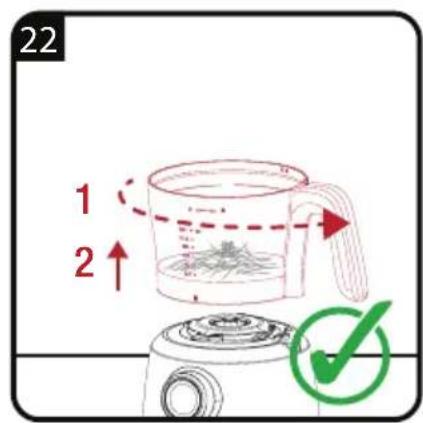

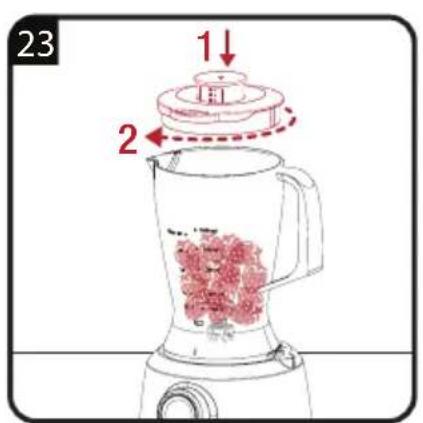

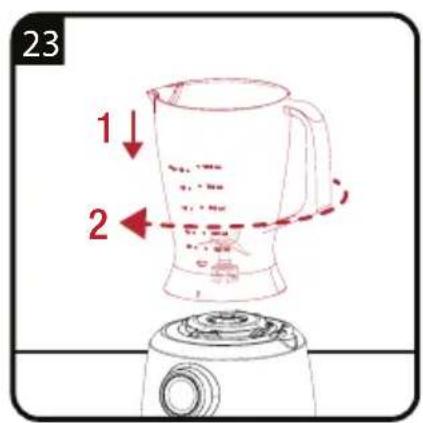

2.6 Blender

With the blender jar (16):

• You can mix dairy products, juices, soups and shakes,
• Prepare soft things such as crepe batter and mayonnaise,
• Puree cooked food, e.g. baby food.

Warnings

• Do not apply too much pressure on the handle of the jar (16).
• Never fill the jar (16) with ingredients with a temperature of over 60°C.
  • After using twice, wait for the product to cool down to the room temperature.

• To crash ice cubes, set the speed adjustment button to P(Pulse) (6).
  • You can add some water to blend ingredients like fruit.
• When blending soup, use cooked ingredients. If you cannot get the desired result, set the speed adjustment button (6) to P(Pulse) and operate the product for a few times with short cycles.
• When processing frothing ingredients such as milk, do not fill the jar (16) to over 500 ml to avoid overflowing.

Warnings

• Do not run the blender jar (16) when empty.
• Cut the ingredients into little pieces before feeding them into the jar (16).
• Do not exceed the maximum capacity (1 litre).
• When the product is not working, you can add ingredients from the upper side of the blender.
• Switch off the product and use a spatula to clean the ingredients on the walls of the jar (16).
• While the blender (16) is running, do not put your hands or tools (spatula etc.) in it.

3 Information

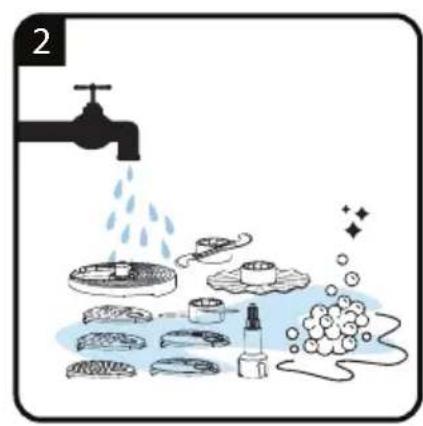

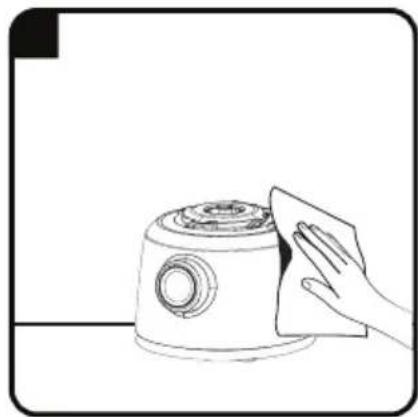

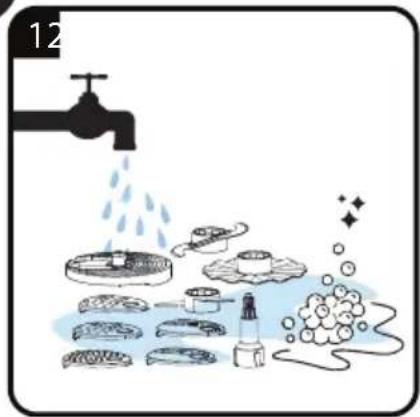

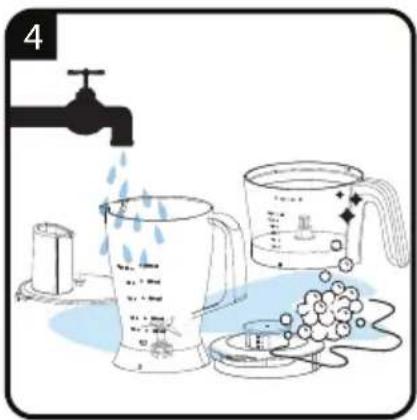

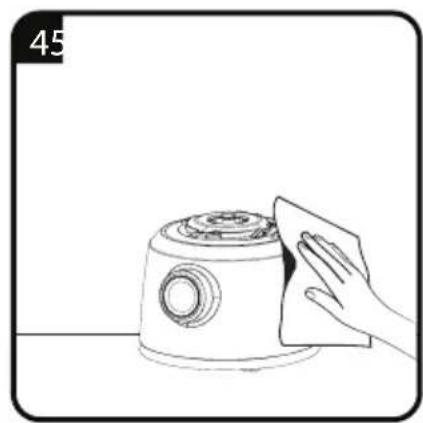

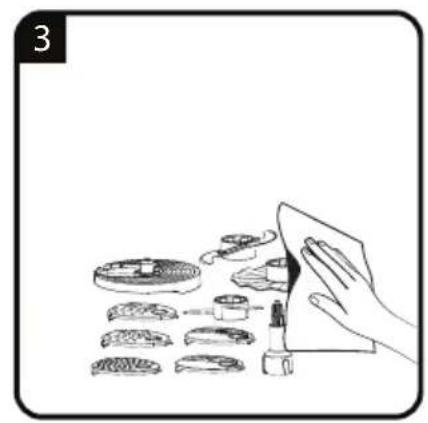

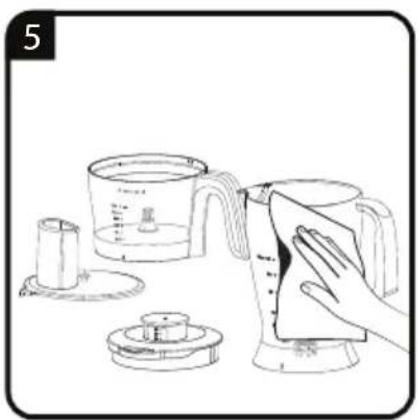

3.1 Cleaning and care

It is recommended to clean the appliance right after using it.

Warnings

• Never use gasoline, solvents or abrasive cleaning agents, metal objects or hard brushes to clean the appliance.
• Do not leave the attachments in the blender for a long time.
• Do not wash any of the accessories in the dishwasher.
• Never wash the processing bowl (4) or the jar (16) in the dishwasher.
• Be careful when washing the chopping (9) and slicing (12) blades. They may cause injuries since they are sharp.
  • After drying the chopping blade (9), keep in the blade sheath.

3.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure the appliance is unplugged, cooled down and completely dry.
• Do not wrap the power cord around the appliance.
• Store it in a cool, dry place.
• Make sure the appliance is always kept out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Please see the cover page of the user manual for initial use, general use and cleaning sections.

Handwritten signature and logo with a circular seal-like symbol, possibly from a document or certificate.

CERTIFICATDE GARA NTIE

Line drawing of a kitchen blender with handle, spout, and control panel (no text or symbols)

FPP 4102 W

AR

beko
