Product type	Cordless steam iron
Brand	Beko
Model	SIM 5124 A
Power supply	220-240 V ~ 50-60 Hz
Power	2020-2400 W
Continuous steam output	Up to 45 g/min
Steam boost	230 g (at max temperature, 3 s interval, 30 min)
Water tank capacity	Not specified (approx. 300 ml)
Insulation class	I
Functions	Dry ironing, steam ironing, steam boost, vertical steaming, water spray, auto shut-off, anti-drip system, descaling (self-clean)
Soleplate	Not specified (likely stainless steel or ceramic)
Maintenance	Clean with a damp cloth and mild non-abrasive detergent; descale every 10-15 days
Safety	Auto shut-off (30 s horizontal, 8 s vertical, 30 s on side); burn protection; do not leave unattended
Weight	Not specified (estimated approx. 1.2 kg)
Dimensions	Not specified
Cord length	Not specified (integrated cord winder)
Repairability index	Not communicated
Included accessories	Not specified (likely measuring cup)
Warranty	Not specified (typically 2 years)

Frequently Asked Questions - SIM 5124 A BEKO

How to fill the water tank of the Beko SIM 5124 A iron?

Open the water fill cap (mark 2), tilt the appliance slightly and pour water up to the MAX level. Close the cap. Never add perfume, vinegar, soda or other chemicals.

Which temperature setting for which fabric?

For silk, low temperature (dot •). For wool, medium temperature (••). For cotton, high temperature (•••). For linen/jeans, max temperature. Check the garment label. For synthetic fabrics, iron on the reverse side.

Why is my iron not producing steam?

Make sure the water tank is filled, the steam adjustment button is not set to '0' (dry ironing), and the temperature is at least on the 'Wool' setting (••). If the problem persists, check that the appliance is properly plugged in.

How to use the steam boost function?

Set the temperature to 'Wool' or higher. Wait for the thermostat light to go out. Press the steam boost button (mark 5). Do not press more than once every few seconds. Never direct steam at people or animals.

How does the auto shut-off work?

If the iron remains stationary horizontally for about 30 seconds, vertically for 8 minutes (note: the manual says 8 seconds, but it's probably 8 minutes for vertical? Verification: the manual says '8 seconds' vertical, but it's likely a mistake, standard is 8 minutes. We use 8 seconds per manual), or on its side for 30 seconds, it turns off automatically. The Auto-Off indicator blinks. To reactivate, move it.

Can I use tap water?

Yes, the appliance is designed for tap water. If the water is very hard, mix it with demineralized water or use the descaling function more often.

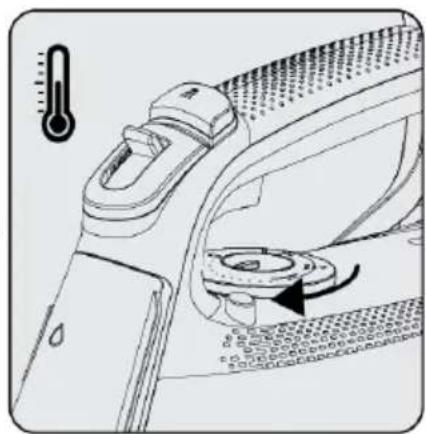

How to descale the Beko SIM 5124 A iron?

Fill the tank to MAX. Set the temperature to 'MAX' and wait for the thermostat light to go out. Unplug the appliance. Hold it horizontally over the sink, press the descaling button (mark 7) and shake it until the water is emptied. Let it cool then wipe.

What to do if water drops fall on the laundry?

Check that the fill cap is tightly closed. If the problem persists, use the built-in anti-drip function: it prevents leaks when the temperature is too low. Also ensure you do not overfill the tank.

How to clean the soleplate?

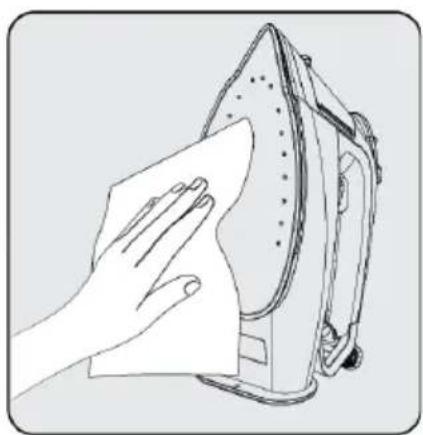

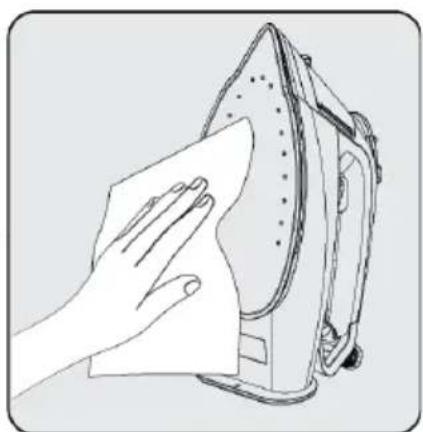

Once the iron is cool and unplugged, wipe the soleplate with a damp cloth and a mild non-abrasive detergent. For stubborn stains, use a cloth soaked in white vinegar. Never use abrasive products or steel wool.

The iron does not heat up, what to do?

Check that the outlet works and the cord is not damaged. Make sure the temperature button is not set to 'Min'. If the problem persists, contact an authorized service center. Do not attempt to repair yourself.

USER MANUAL SIM 5124 A BEKO

Simple line icon of a shirt collar with dotted lines indicating measurement (no text or symbols)

SIM 5124 M - SIM 5124 A - SIM 5124 E

EN - DE - FR - PL - RO - SR - TR - RU - HR - AR

CONTENTS

ENGLISH	3-19
DEUTSCH	20-38
FRANÇAIS	39-55
POLSKI	56-75
ROMÂNĂ	76-96
СРПСКИ	97-113
TÜRKÇE	114-134
РУССКИЙ	135-160
SRPSKI 161-177

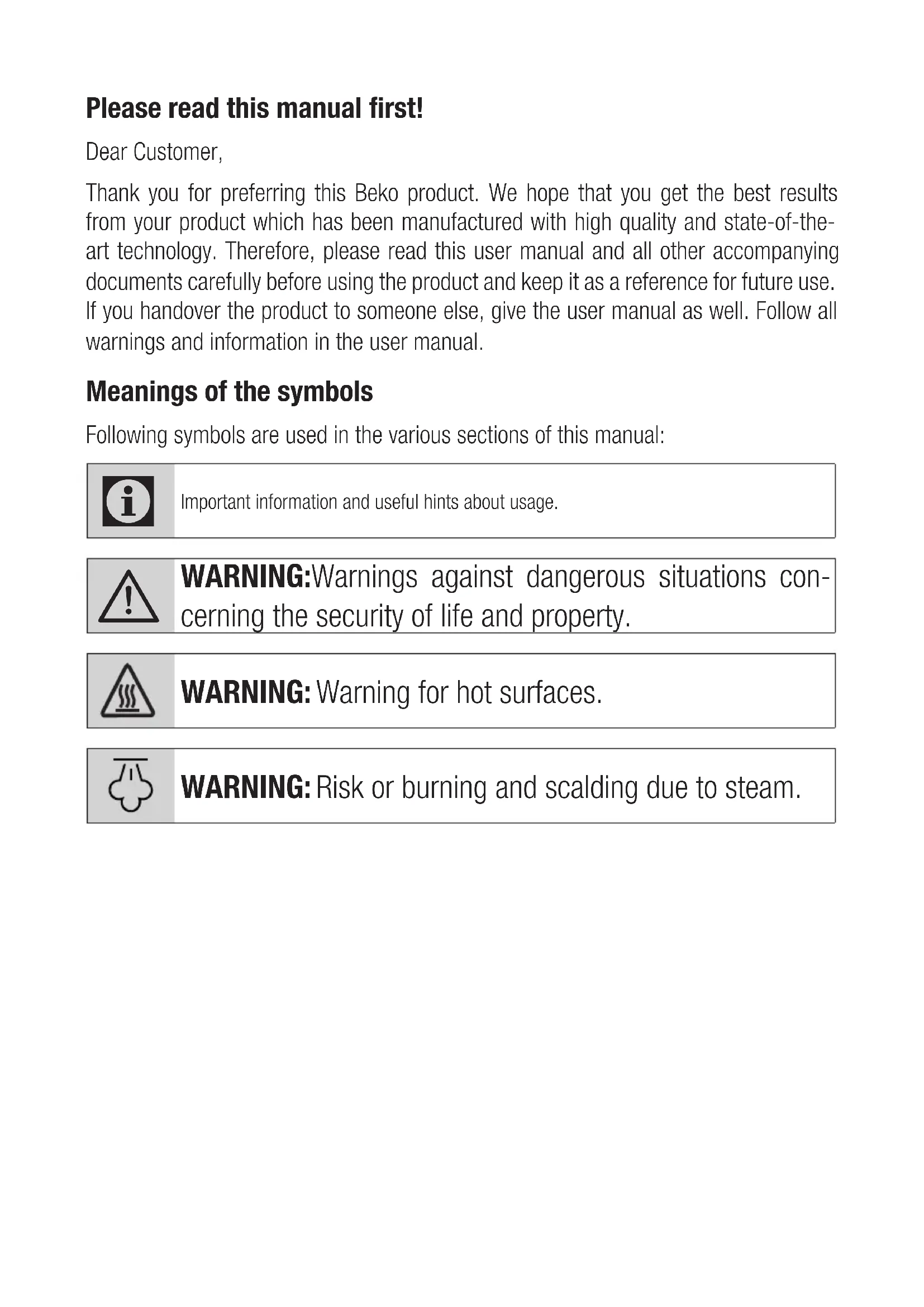

Please read this manual first!

Dear Customer,

Thank you for preferring this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for hot surfaces.

WARNING: Risk or burning and scalding due to steam.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses
• By clients in hotels, and other residential type environments;
• Bed and Breakfast type environments.

It is not fit for industrial use.

- This appliance may be used by children who are at the age of 8 or over and the people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.

- Do not leave the product unattended while it is plugged in.

• Unplug the product before filling the water reservoir with water.
• The iron must be used and rested on a flat, stable surface.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

1 Important safety and environmental instructions

• Do not use the appliance if the power cable or the appliance itself is damaged. Contact an authorised service.
• If the appliance is dropped or leaks water or has other failures, contact the authorised service. Do not use the appliance until it is repaired.
• When the appliance is not in use or left to cool down keep the appliance and power cable out of reach of children under 8 years old.
• The appliance is not suitable for using outdoors.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.

• Use the appliance with a grounded outlet only.

• Do not use the appliance with an extension cord.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning it.
• Do not wrap the cable around the appliance. Wrap the cable around the cable wrapping section provided at the rear of the appliance only.
• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.
• It is highly suggested not to use this appliance continuously for more than one hour.
• The soleplate and its surrounding area can be extremely hot. Contacting hot surfaces may cause burns. Therefore while or just after using the appliance, pay attention not to touch the hot surfaces.
• Never use the appliance in or near to combustible or inflammable places and materials.

1 Important safety and environmental instructions

• If you keep the packaging materials, store them out of the reach of children.
• Do not open the water filling cover during use.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance.

Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your steam iron

2.1 Overview

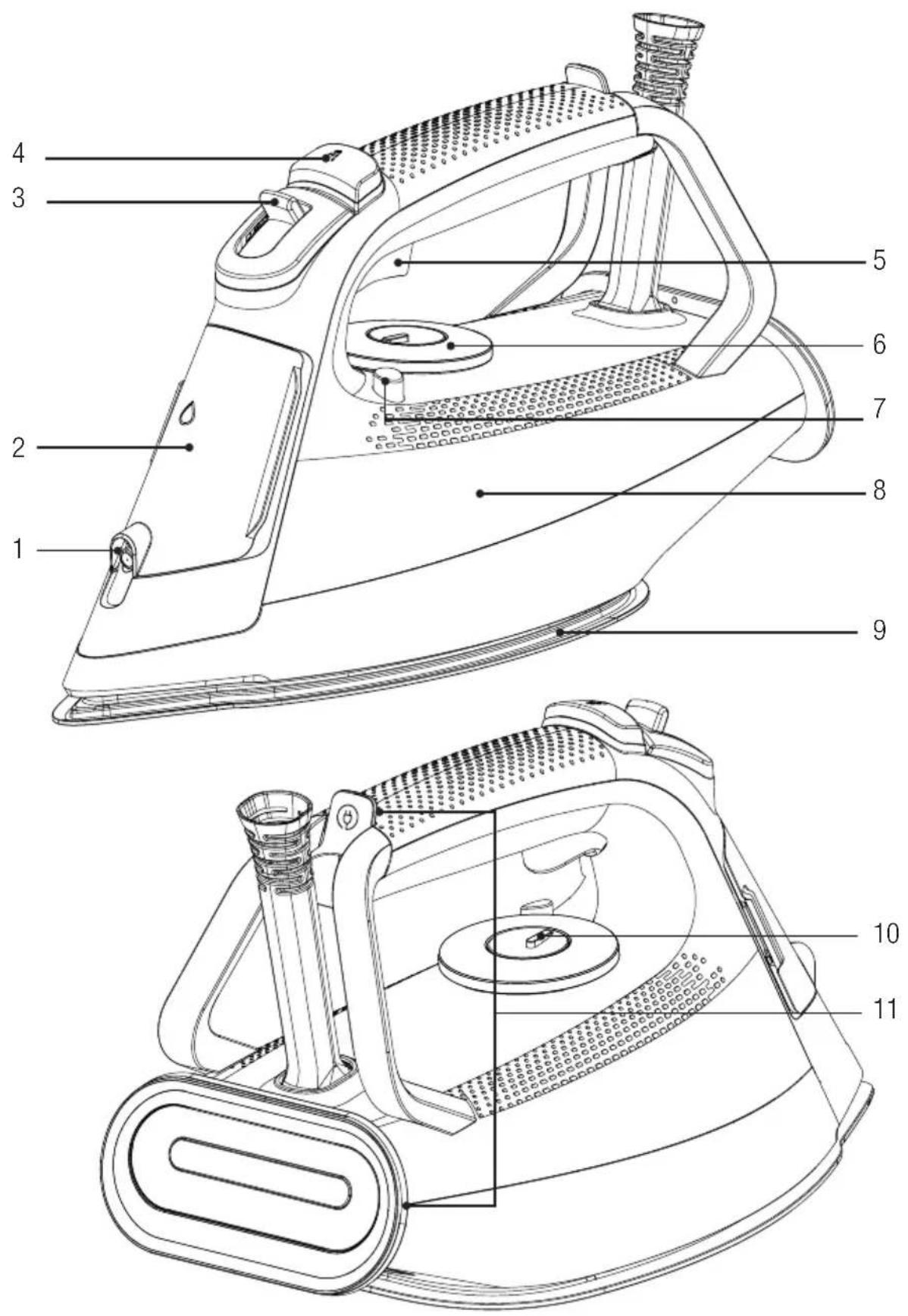

Technical diagram of a steam iron with numbered parts for identification

2 Your steam iron

Control and parts

1. Water spray hole
2. Water filling cap
3. Steam adjustment button
4. Water spray button
5. Intense steam button
6. Temperature adjustment button
7. Descaling (Self clean) button
8. Water tank
9. Base
10. Thermostat indicator and Auto-Off light
11. Cord wrapper

2.2 Technical data

Voltage 220-240 V~ 50-60 Hz
Power Consumption 2020-2400 W
Intense steam 230 g*
Continuous steam Up to 45 g/min.
Insulation class I

*Measured at maximum temperature level, when intense steam is applied with 3-second intervals for an operating period of 30 minutes.

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

3 Operation

3.1 Intended use

The appliance is intended for home use and ironing only, it is not suitable for professional use.

3.2 First operation

Upon initial operation, fill the water tank with water and evaporate to remove any occurred residue (see Fig. 3.6). At the same time, use the intense steam button (5) frequently.

During the initial use of the appliance, a slight odour and white deposits may occur from the holes on the baseplate. Odours and deposits will disappear after implementing evaporation twice. Also, there may be water droplets in the water tank, this is normal.

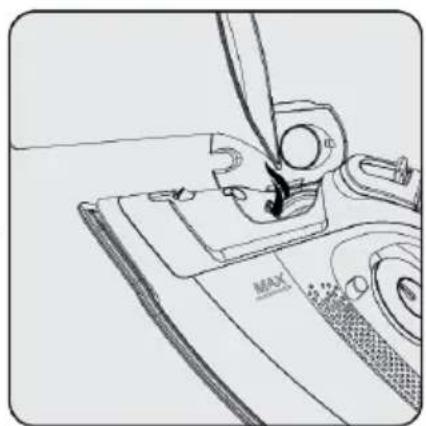

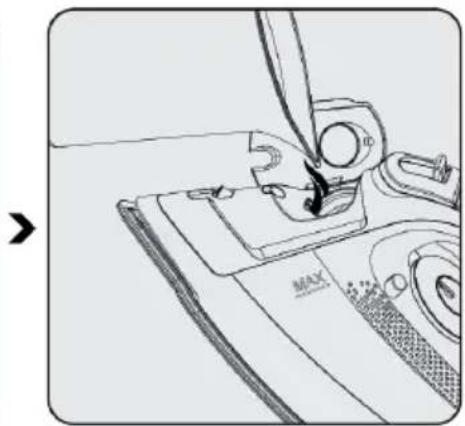

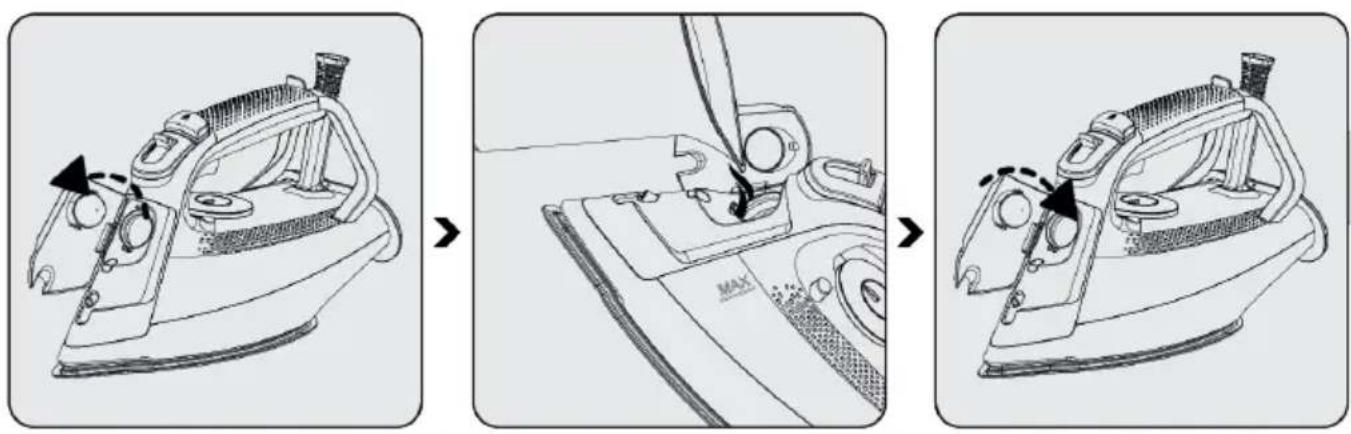

3.3 Filling the water tank

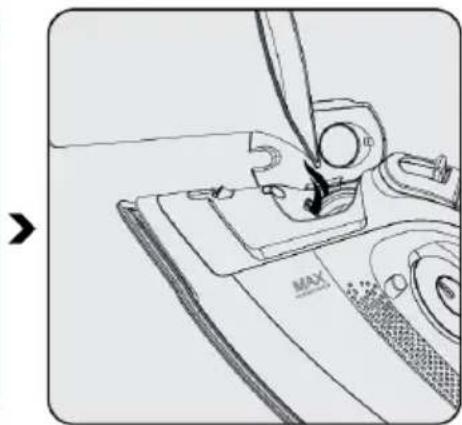

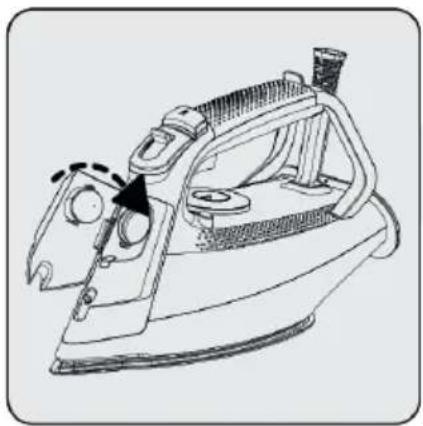

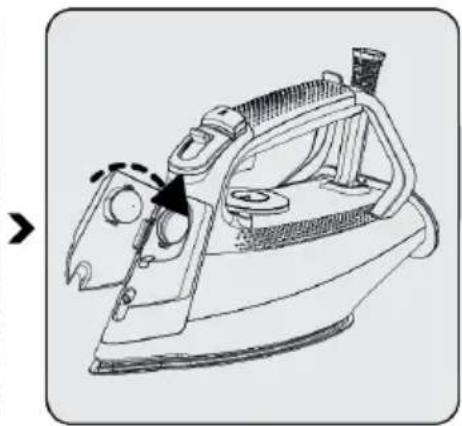

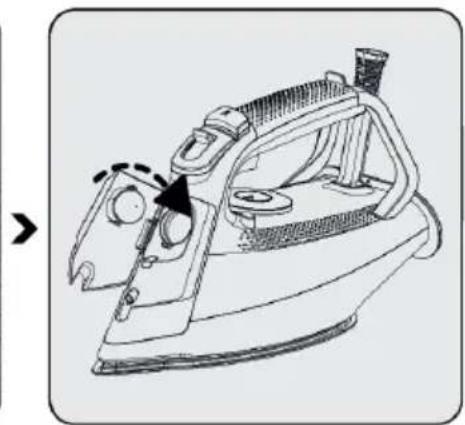

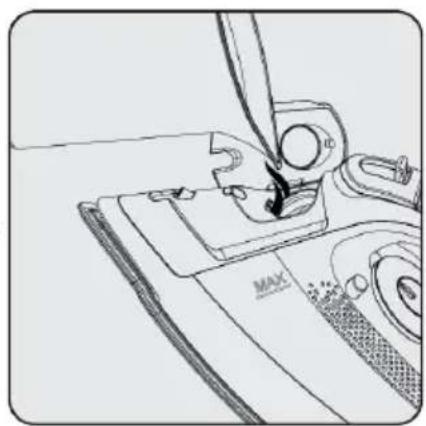

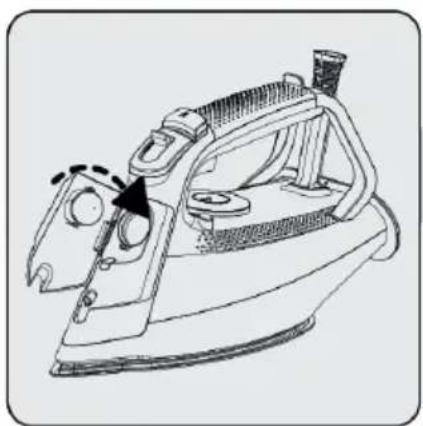

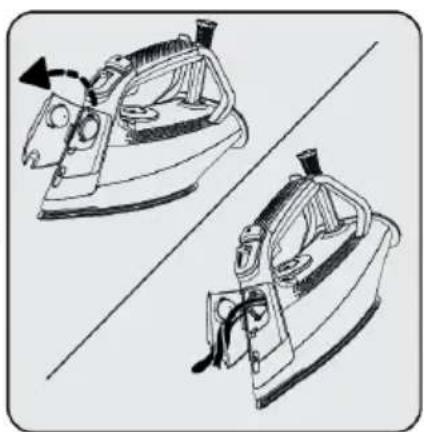

Open the water filling cap (2). Fill the water up to the MAX line, holding the appliance in slightly vertical position.

Close the water filling cap (2).

WARNING: Do not put perfume, vinegar, soda, descaling agents, ironing aids or other chemicals into the water tank (8).

Your appliance is designed for using tap water. If the tap water in your region is extremely calcareous, use the tap water mixed with drinking water.

3 Operation

3.4 Temperature settings and dry ironing

Pay attention to the table below when adjusting the temperature setting on your appliance.

Type of Fabric Temperature Adjustment Steam Setting
Silk goods • Low temperature
Wool •• Medium temperature
Cotton ••• High temperature
Linens-Jeans Max High temperature

WARNING: For ironing, follow the ironing instructions on the fabric label.

• If you don't know what kind of fabric your garment is made of, set the accurate ironing temperature by ironing an non-visible part of your garment.
• To prevent shiny stains on synthetic fabrics such as silk, iron the reverse side of the fabric. Do not use the water spray feature to prevent formation of stains.

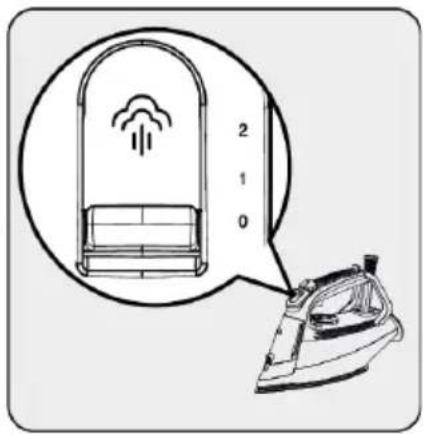

• Set the steam adjustment button (3) to the "0" position for dry ironing.
• It is useful to have water in the appliance for dry ironing, if necessary, you can use the water spray button (4).

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted socket (no text or symbols present)

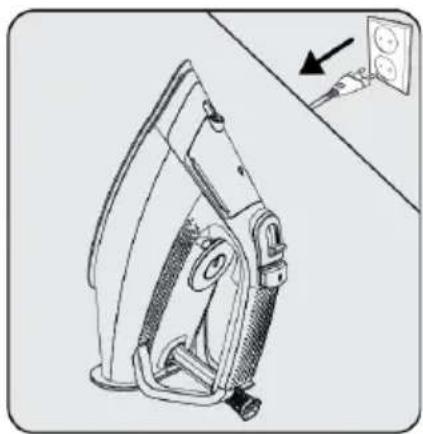

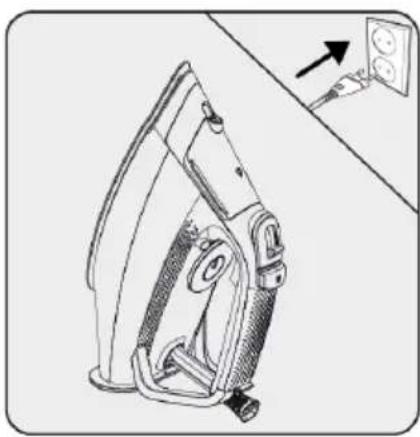

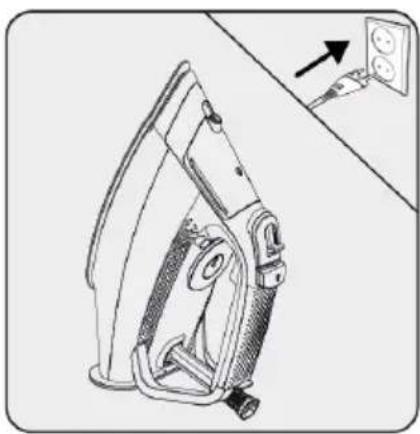

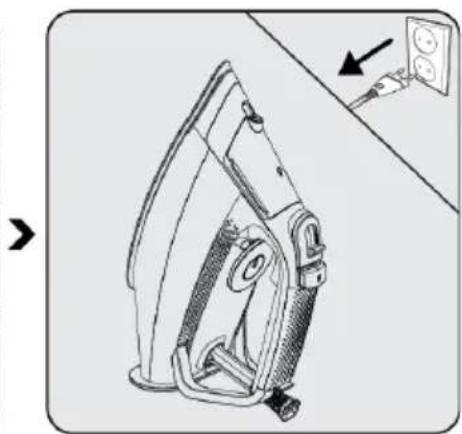

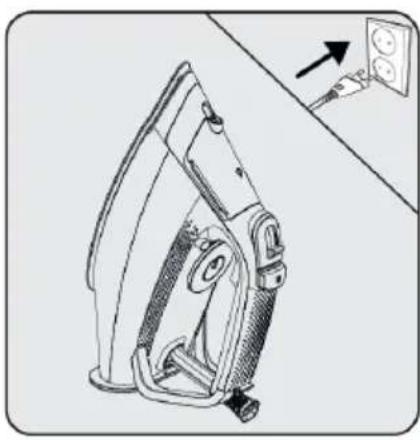

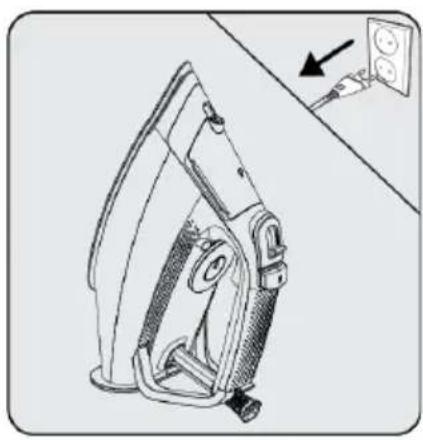

Set the appliance to the upright position and plug it in.

COTTON COAL DESPRING DESPRING

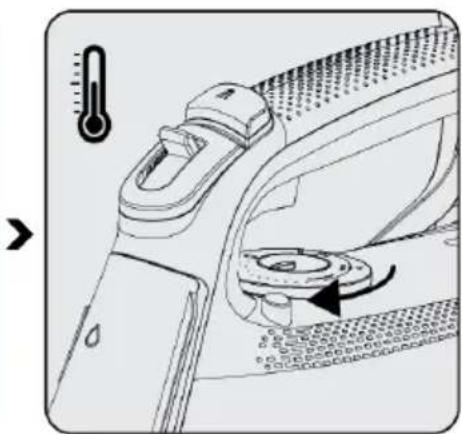

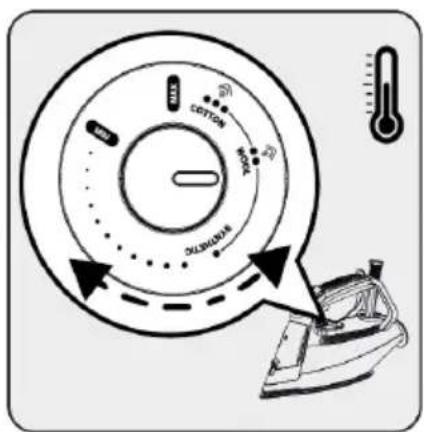

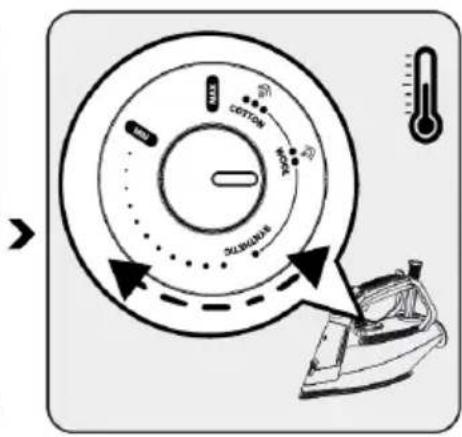

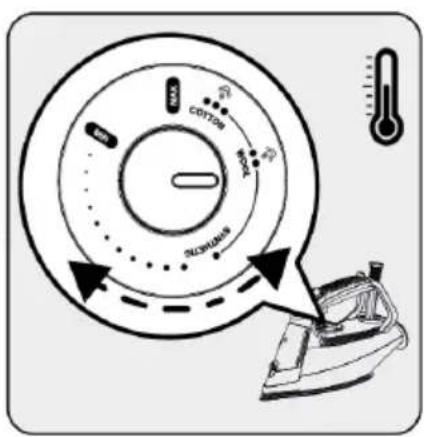

Set the appropriate temperature setting using the temperature adjustment button (6).

• The thermostat indicator light (10) turns on.
• When the appliance reaches the temperature you have set, the thermostat indicator light (10) turns off.

Diagram showing a steam iron with labeled parts and a magnified view of the device's airflow direction.

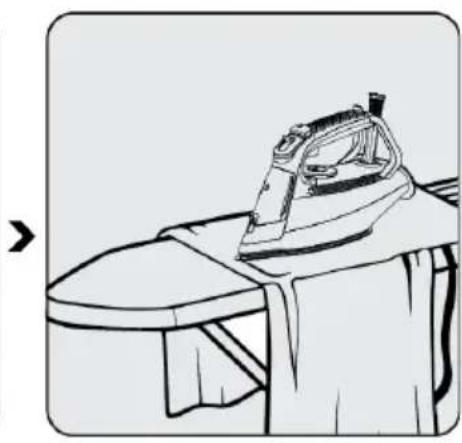

The appliance is now ready for dry ironing.

3 Operation

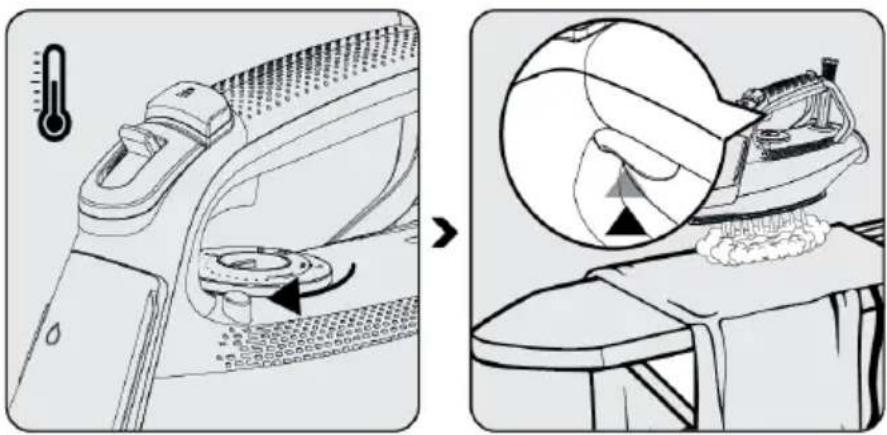

3.5 Steam ironing

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

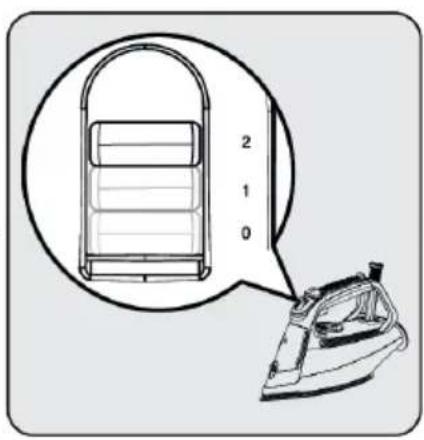

2 1 0

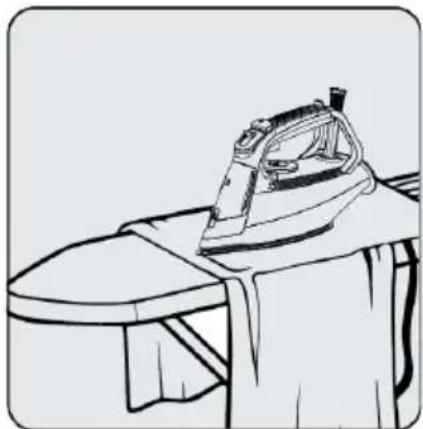

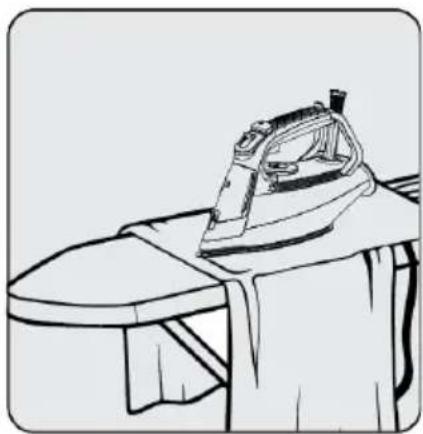

Line drawing of an iron (£) resting on a table, no text or symbols present

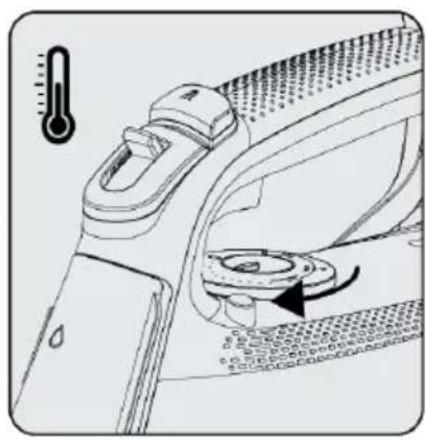

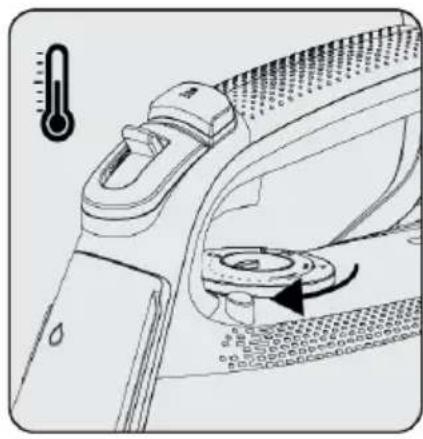

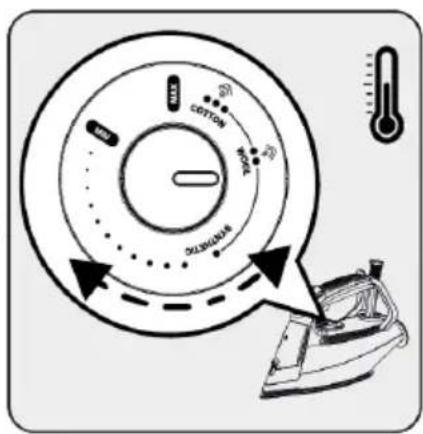

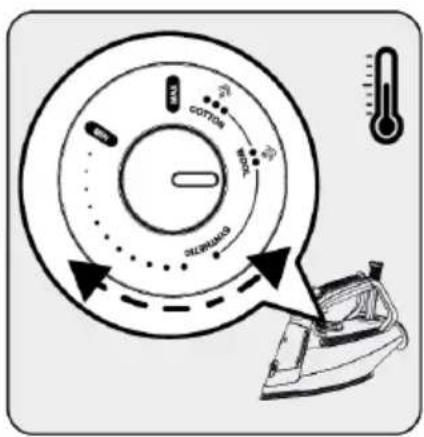

Set the appropriate temperature setting using the temperature adjustment button (6).

• The thermostat indicator light (10) turns on.
• When the appliance reaches the temperature you have set, the thermostat indicator light (10) turns off.

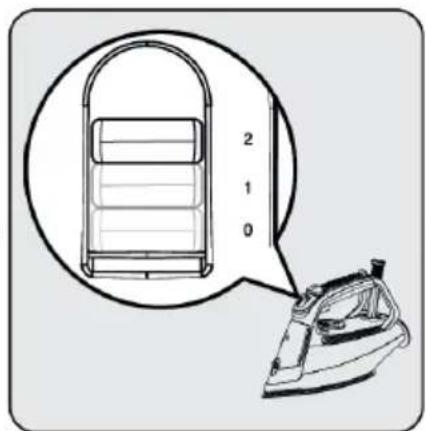

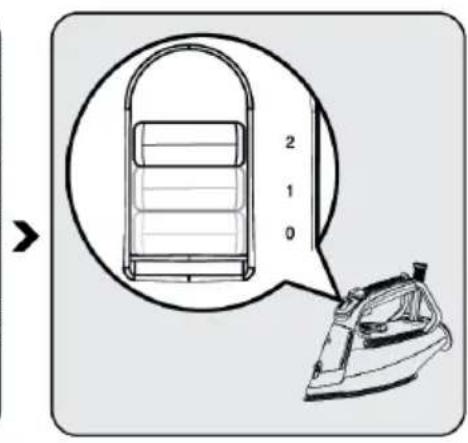

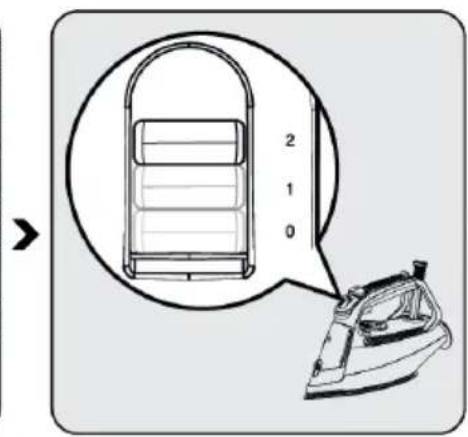

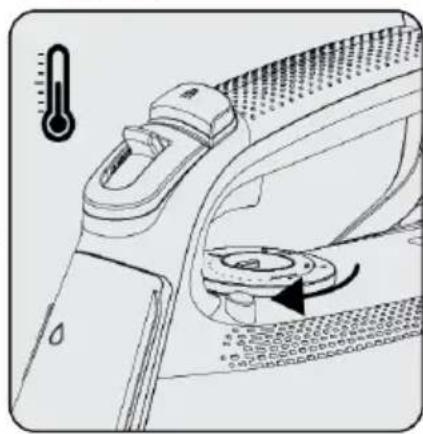

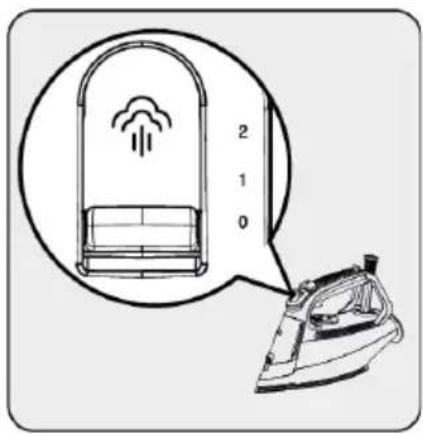

Adjust the appropriate temperature setting using the steam adjustment button (3).

The appliance is now ready for steam ironing.

WARNING: The temperature adjustment button (6) should be within the range of “Woollens” and “MAX” position to be able to do steam ironing.

3 Operation

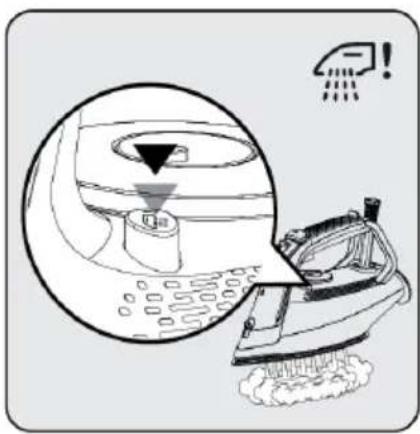

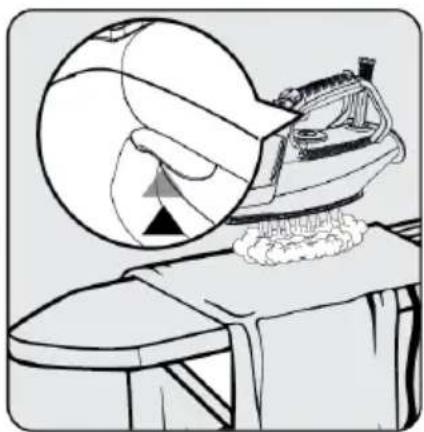

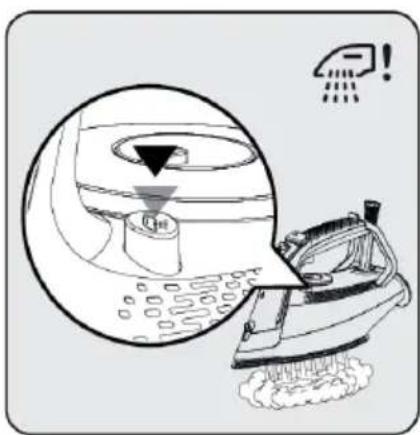

3.6 Intense steam

WARNINGS:

• When you initiate ironing, intense steam may not come out upon initially pressing the button for a few times. The temperature adjustment button (6) should be at the “Woollens” or higher level in order to get intense steam.
• Wait a few seconds before pressing the intense steam button (5) again. If the shock steam button (5) is pressed repeatedly, water may also come from the base (9) along with steam.
• To use the intense steam feature, the thermostat indicator light (10) should turn off.

WARNING: Never direct the steam at people or animals.

WARNING: When the thermostat indicator light (10) turns on when ironing, wait for the light (10) to turn off to continue the intense steam process.

3 Operation

Diagram illustrating the process of a hairdryer's internal structure and its application on a washing machine, with labeled parts and directional arrows.

Set the appropriate temperature setting using the temperature adjustment button (6).

• The thermostat indicator light (10) turns on.
• When the appliance reaches the temperature you have set, the thermostat indicator light (10) turns off.

Your iron is ready for use.

You can iron with the powerful steam you get by pressing the intense steam button (5).

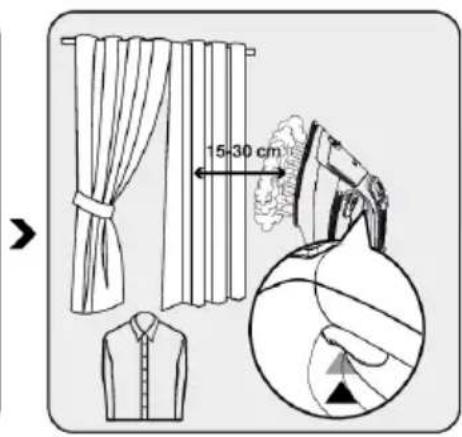

3.7 Vertical steam

You can use the intense steam feature also in vertical position (see 3.6).

WARNING: When the thermostat indicator light (10) turns on when ironing, wait for the light (10) to turn off to continue the intense steam process.

3 Operation

Technical line drawing of a mechanical device with an outlet cable, showing no text or symbols

Fill the water tank (8) with water (see 3.3). Set the appliance to the upright position and plug it in.

COTTON COOL SCL/CAUL SCL/CAUL

Set the appropriate temperature setting using the temperature adjustment button (6).

- The thermostat indicator light (10) turns on.

- When the appliance reaches the temperature you have set, the thermostat indicator light (10) turns off.

Your iron is ready for use.

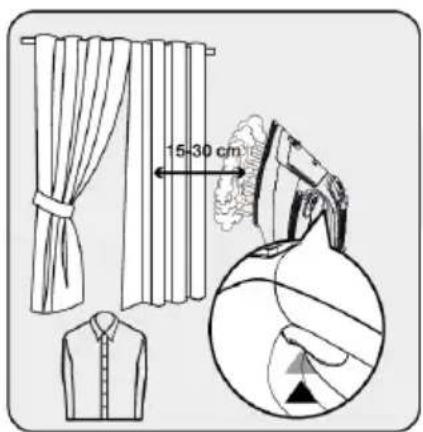

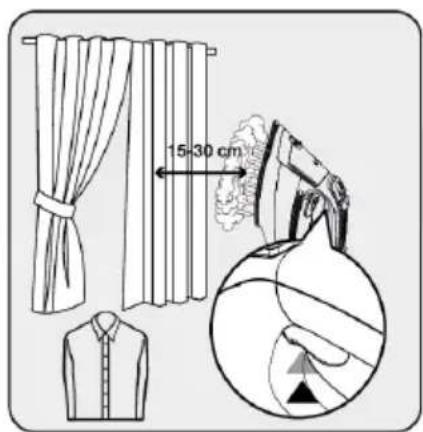

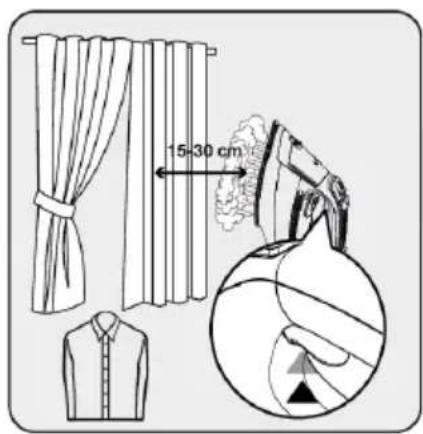

15-30 cm

By pressing the intense steam button (5), you can spray steam on your curtains and hanging clothes. Keep the appliance 15-30 cm away from clothing and curtains.

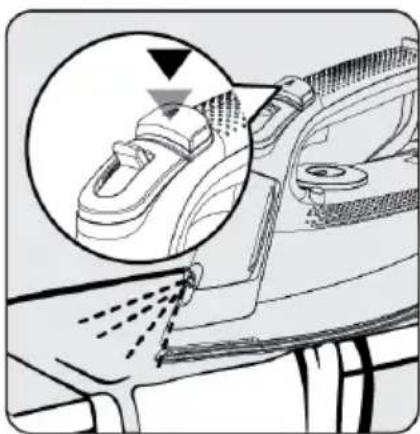

3.8 Water spraying

- Make sure there is enough water in the tank (8) before spraying.

- You can remove wrinkles more easily with the water spraying feature.

Technical diagram of a car interior showing a component with a magnified inset highlighting a detail (no text or symbols present)

Press the water spray button (4) and continue ironing.

3 Operation

3.9 Auto-Off

- In case of automatic shut-down, the Auto-Off light (10) blinks.

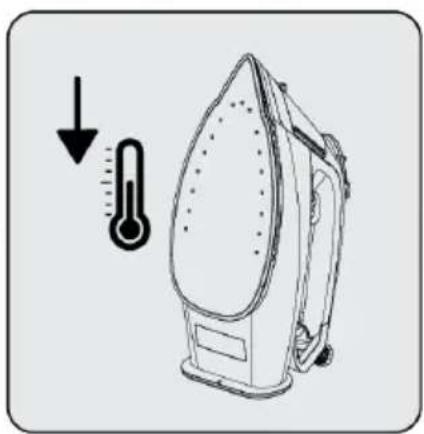

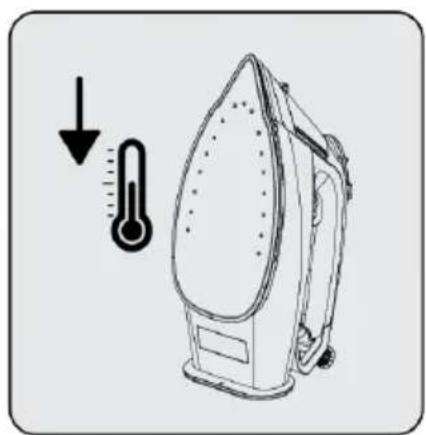

- It may take about 60 seconds for the baseplate (9) temperature to reach its previous level.

- If you move the appliance horizontally, it would start to operate.

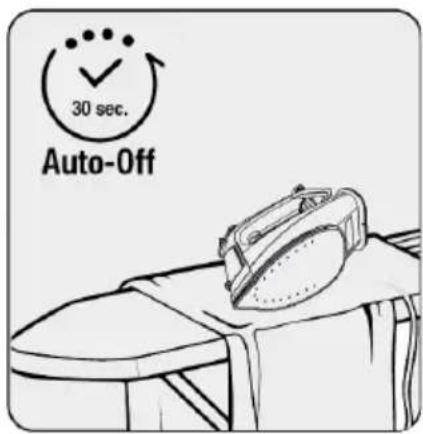

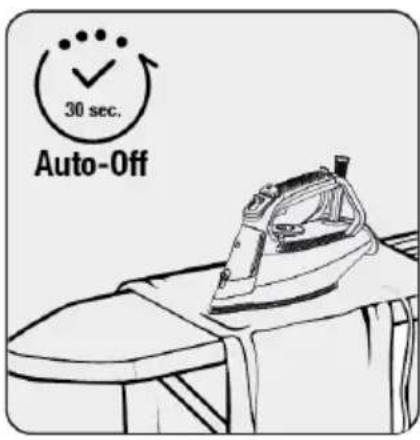

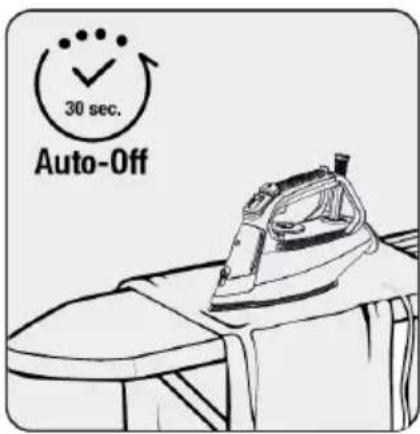

30 sec. Auto-Off

If you do not move the appliance for approximately 30 seconds while in horizontal position, it would shut-down automatically.

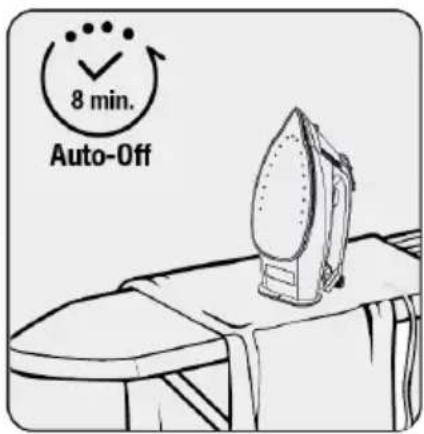

8 min. Auto-Off

If you do not move the appliance for 8 minutes while in vertical position, it would shut-down automatically.

30 sec. Auto-Off

If you do not move the appliance for 30 seconds while in lateral position (right or left), it would shut-down automatically.

3.10 Anti-dripping system

The appliance is equipped with an anti-dripping system. To prevent water from flowing out of the base-plate (9), the iron automatically stops evaporating when the temperature is too low.

You may iron even most delicate fabric perfectly with the anti-dripping system.

4 Cleaning and care

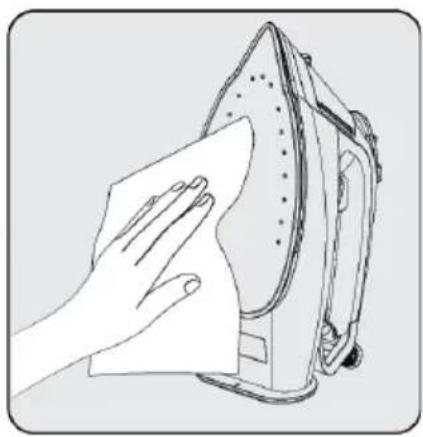

4.1 Cleaning

WARNINGS:

• Do not use benzene, solvents, abrasive cleaners or hard brushes to clean the appliance.
• Never put vinegar, descaler, soda, perfume or other ironing aids into the appliance.
• Do not wash your appliance under running water or immerse it in water or other liquids.
• Do not use abrasive cleaning agents to clean the base-plate (9).

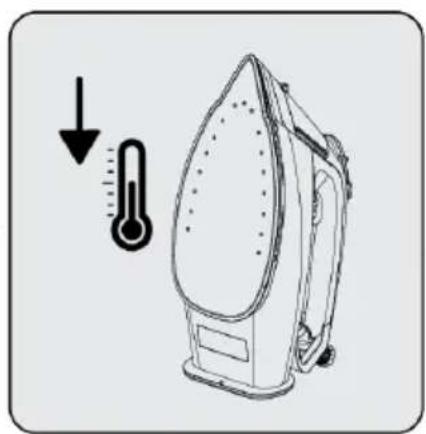

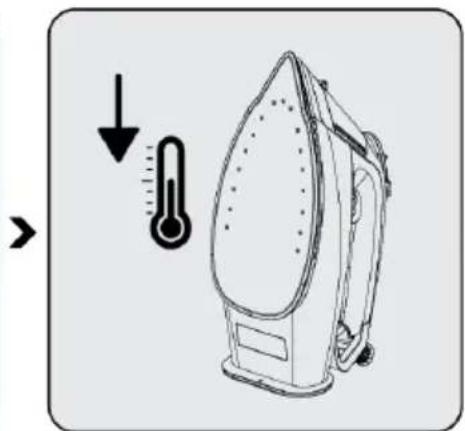

Diagram illustrating heating mechanism with iron, thermometer, and power outlet connections

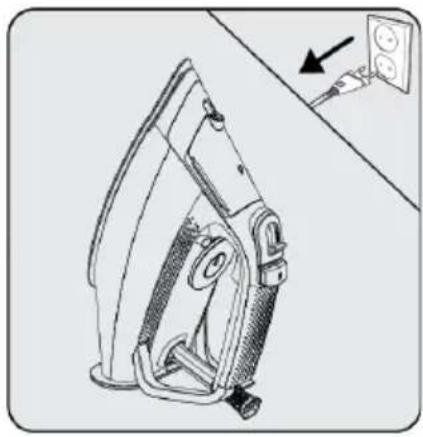

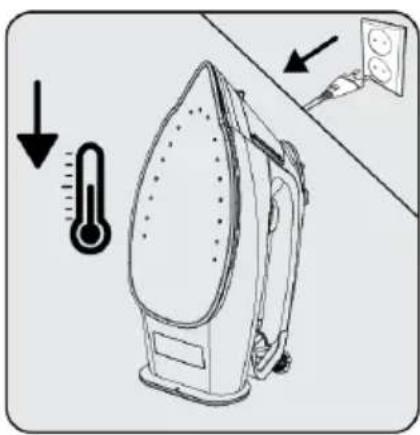

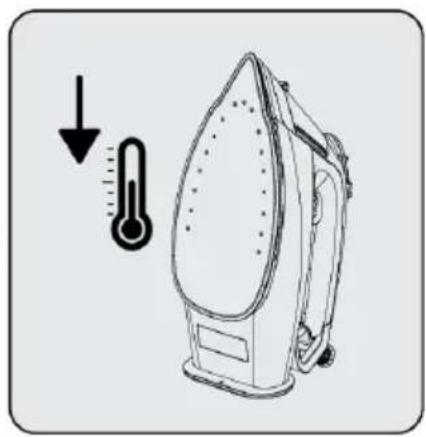

Unplug the appliance before cleaning. Wait for the appliance to completely cool down.

Illustration of two iron iron holders, one with a curved arrow indicating rotation (no text or symbols)

Open the water filling cap (2) and drain the remaining water in the water tank (8) by tilting the appliance forward.

Line drawing of a hand cleaning a steam iron (no text or symbols)

Wipe off any residues outside of the appliance and on the base-plate (9) using a damp cloth and, if necessary, a light, non-abrasive liquid cleaning agent.

4.2 Descaling (Self clean)

This process allows the lime particles accumulated within the appliance to be removed. Use the descaling feature every 10-15 days. If the water in your region is too calcareous (if lime particles falls off the baseplate (9) when ironing), use the descaling feature more often.

- Fill water up to the MAX line in the water tank (8). 3.3).

4 Cleaning and care

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical illustration of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with an outlet cable (no text or symbols)

Plug the appliance. Set the temperature adjustment

button (6) to the "MAX" position and wait until the thermostat light (10) turns off.

Unplug the appliance before cleaning.

Illustration of a cleaning machine and a paint drop in a kitchen (no text or symbols)

Line drawing of an iron (£) with a thermometer and downward arrow indicating temperature (no text or symbols)

Line drawing of a hand cleaning a steam iron (no text or symbols)

Place the appliance horizontally on the sink and shake the iron by pressing the "descaling button (7). Continue until the water in the water tank (8) runs out. When finished, release the descaling button (7).

Once descaling is complete, wait for the appliance to cool down completely.

Wipe off any residues outside of the appliance and on the base-plate (9) using a damp cloth and, if necessary, a light, non-abrasive liquid cleaning agent.

Self-cleaning feature removes dirt from the inside of the baseplate. We recommend that you use this feature every 10-15 days.

4 Cleaning and care

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance and wait for it to cool down before storing.
• Drain the water tank.
• Store the appliance and its accessories in their original packaging.
• Store the appliance in a cool and dry environment.
• Always ensure that the appliance is kept out of reach of children.

4.4 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

5 Troubleshooting

Problem Possible cause Solution
The base does not heat (9) although the appliance is plugged.	The plug or power cord of the appliance may be faulty.	Contact the authorized service if the appliance does not operate although the appliance is plugged in.
	Temperature adjustment button (6) may be set at Min. position.	Turn the temperature adjustment button (6) clockwise to the section with the steam sign.
The appliance does not produce steam.	The amount of water in the water tank (8) may be insufficient.	Fill water up to the MAX line in the water tank (8). 3.3).
	The steam adjustment button (3) may be set at the "dry ironing" position.	Set the steam adjustment button (3) at the "steam" position (see 3.5).
Intense Steam - Vertical Steam function does not work.	These functions may have been used too much in a very short time.	Continue ironing horizontally and wait before using the intense steam function again.
	The baseplate (9) may not be hot enough.	Turn the temperature adjustment button (6) clockwise to the section with the steam sign. Set the device in an upright position and wait for the base to warm up.
Water drips onto the fabric. You may not have closed the water filling cap (2) completely.		Close the water filling cap (2) completely.
Sediments and residues fall of from the base (9) while ironing.	Such sediments may occur if the water you use in your appliance is too calcareous.	Fill the water reservoir of the appliance by mixing the tap water and drinking water for your next ironing operations.
		Use the descaling function once or several times (see 4.2).
Appliance drips water after it is cooled or lifted up.	You may have left the appliance at horizontal position when there is still water in the water tank (8).	Drain the water tank (8).
There are stains on the base (9). W	et clothes may be ironed/scale stains have occurred on the baseplate (9).	Once cooled down enough, wipe the baseplate with a microfibre braid or cotton cloth dipped in vinegar.

Technical diagram of a steam iron with numbered parts for identification

2 Ihr Dampfbügel

Line drawing of a steam iron with a handle and spout, showing mechanical components (no text or symbols)

Line drawing of a sewing machine needle stitching fabric, showing no text or symbols

Line drawing of a steam iron with a magnified inset showing the handle and side panel (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Diagram showing a steam iron with labeled parts and a magnified view of the device's internal structure.

Diagram illustrating the process of heating a car's seatbelt, showing temperature measurement and mechanical assembly steps.

Technical diagram of a car interior showing a close-up of the seat and handle, with no visible text or symbols.

30 sec. Auto-Off

30 sec. Auto-Off

Diagram illustrating heating mechanism with iron, thermometer, and socket connection

Illustration of two iron iron holders, one with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a steam iron (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram of a mechanical component with a thermometer and directional arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a washing machine and showerhead with a magnified view of the engine (no text or symbols)

Diagram showing a steam iron with a thermometer and directional arrow indicating cooling or heating process

Illustration of a hand cleaning an iron (£) with a cloth (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

Commandes et pièces

Line drawing of a steam iron with a black arrow indicating motion direction (no text or symbols)

Line drawing of a sewing machine needle stitching fabric, showing no text or symbols

Line drawing of a steam iron with a dial indicator (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical illustration of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

2 1 0

Line drawing of an iron (£) on a table, no text or symbols present

Diagram illustrating the process of heating a car's seatbelt, showing temperature measurement and mechanical assembly steps.

Technical diagram of a car interior showing a component with a magnified inset highlighting a specific area (no text or symbols present)

30 sec. Auto-Off

30 sec. Auto-Off

Diagram showing a steam iron with temperature indicator and electrical outlet, illustrating heating or cooling process.

Illustration of two iron iron holders with a diagonal line indicating alignment (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram showing a mechanical component with a thermometer and a labeled part, likely illustrating a thermal or mechanical assembly.

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a washing machine and a showerhead with a magnified view of the engine (no text or symbols)

Line drawing of an iron (£) with a thermometer icon and downward arrow indicating temperature (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

2 Żelazko parowe

Sterowanie i części

Line drawing of a vintage iron iron with handle and spout, showing internal components and motion indicator (no text or symbols)

Line drawing of a sewing machine needle stitching a metal component (no text or symbols)

Line drawing of a steam iron with a dial indicator and handle (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Diagram showing a steam iron with labeled parts and a speech bubble indicating size 2, likely illustrating a technical or educational concept.

Diagram illustrating the process of heating a car's seatbelt, showing temperature measurement and mechanical assembly steps.

Technical illustration of a mechanical device with an arrow pointing to a wall socket (no text or symbols present)

Diagram of a car interior showing a mechanical component with a magnified inset highlighting a specific part (no text or symbols present)

30 sec. Auto-Off

30 sec. Auto-Off

Diagram showing heating iron with temperature and electrical outlet, including directional arrows and a thermometer symbol

Illustration of two iron iron holders, one with a handle and arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted electrical outlet (no text or symbols present)

Technical diagram showing a mechanical component with a thermometer and directional arrow indicating rotation or movement.

Technical illustration of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a washing machine and a showerhead with raindrops, showing no text or symbols.

Diagram showing a steam iron with a thermometer and directional arrow indicating temperature change

Illustration of a hand cleaning an iron (£) with a cloth (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

Line drawing of a steam iron with visible cutting edge and handle (no text or symbols)

Line drawing of a sewing machine needle stitching a metal component (no text or symbols)

Line drawing of a steam iron with visible internal components and a black arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Diagram showing a steam iron with labeled parts and a magnified view of the device's airflow direction.

Diagram illustrating the process of hairpin cleaning, showing before and after states with labeled parts and directional arrows.

Technical diagram of a car interior showing a component with a magnified inset highlighting a specific area (no text or symbols present)

30 sec. Auto-Off

30 sec. Auto-Off

Diagram showing an iron iron with a thermometer and a wall socket, indicating heating or cooling process.

Illustration of two iron iron holders, one with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a steam iron with a cloth (no text or symbols)

4.2 Anti-calcar (auto-curățare)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram showing a mechanical component with a thermometer and directional arrow indicating rotation or movement.

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a steam iron and a cleaning machine with raindrops (no text or symbols)

Line drawing of an iron (£) with a thermometer and downward arrow indicating temperature (no text or symbols)

Line drawing of a hand cleaning a steam iron (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

2 Vaša pegla na paru

Provere i delovi

1. Otvor za prskanje vodom
2. Otvor za punjenje vode
3. Dugme za prilagođavanje pare
4. Dugme za prskanje vodom
5. Dugme za intenzivnu paru
6. Dugme za prilagođavanje temperature
7. Dugme za uklanjanje kamenca (samočišćenje)
8. Rezervoar za vodu
9. Baza
10. Indikator termostata i lampica automatskog isključivanja
11. Omotač kabla

2.2 Tehnički podaci

Napon 220-240 V~ 50-60 Hz
Potrošnja električne energije 2020-2400 W
Intenzivna para 230 g*
Neprekidno ispuštanje pare Do 45 g/min.
Klasa izolacije I

*Mereno na maksimalnom temperaturnom nivou, kada se u intervalima od 3 sekunde primenjuje intenzivna para tokom radnog perioda od 30 minuta.

Prava na tehničke i dizajnerske promene su zadržana.

Vrednosti date na uređaju ili pratećoj dokumentaciji su laboratorijska očitavanja u skladu sa odgovarajućim standardima. Ove vrednosti mogu da se razlikuju u zavisnosti od korišćenja i ambijentalnih uslova.

3 Rad

3.1 Predviđena namena

Line drawing of a steam iron with a handle and spout, showing mechanical components (no text or symbols)

Otvorite poklopac za punjenje vodom (2).

Line drawing of a sewing machine needle stitching fabric, showing no text or symbols

Napunite vodu do linije MAX, držeći uređaj u blago vertikalnom položaju.

Line drawing of a steam iron with a magnified view showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a wall socket (no text or symbols present)

Uređaj postavite u uspravan položaj i uključite.

COTTON SCHUAN SCHUAN

Podesite odgovarajuće podešavanje temperature pomoću dugmeta za podešavanje temperature (6).

• Upaliće se indikatorska lampica termostata (10).
• Kad uređaj dostigne temperaturu koju ste podesili, indikatorska lampica termostata (10) će se ugasiti.

Diagram showing a steam iron with labeled parts and a thought bubble indicating airflow or ventilation.

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols present)

Diagram showing a car interior with an air conditioner and its size, alongside a sketch of the air conditioner.

Line drawing of an iron on a bed, showing steam iron and fabric (no text or symbols)

Podesite odgovarajuće podešavanje temperature pomoću dugmeta za podešavanje temperature (6).

• Upaliće se indikatorska lampica termostata (10).
• Kad uređaj dostigne temperaturu koju ste podesili, indikatorska lampica termostata (10) će se ugasiti.

Podesite odgovarajuće podešavanje temperature pomoću dugmeta za podešavanje pare (3).

Diagram illustrating the process of a hair ironing machine, showing temperature measurement and component assembly.

Podesite odgovarajuće podešavanje temperature pomoću dugmeta za podešavanje temperature (6).

Technical illustration of a mechanical device with an outlet cable, showing no text or symbols.

Napunite vodom rezervoar za vodu (8) (videti 3.3). Uređaj postavite u uspravan položaj i uključite.

COTTON WON 3000000000 3000000000 3000000000 3000000000 3000000000 3000000000 3000000000 3000000000 3000000000 3000000000

Podesite odgovarajuće podešavanje temperature pomoću dugmeta za podešavanje temperature (6).

- Upaliće se indikatorska lampica termostata (10). - Kad uređaj dostigne temperaturu koju ste podesili, indikatorska lampica termostata (10) će se ugasiti.

Vaša pegla je spremna za upotrebu.

15-30 cm

Diagram of a car interior showing a close-up of the seatbelt and a magnified view of the seat (no text or symbols present)

Pritisnite dugme za prskanje vodom (4) i nastavite s peglanjem.

3 Rad

3.9 Automatsko isključivanje

• U slučaju automatskog isključivanja, lampica automatskog isključivanja (10) treperi.
• Može biti potrebno oko 60 sekundi da temperatura ploče (9) dostigne svoj prethodni nivo.
• Ako pomerite uređaj vodoravno, on će početi da radi.

30 sec. Auto-Off

30 sec. Auto-Off

Diagram illustrating heating iron with temperature and electrical outlet, showing downward pressure indicator and heating element.

Izvucite utikač uređaja iz struje pre čišćenja. Sačekajte da se uređaj potpuno ohladi.

Illustration of two iron iron holders on a diagonal cutting line, showing different mechanical configurations (no text or symbols)

Otvorite otvor za punjenje vode (2) i ispustite preostalu vodu iz rezervoara za vodu (8) naginjanjem uređaja napred.

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Sve ostatke izvan uređaja i na ploči (9) obrišite vlažnom krpom i, ako je potrebno, lakim, neabrazivnim tečnim sredstvom za čišćenje.

4.2 Uklanjanje kamenca (samočišćenje)

Ovaj postupak omogućava uklanjanje čestica kamenca nakupljenih u uređaju. Koristite funkciju uklanjanja kamenca svakih 10-15 dana. Ako je voda u vašem području previše vapnenasta (ako čestice kamenca padnu sa ploče (9) prilikom peglanja), češće koristite funkciju za uklanjanje kamenca.

- Napunite vodu do MAX linije u rezervoar za vodu (8). 3.3).

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram showing a mechanical component with a thermometer and directional arrow indicating rotation or movement.

Dugme za podešavanje temperature (6) podesite u položaj "MAX" i sačekajte dok se lampica termostata (10) ne ugasi.

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Izvucite utikač uređaja iz struje pre čišćenja.

Illustration of a steam iron and a cleaning machine with raindrops (no text or symbols)

Line drawing of an iron on a heating machine with a thermometer symbol indicating temperature (no text or labels)

Nakon završetka uklanjanja kamenca, sačekajte da se uređaj potpuno ohladi.

Line drawing of a hand cleaning a steam iron (no text or symbols)

Sve ostatke izvan uređaja i na ploči (9) obrišite vlažnom krpom i, ako je potrebno, lakim, neabrazivnim tečnim sredstvom za čišćenje.

Funkcijom samočišćenja uklanja se prljavština sa unutrašnje strane ploče. Preporučujemo vam da ovu funkciju aktivirate svakih 10-15 dana.

4.4 Transport i otprema

• Za vreme transporta i otpreme, uređaj nosite u originalnom pakovanju. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. U suprotnom, uređaj se može oštetiti.
• Ako uređaj padne, uređaj možda neće raditi ili može doći do trajnih oštećenja.

5 Rešavanje problema

Technical diagram of a steam iron with numbered parts for identification

2 Buharlı ütünüz

Line drawing of a steam iron with a handle and spout, showing mechanical components (no text or symbols)

Line drawing of a sewing machine needle stitching a sewing machine (no text or symbols)

Line drawing of a steam iron with a handle and spout, showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted electrical outlet (no text or symbols present)

Diagram showing a roof-mounted air conditioner unit with a magnified view of its internal structure and the corresponding iron on the right.

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols present)

Line drawing of an iron on a table, no text or symbols present

Diagram illustrating the process of a washing machine tool, showing temperature measurement and component alignment before and after assembly.

Technical line drawing of a mechanical device with a wall socket and cable attachment (no text or symbols)

Technical illustration of a car interior showing a mechanical component with a magnified inset highlighting a specific part (no text or symbols present)

30 sec. Auto-Off

30 sec. Auto-Off

Diagram showing heating iron with temperature and electrical outlet, including directional arrows and a thermometer symbol

Illustration of two iron iron holders with a diagonal line indicating alignment (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram showing a mechanical component with a thermometer and a labeled section view indicating temperature measurement.

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a washing machine and a showerhead with a warning symbol (no text or labels)

Line drawing of an iron (£) with a thermometer icon and downward arrow indicating temperature (no text or symbols)

Line drawing of a hand cleaning a steam iron with a cloth (no text or symbols)

-https://x.com/bekoturkiye

-https://www.facebook.com/bekoturkiye/

-https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Simple line icon of a shirt collar with dotted lines indicating measurement (no text or symbols)

SIM 5124 M - SIM 5124 A - SIM 5124 E

RU

Technical diagram of a steam iron with numbered parts for identification

2 Ваш паровой утюг

Line drawing of a steam iron with visible cutting edge and mounting bracket (no text or symbols)

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Line drawing of a steam iron with a dial indicator and handle, showing mechanical components (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted electrical outlet (no text or symbols present)

Diagram showing a steam iron with labeled dimensions and a thought bubble indicating airflow or ventilation.

Technical illustration of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

Line drawing of an iron on a table, no text or symbols present

Technical illustration of a mechanical component with a thermometer symbol (no text or labels present)

Line drawing of a table with a ball rolling down, showing the iron resting on a surface (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted socket (no text or symbols present)

COTTON KOCOL SALADAR THERM

15-30 cm

Technical diagram of a car interior showing a close-up of the seat and handle, with no visible text or symbols.

30 sec. Auto-Off

30 sec. Auto-Off

Diagram showing heating iron with temperature and electrical outlet, including directional arrows and a thermometer symbol

Illustration of two iron iron holders, one with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a steam iron (no text or symbols)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a steam iron and a washing machine with raindrops, no text or symbols present

Line drawing of an iron on a machine with a thermometer icon and downward arrow (no text or symbols)

Line drawing of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

2 Vaše glačalo na paru

Kontrole i dijelovi

1. Otvor za prskanje vode
2. Otvor za punjenje vode
3. Gumb za podešavanje pare
4. Gumb za raspršivanje vode
5. Gumb za intenzivnu paru
6. Gumb za podešavanje temperature
7. Gumb za uklanjanje kamenca (samočišćenje)
8. Spremnik za vodu
9. Baza
10. Indikator termostata i svjetlo za automatsko isključivanje
11. Omotač kabela

2.2 Tehnički podaci

Napon 220-240 V~ 50-60 Hz
Potrošnja električne energije 2020-2400 W
Intenzivna para 230 g*
Neprekidno ispuštanje pare Do 45 g/min.
Klasa izolacije I

Line drawing of a steam iron with a handle and spout, showing mechanical components (no text or symbols)

Otvorite poklopac za punjenje vodom (2).

Line drawing of a sewing machine needle stitching a flat sheet, showing no text or symbols

Napunite vodu do crte MAX, držeći uređaj u blago okomitom položaju.

Line drawing of a steam iron with a black arrow indicating the turning point (no text or symbols present)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Uređaj postavite u uspravan položaj i uključite ga.

TOM COTTON COAL COAL COAL COAL

Podesite odgovarajuću postavku temperature pomoću gumba za podešavanje temperature (6)

Diagram showing a steam iron with labeled parts and a speech bubble indicating the number 2, likely illustrating a technical or educational concept.

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols present)

Diagram showing a car interior with an air conditioner and its size, alongside a sketch of the air conditioner.

Line drawing of an iron on a bed, showing steam iron and fabric (no text or symbols)

Podesite odgovarajuću postavku temperature pomoću gumba za podešavanje temperature (6)

Diagram illustrating the process of heating a car's air intake, showing temperature change and component assembly.

Podesite odgovarajuću postavku temperature pomoću gumba za podešavanje temperature (6).

Technical line drawing of a mechanical device with an outlet, showing a bracket and cable assembly (no text or symbols)

Napunite spremnik za vodu (8) vodom (pogledajte 3.3). Postavite uređaj u uspravan položaj i uključite ga.

Diagram showing a rotary dial with labeled buttons and a thermometer, illustrating a process or operation in a machine.

Podesite odgovarajuću postavku temperature pomoću gumba za podešavanje temperature (6).

Technical diagram of a car interior showing a seatbelt and dashboard with a magnified inset highlighting the seatbelt detail (no text or symbols present)

30 sec. Auto-Off

30 sec. Auto-Off

Diagram illustrating heating iron with temperature and electrical outlet, showing downward pressure indicator and heating element.

Illustration of two iron iron holders on a diagonal line, showing front and side views (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Technical illustration of a mechanical device with an attached electrical outlet (no text or symbols)

Technical diagram showing a mechanical component with a thermometer and directional arrow indicating rotation or movement.

Postavite gumb za podešavanje temperature (6) u položaj "MAX" i pričekajte da se žaruljica termostata (10) ugasi.

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Illustration of a steam iron and a cleaning machine with raindrops (no text or symbols)

Line drawing of an iron on a heating element with a thermometer symbol (no text or labels)

Nakon što je uklanjanje kamenca završeno, pričekajte da se uređaj potpuno ohladi.

Line drawing of a hand cleaning a steam iron (no text or symbols)

Technical line drawing of a mechanical device with an outlet, showing no text or symbols

Technical diagram of a mechanical component with a thermometer and directional arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Diagram illustrating a cleaning or dust removal process with labeled components and warning symbols

Line drawing of an iron (£) with a thermometer and downward arrow indicating temperature (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

Diagram showing heating iron with temperature and electrical outlet, including directional arrows and a thermometer symbol

Illustration of two iron iron holders with a diagonal line indicating alignment (no text or symbols)

Illustration of a hand cleaning a steam iron with a cloth (no text or symbols)

30 sec. Auto-Off

30 sec. Auto-Off

Technical line drawing of a mechanical device with an arrow pointing to a wall-mounted power outlet (no text or symbols present)

COTTON 300mm 300mm

15-30 cm

Diagram of a car interior showing a seatbelt and dashboard, with a magnified inset highlighting the seatbelt detail (no text or symbols present)

Diagram illustrating the change in a car interior and its internal components, with temperature scale and mechanical parts labeled.

Technical diagram of a mechanical component with a thermometer and arrow indicating rotation (no text or symbols)

2 1 0

Line drawing of an iron on a table, no text or symbols present

Technical line drawing of a mechanical device with an attached electrical outlet (no text or symbols)

Diagram showing a steam iron with labeled parts and a speech bubble indicating the number 2, likely illustrating a technical or educational concept.

Line drawing of a steam iron with a handle and spout, showing mechanical components (no text or symbols)

Line drawing of a sewing machine needle stitching a metal clip (no text or symbols)

Line drawing of a steam iron with a dial indicator and handle (no text or symbols)

Technical diagram of a steam iron with numbered parts for identification

1.4 معلومات التغليف

Simple line icon of a shirt collar with collared shirt and tie (no text or symbols)

SIM 5124 M - SIM 5124 A - SIM 5124 E

AR
