USER MANUAL VRT 94928 VW BEKO

2Please read this manual first! Dear Customer, Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Ths applance has been produced n envronmentally-frendly, state-of-the-art facltes. Ths product does not contan PCB’S. Follow the instructions by paying attention to all the information and warnings in the user manual. Meanings of the symbols Following symbols are used in various sections of this manual: Important information and useful hints about usage.

Warnings against dangerous situations concerning the security of life and property. Protection class for electric shock.

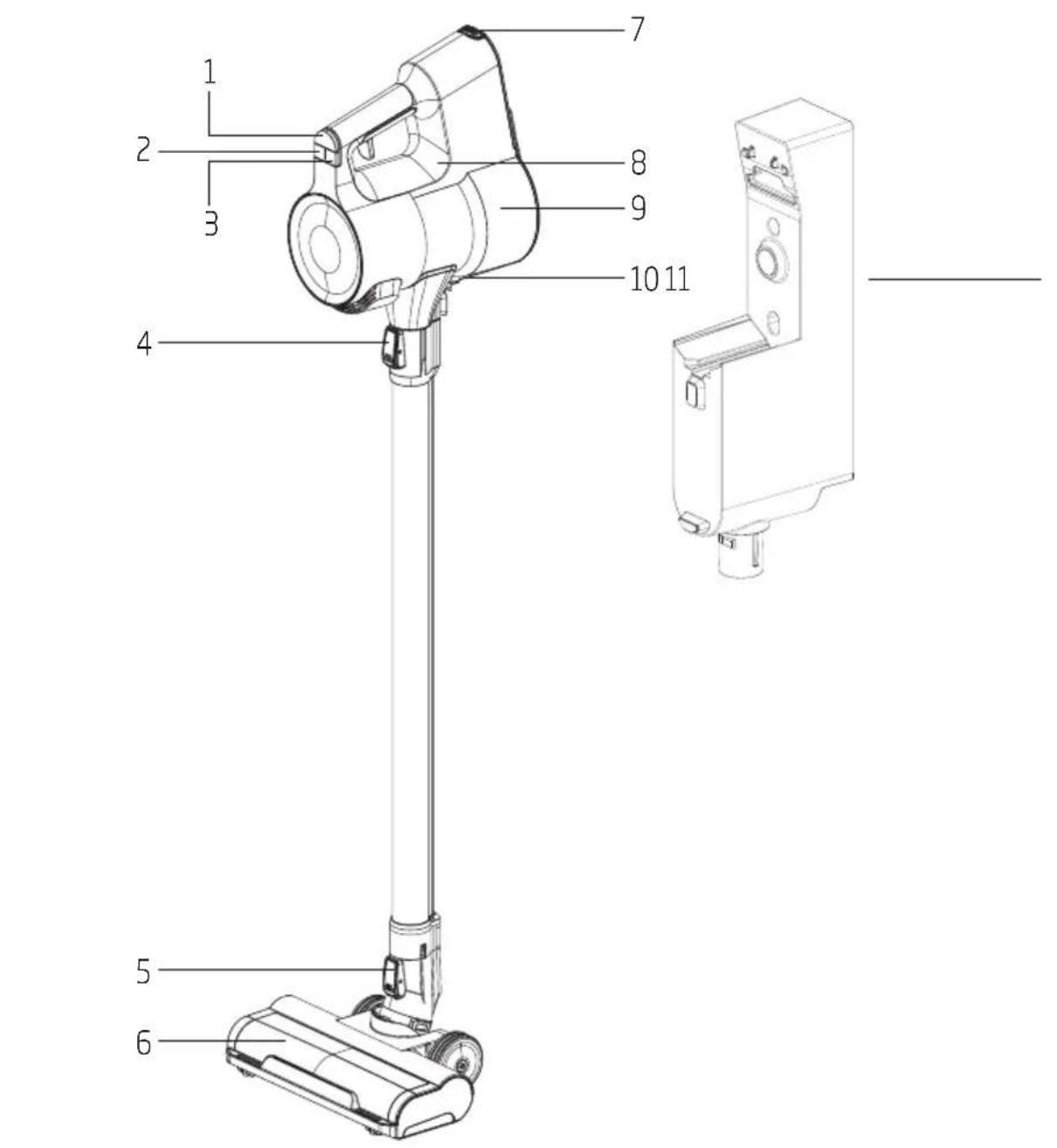

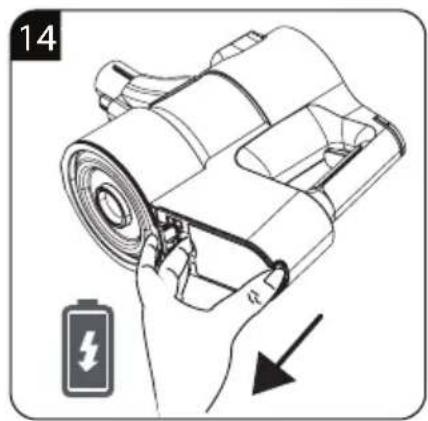

7. Battery pack release button

Output : 36 V 0.6A Chargng tme : 4-5 hours Runnng tme max. power: 7 mn. Runnng tme mn. power to up to: 45 mn. Techncal and desgn modfcatons reserved. The values whch are declared n the markngs affxed on your applance or the other prnted documents suppled wth t represent the values whch were obtaned n the laboratores pursuant to the pertnent standards. These values may vary accordng to the usage of the applance and ambent condtons.Parameter of External Power Supply Manufacturer : Dongguan Yinli Electronics Co.,Ltd Model Identifier : YLS0241A-E360060 Input Voltage : 100-240V~ Input Frequency : 50-60Hz Input Current : 0.8A Output Voltage : 36.0V Output Current : 0.6A Output Power : 21.6W Average active efficiency : 87.19% Efficiency at low load(10%) : 79.58% No-load power consumption : 0.09W10 / 14 EN Cordless Stick Vacuum Cleaner / User Manual 10 / EN This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

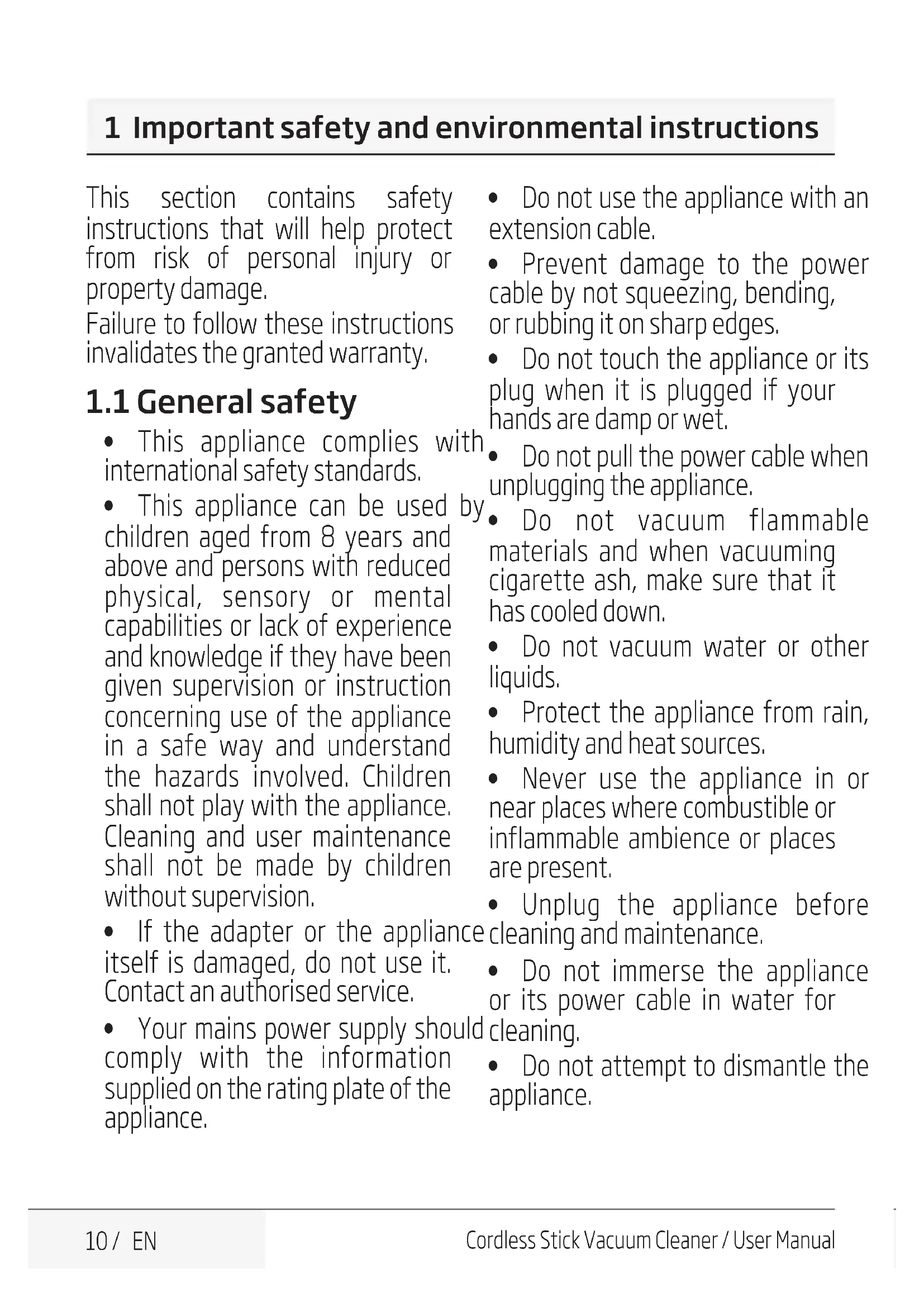

• Ths applance comples wth nternatonal safety standards.

• Ths applance can be used by chldren aged from 8 years and above and persons wth reduced physcal, sensory or mental capabltes or lack of experence and knowledge f they have been gven supervson or nstructon concernng use of the applance n a safe way and understand the hazards nvolved. Chldren shall not play wth the applance. Cleanng and user mantenance shall not be made by chldren wthout supervson.

• If the adapter or the applance tself s damaged, do not use t. Contact an authorsed servce.

• Your mans power supply should comply wth the nformaton suppled on the ratng plate of the applance.

• Do not use the applance wth an extenson cable.

• Prevent damage to the power cable by not squeezng, bendng, or rubbng t on sharp edges.

• Do not touch the applance or ts plug when t s plugged f your hands are damp or wet.

• Do not pull the power cable when unpluggng the applance.

• Do not vacuum flammable materals and when vacuumng cgarette ash, make sure that t has cooled down.

• Do not vacuum water or other lquds.

• Protect the applance from ran, humdty and heat sources.

• Never use the applance n or near places where combustble or nflammable ambence or places are present.

• Unplug the applance before cleanng and mantenance.

• Do not mmerse the applance or ts power cable n water for cleanng.

• Do not attempt to dsmantle the applance. 1 Important safety and environmental instructionsCordless Stick Vacuum Cleaner / User Manual 11 / 14 EN 11 / EN

• Use the original parts or parts recommended by the manufacturer only.

• Do not clean the particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.

• Use the appliance only with the adapter supplied with.

• Do not use the appliance without filters; otherwise it can get damaged.

• If you keep the packaging materials, store them out of the reach of children.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• The appliance is only to be used with the power supply unit provided with the appliance.

• The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance

• If the adapter is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner

• The battery must be removed from the appliance before it is scrapped;

• The appliance must be disconnected from the supply mains when removing the battery;

• Please dispose of used batteries according to local laws and regulations.

• This appliance contains batteries that are only replaceable by skilled persons.

For the purposes of recharging the battery, only use the detachable supply unit YLS0241A-E360060 provided with this appliance.

• Please remove and insert the batteries according to UM. 1 Important safety and environmental instructions12 / 14 EN Cordless Stick Vacuum Cleaner / User Manual 12 / EN

• Rechargeable batteries are to be removed from the appliance before being charged;

• Different types of batteries or new and used batteries are not to be mixed.

• Batteries are to be inserted with the correct polarity.

• Exhausted batteries are to be removed from the appliance and safely disposed of.

• If the appliance is to be stored unused for a long period, the batteries should be removed.

• The supply terminals are not to be short-circuited.

• Only use with ZB1858 battery.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

• Children being supervised not to play with the appliance. 1 Important safety and environmental instructionsCordless Stick Vacuum Cleaner / User Manual 13 / EN 2 Part assemblng

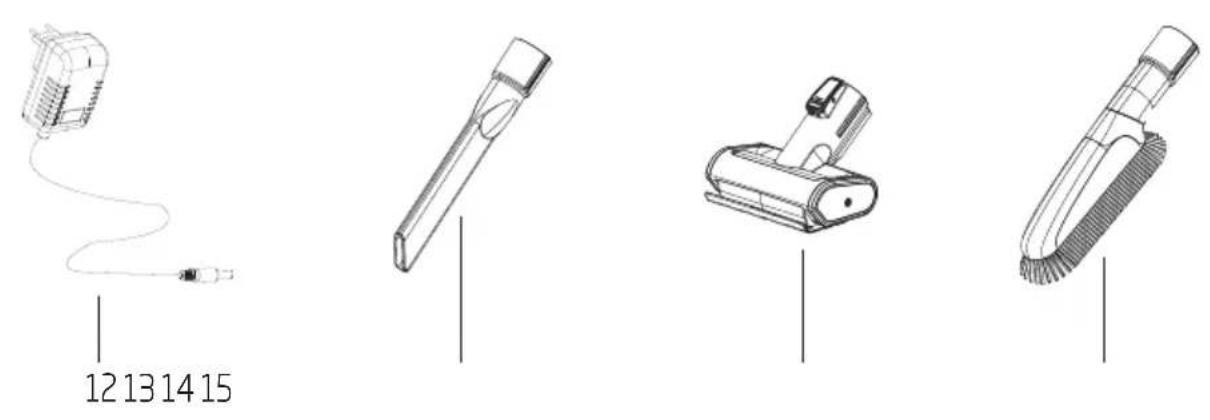

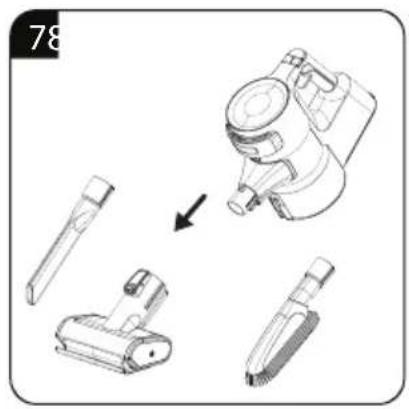

2.1 Crevice (13) and soft brush

(15) Push the round part of the accessory nto the sucton part untl t clcks. Soft brush cleans your furnture wthout harmng t (6-7).

2.2 Mini turbo brush (14)

Push the end of the Mn-brush nto the sucton part untl t clcks. Remove t by pullng the buttons (6).

3.1 Charging Indicator

Workng ChargngFully chargedLower powerPersstent whte lght Blnkng whte lghtPersstent whte lghtBlnkng red lght

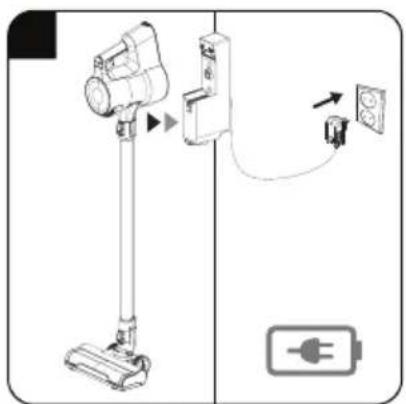

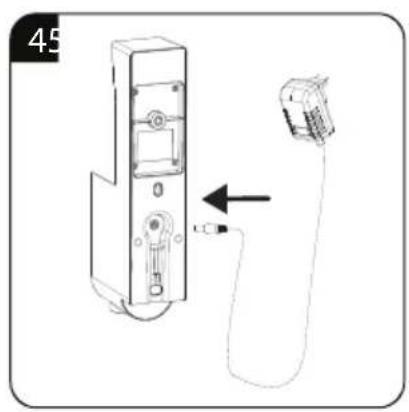

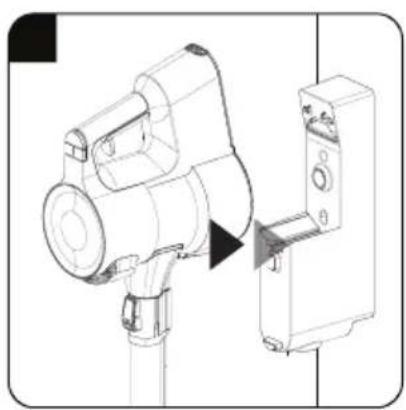

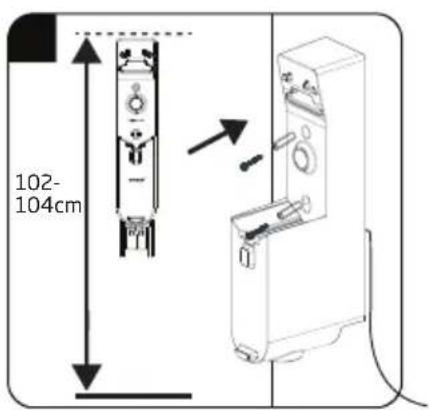

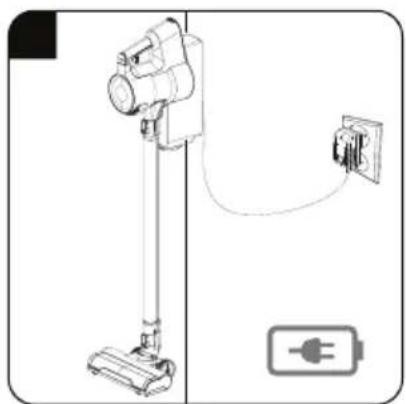

3.2 Charging station (11)

Whle chargng the battery on the chargng dock the charge ndcator flashes whte.

• When you receive this product, please use the charger provided by our company to recharge the battery for 3 hours (no need to charge it full) and the charging frequency should be every 3 months. • Do not place the battery on the charging base for a very long time. • When the battery is not in use for a long time or it is over-discharged, you may find the working time is reduced at the first few times. We recommend you fully charge the battery (usually 6 hours) and discharge it. Repeat this action two times. 3 Use14 / EN Cordless Stick Vacuum Cleaner / User Manual

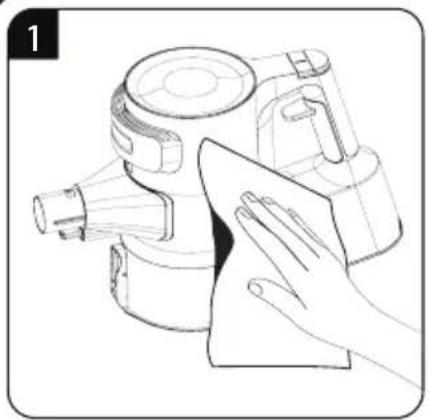

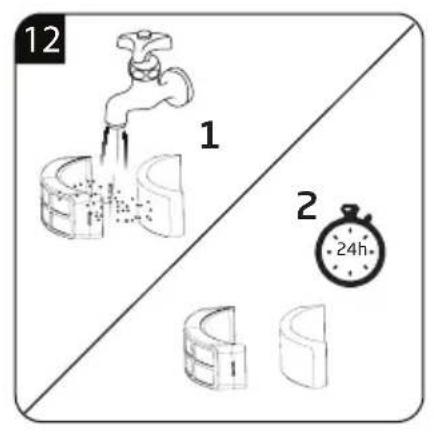

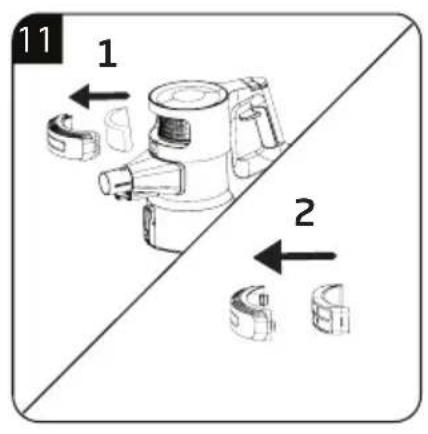

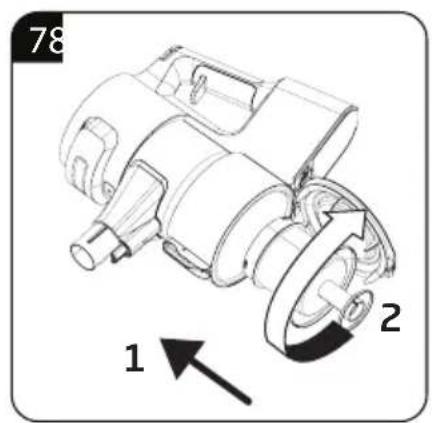

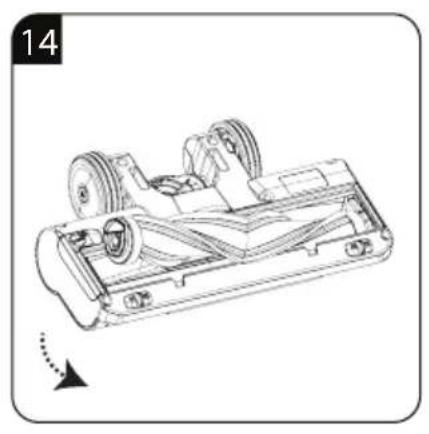

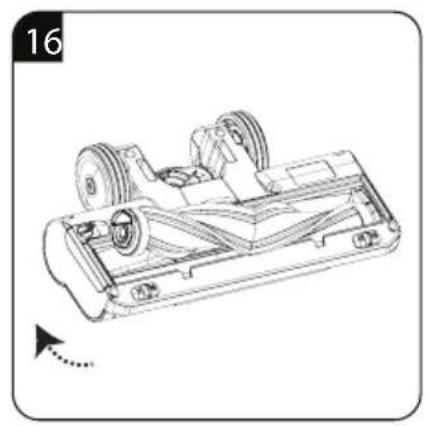

4.1 Cleaning and care

Switch off and unplug the appliance ,before cleaning it.

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

• In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

• If you do not intend to use the appliance for a long time, store it carefully.

• Pull the appliance’s plug out.

• Keep the appliance out of the reach of children.

• Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty.

• Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.

• Dropping the appliance may render it non- operational or cause permanent damage.

4.5 Compliance with the WEEE

Directive and disposal of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. 4 InformatonCordless Stick Vacuum Cleaner / User Manual 15 / EN For commssonng, general use and cleanng, please observe the nstructons on pages 5-6-7 of ths operatng manual.

4.6 Information on waste

batteries This symbol on rechargeable batteries/ batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain recharge able batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batter ies/batteries contain more than 0,0005 % mercury or more than 0,004 % lead. Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be dis- posed of with household waste. Always dispose of used batteries in accordance with local environ- mental regulations. Make enquiries about the ap- plicable disposal regulations where you live.

4.7 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

4.8 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 5 Informaton16 / EN Cordless Stick Vacuum Cleaner / User Manual Common failure Possible cause Solutions The vacuum doesn’t work Product is power off or battery is low Please charge the product before use Product suction port is blocked. Cleaning product suction mouth Suction is too weak Dust barrel & filter assembly is dusty Clean the dustbin and filter material Rolling brush is wrapped around the hair and other objects Clean roller brush Situation still remains Please contact with our after sales team Different motor operation sound The aluminum tube is blocked Clean up the obstacles Situation still remains Please contact with our after sales team Vacuum cleaner in trouble at work Too many obstacles in the cleaning area Manually remove obstacles Product suction port is blocked Clean product suction mouth Situation still remains Please contact with our after sales team Product can not be charged Battery pack and charger interface not connected well Please check and contact well Charger or receptacle is not fully charged or loose Check it and put away Situation still remains Please contact with us Common LED failure Possible cause Solutions The red light flicker Product is power off or battery is low Please charge the product before use The red light flash Brush plugging and the main brush motor is working Clean roller brush Overcharging current is too lager Change the correct adapter The red and white light trading flash when the discharge process The battery pack has a problem Please contact with our after sales team The red and white light trading flash when the charge process The battery pack is not installed well

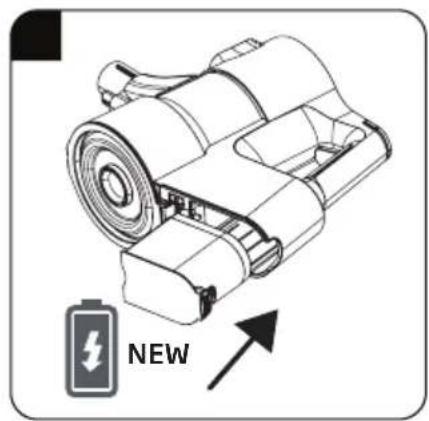

2- Installed the battery pack again

4- Strictly follow the above steps

6 Troubleshooting12 months breakdown and repair guarantee Product Guarantee Guarantor: Beko plc, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8UF The guarantee does not in any way diminish your statutory or legal rights. Your appliance has the benefit of our manufacturer’s guarantee which covers the product for 12 months from the date of original purchase. This gives you reassurance that if within that time, your appliance is proven to be defective because of either workmanship or materials, we will at our discretion either repair or replace your appliance. The appliance must be corr ectly installed, located and operated in accordance with the instructions contained in the user manual. !The guarantor disclaims any liability for accidental or consequential damage. The Guarantee is subject to the following conditions: Documentary proof of the original purchase date is provided. The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions. The appliance is used only on the electricity supply on the rating plate. The appliance has only been used for normal domestic purposes. The appliance has not been altered, serviced, dismantled or otherwise interfered with by any person. The appliance is used in the United Kingdom or Republic of Ireland. Any parts removed during repair work or any product that has been replaced becomes our property. The guarantee is not transferrable if the product is resold. The Guarantee does not cover: Transit, installation or delivery damage. Accidental damage. Misuse or abuse. Replacement of any consumable item or accessories. These include but are not limited to: plugs, cables, light bulbs, knobs, filters and flaps. Repairs or replacements required as a result of unauthorised repairs or inexpert installation that fails to meet the requirements contained in the user guide or instruction book. Repairs to products used in commercial or non-residential household premises. How to obtain after sales service, help or general advice Please keep your purchase receipt or other proof of purchase in a safe place as you will need to show us this document if your product requires attention within the guarantee period. Please also record your product details below, which will allow you to access our services more quickly and help us identify your product. The model number is printed on the front of the user guide and the serial and model number is shown on your products rating plate. Model number Serial number Purchased from Date of purchase
