Product type	Garment steamer (vertical steam iron)
Brand	Beko
Model	STM 3116 W
Power supply	220-240 V~, 50-60 Hz
Rated power	1400-1600 W
Water tank capacity	Approx. 200 ml (estimate)
Continuous steam function	Yes, with steam lock button
Power steam function	Yes, via dedicated button
Automatic shut-off	Yes, after 8 minutes of inactivity
Vertical use	Yes, for hanging clothes and curtains
Included accessory	Brush for thick fabrics
Soleplate type	Not specified (likely metal or ceramic)
Care and cleaning	Empty tank after use; wipe with damp cloth; use tap water
Safety	Automatic shut-off; overheat protection; do not use without water
Spare parts and repairability	Use only original parts; contact authorized service for repairs
Intended use	Household only, for steaming clothes and textiles
Compliance	WEEE and RoHS directives
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - STM 3116 W BEKO

How to use the Beko STM 3116 W garment steamer?

Fill the water tank without exceeding the MAX level, plug in the appliance, press the power switch. Wait for the indicator light to stop flashing (preheating finished). Use in vertical position on hanging clothes, pressing the steam button.

What type of water should I use in the steamer?

Use ordinary tap water. Do not add perfume, vinegar, or chemicals, as they could damage the appliance.

What to do if the steamer does not produce steam?

Check the water level and ensure the tank cover is tightly closed. Press the steam button more firmly. Keep the steamer in vertical position.

The appliance turns off by itself, is this normal?

Yes, the steamer has an automatic shut-off after 8 minutes of inactivity to save energy and ensure safety. Press the switch again to turn it back on.

How to clean the garment steamer?

Unplug the appliance and let it cool down. Empty the water tank after each use. Wipe the exterior surfaces with a damp cloth. Never immerse the appliance in water.

Can I use the steamer on curtains?

Yes, hang the washed and dried curtains according to instructions, then steam them in vertical position.

How to avoid damaging metal accessories on clothes?

Do not direct steam directly onto metal accessories (buttons, zippers). Steam around them to avoid discoloration.

What does a loud humming sound without steam mean?

This usually indicates a lack of water. Check the water level in the tank and refill if necessary. Pump noise is normal when water is low.

Can I use the steamer on upholstery?

Yes, but first test on an inconspicuous area. Use the supplied brush for thick fabrics for best results.

Where can I find spare parts for this model?

Contact an authorized Beko service center. Use only original parts or those recommended by the manufacturer.

USER MANUAL STM 3116 W BEKO

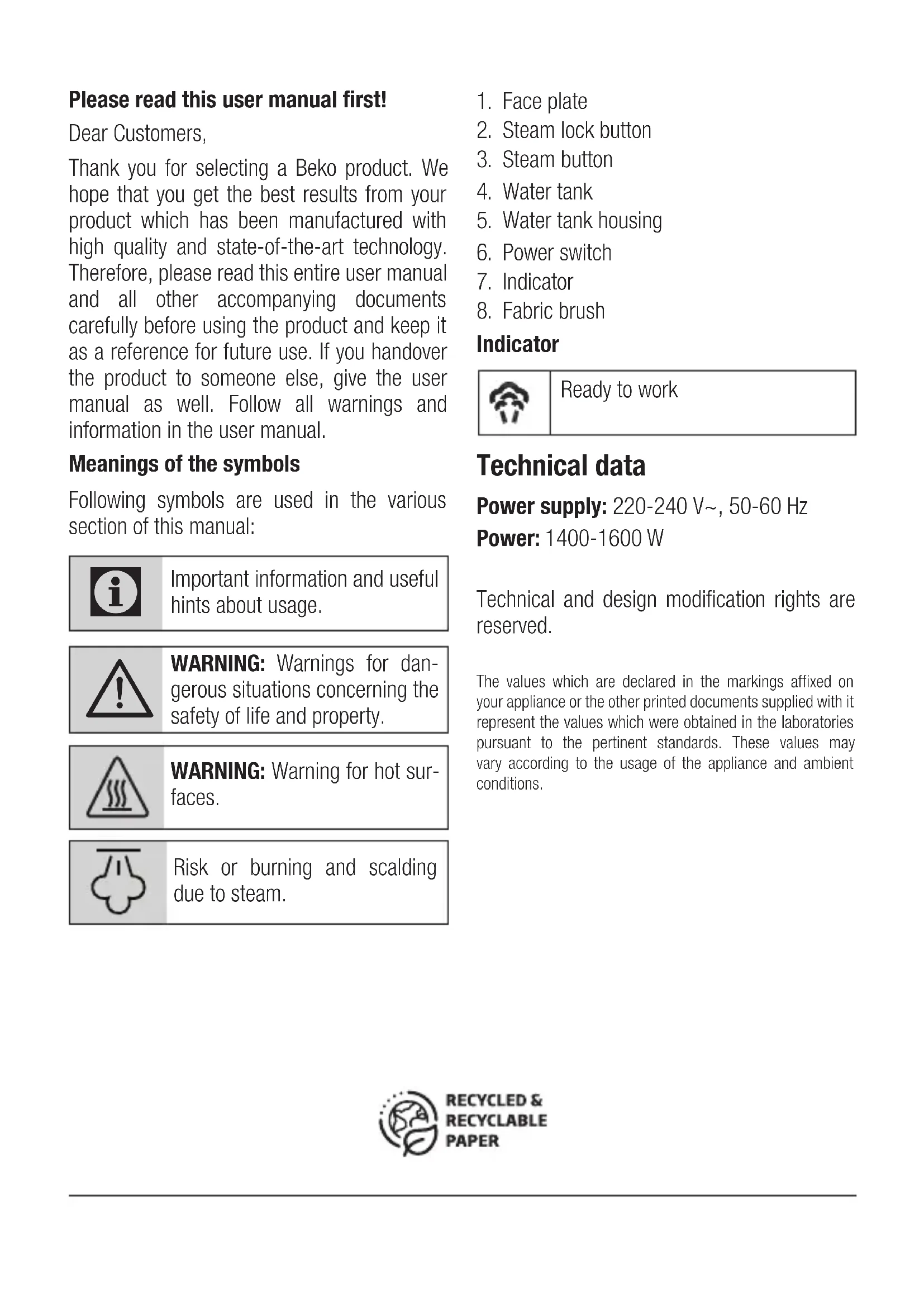

Please read this user manual first!

Dear Customers,

Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

WARNING: Warning for hot surfaces.

Risk or burning and scalding due to steam.

1. Face plate
2. Steam lock button
3. Steam button
4. Water tank
5. Water tank housing
6. Power switch
7. Indicator
8. Fabric brush

Indicator

Ready to work

Technical data

Power supply: 220 - 240V 50 - 60Hz

Power: 1400-1600 W

Technical and design modification rights are reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, and other residential type environments;
• Bed and Breakfast type environments.
  It is not fit for industrial use.

1 Important safety and environmental instructions

• This appliance can be used by children who are at the age of 8 and above and by people who have reduced physical, perceptual or mental abilities or by people who are deficient in terms of experience and knowledge as long as they are supervised and given the instructions regarding the safe use of the appliance and dangers encountered. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are supervised by an older person.

• Unplug the appliance and wait for it to cool before removing or reinstalling the brush accessory.

• Do not put the appliance on its head piece when it is in use or plugged in. Place the appliance on a stable and flat surface.

• Be careful because of the hot steam emission while the appliance is in use.

1 Important safety and environmental instructions

• The appliance may get heated because of the hot steam emission and this may cause burns if you contact it.
• If the appliance is dropped or leaks water or has other failures, contact the authorised service. Do not use the appliance until it is repaired.
• The appliance is not suitable for outdoor use.

• When the appliance is in use or left to cool, keep the appliance and power cable out of the reach of children under 8 years old.

• Only use the original parts or parts recommended by the manufacturer.

• Do not attempt to dismantle the appliance.

• Your mains power supply should comply with the information given on the rating plate of the appliance.
• The mains supply of the appliance should be secured with a 30 ~mA fuse minimum.
• Use the appliance with a grounded outlet.

1 Important safety and environmental instructions

• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning or filling water.
• Do not wrap the cable around the appliance.
• Do not touch the appliance or its plug with damp or wet hands when the appliance is plugged in.
• Do not use the appliance in or near the areas where combustible or inflammable places and materials exist.
• If you keep the packaging materials, store them out of the reach of children.

• Do not leave the appliance unattended while appliance is plugged in.

• Perform water filling according to the instructions.

1 Important safety and environmental instructions

• Do not use the appliance if the power cable or the appliance itself is damaged. Contact an authorised service.
• Unplug the appliance during water filling / draining or when not in use.
• Do not hold the steam to parts containing electrical components such as inside of the furnaces.
• Do not remove the water bin during use.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appli

ance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1 Important safety and environmental instructions

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Intended use

This appliance is intended only for household use, removing the creases on your clothes and for various textile products including curtains; it is not suitable for professional use.

2.2 Before first use

• Remove any sticker or protective cover from the steam head.

• Unwind and straighten the cord before use.

• When operating the garment steamer for the first time, allow it to steam for a few minutes. This will remove any impurities and odours that might have been left by the manufacturing process.

• When operating the garment steamer for the first time, you may want to try the steamer on an old piece of fabric before steaming your garment.

WARNING: To avoid an electrical circuit overload, it is recommended that no other appliances are plugged into the same circuit as your garment steamer when it is in use.

When unpacking the garment steamer, check to see you have received all the items listed in the parts list, before discarding the packaging.

2 Operation

2.3 Assembling/operating your garment steamer

• Do not exceed the MAXIMUM level when filling the water tank.
• Press the power button (6), the display screen icons will blink for once, and then only the steam level icon will blink indicating that the device is heating up. Allow the device to preheat before use. The device is ready for use when the steam icon is lit continuously.
• The garment steamer has an intelligent automatic power off function. When the user stops operating this product for more than 8 minutes of time, the internal control circuit will cut off power supply, and the product will enter standby mode to ensure safety and to save energy.

When there is not enough water in the tank, the pump will automatically stop working within 25-35 seconds (Noise is normal during this process).

2.4 How to steam your garment

It can be used on most fabrics as long as the fabric is hanging or where the garment steamer can be easily used in an upright position moving over the fabric in an up and down motion.

• The garment steamer is designed to be used in an upright position on hanging garments.
• Check garment pockets are empty and turn-ups, such as cuffs and hems, are down.
• We recommend you do not steam over metal accessories. Be cautious and steam around the metal accessories.
• You will feel vibrations and hear a subtle humming sound while steaming; this is normal, steam facing away from you and in an upright position.
• Ensure that the fabric to be steamed is being stretched whilst steaming for best results.

WARNING:

• The garment steamer generates high temperatures of steam. Do not touch the steam head, make sure the steamer is facing away from you in an upright position.
• For better results, use fabric brush (9) attachment.

2 Operation

2.5 To steam curtains

• Wash and dry curtains as directed, according to the fabric type.
• Hang the curtains and steam when they are hanging in place.

2.6 To steam upholstery

• The garment steamer can be used to help freshen up upholstery, slipcovers and cushions. Before steaming, always test on a small area of the subject that is not visible.

• For better results when removing stubborn creases, continuously steam over the selected area until creases are removed.
• Only use attachments or accessories provided.
• If the unit becomes noisy with a loud humming sound and no steam is being generated, check the water level in the water tank. This may indicate that the garment steamer is out of water, and it needs to be refilled.

WARNING:

• If garment has metal accessories, be cautious and do not have garment steamer directly over the metal as this may discolour the metal.
• Always unplug the garment steamer before attaching or detaching the brush.
• Do not use the garment steamer directly on the body, animals, or while wearing the garments.

3 Cleaning and maintenance

3.1 Cleaning and care

• Never use gasoline, solvent and abrasive cleaning agents or hard brush to clean this appliance.
• Do not put the garment steamer in water or any other liquid.
• Do not drop, throw or try to bend the steamer.
• Do not attempt to disassemble the appliance.
• The garment steamer is designed for household use only and to be used with normal tap water. Do not put perfume, vinegar or other chemicals in the tank. The appliance is not designed to work with these chemicals.
• Always empty the water tank after each use and rinse with clean water.
• Wipe outer surfaces with a damp cloth.
• Avoid operating the appliance in humid or moist places.
• Do not locate the appliance near a heat source or direct sunlight.
• Always ensure the steam outlet hole is clean and free from scaling and not blocked.

This garment steamer is designed to use normal tap water.

For commissioning, general use and cleaning, please observe the instructions on pages 5-6 of this operating manual.

4 Troubleshooting

Problem Possible solution
The steamer does not heat up • Check main	plug is inserted correctly. • Check power supply. • Check power button.
The steamer does not produce steam • Check	check the water level and the water tank inlet cover is properly covered. • Press the steam activation button harder. • Hold the steamer in an upright position.
Water spills from the water tank • Make sure	water is not over the MAXI-MUM level. • Make sure water tank inlet cover is properly closed.
The steamer is producing a loud humming or pumping sound	• Check water level; if there is no water or it is low, refill the water tank.
The steamer does not seem to be removing creases easily	• Hold the steamer in an upright position and stretch the fabric downward to ensure best results.
Unsure when to use the brush • Use fabric	brush on delicate fab rics for better results.
Avoiding discoloring of metal accessories on the garment	• Do not directly hover the garment garment steamer over the metal accessories. • Be cautious and steam around the metal accessories.
