ATP3100N - Air purifier BEKO - Free user manual and instructions

Product type	Air purifier
Brand	Beko
Model	ATP3100N
Power supply	Mains adapter 100-240 V~, 50/60 Hz, output 12 V DC, 3 A, 36 W
Filter type	HEPA 13 + activated carbon (2-in-1), non-washable
Pre-filter	Back cover with washable pre-filter
Sensor	Real-time PM2.5
Display	PM2.5 screen (μg/m³)
Operating modes	Normal, Night, Sleep
Fan speeds	4 levels: Sleep, Low, Medium, High
Ionizer	Integrated, automatic operation
Wireless charger	Yes, for compatible smartphones (Qi)
Aroma box	Yes, for essential oils
Filter replacement indicator	Yes (flashing)
Back cover indicator	Yes (flashing if not closed properly)
Power consumption	36 W (nominal)
Adapter efficiency (active)	87.5%
Exterior maintenance	Soft, damp cloth
Pre-filter cleaning	Vacuum or wash (back cover)
HEPA filter replacement	Do not wash, replace per indicator
Safety	Disconnect before maintenance, do not use outdoors
Country of origin	China (P.R.C.)

Frequently Asked Questions - ATP3100N BEKO

How to replace the HEPA filter?

Unplug the device. Open the back cover, remove the old HEPA filter and insert the new one ensuring the side with the band is facing outward. Close the cover.

How often should the HEPA filter be changed?

The HEPA filter should be replaced when the filter replacement indicator flashes. The frequency depends on usage and ambient air quality.

What does the filter replacement indicator mean?

The filter replacement icon flashes to indicate that the HEPA filter needs to be replaced with a new one.

How to clean the air purifier?

Unplug the device. Clean the exterior with a soft, damp cloth. Vacuum or wash the back cover (pre-filter). Never wash the HEPA filter.

Can I wash the HEPA filter?

No, the HEPA filter cannot be washed. It must be replaced when dirty. Only the pre-filter (back cover) is washable.

How to use the wireless charger function?

Place a Qi-compatible smartphone on the wireless charging area located on top of the device. Wireless charging is always active.

What type of essential oil can I use in the aroma box?

You can use your own essential oil. Put a few drops into the filling opening of the aroma box, then place the box on the purifier.

What to do if the back cover indicator flashes?

Make sure the back cover is properly closed. The device will not operate if the cover is not in place.

Does the air purifier operate continuously?

Yes, you can leave it on continuously. It has Night and Sleep modes to reduce noise and consumption.

What is the power consumption of the device?

The nominal power is 36 W. The mains adapter has an average efficiency of 87.5% in active mode.

USER MANUAL ATP3100N BEKO

EN-DE-FR-IT-RO-NL-PL-CZ

CONTENTS

ENGLISH04-16

DEUTSCH17-31

FRANÇAIS32-46

ITALIANO47-62

ROMÂNĂ 63-79

NEDERLANDS 80-94

POLSKI 95-109

ČEŠTINA 110-124

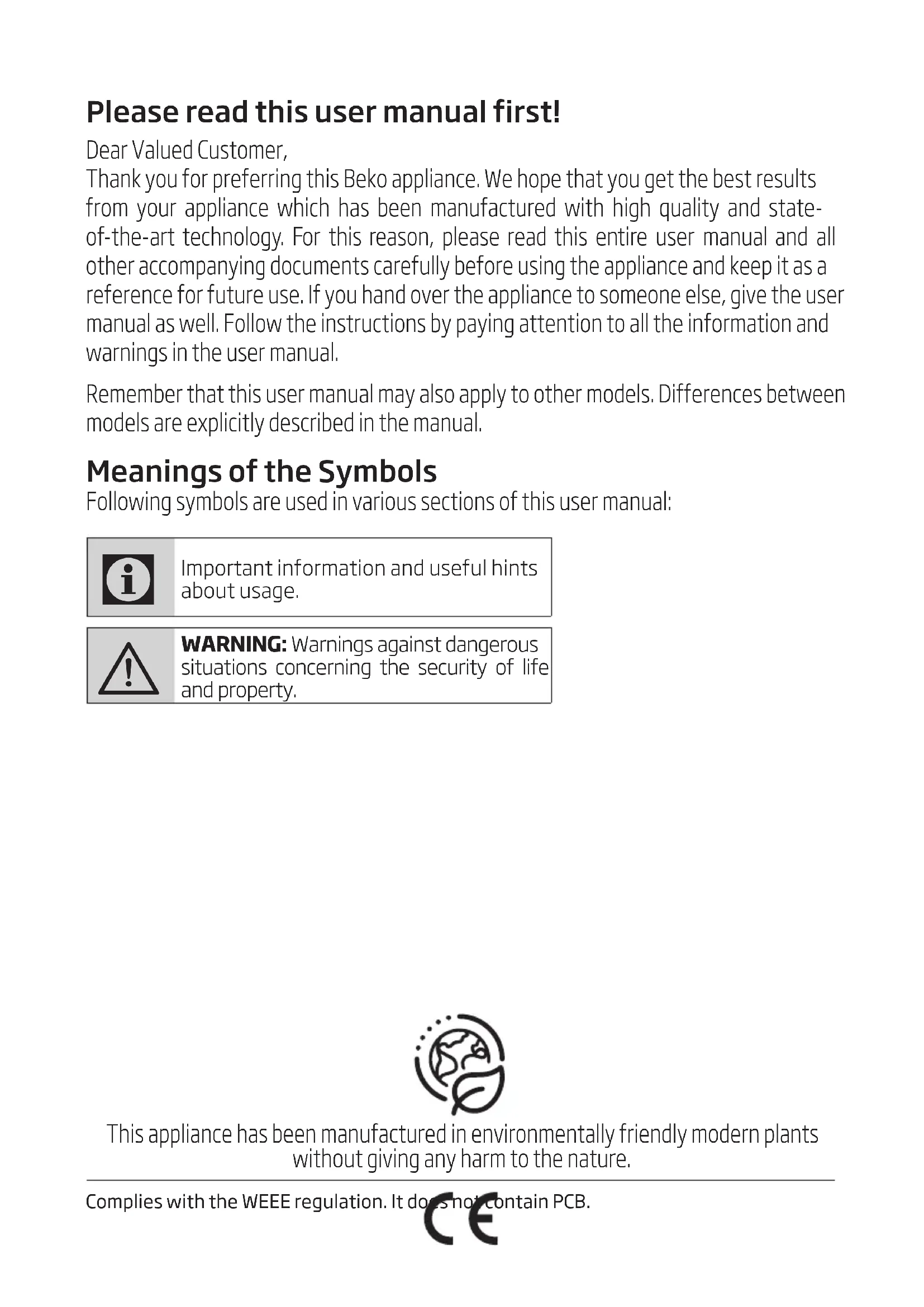

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

1 Important safety and environmental instructions

NOTE: Before reading these instructions, please view the corresponding illustrations. (fig.1/Page7)

NOTE: Carefully read and retain all instructions before using the air purifier.

1.1 General Safety

- Check if the voltage indicated on the appliance corresponding to the local mains voltage before you connect the appliance.

- The appliance is only to be used with the power supply unit provided with the appliance.

- To avoid fire hazard, never put the cord under rugs, or near any heat source.

- Carefully discard any plastic wrapping that was used for the packaging.

- Do not use the air purifier outside.

- Do not place the unit near any heat source or in direct sunlight.

- Always unplug the air purifier before removing the grill, changing the filters, cleaning the air purifier or whenever it is not in use.

- Do not use in or around water or any other liquids. Do not attempt to wash the unit under running water.

- Use appliance only for intended house hold use as described in this manual.

- Ensure that all air openings are not restricted or covered in any way.

• Do not place anything on top of the unit.
• Never insert any object into any openings.
• Do not use the air purifier if any part is missing or damaged in any way.

- Do not attempt to repair or adjust any mechanical functions of this unit. If the unit becomes damaged call the service number on the back of this manual.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The air purifier contains no user serviceable parts and should the product suffer damage or breakdown call the service number on the back of this manual.

- Should the air purifier stop working, first check the fuse/circuit breaker at the distribution board is operating, before contacting the place of purchase.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given super-vision or instruction concerning use of the appliance by a person responsible for their safety.

1 Important safety and environmental instructions

- Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

- This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.
• Save these instructions

CAUTION: To prevent risk of electric shock, remove cord plug from outlet before activating the appliance. To prevent risk of fire, inspect and clean equipment regularly as noted in this manual.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each house hold performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain

1 Important safety and environmental instructions

harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Cleaning And Maintenance

1. Turn the air purifier off and unplug it before cleaning.
2. The outside of the air purifier can be cleaned with a soft, clean dampened cloth.
3. The air outlet and air inlet grill can be cleaned of dust with a small, soft brush.
4. If you wish to clean the inside of the air purifier, please only use a dry, soft cloth to wipe it down.
5. Wash the back cover by following the operation described in the section of "VACUUM OR WASH THE BACK COVER."
6. Do not wash the HEPA filter.

WARNING!

Do not allow moisture to come in contact with the body of the air purifier.

1.6 Vacuum or Wash Back cover with Pre-filter

Occasionally vacuum the back cover with pre-filter to remove dust. Always unplug the unit before removing the back cover.

1. Carefully open the back cover.
2. Remove the back cover from body
3. Washing the back cover.
4. After the back cover with pre-filter is cleaned well and dried cover the back cover.

1.7 Conformity declaration for CE

Frequency Band	2.400-2484 GHz
Maks. Transmission Power	< 100 mW
Arcelik A.S. hereby declares that this appliance complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available in the following internet address:— Products, from : support.beko.com

2 How The Air Purifier Works

The air purifier removes up to 99.97% of airborne allergens as small as 0.3 microns, including ragweed pollen, grass pollen, tree pollen, household dust, dust mite debris, pet dander, smoke and odour from the air passing through the filter.

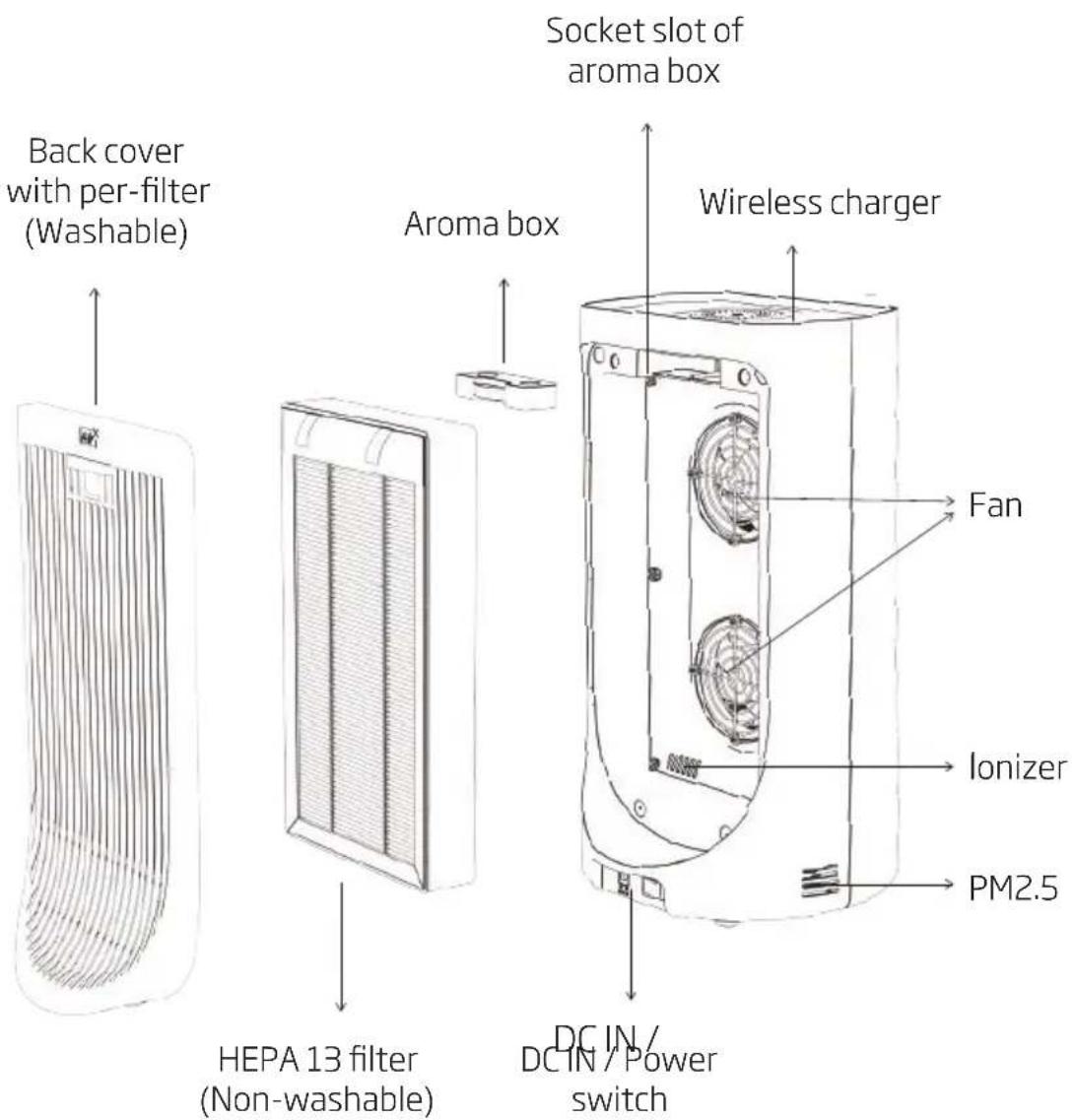

3 Know Your Air Purifier

Back cover with per-filter (Washable) Socket slot of aroma box Aroma box Wireless charger HEPA 13 filter (Non-washable) DC IN / DC IN / Power switch Fan Ionizer PM2.5

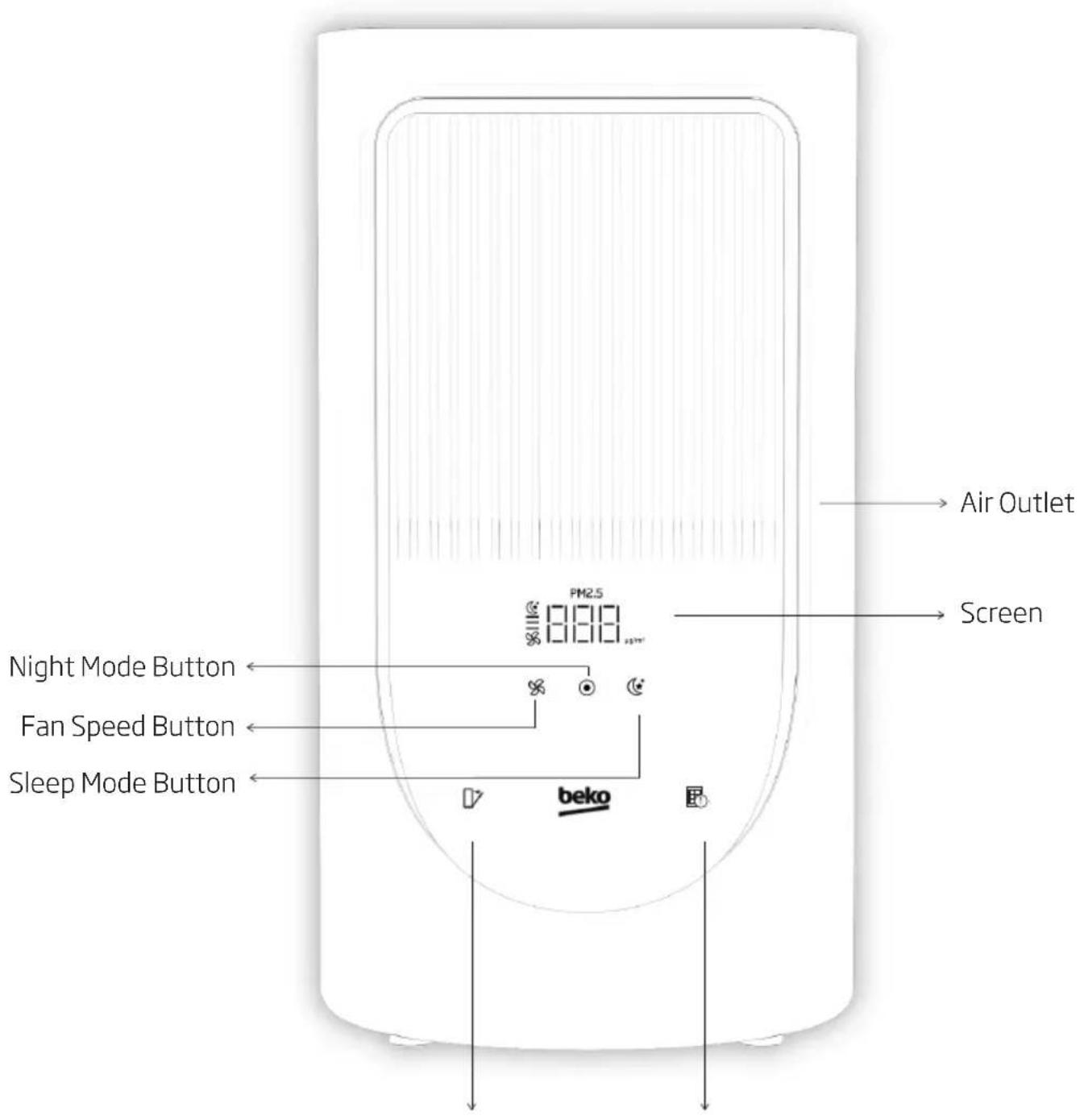

4 Control Panel Introduction

Air Outlet Screen PM2.5 Night Mode Button Fan Speed Button Sleep Mode Button beko

Filter change indicatorBack cover indicator

5 Operating Instructions

• Carefully unpack your air purifier.
• Select a firm level place where there are no obstructions to the air inlet grill or air outlet.
• Remove all PE bags from filters before use.
• Do not point air outlet towards wall.

6 Introduction for Operation

Power Button

Push the Power button, the machine will start running under the default Medium fan setting, and the indicator Medium fan setting will illuminate.

Power Button

Fan speed button

There are 4 speed setting including Sleep, Low, Medium and High fan levels for selection. Touch the Fan speed button to select your desired speed setting. The default air speed is medium level

Night Mode

Only the wireless charging and lonizer work on this mode. All icons are off.

Sleep Mode

On this mode, fan speed is sleep level.

Back cover indicator

Make sure that the back cover is completely closed before operating. Other wise, If the icon blinks, the machine is not operating.

Filter change indicator

If this icon starts blinking, HEPA filter is needed to be changed with the new one.

6 Introduction for Operation

PM2.5 Display

This Air Purifier has PM2.5 dust sensor which detect the PM2.5 level of the current environment in real time. The PM2.5 display shows the real time PM2.5 level.

PM2.5

12121 12121 μg/m³

Wireless Charger

Wireless charging unit is always on.

WARNING!

Compatible with smart phones that support wireless charging feature.

Technical line drawing of a circular mechanical component with concentric rings and a flat top surface (no text or symbols)

Remarks:

• Automatic operation of lonizer and releases negative ions into outgoing filtered air to help the air purification process.

- Always unplug the unit before removing the back cover and take out the dirty filter and put new one. When installing filter, please ensure that the strip side is facing out.

Simple line drawing of a rectangular box with vertical striped pattern and a small notch, enclosed in a circle (no text or symbols)

- Always unplug the unit before removing the back cover and take out the aroma box. Please drop your own essential oil into the "filling mouth" of the fragrance box and put the aroma box onto the air purifier body.

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

6 Introduction for Operation

Category AIR QUALITY INDEX	Particulate Matter (μg/m3) PM2.5
Good Up to 50 0-12.0
Moderate 51-100 12.1-35.4
Unhealthy for Sensitive Groups	101-150 35.5-55.4
Unhealthy 151-200 55.5-150.4
Very Unhealthy 201-300	150.5-250.4
Hazardous 301-500 250.5-500.4

*Table: Cautionary Statements for Guidance on the Air Quality index (AQI) and PM2.5 level. (According to U.S. Environmental Protection Agency (EPA) Office of Air Quality Planning and S Reporting of Daily Air Quality- the Air Quality Index (AQI). EPA 454/B-18-007. September 20 assistance-document-sept2018.pdf)

7 Operation of Air Purifier

Buttons and Fuctions
Icon Operation Button Name Function description
	Long press	Normal Mode	lonizer, wireless charging, PM2.5 sensor and fan work normally.
		Night Mode	lonizer and wireless charger work normally. The fan, PM2.5 sensor are off.
	Short press Sleep Mode		lonizer, wireless charging, PM2.5 sensor and fan work normally.Fan speed level is sleep level.
	Short press Fan level 1-2-3 Fan speed settings.
Default operation mode is normal mode and fan level is 2.

8 Changing the HEPA Filter

NOTE: Always unplug the unit before changing the HEPA filter.

1. When the filter change indicator illuminates it's time to change the HEPA filter.
2. Turn off the unit and unplug it.
3. Carefully remove the back cover.
4. Remove the HEPA filter out.
5. Replace a new HEPA filter.
6. Cover the back cover.

9 Troubleshooting

Problem Solution
Back cover indicator blink	☐ Please make sure closed that the back cover is closed.
Filter change indicator blink	☐ Please replaced the filter.
The phone can not be charge on wireless charging area	☐ Please check the suitability of your phone with wireless charging
Unit will not operate. ☐ Check to	make sure the unit is plugged in.☐ Check to make sure the unit is on.☐ Check condition of the filter and replace if necessary.☐ Check to ensure nothing is blocking the air inlet and filtered air outlet.☐ Be sure the plastic bag has been removed from the filter.
Decreased air flow.

10 Technical Data

Technical and design modifications reserved.
Made in P.R.C.
Model no: ATP3100N
Rated Power: 36 W
Contact details for obtaining more information:	Arcelik A.S. SUTLUCE, Karaagac cad. 2-6, 34445 Beyoglu Istanbul Türkei
Parameter of external power supply
Manufacturer: E-TEK Electronics Manufactory Co.,Ltd.
Model identifier: ZD36W120300D
Input Voltage: 100-240V~
Input Frequency: 50/60 Hz
Input Current: 1.0 A
Output Voltage: 12.0 V DC
Output Current: 3.0 A
Output Power: 36.0 W
Average active efficiency: 87.5 %
Efficiency at low load (10%): 86.0 %
No-load power consumption: 0.08 W

10 Technical Data

Parameter of external power supply
Manufacturer: Foshan Shunde Guanyuda Power Supply Co., Ltd.
Model identifier: GM39-120300-D
Input Voltage: 100-240V~
Input Frequency: 50/60 Hz
Input Current: 1.5 A
Output Voltage: 12.0 V DC
Output Current: 3.0 A
Output Power: 36.0 W
Average active efficiency: 88.08 %
Efficiency at low load (10%): 87.5 %
No-load power consumption: 0.057 W

10

Technical Data

Importer in PolandImporter w PolsceBeko S.A.ul. Puławska 36602-819 Warszawawww.beko.pl	Importer in Czech RepublicDovozce do České republikyBEKO S.A., organizační složkaBucharova 1423/6,Praha 13 – Nové Butovice, 158 00www.bekocr.cz	Importer in SlovakiaDovozca na SlovenskoBEKO Slovakia s.r.o.Suché myto 1811 03 Bratislavawww.bekosk.sk	Importer in EstoniaImportija EestiBeko S.A.Tānav Puławska 36602-819 Varssavi (Poola)		Importer in NorwayKarenslyst Allè 20278 Oslo
Importer in UKBEKO Plc, Beko House,1 Greenhill Crescent,Watford, Herts,WD18 8QU	Importer in GermanyBeko Grundig Deutschland GmbHThomas-Edison-Platz 363263 Neu-Isenburg		KSA ImporterHUSSEIN & ALHASSAN G. SHAKERBROS. FOR MODERN TRADING CO. LTD.Hail Street - Al Bughdadiyah AIGharbeyah District Shaker Building - 6th floor([phone]		Importer in FranceBEKO France / ImmeubleStadium, 266, Avenue duPrésident Wilson 93218La Plaine Saint-Denis Cedex
Importer in SpainBEKO ELECTRONICSESPANA S.L.C / Provenza,388. 3a planta, 08025Barcelona	Importer for MaltaETV LTD119/120Archbishop StreetVALLETTA MALTA	Importer in LatviaImportētāja LatvijāBeko S.A.Ielas Puławska 36602-819 Varšava (Polija)	Importer in SwitzerlandSecomp AGGrindelstrasse 6CH-8303 BassersdorfSwitzerland		Importer in LithuaniaImportuotojas LietuvojeBeko S.A.Gatvé Puławska 36602-819 Varšuva (Lenkija)
importer in AustriaELEKTRA BREGENZ AGPFARRGASSE 77VIENNA post code 1230	Importer in SwedenGrundig Nordic ABKlarabergsviaduktenSE-11164 Stockholm	Importer in HungaryHauser Magyarorszag imitedBaross utca 89 PC: 2040Budaörs / Hungary	Importer in SloveniaBIG BANG, D.O.O.Šmartinska cesta 152PC: 1000Ljubljana/Slovenia		Importer in ItalyBEKO ITALY SRLViale Del Ghisallo,20/I-20151 Milano (MI)
importer in RomaniaARCTIC S.A.Str. 13 Decembrie, nr.210Găești, 135200, Româniawww.arctic.ro	Importer in BelgiumAsogem NV/SASchalienhoevedreef 262800 Mechelen Belgium	Importer in GreecePAR. SEITANIDIS S.A.Polistilo, P.O. Box:1402Kavala, 64003	Importer in BulgariaVIDEOLUX Ltd.265, Okolovrasten pat Str.Mladost 4,1766 Sofia, Bulgaria		Importer in CroatiaE PLUS doo ZA Unutarnju /GOSPODARSKA 16c /10225 GORNJISTUPNIK / ZAGREP
Importer in Russia Импортер на территории РФ: ООО «БЕКО», РФ, 601021, Владимирская обл., Киржачский р-НМуниципальное образование сельское поселение Першинское, дер. Федоровское, ул. Сельская, д. 49Бесплатная линия сервисного обслуживания и информационной поддержки по установке и эксплуатации (только длязвонков по России) 8-800-200-23-56Изготовитель: Arcelik A.Ş. Турция, Karaagac Caddesi No: 2-6 Istanbul 34445 Sutluce, Istanbul
Виробник: “Arçelik A.S.” Karaağaç Caddesi No: 2-6 Sütlüce, 34445,Turkey/ “Arçelik A.S.”, м. Стамбул, Сютлюдже, вул.Караагач No 2-6, 34445, Туреччина, Термін служби 10 роківИмпортер на території України: ТОВ «Беко Україна», адреса:03150, м. Київ, вул. Антоновича, буд. 72тел/факс.:[phone]
Manufactured by Arcelik A.S. Karaagac Cd. No:2-6 34445 Sutluce, Beyoglu, Istanbul, Turkey SDA-HVAC-01-21-06

Technical line drawing of a circular mechanical component with concentric rings and a central hole (no text or symbols)

Anmerkungen:

Diagram of a rectangular box with vertical striped pattern and a small notch, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

Circular diagram with concentric rings and a radial structure, no text or symbols present

Remarques :

Simple line drawing of a rectangular box with vertical striped pattern and a small notch, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

Technical line drawing of a circular mechanical component with concentric rings and a central hole (no text or symbols)

Consigli:

Simple line drawing of a rectangular box with vertical striped pattern and a small cutout, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

*Tabella: Cautionary Statements for Guidance on the Air Quality Index (AQI) and PM2.5 level, (According to U.S. Environmental Protection Agency (EPA) Office of Air Quality Planning and S Reporting of Daily Air Quality - the Air Quality Index (AQI), EPA 454/B-18-007, September 20 assistance-document-sept2018.pdf)

Buton Power

Indicator Back cover (Capac spate)

Technical line drawing of a circular mechanical component with concentric rings and a top surface (no text or symbols)

Observații:

Simple line drawing of a rectangular box with vertical striped pattern and a small cutout, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

Pure technical diagram of a circular component with concentric rings and a central hole, no text or symbols present.

Opmerkingen:

Simple line drawing of a rectangular box with vertical lines and a slot, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

Technical line drawing of a circular mechanical component with concentric rings and a flat top (no text or symbols)

Uwagi:

Simple line drawing of a rectangular box with vertical striped pattern and a small notch, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

Technical line drawing of a circular mechanical component with concentric rings and a top panel (no text or symbols)

Poznámky:

Simple line drawing of a rectangular box with vertical slats, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical bracket and housing component (no text or symbols)

6 Úvod k obsluze

Beyoglu, Istanbul, Turkiye

www.beko.com
