Product Type	Air Purifier
Brand	Beko
Model	ATP7100I
Power Supply	100-240 V~, 50/60 Hz
Rated Power	36 W
Filtration Technology	HEPA Filter + Washable Pre-filter
Filtration Efficiency	Up to 99.90% of particles of 0.3 microns
Fan Speeds	4: Low, Medium, High, Auto
Timer	2h, 4h, 8h
Ionizer	Yes, independent switch
Dust Sensor	Yes, built-in
Air Quality Indicator	Blue (very good), Pink (good), Red (bad)
Sleep Mode	Yes, activation by long press on the Power button
Filter Replacement Indicator	Yes, white light
Pre-filter Cleaning	Machine washable
Usage Type	Domestic
Country of Manufacture	P.R.C. (China)
Weight	Approximately 5 kg

Frequently Asked Questions - ATP7100I BEKO

How to clean the pre-filter?

To clean the pre-filter, first unplug the device. Remove the pre-filter from the HEPA filter by turning the body counterclockwise. Machine wash the pre-filter, dry it thoroughly, then reassemble.

How often should I replace the HEPA filter?

Replace the HEPA filter when the filter replacement indicator lights up white. Follow the manual instructions to install the new filter and reset the indicator.

What do the colors of the air quality indicator mean?

The indicator displays: Blue for very good air quality, Pink for good quality, and Red for poor quality.

How to activate sleep mode?

Press and hold the Power button for 2 seconds to enter sleep mode (LEDs turn off). Repeat to return to previous mode.

Can I use the air purifier outdoors?

No, the air purifier is designed for indoor domestic use only. Do not use it outdoors.

What to do if the device does not work?

Check that the device is plugged in and turned on. Make sure the filter is not blocked and that the plastic packaging of the filter has been removed. If the problem persists, contact customer service.

How to reset the filter replacement indicator?

After installing a new HEPA filter, press and hold the Power and Timer buttons simultaneously for 3 seconds. The indicator will reset.

Does the air purifier make a loud noise?

The noise level varies by fan speed. In low mode, it's quiet. In high mode, the noise is more noticeable but still acceptable for domestic use.

Can I wash the HEPA filter?

No, the HEPA filter should not be washed. Replace it when the replacement indicator lights up. Only the fabric pre-filter is washable.

How does the dust sensor work?

The smart dust sensor automatically detects the ambient air quality. Based on this, the air quality indicator changes color (blue, pink, or red) and the AUTO setting adjusts the fan speed.

USER MANUAL ATP7100I BEKO

White cylindrical electronic device with perforated grille and top lid (no visible text or symbols)

ATP 7100 I

EN DE FR|IT NL|RO |

01M-8895663200-4520-01

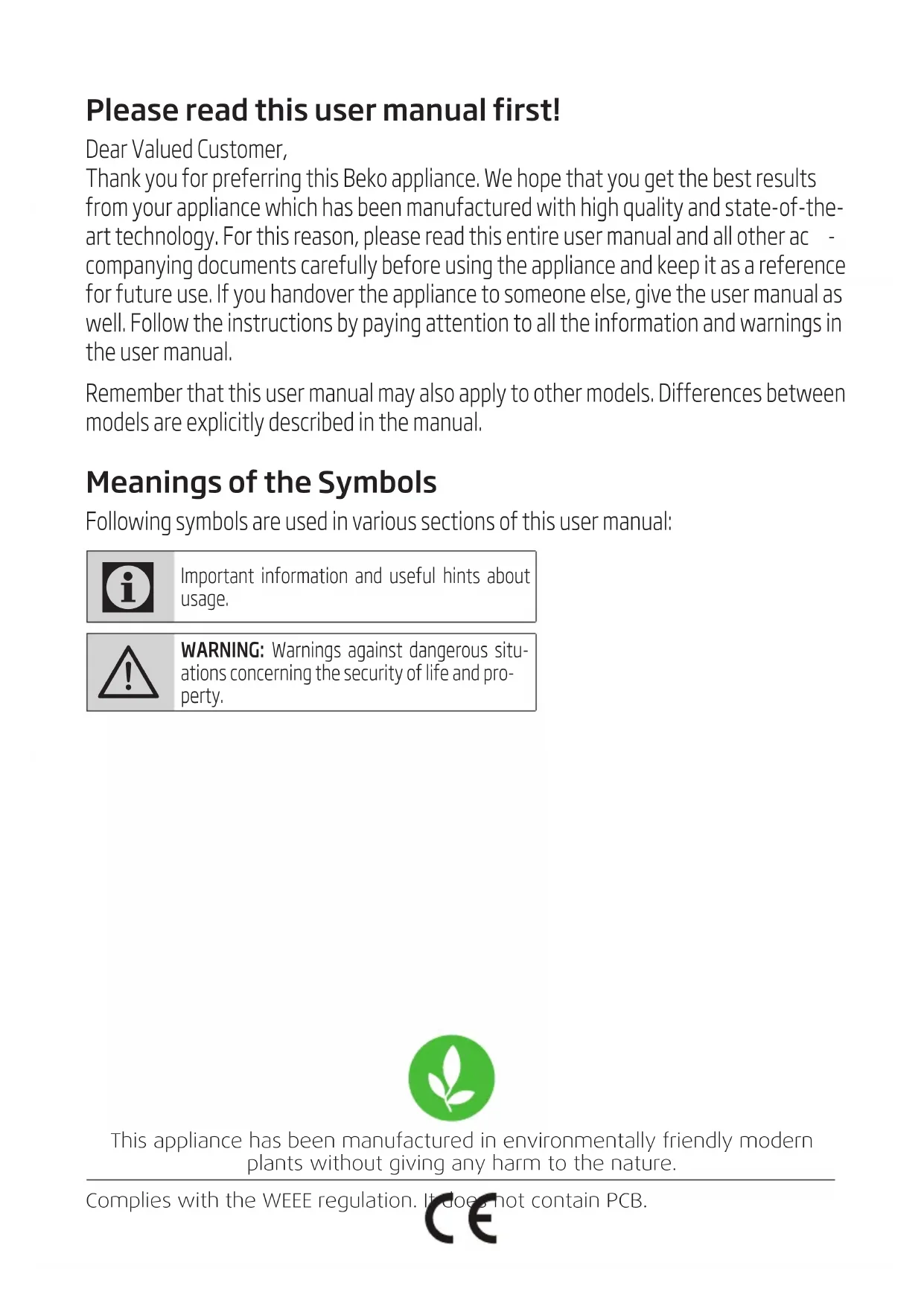

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other ac -companying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH 04-14

DEUTSCH 15-27

FRANÇAIS 28-40

ITALIANO 41-54

NEDERLANDS 55-67

ROMÂNĂ 68-80

1 Important Safety and Environmental Instructions

NOTE: Before reading these instructions, please view the corresponding illustrations. (fig.1/Page7)

NOTE: With proper care and use, this air purifier will give you fresh, clean air for many years.

1.1 General Safety

• Check if the voltage indicated on the appliance corresponding to the local mains voltage before you connect the appliance.
• To avoid fire hazard, never put the cord under rugs, or near any heat source.
• Carefully discard any plastic wrapping that was used for the packaging.
• Do not use the air purifier outside.
• Do not place the unit near any heat source or in direct sunlight.
  •Always unplug the air purifier before removing the grill, changing the filters, cleaning the air purifier or whenever it is not in use.
• Do not use in or around water or any other liquids. Do not attempt to wash the unit under running water.
• Use appliance only for intended household use as described in this manual.
• Ensure that all air openings are

not restricted or covered in any way.

• Do not place anything on top of the unit.
• Never insert any object into any openings.
• Do not use the air purifier if any part is missing or damaged in any way.
• Do not attempt to repair or adjust any mechanical functions of this unit. If the unit becomes damaged call the service number on the back of this manual.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The air purifier contains no user serviceable parts and should the product suffer damage or break - down call the service number on the back of this manual.
• Should the air purifier stop working, first check the fuse/circuit breaker at the distribution board is operating, before contacting the place of purchase.
• This appliance is not intended for use by persons (including children) with reduced physical, sen-

1 Important Safety and Environmental Instructions

sory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.
• Save these instructions

CAUTION: To prevent risk of electric shock, remove cord plug from outlet before activating the appliance. To prevent risk of fire, inspect and clean equipment regularly as noted in this manual.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive

(2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product

shall not be disposed with other household wastes at

the end of its service

1 Important Safety and Environmental Instructions

life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the pack-

aging material collection points designated by the local authorities.

1.5 Cleaning And Main-tenance

1. Turn the air purifier off and unplug it before cleaning.
2. The outside of the air purifier can be cleaned with a soft, clean dampened cloth.
3. The air outlet and air inlet grill can be cleaned of dust with a small, soft brush.
4. If you wish to clean the inside of the air purifier, please only use a dry, soft cloth to wipe it down.
5. Wash the Pre-filter by following the operation described in the section of "VACUUM OR WASH THE PRE-FILTER".
6. Do not wash the HEPA filter.

WARNING: Do not allow moisture to come in contact with the body of the air purifier.

1 Important Safety and Environmental Instructions

1.6 Vacuum Or Wash The Pre-filter

Occasionally vacuum the exterior of the fabric pre-filter to remove dust. Always unplug the unit before removing the fabric pre-filter.

1. Carefully rotate the body anti-clockwise and remove it from the air inlet grill.

2. Remove the pre-filter from the HEPA filter.

3. Wash the pre-filter in the washing machine.

4. After the pre-filter is cleaned well and dried, attach the pre-filter onto the HEPA filter.
5. Carefully put the HEPA filter with pre-filter into the air inlet grill.
6. Put the body onto the air inlet grill, then rotate the body clockwise until the fastener locks into the groove.

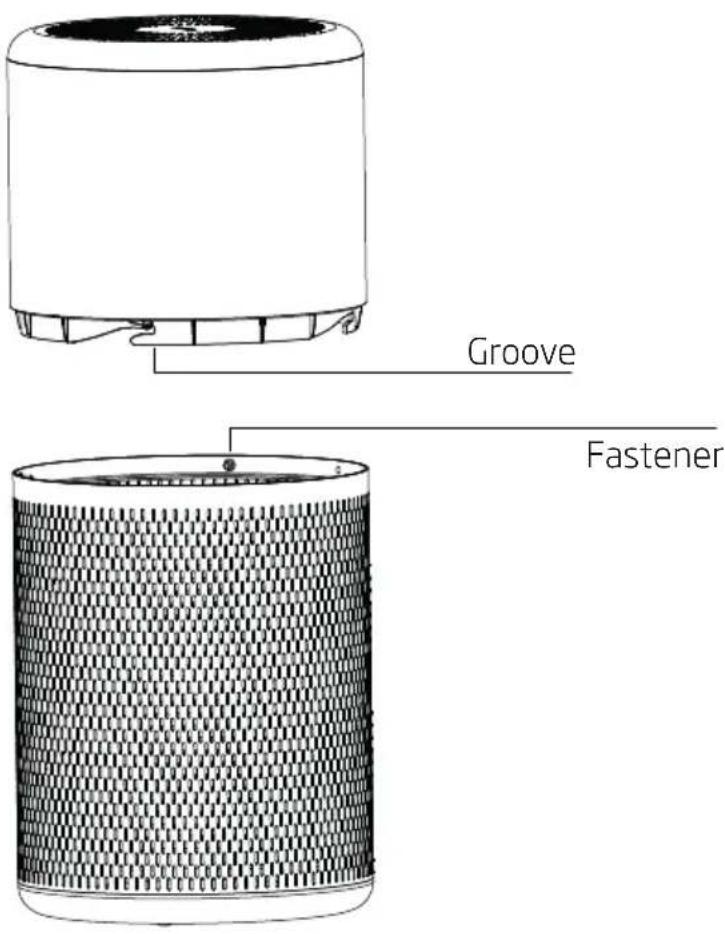

Groove Fastener

Fig.1

2 How The Air Purifier Works

The air purifier removes up to 99.90% of airborne as small as 0.3 microns, including ragweed pollen, grass pollen, tree pollen, household dust, dust mite debris, pet dander and hair.

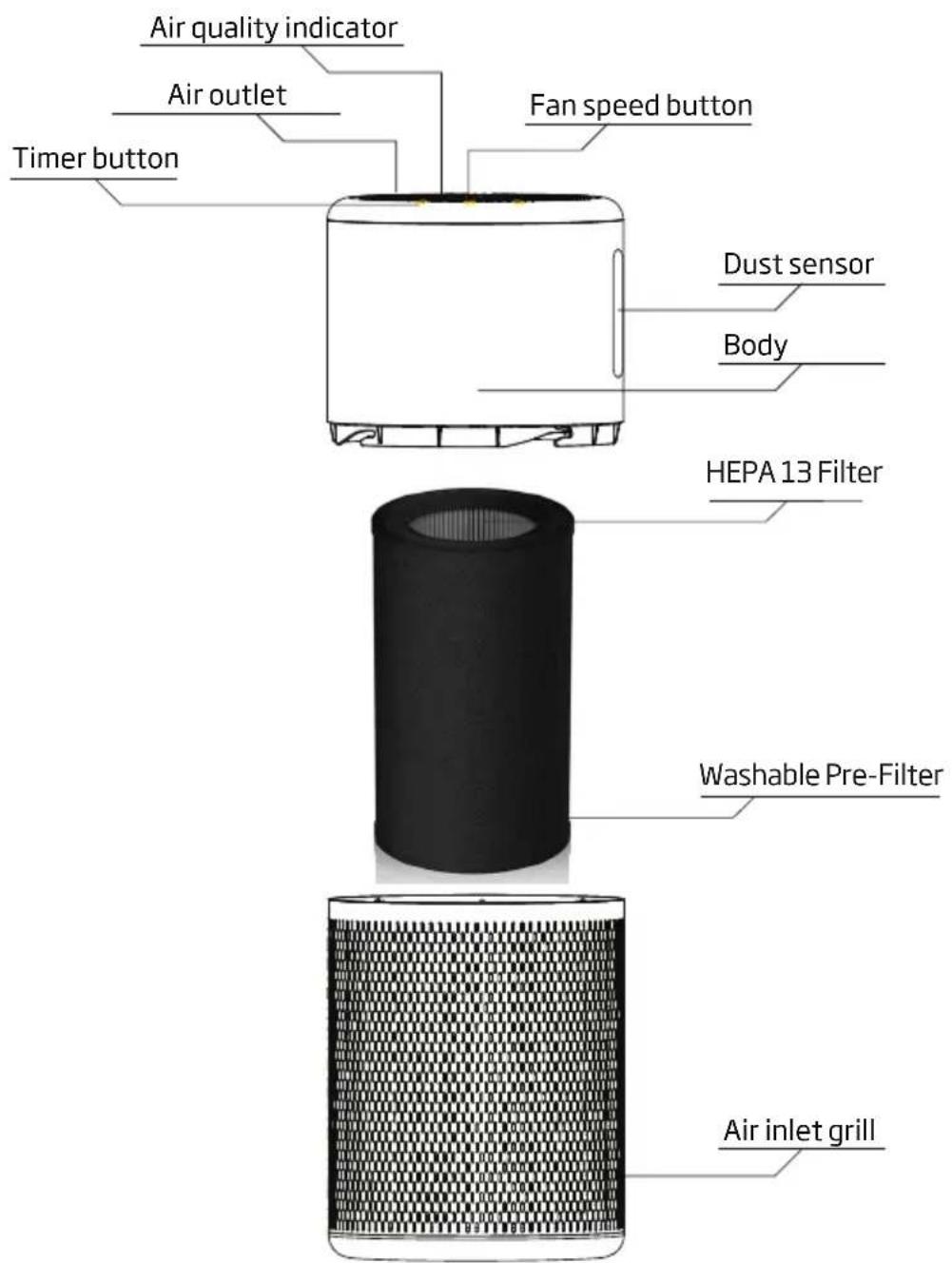

3 Know Your Air Purifier

Air quality indicator Air outlet Fan speed button Timer button Dust sensor Body HEPA 13 Filter Washable Pre-Filter Air inlet grill

Fig.2

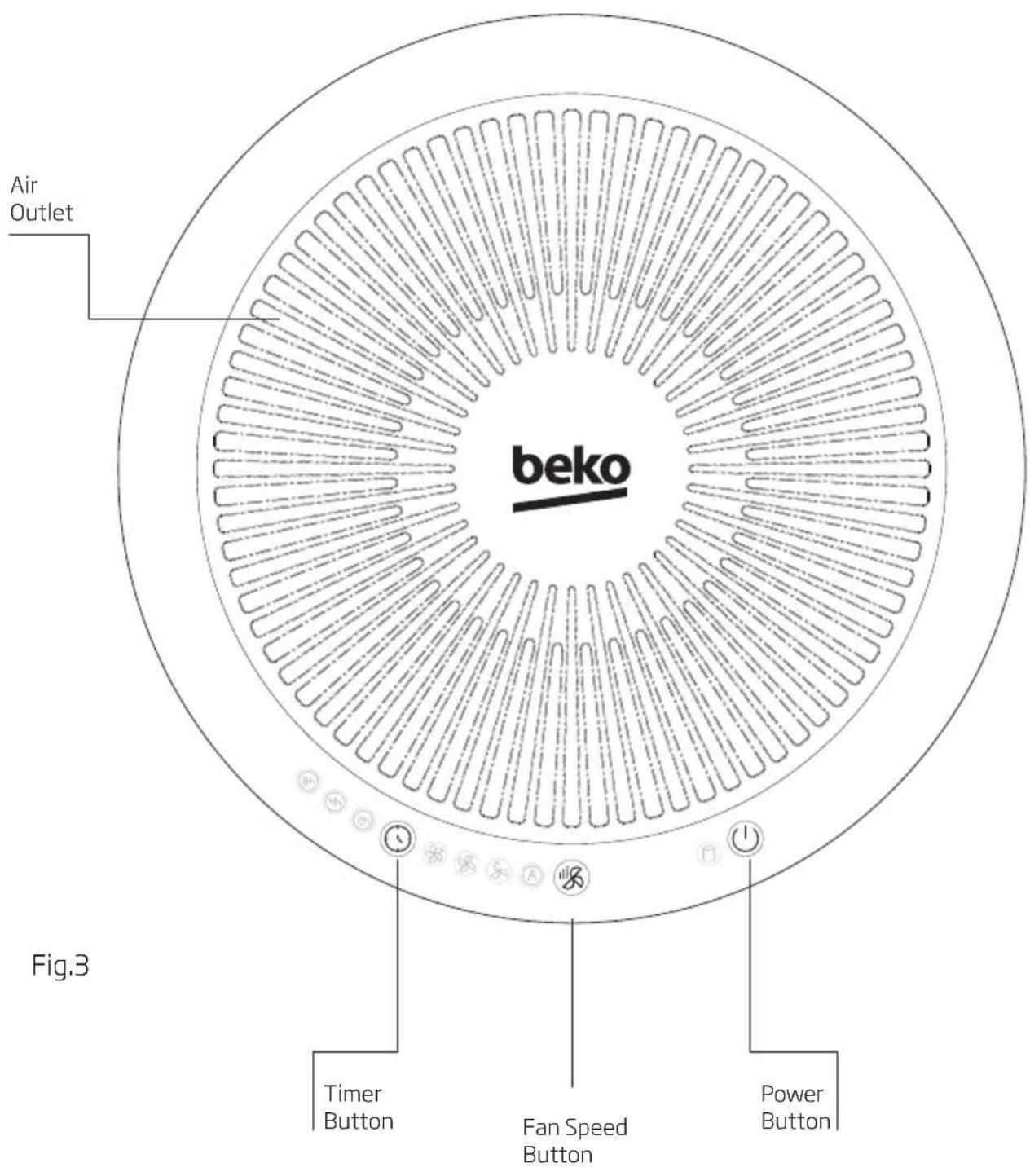

4 Control Panel Introduction

Air Outlet beko Fig.3 Timer Button Fan Speed Button Power Button

5 Operating Instructions

5.1 Important notes

• Carefully unpack your air purifier.
• Select a firm level place where there are no obstructions to the air inlet grill or air outlet.
• Remove all PE bags from filters before use.
• Do not point air outlet towards wall.

6 Controls Introduction

Power button

Touch the Power button, the machine will start running under the default "AUTO" setting, and the indicator of "AUTO" setting will illuminate.

Fan speed button

There are 4 speed settings including Low, Medium and High for selection. Touch the Fan speed button to select your desired speed setting.

Dust sensor

This Air Purifier has a built-in smart dust sensor which can detect the air quality of current environment automatically, and the air quality can be shown by the air quality indicator which can illuminate in blue, pink and red when the air quality is very good, good and bad accordingly.

Timer button

The timer allows you to run your air purifier at your convenience, for up to 8 hours. With 3 settings including 2hr, 4hr and 8hr.

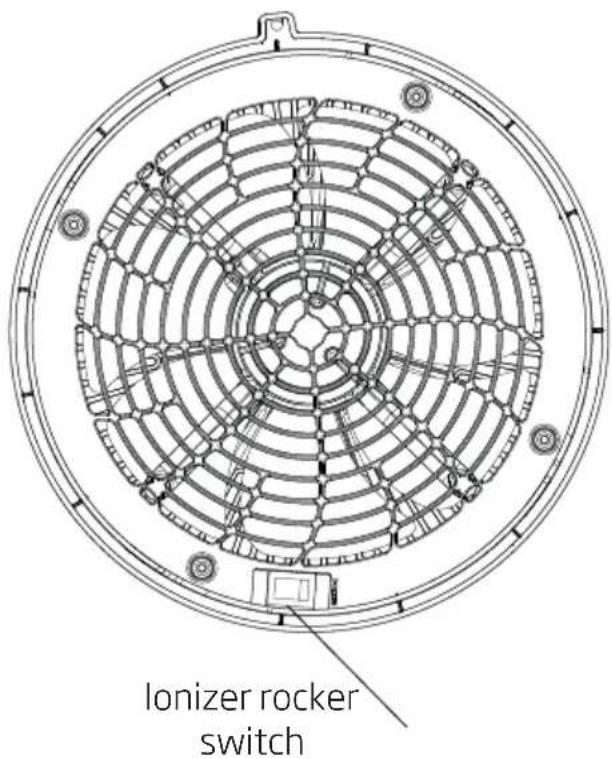

Ionizer rocker switch

This appliance has an independent lonizer rocker switch equipped at the bottom of body, feature which, when turned on, releases negative ions into outgoing filtered air to help the air purification process.

lonizer rocker switch

Fig.4

7 To Operate Your Air Purifier

1. Connect the appliance with power source, one "Bi" can be heard.

2. Touch the Power button once, "Bi-Bi" can be heard, the appliance starts to run under under the default "AUTO" setting, its corresponding indicator will illuminate, and the air quality indicator will illuminate in blue, pink or red according to the actual air quality.

3. Very good air quality: The air quality indicator illuminates in blue.

4. Good air quality: The air quality indicator illuminates in pink.
5. Bad air quality: The air purifier illuminates in red.

NOTE: Hold and Touch the "Power button" for 2 seconds if you want to enter into the sleep mode. To recover, hold and Touch the "Power button" for 2 seconds again.

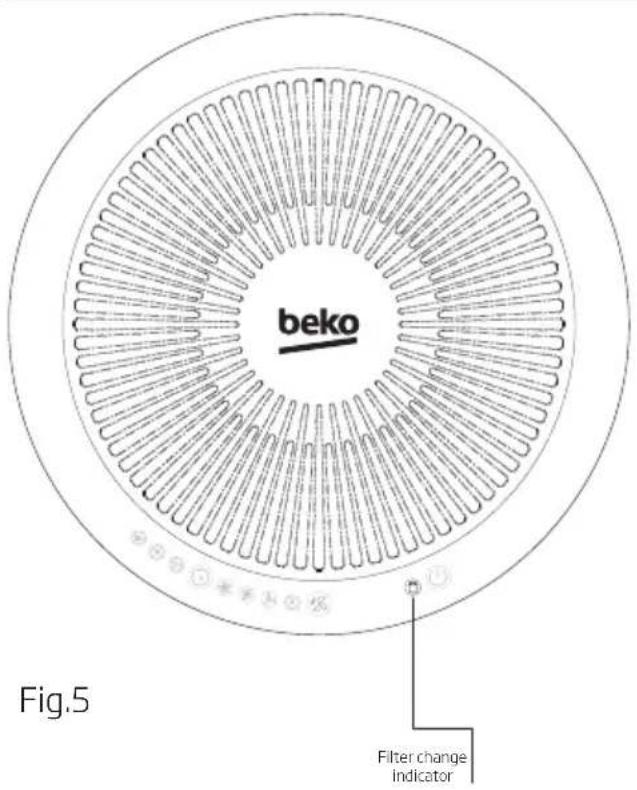

beko Fig.5 Filter change indicator

1. And you can select your required speed setting by following the operation described in "CONTROLS INTRODUCTION". After select, the corresponding indicator of selected speed setting will turn on.
2. After turn on the air purifier and select your required speed setting, you can activate the timer by following the operation as below: Touch down Timer button on the control panel, one beep "Bi" can be heard. There are 3 settings including 2H, 4H and 8H for selection. After select your required timing, the indicator of selected timing will illuminate. When the timer expires, the air purifier will power off automatically and the indicator of selected timing will extinguish.
3. When the filter change indicator illuminates in white, it is time to change the HEPA filter. Please change the HEPA filter by following the operation described in the section of "CHANGE THE HEPA FILTER".

8 Change The Hepa Filter

Always unplug the unit before changing the HEPA filter.

1. When the filter change indicator illuminates in white, it's time to change the HEPA filter.
2. Turn off the unit and unplug it.
3. Carefully rotate the body anticlockwise and remove it from the air inlet grill.
4. Remove the HEPA filter out of the air inlet grill.
5. Remove the pre-filter.
6. Replace a new HEPA filter into the air inlet grill.
7. Put the body onto the air inlet grill, then rotate the body clockwise until the fastener locks into the groove.
8. Simultaneously hold and Touch the Power and Timer buttons for 3 seconds to activate the filter function.

9 Troubleshooting

Problem Solution
Unit will not operate.	□Check to make sure the unit is plugged in.□Check to make sure the unit is on.□Check condition of the filter and replace if necessary.□Check to ensure nothing is blocking the air inlet and filtered air outlet.□Be sure the plastic bag has been removed from the filter.
Decreased air flow.

10 Technical Data

Technical and design modifications reserved.
Made in P.R.C.
Model No.	ATP 7100 I
Power supply	100-240V~, 50/60Hz
Rated power	36 W
Contact details for obtaining more information	Arcelik A.S. Sutluce, Karaagac Cad. 2-6, 34445 Beyoglu Istanbul Turkey

Parameter of External Power Supply
Manufacturer	Dongguan Guanjin Electronics Technology Co., Ltd
Model Identifier	K36V240150G
Input Voltage	100-240V~
Input Frequency	50/60Hz
Input Current	0.9A
Output Voltage	24.0V DC
Output Current	1.5A
Output Power	36.0W
Average active efficiency	88,24%
Efficiency at low load (10%)	83,69%
No-load power consumption	0.099W
