Product type	Oil-filled radiator
Brand	Eldom
Model	Ribby HO110C
Maximum power	2500 W (3 settings: 1000 W, 1500 W, 2500 W)
Power supply	220-240 V ~ 50-60 Hz
Control type	Mechanical thermostat + 3-position switch
Number of heating elements	7 segments
Material	Painted steel, diathermic oil
Transport handle	Yes
Wheels	4 self-adjusting castors
Overheat protection	Yes (automatic shut-off)
Tip-over protection	Yes (power cut-off)
Operating indicator light	Yes
Use	Indoor, residential premises and offices
Minimum room area	5 m²
Recommended safety distance	At least 2 m from flammable objects
Cleaning	With a damp cloth, do not immerse
Supplied accessories	Feet, castors, fasteners, nuts
Standby consumption	0 kW
Warranty	Private domestic use
Repairs	Authorized service center only
Standard	REGULATION (EU) 2015/1188

Frequently Asked Questions - Ribby HO110C Eldom

How to mount the castors on the radiator?

Place the appliance upside down on a soft surface. Attach the metal bases with the supplied fasteners and nuts, then insert the self-adjusting castors into the bases and tighten the nuts. Return the radiator to an upright position.

Which power to choose for heating a room?

Use the switch to select: I (1000 W), II (1500 W) or III (2500 W). Position III with the thermostat at maximum provides the highest temperature.

What to do if the radiator overheats?

Turn the thermostat to the 'LOW' position, unplug the appliance and eliminate the cause of overheating (e.g., by clearing it). Let it cool before restarting.

Can I cover the radiator with clothes to dry them?

No, never cover the appliance with clothes or other fabrics while in operation. This can cause overheating and fire.

How to clean the oil-filled radiator?

Unplug and let it cool completely. Clean the exterior with a damp cloth. Do not use detergents or solvents, and do not immerse any part in water.

A strange smell occurs during first use, is this normal?

Yes, it is normal. An odor may be emitted by the heating elements and insulation during first use. It disappears after a few uses.

Can I use the radiator in a small room?

The floor area of the room must be at least 5 m². Do not use it in a smaller room.

What to do in case of oil leakage?

In case of oil leakage, contact the after-sales service immediately. Do not attempt to repair yourself. When disposing of the appliance, follow the oil disposal regulations.

Does the radiator work in a horizontal position?

No, the appliance must always be used in an upright position (castors at the bottom, controls at the top). Any other position can create a hazardous situation.

Where can I find an authorized service center for repairs?

The list of authorized service centers is available in the appendix of the manual and on the website www.eldom.eu. Any repairs must be carried out by an authorized center.

USER MANUAL Ribby HO110C Eldom

Black portable air conditioner unit with visible branding and wheels, no readable text or symbols beyond branding.

Eldom Sp. z o.o. • ul. Pawła Chromika 5a • 40-238 Katowice, POLAND tel: [phone] • fax: [phone] • www.eldom.eu

_

| _

一

1

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

Symbol of a crossed-out document with a diagonal line, commonly used to indicate prohibition or exclusion (no text present)

Diagram illustrating four stages of a mechanical or electrical assembly with labeled components and directional arrows.

RYS.2

UŻYTKOWANIE URZĄDZENIA

UWAGA

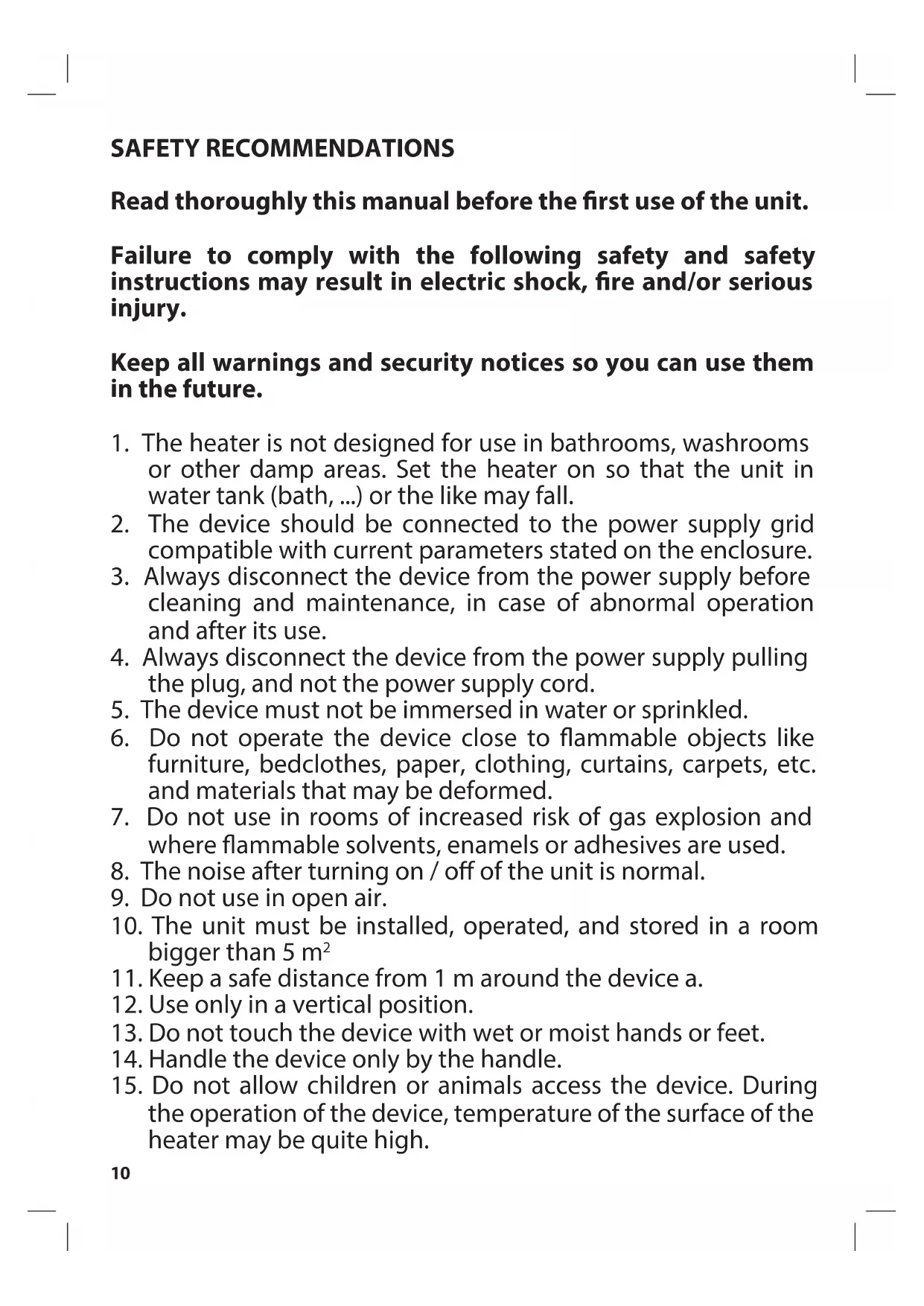

Read thoroughly this manual before the first use of the unit.

Failure to comply with the following safety and safety instructions may result in electric shock, fire and/or serious injury.

Keep all warnings and security notices so you can use them in the future.

1. The heater is not designed for use in bathrooms, washrooms or other damp areas. Set the heater on so that the unit in water tank (bath, ...) or the like may fall.
2. The device should be connected to the power supply grid compatible with current parameters stated on the enclosure.
3. Always disconnect the device from the power supply before cleaning and maintenance, in case of abnormal operation and after its use.
4. Always disconnect the device from the power supply pulling the plug, and not the power supply cord.
5. The device must not be immersed in water or sprinkled.
6. Do not operate the device close to flammable objects like furniture, bedclothes, paper, clothing, curtains, carpets, etc. and materials that may be deformed.
7. Do not use in rooms of increased risk of gas explosion and where flammable solvents, enamels or adhesives are used.
8. The noise after turning on / off of the unit is normal.
9. Do not use in open air.
10. The unit must be installed, operated, and stored in a room bigger than 5 m^2
11. Keep a safe distance from 1 m around the device a.
12. Use only in a vertical position.
13. Do not touch the device with wet or moist hands or feet.
14. Handle the device only by the handle.

15. Do not allow children or animals access the device. During the operation of the device, temperature of the surface of the heater may be quite high.

16. Do not cover the device with clothing and other textiles when in use.

17. Do not use the device to dry clothing.
18. Do not run the power supply cord above the heater and exhaust openings of warm air.
19. This equipment may be used by children of at least 8 years old and by persons with reduced physical and mental capacity and persons with no experience and knowledge of the equipment if the supervision or instruction is provided for use of the equipment in a safe way, so that the related hazards are understandable. children should not play with the equipment. children without supervision should not clean and maintain the equipment.
20. Keep the device and cable away from children.
21. The device must not be left operating without supervision.
22. When the device is not used, disconnect it from the power supply source.
23. Leave the device to cool down before putting it into storage.
24. Check regularly whether the power supply cord and the whole device are not damaged. The device must not be switched on if any damages are detected.
25. Never use the unit when the power cord is damaged or when the device was dropped or damaged in any way.
26. The device is filled with the exact amount of special oil.
27. If any oil is leaking, contact the service point.
28. The device may only be opened and repaired by a specialist.
29. Only an authorised service point can repair the equipment. The list of the service points is provided in the annex and in the website www.eldom.eu Any modernisations or using of non-original spare parts or elements of the device is forbidden and threatens safety of its use.
30. The unit must be installed, operated, and stored in a room bigger than 5 m^2 .
31. Eldom Sp. z o.o. shall not be responsible for any damages resulting from improper use of the device.

WARNING: The free air outlet must not be affected. Therefore, the upper and grilles of the unit may not quite yet be partially covered for safety reasons.

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE.

WARNING: The device must not be switched on without wheels attached. Use only upright (wheels at the bottom, controls at the top), any other position can create a dangerous situation.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

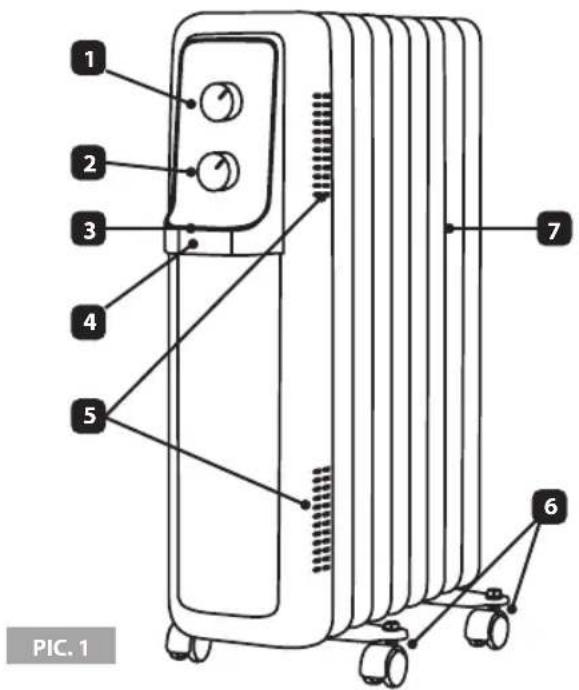

GENERAL DESCRIPTION

1. Thermostat
2. Supply switch
3. Indicator light power
4. Handle
5. Ventilation openings
6. Heating fins
7. Castors

TECHNICAL DETAILS

Rated power: 2500 W

Mains supply: 220-240 V \~ 50-60 Hz

1 2 3 4 5 6 7 PIC. 1

INTENDED USE

The HO110C oil heater is intended for heating residential premises. It has been produced to the highest requirements and use of advanced technology. Due to the manufacture pursuant to high standards, it is safe and easy in use.

USING THE DEVICE

• After unpacking the device, make sure if it was not damaged during the transport. In case of any doubts, refrain from its use until contacting a service point.
  • Install the feet with castors (6) - pic. 2.
• Place the unit on a flat, stable and heat-resistant floor, min. 2 m away from furniture and flammable objects.
• Set the thermostat (1) in the "LOW" position.

• Connect the device to the power supply source of the parameters compliant with those stated in the user guide.
  • Using the switch (2) select the heating power:

• "I" for 1000 W

• "II" for 1500 W

• "III" for 2500 W

• The device will start when temperature is selected with the thermostat knob (1). The maximum operating temperature is set when the thermostat button (1) is set to "HIGH" and the heating level "III" is selected.
  • Operation of the device is signalled with the indicating lamp (3).

The device is operating only whe set vertically. It has a safeguard cutting off the power supply when it is overturned.

• During operation of the device, do not cover the heater with clothing or other textiles.
• Do not cover ventilation openings.
• The device has a thermal safeguard cutting off the power supply when it is overheated. In this case, set the thermostat knob in the "LOW" position, disconnect the device from the power supply and eliminate the cause of overheating. Leave the device to cool down before switching the device on again.

Diagram illustrating four stages of a mechanical or electrical device operation, labeled 1 to 4 with directional arrows and component illustrations.

PIC.2

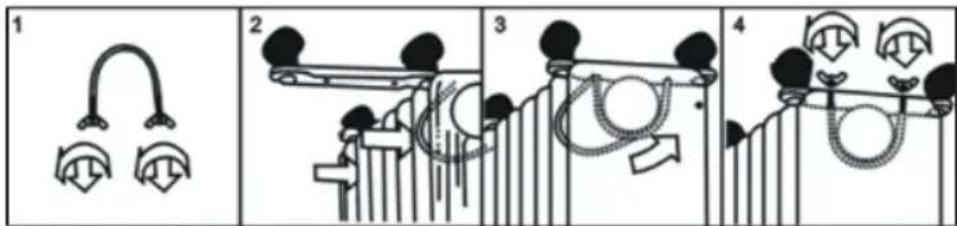

INSTALLATION

1. Carefully place the device with its feet upwards (soft surface is best used to avoid damaging of the protection coat).
2. Install the metal castor bases with clamps and nuts: pic. 2. The bases should be spaced as in pic. 1.
3. Set the castors in the installed bases and tighten with the enclosed nuts.
4. Turn the heater back to the proper vertical position.

CLEANING AND MAINTENANCE

• Disconnect the device from the power supply before cleaning.
  • The device must not be immersed in water.
• Do not use cleaning agents and products that are strong or destructive to the surface.
• Wipe the enclosure with damp cloth.

PROTECTION OF THE ENVIRONMENT

• The device is made of materials that may be subjected to further processing or recycling.
• It should be handed over to the relevant point dealing with collection and recycling of electrical and electronic devices.

GUARANTEE

• The device is intended for private household use.
- It may not be used for professional applications.
- The guarantee shall become void if the device is operated improperly.

Table	Model identifier for electric local space heaters
