USER MANUAL TERMII HL8S Eldom

Two black electric heating devices with ventilation grilles and control knobs, shown from different angles (no visible text or symbols)

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

Close-up of a black plastic door handle with four numbered components (1, 2, 3, 4) and a red indicator light, no visible text or symbols.

• OPIS OGÓLNY

Exterior view of a gray electric heating fan with visible grille and control buttons (no text or symbols)

• UŻYTKOWANIE URZĄDZENIA

Read thoroughly this manual before the first use of the unit.

Failure to comply with the following safety and safety instructions may result in electric shock, fire and/or serious injury.

Keep all warnings and security notices so you can use them in the future.

1. The heater is not designed for use in bathrooms, washrooms or other damp areas. Set the heater on so that the unit in water tank (bath, ...) or the like may fall.
2. The device should be connected to the power supply grid compatible with current parameters stated on the enclosure.
3. Always disconnect the device from the power supply before cleaning and maintenance, in case of abnormal operation and after its use.
4. Always disconnect the device from the power supply pulling the plug, and not the power supply cord.
5. The device must not be immersed in water or sprinkled.
6. Do not operate the device close to flammable objects like furniture, bedclothes, paper, clothing, curtains, carpets, etc. and materials that may be deformed.
7. Do not use in rooms of increased risk of gas explosion and where flammable solvents, enamels or adhesives are used.
8. The noise after turning on / off of the unit is normal.
9. Do not use in open air.
10. The unit must be installed, operated, and stored in a room bigger than 5 m2
11. Keep a safe distance from 1 m around the device a.
12. Use only in a vertical position.
13. Do not touch the device with wet or moist hands or feet.
14. Handle the device only by the handle.
15. Do not allow children or animals access the device. During the operation of the device, temperature of the surface of the heater may be quite high.
16. Do not cover the device with clothing and other textiles when in use.
17. Do not use the device to dry clothing.
18. Do not run the power supply cord above the heater and exhaust openings of warm air.
19. This equipment may be used by children of at least 8 years old and by persons with reduced physical and mental capacity and persons with no experience and knowledge of the equipment if the supervision or instruction is provided for use of the equipment in a safe way, so that

the related hazards are understandable. children should not play with the equipment. children without supervision should not clean and maintain the equipment.

1. Keep the device and cable away from children.
2. The device must not be left operating without supervision.
3. When the device is not used, disconnect it from the power supply source.
4. Leave the device to cool down before putting it into storage.
5. Check regularly whether the power supply cord and the whole device are not damaged. The device must not be switched on if any damages are detected.
6. Never use the unit when the power cord is damaged or when the device was dropped or damaged in any way.
7. The device is filled with the exact amount of special oil.
8. If any oil is leaking, contact the service point.
9. The device may only be opened and repaired by a specialist.
10. Only an authorised service point can repair the equipment. The list of the service points is provided in the annex and in the website www.eldom.eu Any modernisations or using of non-original spare parts or elements of the device is forbidden and threatens safety of its use.
11. Eldom Sp.z o.o. shall not be responsible for any damages resulting from improper use of the device.

WARNING: The free airlet must not be affected. Therefore, the upper and grilles of the unit may not quite yet be partially covered for safety reasons.

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

• ENVIRONMENTAL PROTECTION

– The appliance is made of materials which can be recycled.
- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

- WARRANTY

• This appliance is designed for domestic use only.
  – It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

Close-up of a black industrial component with labeled parts (1, 2, 3, 4), no readable text or symbols beyond labels.

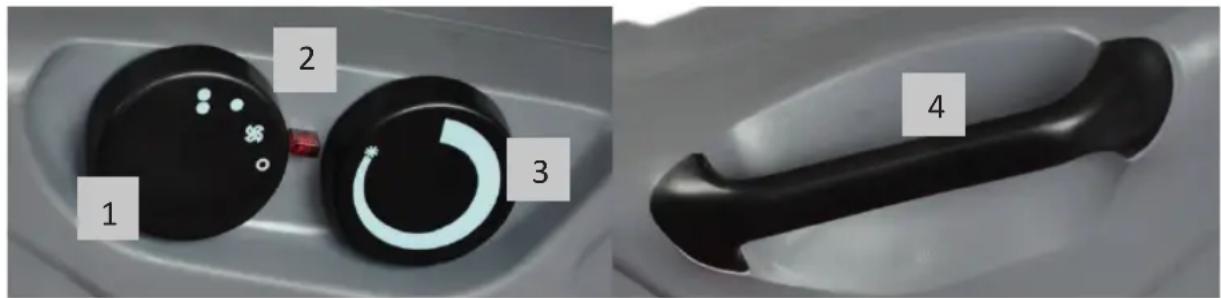

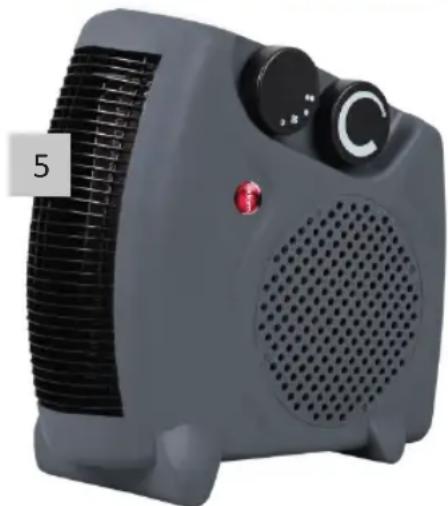

• GENERAL DESCRIPTION

1. ON/OFF switch (operation mode)
2. Indicator light
3. Thermostat
4. Carrying handle
5. Air-supply grille

• TECHNICAL DATA

– power: 2000 W
– supply voltage: 220-240V \~ 50-60Hz

- INTENDED USE

The HL8C/HL8S heater fan is designed for heating living and office spaces.

Gray electric heating fan with visible grille and control buttons (no text or symbols)

• OPERATION

• After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre. Put the appliance onto a flat, stable and high temperature resistant ground.
  – The device can be operated vertically or horizontally.
• Turn the switch (1) to position "0" (appliance turned off).
• Connect the appliance to a power source with parameters in accordance with the
  – Instructions for Use.
• choose operation mode by turning the knob (1):

■ "cool air
■ "hot air (1000W)
■ "very hot air (2000W)

- The appliance starts working after choosing the temperature by turning the thermostat handwheel (3).

The appliance work is signaled by control lamps (2) When used for the first time, the heating elements and insulation can emit characteristic smell. It is a normal phenomenon.

Do not cover outlets when the appliance is in operation.

• CLEANING AND MAINTENANCE

• Disconnect the device from the power supply before cleaning.
  – The device must not be immersed in water.
• Do not use cleaning agents and products that are strong or destructive to the surface.
  – Wipe the enclosure with damp cloth.

Product sheet in accordance with Comission Regulation (EU) 2015/1188

Table	Model identifier for electric local space heaters
Model number:	HL8C, HL8S
Item		Symbol	Value	Unit
Heat output
Nominal heat output		P_nom	1,8-2	kW
Minimum heatoutput (indicative)		P_min	0,015	kW
Maximum continuous heat output		P_max,c	2	kW
Auxiliary electricity consumption
At nominal heatoutput		el_max	0	kW
At minimum heatoutput		el_min	0	kW
In standby mode		el_SB	0	kW
Type of heat input, for electric storage local space heaters only (single select)
manual heat charge control, with integrated thermostat				□ Yes ☒ No
manual heat charge control with room and/or outdoor temperature feedback				□ Yes ☒ No
electronic heat charge control with room and/or outdoor temperature feedback				□ Yes ☒ No
fan assisted heat output				□ Yes ☒ No
Type of heat output/room temperature control (single select)
single stage heat output and no room temperature control				□ Yes ☒ No
Two or more manual stages, no room temperature control				□ Yes ☒ No
with mechanic thermostat room temperature control				☒ Yes □ No
with electronic room temperature control				□ Yes ☒ No
electronic room temperature control plus day timer				□ Yes ☒ No
electronic room temperature control plus week timer				□ Yes ☒ No
Other control options (multiple selections possible)
room temperature control, with presence detection				□ Yes ☒ No
room temperature control, with open window detection				□ Yes ☒ No
with distance control option				□ Yes ☒ No
with adaptive start control				□ Yes ☒ No
with working time limitation				□ Yes ☒ No
with black bulb sensor				□ Yes ☒ No
Contact details	Eldom Sp. z o.o. Pawła Chromika 5a, 40-238 Katowice, POLANDtel: [phone] , fax: [phone]
