Product Type	Vibrating massage ball
Brand	Compex
Model	Molecule (INTL-CX202WL03)
Vibration Levels	4 levels: 1700, 1900, 2200 rpm and variable mode 1700-2200 rpm
Auto Shut-off	Every 15 minutes
Battery	Lithium-polymer 7.4 V, 1200 mAh (2 cells in series)
Charging Time	1.5 hours
Battery Life	1 to 1.5 hours
Power Supply	USB 5 V, 2 A (power adapter included)
Standby Consumption	Less than 60 µA
Noise	Less than 54 dB at 30 cm
Warranty	2 years (limited, excluding accessories and battery)
Manufacturing	China
Indications	Relief of muscle pain and stiffness, stimulation of circulation
Contraindications	Pregnancy, pacemaker, herniated disc, epilepsy, recent surgeries, etc.
Maintenance	Do not immerse in water, do not disassemble, use only the supplied adapter

Frequently Asked Questions - Molecule COMPEX

How to turn on and off the Compex Molecule vibrating massage ball?

To turn on the device, press the power button for 3 seconds until the light turns on. To turn it off, hold the button for 3 seconds until the light turns off.

What do the different vibration levels mean?

The device offers 4 intensity levels: level 1 (1700 rpm), level 2 (1900 rpm), level 3 (2200 rpm) and level 4 (1700-2200 rpm in variable mode). The blue light indicates the selected level.

How to charge the battery?

Use the provided USB cable and power adapter. Plug the cable into the device's charging port, then into a wall outlet. The light turns green during charging. Charging time is approximately 1.5 hours. The device cannot be used while charging.

How long is the battery life?

The battery life is approximately 1 to 1.5 hours depending on the vibration level used. The device automatically shuts off after 15 minutes of continuous use.

Can I use the device while charging?

No, use is not possible while charging. Wait for the battery to be fully charged before using it.

Are there any safety precautions to follow?

Yes. Do not use on the head or bony areas. Do not apply for more than one minute on the same spot. Stop if pain occurs. Do not immerse in water. Use only the supplied adapter. Consult a doctor if pregnant, have a pacemaker, herniated disc, etc.

What are the contraindications for use?

The device is contraindicated in case of: recent surgery, skin conditions, herniated disc, pregnancy, diabetes, pacemaker, epilepsy, migraine, spondylolisthesis, metal prostheses, chronic diseases. Always ask for medical advice.

How to clean the massage ball?

Clean the device with a soft, dry or slightly damp cloth. Never immerse in water, sand or any liquid. Avoid debris entering the motor vent.

What to do if the device does not turn on?

First check the battery charge. Plug in the device and wait a few minutes. If the light does not come on, try another USB cable or adapter. If the problem persists, contact customer service.

Is the device guaranteed?

Yes, the device comes with a limited 2-year warranty from the date of delivery. The warranty covers the device but not accessories or battery. Any misuse voids the warranty.

USER MANUAL Molecule COMPEX

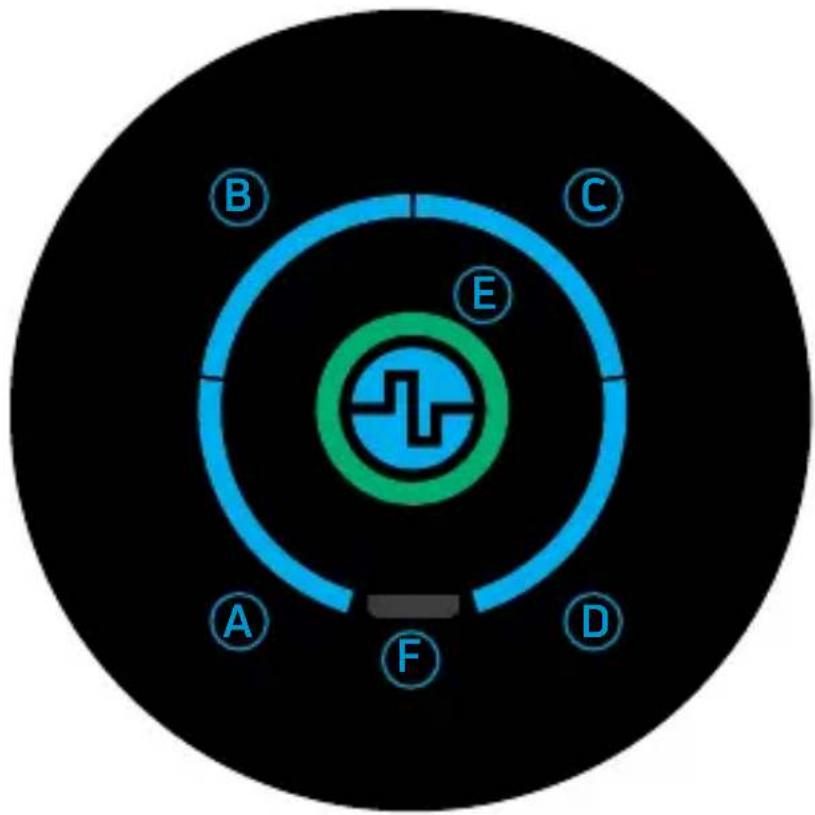

The Compex Molecule vibrating massage ball has four levels of vibration intensity to promote relief from stiff or aching muscles. Increases circulation in targeted areas, relieve soreness, and inflammation to muscles. Use this tool before and after a workout to sooth and promote recovery to your body.

A Level 1 - 1700rpm
B Level 2 - 1900rpm
C Level 3 - 2200rpm
Level 4 - 2200-1700rpm
E Power Indicator
USB charging port (5V 2A)

POWER INDICATOR

Simple red circular shape on white background (no text or symbols)

<20%

Circular gradient ring with green-to-red transition, no text or symbols

40% 60% 80%

Circular gradient ring with green-to-red color transition (no text or symbols)

Circular gradient ring with green, red, and orange hues on white background (no text or symbols)

Simple green circular ring on white background (no text or symbols)

80%

BASIC SPECIFICATION SPEED 1 SPEED 2 SPEED 3 SPEED 4 REMARK
Noise(dB) <54db - - 54db						Condition: 30cm distance
Rotational speed (with Loading)		1700 1900 2200			1700-2200
Hertz (Hz) 28.33 Hz		31.67 Hz 36.67 Hz			28.3Hz-36.6Hz
Power consumption testing	Voltage (V) 8.1 8.06 7.88 7.88
	Current (A) 0.29 0.41		0.91 0.8
	Power (W)	2.35W	3.3W 7.2 W 6.3W
Charge and Discharge test	Charge time	1.5H
	Discharge time	1-1.5H				Every 15 minutes of work automatically stops for one round
Stand-by Power Consumption		<60uA
Adapter	AC100~240V 50/60Hz, 5V 2A US standard USB cable (Certification: UL/ETL ROHS)
Battery 7.4V	1200mAh Li-Polymer Battery (2 in series)

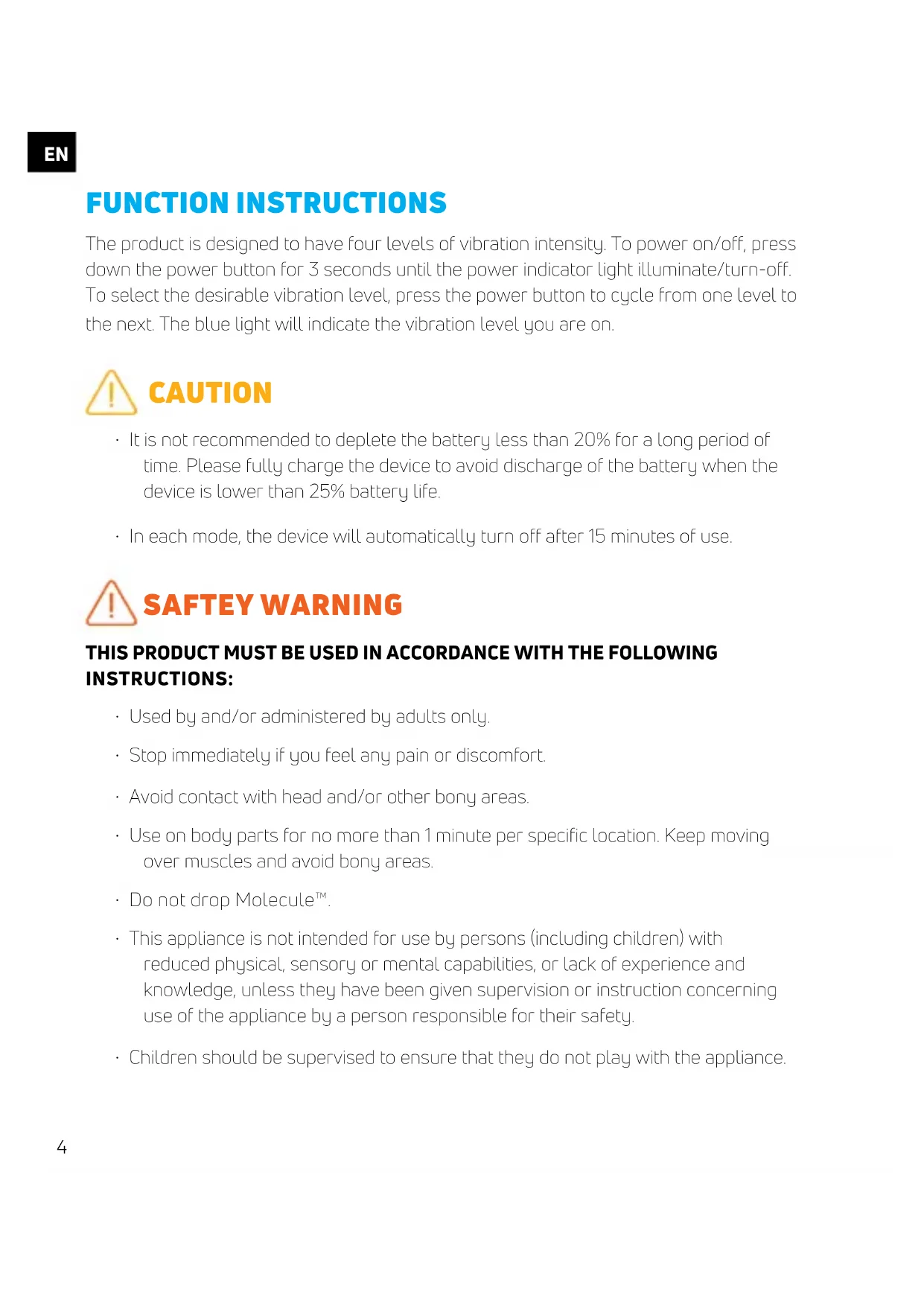

FUNCTION INSTRUCTIONS

The product is designed to have four levels of vibration intensity. To power on/off, press down the power button for 3 seconds until the power indicator light illuminate/turn-off. To select the desirable vibration level, press the power button to cycle from one level to the next. The blue light will indicate the vibration level you are on.

CAUTION

• It is not recommended to deplete the battery less than 20% for a long period of time. Please fully charge the device to avoid discharge of the battery when the device is lower than 25% battery life.
• In each mode, the device will automatically turn off after 15 minutes of use.

SAFTEY WARNING

THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:

• Used by and/or administered by adults only.
- Stop immediately if you feel any pain or discomfort.
- Avoid contact with head and/or other bony areas.
- Use on body parts for no more than 1 minute per specific location. Keep moving over muscles and avoid bony areas.
- Do not drop Molecule™.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.

• The appliance is only to be used with the power supply unit provided with the appliance.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

CONTRAINDICATIONS

PLEASE DO NOT USE MOLECULE™ WITHOUT RECEIVING APPROVAL FROM YOUR DOCTOR IF THE FOLLOWING CONDITIONS APPLY:

• Recent surgeries of any kind
  • Skin conditions and/or wounds affected by vibrating massagers
• Herniated disks
• Pregnancy
  • Diabetes/neuropathy or retinal damage
• Have a pacemaker

• Injuries affected by vibrating massagers
- Epilepsy or migraines
- Disc herniation
• Spondylolisthesis
• Vertebral detachment or spine joint rigidity
- Recent replacement of joints or IUD
• Metal pins or metal plates
• Any health-related diseases

WARNINGS

• Do not use if injured.
• Do not immerse in water, sand and/or loose debris that might get into motor housing vent.
• Do not remove screws or attempt to disassemble.
  • This appliance contains batteries that are non-replaceable

ADVERSE REACTIONS

You may experience skin irritation and mild bruising if Molecule ^™ is used in one spot for more than 60 seconds or over bony areas. Adverse reactions may be experienced by people recovering from surgery, skin conditions, wounds, nerve conditions, broken bones and/or contusions. To avoid reactions, users should consult doctor prior to using Molecule ^™ .

CHARGING INSTRUCTIONS

1. Please fully charge the device before first use.
2. While charging, the power indicator will turn to green according to the actual power level of the battery.
3. The product cannot be used while charging.
4. Please only use the adapter provided. Do not use other adapters to avoid damage to the battery and potential danger.
5. Charging time: 1.5 hours.

WARRANTY

This device carries a limited warranty of two years from the date of delivery. The warranty applies to the device only, and the battery is not covered by this warranty.

During the warranty period, defective items will be repaired or replaced at no charge. Any evidence of misuse, abuse, alterations, or externally caused damage may have this warranty invalid.

For more information, please contact the distributor/manufacturer.

DECLARATION OF CONFORMITY

FCC PART 15B Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

COMPEX VIBRATING MASSAGE BALL

MODEL: INTL-CX202WL03

Powered by Lithium-polymer battery (7.4V, 1200mAh, 8.88Wh)

Rated Input: 5V 2A

Rated Power: Max. 12W

Use only with supply unit

CE FC House PSE

MadeinChina
