Ion - Massage device COMPEX - Free user manual and instructions

Brand	Compex
Model	Ion
Product type	Vibrating massage roller
Power supply	Rechargeable lithium-ion battery 7.4V, 2200mAh, 16.28Wh
Charger	Micro USB 5V 2A, power adapter 100-240V 50/60Hz
Charging time	1.5 to 2 hours
Battery life	2 to 2.5 hours
Vibration levels	4 levels (speeds 1 to 4)
Vibration frequencies	Speed 1: 31 Hz (1900 RPM), Speed 2: 48 Hz (2900 RPM), Speed 3: 53 Hz (3200 RPM), Speed 4: 72 Hz (4320 RPM)
Noise	Less than 54 dB depending on speed
Maximum power	13.2 W
Auto-off	After 15 minutes of use
Material	Industrial grade, textured finish
Weight	Not specified
Dimensions	Not specified
Care	Clean with a damp cloth; do not immerse in water
Contraindications	Recent surgery, skin conditions, herniated disc, pregnancy, diabetes, pacemaker, epilepsy, etc.
Safety	Do not use on bones, do not exceed 60 seconds per area, avoid contact with head
Certifications	CE, FCC, PSE
Warranty	2 years (excluding accessories and battery)
Manufacturing	China

Frequently Asked Questions - Ion COMPEX

How to turn the Compex Ion on and off?

Press the power button for 3 seconds until the power indicator turns on or off.

How long does it take to fully charge the device?

The charging time is approximately 1.5 to 2 hours. Use only the provided adapter.

What is the battery life?

Battery life is 2 to 2.5 hours depending on the speed used.

What are the contraindications for use?

The device is contraindicated in cases of recent surgery, skin conditions, herniated disc, pregnancy, diabetes, pacemaker, epilepsy, etc. Consult a doctor if in doubt.

Can I use the device while it is charging?

No, the product cannot be used while charging.

How do I clean the massage roller?

Clean it with a damp cloth. Do not immerse the device in water or any other liquid.

Why does the device turn off automatically?

The device automatically shuts off after 15 minutes of use for safety reasons. You can turn it back on by pressing the power button.

What are the different vibration levels?

There are 4 speeds: Speed 1 (31 Hz, 1900 RPM), Speed 2 (48 Hz, 2900 RPM), Speed 3 (53 Hz, 3200 RPM), Speed 4 (72 Hz, 4320 RPM). The level is indicated by green lights.

Is the device suitable for everyone?

It is intended for adults only. People with reduced physical capabilities or health issues should be supervised or consult a doctor before use.

What is the warranty for the Compex Ion?

The warranty is limited to 2 years from the date of delivery, covering the device but not accessories or battery.

USER MANUAL Ion COMPEX

READ THE MANUAL BEFORE OPERATING THIS PRODUCT

COMPEX®

ION

Vibrating Massage Roller

INTRODUCTION

The Compex ION helps to gain relief from sore or stiff muscles by working out deep layers of tissue. Made with industrial grade material this roller is heavy duty and will not lose its shape under any weight baring circumstance. A polyurethane finish was used to make the outside feel like rubber. The textured finish allows for a solid grip on any area of the body you are trying to roll out. Featuring four vibration speeds, this roller offers a variety of vibration intensity to meet your recovery needs. Portable and easy to recharge with the micro USB charger.

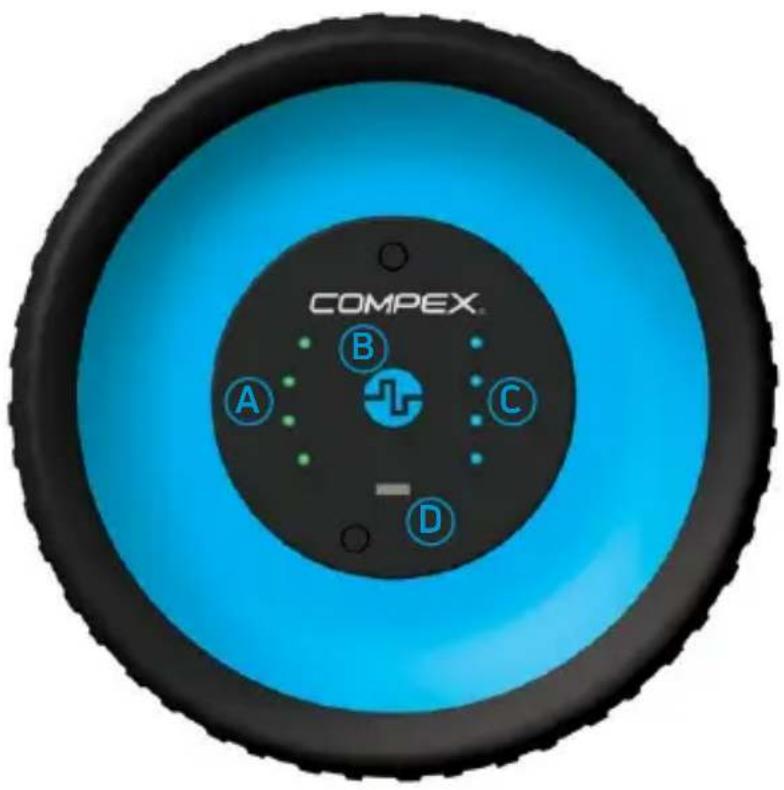

COMPEX A B C D

A Speed level Indicator (Green) - 4 levels: 1,2,3,4
B Power Switch
Power Indicator (Blue) - 4 levels: 25%, 50%, 75%, 100%
D Micro USB charging port (5V 2A)

BASIC SPECIFICATION		SPEED 1	SPEED 2	SPEED 3	SPEED 4	REMARK
Noise(dB) <53db - - 54db						Condition: 30cm distance
Hertz (Hz) 31Hz 48Hz 53Hz 72Hz
Motor Speed 1900 2900 3200 4320
Power consumption testing	Voltage (V)	8.15	8.07	7.99	7.88
	Current (A)	0.79	1.2	1.45	1.68
	Power (W)	6.4W	9.6W	11.6W	13.2W
Charge and Discharge test	Charge time	1.5H-2H
	Discharge time	2-2.5H				Every 15 minutes of work automatically stops for one round
Adapter	US spec AC100~240V 50/60HZ, Output 5V 2A 1.5m USB charging cable (Certification: uL/ETL ROHS)
Battery	2*7.4V 2200mAh 18650 Battery 2 series 1 parallel

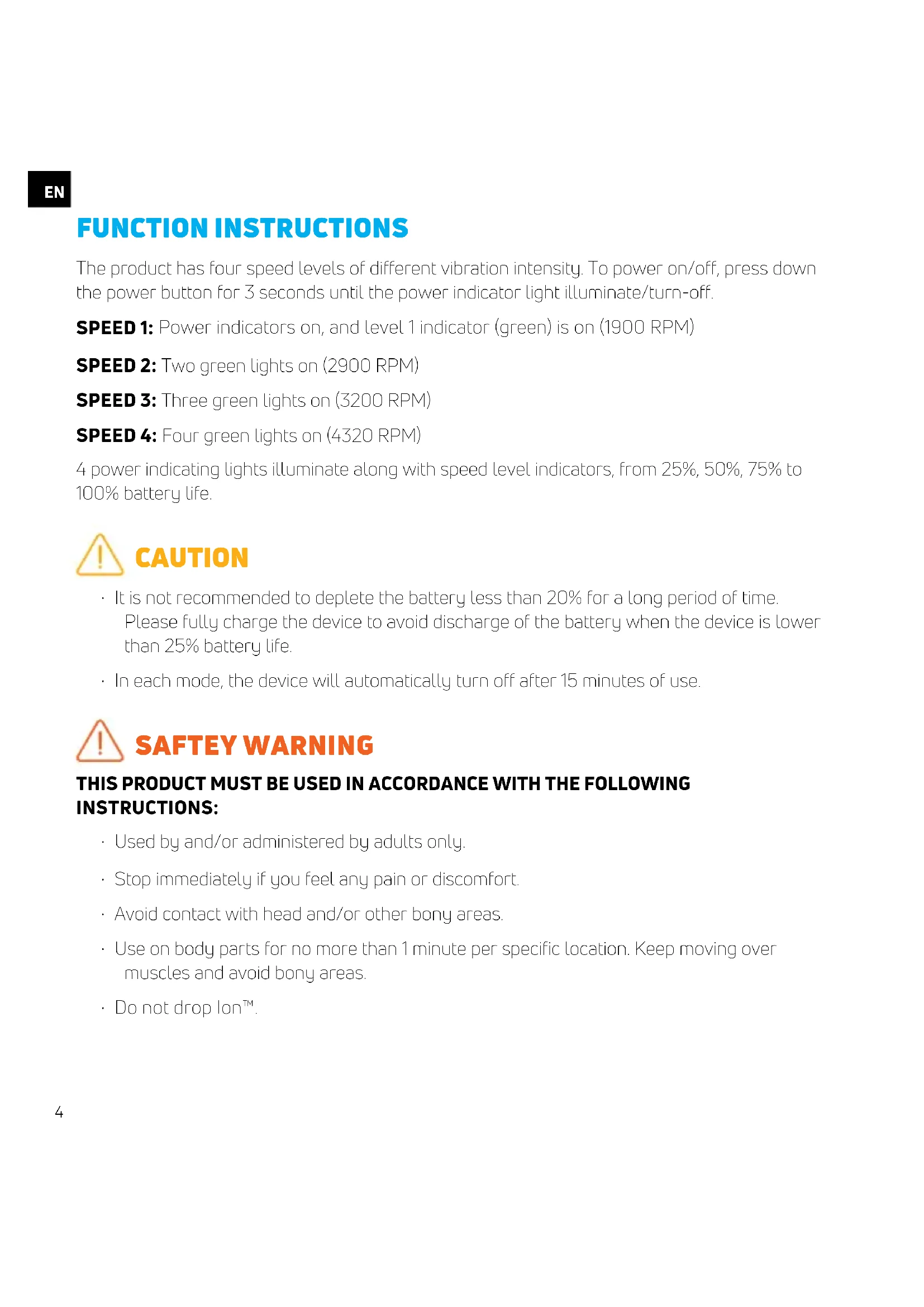

FUNCTION INSTRUCTIONS

The product has four speed levels of different vibration intensity. To power on/off, press down the power button for 3 seconds until the power indicator light illuminate/turn-off.

SPEED 1: Power indicators on, and level 1 indicator (green) is on (1900 RPM)

SPEED 2: Two green lights on (2900 RPM)

SPEED 3: Three green lights on (3200 RPM)

SPEED 4: Four green lights on (4320 RPM)

4 power indicating lights illuminate along with speed level indicators, from 25%, 50%, 75% to 100% battery life.

CAUTION

• It is not recommended to deplete the battery less than 20% for a long period of time. Please fully charge the device to avoid discharge of the battery when the device is lower than 25% battery life.
• In each mode, the device will automatically turn off after 15 minutes of use.

SAFTEY WARNING

THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:

• Used by and/or administered by adults only.
- Stop immediately if you feel any pain or discomfort.
- Avoid contact with head and/or other bony areas.
- Use on body parts for no more than 1 minute per specific location. Keep moving over muscles and avoid bony areas.
- Do not drop lon™.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The appliance is only to be used with the power supply unit provided with the appliance.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

CONTRAINDICATIONS

PLEASE DO NOT USE ION™ WITHOUT RECEIVING APPROVAL FROM YOUR DOCTOR IF THE FOLLOWING CONDITIONS APPLY:

• Recent surgeries of any kind
• Skin conditions and/or wounds affected by vibrating massagers
- Herniated disks
• Pregnancy
• Diabetes/neuropathy or retinal damage
- Have a pacemaker

• Injuries affected by vibrating massagers
- Epilepsy or migraines
- Disc herniation
• Spondylolisthesis
- Vertebral detachment or spine joint rigidity
- Recent replacement of joints or IUD
• Metal pins or metal plates
• Any health-related diseases

WARNINGS

• Do not use if injured.
• Do not immerse in water, sand and/or loose debris that might get into motor housing vent.
• Do not remove screws or attempt to disassemble.
• This appliance contains batteries that are non-replaceable

ADVERSE REACTIONS

You may experience skin irritation and mild bruising if lon ^™ is used in one spot for more than 60 seconds or over bony areas. Adverse reactions may be experienced by people recovering from surgery, skin conditions, wounds, nerve conditions, broken bones and/or contusions. To avoid reactions, users should consult doctor prior to using lon ^™ .

CHARGING INSTRUCTIONS

1. Please fully charge the device before first use.
2. While charging, 4 LED lights will flash. Based on the battery life level, the LED lights will turn on accordingly. When 4 LED lights turn on, the battery is fully charged and the adapter's indicator will turn green. Red indicator light is charging and green is fully charged.
3. The product cannot be used during charging
4. Please use the adapter provided. Do not use other adapters to avoid damage to the battery and potential danger.
5. Charging time: 1.5-2 hours.

DECLARATION OF CONFORMITY

FCC PART 15B Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Powered by Lithium-ion battery (7.4V, 2200mAh, 16.28Wh)

Rated Input: 5V 2A

Rated Power: Max. 13.2W

Use only with supply unit

CE FC ⊗ ↑ PSE

MadeinChina

WARRANTY

This device carries a limited warranty of two years from the date of delivery. The warranty applies to the device only, and the battery is not covered by this warranty.

During the warranty period, defective items will be repaired or replaced at no charge. Any evidence of misuse, abuse, alterations, or externally caused damage may have this warranty invalid.

For more information, please contact the distributor/manufacturer.

CONTACT INFORMATION

Distributed by DJO France S.A.S

Copyright © 2020 by DJO, LLC

Individual results may vary. Neither DJO, LLC nor any of its subsidiaries dispense medical advice. The contents of this document do not constitute medical advice. Rather, please consult your healthcare professional for information on the courses of treatment, if any, which may be appropriate for you

LIRE LE MANUEL AVANT D'UTILISER CE PRODUIT

COMPEX®

ION

DÉCLARATION DE CONFORMITÉ

Copyright © 2020 de DJO, LLC

Copyright © 2020 by DJO, LLC

Copyright © 2020 by DJO, LLC

VEILIGHEIDSWAARSCHUWING

DIT APPARAAT MOET WORDEN GEBRUIKT IN OVEREENSTEMMING MET DE VOLGENDE INSTRUCTIES:

Copyright © 2020 by DJO, LLC

CE FCC House PSE

Fremstillet i Kina

GARANTI

Copyright © 2020 by DJO, LLC

Individuelle resultater kan variere. Hverken DJO, LLC eller

Copyright © 2020 by DJO, LLC

Copyright © 2020 by DJO, LLC

INTL-CX202IF10 Rev A
