USER MANUAL Fixx 1.0 Massager COMPEX

Close-up of a wooden shoe stepping on a dark brick wall (no text or symbols visible)

Man in gray T-shirt and black shorts sitting on a dark brick wall, holding a weight pump (no visible text or symbols)

EN

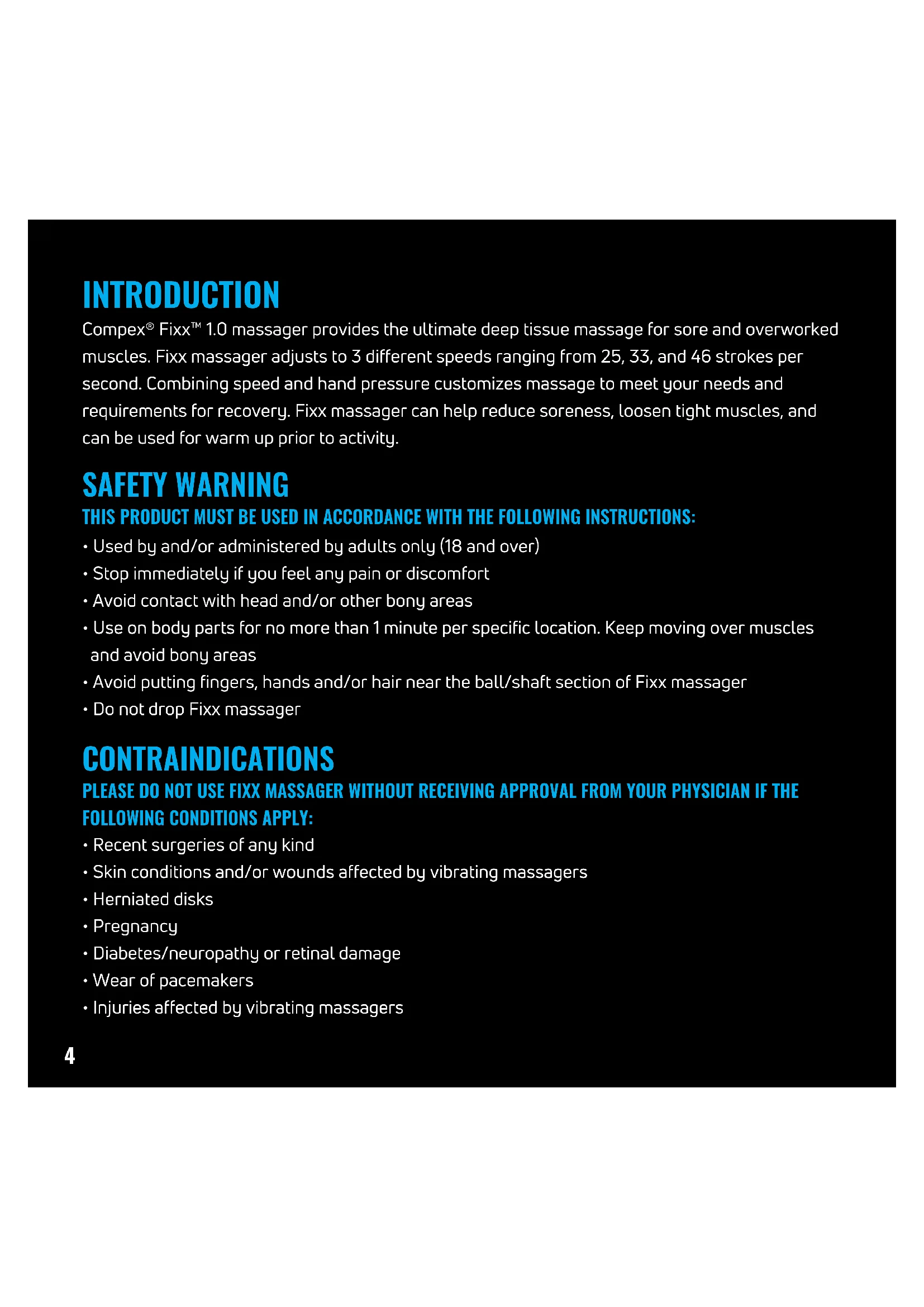

INTRODUCTION

Compex® Fixx™ 1.0 massager provides the ultimate deep tissue massage for sore and overworked muscles. Fixx massager adjusts to 3 different speeds ranging from 25, 33, and 46 strokes per second. Combining speed and hand pressure customizes massage to meet your needs and requirements for recovery. Fixx massager can help reduce soreness, loosen tight muscles, and can be used for warm up prior to activity.

SAFETY WARNING

THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:

• Used by and/or administered by adults only (18 and over)
- Stop immediately if you feel any pain or discomfort
- Avoid contact with head and/or other bony areas
- Use on body parts for no more than 1 minute per specific location. Keep moving over muscles and avoid bony areas
- Avoid putting fingers, hands and/or hair near the ball/shaft section of Fixx massager
- Do not drop Fixx massager

CONTRAINDICATIONS

PLEASE DO NOT USE FIXX MASSAGER WITHOUT RECEIVING APPROVAL FROM YOUR PHYSICIAN IF THE FOLLOWING CONDITIONS APPLY:

• Recent surgeries of any kind
- Skin conditions and/or wounds affected by vibrating massagers
- Herniated disks
- Pregnancy
• Diabetes/neuropathy or retinal damage
- Wear of pacemakers
- Injuries affected by vibrating massagers

WARNINGS

• Consult your doctor before using this product. Do not use if injured
• Do not immerse in water, sand and/or loose debris that might get into motor housing vent
• Do not remove screws or attempt to disassemble

PRECAUTIONS

CONSULT YOUR DOCTOR BEFORE USING THIS PRODUCT IF YOU HAVE:

• Recent surgeries of any kind and/or wounds affected by vibrating massagers
• Herniated disks
• Pregnancy
  • Diabetes/neuropathy or retinal damage
• Wear of pacemakers
  • Injuries affected by vibrating massagers

ADVERSE REACTIONS

You may experience skin irritation and mild bruising if Fixx is used in one spot for more than 60 seconds or over bony areas. Adverse reactions may be experienced by people recovering from surgery, skin conditions, wounds, nerve conditions, broken bones and/or contusions. To avoid reactions, users should consult doctor prior to using Fixx Massager.

OPERATING INSTRUCTIONS

1. Connect the charging plug to the battery charging base unit and plug into wall outlet. Place battery on charging station. Charge 1.5-2.5 hours before use.
2. When battery is charging a red light appears. Once the battery is fully charged, a green light appears (Refer to figure 1A and 1B).
3. Before use, make sure Fixx massager is off. Then, place the ball on to the metal shaft with slight pressure until the shaft stops inside the ball. Turn clockwise until ball is secured in place. The ball must be connected prior to operating the Fixx massager (Refer to figure 3A).
4. Fixx massager turns on when battery is inserted into massager. Making sure Fixx massager switch is in the OFF position, slide battery into battery slot by pushing battery in until you hear the tabs on each side click into place.
5. To turn on, slide switch on the upper handle forward until massager starts to run. Slide the switch further forward to increase speed to three levels (1, 2, 3).
6. To rotate the arm, press the button on the circular housing. Arm can lock into 3 different positions 0, 45, 90 degrees (Refer to figure 2B).
7. There are four indicator lights on Fixx massager body showing battery capacity of 25%, 50%, 75% and 100%. When the battery reaches 25% remove and place on battery charging base. To ensure long battery life, try not to fully deplete the battery (Refer to figure 1A and 1B).
8. To remove battery, squeeze tabs on both sides of the battery and pull away from the massager body.
9. To remove ball, turn Fixx massager off and turn ball counterclockwise and pull ball away from the shaft. Use antibacterial or alcohol wipes to clean ball between uses.

2B

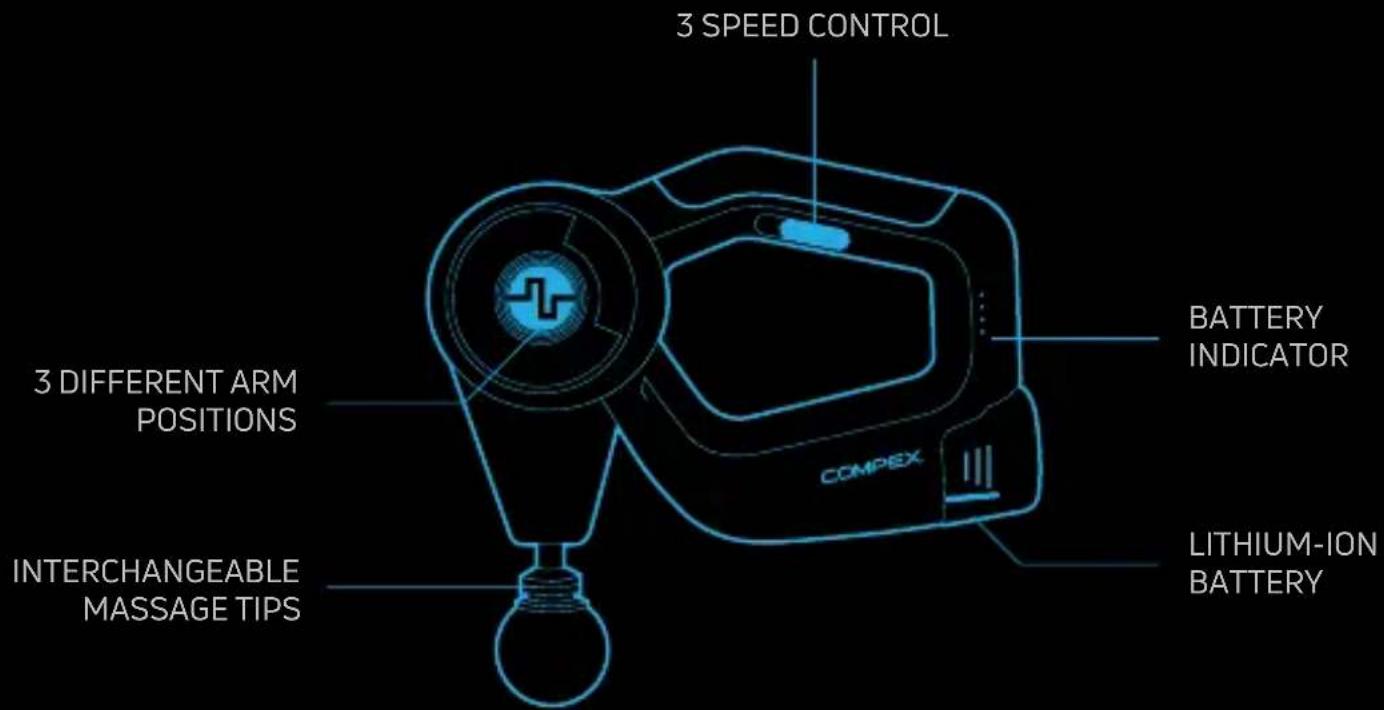

3 SPEED CONTROL 3 DIFFERENT ARM POSITIONS INTERCHANGEABLE MASSAGE TIPS BATTERY INDICATOR LITHIUM-ION BATTERY COMPEX

3A

Line drawing of a complex mechanical component labeled '1A' and 'COMPEX.' (no other text or symbols)

Illustration of a COMPEX sensor device with a cylindrical component and base (no text or symbols on the device itself)

OPERATING INSTRUCTIONS

SPEED BUTTON:

Speed 1: 1500 RPMS Power (W): 3.4 / Voltage (V): 12.0 / Current (A): 0.28 / Noise (DB) : 57-60

Speed 2: 2200 RPMS Power (W): 7.5 / Voltage (V): 12.0/ Current (A): 0.63 / Noise (DB) : 62-65

Speed 3: 2800 RPMS Power (W): 12.3 / Voltage (V): 11.9/ Current (A): 1.03 / Noise (DB) : 67-70

OFF

SPEED 2

SPEED 1

SPEED 3

MAINTENANCE, CLEANING & STORAGE

• Wipe down with damp towel to clean device, then dry
• Wipe ball and/or tips and grip with anti-bacterial wipes to prevent any bacteria contamination
• Remove battery and place in case for storage or travel

TROUBLESHOOTING

• If Fixx Massager will not power on, remove battery and place on charger until battery is charged
• If ball will not remove from shaft, turn counterclockwise to remove
• If battery will not charge, check connections of power cord connected to battery charger or wall plug in power outlet
• If arm won't articulate, press button on the hinging head and move it in opposite direction to release and move to intended position

Visit compex.com to see recommended use positions.

WARRANTY

Within two years from the date of purchase, if Fixx Massager fails due to a defect in material or workmanship, Compex will repair or replace the product, or necessary components, free of charge.

THIS WARRANTY EXCLUDES:

• Battery and tips
• Damage caused by abuse and/or mishandling
  • Repairs not carried out by the manufacturer
  • Devices not used in accordance with the care instructions
• Abnormal storage
• Failure to provide proof of purchase

BATTERY SPECIFICATIONS / VOLTAGE / ADAPTER

Battery cell Specifications: Battery cell 3pcs 2AH/ 2200mah 5C series parallel combination (12.6V

2200mAh)/10A/Brand: Tianpeng/A

Battery info: life span - est. 350 times charge-discharge. Store at 10C\~25C/50F\~77F.

Note about Battery Shelf Life : If the device is not used for an extended period, we recommend that you charge the batteries to 50% of their capacity every 3 months, you should also store the device containing the batteries in a cool and dry environment. Service life of battery is 3 years.

Adaptor AC100-240V-50/60Hz 0.8A / OUTPUT: 15V=1000mA

Int'l interchangeable plugs ETL DC5.5 male end cable length 1.5M

Protective current: 10A 3S

Stand-by power consumption: 2mA

Battery charge and discharge time: DC15V 1A Battery charge time 1.5-2.5 hours.

Discharge: No load 3-4 hours. Normal massage use 1-1.5 hours.

Man in gray T-shirt and black shorts sitting on dark wall, holding a weight baluster (no text or symbols visible)

INTRODUCTION

Illustration of a complex electronic component labeled 'COMPEX' with no additional text or symbols

Illustration of a COMPEX device with a cylindrical top and base, no text or symbols present

MODE D'EMPLOI

BOUTON VITESSE :

Simple diagram of a toggle switch with three vertical bars, no text or symbols present

OFF

VITESSE 2

VITESSE 1

VITESSE 3

ENTRETIEN, NETTOYAGE ET STOCKAGE

Man in gray T-shirt and black shorts sitting on dark wall, holding a weight baluster (no visible text or symbols)

ES

INTRODUCCIÓN

Simple diagram of a toggle switch with three vertical bars, no text or symbols present

OFF

VELOCIDAD 2

Simple line drawing of a rounded rectangular shape with three vertical lines inside, resembling a stylized button or icon (no text or symbols)

VELOCIDAD 1

VELOCIDAD 3

MANTENIMIENTO, LIMPIEZA Y ALMACENAMIENTO

Man in gray T-shirt and black shorts sitting on dark wall, holding a weight baluster (no visible text or symbols)

INTRODUZIONE

Line drawing of a complex mechanical component labeled '1A' and 'COMPEX.' (no other text or symbols)

Simple line drawing of a COMPEX device with no text or symbols on the body

(12.6V 2200mAh)/10A/Marchio: Tianpeng/A

Prese Int'l ETL DC5.5 male end cable length 1.5M

Consumo in stand-by: 2mA

Man in gray T-shirt and black shorts sitting on dark brick wall, holding a fitness tracker (no text or symbols visible)

DE

EINFÜHRUNG

Simple line drawing of a mechanical component labeled 'COMPEX' with no additional text or symbols

Simple line drawing of a COMPEX device with no text or symbols on the body

BEDIENUNGSANLEITUNG

DIESE GARANTIE SCHLIESST AUS:

Man in gray T-shirt and black shorts sitting on dark wall, holding a fitness tracker (no visible text or symbols)

PT

INTRODUÇÃO

Illustration of a COMPEX device with a cylindrical top and base (no text or symbols on the device itself)

Illustration of a COMPEX device with a cylindrical top and base, no text or symbols present

Man in gray T-shirt and black shorts sitting on dark brick wall, holding a weight pump (no text or symbols visible)

NL

INTRODUCTIE

VEILIGHEIDSWAARSCHUWING

DIT PRODUCT MOET WORDEN GEBRUIKT OVEREENKOMSTIG DE VOLGENDE INSTRUCTIES:

Illustration of a complex electronic component labeled 'COMPEX' with no additional text or symbols

Illustration of a COMPEX device with a cylindrical top and base, no text or symbols present

GEBRUIKSAANWIJZING

SNELHEIDSKNOP:

Snelheid1: 1500RPMS Vermogen (W): 3.4/Spanning (V): 12.0/Stroom (A): 0.28/Geluid (DB): 57-60

Snelheid2: 2200RPMS Vermogen (W): 7.5/Spanning (V): 12.0/Stroom (A): 0.63/Geluid (DB): 62-65

Snelheid 3: 2800RPMS Vermogen (W): 12.3/Spanning (V): 11.9/Stroom (A): 1.03/Geluid (DB): 67 -70

UIT

SNELHEID 2

SNELHEID 1

SNELHEID 3

ONDERHOUD, REINIGING & OPSLAG
