| Product type | Induction hob |
| Brand | BRANDT |
| Model | TI316BN1 |
| Number of cooking zones | 4 |
| Cooking zones | Front left: Ø16 cm, 50 - 2200 W Front right: Ø18 cm, 50 - 2800 W Rear left: Ø18 cm, 50 - 2800 W Rear right: Ø21 cm, 50 - 3100 W |
| Total power | 7.2 kW |
| Power supply | Single-phase 220-240 V / 32 A or three-phase 400 V 2N / 16 A |
| Power cable | H05VV-F 1.5 mm² (3 or 5 conductors) |
| Dimensions (W x D x H) | 77 x 51 x 6.4 cm (approximate) |
| Control type | Touch control |
| Number of power levels | 12 (from 1 to 12, plus max position) |
| Surface material | Ceramic glass |
| Display | Digital (LED) |
| Timer function | Yes, per cooking zone |
| Safety | Child lock, automatic pan detection, residual heat indicator (H), automatic shut-off (AS), overheating protection, small object protection, overflow protection |
| Functions | Timer, automatic shut-off, pan detection, power management |
| Maintenance | Clean with sponge, ceramic scraper, special cleaner; do not use steam cleaner |
| Installation | Requires ventilation, minimum distance of 4 cm between hob and furniture |
Frequently Asked Questions - TI316BN1 BRANDT
User questions about TI316BN1 BRANDT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hob in PDF format for free! Find your manual TI316BN1 - BRANDT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TI316BN1 by BRANDT.
USER MANUAL TI316BN1 BRANDT
Using your hob in complete safety....3
Containers....6
Installing your hob in complete safety....7
Using your hob in all simplicity....9
Preserving and maintaining your hob......11

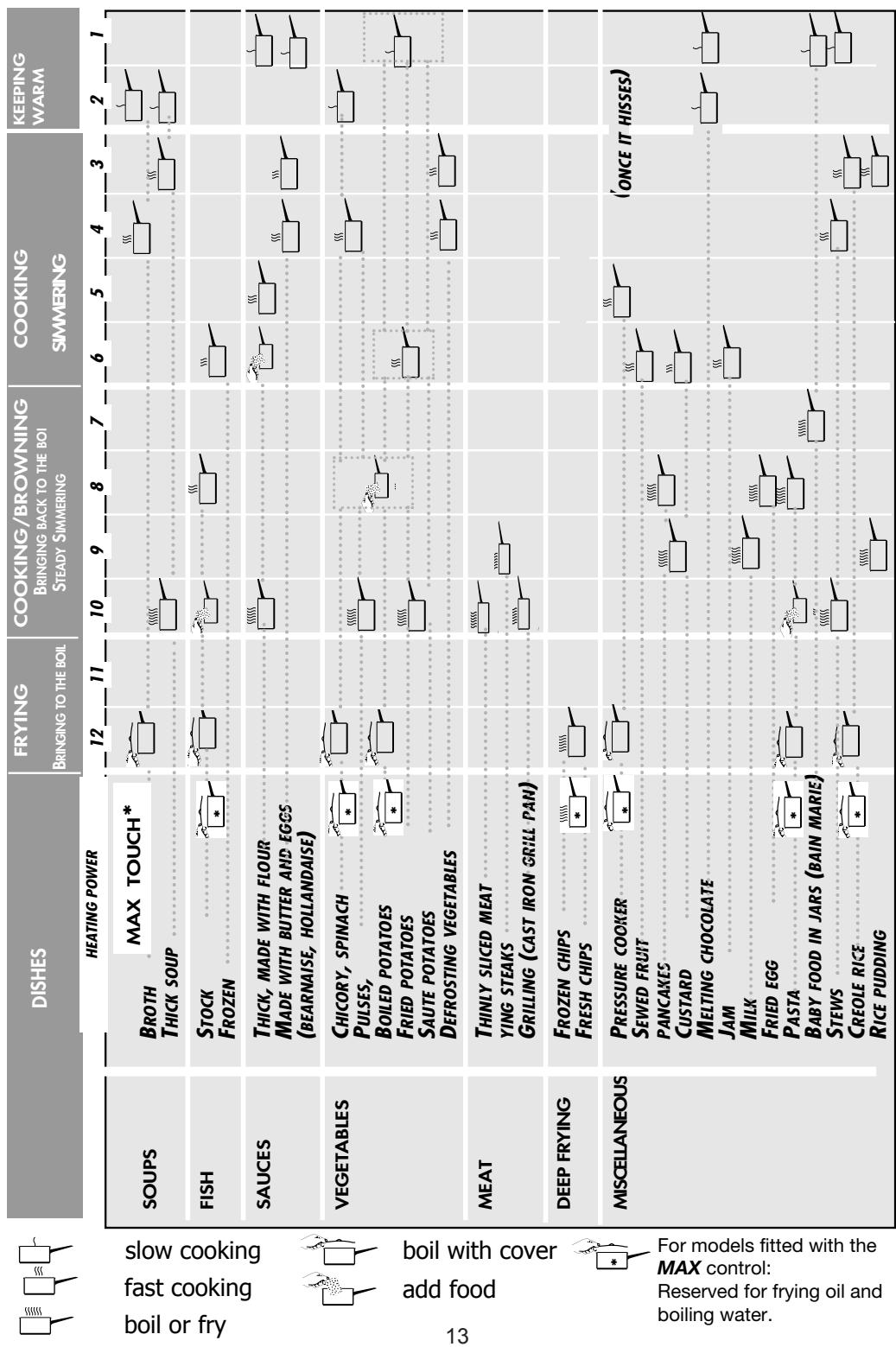

Cooking 13
In this Manual,
displays safety instructions
displays tips and hints
Dear Customer,
Thank you for purchasing a Brandt hob.
Our research teams have designed for you a new generation of appliances for pleasurable cooking every day.
With pure lines and a modern design, your new fits perfectly into your kitchen and is a perfect combination of easiness of use and cooking performance.
You will also find in the Brandt range a wide selection of ovens, extractor hoods, dishwashers and refrigerators that you can coordinate with your new Brandt hob.
Of course, constantly concerned with better satisfying your requirements, our customer service can answer all your questions and welcomes all your suggestions (details at the end of this booklet).
At the cutting edge of innovation, Brandt contributes to the quality of daily life by giving you constantly improving products that are simple to use, respect the environment and are well-designed and reliable
BRANDT.
For any information on our products please contact us at :
Brandt UK Ltd
Intec 4
Wade Road
Basingstoke
RG24 8NE
tel:01256 308000
Fax:01256 346377
Using your hob in complete safety
For saucepans
For the hob
Overheat sensor
- Each unit is equipped with a sensor that continuously monitors the temperature of the bottom of the pan, so that overheating is impossible (empty saucepan, etc.).
- A sensor continuously monitors the temperature of the components of your hob. The power output by the hob will automatically be reduced if this temperature becomes excessive.
Overflow protection
The shutdown of the hob, a special display (symbol shown opposite) and an audible "beep"* can all be triggered in one of the three following cases:
- An overflow which covers the control buttons.
- A damp cloth being placed on the buttons.
- A metal object being placed on the control buttons.
Clean or remove the object and start cooking once again.
* depending on the model
Residual heat indicator
After intensive use, the cooking zone may remain hot for several minutes.
The letter "H" is displayed during this period. Do not touch the zones concerned.
AS
Auto-stop system
The "Automatic-Stop" function activates automatically if the user forgets to turn off the cooker after cooking.
It starts up automatically if ever you forget to turn off after cooking
The letter AS is displayed for the heating zone concerned and the hob will bleep for about 2 minutes. The AS will continue to be displayed until any control of the zone in question is touched. The hob will then bleep twice to confirm your action.
| Power used | the heating zone goes out automatically after: |
| Between 1....7 | 8 hours |
| Between 8....11 | 2 hours |
| Between 12....max | 1 hour |
Using your hob in all simplicity
Child safety
Your cook top is equipped with a child safety feature which locks it during the use:
- Either when stopped (for cleaning)
- Or during cooking (any operations underway will continue and the displayed settings remain active). this case, for safety reasons only the "STOP" button is still usable.
Don't forget to unlock the appliance before reusing it.
- Locking the appliance
- Identify the special locking buttons (- +) placed on top of a symbol representing a padlock (or a key). - Press simultaneously on these buttons (- +) until the following information is displayed ☐ or ☐
The display goes out after a few seconds. Pressing any of the buttons activates the display.
- Unlocking the appliance
Press simultaneously on the locking buttons (- +) duntil the display goes out.
Automatic saucepan detection
Your induction hob is able to recognise most recipients.
- Test recipient: place your recipient on one of the rings on power setting 4.
If the display remains unchanged, your recipient is compatible.
If it flashes on and off, your recipient cannot be used with induction.
- You can also check using a magnet.
If it "sticks" to the base of the recipient, then this recipient is compatible with induction.
Removing the recipient from the hob immediately turns off the power to your hob. To completely turn off the ring you should press on the "Stop" button.
"Small item" safety feature
A small object such as a fork, spoon or a ring placed on your induction hob by itself is not detected as a pan. The display flashes and there is no output power.
We have designed this hob for private use in homes.
With a view to constantly improving our products, we reserve the right to make any changes to their technical, program or aesthetic features connected with their technical evolution.
These hobs are exclusively designed for cooking drinks and foodstuffs and contain no asbestos based components.
Your induction hob in complete safety

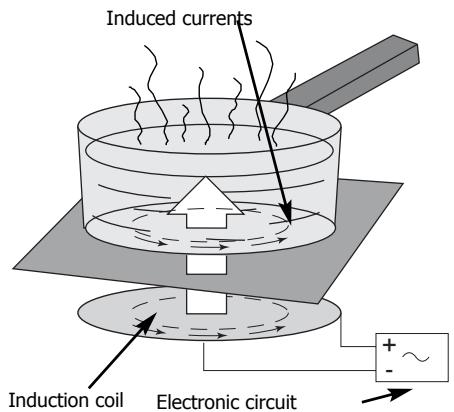

The principles of induction
When your induction hob is switched on and a heating power has been selected, the electronic circuits produce induced currents that instantaneously heat the bottom of the pan that transfers this heat to the food.
Thus cooking takes place with practically no energy loss between the induction hob and the food.
For the attention of wearers of pacemakers or other active implants:
The hob complies with all current standards on electromagnetic interference.
Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation.
Your induction hob generates short-range magnetic fields.
To avoid any interference between your induction hob and a pacemaker, the latter must be designed to comply with relevant regulations.
In this respect, we can only guarantee our own product conformity. Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility.
If a crack appears in the glass surface, disconnect the appliance immediately to avoid any risk of electric shock. For disconnecting, remove the fuses or use the cutout switch.
Do not re-use your hob until the glass surface has been changed.
Your hob must never be used as a storage space or cutting surface for any products whatsoever.
When cooking never use aluminium foil and never place products wrapped in aluminium foil or products deep-frozen in aluminium packs on the hob.
The aluminium will melt and damage your appliance irreparably.
Do not leave empty pans on your hob in case of residual heat or if the hob is turned on by mistake.
A steam cleaner must not be used.
containers
You probably already have some suitable pans.
Your induction hob is able to recognize most types of pans.
Pan test: Place your pan on a zone, for example a t
position 4; you know that your pan is compatible if the display does not flash, but if it does flash then you cannot use this pan for induction co-oking. You can also test it with a magnet: if the magnet "sticks" to the base of the pan, then you can use it for induction cooking.
Pans compatible with induction are:
- pans made of enamel coated steel with or without a non-stick coating.
- cast iron pans with or without enamel coated base.
An enamelled coated base will prevent the glass top of your hob from getting scratched.
- stainless steel pans designed for induction cooking.
Most stainless steel pans (saucepans, stewpans, frying pans, deep frying pans, etc.) are suitable for induction cooking if they pass the pan test.
• aluminium pans with special base.
pans which do not have a flat base may be suitable, however they must not be deformed too badly.
Choose a pan marked with the
logo on its base or packaging to be sure that it is perfectly suitable for use on your induction hob under normal conditions of use.
A list of utensils is supplied with these instructions to help you make your choice.
- Note
Glass, ceramic, earthenware pans, aluminium pans (without a special base) and copper pans, and some non-magnetic stainless steel pans are incompatible with induction cooking.
You will be informed by the flashing display.
You should choose pans with a thick flat base for uniform cooking (heat is better distributed).
Using the cooking zones according to the pan (depending on the model)
Multi-service zone
For small pans
Slow cooking (sauces, creams...).
Preparing small quantities or individual portions...
Installing your hob in complete safety
Always ensure that the air vents beneath the hob are kept clear.
Your induction hob must always be adequately ventilated.
Above a cupboard or drawer unit

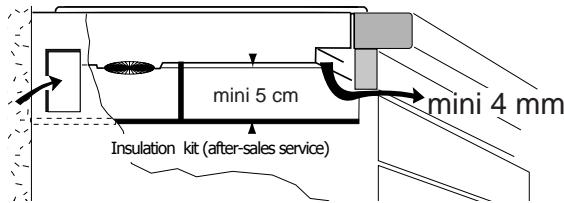

If the appliance underneath your hob produces excess heat :
this will be detected by a safety device incorporated into your induction hob. A high temperature will be indicated by a series of dashes or F7 will appear in the display.
If this happens we suggest you either create an opening in the side of the unit and/or install an insulation kit available from the After-Sales Dept (ref 75X1652), which will protect your hob from the heat generated beneath it.
Opening in the side of the unit approx 8 cm x 5 cm
Providing the advice on ventilation given above is followed, your hob can be installed above any piece of kitchen equipment.

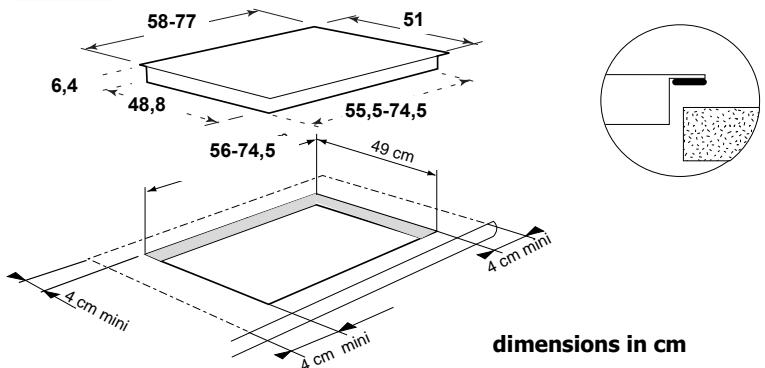

Installing your hob in complete safety
Fitting
A seal exists for preventing any humidity getting under the hob. -Stick the seal under the rim of the hob and lower the hob into position on the worktop.
-This seal is supplied in the sachet; stick it in place beneath the hob.
Connection
These hobs are delivered with type H 05 VVF power cable (1.5mm ^2 ) with 3/5 conductors (including a green/yellow earth wire), which must be connected to the power supply via a plug that complies with publication CEI 60 083 or an all-pole cut-out unit with contacts that open by at least 3mm.
If the cable is damaged, it must be replaced by the manufacturers, their After Sales Service or another similarly qualified person for avoiding any possible risk of accident.
When the power is switched on, or after a long power failure, a light code appears on the control panel. This disappears automatically after
about 30 seconds or as soon as any touch control is touched on the panel. This is normal, as the display is for use by the after-sales service when required. The user must not take this into account under any circumstances. If the unit has a 3 phase 400 V2N connection, and is not working correctly, check that the neutral wire is correctly connected. This precaution should also be taken for all your other electronic apparatus.
"When installing the hob, precautions must be taken to avoid damaging the power cable with the sharp edges".
- 220 240V monophase fuse 32 Amp
220-240 V 50Hz
TI316......7,2 kW TI382......7,2 kW
The unit must be installed so that the mains plug is easily accessible.

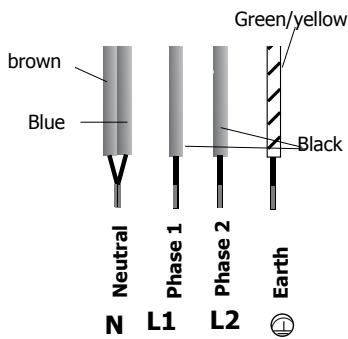

- 400 V 2N three-phase fuse : 16 Amp
Separate the 2 phase wires L1 and L2 before connecting

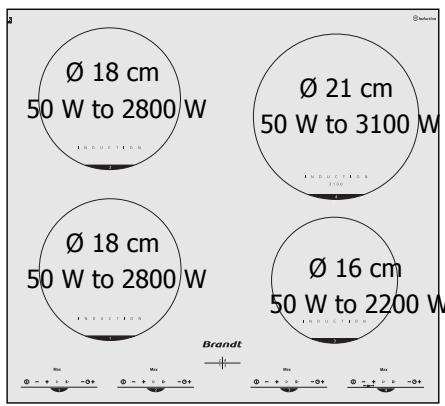

What your hob looks like?
TI 316

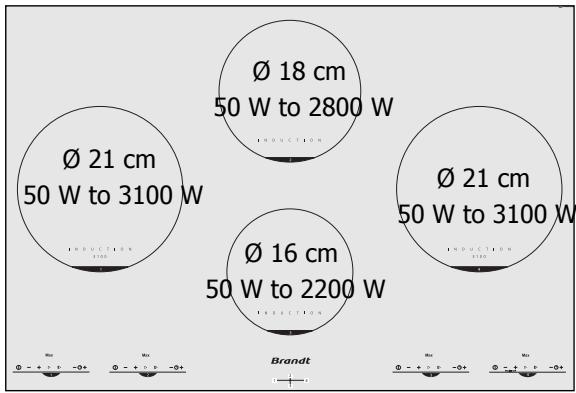

TI 382
Start/Stop
A flashing 0 show that the zone concerned has been turned on.
You can then choose the desired power.
If you do not set the power, the cooking zone will turn itself off automatically.
Setting manual power
▷ soft setting 6 = SIMMERING
power setting 10 = COOKING
Max maximum setting = BOILING
Setting the timer
Operates when cooking zones concerned are working. You can modify cooking times and any time.
manual stopping
automatic stopping
To stop the beep touch any control key in the cooking zone concerned. It will stop by default after about 1 minute.
Preserving and maintaining your hob
- You must:
Avoid any shocks with pans:
The glass surface is highly resistant but not unbreakable.
Avoid rubbing with any abrasive or with the base of pans etc. as in time this will deteriorate the markings on the top of your ceramic hob.
Avoid using pans with rough or dented bases:
They may hold and transport matter liable to stain or scratch the hob.
Any such faults, which are not the cause of breakdowns nor make the hob impossible to use, are not included in the guarantee conditions.
Place your pan in the middle of the heating zone.
- You must not
Leave metal cooking utensils, knives and forks, or metal objects on the hob. They will get hot if left close to any heating zone that is in use.
Store MAINTENANCE or INFLAMMABLE products in the cupboard under your hob.
Leave an empty pan on a heating zone.
Heat up a closed can. It may burst; this recommendation applies to all methods of cooking.
Put the pans on the frame or plate (depending on the model)
Preheat at maximum temperature when using pans with
non-stick inside surfaces (Teflon type). Use very little or no fat at all.
The maximum heating position is for boiling and frying only.
It is very easy to clean your countertop hob, especially if you follow these few recommendations:
| TYPE OF STAIN | WHAT TO DO | ACCESSORIES EMPLOYED | ||
| Minor | Soak the area to be cleaned with hot water, then wipe it. | Clean sponges | ||
| Accumulated burnt-on stains | Soak the area to be cleaned with hot water, use a special ceramic hob scraper to remove the worst, finish off with the rough side of a cleaning sponge, then wipe it clean. | Clean sponges special ceramic hob scraper | ||
| Rings and traces of limescale | Apply hot white spirit vinegar on the stain, leave to act then wipe off with a soft cloth.- Use a commercial cleaner. | Special ceramic hob cleaner | ||
| Burnt-on stains following sugar spillage, melted aluminium or plastic. | - Apply a special ceramic hob cleaner on the surface, preferably one which contains silicone (protective action). | Special ceramic hob cleaner | ||
 |  |  | ||
| powder | abrasive-backed sponge | ordinary sponge or special sponge for delicate items | ||
Minor troubleshooting
You have doubts about whether your hob is working correctly .... this does not necessarily mean there is a breakdown. Nevertheless, check the following points
IF YOU REALIZE THAT
When you switch on, the display lights up
When you switch on, the fuse blows
When you switch on, only one side of the hob works
The fan keeps going for a few minutes after the hob has been switched off
The top of the hob is always warm (even when it is switched off).
The hob does not work. Displays on the keyboard do not come on
The hob stops working during operation, a , or F7 come on.
A series of little
(or F7) appears
The hob does not work, another message comes on
After having turned on a heating zone, the keyboard displays continue to flash.
The pans make a noise during cooking
The hob gives off a smell when first used for cooking
POSSIBLE CAUSES
The hob is working normally
Your hob is connected incorrectly
Your hob is connected incorrectly
The electronics are cooling down
The electronics are under power as for all other electronic apparatus (TV, transformers, etc.).
The apparatus is not under power. There is a power or connection problem.
Something has overflowed and or an object is touching the control panel.
Electronic circuits have overheated.
The electronic circuit is working badly.
The saucepan you use is unsuitable for induction cooking or its diameter is under 12cm . (10 cm on the 160 mm zone).
This comes from vibrations made by energy going from the hob to the pan.
A new apparatus
WHAT SHOULD YOU DO?
NOTHING: see chapter Remarks on connections
Check the connection and make sure it complies with requirements.
This is normal.
This is normal.
Inspect the fuses and the cut-out switch.
Clean the hob or remove the object in question and start cooking again.
See "Fitting your hob".
Call the After Sales Service
See containers.
Under high power this phenomenon is normal with certain types of pans. There is no danger for the hob.
Use each heating zone for 12 hour with a pan full of water.
If the slightest break or crack appears in the ceramic glass surface, disconnect the unit immediately and contact your After Sales Service.
Innholdsfortegnelse
▷ myk innstilling 6 = SMÅKOKING
effektinnstilling 10 = TILBEREDNING
Max maks. innstilling = 🔊 🔊 KOKING
Stille inn koplingsuret
Virker når de aktuelle kokesonene er i funksjon.
Du kan endre tilberedningstid og andre tider.
manuell stopp
automatisk stopp
Hvis du vil stoppe lydsignalet, trykker du på en av betjeningstastene i den aktuelle kokesonen. Som standard stopper den etter ca. 1 minutt.
indstilling 6 = SMÅKOGNING
ndstilling 10 = KOGNING
Max ndstilling = KRAFTIG VARME
