USER MANUAL TV602BT1 BRANDT

EN GUIDE TO INSTALLATION AND USE

Pure electrical circuit lines without any symbols

FR 2 / UTILISATION DE VOTRE APPAREIL

• DESCRIPTION DE VOTRE DESSUS

TV 620

TV 621

TV 623

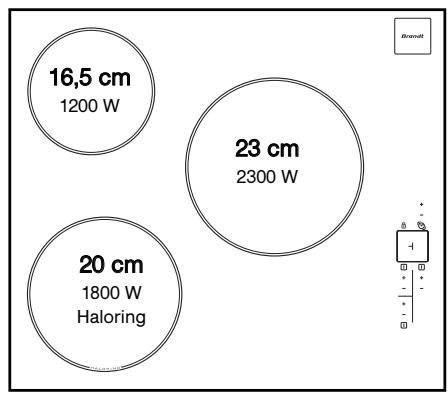

2 / UTILISATION DE VOTRE APPAREIL

FR

• RECIPIENTS POUR LA VITROCÉRAMIQUE

- Les récipients

You have just acquired a BRANDT hob and we would like to thank you.

We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use.

In the BRANDT product range, you will also find a wide choice of ovens, microwaves, ventilation hoods, cookers, dishwashers, washing machines, driers, fridges and freezers, that you can coordinate with your new BRANDT hob

Visit our website www.brandt.com where you will find all of our products, as well as useful and complementary information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

EN CONTENTS

• Safety instructions ____ 17
• Care of the environment ____ 17
  • Description of your appliance ____ 18

1 / INSTALLING YOUR APPLIANCE

• Choice of location ____ 19
  • Build-in ____ 19
• Connection 20

2 / USING YOUR APPLIANCE

• Description of the top ____ 21
• Cookware for vitroceramics ____ 22
• Description of control panel ____ 23
- Switching on ____ 23
- Adjusting the power level 23
- Switching off the hob 23
• Additional cooking zone ____ 23
- Setting the timer 23
• Using the child safety system ____ 23
- Hob operating safety 24

3 / MAINTAINING YOUR APPLIANCE

• Caring for your appliance ____ 25
- Maintaining your appliance 25

4 / SPECIAL MESSAGES, DIFFICULTIES

• When using for the first time ____ 26
• When switching on ____ 26
• Whilst using ____ 26

5 / COOKING CHART 27

SAFETY INSTRUCTIONS

EN

• SAFETY INSTRUCTIONS

We have designed this cooking hob for use by private individuals in their homes.

These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials.

- Residual heat

While an operating cooking zone is very hot, a lamp or "H" (depending on the models) for this zone, is lit in the indicator.

When a cooking zone is in a stop position and its temperature is high this display remains lit.

After a prolonged power cut another indicator light may appear; it will go out after any key is pressed. However, the temperature of the radiant cooking zones may remain high.

Warning

Do not touch these zones, burn risk.

Do not look for a long time at the halogen lamps in the cooking zones.

- Child safety feature

Your hob has a child safety feature which locks it when stopped or during cooking (see section: using the child safety feature).

Do not forget to unlock before using again.

Electrical danger

Ensure that the power cable of a connected electrical appliance near the hob is not in contact with the cooking zones.

If a crack appears in the surface of the glass, disconnect your appliance immediately to prevent a risk of electric shock.

To do this, remove the fuses or use the circuit breaker.

Do not use your hob until you have replaced the glass worktop.

• CARE OF THE ENVIRONMENT

- This appliance's packing materials are recyclable. Recycle them and play a role in protecting the environment by depositing them in municipal containers provided for this purpose.

- Your appliance also contains many recyclable materials. It is therefore marked with this logo to indicate that used appliances must not be mixed with other waste. Recycling of the appliances organised by your manufacturer will thus

be undertaken in optimum conditions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment waste. Consult your city hall or your retailer to find the drop-off points for used appliances that is nearest to your home.

– We thank you for your help in protecting the environment.

EN

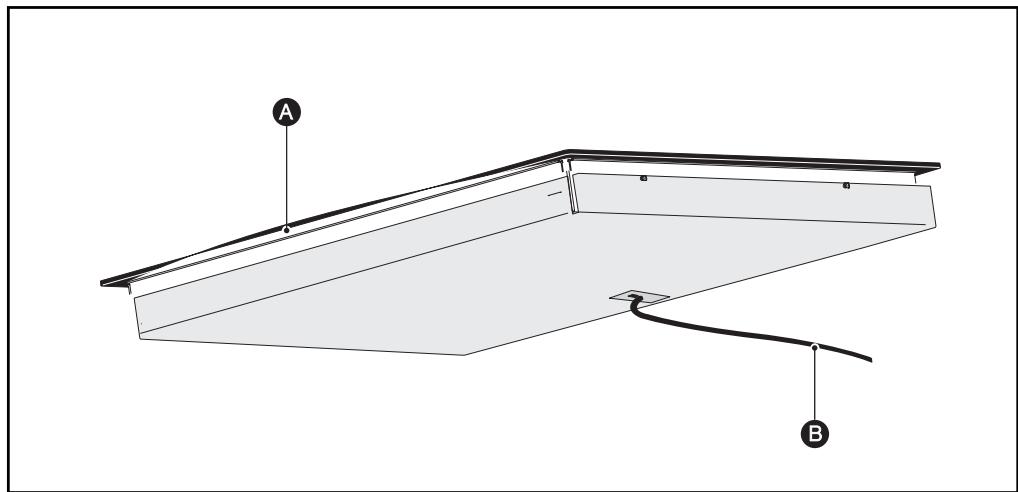

• DESCRIPTION OF YOUR APPLIANCE

A Vitroceramic glass
B Power cord

1 / INSTALLING YOUR APPLIANCE

EN

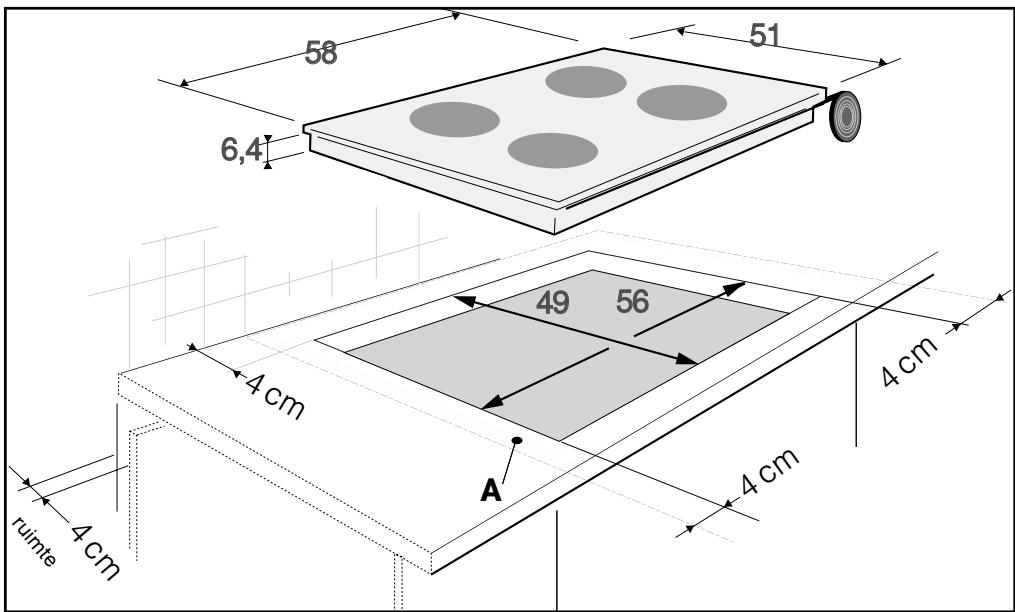

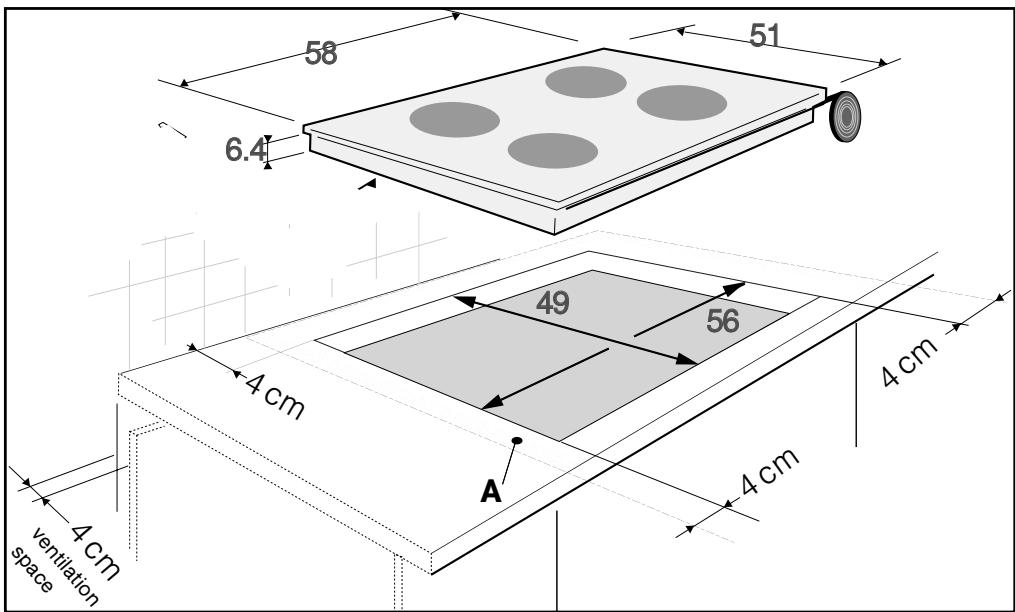

Your appliance should be positioned so that the mains switch is accessible.

The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimetres (area A).

The hob may be inserted directly in the work-top above the oven in the upper position. (minimum distance 10 mm)

• BUILD-IN

Follow the diagram above.

A joint provides the seal with the worktop.

• This joint is glued under your hob; insert the hob directly in the cut-out.
• This joint is supplied in the envelope; glue it under the hob.

EN 1 / INSTALLING YOUR APPLIANCE

- CONNECTION

These hobs must be connected to the mains using a socket in compliance with publication CEI 60083 or an all-pole circuit-breaker device in compliance with the installation rules in force.

When power is first supplied to your hob, or after an extended power cut, an indicator light will appear on the control panel. Wait for approximately 30 seconds until this information disappears before using your hob (This display is normal and it is intended, if applicable, for your after-sales service. In all cases, the user of the hob should disregard it).

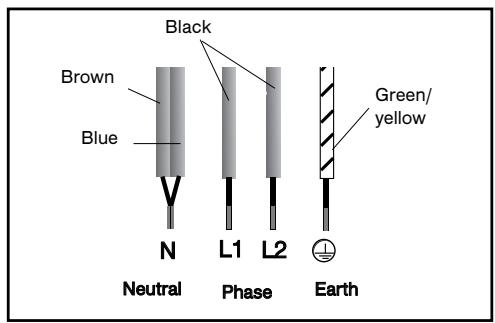

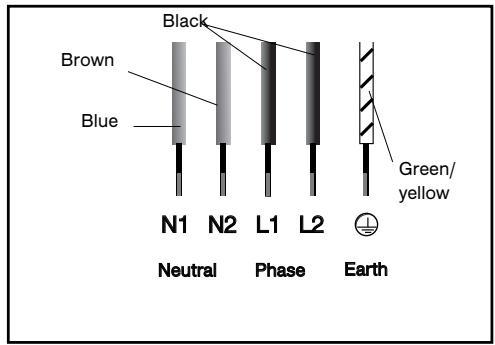

- Connection of 400V 2N \~ - 16A

Separate the 2 phase wires (L1 and L2) before connection.

For a 400 V 2N triphase connection, if your hob malfunctions, check that the neutral conductor is properly connected.

Warning

If the cable is damaged it must be replaced by the manufacturer, its after-sales service or a person with a similar qualification to prevent danger.

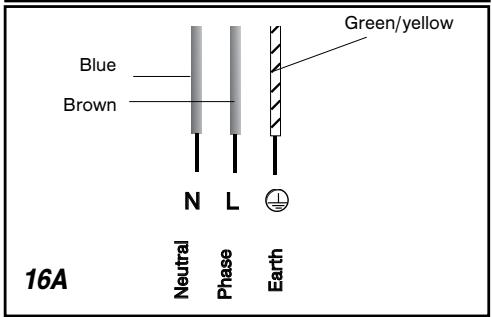

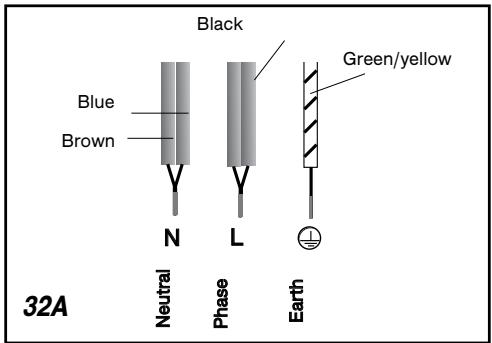

• Connection of 220-240V \~


- Connection of 2x230V 2L+2N \~ - 16A

Separate the wires before connection.

• Connection of 400V 3 \~ - 16A

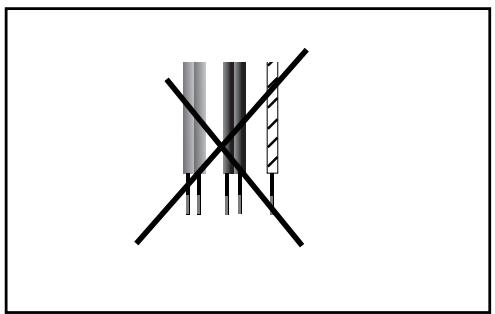

Pure electrical circuit lines without any symbols

2 / USING YOUR APPLIANCE

EN

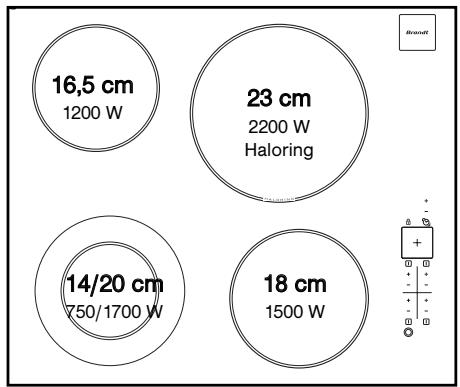

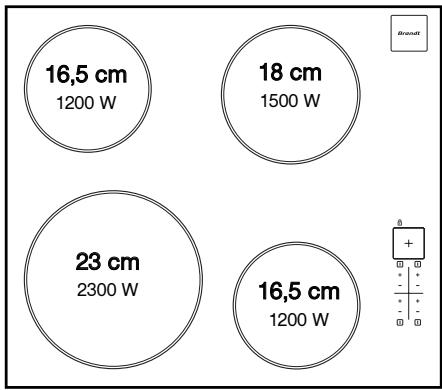

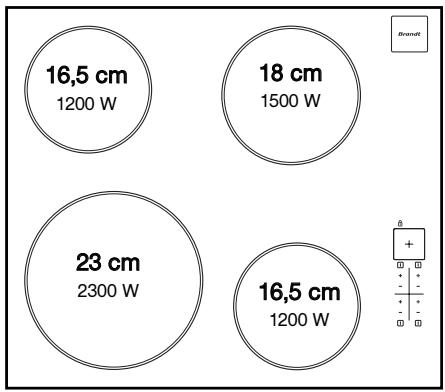

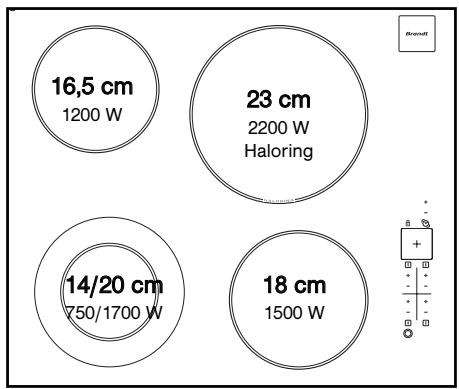

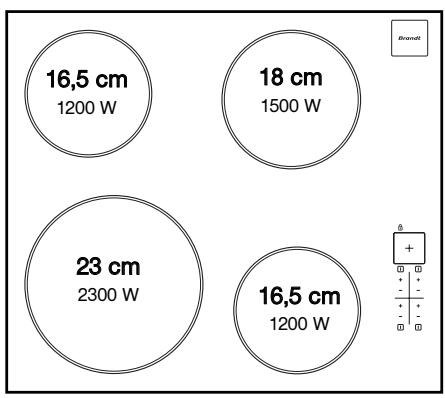

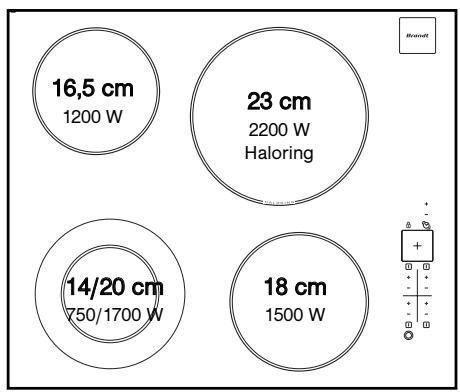

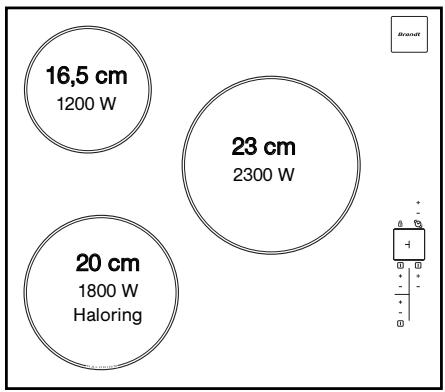

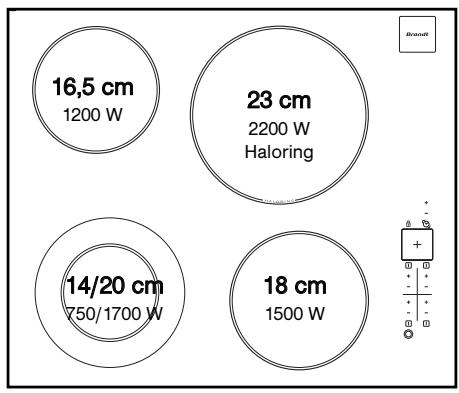

• DESCRIPTION OF THE TOP

TV 620

TV 621

TV 623

EN 2 / USING YOUR APPLIANCE

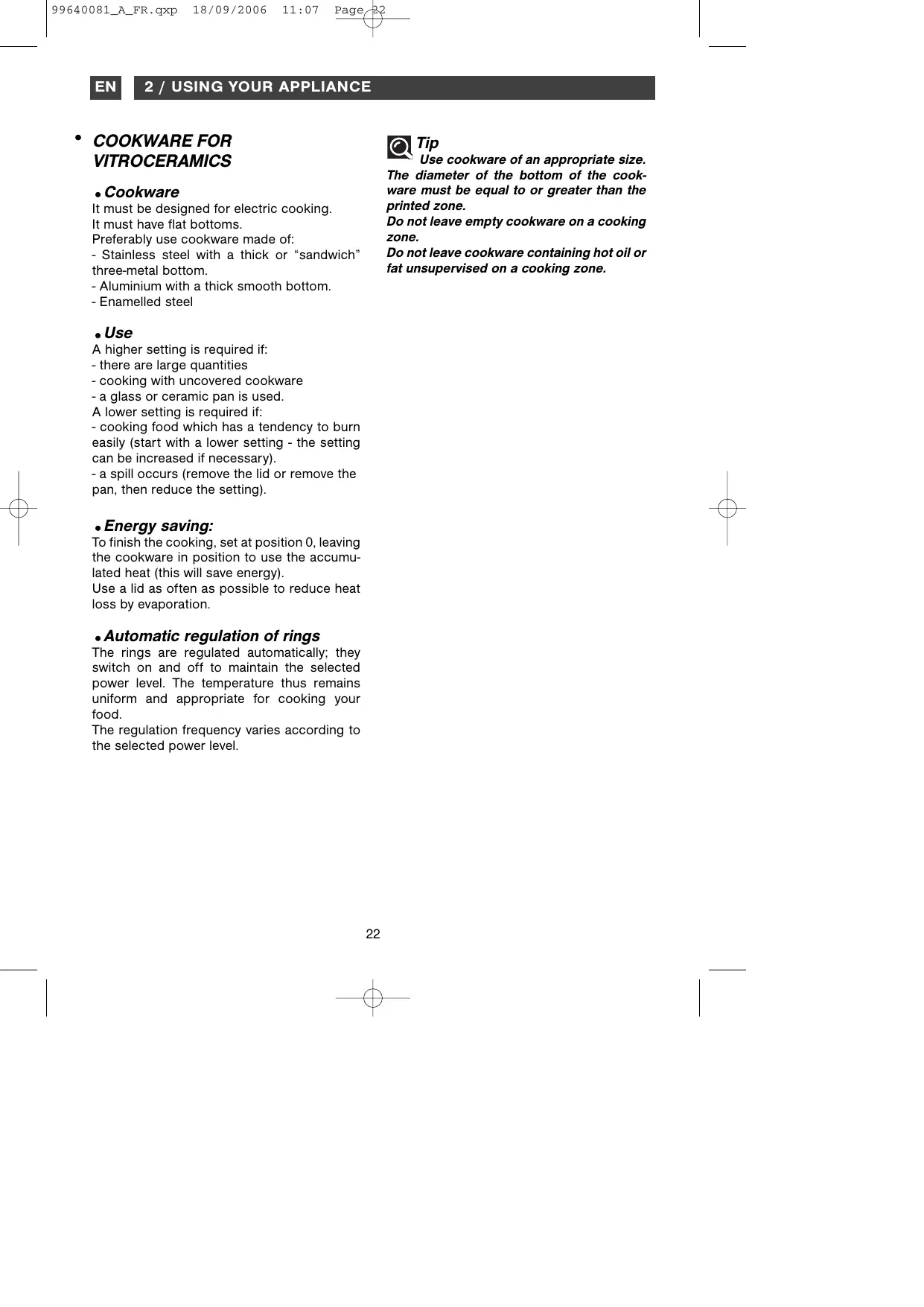

• COOKWARE FOR VITROCERAMICS

• Cookware

It must be designed for electric cooking. It must have flat bottoms.

Preferably use cookware made of:

• Stainless steel with a thick or "sandwich" three-metal bottom.
• Aluminium with a thick smooth bottom.
• Enamelled steel

• Use

A higher setting is required if:

• there are large quantities
• cooking with uncovered cookware
• a glass or ceramic pan is used.

A lower setting is required if:

- cooking food which has a tendency to burn easily (start with a lower setting - the setting can be increased if necessary).

- a spill occurs (remove the lid or remove the pan, then reduce the setting).

• Energy saving:

To finish the cooking, set at position 0, leaving the cookware in position to use the accumulated heat (this will save energy).

Use a lid as often as possible to reduce heat loss by evaporation.

• Automatic regulation of rings

The rings are regulated automatically; they switch on and off to maintain the selected power level. The temperature thus remains uniform and appropriate for cooking your food.

The regulation frequency varies according to the selected power level.

Use cookware of an appropriate size. The diameter of the bottom of the cookware must be equal to or greater than the printed zone.

Do not leave empty cookware on a cooking zone.

Do not leave cookware containing hot oil or fat unsupervised on a cooking zone.

2 / USING YOUR APPLIANCE

EN

• DESCRIPTION OF CONTROL PANEL

touch controls.

Start/stop

Power - +

Timer- +

Locking

- POWERING ON

Press the start/stop button for the cooking zone you want to use. A flashing 0 and a bip indicate that the cooking zone is on. You can then choose the desired power level. If you do not select a power level, the cooking zone will automatically turn itself off.

- Press keys - + of the cooking zone you wish to use to adjust the power level. Do the same operation for the other cooking zones.

- STOP

Press on the start/stop button of the zone being used or on the “-” power button until the display disappears.

• ADDITIONAL ZONE

Depending on the model

The additional cooking zone can be used only when the main heating zone is in operation. To switch it on:

When switching on:

- Setting the power level.

- Press the touch control Ⓤ, a beep will confirm your action, alternatively the power setting and an “E” will be displayed, adjust the power if necessary.

To switch it off:

- Press the touch control Ⓗ, a beep will confirm your action.

ADJUSTING THE TIMER

There is a timer for each cooking zone.

Use the ⏻ button to select the cooking zone on which you would like to use the timer.

If you press this button several times, a rotating symbol will show which cooking zone the timer is being used for.

The rotating symbol and timer can only be modified for a zone if it is turned on.

To use the timer:

- turn on the cooking zone

- select the rotating symbol for this cooking zone.

The timer only operates if there is something on the cooking zone.

-adjust the timing by pressing “+” on the timer (or “-” adjusting from 99,98,97,...min).

When you have finished cooking, the cooking zone turns itself off, the timer shows 0 and a bip sounds. Press any button to stop the bip.

- To change the timer settings, press the - or + buttons on the timer.

- To stop the timer, press the ⏻ button.

- To use the timer on a different cooking zone, choose a new use by pressing the ⏻ button several times.

When the previous timing stops, set your timing for the new cooking zone using the "+" or "-" buttons.

EN 2 / USING YOUR APPLIANCE

• USING THE "CHILD SAFETY" FEATURE

Your cooking hob has a child safety feature which locks controls which are not in use (for cleaning, for example) or during cooking (to keep your settings).

For safety reasons, only the "stop" key is always active and and allows the heating zone to be switched off even if locked.

•How do you lock it?

Keep the locking key held down until the LED above it lights up and a beep confirms your operation.

• Hob locked in operation

The display of the cooking zones in operation indicates, in alternation, the power and the locking symbol □.

When you press the power or timer keys of the zones in operation, the LED of the lock lights up; it will go out after a few seconds,

Only the "stop" key is always active

In the cooking zones which are not in operation, the symbol 🔒 and the LED light up when you press the "on/off" keys.

This display disappears after a few seconds,

•The hob is locked at stop

The LED above the lock key is unlit. Pressing this LED for a short time causes the LED to light up.

The LED is displayed when you press an on/off key in any zone.

•How do you unlock it?

Press the lock key until the LED goes out and a double beep confirms your operation.

Tip

Remember to unlock your hob before reusing it (see section "using child safety" feature).

• HOB OPERATING SAFETY FUNCTIONS

- Auto-Stop system

If you forget to turn off a cooking zone your cooking hob has a safety function "Auto-Stop system" which automatically turns off the forgotten cooking zone after a predefined time (between 1 and 10 hours, depending on the power used).

If this safety function is activated, the disconnection of the cooking zone is signalled by the display "AS" or "A" in the control zone and a beep is emitted for approximately 2 minutes. Simply press any key of the controls to stop it. A double beep will confirm your action.

3 / MAINTAINING YOUR APPLIANCE

EN

• CARING FOR YOUR APPLIANCE

Avoid hard shocks from cookware:

The vitroceramic glass surface is highly resistant, but not unbreakable.

Do not place any hot lids flat on your coo-king hob. A “sucker” effect might damage the vitroceramic top.

Avoid rubbing cookware: in the long term this might cause damage to the decoration of the vitroceramic top.

Do not place cookware on your frame or trimmings (depending on model).

Avoid using cookware with rough or bumpy bottoms: they can capture and transfer particles that may produce stains or scratches on your hob.

These faults, which do not prevent operation or unsuitability for use, are not covered by the guarantee.

Do not store cleaning products or flammable products in the cabinet underneath your cooking hob.

Do not reheat an unopened tin: it might explode.

Of course, this precaution applies to all types of cooking.

For cooking, never use aluminium foil. Never place items wrapped in aluminium foil or packaged in aluminium dishes on your cooking hob.

The aluminium will melt and permanently damage your cooking appliance.

Objects not intended for cooking should never be placed on the hob (risk of powering on, scratches, etc.).

Steam cleaning should never be used. The steam jet could damage your hob.

• MAINTAINING YOUR APPLIANCE

TYPE OF S TAINS/SPOTS	USE	WHAT TO DO
Light.	Cleaning sponges	Thoroughly moisten the zone to be clea-ned with hot water, then wipe off.
Accumulation of baked-on stains/dirt.Sugar spills,melted plastics.	Cleaning spongesScraper for glass.	Thoroughly moisten the zone to be clea-ned with hot water. Use a scraper forglass to remove the large bits, follow withthe rough side of a disinfectant sponge,and then wipe off.
Rings and hard water residue.	White vinegar.	Apply warm white vinegar to the stain, letstand, then wipe with a soft cloth.
Shiny metal colourings.Weekly maintenance.	Special vitroceramic glass product.	Apply a cleaning agent for vitroceramic glass (preferable one with silicone for itsprotective properties) to the surface.
cream special cleaning sponge powder abrasive sponge

EN 4 / SPECIAL MESSAGES, INCIDENTS

• On first use

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
A special lamp appears.	Working normally.	Nothing.
Your installation blows a fuse.	The electrical connection of your hob is incorrect.	Check that it is compliant.See section on electrical connection.
Only one side works.

• On switching on

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
The hob does not operate and the indicator lights on the control panel do not light up.	The machine is not connected to the power source. The power source or connection is defective.	Inspect the electrical circuit breaker and fuses.
the hob does not function, the information 🔍 is displayed.	The hob is locked	See section on using the child safety system

• Whilst in use

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
The hob has stopped operating and is beeping every 10 seconds approximately and aor F7 is displayed.	There was an overflow or an object is in contact with the control panel.	Clean the hob or remove the object, then begin cooking again.
A series of smallor F7 is displayed.	The electronic circuits have heated.	See “Build-in” section.

Warning

In the event of breakage, crack or fissure, even minimal, of the vitroceramic glass,

immediately disconnect your appliance to prevent a risk of electric shock.

Contact the After-Sales Service Department.

• VITROCERAMIC

		FRYBRING TOA BOIL	COOK/BROWNRETURN TO BOILINGBOILING LIGHT BROTHS		COOK/SIMMER			KEEPWARM
		9	8	7	6	5	4	3	2	1
SOUPS	BROTHS
	THICK SOUPS
FISH	COURT BOUILLON
	FROZEN FOODS
SAUCE	THICK, FLOUR-BASED
	BUTTER-BASED WITH EGGS(BEARNAISE, HOLLANDAISE)PREPARED SAUCES
		9	8	7	6	5	4	3	2	1
VEGETABLES	ENDIVES, SPINACH
	DRIED BEANS
	BOILED POTATOES
	GOLDEN BROWN POTATOES
	SAUTEED POTATOES
	DEFROSTING VEGETABLES
MEAT	MEAT, NOT TOO THICK
	STEAKS, IN SKILLET
	GRILLED MEATS (CAST IRON GRILL)
FRYING	FROZEN FRENCH FRIES
	FRESH FRENCH FRIES
		9	8	7	6	5	4	3	2	1
MISCELLA-NEOUS	PRESSURE COOKER(ONCE IT STARTS WHISTLING)
	COMPOTES
	CRÉPES
	CRÈME ANGLAISE
	MELTED CHOCOLATE
	JAMS
	MILK
	EGGS, FRIED
	PASTA
	JARS OF BABY FOOD(DOUBLE BOILER)
	MEAT STEW
	SPANISH RICERICE PUDDING

PT

Brandt

Pure electrical circuit lines without any symbols

TV 623

Diagram showing a glass cylinder intersected by two crossed lines, with a textured rectangular block below (no text or symbols)

1 / INSTALLATIE VAN HET APPARAAT

NL 1 / INSTALLATIE VAN HET APPARAAT

• KEUZE VAN DE PLAATS

1 / INSTALLATIE VAN HET APPARAAT

NL

• AANSLUITING

Pure electrical circuit lines without any symbols

NL 2 / GEBRUIK VAN HET APPARAAT

• BESCHRIJVING VAN DE BOVENZIJDE

TV 620

TV 621

TV 623

2 / GEBRUIK VAN HET APPARAAT

NL

• KOOKPOTTEN VOOR PLATEN VAN GLASKERAMIEK

- De kookpotten

• AANZETTEN
