Product Type	Electric Fan Heater
Available Models	ST-02, ST-03, ST-033, ST-05, ST-09 (2.0 to 9.0 kW)
Rated Power (depending on model)	2.0 / 3.0 / 3.3 / 5.0 / 9.0 kW
Supply Voltage	230 V ~ 50 Hz (standard models) or 400 V ~ 50 Hz (three-phase)
Maximum Heating Area	Up to 80 m² (9 kW model)
Weight	From 4.8 to 11 kg depending on model
Protection Rating	IPX4 (protected against water splashes)
Body Material	Steel
Control Type	Mechanical thermostat and function selector (off, fan, heat 1/4, 1/2, full)
Number of Heat Settings	2 or 3 depending on model
Safety	Overheat protection, automatic shut-off, safety thermostat
Mounting	Handle and feet included, simple assembly
Usage	Indoor use only, on a flat and heat-resistant surface, do not cover
Cleaning	Soft cloth and mild detergent, do not immerse, do not use solvents
Maintenance	No user-serviceable parts, contact authorized service center
Supplied Accessories	Handle, feet, mounting screws, manual
Warranty	Manufacturer's warranty, contact STANLEY after-sales service

Frequently Asked Questions - STN9000 STANLEY

How do I clean my STN9000 fan heater?

Before cleaning, unplug the appliance and let it cool. Wipe the casing with a soft sponge soaked in water below 50°C with mild detergent, then dry with a clean cloth. Never spray water inside and do not use solvents like gasoline or toluene.

Which heater power should I choose for a 20 m² room?

For a 20 m² room, a 2.0 kW model (ST-02) is generally sufficient. More powerful models (3.0 kW and above) are suitable for larger spaces up to 80 m².

Can I use the STN9000 in a bathroom?

The appliance has an IPX4 protection rating, which protects against water splashes, but it should not be placed near a bathtub, shower, or swimming pool. Use it in a dry, ventilated room.

What should I do if the heater does not heat?

First check that the appliance is properly plugged in and that the thermostat is not set to minimum. If the thermostat has cut off heating (temperature reached), wait for the room to cool down. If the problem persists, contact STANLEY after-sales service.

The heater makes noise, is it normal?

Yes, the fan runs continuously when the appliance is on, producing normal ventilation noise. The fan speed is constant, only the heat level changes.

Can I use an extension cord with this heater?

Yes, but ensure the extension cord supports the power of the appliance (at least 10 A for 2 kW models, etc.) and do not exceed the maximum load indicated on the cord. For three-phase models, use a suitable extension cord.

How do I adjust the thermostat correctly?

Turn the thermostat fully to the right (+) to heat at full power. When the desired temperature is reached, slowly turn to the left until the heating element turns off. The thermostat will then maintain the temperature.

A burning smell occurs at first use, is it dangerous?

No, this is normal. The heating element is coated with a protective oil that emits a slight smoke or odor during the first heating. This disappears after a few minutes of use.

Where can I find spare parts for my STN9000?

Spare parts (coil, knob, fan blade, etc.) are available from STANLEY after-sales service. Check the parts list in the manual or contact an authorized center. Do not attempt to repair yourself.

The heater turns off by itself, what should I do?

This is likely due to overheat protection. Check that the appliance is not covered, that the grilles are not obstructed, and that it is placed on a stable surface. Let it cool, then restart. If the problem persists, contact customer service.

USER MANUAL STN9000 STANLEY

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Elektrische ventilatorkachel

Simple line drawing of an open book with no text or symbols visible

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with crossed-out document icon and diagonal line, indicating no text or document.

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

Line drawing of four mechanical components arranged in a V-shape, labeled '1' at the bottom (no text or symbols on the diagram itself)

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

⑤ ⑤ ⑥ 4

LAAT DE KACHEL NOOIT ONBEWAAKT ACHTER MET DE STEKKER IN HET STOPCONTACT

Montage (zie pagina 7)

1. ZET DE BOVENSTE HANDGREEP SAMEN (Fig. 1)

Technical diagram of an industrial machine with numbered components for identification

Onderdelenlijst

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Vestigingsadres: Bd. Général Wahis, 53 1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with crossed-out document and shield icon, indicating no document or shield use

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

Line drawing of three mechanical components with no text or symbols

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

⑤ ⑤ ⑥ 4

NE JAMAIS LAISSER LE RADIATEUR SANS SURVEILLANCE LORSQU'IL EST BRANCHÉ À UNE SOURCE D'ALIMENTATION

Technical diagram of an industrial machine with numbered components for identification

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with a diagonal line and document icon, indicating no text or document.

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

EXPLOSIONSGEFAHR! Nehmen

Technical line drawing of three mechanical components with no visible text or symbols

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable industrial machine with cooling fins and tubing (no text or symbols)

⑤ ⑤ ⑥ 4

Technical diagram of an industrial machine with numbered components for identification

Teileliste

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with a diagonal line and document icon, indicating no text or document.

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

Line drawing of four mechanical components arranged in a fan-like pattern, labeled '1' at the bottom (no text or symbols on the diagram itself)

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

⑤ ⑤ ⑥ 4

NUNCA DEIXAR O AQUECEDOR SEM VIGILÂNCIA QUANDO

ESTIVER LIGADO À CORRENTE

Technical diagram of an industrial machine with numbered components for identification

Lista de peças

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Sede social: Bd. Général Wahis, 53 1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with a diagonal line and document icon, indicating no text or document.

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

Line drawing of four mechanical components arranged in a fan-like pattern, labeled '1' at the bottom (no text or symbols on the diagram itself)

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

⑤ ⑤ ⑥ 4

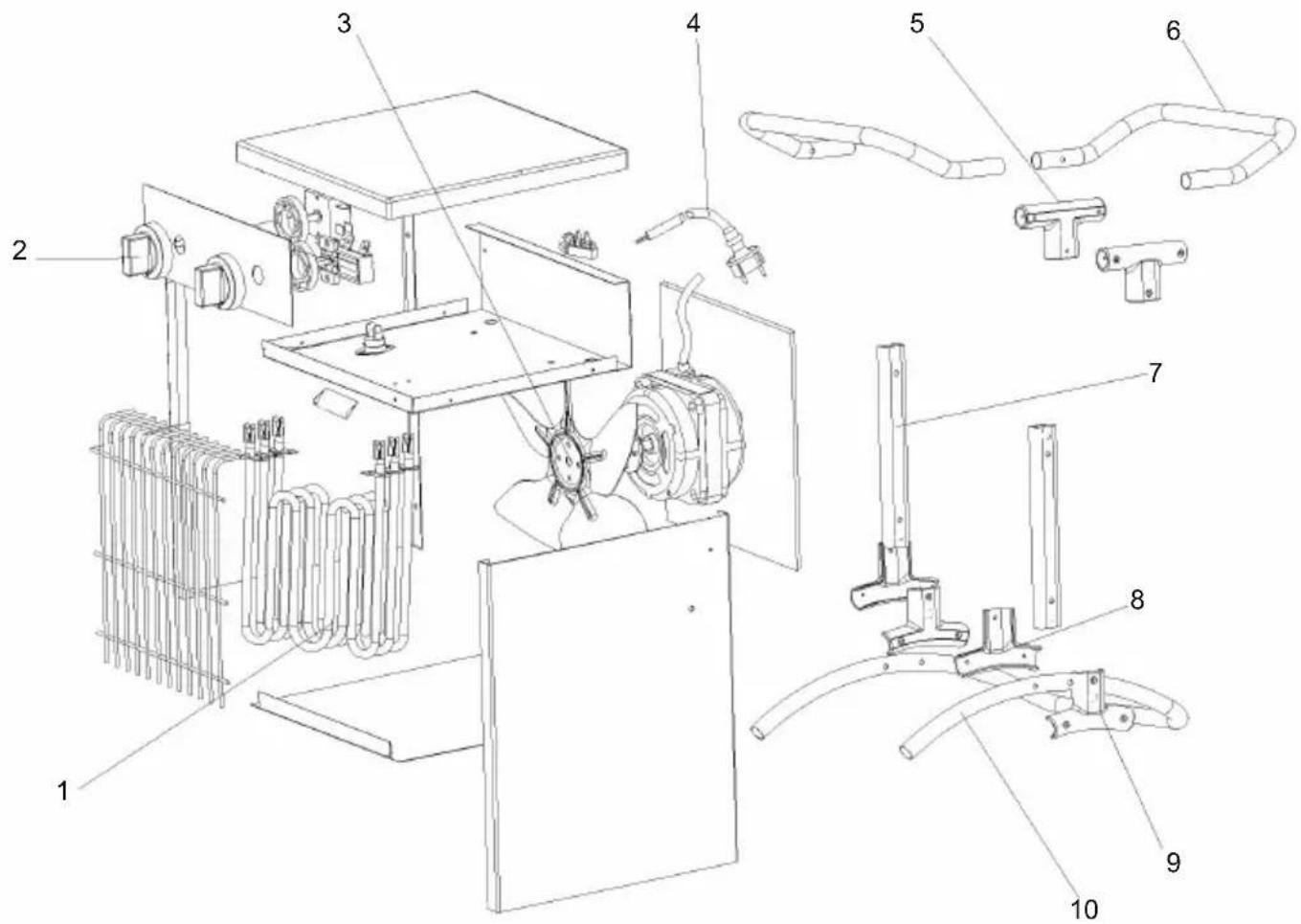

Technical diagram of an industrial machine with numbered components for identification

Lista de repuestos

N.°	ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E
1 Bobina calefactora
2 Perilla de ajuste
3 Aspa del ventilador
4 Cable eléctrico (no incluido con ST-09-400-E)
5 Soporte del asa superior
6 Asa superior
7 Soporte lateral
8 Soporte inferior interno
9 Soporte inferior externo
10 Armazón inferior

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC | REP

Obelis S.A.

Domicilio social:

1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

Black STANLEY industrial electrical heater with visible fan and control knobs (no text or symbols on main body)

Simple line drawing of an open book with no text or symbols visible

Prohibition sign with a diagonal line and document icon, indicating no text or document.

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

Line drawing of four mechanical components arranged in a fan-like pattern, labeled '1' at the bottom (no text or symbols on the diagram itself)

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

Technical diagram of a portable air heater with labeled components and airflow direction indicator

NIGDY NIE POZOSTAWIAĆ BEZ NADZORU NAGRZEWNICY PODŁĄCZONEJ DO ZASILANIA

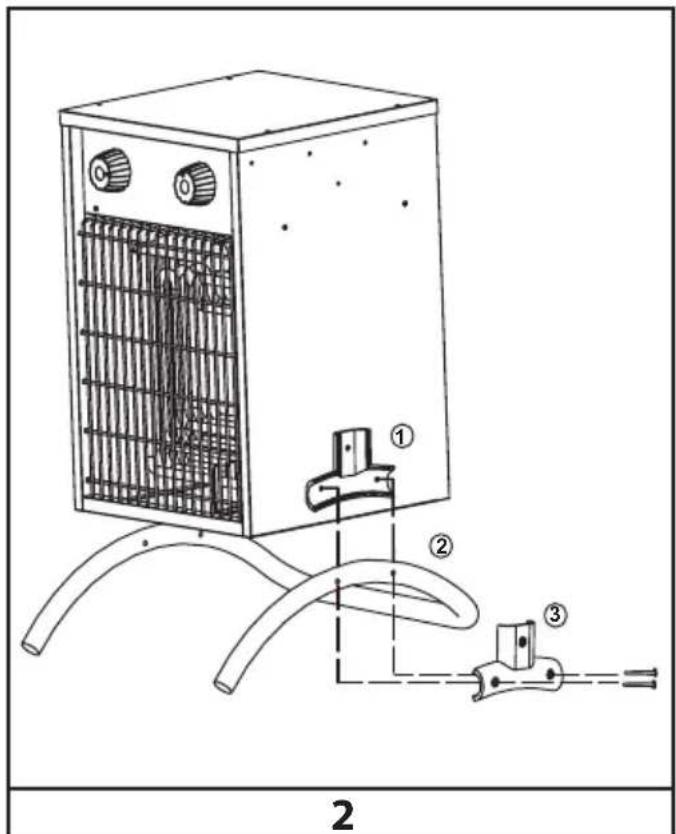

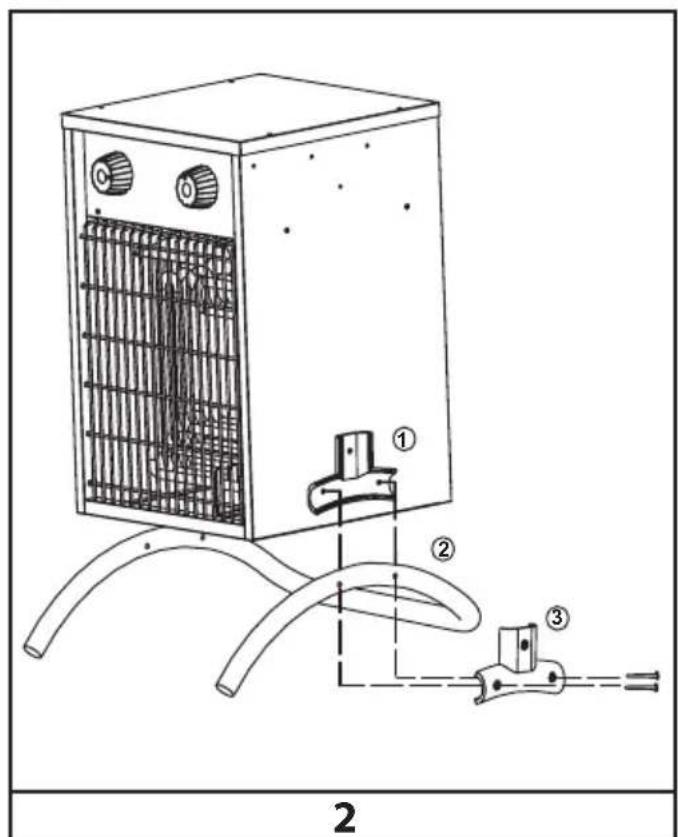

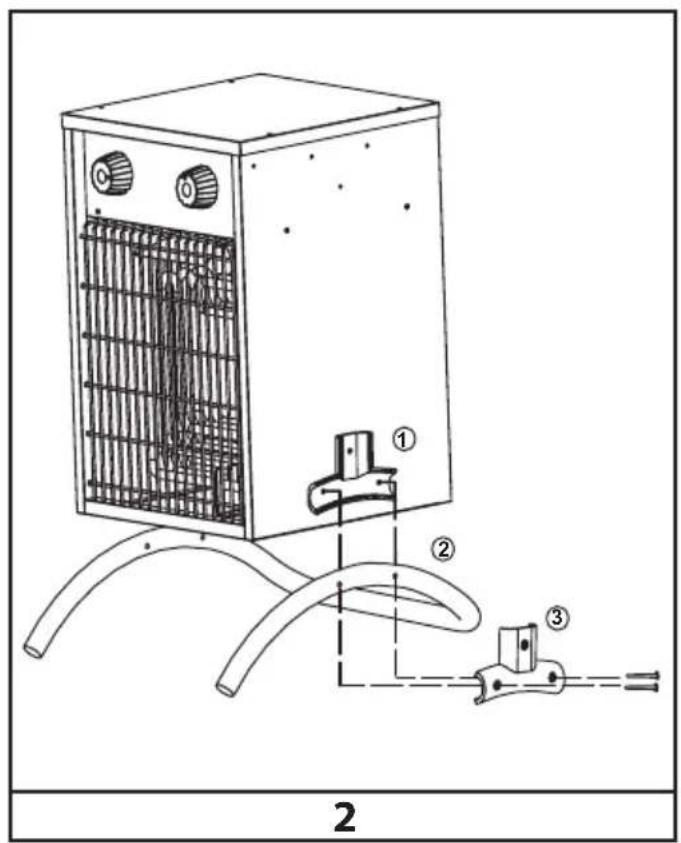

2. INSTALACJA RAMY STÓP NAGRZEWNICY (Rys. 2)

Technical diagram of an industrial machine with numbered components for identification

Lista części

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Siedziba firmy:

1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.

STANLEY®

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

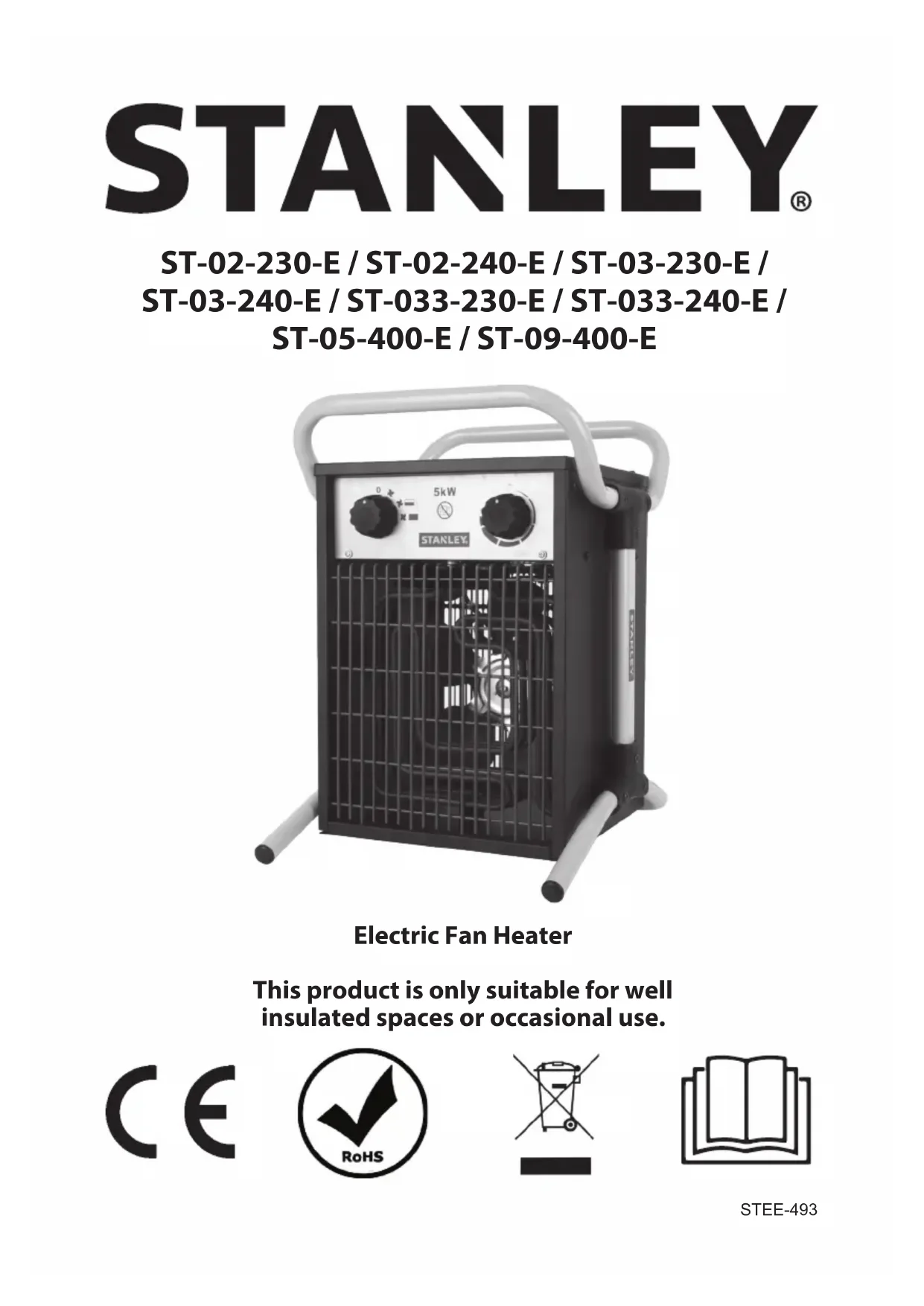

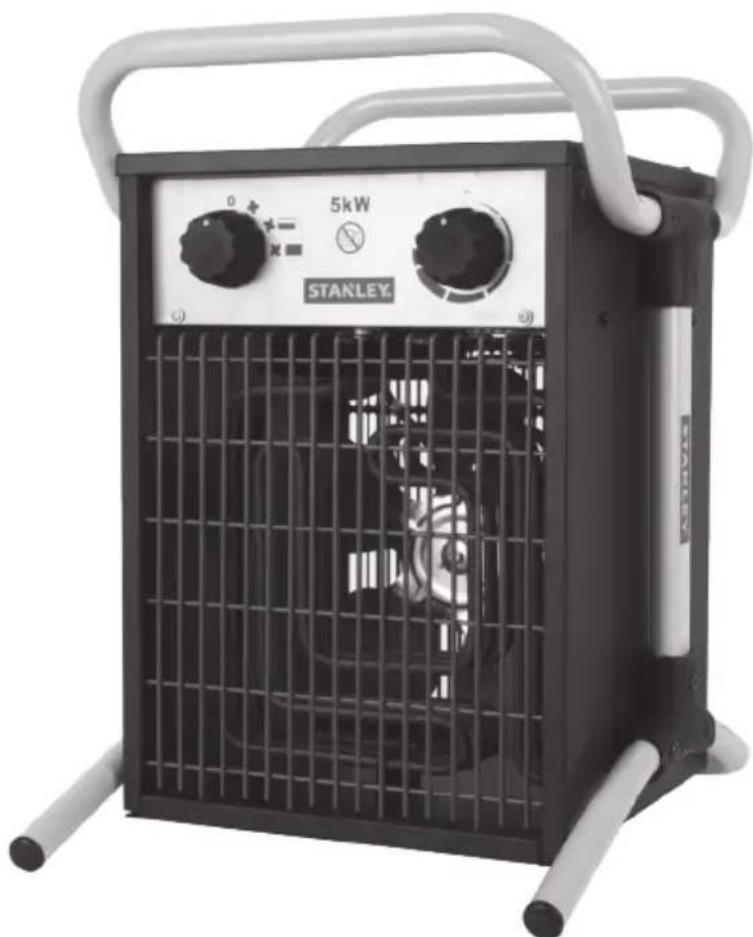

Black STANLEY industrial electrical heater with fan and control knobs (no visible text or symbols on main body)

Electric Fan Heater

This product is only suitable for well insulated spaces or occasional use.

CE

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The heater must not be located immediately below a socket-outlet.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Do not use the appliance for other than its intended use. For domestic indoor use only.
• Place the appliance on a flat, stable, heat-resistant surface. Operating the product in any other position could cause a hazard.
• There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
• Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.
• CAUTION: If using an extension lead please ensure you do not exceed the maximum rated running wattage/load of the extension lead.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

ENGLISH

1-21

Simple line drawing of an open book with no text or symbols visible

Read the instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read.

Do not use the appliance for other than its intended use. For domestic indoor use only.

Prohibition sign with a diagonal line and document icon, indicating no text or document.

WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT COVER THE HEATER.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E

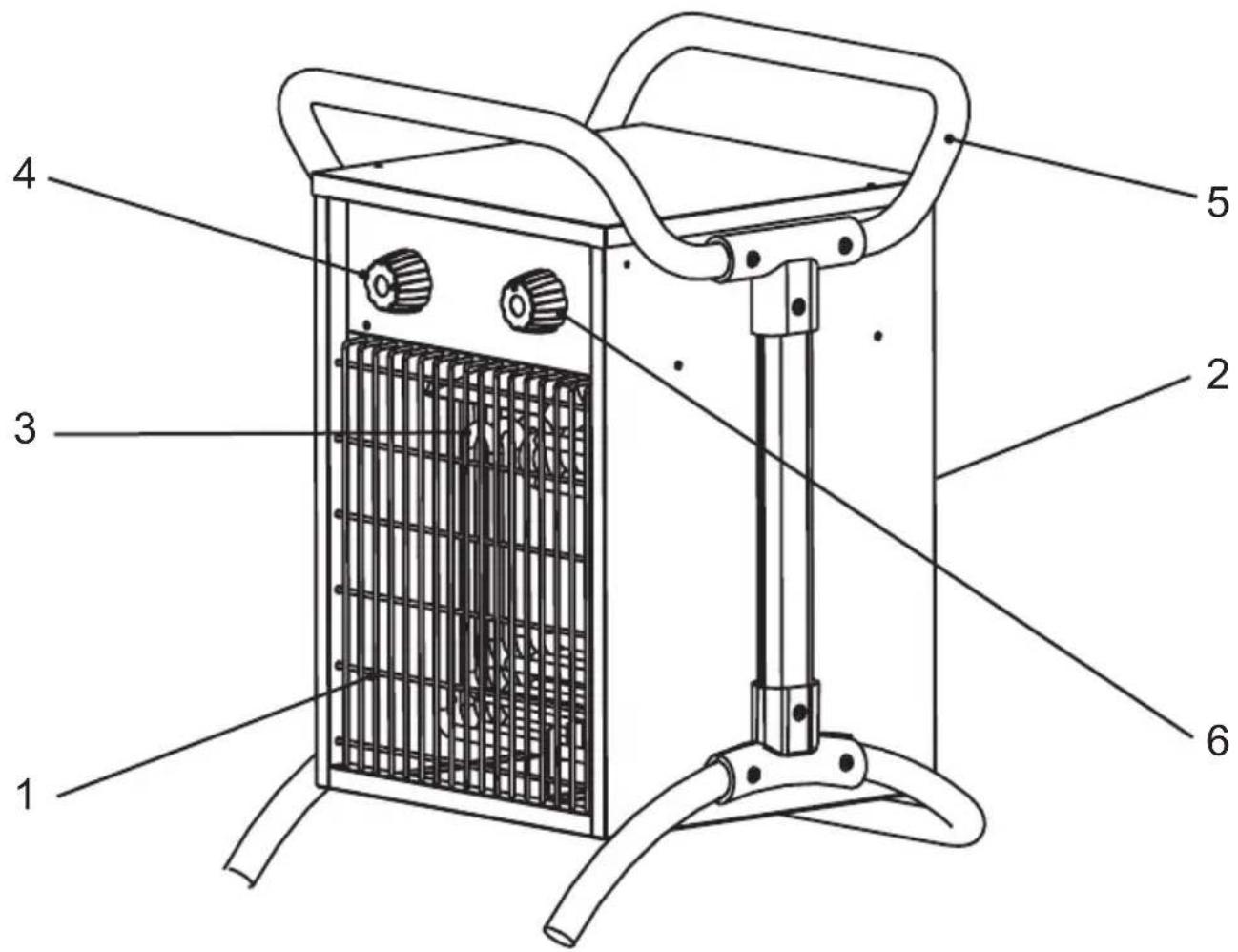

Technical diagram of a portable heating unit with numbered parts labeled 1 through 6

1. Front Guard
2. Fan
3. Heat Coil
4. Function Selector
5. Handle
6. Thermostat

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

SPECIFICATIONS
Specifications subject to change without notice

	ST-02-230-E ST-02-240-E	ST-03-230-E ST-03-240-E	ST-033-230-E ST-033-240-E	ST-05-400-E	ST-09-400-E
RATED POWER INPUT (kW)	2.0 3.0 3	3.5 0 9.0
RATED POWER INPUT (BTU)	6820 10,2	250 11,260 17	060 30,710
AIR FLOW ( m^3/H )	260 514	514 774 1198
HEATING AREA ( m^2 )	20	30	30	48	80
RATED VOLTAGE/ FREQUENCY (Volt / Hz) (ST-230-E)	230~50	230~50	230~50	400~50	400~50
RATED VOLTAGE/ FREQUENCY (Volt / Hz) (ST-240-E)	220-240~50	220-240~50	220-240~50	—	—
HEAT SETTINGS	3	2	2	2	2
WEIGHT (kg)	4.8 6.7 6.7 7.4		11
APPLIANCE CLASS	1	1	1	1	1
INGRESS PROTECTION RATING (IP)	IPX4	IPX4	IPX4	IPX4	IPX4
FUNCTIONS / SETTINGS
Unit is Off
Fan Runs - No Heating
Fan Runs - Quarter Power Heating
Fan Runs - Half Power Heating
Fan Runs - Full Power Heating
NOTE: ST-05-400-E / ST-09-400-EHeating element will shut off when desired temperature is reached. Fan will run continuously.ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-EHeating element will shut off when desired temperature is reached. Fan will not run continuously.
NOTE: Heater models ST-02-230-E and ST-02-240-E, sold in the UK, use 13A fuse with BS1363 three pins plug only.

NOTE: ST-05-400-E / ST-09-400-E
Heating element will shut off when desired temperature is reached. Fan will run continuously.
ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E
Heating element will shut off when desired temperature is reached. Fan will not run continuously.
NOTE: Heater models ST-02-230-E and ST-02-240-E, sold in the UK, use 13A fuse with BS1363 three pins plug only.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Safety Information

IMPORTANT: Read and understand all of the safety information and instructions in this manual before operating your heater.

!DANGER	RISK OF EXPLOSION! Do Not operate this heater where there are harmful, explosive or flammable gasses, fumes or hazardous substances.
!WARNING	RISK OF FIRE! Do Not operate this heater near combustible materials.
!WARNING	ELECTRIC SHOCK HAZARD! Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.
!WARNING	BURN HAZARD! Do Not touch the front of heater while it is operating. This heater is hot while operating.
!WARNING	Risk Of injury! Do Not move heater while it is operating.
!CAUTION	In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Children should be supervised so they do not play with the appliance.

ALWAYS use only the electrical power (voltage and frequency) specified on the model plate of the heater.

ALWAYS use an extension cord properly rated for this appliance.

ALWAYS ensure that all cords are protected against short circuit and overload.

ALWAYS keep power cord away from hot air outlet.

ALWAYS disconnect heater from power source when not in use.

NEVER place the heater on a small, uneven or unstable surface that may cause the heater to fall.

NEVER connect other appliances to the same electrical outlet as the fan heater.

NEVER operate heater with heater guards removed.

NEVER block hot air outlet while heater is operating.

NEVER cover or obstruct heater.

NEVER use ducting with heater.

NEVER pull or carry heater by the power cord.

NEVER use heater with an external switching device: such as a timer.

If heater is damaged, do not use it. The heater must be serviced by a qualified person or service agent.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Assembly

Line drawing of four mechanical components arranged in a symmetrical pattern, labeled '1' at the bottom (no text or symbols on the diagram itself)

Technical diagram of a heating unit with labeled components and wiring connections

Technical line drawing of a portable air heater with cooling fans and tubing (no text or symbols)

Technical diagram of a portable air heater with labeled components and airflow direction indicator

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Assembly (See Page 7)

1. ASSEMBLE TOP HANDLE BRACKET (Fig. 1)

i. Slide upper handle brackets onto front handle and align holes.
ii. Slide rear handle into upper handle brackets and align holes.

2. INSTALL HEATER LEG FRAME (Fig. 2)

i. Align lower inner bracket with holes in heater.
ii. Attach aligned holes in Heater leg frame with lower inner bracket.
iii. Align lower outer bracket holes with lower inner bracket, and attach using 2 bottom screws.

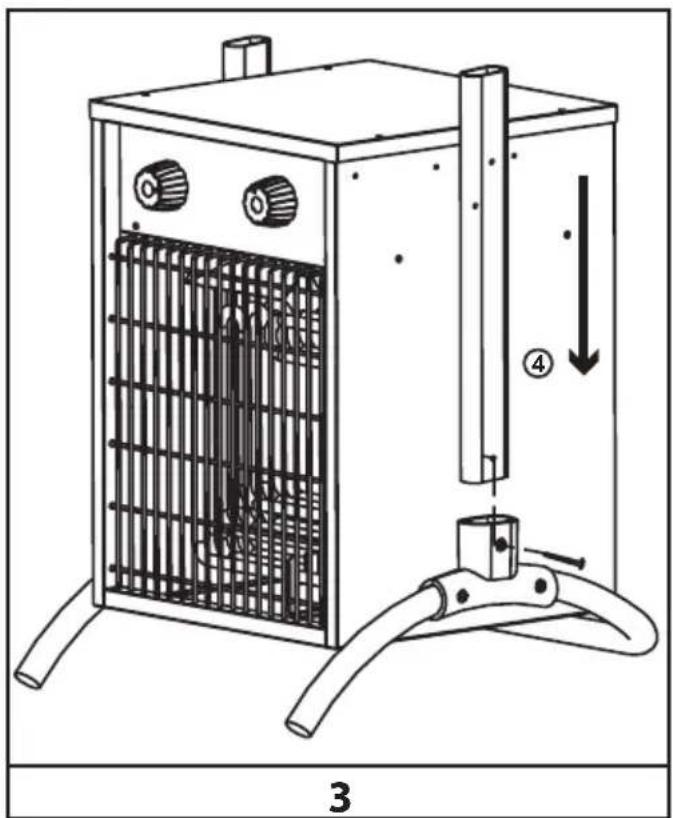

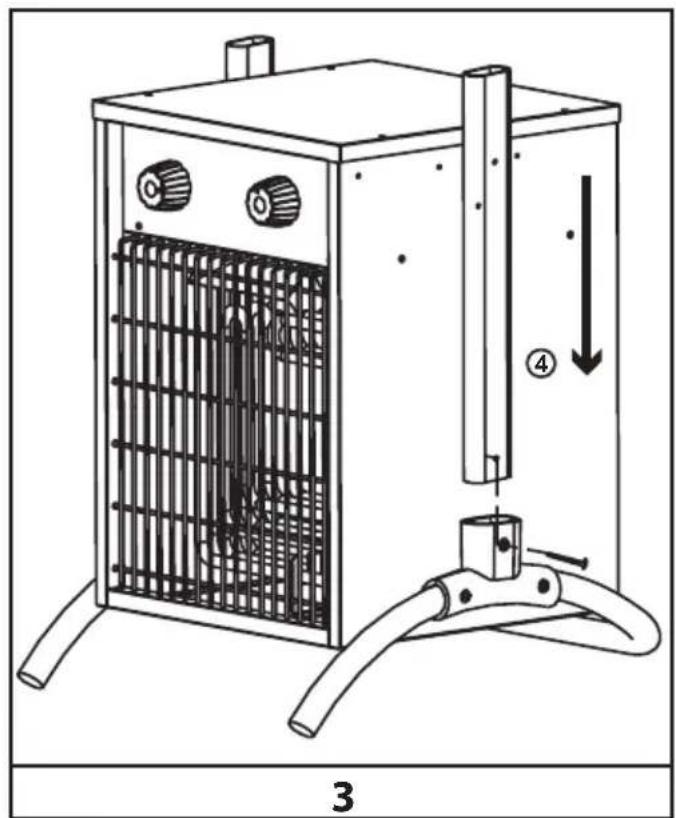

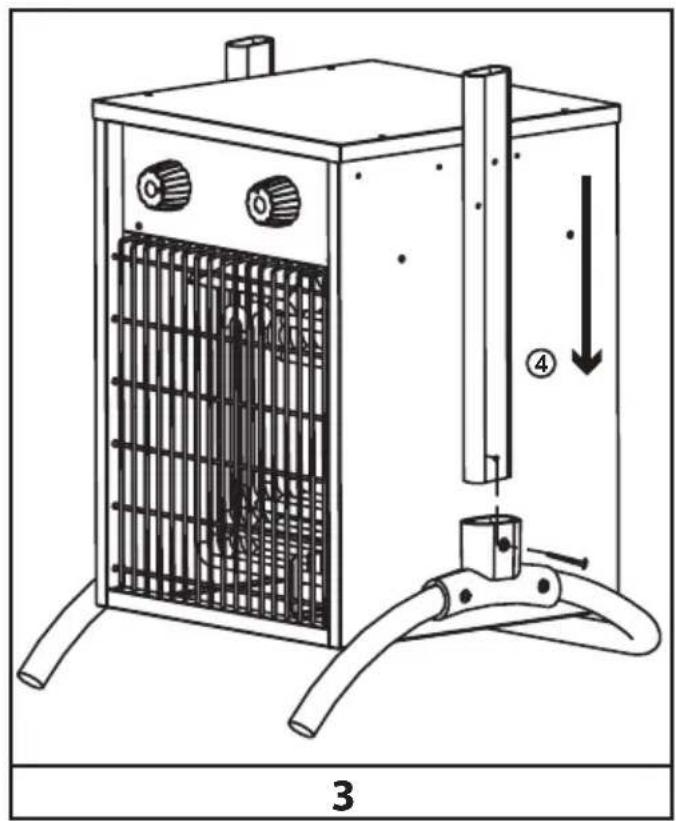

3. INSTALL SIDE SUPPORTS (Fig. 3)

i. Slide side support into lower bracket and align holes.
ii. Attach using top remaining screw.

4. INSTALL TOP HANDLE BRACKET (Fig. 4)

i. Slide side support into upper bracket and align holes.
ii. Attach upper brackets to heater using 3 screws per side.

Operation

1. Position the fan heater so that it stands upright on a firm, level surface and at a safe distance from wet environments and flammable objects.
2. Connect the fan heater to the proper electrical power.
3. Set the thermostat dial to the maximum temperature.
4. The fan heater will switch on when the function selector dial is set to one of the power settings.
5. Once the room reaches the desired temperature, turn the thermostat dial back until heating element turns off.

Automatic Overheat Safety Control

- This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is

reached, the system will automatically shut the heater off

Thermostat Instructions

• At first, set the thermostat to "+" and let the heater operate with full power input. When the room temperature reaches the required value, turn the thermostat to the left until it switches off.
• The thermostat will then switch on and off automatically to control the room temperature according to the preset value and keep the room temperature constant.
• When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of steel and was coated with a layer of protective oil during production. The smoke is caused by the leftover oil as it is heated.

Cleaning and Maintenance

– Before cleaning the appliance, disconnect it from the outlet and let it cool down.
- The enclosure is easy to get dirty. Wipe it often with a soft sponge. For very dirty parts, wipe with a sponge dipped in < 50^ water and mild detergent, then dry the heater enclosure with a clean cloth. Be careful not to let the water enter the inside of the appliance
- In order to protect the enclosure, don't splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.
- When you store the heater, let it cool down first and, keep it dry. Then cover it with a plastic bag, put it in the packing box and store it in a dry, ventilated place.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Plug Replacement

WARNING

RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE.

NOTE: This section only applies to heaters sold or used in Great Britain.

This appliance is supplied with a BS1363 3 pin plug fitted with a fuse. Should the fuse require replacement, it must be replaced with a fuse with the proper amp rating. (see Technical Specifications page 5) and approved to BS1362.

NOTE: Heater models ST-02-230-E and ST-02-240-E, sold in the UK, use 13A fuse with BS1363 three pins plug only.

In the event the mains plug has to be removed/ replaced for any reason, please note:

IMPORTANT: The wires in the mains lead are colored in accordance with the following code:

Blue – Neutral Brown – Live Green/Yellow – Earth

As the colors of the wires in the mains lead of this appliance may not correspond

with the colored markings identifying the terminals in your plug, proceed as follows: The blue wire must be connected to the terminal marked with an N or colored black. The brown wire must be connected to the terminal marked with an L or colored red. The green/ yellow wire must be connected to the earthing terminal which is marked with an E or with the earth symbol.

WARNING

Never connect live or neutral

wires to the earth terminal of the plug.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

Plug Replacement Wiring Diagram

GREEN / YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps CORD CLAMP E L N

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Troubleshooting

Problem Cause	Solution
Fan stays on when heat shuts off.	1. Fan runs continuously while the heater is operating.	1. Heater is operating correctly.
Fan speed stays the same when changing settings.	1. Fan speed stays constant. Setting changes amount of heat output only.	1. Heater is operating correctly.
Heating element does not glow red.	1. Heating element is made of stainless steel and will not glow red to produce heat.	1. Heater is operating correctly.
Do not feel heat or air flow.	1. No power to heater.2. Desired room temperature reached.3. Heater does not heat area in front of heater, it will disperse heat throughout room to heat entire space.	1. Check power connections / connect heater to power supply.2. Thermostat will shut off once desired room temperature is reached. Heater is operating correctly.3. Heater is operating correctly.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Exploded View

Technical diagram of an industrial machine with numbered components for identification

Parts List

#	ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E
1 Heating Coil
2 Adjustment Knob
3 Fan Blade
4 Power Cord (not included with ST-09-400-E)
5 Upper Handle Bracket
6 Upper Handle
7 Side Support
8 Lower Inner Bracket
9 Lower Outer Bracket
10 Lower Frame

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-02-230-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	0.65	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	2.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-02-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	0.65	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	2.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-03-230-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	el_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-03-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.0	kW		Electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-033-230-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.3	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.65	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.3	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-033-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.3	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.65	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.3	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	el_SB	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-05-400-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	5.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	2.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	5.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ekB	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-09-400-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	9.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	4.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	9.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
					fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

STANLEY®

SERVICE

Belgique et LuxemburgBelgië en Luxembourg	E. Walschaertstraat 142800 MechelenBelgium	[e-mail]-NL=[phone]BE-FR=[phone]BE Fax: [phone]	United Kingdom 210 Bath Road; Slough, Berks SL1 3YD www.stanleytools.co.ukTel: [phone]Fax: [phone]
			Hungary Rotel Kft.1163 Budapest,Thököly út [e-mail] [phone]Fax[phone]
Danmark Roskildevej 22	2620 Albertslund	[e-mail]: 70224910
Deutschland Richard Klinger Str. 1165510 Idstein		[e-mail]: 06126-21-1Fax: [phone]	Czech RepublicBAND SERVIS CZ s.r.o.K Pasekam 4440760 01 Zlin, Czech Republicwww.stanleyworks.czhttp://www.bandservis.czTel.: [phone]Fax.: [phone]
Ελλάς Ημερος Τόπος 2 - Χάνι Αδάμ Ασπρόπυργος-19300 -Αττική - Αττικής		[e-mail]Τηλ: [phone]Φαξ: [phone]	SlovakiaBAND SERVIS s.r.o.Paulinska 22917 01 Trnava, Slovakiawww.bandservis.skTel.: [phone]Fax.: [phone]
			Poland Erpatechul. Bakaliowa 2605-080 Mościskawww.stanleyworks.plTel.: [phone]Fax.: [phone]
España Parque de Negocios "Mas Blau"Edificio Muntadas, c/Bergadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)		[e-mail]: 934 797 400Fax: [phone]	Slovenia G-M&M d.o.o.Brvace 111290 Grosuplje Slovenijawww.g-mm.si [e-mail]: [phone]F: [phone]
France 5, allée des hêtresBP 30084, 69579 Limonest Cedex		[e-mail]: 04 72 20 39 77Fax: [phone]	CyprusIOANNOU J.4A Ath.Diakou street1046- Nicosia [e-mail]: [phone]Fax: [phone]
SchweizSuisseSvizzera	In der Luberzen 428902 Urdorf	[e-mail]: 044 - 755 60 70Fax: 044 - 730 70 67	Bosnia-HerzegovinaG-M&M d.o.o.Brvace 111290 GrosupljeSlovenijawww.g-mm.si [e-mail]: [phone]F: [phone]
Ireland 210 Bath Road; Slough, Berks SL1 3YD UK www.stanleytools.co.uk		Tel: [phone]Fax: [phone]	BulgariaTASHEV-GALVING LTD68 KLIMENT OHRIDSKI BLVD.T: [phone]F: [phone]
Italia Energypark-Building 03 sud, Via Energy Park6 20871 Vimercate (MB)		www.stanley.itTel. 039-9590-200Fax [phone]	Croatia G-M&M d.o.o.Brvace 111290 GrosupljeSlovenijawww.g-mm.si [e-mail]: [phone]F: [phone]
Nederlands Stanley Black & Decker Netherlands B.V.Postbus 836120 AD Born		[e-mail]: [phone]NL Fax: [phone]	Estonia AS TallmacMustame tee 44,EE-10621 Tallinnwww.tallmac.ee/estT: [phone]F: [phone]
Norge Postboks 4613, Nydalen0405 Oslo		[e-mail]: 45 25 08 00	Latvia LIC GOTUS SIAwww.licgotus.lvLT- 1021 RigaT: [phone]F: [phone]
Österreich Oberlaerstrasse 248A-1230 Wien		[e-mail]: 01 - 66116 - 0Fax: 01 - 66116 - 14	LithuaniaUAB ELREMTA OUNeries kr. 16ELT - 48402 [e-mail]: [phone]F: [phone]
Portugal Quinta da Fonte - Edificio Q55 D. DinizRua dos Malhões, 2 e 2A - Piso 2 Esquerdo2770 - 071 Paço de Arcos		[e-mail]: 214 66 75 00Fax: [phone]	Malta Energypark-Building 03 sud, Via Energy Park6 20871 Vimercate (MB)www.stanley.itTel. 039-9590-200Fax [phone]
Suomi PL 4700521 Helsinki		[e-mail]: 010 400 4333	RomaniaStanley Black & DeckerPhoenicia Business CenterStrada Turturelelor, nr 11A, Etaj 6, Modul 15,Sector 3 Bucurestiwww.stanleyworks.roT: +4021.320.61.04/05F: +4037.225.36.84
Sverige Box 94431 22 Mölndal		[e-mail]: 31 68 60 08	SerbiaG-M&M d.o.o.Brvace 111290 GrosupljeSlovenijawww.g-mm.si [e-mail]: [phone]F: [phone]

STANLEY®

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium

© 2021 Stanley Black & Decker, Inc.
