Download the instructions for your Thermostat in PDF format for free! Find your manual CTH407 - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CTH407 by Perel.
USER MANUAL CTH407 Perel
HANDLEIDING 7
MODE D'EMPLOI 12
MANUAL DEL USUARIO 17
To all residents of the European Union Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
 | Read and understand this manual and all safety signs before using this appliance. |
 | Indoor use only. |
 | Class 2 appliance. |
 | Switch of micro-gap construction. |
 | Risk of electroshock when opening the cover. Be very careful during the installation: touching live wires can cause life-threatening electroshocks. |
CTH407
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
- Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Do not use outside the technical specifications.
- Keep this manual for future reference.
4. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | on-off switch |
| 2 | working LED |
| 3 | program LED |
| 4 | SET knob |
| 5 | PROGRAM button |
5. Installation
| WARNING Make sure to cut off the mains power supply before installing the thermostat. |
- Choose your installation spot. Install the thermostat in a well-ventilated place and about 1.5 m (5 feet) above the floor, away from direct sunlight, heat and interference sources.
CTH407
- Remove the front cover using an appropriate screwdriver.
- Mount the thermostat on a flat surface. Drill two 6 mm holes and insert a nylon anchor plug in each hole. Drill two 2.6 mm holes when mounting the thermostat on a wooden surface.
- Wire the thermostat. The thermostat is designed for maximum 230 V\~, 7 A. Never exceed these limits!

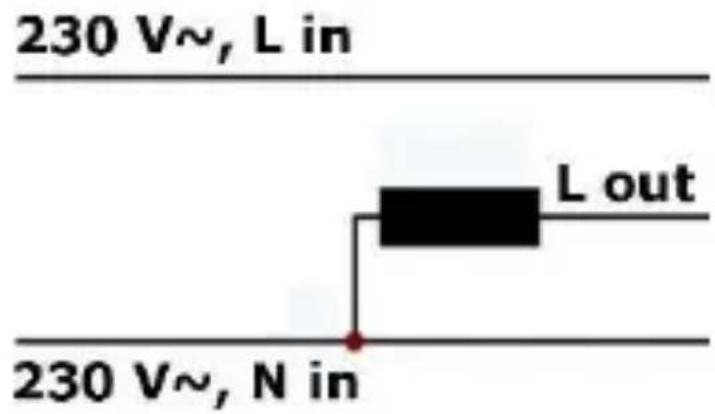

From left to right, the connection terminals are: neutral input (N in), live input (L in) and live output (L out). Use wires with diameter of 1.0-2.5 mm ^4 and connect accordingly.
6. Operation
6.1 Setting the Temperature
- Slide the on-off switch [1] to the HEAT position. The thermostat will switch on and enter the temperature control status.
- Turn the temperature SET knob [4] to the desired room temperature. The working LED [2] will light.
- Slide the on-off switch to the OFF position to switch off the thermostat.
Note
Due to the built-in delay, the thermostat will not respond immediately when the temperature setting is changed.
6.2 Setting the Eco Mode
The eco mode is an energy-saving mode, which temperature is 5^ C lower than the set temperature.
How to set the eco mode:
CTH407
- Press the PROGRAM knob [5] to activate the eco mode. The program LED [3] turns orange.
- The thermostat returns to comfort mode six hours after setting the eco mode. The program LED [3] turns green.
- At the same time next day, the eco mode is automatically activated.
- Press the PROGRAM knob to cancel the eco mode. The program LED will switch off.
7. Cleaning and Maintenance
There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
8. Technical Specifications
| temperature range | 5 °C - 30 °C |
| Tmax. | 40 °C |
| control switch | relay switch |
| rated power | 230 V~, 50 Hz, 7(3) A |
| size | 106 x 166 mm |
| weight | 157 g |
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
