Product Type	Baby Rocking Chair
Brand	Lionelo
Model	Otto
Power Supply	4 LR14 batteries (not included) or 5V 1000mA power adapter (not included)
Main Functions	5-speed rocking, music player with adjustable volume, timer (15/30/45/60 min)
Safety Harness	5-point harness with buckle and buckle cover
Maximum Child Weight	Up to 9 kg
Recommended Age	From birth until the child can sit up independently
Materials	Fabric cover, metal and plastic frame, removable cushion
Care and Cleaning	Cover and cushion hand washable at max 40°C; frame and toy bar cleanable with a soft cloth and mild soap
Included Accessories	Toy bar, head cushion, USB cable
Folding and Storage	Foldable with fixing strap for transport
Safety Instructions	Never leave the child unattended; use only on a flat surface; stop use as soon as the child can sit up alone
Warranty	Visit website for detailed terms

Frequently Asked Questions - Otto Lionelo

How to assemble the Lionelo Otto baby rocking chair?

Unfold the legs until stable, insert the sound module onto the frame until it clicks, then lift the seat frames and put on the fabric cover by attaching the Velcro underneath.

What type of batteries to use and how to install them?

Use 4 LR14 batteries (alkaline recommended). Loosen the screw on the battery compartment, insert the batteries respecting polarity, then tighten the cover without over-tightening.

Can I use a power adapter?

Yes, connect the USB cable to the sound module and to a power adapter with specifications: input 100-240V 50/60Hz 0.3A, output 5V 1000mA (adapter not included).

How to fasten the safety harness?

Insert the shoulder straps into the waist straps, put the child's arms through, then insert the whole into the buckle until it clicks. Place the buckle cover over it.

How to adjust the strap height?

Unfasten the straps, remove them from the slots in the cover, then reinsert them into another slot to adjust the height. The straps should be tight without discomfort and not twisted.

How to use the rocking function?

Turn the rotary selector to choose from 5 speeds. To stop, set it back to 0. The music continues independently.

How to set the timer?

Press the + or - buttons to select 15, 30, or 45 minutes. If no duration is selected, the automatic shutdown occurs after 60 minutes.

How to clean the cover and the product?

The cushion and cover can be hand washed at max 40°C. The frame and toy bar can be cleaned with a soft cloth and mild soap, then wiped dry.

What to do if the rocker does not rock or stops suddenly?

Check the batteries (polarity, charge) or the adapter. If the timer has expired, turn the rocking off and on again. The rocker may take up to 50 seconds to start under load.

Can the child sleep for a long time in this chair?

No, this product is not designed for long periods of sleep. It does not replace a crib. If the child needs to sleep, place them in a suitable bed.

USER MANUAL Otto Lionelo

Illustration of a baby baby boom machine with animal toys and a cat inside (no text or symbols)

Technical diagram of a mechanical device with numbered components, including a top view and assembly steps.

CLICK!

Line drawing of a person using a horizontal barbell device to lift a seat, with no text or symbols present.

Diagram showing a device being processed into a battery, with labeled parts and a numbered step indicator.

Diagram showing battery arrangement and a spacecraft module with a pointer, no text or symbols present

Illustration showing two hands inserting a device into a device with a magnified view (no text or symbols)

Illustration of a hand holding a tool interacting with a device inside a bowl (no text or symbols visible)

A B C 8

Illustration of a baby sitting inside an oval frame with a downward arrow, no text or symbols present.

Diagram illustrating a medical procedure with labeled components and directional arrows, including a magnified inset showing the device's internal structure.

Illustration of two baby pelvic members in different poses, one with a bandage and the other with a bandage and arrows indicating movement (no text or symbols)

Line drawing of a mechanical device with attached components, no text or symbols present

a e a b c d 13

Diagram showing two mechanical device configurations with rotational arrows indicating motion (no text or symbols)

Line drawing of a chair with backrest and seat, no text or symbols present

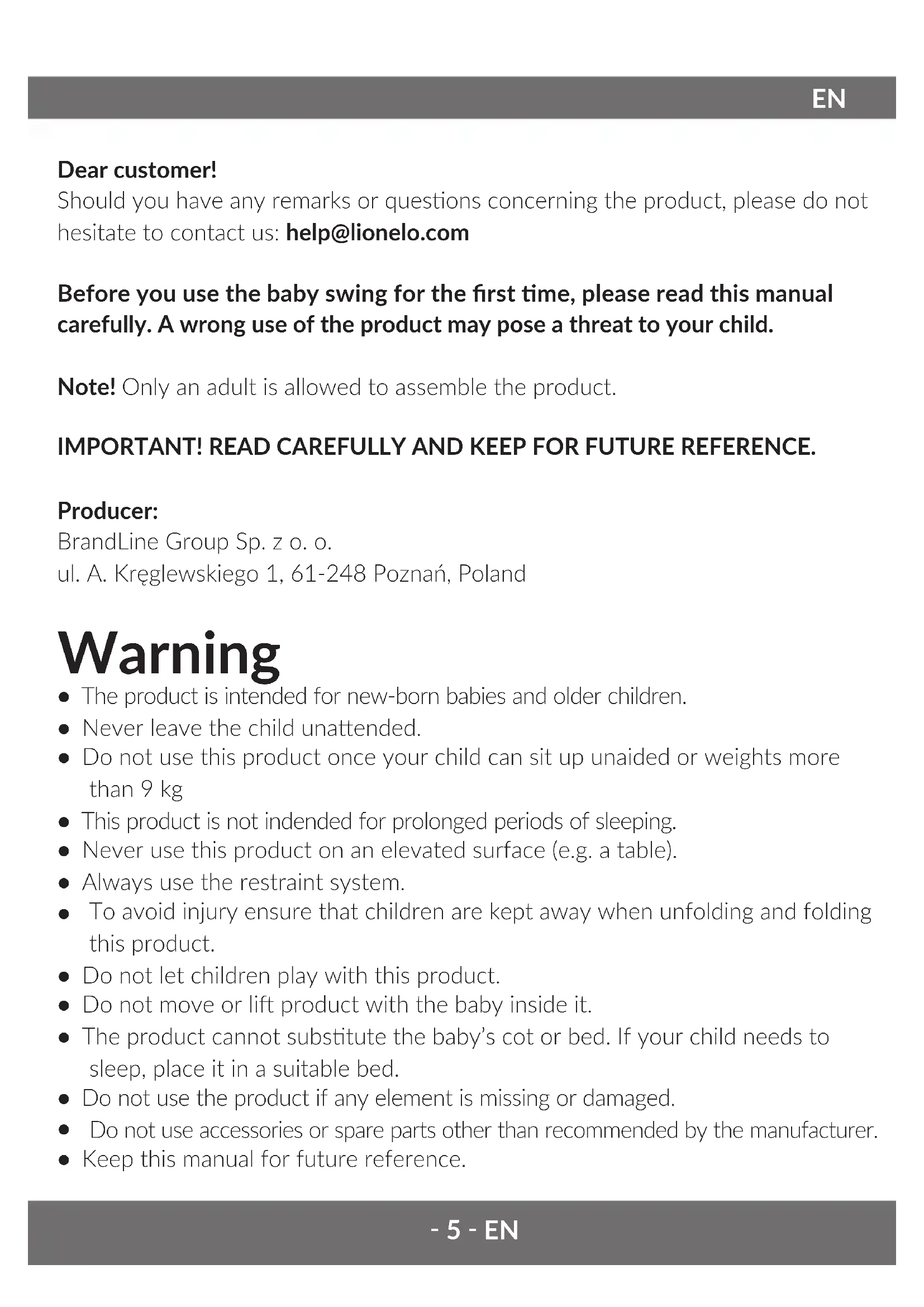

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Before you use the baby swing for the first time, please read this manual carefully. A wrong use of the product may pose a threat to your child.

Note! Only an adult is allowed to assemble the product.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Producer:

BrandLine Group Sp. z o. o.

• The product is intended for new-born babies and older children.
• Never leave the child unattended.
• Do not use this product once your child can sit up unaided or weights more than 9 kg
• This product is not intended for prolonged periods of sleeping.
• Never use this product on an elevated surface (e.g. a table).
  • Always use the restraint system.
• To avoid injury ensure that children are kept away when unfolding and folding this product.
• Do not let children play with this product.
• Do not move or lift product with the baby inside it.
• The product cannot substitute the baby's cot or bed. If your child needs to sleep, place it in a suitable bed.
• Do not use the product if any element is missing or damaged.
• Do not use accessories or spare parts other than recommended by the manufacturer.
• Keep this manual for future reference.

Warnings related to batteries and feeder cable

• Keep batteries out of reach of children.
• Insert batteries in the compartment in accordance with marking.
• Do not throw batteries into fire as they may explode.
• If you do not use the product for a long time, please remove a battery from the compartment.
• Always remove a worn-out battery, otherwise it may leak or explode and damage the product.
• Do not charge single-use batteries.
• Do not mix batteries - old with new ones, or alkaline with standard or multiple-charge batteries.
• Dispose of batteries in accordance with regulations, throw them into special containers.
• Check the feeder cable for potential damage to the cable, plug, contacts and other elements. If you detect any irregularities, do not use the feeder cable anymore.
• When using the product, use the feeder cable of suitable parameters and recommended by the manufacturer (supplied).
• To make sure the product works, you need 4 LR14 batteries (not supplied) or feeder cable (not supplied). The feeder cable parameters required: input: 100-240V \~ 50/60Hz 0.3A, output: 5V = 100mA.

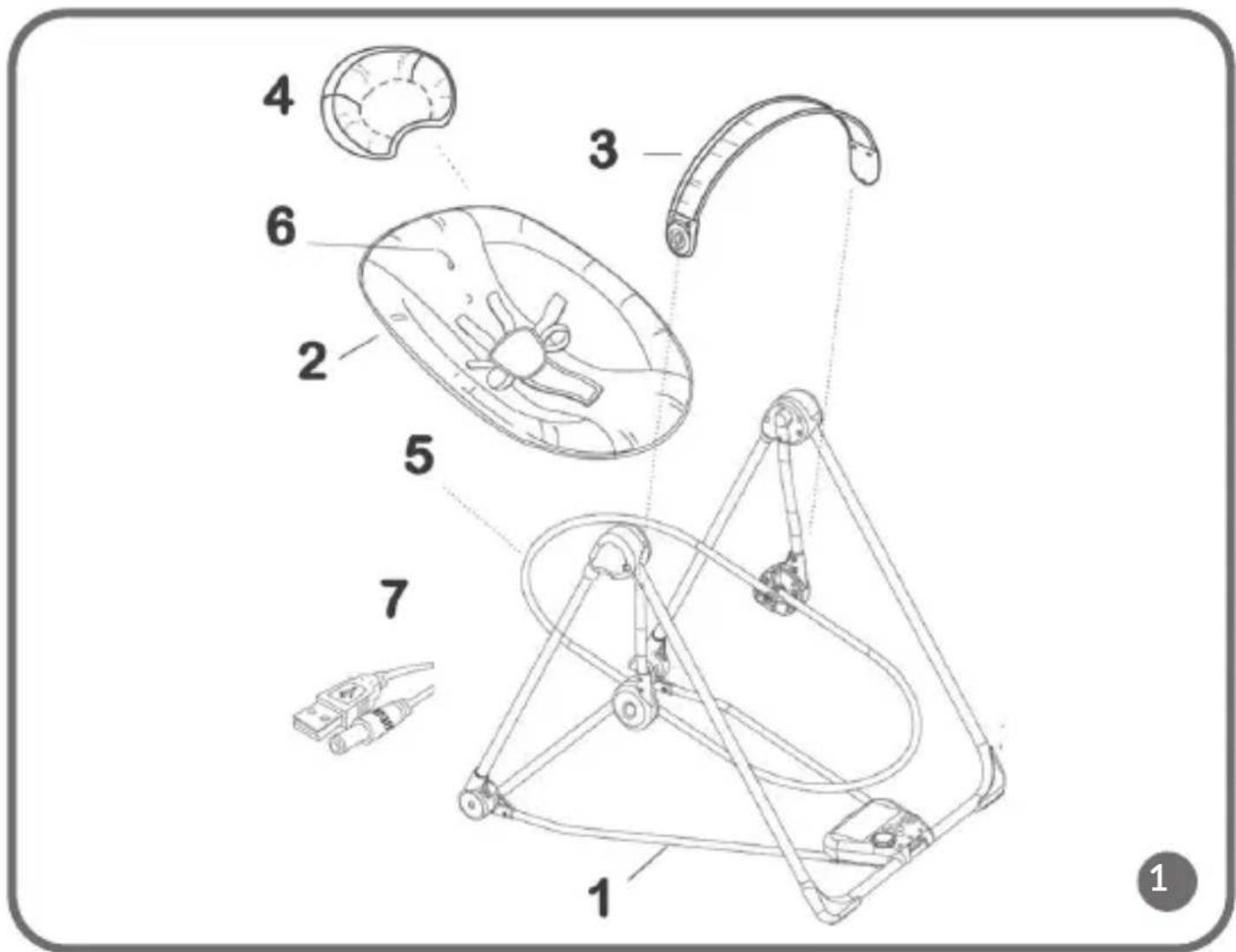

Description (fig. 1)

1. Product frames
2. Seat fabric covering
3. Bow
4. Cushion
5. Seat frames
6. Cushion fastening
7. USB cable

How to assemble

1. Unfold the legs of the baby swing so that they are stable on the flat surface.

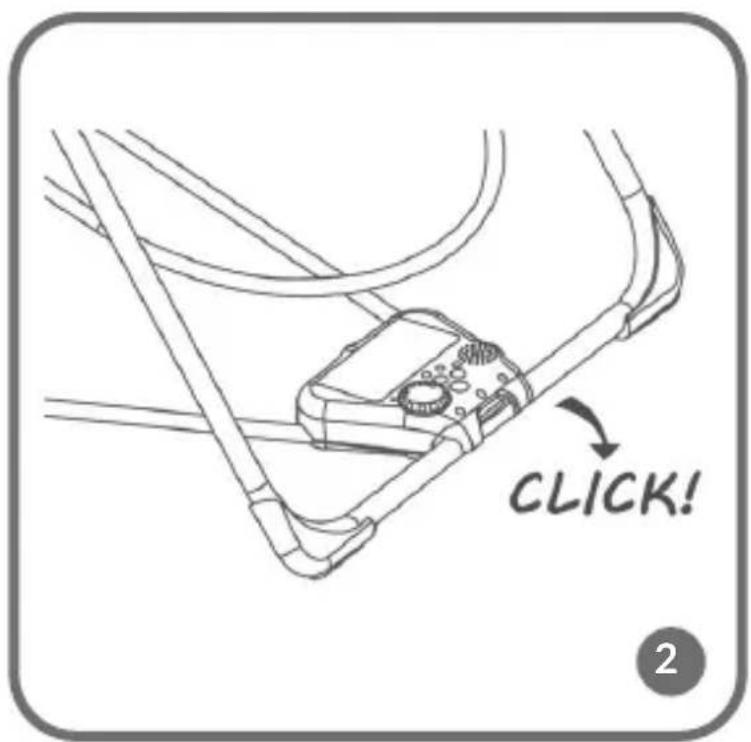

2. Put the sound module on the frame of the baby swing, as showed in the figure no. 2. The assembly is successful if you can hear a „click”.

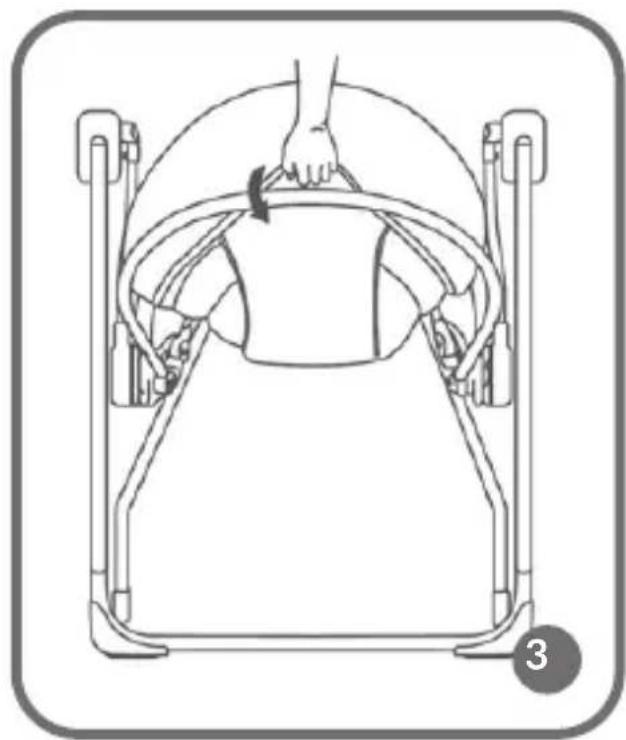

3. Lift frames of the seat (5) and then put the fabric covering on it (fig. 3). Fasten the Velcro at the bottom of the covering.

How to replace a battery

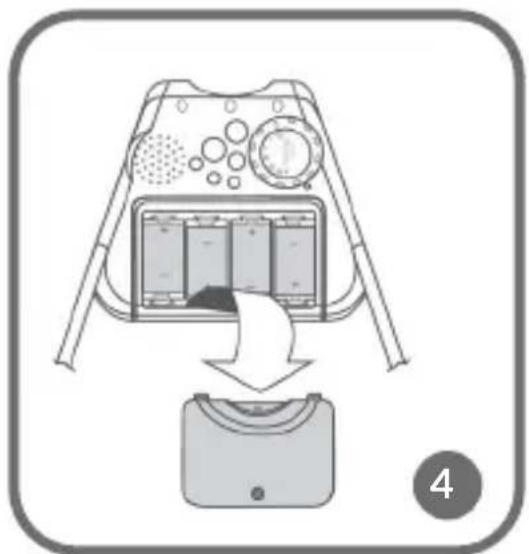

1. Use a screwdriver to loosen the bolt which secures the battery compartment (fig. 4).

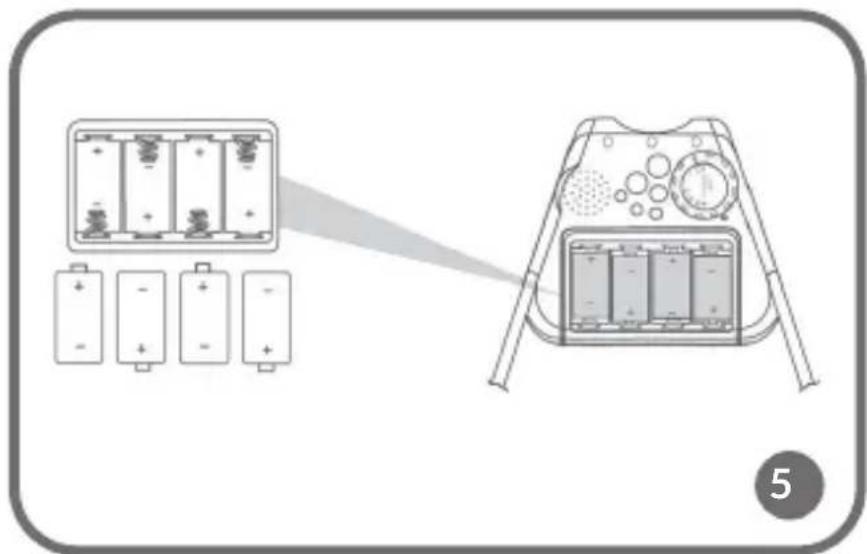

2. Remove the battery cover and insert four LR14 batteries in the compartment. Pay special attention to battery poles (see: fig. 5). It is advisable to use alkaline batteries.

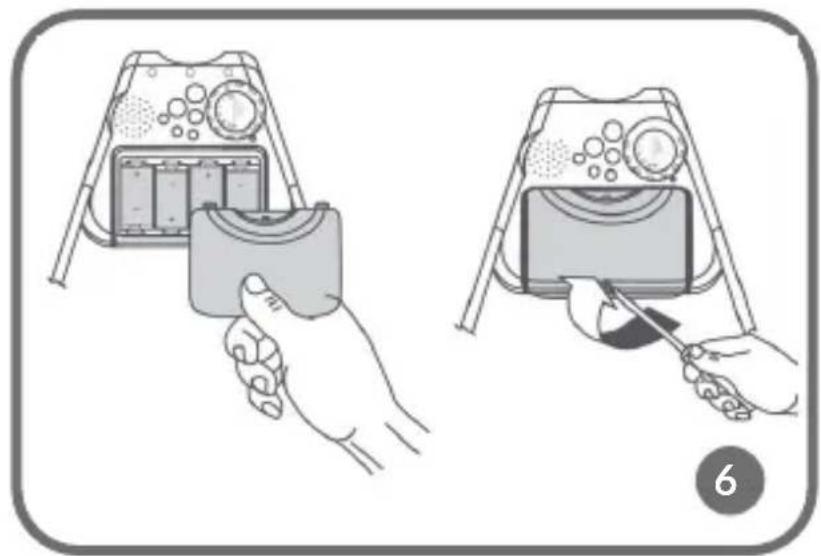

3. Put the battery cover on and tighten up with a screwdriver. Do not tighten up too firmly (fig. 6).

Feeder cable

To use the mains power supply, connect a USB cable to the sound module of the baby swing (port marked as e in fig. 13). Insert the second tip in the relevant mains power adapter (not supplied).

Note! The feeder cable should have the following parameters: input: 100-240V \~ 50/60Hz 0.3A, output: 5V = 1000mA.

How to use the product

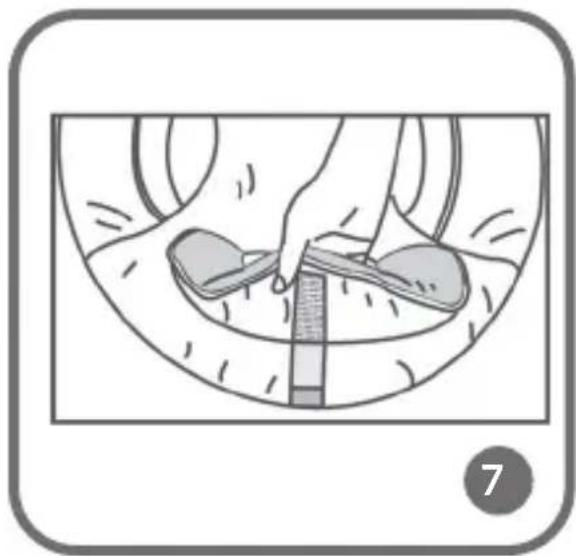

Cushion – the product is equipped with a high-quality cushion which can be attached to the covering with a Velcro (6) located underneath the cushion. To do so, pull the cushion Velcro through a fastening which stands out from the seat (fig. 7) and fasten it.

5 - point safety belts - when the child is in the baby swing, safety belts must always be fastened.

A. To fasten the belts:

1. Put the child into the baby swing. Make sure your child's legs go through the protective fabric cushion, as presented in fig. 11.

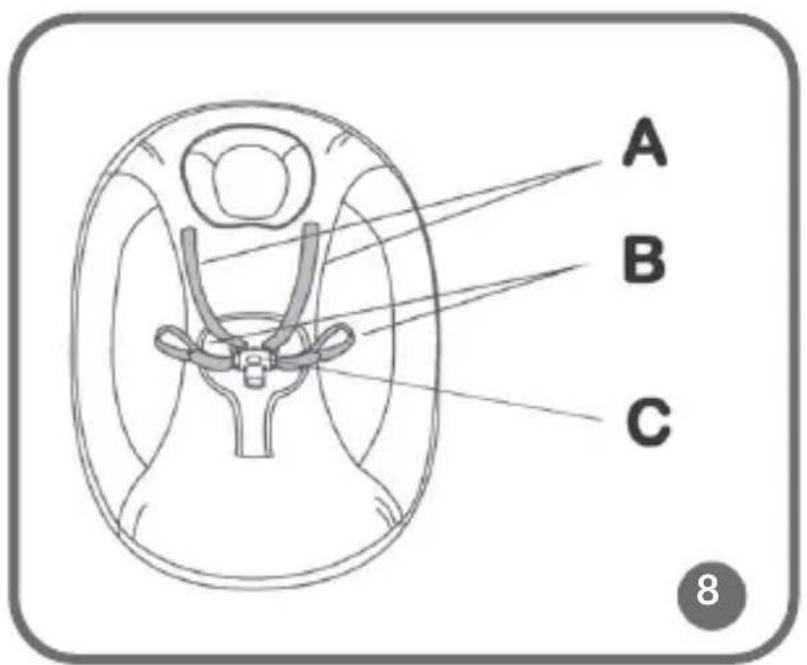

2. Insert the tip of shoulder belts (A in fig. 8) in hip belts (B in fig. 8). Pull child's hands through them.
3. When the belts are connected, insert them in the buckle (C in fig. 8). If you can hear a „click”, it means the assembly has been successful.

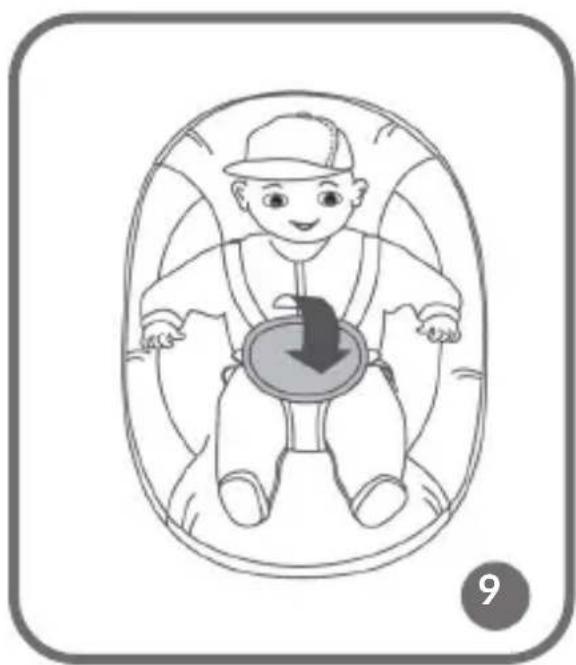

4. After you have fastened the belts, put the protection on the buckle (fig. 9).

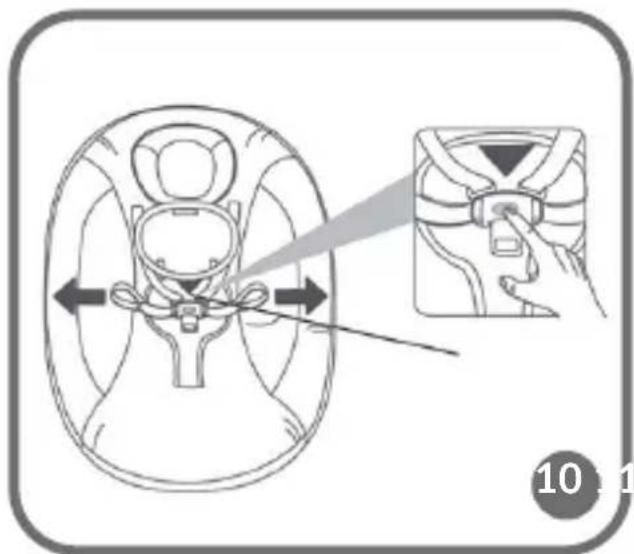

B. To undo the belts: press the key on the buckle and pull the belts out (fig. 10).
C. How to adjust the belts

Adjust the belts to your child's body with the use of adjustment. The belts must fit tight your child's body but must not cause discomfort. The belts must not be twisted.

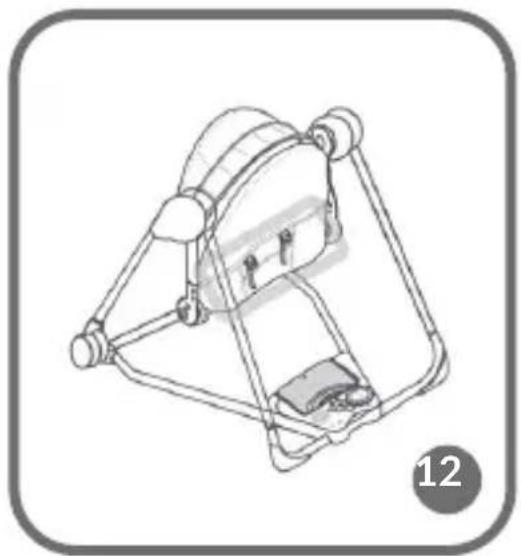

You can also change the height of shoulder belts. To do so, undo the belts and take them out through holes in the seat covering (marked in fig. 12). Next pull the belts through another hole and secure them on the other side of the covering.

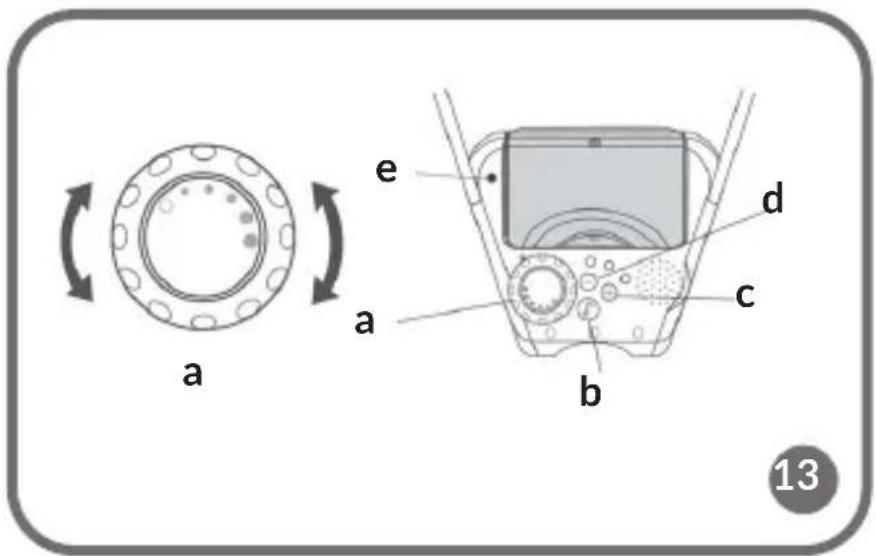

Control module

See: fig. 13.

a. speed control knob
b. play music/change volume
c. add rocking time
d. shorten rocking time
e. charging port

Speed control knob – lets you make the chair move constantly and soothingly. You can choose five speed levels, as marked in the knob. To switch it off, turn the knob in the initial position, marked as „O”. The product will stop rocking yet the music will not be stopped.

Play music/change volume – press this key to play music. At first the volume is minimum. Press the key again to volume up. To stop playing music, press this key three times.

Add/shorten rocking time – this option lets you schedule product shutdown. You can choose the following time settings: 15, 30, 45 minutes. If you do not use any time (none of three LEDs glows), the device will switch off automatically after 60 minutes.

If the product does not work properly (e.g. rocking power is too low, distorted music, dim light signs), it may mean the battery must be replaced.

How to store and transport the product

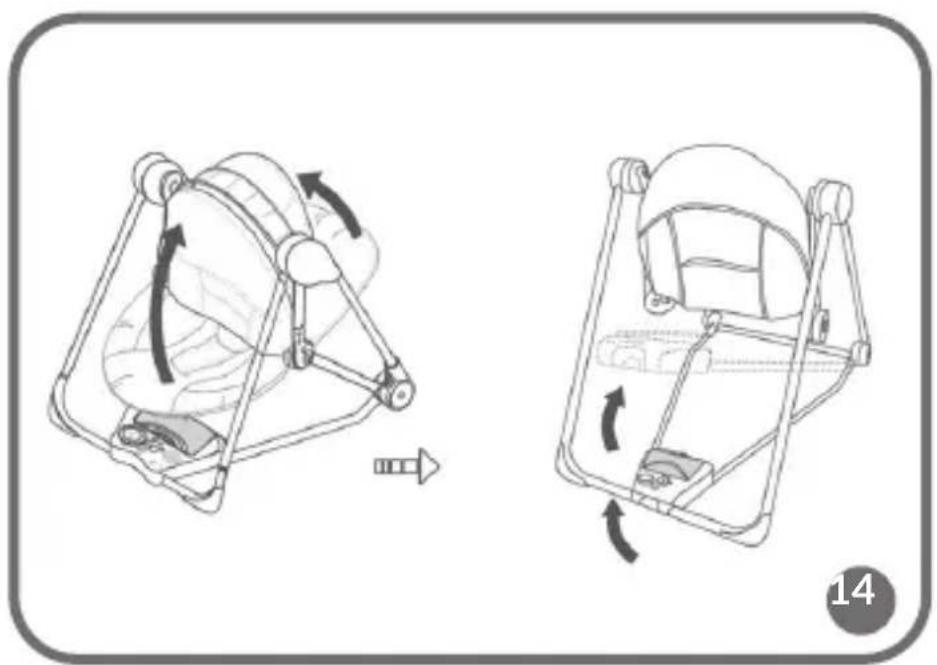

To fold the product (fig. 14):

1. Lift both frames of the seat.

2. Disconnect the control module from the baby swing. frame and then lift it.

3. Connect the legs of the product.

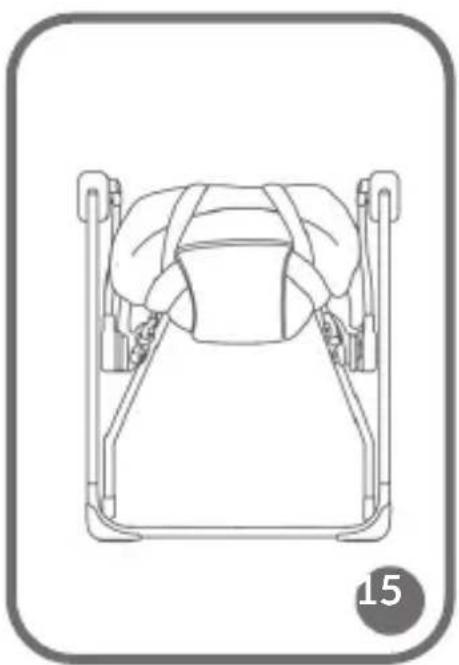

4. Secure the product with an assembly belt located at the reverse of the covering (see: fig. 15)

Troubleshooting

Problem	Possible cause	Solution	Additional information
Light indicator flashes	Low batteries or damage to feeder cable.	Replace battery or adapter.
Rocking stops suddenly.	Set time has passed.	Deactivate rocking with a knob and then activate it again. Disable rocking time setting.	Each of these solutions will cause the product to resume working, only the following will change: work time and rocking speed.
Rocking does not start	Batteries have been inserted in a wrong way.Damage to the feeder cable.Feeder cable has been connected in a wrong way.No power supply in the socket.	Insert the batteries again. Pay special attention to marking (poles).Check the feeder cable and wire for proper connection.Check if the feeder cable has been plugged in the socket properly.
The angle of rocking is lower than desired.	The baby swing needs about 20-45 seconds to rock properly.		At low voltage and high load, the baby swing may need up to 50 seconds to start rocking properly.
Distorted music. F	at batteries.	Replace the batteries.
Music stops playing suddenly.	Set time has passed.	Press the music play key again.	The rocking time and music playing time settings do not correlate.You can adjust the settings so that the music stops playing when the product keeps on rocking the child or the other way round.Such operation is intentional and is to give the user more freedom in changing settings.

How to clean and maintain

The cushion, seat covering - wash manually at the temperature of max. 40°C. The bow and frames - wash with a wet and soft cloth with a soft detergent. Wipe it dry afterwards.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

PL

Drogi Kliencie!

BrandLine Group Sp. z o.o.

BrandLine Group Sp. z o.o.

EN: Simplified EU / EC declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the “OTTO” product complies with the directive: 2014/30/EU - EMC Directive, 2011/65/EU - RoHS Directive, 2009/48/EC - Toy Directive (Toy set only).

Full content of EU declaration of conformity is available on the following website:

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

Detailed warranty conditions are available on the website:

Thank you for purchasing our product
