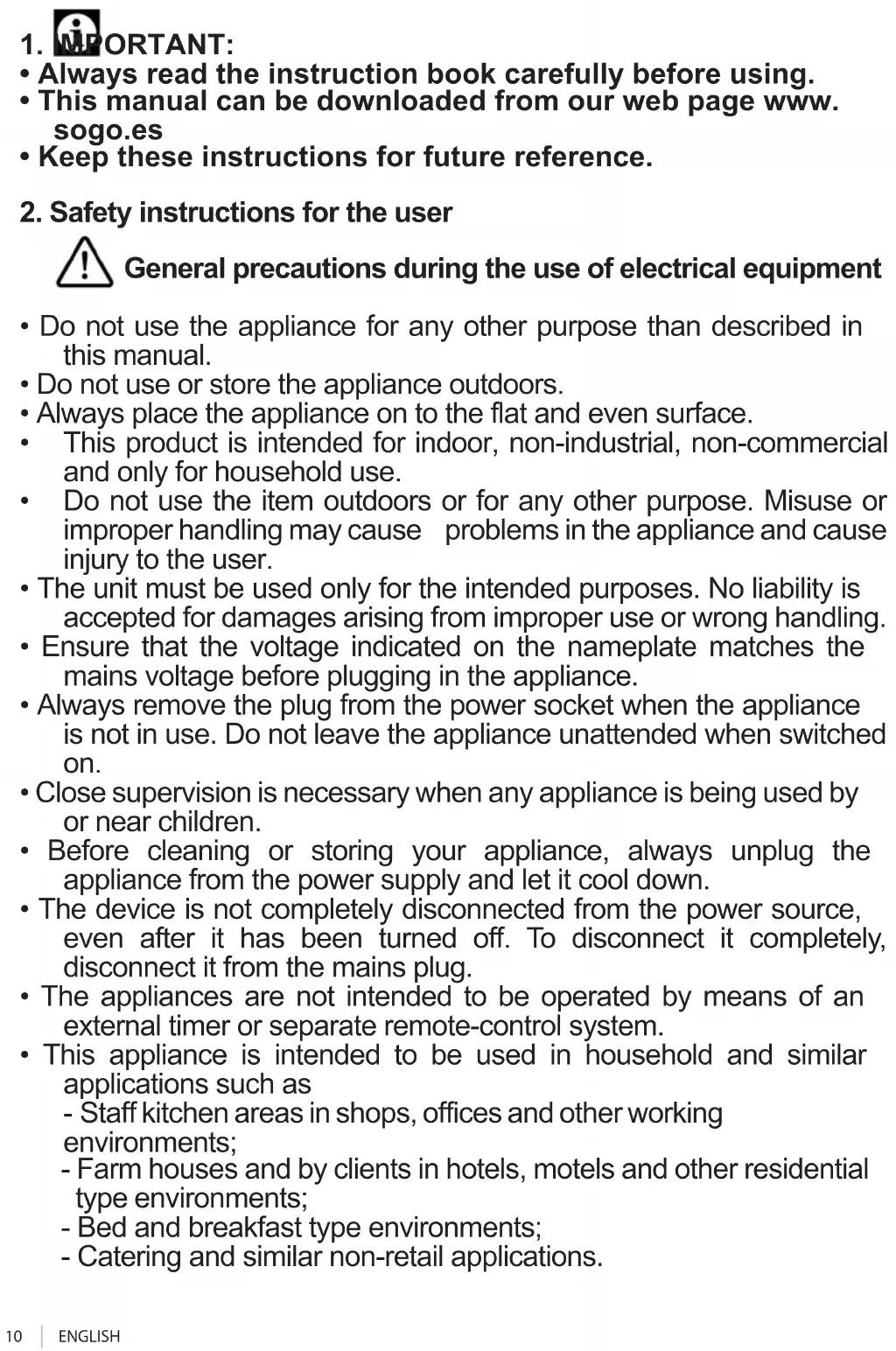

USER MANUAL SS10340 Sogo

• Always read the instruction book carefully before using.

• This manual can be downloaded from our web page www. sogo.es

• Keep these instructions for future reference.

2. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.

• Do not use or store the appliance outdoors.

• Always place the appliance on to the flat and even surface.

This product is intended for indoor, non-industrial, non-commercial and only for household use.

• Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

• Close supervision is necessary when any appliance is being used by or near children.

• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• This appliance is intended to be used in household and similar applications such as - Staff kitchen areas in shops, offices and other working environments; - Farm houses and by clients in hotels, motels and other residential type environments; - Bed and breakfast type environments; - Catering and similar non-retail applications.11 ENGLISH Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.

• Do not place or operate this appliance near water sources.

Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.

• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging.

• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.

• While using the appliance, make sure that the power cord must not be caught or crushed.

• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.

• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance

• falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.

• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.12 ENGLISH Restrictions on use when used with children and elders Instructions to follow when using the appliance

• Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Children shall not play with the appliance.

• This appliance can be used by children aged from 8 years and abo- ve and persons with reduced physical, sensory or mental capabi-lities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

• Cleaning and user maintenance shall not be made by children un- less they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision of instructions.

• For household grilling and frying.

• With the electrical connection supplied and in an earthed socket in a dry environment.

• Regularly Look after the plug, power cord, regulator and electrical connection.

• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.

• Use extreme caution when disposing of hot grease.

When using this appliance, provide 4 to 6 inches air space on all sides for air circulation.

• Do not use on surfaces where heat may cause a problem.

• Always attach probe to griddle before plugging cord into wall outlet.

• To disconnect, turn temperature control knob to “OFF”, then remove plug from wall outlet.

• Do not immerse the connector (control probe) in water or any other liquid.

• The appliance must only be used with the connector provided. Only the appropriate connector must be used.

• The connector must be removed before to clean the appliance and the appliance inlet must be dried before the appliance is used again.

• Adequate ventilation or an exhaust fan is recommended.13 ENGLISH

• Do not leave plastic utensils in contact with appliance while cooking.

• Do not place grease cup, oil drawer or spatula rest on top of hot grill surface.

• Only use appliance fully assembled with all parts correctly in place, as specified in this instruction book.

• Never touch parts of this appliance that could become very hot during use, there is a risk of burns.

• Make sure that the hot parts of the appliance never come into contact with flammable materials such as curtains, fabrics, etc. while it is in operation, as this could cause a fire.

• Do not cover the appliance or place anything on it.

• CAUTION: Charcoal or similar fuels must not be used with this appliance.

• Ensure to not to scratch the special coating of the hob, as: small fragments of this coating could get mixed with the food and the surface would be irreparably damaged. TO AVOID THIS, use a wooden spatula or a heat-resistant plastic model.

• The Teppan Yaki Grill has a high-quality ceramic coating. Rub the griddle with a little oil before using for the first time, but afterward there is not any need of it.

• WARNING: If the appliance overheats, the built-in safety thermostat will be triggered, causing the appliance (and indicator light) to switch off automatically. Un plug the appliance, wait 10 to 20 seconds and reconnect the appliance. Appliance will start to work again.

• Your supply socket must be properly earthed.

• Avoid spillage on the connector.

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used: - The marked electrical rating of the cord must be at least as great as that of the product. - Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

• Only the appropriate connector must be used.

• Make sure that the cord and the extension lead do not come into contact with the hotplate

Voltage Power Frequency AC 220-240V 2000W 50-60Hz CLEANING AND MAINTENANCE Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

• Never move the appliance by pulling on the power cord. Make sure that the power cord cannot be trapped in any way.

• Do not wrap or bend the power cord around the appliance.

• Make sure that the power cord never comes into contact with hot parts of this appliance.

5. INSTRUCTIONS FOR USE

INTRODUCTION: The electric table grill is intended for grilling and frying without using any additional fat. The hotplate has a ceramic marble coating layer and a regulator that keeps the hotplate at the required temperature. This makes the electric table grill ideal for use at home for enjoyable meals with family and friends, such as teppanyaki, gourmet grilling, barbecue or preparing dishes for a children’s party. Note: Read the instructions before connecting and using for the first time!

Before using for the first time, remove the appliance and all accessories carefully. Clean the grill and accessories with a sponge or slightly damp cloth.

1. Connect the main socket to a suitable outlet

2. Set the desired temperature using the Temperature control OFF/MIN/1/2/3/4/5.

3. When first used, the unit may give off a slight odour. It is not permanent and lasts only for few

seconds. Make sure to keep sufficient ventilation.

4. As soon as this temperature is reached, the control light goes out.

5. During operation, the indicator light goes on and off, showing that the thermostat is working

and keeping the grill at the desired temperature.

6. Always turn the temperature control to "OFF" to switch the grill off.

7. Disconnect the plug from the socket and remove the plug from the mains socket.

8. Carry the grill by the handles only.

9. Allow the grill to cool and keep out of the reach of children.

WARNING: The surface of the grill is very hot during use.

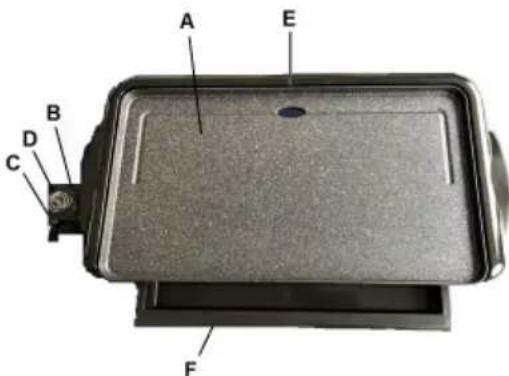

A. Griddle B. Regulator C. Temperature indicator light D. Regulator control knob E. Oil Tray F. Tray to keep food warm When this symbol is used, it means

• Thaw frozen food before grilling.

• To sear meat, turn the thermostat knob to its maximum position and ensure that it is completely preheated before cooking.

• For classic cooking and according to your taste, select the temperature that suits you best.

• Be careful not to scratch the special coating on the hob, as this will cause it to lose its non-stick properties. Use a standard wooden or plastic spatula specially designed to withstand the heat.

• Do not use sharp and/or pointed metal objects.

• When using part of the grill surface, always place the food in the centre of the grill. TIPS FOR USE AND CARE OF CERAMIC MARBEL COATING

• To avoid scratching of ceramic non-stick surface, do not stack objects on the hob.

• Use medium to low heat for best cooking results. Very high temperatures can cause discolouration reducing the life of any non-stick surface. To achieve a high temperature, preheat the hob at medium heat for a few minutes.

• Use nylon or silicone utensils only. If use plastic or wooden utensils, use them with max. precautions. This will avoid scratching the non-stick surface.

• Never cut food on the hob.

• To remove stubborn stains, use a plastic scouring pad and mild washing-up liquid.

• Before cleaning your appliance, turn the thermostat knob to the minimum position and disconnect the plug from the wall socket.

• Allow the grill to cool before cleaning and remove the thermostat plug from the appliance. To do this, simply hold the plug firmly and pull.

• Never immerse the grill, even partially, in water or any other liquid.

• If water drips from the electrical connections, allow to dry before using again.

• Clean the external surfaces of the grill with a soft cloth or slightly damp sponge.

• Removable parts that come into contact with food, such as the hob, bowl, fork, spatula, etc., can be cleaned in hot water with a sponge and washing-up liquid or washed in the dishwasher.

• Do not use aggressive detergents or scouring pads that could scratch the non-stick coating. STORAGE

• Make sure the appliance is completely cool and dry.

• Do not wrap the power cord around the appliance, as this may damage it.

• Keep the appliance in a cool, dry place out of the reach of children Using the Griddle with warming tray: Make a batch of food and keep them warm in the warming tray prior to serving. Or keep toast rolls warm in the warming tray while cooking a main course on the Grill Griddle.16 FRANÇAIS

• NE UPORABLJAJTE JEKLENE VOLNE.

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC. Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical. Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.
