Memory Center 2 - External hard drive INTENSO - Free user manual and instructions

Product type	3.5-inch (8.9 cm) external hard drive
Interface	USB 3.0 SuperSpeed (compatible with USB 2.0/1.1)
Maximum transfer rate	5 Gbit/s (USB 3.0)
Dimensions (L x W x H)	190 x 121 x 35 mm
Power supply	Power adapter 100-240 VAC, 50/60 Hz, output 12 V DC, 1.5 A
Compatible operating systems	Windows XP / Vista / 7, Mac OS 10.x
Box contents	Hard drive, USB 3.0 cable, power adapter, user manual
LED indicator	Flashes during data access
Power button	Yes, on the front panel
Ambient relative humidity	8% to 90% (operating and non-operating)
Care and cleaning	Disconnect the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or solvents.
Safety instructions	Do not open the adapter casing. Use only the provided adapter. Avoid shocks, drops, and electrostatic discharges. Disconnect during thunderstorms or prolonged non-use.
Spare parts and repairability	Opening the casing voids the warranty. No user-serviceable parts. In case of failure, contact Intenso customer service.
Warranty	Limited warranty covering manufacturing defects. Does not cover damages due to improper use, shocks, electrostatic discharges, or data loss.
General information	High-speed external hard drive for PC and Mac. Ideal for data storage and backup. Supplied preformatted in NTFS (Windows compatible).

Frequently Asked Questions - Memory Center 2 INTENSO

Is the Memory Center 2 hard drive compatible with Windows 10?

Although the manual mentions Windows XP/Vista/7, the hard drive generally works with Windows 10 and later versions thanks to USB backward compatibility. However, no official guarantee is given for these newer systems.

Can I use this hard drive with a USB 2.0 port?

Yes, the hard drive is compatible with USB 2.0 and 1.1 ports, but the transfer speed will be limited to the slowest port (up to 480 Mbit/s in USB 2.0).

How do I install the hard drive on Mac?

Connect the hard drive via USB, then turn it on. Under Mac OS X, it should be recognized automatically. If the drive does not appear, check in Disk Utility if it is mounted. It may be necessary to reformat the drive to HFS+ or exFAT for full compatibility with Mac.

What to do if the hard drive is not recognized by the computer?

1) Check that the power adapter is plugged in and the drive is turned on (LED lit). 2) Try a different USB cable or port. 3) Under Windows, open Disk Management to see if the drive appears. 4) If the drive is detected but not initialized, you will need to initialize and format it (note: this erases all data).

Is it possible to recover data if the hard drive fails?

Intenso cannot be held responsible for data loss. In case of hardware failure, it is recommended to contact a professional data recovery service, as personal repair attempts can worsen the situation. It is advisable to always back up your important data on a second medium.

The hard drive makes a clicking noise: is this normal?

A slight operating noise from the drive is normal, but repeated clicks or grinding noises may indicate a mechanical problem. In that case, immediately stop the drive, back up your data if possible, and contact technical support.

Can I open the hard drive casing?

No, opening the casing voids the warranty and exposes the drive to electrostatic damage. Moreover, the drive is not designed for user repair. Contact customer service for any intervention.

How to clean the external hard drive?

Disconnect the hard drive and adapter. Use a soft, dry cloth to wipe the casing. Do not use chemicals, alcohol, or abrasive cleaners. Avoid moisture entering the openings.

What is the typical lifespan of this hard drive?

The lifespan of a hard drive depends on usage and conditions. Under normal use, several years of service can be expected. However, it is always recommended to monitor the drive's health with tools like CrystalDiskInfo and replace the drive as soon as signs of failure appear.

The hard drive gets very hot: is this normal?

Slight heating is normal, especially during large transfers. However, if the casing becomes very hot to the touch or the drive stops, check that ventilation is adequate. Avoid placing the drive on soft surfaces or in confined spaces. If overheating persists, contact support.

USER MANUAL Memory Center 2 INTENSO

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatur:

Black and white icon of a smartphone with a diagonal line crossing it, no text or symbols present.

Stoß, Fall:

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Operating Instructions

3.5"

MEMORYCENTER

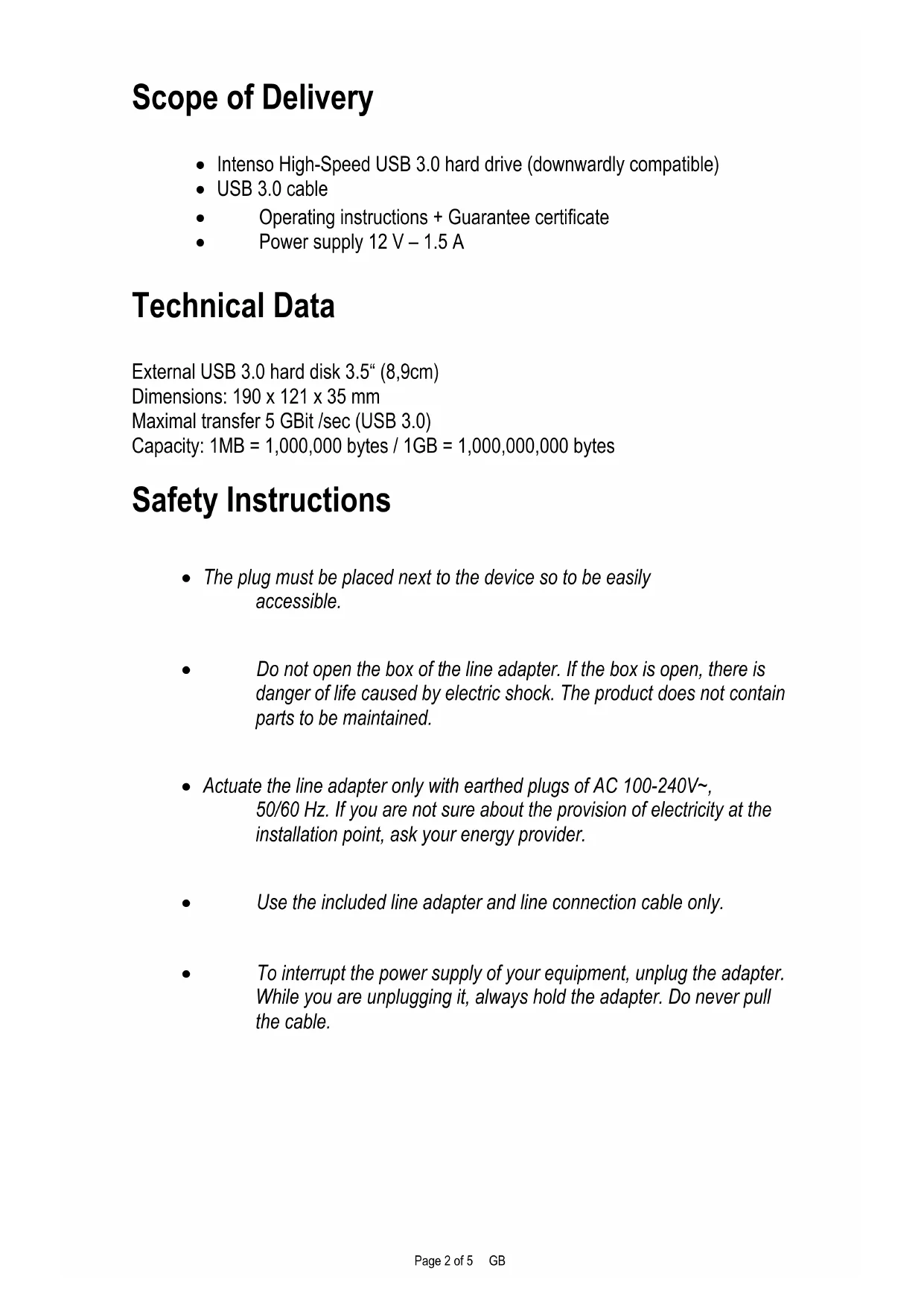

Scope of Delivery

• Intenso High-Speed USB 3.0 hard drive (downwardly compatible)
• USB 3.0 cable
  • Operating instructions + Guarantee certificate
  • Power supply 12 V – 1.5 A

Technical Data

External USB 3.0 hard disk 3.5" (8,9cm)

Dimensions: 190 x 121 x 35 mm

Maximal transfer 5 GBit /sec (USB 3.0)

Capacity: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Safety Instructions

• The plug must be placed next to the device so to be easily accessible.
• Do not open the box of the line adapter. If the box is open, there is danger of life caused by electric shock. The product does not contain parts to be maintained.
• Actuate the line adapter only with earthed plugs of AC 100-240V\~, 50/60 Hz. If you are not sure about the provision of electricity at the installation point, ask your energy provider.
  • Use the included line adapter and line connection cable only.
  • To interrupt the power supply of your equipment, unplug the adapter. While you are unplugging it, always hold the adapter. Do never pull the cable.

Instructions for use

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperature:

In operation: 5 °C to 55 °C [HDD] 5 °C to 35° C [Power Supply]

Out of service: - 40 °C to 60 °C

Relative air humidity:

In operation, out of service: 8 % - 90 %

Black and white icon of a smartphone with a diagonal line crossing it, no text or symbols present.

Crush, fall

Protect the device in every operation condition from crush and fall. Do not move the device during operation.

Abstract geometric pattern with black and white shapes (no text or symbols)

Electrostatic discharge

It is an electrostatic discharge sensitive device. Protect the device from every kind of electrostatic discharge.

Simple line drawing of a trash bin with no text or symbols

Disposal of WEEE (Waste Electrical and Electronic Equipment)

Devices marked with the WEEE logo are subject to the European Community Directive 2002/96/EC.

Waste Electrical and Electronic Equipment must be separated from household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Installation Instructions

System Requirements:

This hard drive is compatible with the operating systems MS Windows XP / Vista / Windows 7 and Mac OS 10.x.

Please note:

For the USB 3.0 operation an USB 3.0 interface card is needed. The hard disk is downwardly compatible with the previous USB standards. Your PC's hardware configuration as well as the operating system employed can influence the compatibility of the hard drive.

Hard Drive Connection:

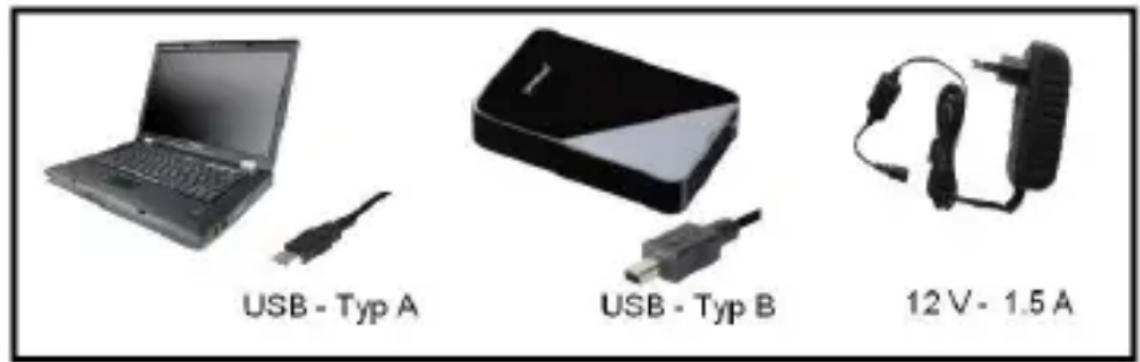

USB - Typ A USB - Typ B 12 V - 1.5 A

Connect the power supply provided to the external hard drive. Insert the other ending of the power supply into the plug. To switch on push the on-off switch (1/0) on the frontal side of the box.

To connect the external hard drive to your computer, please use only the USB cable provided. Connect the USB 3.0 plug type B with the Intenso hard drive and the plug of the USB 3.0 type A with your computer.

The computer automatically detects the “New Device” and installs the driver. Please wait until driver installation is completed. Your computer now shows an additional drive named “Intenso”.

As soon as the hard drive is connected to your computer, the LED flashes. The LED flashes, when writing or reading procedure is carried out.

Trademark: Windows XP / Vista / Windows 7 are registered trademarks of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All trademarks and names of third parties are property of the respective user.

Limited guarantee conditions

The guarantee only covers the use of this Intenso product. The guarantee does not cover normal wear resulting from faulty, improper use, negligence, accidents, incompatibility or poor functionality of certain computer hardware or computer software.

Claim under guarantee does not exist in the case of noncompliance with the Intenso user manual as well as in case of improper assembly, use or defects of other devices.

Claim under guarantee does not exist in the case that the device is exposed to shock, electrostatic discharge, heat or humidity beyond the product specifications.

Intenso is not liable for data loss or any other occurring indirect damages or secondary damages, for the violation of the guarantee conditions or any other damages, no matter what the reason is.

Important information:

Please note that any claim under guarantee expires, if the capacity label (= guarantee sealing) on the rear side is damaged and if the housing of the hard disk is opened.

This product is not intended for commercial use, for medical or special applications, where a failure of the product can cause injuries, fatalities or substantial property damage.

Istruzioni d'uso

3,5“

MEMORYCENTER

Volume di consegna

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatura:

Black and white icon of a smartphone with a diagonal line crossing it, indicating no text or symbols.

Urto, caduta

Abstract geometric symbol with black triangles and intersecting lines (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, no text or labels present

Capacité: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Avis de sécurité

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Température:

En service: 5 °C to 55 °C [HDD] 5 °C to 35 °C [Adapteur Secteur] Hors service: - 40 °C to 60 °C

Black and white icon of a smartphone with a diagonal line crossing it, no text or symbols present.

Ecrasement, chute

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatura:

Black and white icon of a smartphone with a diagonal line crossing it, no text or symbols present.

Golpe, caída

Abstract geometric pattern with intersecting black lines forming triangles (no text or symbols)

Descarga electroestática

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Capacidade: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Avisos de segurança

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatura:

Black and white icon of a smartphone with a diagonal line crossing it, no text or symbols present.

Colisões, quedas

Abstract geometric pattern with black and white triangular shapes intersected by diagonal lines (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatura:

Black and white icon of a smartphone with a diagonal line crossing it, indicating no text or symbols.

Uderzenie, upadek

Abstract geometric symbol with black triangles and intersecting lines forming a cross (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Температура:

Black and white icon of a smartphone with a diagonal line crossing over it, indicating no text or symbols.

Удар, падение

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

INTENSO GMBH Service Hotline:

Thank you very much for purchasing this Intenso high-quality product. All Intenso products are subject to continuous quality inspections. The statutory warranty period will certainly start with the date of purchase. Thus, please store the receipt as proof of purchase.

Warranty Conditions

Warranty claims only apply to material and manufacturing errors. Intenso GmbH is not liable for the loss of any data that are on devices sent to us. Free warranty only applies to repairs or replacements of defective parts. Please understand that we cannot render any guarantee services for e.g.:

• Improper or inappropriate treatment, installation or use
  ■ Damages, scratches or wear
  ■ Modifications, interventions or repairs by third parties
  ■ Damages due to Acts of God or transport

Intenso GmbH

PROCESSING OF COMPLAINTS

In the case of complaints, please proceed as follows:

1. We only accept returns containing the complete accessory and receipt.
2. Additionally, an RMA number for returns is mandatory. You can request this RMA number via e-mail or service hotline.
3. Please pack the product including the entire accessory and the receipt and secure them for transport. Please affix an appropriate stamp.
4. Please apply the RMA number clearly visible on the outside of the package.

Please send your package to the following service address:

INTENSO GMBH Service Hotline:

Service Center (Your RMA-No.) [phone]

German telephone network.

D-49377 Vechta Different rates apply to calls from
