2.5" Memory Space - External hard drive INTENSO - Free user manual and instructions

Product type	External hard drive
Brand	Intenso
Model	2.5\" Memory Space
Storage capacity	Variable (250 GB to 2 TB depending on version)
Interface	USB 3.0 (backward compatible with USB 2.0)
Transfer speed	Up to 5 Gbps (USB 3.0)
Form factor	2.5 inches
Dimensions (L x W x H)	Approx. 120 x 80 x 15 mm
Weight	Approx. 150 g
Power supply	USB bus powered (no power adapter required)
Compatible operating systems	Windows, macOS, Linux
Supported file formats	NTFS, FAT32, exFAT (formattable)
Main functions	Data storage, backup, file transfer
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid shocks and humidity.
Safety	Always eject the device before unplugging to prevent data loss.
Spare parts and repairability	Not user-repairable. Spare parts not available.
Warranty	Manufacturer's warranty 2 years
Package contents	External hard drive, USB cable, user manual

Frequently Asked Questions - 2.5" Memory Space INTENSO

How to connect the Intenso Memory Space hard drive?

Connect the provided USB cable to the hard drive and then to a USB port on your computer. The system will detect it automatically.

The hard drive is not recognized by my PC, what should I do?

Check that the cable is properly connected. Try a different USB port. If the problem persists, try on another computer to isolate the issue.

What is the default file format?

The drive is usually formatted as NTFS for Windows. You can reformat it to exFAT for Mac/Windows compatibility.

Can I use this hard drive with a gaming console?

Yes, it is compatible with PlayStation and Xbox for external storage, after appropriate formatting.

How to format the hard drive?

On Windows, right-click the drive in 'My Computer' and choose 'Format'. On Mac, use 'Disk Utility'.

What is the actual transfer speed?

The speed depends on the interface and the file. On USB 3.0, expect around 80-120 MB/s sequential read/write.

How to safely eject the drive?

On Windows, click the 'Safely Remove Hardware' icon in the taskbar. On Mac, drag the icon to the Trash.

Does the hard drive require an external power supply?

No, it is powered directly via the USB port. No power adapter is needed.

What is the maximum available capacity?

The 2.5" Memory Space model is available in several capacities: 250 GB, 500 GB, 1 TB, and 2 TB.

How to solve a slowness problem?

Make sure you are using a USB 3.0 port for optimal performance. Avoid transferring many small files at once.

USER MANUAL 2.5" Memory Space INTENSO

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Simple diagram with a black diagonal line crossing a dark oval shape, no text or symbols present.

Stoß, Fall:

Symbolic black-and-white diagram of a mountain with a cross, no text or labels present

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Operating Instructions

2,5"

MEMORYSPACE

Scope of Delivery

• Intenso High-Speed USB 3.0 hard drive (downwardly compatible)
• USB 3.0 cable
• Operating instructions

Technical Data

External USB 3.0 hard disk 2,5" (6,35cm)

Dimensions: Height: 32,4 mm, Diameter: 136 mm

Maximal transfer 5 GBit /sec (USB 3.0)

Capacity: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Instructions for use

Simple black-and-white icon of an umbrella with falling leaves (no text or symbols)

Operational between:

5^ C to 35^ C

Simple diagram with a black diagonal line crossing a dark oval shape, no text or symbols present.

Crush, fall:

Protect the device in every operation condition from crush and fall. Do not move the device during operation.

Symbolic black-and-white diagram of a mountain with a cross, no text or labels present

Electrostatic discharge:

It is an electrostatic discharge sensitive device. Protect the device from every kind of electrostatic discharge.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Disposal of WEEE (Waste Electrical and Electron ic Equipment)

Devices marked with the WEEE logo are subject to the European Community Directive 2012/19/EC.

Waste Electrical and Electronic Equipment must be separated from household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Installation Instructions

System Requirements:

This hard drive is compatible with the operating systems MS Windows XP / Vista / Windows 7 / 8 / 8.1 / 10 and Mac OS 10.x.

Please note:

For the USB 3.0 operation an USB 3.0 interface card is needed. The hard disk is downwardly compatible with the previous USB standards.

Your PC's hardware configuration as well as the operating system employed can influence the compatibility of the hard drive.

Power supply under USB 2.0: If your USB 3.0 hard disc is not recognized on your PC with a USB 2.0 connection, this could probably be caused by the power supply. In this case, please connect an USB hub with an external power supply.

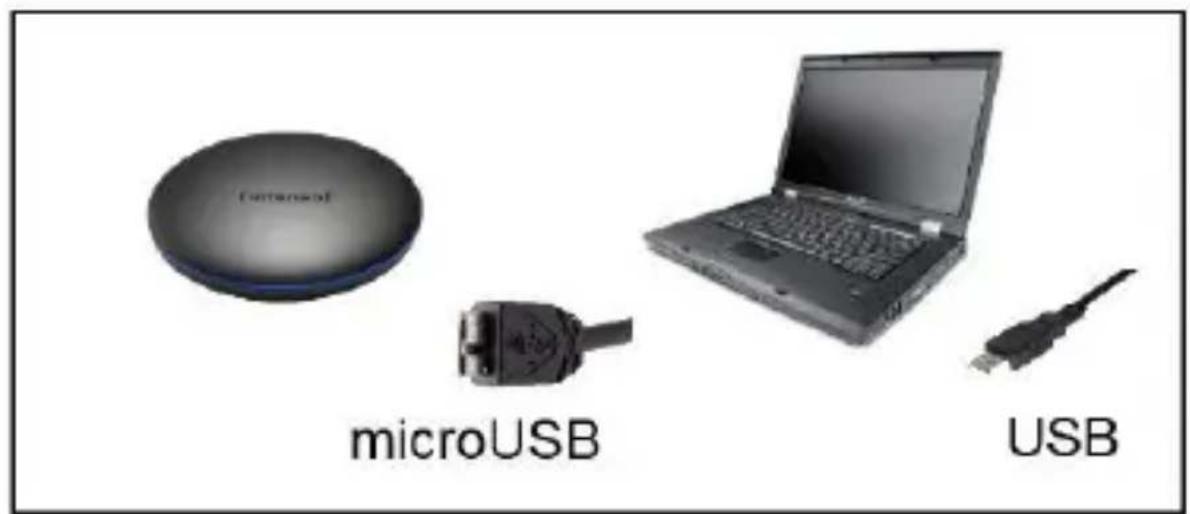

Hard Drive Connection:

To connect an external hard drive to your computer, please use the USB cable provided. Connect the USB 3.0 plug with the Intenso hard drive and the plug of the USB cable ending with your computer.

The computer automatically detects the “New Device” and installs the driver. Please wait until driver installation is completed. Your computer now shows an additional drive named “Intenso”.

As soon as the hard drive is connected to your computer, the LED flashes. The LED flashes, when writing or reading procedure is carried out.

Trademark: Windows XP / Vista / Windows 7 / 8 / 8.1 / 10 are registered trademarks of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All trademarks and names of third parties are property of the respective user.

Limited guarantee conditions

The guarantee only covers the use of this Intenso product. The guarantee does not cover normal wear resulting from faulty, improper use, negligence, accidents, incompatibility or poor functionality of certain computer hardware or computer software.

Claim under guarantee does not exist in the case of noncompliance with the Intenso user manual as well as in case of improper assembly, use or defects of other devices.

Claim under guarantee does not exist in the case that the device is exposed to shock, electrostatic discharge, heat or humidity beyond the product specifications.

Intenso is not liable for data loss or any other occurring indirect damages or secondary damages, for the violation of the guarantee conditions or any other damages, no matter what the reason is.

Important information:

Please note that any claim under guarantee expires, if the capacity label (= guarantee sealing) on the rear side is damaged and if the housing of the hard disk is opened.

This product is not intended for commercial use, for medical or special applications, where a failure of the product can cause injuries, fatalities or substantial property damage.

(Intenso) ^® WARRANTY CONDITIONS

Dear Intenso customer,

Thank you for opting for a high-quality Intenso product. All Intenso products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase. Please be sure therefore to save the sales receipt as proof of purchase.

Warranty conditions

The warranty only covers material and production defects. Intenso GmbH is not liable for the loss of data in units sent to us. The free of charge warranty service covers the repair or replacement of defective parts. Please understand that we cannot render any warranty services, e.g. in case of:

• Misuse or improper handling, installation or use
  ■ Damages, scratches or wear
• Modifications, manipulation or repairs by third parties
  ■ Damages through force majeure or transport

Your Intenso GmbH

CLAIM PROCEDURE

In case of a claim, please proceed as follows:

1. Only returns accompanied with all accessories and sales receipt are accepted.
2. In addition, a RMA number is absolutely required for return shipments. You can request this RMA number via e-mail or through the service hotline.
3. Please package the product including all accessories and the sales receipt safe for transport. Please stamp the package.
4. Please affix the RMA number clearly visible on the outside of the package.

Please send to the following service address:

INTENSO GMBH

Service Center (your RMA-No.)

(0.39 €/min. from the landline in Germany.

Usual costs apply.)

Email: [e-mail]

Simple black-and-white icon of an umbrella with scattered leaves (no text or symbols)

Simple diagram with a black diagonal line crossing a dark oval shape, no text or symbols present.

Urto, caduta

Symbolic black-and-white diagram of a mountain with a cross, no text or labels present

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Capacité: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Simple black-and-white icon of an umbrella with scattered leaves (no text or symbols)

Simple diagram with a black diagonal line crossing a dark circular shape, no text or symbols present.

Ecrasement, chute

Symbolic black-and-white diagram of a person standing on a mountain with diagonal lines (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or plastic (no text or labels)

Simple black-and-white icon of an umbrella with falling leaves (no text or symbols)

Operable entre:

5 °C hasta 35 °C

Simple diagram of a black circle with vertical lines and a diagonal line crossing it, no text or symbols present.

Golpe, caída

Symbolic black-and-white diagram of a person standing on a mountain peak with diagonal lines (no text or labels)

Descarga electroestática

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Capacidade: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Indicações de uso:

Simple black-and-white icon of an umbrella with falling leaves (no text or symbols)

Operacional entre:

5 °C até 35 °C

Simple diagram with a black diagonal line crossing a dark oval shape, no text or symbols present.

Colisões, quedas

Abstract black-and-white geometric symbol with triangular and cross lines, no text or symbols present

Simple line drawing of a trash bin with crossed x- and y-axes, no text or symbols present

Service Center (Seu N° ADM)

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Simple diagram of a black circle with vertical lines above and below, crossed by a diagonal line (no text or symbols)

Uderzenie, upadek

Symbolic black-and-white diagram of a mountain with cross lines, no text or labels present

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple black-and-white icon of an umbrella with falling leaves (no text or symbols)

Simple diagram with a black diagonal line crossing a dark oval shape, no text or symbols present.

Удар, падение

Symbolic black-and-white diagram of a mountain with a cross, no text or labels present

Symbol of a trash bin crossed with diagonal lines, no text or labels present
