SS7760 - Kettle Sogo - Free user manual and instructions

Brand	Sogo
Model	SS7760 / SS7765
Product type	Electric kettle
Capacity	1.8 L
Power	1850 - 2200 W
Voltage / Frequency	220-240 V ~ 50-60 Hz
Automatic shut-off	Yes, after boiling
Dry boil protection	Yes
Integrated thermometer	Yes
Water level indicator	Yes
Lockable lid	Yes
Base with cord	Yes
Spout type	With gullet
Handle	Ergonomic
Usage	Water heating only
Cleaning	Wipe with a damp cloth; descale with vinegar
Safety	Do not immerse; do not use near water
Country of manufacture	China (P.R.C)
Importer	Sanysan Appliances S.L, Valencia, Spain
After-sales service	www.sogosat.com / 902 222 161
Compliance	Directives 2014/35/EU, 2014/30/EU, 2015/863/EU, 2009/125/EC

Frequently Asked Questions - SS7760 Sogo

How to use the Sogo SS7760 kettle?

Place the kettle on a dry, flat surface. Open the lid by pressing the safety lock. Fill with water between the MIN (0.5 L) and MAX (1 L) levels. Close the lid, place the kettle on the base, plug in, and press the switch to the 'I' position. The indicator lights up. The kettle turns off automatically when boiling. To pour, ensure the lid remains closed.

What is the capacity of the kettle?

The maximum capacity is 1.8 litres, but the recommended water level should not exceed 1 litre to avoid splashing boiling water.

How to clean the kettle?

Unplug and let it cool. Never immerse the kettle, base, or cord in water. Wipe the exterior with a damp, non-abrasive cloth. Do not use chemical or abrasive cleaners to preserve the shine.

How to descale the kettle?

Fill the kettle halfway with water, add two tablespoons of white vinegar. Bring to a boil, let it sit for a few minutes, empty, and rinse with clean water. Repeat if necessary.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on the base and that the plug is connected. If it does not heat, the dry boil protection may have activated if it operated without water. Let it cool for 15 minutes before filling with cold water and trying again.

Does the kettle turn off automatically?

Yes, the kettle has an automatic shut-off that cuts the power as soon as the water reaches boiling point. You can also turn it off manually by pushing the switch to the '0' position.

Can I heat liquids other than water?

No, this appliance is designed only for heating water. Do not heat milk, coffee, or other liquids, as they could damage the appliance or cause burns.

How does the integrated thermometer work?

The kettle is equipped with a classic design thermometer built in that displays the water temperature at all times, allowing you to know precisely the heat of the water.

What to do if the kettle heats up empty?

The dry boil protection automatically turns off the appliance. If this occurs, let the kettle cool completely before filling it with cold water. Do not restart it until it has cooled down.

Where to find after-sales service?

After-sales service is provided by Sanysan Appliances S.L. You can contact them via the website www.sogosat.com or by phone at 902 222 161 (Spain).

USER MANUAL SS7760 Sogo

Exterior view of a modern grey SOGO-style kettle with metallic handle and pressure gauge (no text or symbols on body)

SS-7760

SS-7765

HERVIDOR DE AGUA

WATER KETTLE

BOUILLOIRE D'EAU

CHALEIRA DE ÁGUA

BOLLITORE

WASSERKOCHER

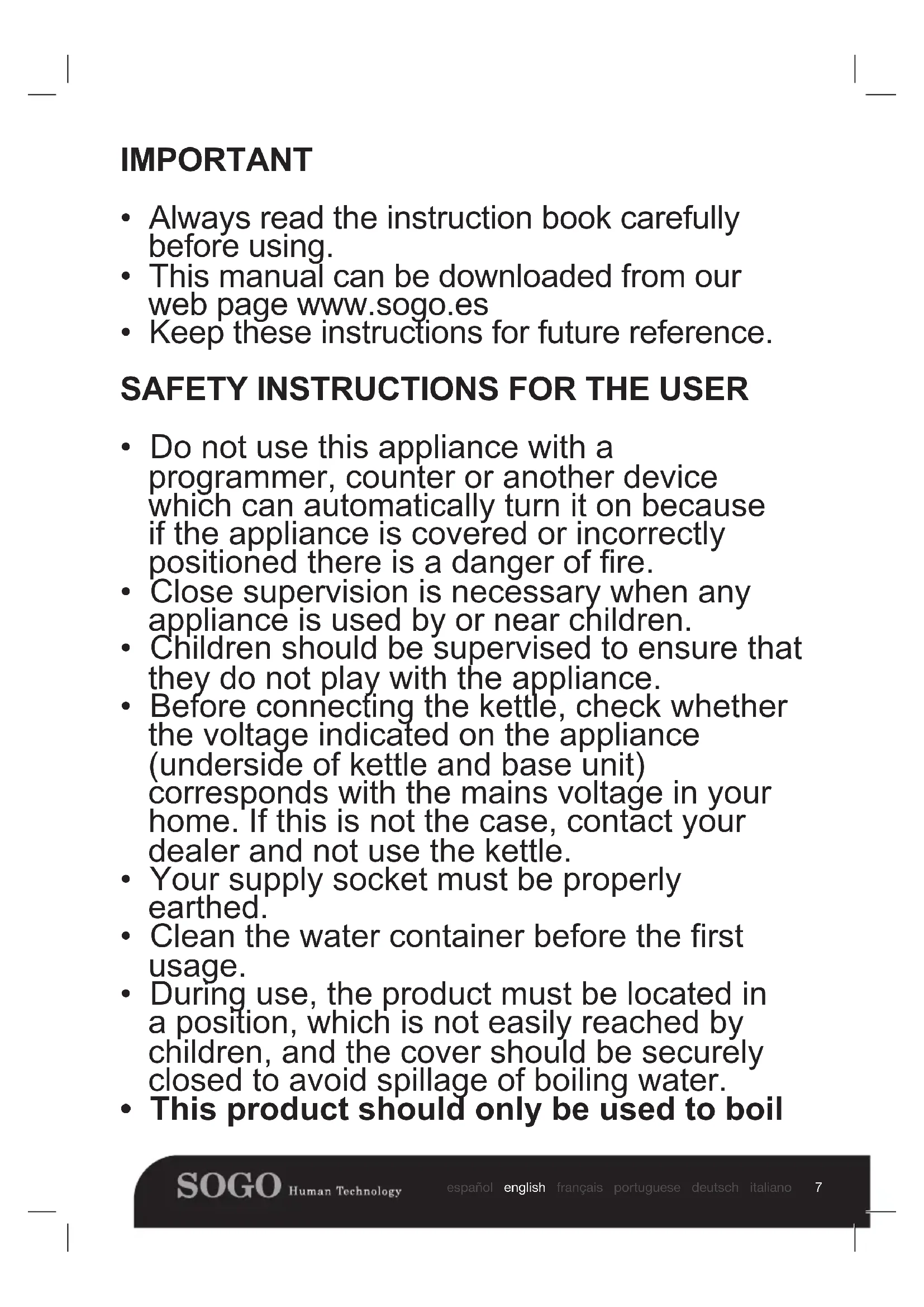

Caution: please read and preserve these important instructions

IMPORTANTE:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.
• Close supervision is necessary when any appliance is used by or near children.
• Children should be supervised to ensure that they do not play with the appliance.
• Before connecting the kettle, check whether the voltage indicated on the appliance (underside of kettle and base unit) corresponds with the mains voltage in your home. If this is not the case, contact your dealer and not use the kettle.
• Your supply socket must be properly earthed.
• Clean the water container before the first usage.
• During use, the product must be located in a position, which is not easily reached by children, and the cover should be securely closed to avoid spillage of boiling water.
  • This product should only be used to boil

water. Please do not boil other liquids such as milk and coffee.

• Fill with water according to the pre-set water level with minimum level at “MIN” and maximum level at “MAX”.
• Switch off and unplug from the outlet before filling, emptying or cleaning, or when not in use.
• If the kettle is overfilled, boiling water may be ejected.
• Do not operate or place any part of this appliance on or near hot surfaces (such as gas or electric burner or in a heated oven).
• Do not let the cord hang over the edge of a table or a counter. Do not let the cord touch hot surface.
• Never yank on the cord as this may damage the cord and eventually cause a risk of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• Avoid touching the surface of the hot kettle, use the handle and knobs.
• To avoid possible steam damage, do not face the spout when operating the kettle.
• If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
• To avoid scalding, always ensure the lid is correctly positioned before operation.

• Scalding may occur if the lid is removed while heating.

• Carefully open the lid when it is hot.

• Extreme caution must be used when moving the kettle containing hot water. Never lift the kettle by its lid. Always use the body handle.
• Do not switch your kettle on if it is empty.
• To protect from electrical hazard, do not immerse this kettle, power base or cord set in any liquid.
• To protect against fire, do not operate it in the presence of explosive and/or flammable fumes.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended to be used in household and similar applications such as:
  – staff kitchen areas in shops, offices and other working environments;
  – farm houses;
  – by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments.
• Unplug the product after use. Clean the product with dry cloth after cooling down and store it in a proper location.
• This product is not designed for any other uses other than those specified in this booklet.
• This appliance can be used by children aged from 8 years and above if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Should you accidentally allow the kettle to operate without water; the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

- This applinace can be used with the base provided or sold by the supplier, any accessory attachments that are not recommended or sold by the appliance manufacturer may result in fire, electric shock or personal injury.

- Never use this unit near bathtub, shower, wash-hand basins or other containers with water.

- Never use this appliance near water projections.

- Never use this appliance with the wet hands.

- Never use the appliance exterior and always keep it in a dry environment.

- For cleaning instructions of the parts, which comes in the contact of food, make sure to read carefully the cleaning and maintenance part.

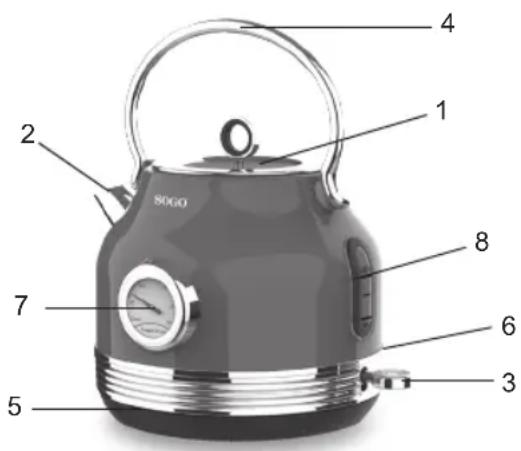

PART IDENTIFICATION

1 2 3 4 5 6 7 8 SOGO

1. Lid
2. Spout
3. On / Off Switch
4. Handle
5. Base
6. Power Cord & Plug
7. Temperature indicator
8. Water level indicator

BEFORE USING

• Read the important safeguards and Caution.
• Fill kettle up to the MAX WATER MARK and let the water boil, pour the water, cool the kettle and repeat for at least 3 times before using.

HOW TO USE

1. Place the water kettle upright on a dry, sturdy and flat surface.
2. Remove the kettle from the base. Open the lid by pressing the safety lock of lid.
   Fill the kettle with fresh water through the spout, make sure that the water level pass the minimum level (0.5 Litre) and does not exceed the maximum level (1 Litre). Before closing the lid and placing it back to the base, ensure that the kettle has not yet been switched on ("l" position).
3. Dry the water on the bottom of the body if it is wet, then place the kettle securely back to the base. Insert the plug into a suitable socket and switch the kettle to the "l" position. The power indicator will be on.
4. After reaching the boiling point, the kettle will be shut off automatically by the safety cut-out function.

5. To pour hot water, remove the container from the base, ensure the lid remains closed while pour out the water.

6. You may also shut the kettle off at any time by pressing the "on/off" switch to the "0" position. After the boiling is finished, allow the kettle to cool down for 15 minutes before refilling cold water.

WARNING: DO NOT IMMERSE IN WATER!

To protect from Electrical hazard, do not immerse this Kettle, its power base or its cord set in any liquid.

CLEANING

Always disconnect the appliance from the power outlet and cool it down completely before cleaning.

Never immerse the kettle, power cord or power base in water, or allow moisture to contact with these parts.

Wipe the appearance of body with a damp cloth or cleaner, never use a poisonous cleaner.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle to prevent the loss of gloss.

Descaling the kettle

Please follow all instructions on descaling products carefully.

1. Fill the kettle with water up to half of the maximum level; add about two tablespoons of vinegar into the water.
2. Switch the Kettle on and let the solution reach boiling point.
3. Leave the solution in the kettle for a few minutes
4. Empty the kettle, wash it with clean water.
5. After rinsing, fill the kettle with clean water and bring to the point of boil for one more time
6. If limescale is still present in kettle, repeat this process

Thermometer

This Kettle has a special feature, of inbuilt classic design thermometer, which helps you to know exactly the water temperature at the certain moment of time.

TECHNICAL SPECIFICATION:

Model No.: SS-7760, SS-7765

Voltage / Frequency: 220-240V\~ 50-60Hz

Power Consumption: 1850 - 2200W

Capacity: 1,8L

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
