USER MANUAL Pi7 S2 BOWERS & WILKINS

Welcome to Bowers & Wilkins and Pi7 S2

Thank you for choosing Bowers & Wilkins. When John Bowers first established our company, he did so in the belief that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home.

Pi7 S2 are high-performance in-ear true wireless earbuds designed to deliver the highest quality mobile personal audio experience combined with the convenience of wireless operation and the serenity of active noise cancellation. This manual will tell you everything you need to know to get the most from your Pi7 S2 earbuds.

Your Pi7 S2 can play music streamed wirelessly from your mobile phone, tablet or computer via Bluetooth. Pi7 S2 can also be used for wireless telephony.

Pi7 S2 features include our latest innovations in Adaptive Noise Cancellation, Ambient Pass-Through and enhanced Wear Sensing technologies. Our latest generation noise cancellation was designed from the ground up with intelligent environment sensing capabilities, automatically selecting the type of noise cancellation best suited to your surrounding environment; its only goal is to deliver an uncompromised listening experience. Ambient Pass-Through enables external sounds, such as conversation or safety announcements, to be heard clearly without any need to remove the earbuds. The Wear Sensing feature enables Pi7 S2 to respond naturally, pausing and resuming the music simply by removing an earbud from your ear. These features can be enabled and further customised via the Bowers & Wilkins Music app, available for free on iOS and Android devices.

Pi7 S2 incorporates a rechargeable case. When fully charged, the charging case can provide up to 21 hours of wireless media streaming at average playback volume levels.

1. Pi7 S2 Carton Contents

PI7 S2 True Wireless Earbuds with medium ear tips Charging case

USB-C charging cable

USB-C to 3.5 mm audio cable

Small ear tip x2

Large ear tip x2

Literature pack

2. Getting to Know Your Pi7 S2

We recommend installing the Bowers & Wilkins Music app on your iOS or Android device. This

allows you to configure your earbuds in detail and provides helpful hints and tips to make the most of your new earbuds.

bowerswilkins.com/downloadapp

2.1 Switching Earbuds On and Off

Pi7 S2 does not have a power control; instead, power management is automatic. Your Pi7 S2 earbuds will automatically charge when placed into the charging case and are ready for use when removed from the case.

When your earbuds are removed from the charging case and not used for 5 minutes, they will enter a power saving mode. To exit power saving mode, start using the earbuds again by connecting your paired device, streaming audio or placing the earbuds into your ears.

2.2 Earbud Controls

Each earbud has a touch-sensitive Multi-function button located on the top cap of the earbud, see Diagram 1. The Multi-function button controls are as follows:

Media Playback
Function Action

Play or pause	Tap the Multi-function button once.
Play next track	Tap the Multi-function button twice in quick succession.
Play previous track	Tap the Multi-function button three times in quick succession.

Phone Call Functionality
Function Action

Answer call	Tap the Multi-function button once with incoming call.
End call	When call is complete, tap the Multi-function button twice in quick succession.
Decline an incoming call	Tap the Multi-function button twice in quick succession with incoming call.

3. Intelligent Features

3.1 Adaptive Noise Cancellation

Noise cancellation is a series of advanced technologies that aid in removing undesired noise from the surrounding environment.

Pi7 S2 features our latest innovations in adaptive noise cancellation, this includes intelligent sensing. As your surroundings change, noise cancellation will automatically adapt to complement your new environment.

The noise cancellation features can be toggled on and off by pressing and holding the left (L) earbud Multi-function button for 1 second. See Diagram 2 for button location.

Auto (adaptive) noise cancellation mode can be enabled or disabled in the Bowers & Wilkins Music app.

Function Action

On	Removes undesired noise from the surrounding environment
Auto	Intelligently adapts noise cancellation to best suit your current environment
Off	Turns off the noise cancellation feature

3.2 Voice Assistance

Voice Assistance on your source device is activated by pressing and holding the right (R) earbud Multifunction button for 1 second. See Diagram 2 for button location.

3.3 Ambient Pass-Through

Pi7 S2 features Ambient Pass-Through, which allows some external noise from the surrounding environment, such as safety announcements or conversations, to be heard without removing the earbuds.

Use the Bowers & Wilkins Music app to enable/disable Ambient Pass-Through and adjust the Ambient Pass-Through level to suit your needs.

3.4 Wear Sensors

PI7 S2 incorporate our latest enhanced wear detection sensors in both earbuds. The sensors enable intelligent battery conservation by entering power saving mode when removed from the ears. When inserted back into the ears, PI7 S2 automatically wakes and connects to the last connected Bluetooth device.

The sensors will also pause audio when the earbuds are removed from your ears. Playback will automatically resume when the earbuds are placed back in the ears.

The Wear Sensors can be enabled or disabled from the Bowers & Wilkins Music app.

Note: Take special care when wearing your earbuds. Hair or accessories trapped between your ears and the earbuds may interfere with Wear Sensor operation.

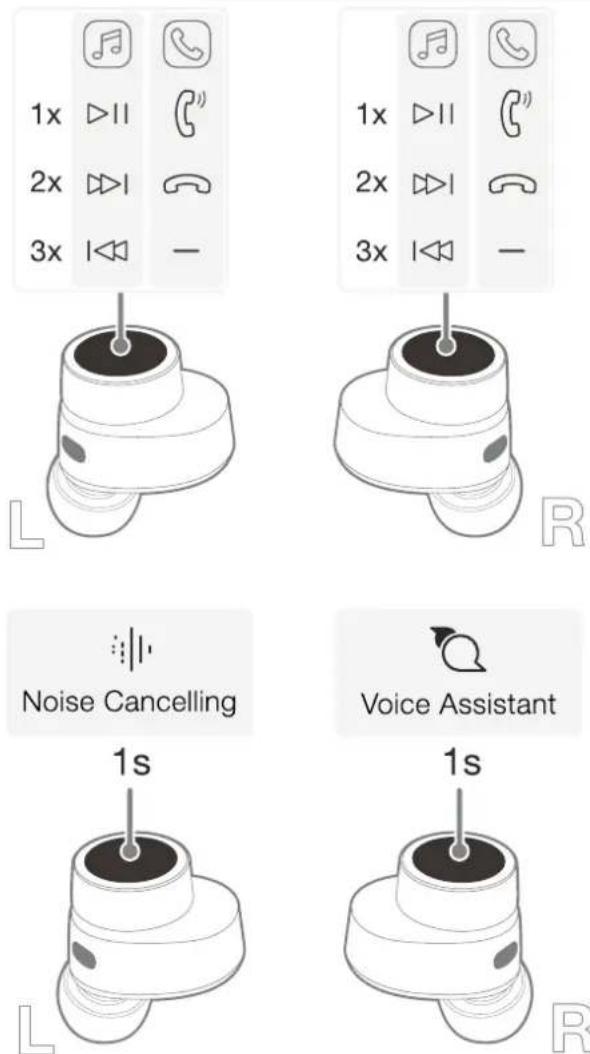

Diagram 1
Multi-function button
Diagram 2
Controlling intelligent features

4. Stowing the Earbuds

When not in use, the PI7 S2 earbuds should be stowed inside the charging case, where they will be recharged for future use.

5. Battery Charging

PI7 S2 ships with the charging case and earbud batteries partially charged and may be used immediately. However, we recommend fully charging the earbuds and case before first use. Please allow up to 3 hours to fully charge.

To charge the Pi7 S2 earbuds:

1. Place the Pi7 S2 earbuds in the charging case.
2. Close the charging case lid.

To charge the Pi7 S2 charging case:

1. Use the supplied USB charging cable and connect one end to a USB wall charger or a powered computer USB port.

2. Connect the other end to the USB-C socket on the charging case.

Note: While charging, the case indicator will flash green. When fully charged, the indicator will light solid green. The case can be charged with or without the earbuds being housed inside the case.

To charge the Pi7 S2 case using a wireless charging station:

1. Place the charging case onto the centre of your wireless charging station (not supplied).

2. Ensure that the rear of the charging case is on the charging station (with the case indicator facing up).

Note: While charging, the case indicator will flash green. When fully charged, the indicator will light solid green.

5.1 Status Indicator

The status indicator is located on the front of the case. When the earbuds are placed in the case, the LED provides information about the earbuds. When the earbuds are removed from the case, the LED provides information on the charging case. See Diagram 3 and the tables that follow for LED states.

5.2 Checking Battery Levels

You can check the case battery level by pressing the button on the outside of the case once. To see the earbuds' battery level, stow both earbuds in the case and press the case button twice. See Diagram 4 for button location.

Battery levels can also be viewed in the Bowers & Wilkins Music app.

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

Diagram 3
Status indicator illuminations

Status LED states with the earbuds in the charging case:

Illumination Operational state

Flashing Green(case lid open)		Earbud battery charge >40%
Flashing Yellow(after power on)		Earbud battery charge between 20% and 40%
Flashing Red(after power on)		Earbud battery charge <20%
Solid Red Hardware reset/system crash
Flashing Blue Bluetooth pairing mode enabled
Solid Blue(for 3 seconds)		Bluetooth pairing successful

Status LED states with the earbuds removed from the charging case:

Illumination Operational state

Flashing Green(case lid open)		Case battery charge >40%
Flashing Yellow(after power on)		Case battery charge between 20% and 40%
Flashing Red(after power on)		Case battery charge <20%
Solid Red Hardware reset/system crash

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

Diagram 4
Case and earbud battery indicator

6. Bluetooth Connectivity

6.1 Pairing

Your Pi7 S2 earbuds are designed to stream music wirelessly from Bluetooth audio devices, such as smartphones, tablets or computers. To do so, the earbuds and source audio device must first be paired.

When you receive your Pi7 S2 earbuds, they will be ready to pair to any Bluetooth audio device.

6.1.1 Pairing iOS/Android Devices without Google Fast Pair Service (GFPS), Mac or PC

1. The first time the charging case lid is opened, the earbuds will automatically enter pairing mode and the case indicator will flash blue.
   To manually place the earbuds into pairing mode, open the charging case lid and press and hold the button inside the case for 1.5 seconds until the case indicator flashes blue. See Diagram 5.
2. Go to the Bluetooth pairing menu of your source device and select "Pi7 S2" from the device list.
3. The case indicator will change to solid blue to indicate pairing is successful.

Note: Your earbuds will automatically exit Bluetooth pairing mode if no device is paired after several minutes. If pairing fails, the indicator will rapidly flash blue; please try pairing again.

PI7 S2 can remember up to four paired Bluetooth devices in total. Repeat the above steps to pair more devices.

Note: On PC, the Pi7 S2 will appear as two Bluetooth audio profiles: Stereo (default) and Hands-Free (for telephony). The Hands-Free profile will automatically be used when making or receiving a call (e.g., Teams, Skype, Zoom, etc.). However, the system volume will continue controlling the previously selected device (Stereo profile by default). To change the volume of the earbuds while on a call, use the application volume control or ensure the system volume control is set to control the Hands-Free profile.

We recommend adding your earbuds to the Bowers & Wilkins Music app. This allows you to configure your earbuds in detail and provides helpful hints and tips to make the most of your new earbuds. Please refer to section 7 for details on installing and using your earbuds with the Bowers & Wilkins Music app.

6.1.2 Pairing Android 6.0+ Devices Supporting Google Fast Pair Service (GFPS)

1. Place the case no further than 10 cm (4 inches) away from the Android device and ensure the Bluetooth connection is enabled.
2. The first time the charging case lid is opened, the earbuds will automatically enter pairing mode and the case indicator will flash blue.

To manually place the earbuds into pairing mode, open the charging case lid and press and hold the button inside the case for 1.5 seconds until the case indicator flashes blue. See Diagram 5.

1. A GFPS (Google Fast Pair Service) notification will pop up showing that your device has been detected and request to start the pairing process.
2. Press the Connect button to enable pairing; successful connection will be shown in the popup.
3. Once paired, the popup will direct you to the Google Play store to install the Bowers & Wilkins Music app.

We recommend adding your earbuds to the Bowers & Wilkins Music app. This allows you to configure your earbuds in detail and provides helpful hints and tips to make the most of your new earbuds. Please refer to section 7 for details on installing and using your earbuds with the Bowers & Wilkins Music app.

6.2 Disconnecting from a Device

You can quickly disconnect Pi7 S2 from a device by placing the earbuds back into the case. Alternatively, you can manage connections in further detail using the Bowers & Wilkins Music app, in the Connections page of the earbud Settings menu.

7. Bowers & Wilkins Music App

The Bowers & Wilkins Music app is available for free on iOS and Android devices and provides extended setup and adjustments to features such as Adaptive Noise Cancellation, Ambient Pass-Through and Wear Sensors. The app also provides additional functions, such as Ambient Pass-Through level, connection management and software updates.

To add your earbuds:

1. From your Android or iOS device, download and install the Bowers & Wilkins Music app.

bowerswilkins.com/downloadapp

1. Ensure your earbuds are switched on by taking them out of the charging case.
2. Launch the app, then read and follow the instructions pertaining to notifications and permissions.
3. The app should detect your earbuds automatically and invite you to set up your earbuds. Follow the in-app instructions to complete the setup process.
4. If your earbuds are not detected automatically, navigate to the Settings page (icon), tap Add product and follow the in-app instructions.

Line drawing of a wireless earbuds with a blue indicator light and label (no text or symbols on the device itself)

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

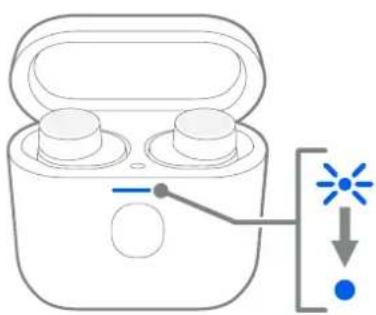

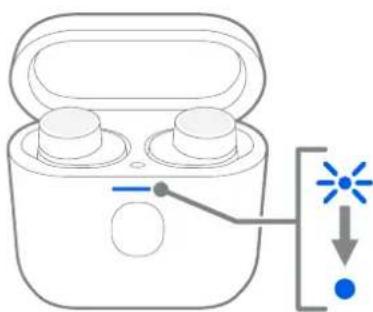

Diagram 5
Bluetooth pairing

7.1 Controlling Your Earbuds

Commonly used features of your earbuds are accessible directly on the Music app home page:

• Battery status
  • Environmental controls (Noise Cancellation/Pass-Through)
• Connected device status (refer to the Connections section below for further details)

7.1.1 Earbud Settings Page

Other settings can be adjusted from the Settings page. Tap the icon at the bottom of the screen to enter the Settings page, then select your earbuds from the list.

Environmental Controls

Set the desired noise cancelling mode from the following options:

• Noise Cancelling On
  • Auto (Adaptive) Noise Cancelling On
• Noise Cancelling Off

Set the desired pass-through mode from the following options:

• Pass-Through On/Off
• Pass-Through Level

Connections

The two most recently connected Bluetooth devices are shown in the Connections shortcut buttons. The buttons will appear grey if not currently connected. Tap the buttons to attempt reconnection.

Tap the CONNECTIONS heading to view more detailed connection settings, including previously connected devices (PI7 S2 will remember up to four devices).

Once in the Connections page, swipe a device left to delete it from the list. Swipe a device right to make it the preferred device to connect to when the earbuds are switched on.

Toggle Auto-connect to last device to prompt the earbuds to connect to the previously connected device when they are switched on.

Device Management

Toggle Wear sensor on to enable intelligent playback control. Once enabled, remove an earbud to pause playback; place the earbud back in your ear to resume playback.

Rename product

Tap Rename product to choose a new Bluetooth name for your earbuds. Note that devices already paired with the earbuds may still reference the previous name.

7.2 Earbud Software Update

Bowers & Wilkins will occasionally make available software updates that refine and optimise the performance of your earbuds or add new features.

The Bowers & Wilkins Music app will notify you when a software update is available. To update, tap the notification and follow the in-app instructions.

8. Wearing Your Earbuds

Correctly wearing your earbuds will help ensure the best possible experience. Like many in-ear earbuds, Pi7 S2 are designed to seal the ear canal in order to perform optimally. Ear tips come in three sizes: small, medium and large. Finding the proper size for your ear is critical to obtaining a good seal and ensuring Pi7 S2, and the advanced features, such as Adaptive Noise Cancellation, perform optimally.

1. Identify the left and right earbud by finding the L and R identification (located on the inner side of each earbud).
2. Place each earbud in your ear and twist them backward slightly so that the tips engage comfortably with the opening of the ear canal.
3. If the earbud tip feels too large or small, try another ear tip size to ensure the best fit.

Note: To optimise call quality, ensure the microphones, located underneath each earbud, are not obstructed. See Diagram 6.

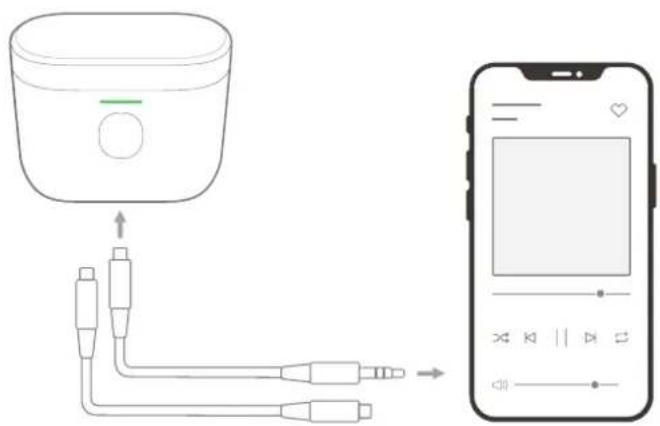

9. Media Streaming Using The Smart Charging Case

The charging case of your Pi7 S2 can be used to wirelessly retransmit audio to your earbuds or another pair of Bowers & Wilkins headphones using the supplied USB type-C-to-3.5 mm or USB type-C-to-C cable. See Diagram 7.

1. Connect the supplied cable to the case and the source device.
2. Your Pi7 S2 will automatically start streaming.

Note: If using Mac and streaming for the first time, go to Apple Menu > System Preferences > Sound > Output and select "Bowers & Wilkins Pi7 S2".

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the device itself)

Illustration of a light bulb inside an ear, labeled with the number 1 (no text or symbols on the bulb itself)

Diagram 6
Wearing your earbuds

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Diagram 7
Streaming media

9.1 Pairing another Bowers & Wilkins headphone to the case for media streaming

Your case can also pair with another Bowers & Wilkins headphone for media streaming (e.g., to listen wirelessly to an in-flight movie using a pair of Px8 over-ear headphones). See Diagram 8.

1. Connect the supplied cable to the case and the source device.
2. Press and hold the button on the outside of the case for 3 seconds until the LED flashes blue.
3. Enable Bluetooth pairing mode on your other Bowers & Wilkins headphones.
4. The case will take a few seconds to pair with your other Bowers & Wilkins headphones. The case LED will change to solid blue once the connection is complete.
5. Press the button twice to stop streaming and once to restart streaming.

Note: The case can only transmit to one pair of headphones at a time. Both earbuds must be inside the case while streaming to the other headphones. The case will not remember previously paired headphones; follow the steps above to pair each time.

10. Resetting/Troubleshooting

10.1 Factory Reset

Perform the factory reset to clear the paired device history and restore all settings to their defaults.

To factory reset the earbuds:

1. Open the charging case with the earbuds placed inside.
2. Press and hold the button on the inside of the case for 5 seconds and release.
3. The indicator on the case will turn red to indicate the reset.

Note: If the earbuds are not functioning properly, please perform a factory reset to resolve the issue.

10.2 Hard Reset

To hard reset the earbuds:

1. Open the case with the earbuds placed inside.
2. Press and hold the button inside the case for 15 seconds until the LED indicator goes off and illuminates green to indicate completion of the hard reset process.

Note: If a serious system crash occurs (i.e., the LED is solid red), first try removing the earbuds from the case and replacing them. If this does not resolve the issue, please perform a hard reset.

11. Caring For Your Earbuds

Your earbuds can be cleaned using a soft, clean, damp cloth and gently dabbing until clean. Do not use cleaning detergents, rubbing alcohol or chemical cleaners/polish, doing so may damage your earbuds.

12. Service/Support

If you need help troubleshooting a specific problem or simply have a question you would like answered, please initially consult the Headphones Support section of the Bowers & Wilkins website: www.bowerswilkins.com.

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Connect the case to the source device.

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Hold the button for 3 seconds until the LED flashes blue.

Enable pairing mode on the other Bowers & Wilkins headphones.

Line drawing of a medical device with a cap and stem (no text or symbols)

The LED will light solid blue once paired.

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Press the button 1x to start, 2x to stop.

Diagram 8

Streaming media to a different pair of Bowers & Wilkins headphones

Specifications

Technical Features True 24-bit audio connection

2-way drive unit design

High-performance DSP

Bluetooth 5.0 with aptX™ Adaptive technology

Adaptive Noise Cancellation

Audio retransmission from charging case

Wireless and USB-C charging

Fast charging support

Wearing Style In-ear noise cancelling true wireless earbuds

Bluetooth Codecs aptX™ – Adaptive

aptX™ - HD

aptX™ - Classic

AAC

SBC

Bluetooth Profiles A2DP v1.3.1

AVRCP v1.6.1

HFP v1.7.1

HSP v1.2

BLE GATT (Generic Attribute Profile)

Frequency Band Tx mode: 2402 MHz to 2480 MHz, ISM Band

Rx mode: 2402 MHz to 2480 MHz, ISM Band

RF Output Power <10.0 dBm

Drive Units 9.2 mm dynamic drive unit with balanced armature

Microphones Three microphones per earbud for calls and noise cancellation

Battery Type Rechargeable Lithium-ion (earbuds and charging case)

Battery Life and Charging Up to 5 hours for earbuds (with noise cancellation off)

Additional 16 hours from charging case

15 minute charge = 2 hours playback

Wireless Charging Support Yes

Waterproof Yes – IP54 (earbuds only)

Inputs Earbuds: Bluetooth

Charging case: USB-C and 3.5 mm analogue jack

(wireless audio retransmission via charging case)

Included Accessories 80 cm USB-C to USB-C charging cable

80 cm 3.5 mm jack to USB-C audio cable

Small/medium/large ear tips

Weight Earbuds: 7 grams (each)

Charging case: 47 grams

Surface Materials Metal, plastic

bowerswilkins.com/downloadapp

3.3 Mode Ambient Pass-Through

Simple line drawing of a container with a handle and a green starburst symbol inside (no text or labels)

Schéma 3 :

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

Schéma 4 :

bowerswilkins.com/downloadapp

Diagram of a pair of wireless earbuds with a control switch and indicator lights (no text or symbols)

Schéma 5 :

Jumelage Bluetooth

Line drawing of a wireless earbuds with two speakers and two ports, labeled G and D (no text or symbols on the device itself)

Illustration of a light bulb inside an ear, labeled with number 1 (no text or symbols on the bulb itself)

Diagram of a device with ports and connectors, no text or symbols present

Illustration of a mobile audio player interface with playback controls and track buttons (no text or symbols)

Line drawing of a piston-cylinder device with a probe inserted, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a cylindrical body and a vertical rod (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

DSP haute performance

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, no text or labels present.

Diagram of a container with a central hole and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control panel and indicator light symbol (no text or labels)

Abbildung 5

Bluetooth-Kopplung

Line drawing of a wireless earbuds with two speakers and two charging bays (no text or symbols)

Illustration of a human ear with a light bulb inside, labeled with the number 1 (no text or symbols on the diagram itself)

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Line drawing of a piston and screwdriver with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a medical device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a cylindrical shaft and central knob (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, connected by a line (no text or labels)

Diagram of a container with a central hole and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

7. Bowers & Wilkins Music App

bowerswilkins.com/downloadapp

Diagram of a pair of wireless earbuds with a control panel and indicator lights (no text or symbols)

Diagrama 5

Line drawing of a wireless earbuds with two speakers and two charging bays (no text or symbols)

Illustration of a human ear with a light bulb inside, labeled with the number 1 (no text or symbols on the diagram itself)

Diagrama 6

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Diagrama 7

Streaming multimedia

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a cylindrical top and stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Codecs Bluetooth aptX™ – Adaptive

aptX™ - HD

aptX™ - Classic

AAC

SBC

Perfiles Bluetooth A2DP v1.3.1

AVRCP v1.6.1

HFP v1.7.1

HSP v1.2

BLE GATT (Generic Attribute Profile)

bowerswilkins.com/downloadapp

2.1 Ligar e desligar os auriculares

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

Diagram of a container with a central hole and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Line drawing of a two-well earbuds with a blue indicator light symbol pointing to one (no text or labels)

Diagram of a pair of wireless earbuds with a power cord and indicator light symbol (no text or labels)

7.1 Controlar os auriculares

Line drawing of a wireless earbuds with two lenses and a base unit, labeled E and D (no text or symbols on the device itself)

Illustration of a medical ear with a light bulb and bulbous structure, labeled with the number 1 (no text or symbols on the diagram itself)

Imagem 6

Usar os auriculares

Diagram of a car hood connected to three medical or diagnostic devices via tubing (no text or labels)

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Imagem 7

Line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a laboratory pipette with a cap and stem (no text or symbols)

Simple line drawing of a laboratory pipette with a central button and a pointed tip (no text or symbols)

Codecs Bluetooth aptX™ – Adaptive

aptX™ - HD

aptX™ - Classic

AAC

SBC

Perfis Bluetooth A2DP v1.3.1

AVRCP v1.6.1

HFP v1.7.1

HSP v1.2

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

Simple line drawing of a container with a plug and connector, no text or symbols present

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

7. App Bowers & Wilkins Music

bowerswilkins.com/downloadapp

Line drawing of a wireless earbuds with a blue indicator light symbol pointing to the base (no text or labels)

Diagram of an electronic device with two ports and a control panel, showing signal flow (no text or symbols)

Diagramma 5

Line drawing of a wireless earbuds with two lenses and a base (no text or symbols)

Illustration of a human ear with a light bulb inside, labeled with the number 1 (no text or symbols on the diagram itself)

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a piston and handle (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Design del driver a 2 vie

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a starburst symbol inside, no text or labels present.

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Line drawing of a wireless earbuds with a blue indicator light and label (no text or symbols on the device itself)

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

Diagram 5
Bluetooth-koppeling

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the device itself)

Diagram 6 Oordopjes dragen

Illustration of a human ear with a light bulb and small protrusions, labeled with the number 1 (no text or symbols on the diagram itself)

Diagram of a device with ports and connectors, no text or symbols present

Diagram 7 Media streamen

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Simple line drawing of a device with a probe inserted, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a medical or laboratory device with a central component and a stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

High-performance DSP

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, no text or labels present.

Διάγραμμα 3

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

Διάγραμμα 4

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

Διάγραμμα 5

Σύζευξη Bluetooth

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the device itself)

Illustration of a light bulb inside an ear, labeled with number 1 (no text or symbols on the bulb itself)

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a mobile app interface with playback controls and control buttons (no text or symbols)

Simple line drawing of a device with a handle and arrow pointing to it (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Simple line drawing of a mechanical device with a cylindrical body and a stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Diagram of a pair of wireless earbuds with a control switch and indicator lights (no text or symbols)

Line drawing of a mechanical device with a cylindrical base and an arrow pointing to it (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a cylindrical shaft and internal components (no text or symbols)

Simple line drawing of a laboratory pipette with a stopper and beaker (no text or symbols)

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, no text or labels present.

Obrázek 3

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

Obrázek 4

Indikátor baterie pouzdra a sluchátek

6. Bluetooth konektivita

6.1 Párování

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control switch and indicator lights (no text or symbols)

Obrázek 5

Bluetooth párování

Přepnutim Auto-connect to last device

Line drawing of a wireless earbuds with two speakers and two ports, labeled L and R (no text or symbols on the device itself)

Illustration of a medical ear with a light bulb and bulbous structure, labeled with the number 1 (no text or symbols on the diagram itself)

Obrázek 6

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

Obrázek 7

Streamování médii

Line drawing of a mechanical device with a cylindrical base and a circular top, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a medical device with a cap and stem, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

High-performance DSP

Bluetooth 5.0 s aptX™ technologií

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a starburst symbol inside, no text or labels present.

1. ábra

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

1. ábra

bowerswilkins.com/downloadapp

Diagram of a coffee ear with two cups and a control panel, showing signal output (no text or symbols)

1. ábra

Bluetooth párosítás

Line drawing of a wireless earbuds with two speakers and two ports, labeled L and R (no text or symbols on the device itself)

Illustration of a medical ear with a light bulb and surrounding soft tissue (no text or symbols)

Diagram of a car hood connected to three medical or diagnostic devices via tubing (no text or labels)

Line drawing of a mobile audio player interface with playback controls (no text or symbols)

1. ábra
   Streaming media

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a medical or laboratory device with a central body and a vertical rod (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

bowerswilkins.com/downloadapp

Simple line drawing of a container with a handle and a green starburst symbol inside (no text or labels)

Rysunek 3

Diagram of a container with a central circular component and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

Rysunek 4

bowerswilkins.com/downloadapp

Line drawing of a wireless earbuds with a blue indicator light and label (no text or symbols on the device itself)

Diagram of a pair of wireless earbuds with a control panel and indicator lights (no text or symbols)

Rysunek 5

Parowanie Bluetooth

Line drawing of a wireless earbuds with two speakers and two ports, labeled L and R (no text or symbols on the device itself)

Illustration of a light bulb inside an ear, labeled with number 1 (no text or symbols on the bulb itself)

Diagram of a device with ports and connectors, no text or symbols present

Illustration of a mobile audio player interface with playback controls and track buttons (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a medical device with a cap and stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

Şekil 5

Line drawing of a wireless earbuds with two lenses and a base (no text or symbols)

Illustration of a medical ear with a light bulb and bulbous structure, labeled with the number 1 (no text or symbols on the diagram itself)

Şekil 6

Diagram of a device with ports and connectors, no text or symbols present

Illustration of a smartphone interface with playback controls and a blank media area (no text or symbols)

Şekil 7

Line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a medical device with a cap and stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, no text or labels present.

图3

状态指示灯

充电盒中耳机的状态LED指示灯状态：

灯光操作状态

Diagram of a container with a central circular component and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

图4

表壳和耳塞电池指示灯

6. 蓝牙连接

6.1 配对

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

图5
蓝牙配对

7.1 控制耳塞

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the devices themselves)

Illustration of a medical ear with a light bulb and surrounding soft tissue (no text or symbols)

Diagram of a ear with a microphone and earpiece, showing motion arrows (no text or symbols)

图6

佩戴耳机

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

图7

流媒体

9.1 将另一款 Bowers & Wilkins 耳机与充电盒配对以进行媒体流传输

Line drawing of a device with a plug inserted into a container (no text or symbols)

将耳机盒连接到源设备

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a cylindrical shaft and central component (no text or symbols)

配对后，LED 将呈蓝色常亮

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

按1次按钮开始，按2次停止

图8

bowerswilkins.com/downloadapp

2.1 開啟和關閉耳機

Simple line drawing of a container with a circular inlet and a green starburst symbol inside, no text or labels present.

图3

狀態指示燈亮起

充電盒中耳機的狀態 LED 顯示：

指示燈 運行狀態

Diagram of a container with a central hole and a connector, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

图4

充電盒和耳機電池指示器

6. 藍牙連接

6.1 配對

bowerswilkins.com/downloadapp

Line drawing of a wireless earbuds with a control switch and indicator lights (no text or symbols)

图5

蓝牙配對

7.1 控制您的耳機

Illustration of a medical ear with a light bulb and surrounding soft tissue (no text or symbols)

Illustration of a human ear with a microphone and earpiece, showing motion arrows (no text or symbols)

图6

佩戴耳機

图7

串流媒體

Line drawing of a mechanical device with a lever and base, no text or symbols present

將充電盒連接到音源設備。

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

按住按钮3秒鐘，直到LED閃爍藍色。

Line drawing of a mechanical device with a central knob and stem (no text or symbols)

配對後，LED 將呈藍色常亮。

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

按 1 次按鈕開始，按 2 次停止。

图8

bowerswilkins.com/downloadapp

Simple line drawing of a container with a circular inlet and a green starburst symbol inside (no text or labels)

图3
ステータスインジケーター

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

图5

Bluetoothペアリング

7.1 イヤフォンの操作

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the device itself)

Illustration of a human ear with a light bulb inside, labeled with the number 1 (no text or symbols on the diagram itself)

图6
イヤフォンの装着

Diagram of a device with ports and connectors, no text or symbols present

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

图7
メディアのストリーミング

Simple line drawing of a device with a probe inserted, no text or symbols present

ケースをソースデバイスに接続する

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

Line drawing of a mechanical device with a central knob and a stem (no text or symbols)

Simple line drawing of a medical or laboratory device with a central button and stem (no text or symbols)

無線周波数帯域 Tx mode: 2402 MHz to 2480 MHz, ISM Band

Rx mode: 2402 MHz to 2480 MHz, ISM Band

無線出力 10.0 dBm未満

bowerswilkins.com/downloadapp

2.1 이어버드 켜고 끄기

Simple line drawing of a container with a circular inlet and a starburst symbol inside, no text or labels present.

그림 3
상태 표시등 점등

Simple line drawing of a container with a central hole and a connector, no text or symbols present.

Simple line drawing of a rectangular container with a circular opening and a green horizontal line inside (no text or symbols)

bowerswilkins.com/downloadapp

Diagram of a wireless earbuds with a control panel and indicator lights (no text or symbols)

그림 5
Bluetooth 페어링

7.1 이어버드 제어

Line drawing of a pair of wireless earbuds with labeled ports L and R (no text or symbols on the devices themselves)

그림 6
이어버드 착용

Illustration of a medical ear with a light bulb and bulbous structure, labeled with the number 1 (no text or symbols on the diagram itself)

Diagram of a car hood connected to three medical or diagnostic devices via tubing (no text or labels)

Line drawing of a smartphone interface with playback controls and a blank media area (no text or symbols)

그림 7
미디어 스트리밍

Bluetooth 코덱 aptX™ - Adaptive

aptX™ - HD

aptX™ - Classic

AAC

SBC
