| Brand | Schabus |
| Model | GXC3pro |
| Product type | Carbon monoxide (CO) detector |
| Power supply | 230 V AC, 50-60 Hz |
| Power consumption | Approx. 2 VA |
| Switching capacity | 1150 W / 5 A |
| Protection type | IP20 |
| Alarm sound level | 85 dB at 1 m |
| Operating humidity | 5 to 90 % RH (non-condensing) |
| Operating temperature | -10 °C to +50 °C |
| Service life | Approx. 5 years |
| Cable length | 2.5 m |
| Cable diameter | 3.5 mm |
| Dimensions (main unit) | 121 x 57 x 38 mm |
| Dimensions (external sensor) | 88 x 58 x 38 mm |
| Gas detected | Carbon monoxide (CO) |
| Alarm thresholds | 30 ppm (no alarm), 30-50 ppm (2h), 50-100 ppm (1h), 100-300 ppm (10 min), >300 ppm (<3 min) |
| Installation | About 30 cm below the ceiling, near the combustion source |
| Test | TEST button on the sensor (tests LEDs, siren, and shutdown) |
| Maintenance | Clean with a dry cloth, without solvents |
| Standard | EN 50291 |
| Warranty | Legal warranty against material defects and quality defects |
| Article number | 300229 |
Frequently Asked Questions - GXC3pro Schabus
User questions about GXC3pro Schabus
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Detector in PDF format for free! Find your manual GXC3pro - Schabus and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GXC3pro by Schabus.
USER MANUAL GXC3pro Schabus
Operating instructions
GAS ALARM GX-C3pro - Item no. 300229
Carbon monoxide (CO) - in compliance with EN 50291
DELIVERY SCOPE
▶ 1 warning device: GAS ALARM GX-C3pro
▶ 1 operating instructions
▶ Mounting materials (screw, wall plug)
SAFETY INSTRUCTIONS
General
• Before you start mounting the device please read the operating instructions carefully.
• The installation shall be performed by qualified personnel.
- Packaging material is not a children's toy. Keep it away from children!
- Do not open the device. It does not contain parts you have to maintain.
Ambient conditions
The standards used to assess the product specify limit values for use in the living area, business area and in small enterprises; the product has been intended for use in the following operating environments:
- Residential buildings/living areas such as houses, flats, rooms, etc. selling areas such as shops, wholesale markets, etc.
- Premises of small enterprises such as workshops, service centers, etc.
- All areas of application characterize themselves by a connection to the public low voltage mains.
APPROPRIATE USE
The GAS ALARM GX-C3pro with external sensor is a gas warning device for carbon monoxide and can already deliver a warning at a gas concentration that lies well below life-threatening values. This monitoring system is, therefore, in line with its purpose, set to a very high sensitivity (see table TECHNICAL DATA). The alarm is signalled acoustically/optically and the connected gas appliance is turned off at the same time. The unit is suitable for normal household use and may not be used in areas at risk of explosion.
Another use of the device as described above is not authorized.
TECHNICAL SPECIFICATIONS
Operating voltage: 230 (+/-10%) V AC / 50-60 Hz
Power consumption: approx. 2 VA
Switching capacity: 1150 W / 5 A
Protection type: IP 20
Acoustic pressure sounder: 85 dB @ 1 m
Type sensor: electrochemically
Operating temperature: -10 °C / +50 °C
Storage temperaturer: -20^ / +70^
Humidity (ambient): 5–90 % RH (non-condensing)
Service life: approx. 5 years
Cable length: 2.5 m
Cable ∅: 3.5 mm
Dimensions (HxWxD): 121x57x38 mm
Dimensions sensor (HxWxD): 88x58x38 mm
| data diagramm Sensor | as described in DIN EN 50291 | |
| gas type | minimum concentration | Alarm delay time |
| CO | < 30 ppm | no Alarm |
| 30 - 50 ppm | 2 hours | |
| 50 - 100 ppm | 1 hour | |
| 100 - 300 ppm | 10 minutes | |
| >300 ppm | < 3 minutes | |
INSTALLATION INSTRUCTIONS
The GAS ALARM GX-C3pro and the sensor may be installed only in dry, interior rooms and must be correctly placed according to the type of gas to ensure faultless operation of the alarm system.
It is essential to observe the prescribed sensor mounting height!

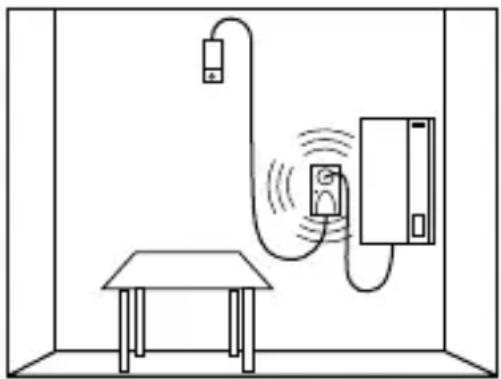

Placing of the sensor for carbon monoxide (CO):
Mount the external sensor as close as possible to the point of combustion or flue/chimney to be monitored but some 30 cm below the ceiling as the escaping gas will be heated and will initially rise.
- places where the sensor is shielded from escaping gas (e.g. behind curtains or in cupboards)
• directly above hearths or points of combustion or over a wash basin or sink - next to a door, windows, ventilator, fan, air conditioning unit etc.
- in areas where dust or dirt can prevent the sensor from working
• in areas at risk of explosion
START-UP
The GAS ALARM GX-C3pro is simply plugged into a socket 230V / 50-60Hz. The LED on the power socket lights up red for a moment, then the green LED on both devices. The gas alarm system is ready for immediate use.
NOTE: various transport conditions (lengthy storage / humidity) can lead to an alarm state being triggered immediately after the warm-up time (LED flashes red). Disconnect the unit briefly from the supply and start the warm-up process again. You may need to repeat this procedure up to three times.
TEST
The GAS ALARM GX-C3pro responds only to CO, so you can not test the unit with CO gas. Intelligent software performs regular self-tests on the sensor. If a fault occurs, the yellow LED on the sensor lights up and a connected device is switched off. To test the LEDs, the sounder and the shutdown function, press the TEST button on the sensor.
DISORDER
If the sensor cable is not connected or not correctly connected, this is also a fault and a gas boiler connected to the power supply unit will be switched off in any case.
ALARM
Only when an increased gas concentration is detected by the sensor for more than 30 seconds will the alarm delay times be activated as indicated in the table.
After these times have elapsed, the device will sound an alarm, the red LED will flash, the sounder will give a loud acoustic signal and a connected device will be switched off.
By pressing the TEST key, only the audible warning can be silenced.
Only when the measured gas concentration falls below 40 ppm CO, the voltage at the device socket is released again.
WHAT TO DO IN CASE OF ALARM
- Do not unplug the alarm unit
- Do not switch on any other electrical devices or appliances
- Do not ignite any open flame, turn off any open flame already lit
- Immediately open windows and doors and thoroughly ventilate the area or house. Inform any other people in the house. Everyone must leave the house!
- Search the area or house for any points of combustion/fire. Carbon monoxide is developed by incomplete (smoky) combustion. Important: everyone must leave the house!
- Eliminate the cause of the escape of gas. In the event of uncertainty, contact your energy supply expert/adviser
- In the event of persistent/repeated alarm, contact your energy supply expert/adviser or the fire service
The date (month/year) is at the sensor for the next sensor examination. Please send the sensor to Elektrotechnik Schabus for the work examination.
GENERAL
Elektrotechnik Schabus GmbH & Co. KG is not liable for damages and/or losses of any kind such as individual damages or consequential damages brought about by the gas detector not issuing an alarm despite the presence of an elevated gas concentration.
CLEANING AND CARE
Avoid the effects of moisture (spray or rain water), dust as well as direct insolation on the device. Clean the device exclusively with a dry linen cloth; in case of heavy dirt accumulation, it may be slightly moistened. Do not use any detergents containing solvents.
DECLARATION OF CONFORMITY
The declaration of conformity can be obtained from our website:
www.shop.elektrotechnik-schabus.de
WARRANTY
We grant an implied warranty on material and quality defects of your electronic product by Elektrotechnik Schabus from the date of purchase. Elektrotechnik Schabus will repair or replace your device free of charge on the following conditions:
- In case of implied warranty, the device has to be returned with the following documents: error description, proof of purchase as well as your address and delivery address (name, phone number, street, house number, postcode, city, country).
- Devices returned to Elektrotechnik Schabus shall be sufficiently packaged. Elektrotechnik Schabus will not take liability for any damage or loss during shipment.
- The device has to have been used in accordance with the operating instructions. Elektrotechnik Schabus will not take liability for any damage resulting from accident, abuse, modifications or carelessness.
- Elektrotechnik Schabus will not take liability for any loss, damage or costs resulting from the use of the devices or the accessory equipment.
- The warranty does not affect your statutory rights as consumer.
RETURN SHIPMENT
Should your device be defective, we offer you the following option:
Contact Elektrotechnik Schabus by
Phone +49 (0) 80 36 / 67 49 79 - 0
Fax +49 (0) 80 36 / 67 49 79 - 79
Email info@elektrotechnik-schabus.de
ENVIRONMENTAL INFORMATION
For the production of the purchased product, natural raw materials had to be obtained and used. It may contain substances hazardous to health and the environment.
In order to avoid the distribution of these substances in your environment and save natural resources, we ask you to use the appropriate take-back systems. Thanks to these systems, the materials of your product can be recycled in an environmentally friendly way, after its
service life has expired. (WEEE-NO: 91394868)
The strike-through wastepaper basket symbol reminds you of the use of these systems.
Should you wish to obtain more information on collection, reuse and recycling systems, please refer to the waste advisory service in your city. You may also refer to us to obtain more information on the environmental compatibility of our products.
