Product type	Gas detector with alarm
Brand	Schabus
Model	GXHS
Dimensions (H x L x P)	57 x 72 x 90 mm
Power supply	230 V AC (+/-10%) / 50-60 Hz
Power consumption (standby)	Approx. 2 W
Protection type	IP 20
Temperature range	-15°C to +40°C
Relay contact	2 potential-free changeovers, 5 A / 230 V max
Sensor socket	1 (5 V)
Optional vibrator socket	9 - 12 V / 50 mA
Main functions	Gas detection (town gas, natural gas, carbon monoxide, etc.), optical alarm (red LED), relay outputs for shut-off valve, memory function
Installation	On 35 mm DIN rail, by qualified technician
Sensor mounting height	Variable depending on the gas (see sensor manual)
Cleaning and maintenance	Dry cloth, avoid solvents and moisture
Sensor replacement	Every 5 years to ensure functionality
Safety instructions	Do not open the device, installation by professional, observe mounting heights
Warranty	Statutory warranty against material defects and quality defects
After-sales service	Contact Elektrotechnik Schabus GmbH: +49 (0) 80 36 / 67 49 79 - 0, [e-mail]

Frequently Asked Questions - GXHS Schabus

How to install the GXHS gas detector?

Installation must be carried out by a qualified technician. The detector is mounted on a standard 35 mm DIN rail in an electrical cabinet. The sensor must be installed at the prescribed height depending on the type of gas (see sensor manual). Strictly observe the safety instructions.

Which gases can the GXHS detector detect?

Depending on the connected sensor, it can detect town gas, natural gas (methane/butane), carbon monoxide, smoke or carbon dioxide. Each type of gas requires a specific sensor and a defined mounting height.

How to test the device's operation?

Press the test button on the device. The alarm should sound and the LED flash red while the button is held. Perform this test once a month. Note: this test does not replace the sensor test itself.

What to do in case of alarm?

In case of alarm, immediately ventilate the area and do not operate any electrical switch. The alarm triggers after 20 seconds of detection of high gas concentration. Once the gas has dissipated, the device returns to monitoring mode. If the memory function is activated, press the button to reset.

Why does my detector trigger a false alarm?

Aerosols (hairspray, disinfectant), heavy cigarette smoke or cooking vapors can trigger a false alarm. The sensor is very sensitive. Avoid these sources near the device.

How to clean the GXHS detector?

Clean the device with a dry cloth. If dirty, you can slightly dampen the cloth. Never use products containing solvents. Avoid moisture and dust.

When should the gas sensor be replaced?

To guarantee perfect operation, replace the sensor every 5 years. This precaution is essential for your safety.

What to do if the device does not turn on?

Check that the 230 V power supply is properly connected and that the circuit breaker has not tripped. If the Power and Sensor LEDs do not light up, wait up to 5 minutes for warm-up time. If the problem persists, contact after-sales service.

Is the detector suitable for explosive areas?

No, the device is not approved for use in explosive areas. It is designed for residential, commercial and small business premises.

What is the product warranty?

The product benefits from the statutory warranty against material defects and quality defects from the date of purchase. For any claim, contact Elektrotechnik Schabus GmbH with proof of purchase and a description of the defect.

USER MANUAL GXHS Schabus

Operating instructions

Exterior view of a G-X-160 industrial control unit with ports and connectors (no readable text or symbols beyond branding)

HERZLICHEN DANK FÜR IHR VERTRAUEN!

In order to be able to constantly guarantee the product's optimum functionality and readiness for operation as well as your safety, we have a request: Please thoroughly read this operating instruction prior to the first use and observe all safety instructions! The operating instruction is a component of this product. Keep this, so you can always refer to it.

DELIVERY SCOPE

1 control device ▶

1 operating manual ▶

SAFETY INSTRUCTIONS

General

Before you start mounting the device please read the operating instructions carefully.

The installation shall be performed by qualified personnel.

Packaging material is not a children's toy. Keep it away from children!

Do not open the device. It does not contain parts you have to maintain.

Ambient conditions

The standards used to assess the product specify limit values for use in the living area, business area and in small enterprises; the product has been intended for use in the following operating environments:

Residential buildings/living areas such as houses, flats, rooms, etc. selling areas such as • shops, wholesale markets, etc.

Premises of small enterprises such as workshops, service centers, etc.

All areas of application characterize themselves by a connection to the public low voltage • mains.

TECHNICAL SPECIFICATIONS

Operating voltage: 230 V AC (+/-10%) / 50-60 Hz

Power consumption: approx. 2 W (stand-by)

Relay contact: 2 potential-free two-way contacts

Switching capacity relay: max. 5 A / 230 V

Sensor connection: 1 (5 V)

Buzzer connection: 9 – 15 V / 50 mA

Operating temperature: -15°C / +40°C

Protection type: IP 20

Dimensions (HxWxD): 57x72x90 mm

APPROPRIATE USE

The GAS ALARM GX-HS is a gas warning device for various gases and can already deliver a warning at a gas concentration that lies below life-threatening values. This monitoring system is, therefore, in line with its purpose, set to a very high sensitivity. For each type of gas, a suitable sensor must be used (for information on trigger levels and minimum concentration, see the instructions for the sensor). The alarm signal on the device is optical (a buzzer can be optionally connected to the device).

At the same time, two potential-free relays are connected in order to e.g. cut the gas supply line with a magnetic cut-off valve to prevent any more gas from leaking in the event of a leak in the gas line or gas furnace. The device may not be used in areas with a risk of explosion. Another use of the device as described above is not authorized.

INSTALLATION INSTRUCTIONS

The GAS ALARM GX-HS and the sensor may be installed only in dry, interior rooms and must be correctly placed according to the type of gas to ensure faultless operation of the alarm system.

The installation shall be performed by qualified personnel. Please note the five safety rules!

Snap-on fitting on mounting rails

The GAS ALARM GX-HS is installed into equipment racks and conduit boxes (mounting rail 35 mm standard)

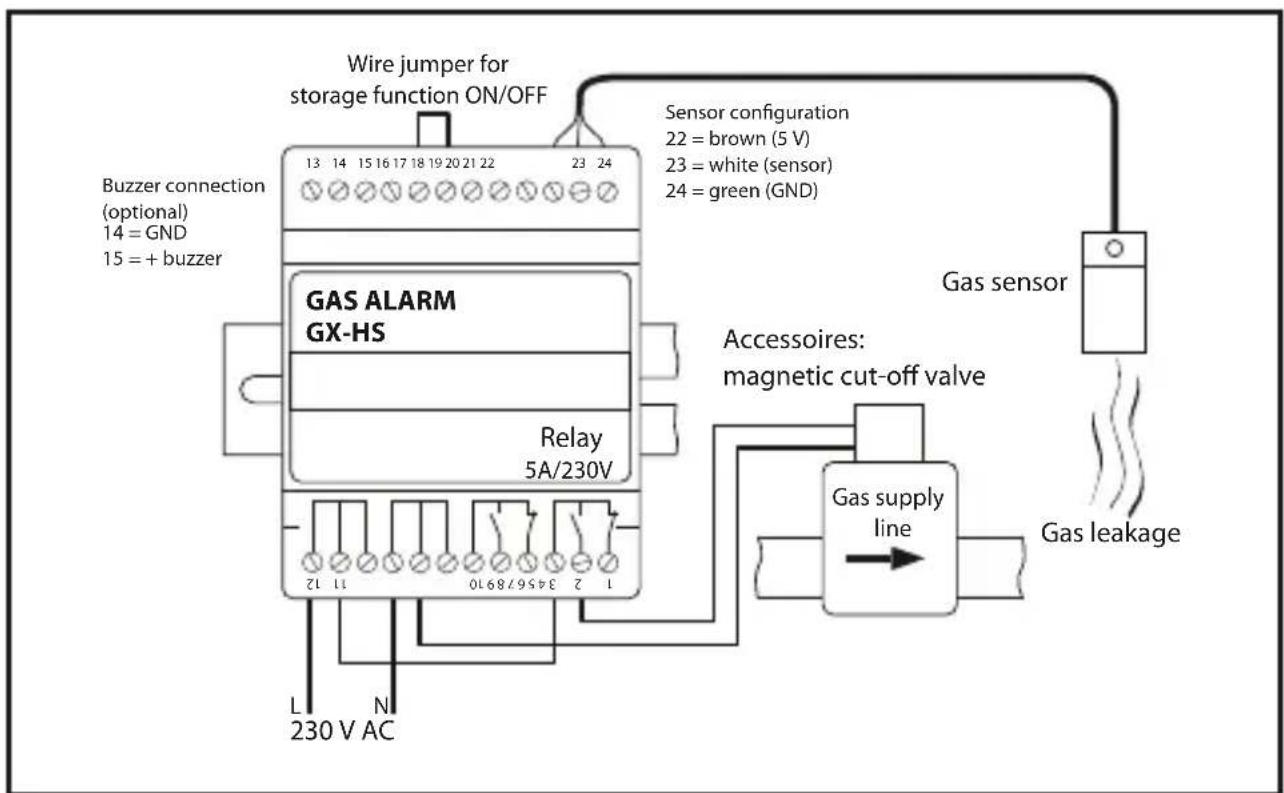

Sensor installation

Depending on the type of sensor connected, the device detects different gases, e.g. city gas and natural gas (methane/butane), carbon monoxide and smoke or inert gases. For each type of sensor, there is a prescribed mounting height to take account of the differing properties of the gases.

It is essential to observe the prescribed mounting height! Please note the operating instructions of the sensor you wish to use and you will see the specified mounting height!

Sensor connection configuration

Observe the colour coding of the sensor cable (see connection diagram below).

Relay connection configuration

When connecting additional devices to the potential-free relay, please note that the switching capacity may not be exceeded.

Relay status in monitoring mode: ▶ The relay is „energized“ (make contact closed/break contact open)

Relay status in alarm mode: ▶ The relay „decreases“ (make contact open/ break contact closed)

Storage function adjustments

Two differing output messages can be defined for the sensor input:

▶ Alarm message with storage function (wire jumper at terminals 17-18): The alarm stays on and the relay is switched on, until the message is turned off again by pushing a button.

▶ Alarm message without storage function (no wire jumper): The alarm continues and/or the relays are connected until the detected gas has volatilised.

Buzzer connection (optional)

A buzzer can optionally be connected to the terminals 14 and 15. Connection value: 9–15 V/max. 50 mA

START-UP

When connecting grid voltage to the device, both LEDs (Sensor and Power) light up. The sensor of the monitoring system requires a warm-up time of max. five minutes until it is functional. Then only the Power light is illuminated in green and the GAS ALARM GX-HS is operational. Please note: The warm-up time will be restarted even in the event of a power failure.

ATTENTION: Due to different transport conditions (long storage/moisture), an alarm may be triggered directly after warm-up time (Sensor LED blinks red). Disconnect the device from the grid for a short time and restart the warm-up time. This process may have to be repeated up to three times.

FUNCTIONAL TEST

After the GX-HS and the sensors have been set up, a functional test must be carried out. For the functional test of the sensor, please note the operating instructions of the sensor you are using!

ATTENTION: The device only triggers an alarm and the LED Sensor flashes red if the sensor has detected an elevated gas concentration for longer than 20 seconds. The Power LED is no longer green. Once the gas has volatised, the device switches to monitoring mode. For the save function, press the button, thereby clearing the alarm. The device switches back to the monitoring mode.

For your own safety and reassurance, we recommend that you carry out this test every month!

Using the button on the control unit, you can check the function of the device and issue an alarm in the process. The alarm continues as long as you hold down the button. For the save function, press the button, thereby clearing the alarm.

Attention: This test only checks the function of the warning device and is not a substitute for the sensor test. To ensure that the sensor is always in a proper functioning state, you should replace it after 5 years for safety's sake.

ALARM

The device only triggers an alarm and the LED Sensor flashes red if the sensor has detected an elevated gas concentration for longer than 20 seconds.

Alarm message with storage function: The alarm stays on and the relay is switched ▶ on, until the message is turned off again by pushing button .

Alarm message without storage function: The alarm continues and/or the relays are connected until the detected gas has volatilised.

WHAT TO DO IN CASE OF ALARM (or if you smell gas)

Please note the operating instructions of the sensor you are using!

FALSE ALARM

The monitoring system is, in line with its purpose, set to a very high sensitivity. The sensitive system sensor also responds to other gaseous media. The use of aerosols (gas propellant in hair, disinfectant, alcohol etc. sprays), as well as strong tobacco fumes (smoking card party) can lead to a false alarm.

Cable damage or a defect sensor can also trigger a false alarm.

Since we do not have the required test gases available, we give you the concentrations for the gas sensors as calculated from the data sheet diagrams (see operating instructions of the sensor). The minimum concentrations take account of component tolerances and the influence of temperature.

GENERAL

Elektrotechnik Schabus GmbH & Co. KG is not liable for damages and/or losses of any kind such as individual damages or consequential damages brought about by the gas detector not issuing an alarm despite the presence of an elevated gas concentration.

To ensure that the sensor is always in a proper functioning state, you should replace it after 5 years for safety's sake.

CLEANING AND CARE

Avoid the effects of moisture (spray or rain water), dust as well as direct insolation on the device. Clean the device exclusively with a dry linen cloth; in case of heavy dirt accumulation, it may be slightly moistened. Do not use any detergents containing solvents.

DECLARATION OF CONFORMITY

The declaration of conformity can be obtained from our website: www.shop.elektrotechnik-schabus.de

WARRANTY

We grant an implied warranty on material and quality defects of your electronic product by Elektrotechnik Schabus from the date of purchase. Elektrotechnik Schabus will repair or replace your device free of charge on the following conditions:

In case of implied warranty, the device has to be returned with the following documents: error description, proof of purchase as well as your address and delivery address (name, phone number, street, house number, postcode, city, country).

Devices returned to Elektrotechnik Schabus shall be sufficiently packaged. Elektrotechnik • Schabus will not take liability for any damage or loss during shipment.

- The device has to have been used in accordance with the operating instructions. Elektrotechnik Schabus will not take liability for any damage resulting from accident, abuse, modifications or carelessness.

Elektrotechnik Schabus will not take liability for any loss, damage or costs resulting from the use of the devices or the accessory equipment.

The warranty does not affect your statutory rights as consumer.

RETURN SHIPMENT

Should your device be defective, we offer you the following option:

Contact Elektrotechnik Schabus by

Phone [phone] / 67 49 79 - 0

Fax [phone] / 67 49 79 - 79

Email [e-mail]

ENVIRONMENTAL INFORMATION

For the production of the purchased product, natural raw materials had to be obtained and used. It may contain substances hazardous to health and the environment.

In order to avoid the distribution of these substances in your environment and save natural resources, we ask you to use the appropriate take-back systems. Thanks to these systems, the materials of your product can be recycled in an environmentally friendly way, after its

service life has expired. (WEEE-NO: 91394868)

The strike-through wastepaper basket symbol reminds you of the use of these systems.

Should you wish to obtain more information on collection, reuse and recycling systems, please refer to the waste advisory service in your city. You may also refer to us to obtain more information on the environmental compatibility of our products.
