Installation

Bluetooth logo/brand is a trademark or registered trademark of Bluetooth Sig Inc. All items contained herein are imported by GMS and are not manufactured, sponsored, endorsed or distributed by Bluetooth Sig Inc.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

IMPORTANT

Please read the safety instructions carefully and save them for future reference.

To prevent the risk of fire or electric shock, keep this sound bar away from water, rain and moisture.

To prevent any risk of electric shock, never remove the cover or the rear panel of the device.

If the appliance breaks down, have it repaired by a professional.

No part of this device can be repaired by the user.

WARNING!

Danger! Device powered on. Do not open. Risk of electric shock! No part of this device can be repaired by the user. Maintenance and repair of this device should be entrusted to a professional.

As a safety measure, ask the manufacturer or the after-sales service to replace the appliance's electric cable if it is damaged.

The device must be installed in accordance with current regulations.

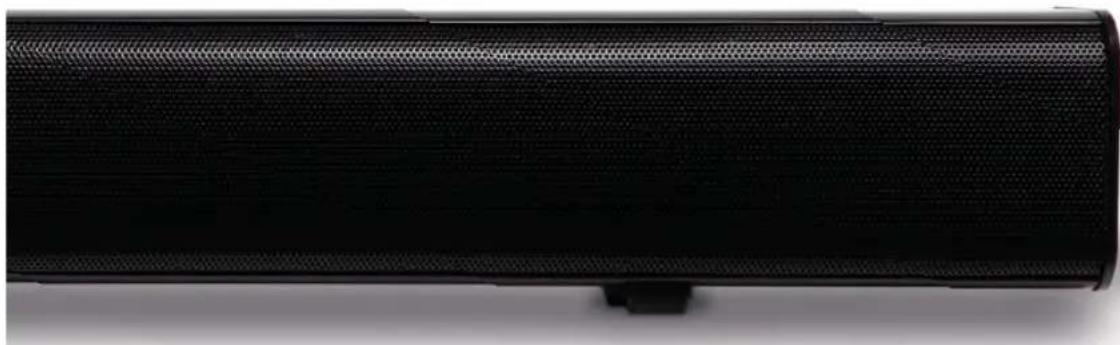

This sound bar has been specially developed for LED / LCD / Plasma TVs. It should not be installed on CRT (Cathode Ray Tube) televisions to avoid picture interference.

Close-up of a black cylindrical electronic device with mesh grille and a small protrusion at the bottom (no visible text or symbols)

EN

Installation

• Install the device on a flat, rigid and stable surface. The speaker may fall and cause serious injury to a child or adult. A fall can seriously damage the device.
• The sound bar should be kept away from heat sources such as radiators, stoves or other devices that produce heat.
• To prevent the risk of overheating, do not install the sound bar on another device.
• Do not place any object under the device (eg CDs or magazines).

Ventilation instructions

• To prevent any risk of overheating, install the appliance in a sufficiently ventilated space.
• Make sure that the ventilation grids are not blocked.
• Do not expose the soundbar to high temperatures, and protect it from water, humidity and dust.
• Protect the device from leaks or splashes. Do not place objects containing liquids (eg vase) on top of the device.
• Do not place objects liable to damage it (eg objects containing liquids or lighted candles) near the device.
• Do not place open flames (eg lighted candles) on top of the appliance.

Power supply

• Unplug the sound bar when you are not using it for long periods of time.
• For safety reasons, ask the manufacturer or the after-sales service to replace the appliance's electric cable if it is damaged.
• This appliance must be connected to an electrical network of 230 V \~ 50 Hz.
• The electric cable must remain accessible because you will need to unplug it to switch off the appliance.
• To connect the device to the mains, use only the supplied electric cable.
• Do not operate the device with a battery other than the one already installed. This sound bar must be connected to a power outlet of the same voltage as that specified on the device.

- CAUTION: There is a risk of explosion if the battery is incorrectly installed. Do not attempt to replace the battery with another model.

• The batteries (whether the supplied batteries or the battery already installed) should not be exposed to excessive heat (eg sunlight, flames or other heat source).
• If you notice that after fully recharging the battery, its life is reduced by half, carry out the next recharge under supervision. Warning: a damaged battery presents a danger of overheating.

When performing any maintenance or repair, ask the service center / workshop to use the factory authorized spare parts. Replacement with unauthorized parts may result in fire, shock, or other hazards.

Out of respect for the environment, comply with local regulations on battery collection (check with the store where you purchased the device).

Clean only with a soft, damp cloth. Unplug this product from the wall outlet before cleaning.

1. CONTENT

Sound bar

Remote control

3.5 mm jack cable

User manual

AC adapter cable

2. DESCRIPTION OF THE APPLIANCE

MODE MUTE VOL+▶▶ VOL-▶▶ 11 12 13 14

(side view of the sound bar)

1. ON / OFF + MODE button (keep pressed to change mode: AUX / BT / Radio / USB / Optical)
2. PLAY / PAUSE + MUTE button (keep pressed to activate or mute the sound)
3. NEXT / VOLUME PLUS (keep pressed to increase volume)
4. PREVIOUS / LESS VOLUME (keep pressed to decrease volume)

(back view of the sound bar)

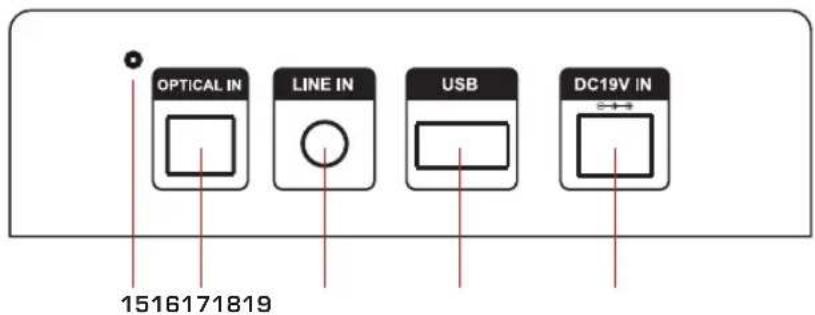

OPTICAL IN LINE IN USB DC19V IN 1516171819

1. FM
2. OPTICS (TOSLINK)
3. AUX
4. USB
5. AC POWER SUPPLY

3. REMOTE CONTROL

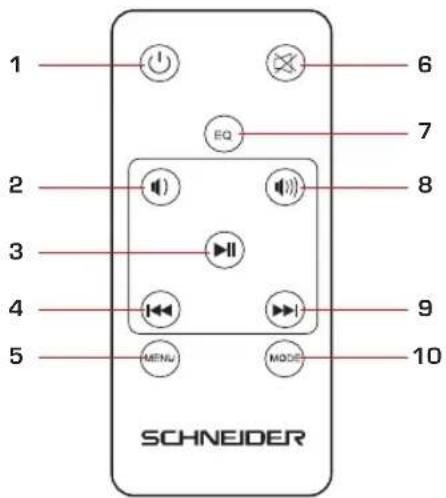

1 2 3 4 5 SCHNEIDER EQ MENU MODE 6 7 8 9 10

1. MARCHE / ARRET
2. VOLUME -
3. LECTURE/PAUSE
4. PRÉCEDENT
5. MENU
6. MUET
7. SELECTION EQ
8. VOLUME+
9. SUIVANT
10. MODE

4. CONNECTION TO THE TV

Optical source (TOSLINK)

Make sure the sound bar (16) is connected to the TV or other device via a Toslink optical cable.

Press the «Power / Standby» button (11) on the side of the soundbar to switch to optical mode or via the remote control (1).

AUX source

Make sure the soundbar is connected to the TV or other device via a 3.5mm Jack / RCA cable (17).

Press the «On / Standby + MODE» button [11] on the side of the sound bar to switch to AUX mode or via the remote control [10].

5. BLUETOOTH CONNECTION

1. Turn on the sound bar by connecting it to a power source.
2. Press the «On / Standby + MODE» button (11) on the side of the soundbar or via the remote control (10).
3. Keep pressing button (11) to change mode (AUX, Bluetooth, radio, USB, Optical)
4. Switch to BT Bluetooth mode. The soundbar's LCD screen will display «bt» (Bluetooth) and the letters will flash regularly. This means that the sound bar is on standby to connect to a Bluetooth device (ex: Smartphone, Tablet, etc.)
5. Activate the Bluetooth function on your device (Smartphone, Tablet etc.) and make sure that the Bluetooth mode is activated. Find in the list of Bluetooth devices: GMSCSB30W.
6. Once paired, the letters «bt» on the LCD screen will stop flashing and stay on.

Note: it is possible to change the mode directly from the remote control.

6. USB CONNECTION

1. Turn on the soundbar by connecting it to a power source
2. press the «On / Standby + MODE» button (11) on the sound bar or on the remote control (10).
3. Keep pressing button [11] to change mode (AUX, Bluetooth, radio, USB, Optical)
4. Switch to USB mode. The soundbar's LCD screen will display the word «USB»
5. Plug in your USB stick. The unit will automatically play files and start playing music on the sound bar.
6. You can control playback from sound bar and remote control (volume, tracks, play / pause, stop).

Please Note: Support USB driver up to 32GB and Mp3 file format. The USB port does not support charging.

7. AUX CONNECTION (3.5 mm JACK)

Use the 3.5mm AUX socket to connect a computer, smartphone, tablet, or any other external sound source with a 3.5mm jack output.

1. Turn on the sound bar by connecting it to a power source.
2. Press the «On / Standby + MODE» button (11) on the side or of the remote control (10).
3. Keep pressing button (11) to change mode (AUX, Bluetooth, radio, USB, Optical)
4. Switch to AUX mode. The soundbar's LCD screen will display «LINE»
5. Use a 3.5mm jack cable to connect the soundbar to an audio source.

Note: You will need to adjust the device volume and volume independently.

8. OPTICAL CONNECTION (TOSLINK)

1. Turn on the sound bar by connecting it to a power source.
2. Press the «On / Standby + MODE» button (11) on the side of the soundbar or on the remote control (10).
3. Keep pressing button 11 until the LCD screen displays the letters «OPT» for OPTICAL.
4. Connect a male / male Toslink Optical cord to connect the soundbar to an audio source or TV.

9. FM RADIO

1. Turn on the sound bar by connecting it to a power source.
2. Press the Power / Standby button on the side or on the remote control (10).
3. Keep pressing button (11) to change mode (AUX, Bluetooth, radio, USB, Optical)
4. Switch to RADIO mode. The soundbar's LCD screen will display «Lod»
5. Use the next and previous remote control buttons to navigate through the radio stations.

10. EQ MODES (Remote control: 3/7)

EQ 0 = normal

EQ 1 = Rock

EQ 2 = POP

EQ 3 = Classic

EQ 4 = Jazz

EQ 5 = Country

11. TECHNICAL CHARACTERISTICS

Number of channels: 2.0

Total maximum power: 45W PMPO

Bar transducer size: 2 inches

Frequency response: 35-20Khz

Bluetooth version: 5.0

Display screen: LED

Colors: black

Grid: metallic

Dimensions of the sound bar: 800 x 60 x 60mm

Soundbar weight: 1.28kg

Connectivity and inputs:

Bluetooth

AUX

Optical

Usb

Accessories:

Remote control

3.5mm jack cable

User manual

AC power cord

10. GARANTEE

All Schneider products benefit from after-sales service under the legal guarantee offered to the consumer. A defective product can be exchanged or refunded through a local distributor for 2 years after purchase, by presenting proof of purchase (dated invoice) and the original packaging of the product.

The warranty is excluded in the following situations:

1. Malfunction, defect or damage other than defect or lack of conformity.
2. The product (s) is / are damaged as a result of improper use (shock, fall, misuse, handling error, etc....).
3. The product (s) is / are disassembled, rebuilt (s) and / or modified under unauthorized conditions.
4. Parts which deteriorate as a result of normal wear and tear and which by their nature require frequent replacement.

11. LEGAL NOTICE

SCHNEIDER is a trademark of Schneider Consumer Group or its affiliates used under license by GMS GROUP. This product has been manufactured by and is sold under the responsibility of GMS GROUP. The brands cited are trademarks registered by their respective owners. Guarantee: 2 years. This warranty does not cover damage resulting from improper use or installation of the product.

Bluetooth logo/brand is a trademark or registered trademark of Bluetooth Sig Inc. All items contained herein are imported by GMS and are not manufactured, sponsored, endorsed or distributed by Bluetooth Sig Inc.

Destruction of electrical and electronic devices

The symbol on the product or on its packaging indicates that this product must not be treated as household waste. On the contrary, it must be dropped off at a collection point for recycling electrical and electronic equipment. By ensuring that this equipment is handled properly you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by improper handling of this product. Recycling materials will help preserve natural resources. For more information, please contact your town hall or your waste sorting center.
