USER MANUAL SC500SND SCHNEIDER

Black rectangular electronic device with a silver tab and a small remote control (no visible text or symbols)

BARRE DE SON 2.0 MODULABLE 2EN1 BLUETOOTH

1. Getting started....18
2. Overview of control....18
3. Remote control....19
4. The placement and mounting of the sound bar....20
5. Power connection....22
6. TV Connections....22
7. General operation....24
8. Bluetooth operation....25
9. Specification....26
10. Troubleshooting....26

Españ ol

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Fournis?

Appareil Principal

Supports

Télécommande

Mode d'emploi

Simple line drawing of a rectangular prism with a labeled point (1) on the side, no text or symbols present.

Diagram of a cylindrical object with labeled parts 1 and 2, showing cross-sectional view.

Simple line drawing of a symmetrical structure with a numbered point (3) at the top, no text or symbols present.

1. Prise USB

Diagram showing a hand holding a smartphone with labeled parts A, B, and C, likely illustrating a touch or contact mechanism.

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force

Simple line drawing of a monitor setup inside a circle, labeled 'A' below (no text or symbols on the diagram itself)

Simple line drawing of a monitor above a table with a circular border and the letter B below (no text or symbols on the diagram itself)

Simple line drawing of a laptop inside a circle with letter C below (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Montage mural (option C)

Technical diagram showing two-step assembly steps of a mechanical component with tool and mounting bracket details

Diagram showing a hand using a hammer to measure a surface with an arrow indicating direction and a magnified view of the object.

⑤ 5mm >25mm 3-3.5 mm

AVERTISSEMENT :

Diagram showing cable connection between a wall socket and an AC device, with labeled components and directional arrows.

TV AUDIO OUT

TV ALABY OUT d b ↑

TV OPTICAL

Pure technical line drawing of a cylindrical mechanical part with no text or symbols

Important safety instructions – please read carefully and keep for future reference

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION!

Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Remote control battery (included) shall not be exposed to excessive heat (e.g. from sun or fire).

Note: Device operates in frequency range 2454-2483.5MHz is restricted to indoor use in France

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 230V \~ 50Hz.
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable
• Only use this product with the AC adaptor provided.

WARNING

• Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

EU declaration of conformity

Hereby, Admea declares that this Bluetooth sound bar is in compliance with the essential requirements and other provisions of the Radio Equipment Directive (RED) 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.schneiderconsumer.com

Technical Specification:

Device: Sound bar

Operation Frequency: 2402 MHz to 2480MHz (BT 4.2)

RF Transmission Power: 2dBm W (power per channel)

Operation Environment: 0 - 40 Deg C

• This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EC of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).
• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.
• As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.
• You have the obligation to use the selective waste collection systems put in place by your local authorities.

1. Getting started

What's included?

Two cylindrical mechanical components with no visible text or symbols

Main Units

Two square electronic components with internal circuitry (no visible text or symbols)

Stands

Remote Control

Instruction Manual

Coiled electrical plug with terminal connector (no text or symbols visible)

AC Power Cable

Coiled cable with two connectors, no visible text or symbols

3.5mm to 3.5mm audio cable

Wall Bracket

Rubber Pad

1. Overview of control


Simple line drawing of a cylindrical object with a labeled end (no text or symbols)

Diagram of a cylindrical object with labeled parts 1 and 2, showing internal structure and edges.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a diagonal line extending from its top, no text or symbols present.

1. Speakers
2. Remote Control Sensor
3. Wall bracket screws
4. SOURCE button

Select a source input from OPTICAL, AUX, BT, HDMI ARC

1. button

Switch on the Sound bar or switch to ST AND BY mode

1. LED Indicators

RED: STAND BY
GREEN:AUX
• BLUE: BT(Bluetooth)
• ORANGE: OPTICAL
• ORANGELIGHTS FLASH: HDMI ARC

1. VOL+/VOL·buttons

Increase / decrease the volume level.

④ ⑤ ⑥ ⑦

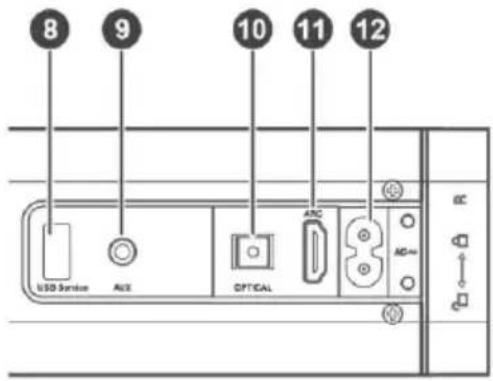

1. USB Socket

The USB socket is for service only.

1. AUX Socket

Connect to an external audio device.

1. OPTICAL Socket

Connect to an external audio device.

1. HDMI ARC Socket

Connect to ARC-compatible TVs.

1. AC\~ Socket

Connect to the Power cable provided

8 9 10 11 12 USB Services AICE OPTICAL ARC ACI DC

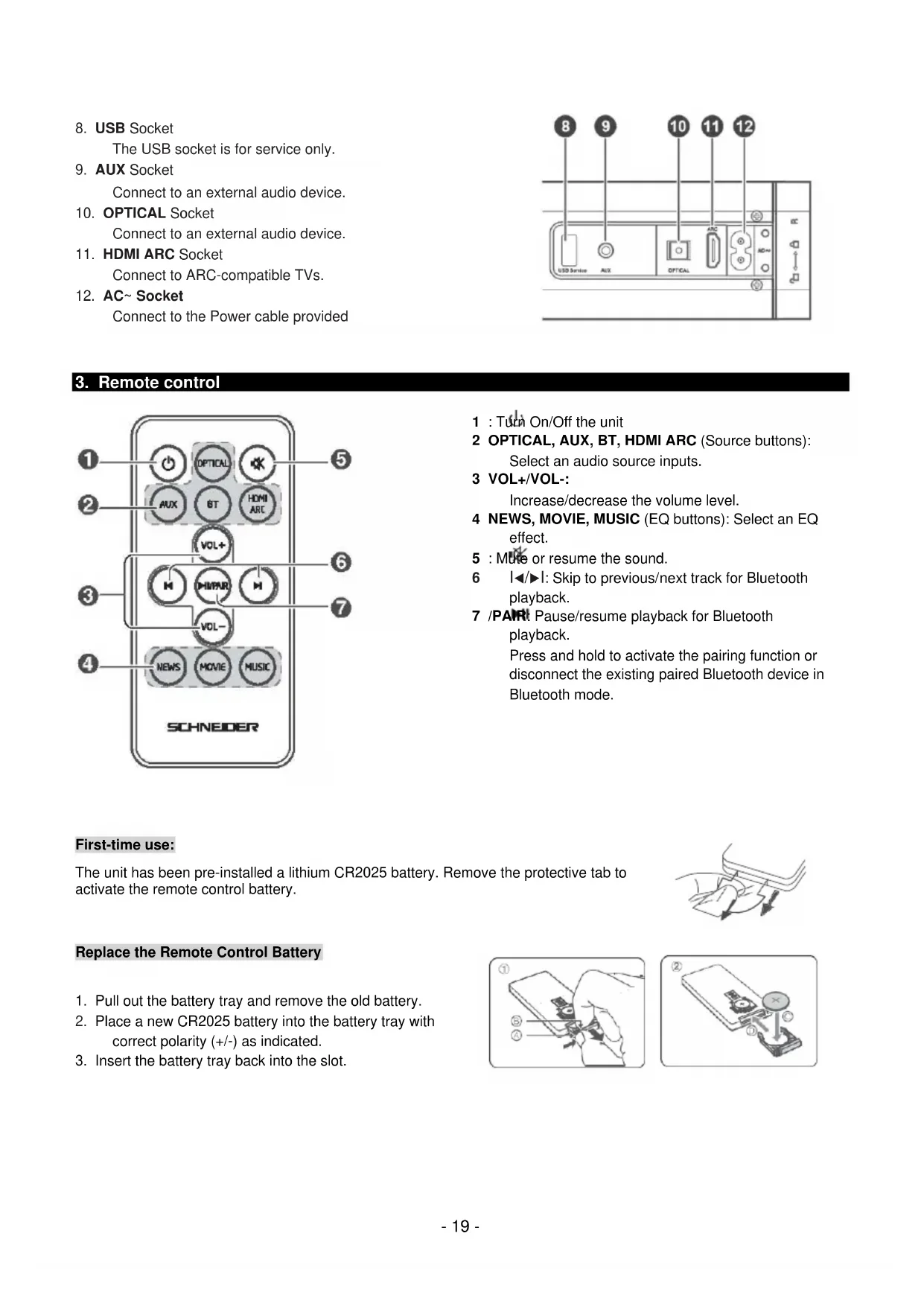

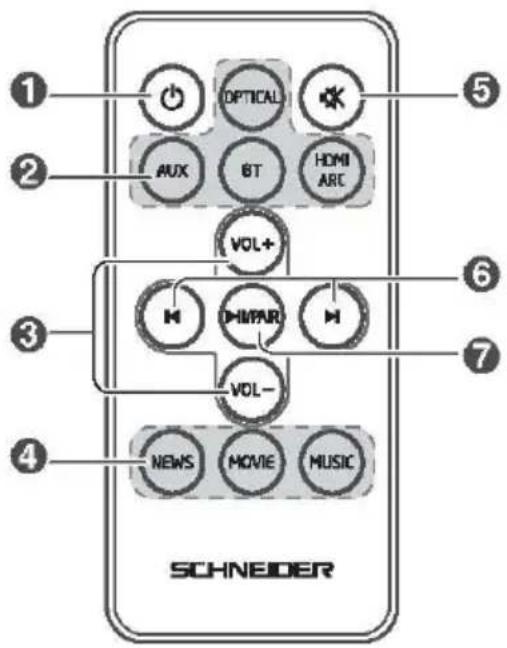

3. Remote control

1 2 3 4 SCHNEIDER OPTICAL AUX BT HOMI ARC VOL+ IMPAR VOL- NEWS MOVIE MUSIC 5 6 7

1 : Turn On/Off the unit
2 OPTICAL, AUX, BT, HDMI ARC (Source buttons):

Select an audio source inputs.

3 VOL+/VOL-:

Increase/decrease the volume level.

4 NEWS, MOVIE, MUSIC (EQ buttons): Select an EQ effect.
5 : Mute or resume the sound.
6 |◀/▶|: Skip to previous/next track for Bluetooth playback.
7 /PAIR! Pause/resume playback for Bluetooth playback.

Press and hold to activate the pairing function or disconnect the existing paired Bluetooth device in Bluetooth mode.

First-time use:

The unit has been pre-installed a lithium CR2025 battery. Remove the protective tab to activate the remote control battery.

Replace the Remote Control Battery

1. Pull out the battery tray and remove the old battery.
2. Place a new CR2025 battery into the battery tray with correct polarity (+/-) as indicated.
3. Insert the battery tray back into the slot.

Diagram showing a hand holding a smartphone with labeled parts (①, ②, ③) and a close-up of the screen.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or force.

4. The placement and mounting of the sound bar

The placement of the sound bar

This unit can be used either a single sound bar or a 2-column speakers. You are suggested to put the unit with below options:

Simple line drawing of a monitor on a table with two vertical posts, enclosed in a circle labeled 'A' (no text or symbols beyond the label)

Simple line drawing of a monitor above a table with a circular border and the letter B below (no text or symbols on the diagram itself)

Simple line drawing of a laptop inside a circle with letter C below (no text or symbols on the diagram itself)

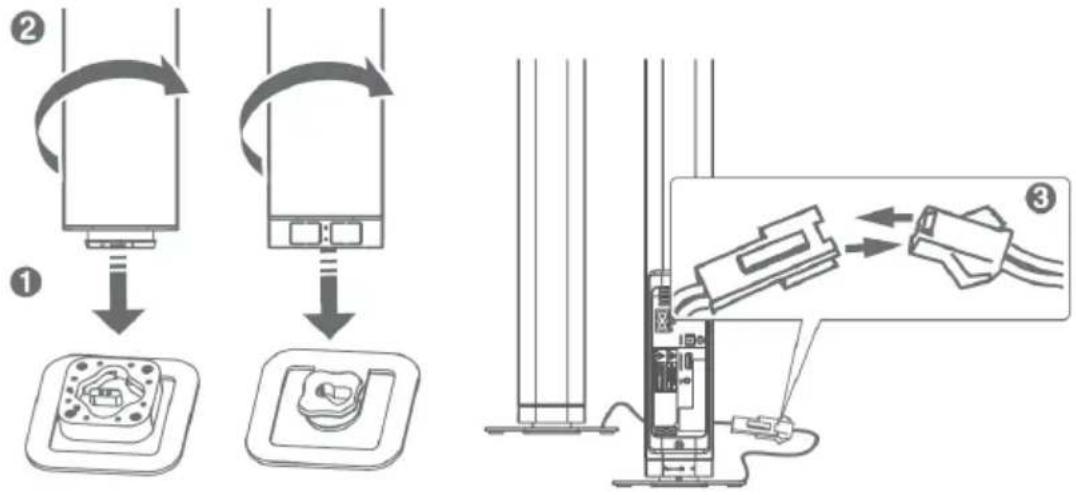

Stand mounting the sound bar (option-A)

Diagram illustrating cable installation steps with labeled components and cable connector insertion

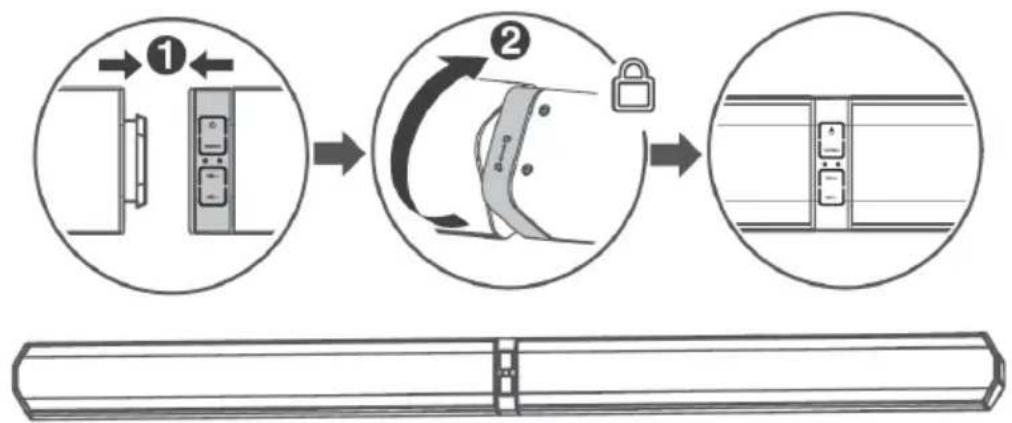

Horizontal mounting the sound bar (option-B)


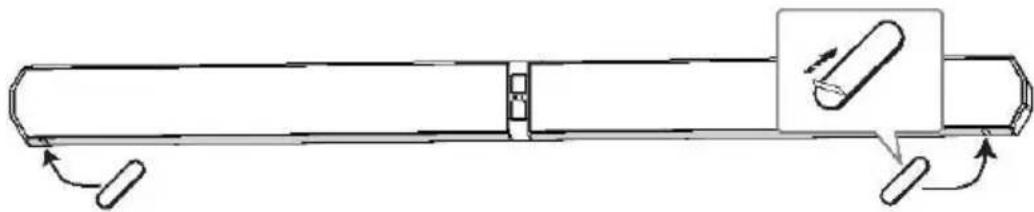

Installing the Rubber Feet

Ensure the surface is clean prior to sticking the rubber foot to the bottom of the unit.

1. Turn the unit upside down.
2. Remove the backing paper from the rubber foot.
3. Stick the rubber foot to the bottom of the unit as shown in the illustration below.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Wall Mounting (option-C)

(1). Remove the screws from the main unit.
②. Attach the wall brackets to the main unit with the screws removed from the main unit.

Technical diagram showing two-step assembly steps of a mechanical component with tool and mounting bracket details

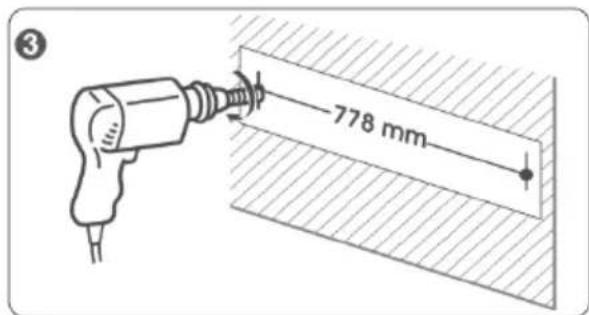

③. Drill 2 parallel holes (∅ 3-8 mm each according to wall type) in the wall. The distance between the holes should be 778 mm.

778 mm

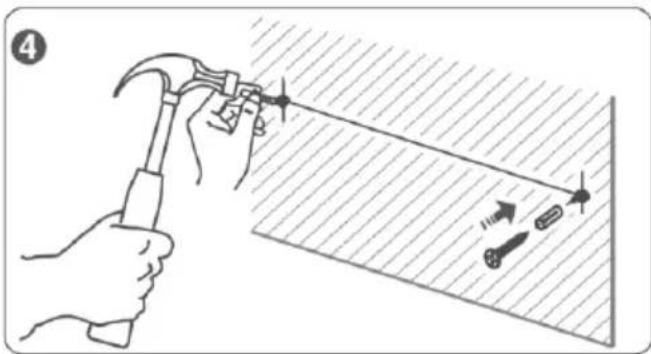

(4). Firmly fix 1 dowel into each hole in the wall if necessary.

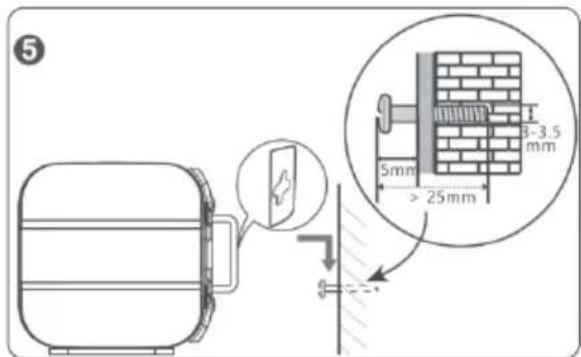

(5). Leave a 5 mm gap between the wall and the screw's head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place.

Illustration of a hand using a hammer to apply a tool to a surface with three tools nearby (no text or symbols)

⑤ 5mm > 25mm 3-3.5 mm

WARNING:

1. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the unit and wall brackets.
2. Additional tools (not included) are required for the installation.
3. Do not overtighten screws.
4. Keep this instruction manual for future reference.
5. Use an electronic stud finder to check the wall type before drilling and mounting.

5. Power connection

1. Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
2. Before connecting the AC power cord, ensure you have completed all other connections.
3. Connect the mains cable to the AC\~ Socket of sound bar and then into a mains socket.

Diagram showing cable connection between a wall socket and an AC device, with labeled components and directional arrows.

6. TV Connections

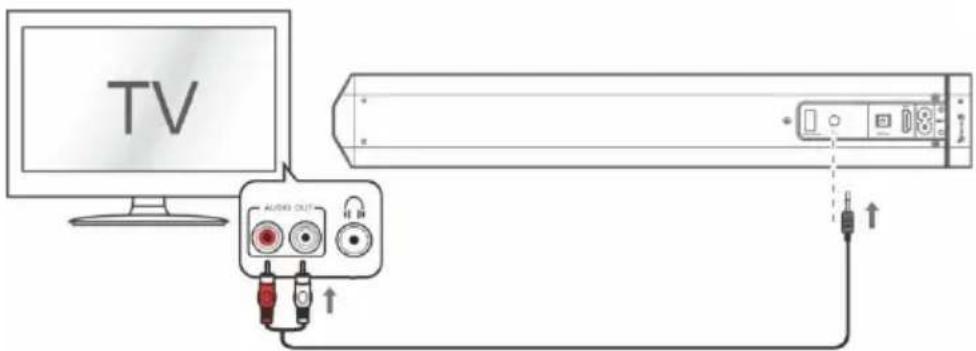

6.1 Connecting a TV, DVD, GAMES CONSOLE or SET-TOP BOX using the RCA-3.5mm audio cable (not supplied).

NOTE: Ensure that the TV PHONO connectors are audio OUTPUTS and not audio INPPUTS. If they are INPUTS then use connection 5.2

TV AUDIO OUT

1. Connect one end of the RCA cable to the TV, DVD or CONSOLE audio output RCA sockets.
2. Connect the 3.5mm (small) end to the AUX socket on the back of the Sound bar.
   NOTE: Take care to match the RED plug to the RED socket and the WHITE plug to the WHITE socket.

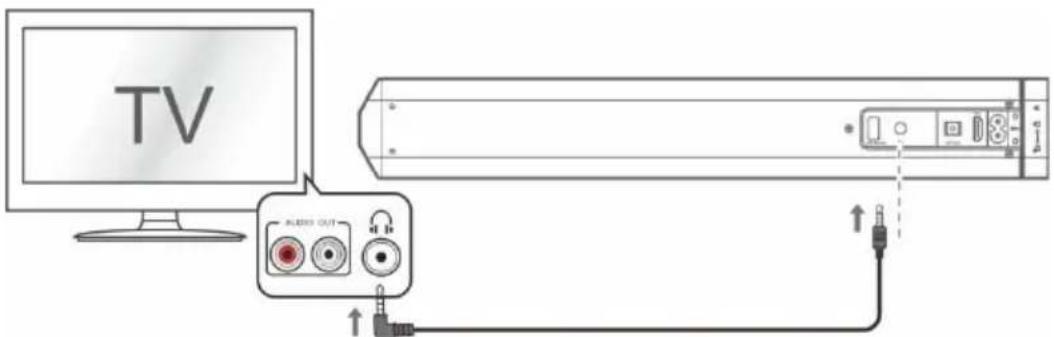

6.2 Connection to a TV using the 3.5mm-3.5mm audio cable provided.

TV ALABO CNT ALABO CNT

1. Connect one end of the 3.5mm cable to the TV headphone 3.5mm audio output socket.
2. Connect the other end of the cable to the AUX socket on the back of the sound bar.
   NOTE: In some cases the Sound bar volume output is affected by the volume level on the TV. In this case adjust the TV volume to increase the audio output from the sound bar.

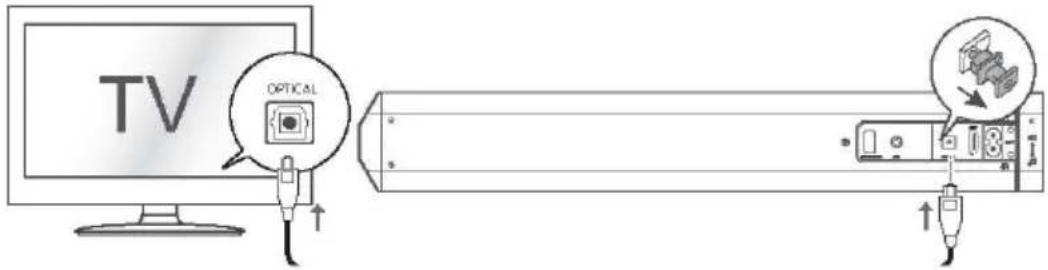

6.3 DIGITAL connection to a TV, DVD or Blu-ray player using the OPTICAL cable (not supplied).

TV OPTICAL

1. Connect one end of the OPTICAL cable to the TV, DVD or Blu-ray OPTICAL audio output socket.
2. Remove the protective cap of the OPTICAL socket, then connect the other end to the OPTICAL socket on the side of the Sound bar.

NOTE: You may need to activate PCM (Downmix) on your source device: TV, DVD or Blu-ray player.

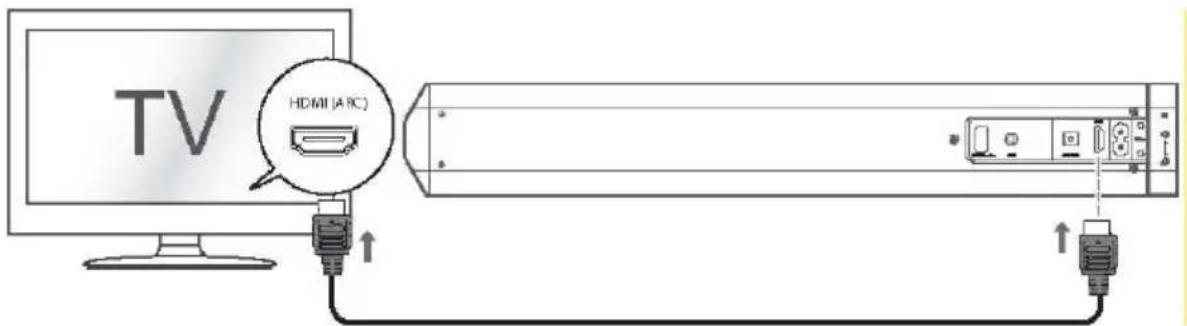

6.4 Connection to a compatible TV HDMI ARC using a High-Speed HDMI cable that supports the ARC function (not supplied)

TV HDMI (ARC)

ARC (Audio Return Channel)

The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar.

1. Connect one end of HDMI cable to the TV HDMI ARC output socket.
2. Connect the other end of the cable to the HDMI ARC socket on the back of the sound bar.
3. Press the SOURCE button repeatedly on the unit or press HDMI ARC buttons on the remote control to select HDMI ARC.

NOTE:

1. Your TV must support the HDMI-CEC and ARC and the HDMI-CEC and ARC must be set to On.
2. The setting method of HDMI-CEC and ARC may depend on the TV. For details about ARC function, please refer to the TV instruction manual.
3. Ensure that you use an HDMI cables that can support the ARC function.
4. HDMI-CEC will be called different names by different manufacturers, please refer to your TV instruction manual for details on setting up HDMI-CEC and ARC.

Important: ARC connection will only work with ARC-compatible TV. HDMI only-TVs are NOT compatible. Check your TV output. If it doesn't say "ARC", it means that it probably won't be compatible. Additionally, depending on the TV manufacturer, only one HDMI port may actually support ARC.

7. General operation

Status LED

Operation	Description	LED Status
STANDBY	Standby	RED (solid)
SOURCE	AUX	GREEN (solid)
	Bluetooth-ready for pairing	BLUE (flash)
	Bluetooth paired	BLUE (solid)
	OPTICAL	ORANGE (solid)
	HDMI ARC	ORANGE (flash)
VOL+/-	Adjust sound volume	Current input source color (blink twice)
	Maximum/Minimum volume	Current input source color (flash three times)
MOVIE / MUSIC / NEWS	Select EQ effects	Current input source color (blink twice)
	Mute	Current input source color (flash)

Standby mode

1. Short-press the ⏻ button on the unit or the ⏻ button on the remote control to awake the unit from STANDBY mode.
2. Short-press the ⏻ button on the unit or press the ⏻ button on the remote control to switch the unit back to STANDBY mode.

NOTE: As part of the power saving mode the unit will enter STANDBY mode automatically after 15 minutes (approx.) of no source input.

Switching inputs

Follow the below steps to switch inputs among: AUX, BT(Bluetooth), OPTICAL, HDMI ARC.

1. Ensure the Sound bar is powered ON.
2. Short-press the SOURCE button on the sound bar or the AUX, BT, OPTICAL, HDMI ARC buttons on the remote control until you see the corresponding color on the indicator.

Pure technical line drawing of a cylindrical mechanical part with no text or symbols

STANDBY: ....RED (solid)

AUX: ......GREEN (solid)

BLUETOOTH: ......BLUE (solid)

OPTICAL:......ORANGE (solid)

HDMI ARC:......ORANGE (flash)

Adjusting the volume level

Press the VOL+/VOL button on the unit or remote control repeatedly to increase or decrease the volume level.

Mute function

1. Press the button on the remote control will temporarily silence the audio output.
2. Press the ☑ or VOL+/VOL- button again to resume the audio output.

Sound effect presets

During palyback, press the MOVIE / MUSIC / NEWS button on the remote control to select EQ effects: MOVIE (recommended for viewing movies), MUSIC (recommended for listening to music), NEWS (recommended for listening to news)

8. Bluetooth operation

Pairing a Bluetooth device

Before you can use the sound bar with your phone or other Bluetooth capable device you will need to pair the device to the sound bar.

1. Short-press the SOURCE button on the unit or the BT button on the remote control to select Bluetooth mode. The Blue indicator will flash slowly.
2. Activate your Bluetooth device and select the mode name 'SC500SND' on your Bluetooth device list.
3. If you cannot find the sound bar, press and hold the ▶II/PAIR button on the remote control until the Blue indicator flash rapidly and the unit prompts "Pairing". The system has entered pairing mode.
4. Select "SC500SND" enter "0000" for the password if necessary. The unit will voice "Paired" and the Blue indicator will light up solidly.
5. Play music from the connected Bluetooth device.

During playback, you can:

1. Press ▶II/PAIR button pause or resume playback of the selected track on the audio device.
2. Press |◀ or ▶l to skip to last or next track.

To disconnect the Bluetooth function, you can:

1. Switch to another function on the unit.
2. Disable the function from your Bluetooth device. The Bluetooth device will be disconnected from the unit after the "Disconnected" voice prompt.
3. Press and hold the /PAIR button on the remote control.

Bluetooth status table

Operation	LED Status
Disconnected	BLUE (flash slowly)
Pairing	BLUE (flash rapidly)
Connected	BLUE (solid)

Note:

• The operation range of Bluetooth is approximately 10 meters (30 feet). Any obstacle in the path between devices may reduce this range.
• Only one Bluetooth device can be paired at a time.
• Not all Bluetooth devices are compatible.

9. Specification

Amplifier
Power output	2X15W
Frequency response	40Hz - 20kHz
Input sensitivity	500 mV
Main unit
Power supply	Input:220-240V ~ 50-60Hz
Power consumption	20W
Standby power consumption	<0.5W
Full range speaker drivers	Impedance: 8 Ohm, 52mm (2") Frequency response: 40Hz - 20kHz
Dimensions	Horizontal: W818xD60xH60 mm Stand: W100XD426X100 mm
AC power cable length	1.5m
Remote control
Battery	1 x CR2025
Bluetooth
Bluetooth compatibility	EDR, A2DP, AVRCP
Bluetooth version	4.2

10. Troubleshooting

In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below.

PROBLEM	POSSIBLE SOLUTION
No Power	·Ensure the mains plug is connected to a power supply, and is switched ON.·Make sure there is power to the mains socket.
No Sound	·When playing from the AUX input, Make sure the external source has the volume turned up and is playing a track.·Make sure the volume is turned up.·When playing from OPTICAL/HDMI ARC input, the OPTICAL/HDMI ARC lights flashes quickly, You may need to set the source DIGITAL output to PCM, LPCM, PCM 2Ch stereo or PCM downmix, since the device has no Dolby decoder.·When palying from the HDMI ARC input, ARC connection will only work with ARC-compatible TV. HDMI only-TV are NOT compatible. Check your TV output. If it doesn't say “ARC”, it means that it probably won't be compatible. Additionally, depending on the TV manufacturer, only one HDMI port may actually support ARC.·When playing from the AUX input, Make sure the other device's connection is output not Input·Bluetooth device not paired. Refer to “Bluetooth operation”.
No response from the unit	·Unplug the power cable for 1 minute then plug back in again.
Remote control does not work	·Reduce the distance between the remote and main unit.·Check the batteries are installed correctly.·Replace the batteries.·Aim the remote directly at the Sound bar
Unit powers off after 15 minutes	·This unit is designed to enter STANDBY mode automatically after 15 MINUTES of inactivity. Press the button on the unit or button on the remote control to wake the unit.

SAV

ADMEA/LOGISAV

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a 3D rectangular prism with a labeled point (1) on its side, no text or symbols present.

Simple line drawing of a cylindrical object with two labeled parts (1 and 2), no text or symbols present.

Simple line drawing of a ladder with an arrow indicating horizontal motion (no text or symbols)

Simple line drawing of a right triangle with an extended diagonal line (no text or symbols)

8. Toma USB

Diagram showing a hand holding a smartphone with labeled parts (①, ⑤, ⑥) indicating different components or functions.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or force.

Simple line drawing of a monitor on a table with two vertical posts, enclosed in a circle labeled 'A' (no text or symbols beyond the label)

Simple line drawing of a monitor above a table with a circular border and the letter B below (no text or symbols on the diagram itself)

Simple line drawing of a computer monitor inside a circle, labeled 'C' at the bottom (no text or symbols on the diagram itself)

Diagram illustrating three-step installation process: wire pressing, assembly with component, and cable connection to a device.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical diagram showing two-step assembly steps of a mechanical component with labeled parts and directional arrows indicating motion.

Diagram showing a hand using a hammer to measure a surface with arrows indicating direction and components, labeled with number 4.

⑤ 5mm > 25mm 3-3.5 mm

ADVERTENCIA:

Diagram showing cable connection between a power outlet and an AC device, with labeled components and directional arrows.

TV AUDIO OUT

TV ALABO CNT ALABO CNT

TV OPTICAL

Technical line drawing of a cylindrical mechanical part with a flanged end (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a cylindrical object with a labeled section (1), no text or symbols present.

Simple line drawing of a cylindrical object with two labeled parts (1 and 2), no text or symbols present.

Simple line drawing of a ladder with an attached lever (no text or symbols)

Simple line drawing of a right triangle with an extended base (no text or symbols)

Diagram showing a hand holding a smartphone with labeled parts ①, ②, and ③ indicating different components or functions.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical setup.

Simple line drawing of a monitor setup inside a circle, labeled 'A' below (no text or symbols on the diagram itself)

Simple line drawing of a monitor above a table with a circular label containing the letter B (no text or symbols on the diagram itself)

Simple line drawing of a computer monitor inside a circle, labeled 'C' at the bottom (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical diagram showing two-step assembly steps of a mechanical component with tool and pin labels

Illustration of hands using a hammer to apply a tool to a surface with arrows indicating motion (no text or symbols)

⑤ 5mm > 25mm 3-3.5 mm

AVISO:

Diagram showing cable connection between a power outlet and an AC device, with labeled components and directional arrows.

6. Ligações TV

TV AUDIO OUT

TV ALABY OUT d b ↑

TV OPTICAL

Pure technical line drawing of a cylindrical mechanical part with no text or symbols

EM ESPERA: ......VERMELHO (fixo)
