USER MANUAL Pure Deluxe H4101 SILKN

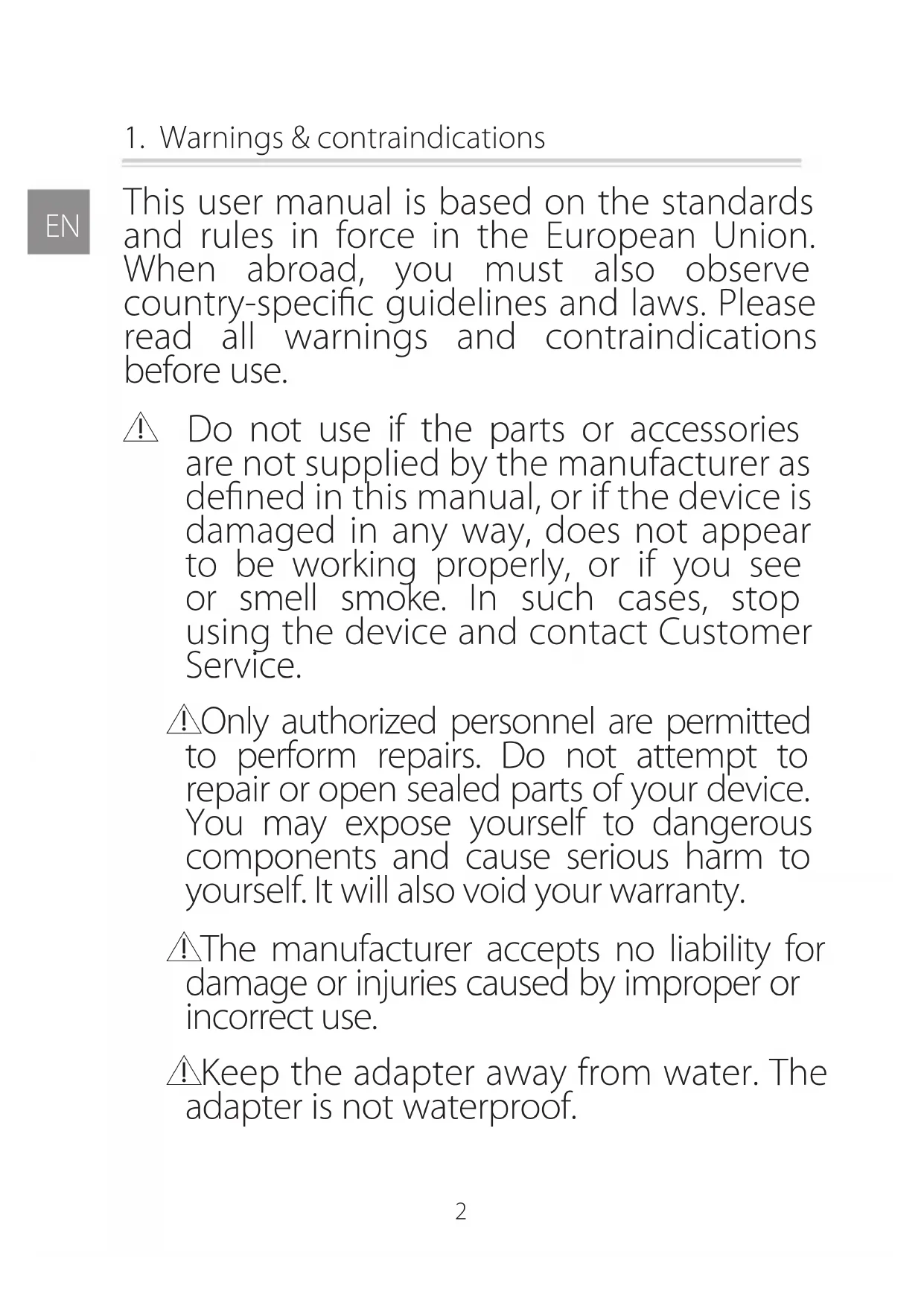

1. Warnings & contraindications

This user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specic guidelines and laws. Please read all warnings and contraindications before use. C Do not use if the parts or accessories are not supplied by the manufacturer as dened in this manual, or if the device is damaged in any way, does not appear to be working properly, or if you see or smell smoke. In such cases, stop using the device and contact Customer Service. C Only authorized personnel are permitted to perform repairs. Do not attempt to repair or open sealed parts of your device. You may expose yourself to dangerous components and cause serious harm to yourself. It will also void your warranty. C The manufacturer accepts no liability for damage or injuries caused by improper or incorrect use. C Keep the adapter away from water. The adapter is not waterproof. PURE UM EU124 1166E inside ED578-02 release combined.indd 2PURE UM EU124 1166E inside ED578-02 release combined.indd 2 15/06/2020 11:36:3215/06/2020 11:36:323

C Always ensure that your hands are dry before connecting the adapter to the electricity supply. C Do not place or store the adapter where it can fall or be pulled into a tub, sink, water or any other liquid. C Do not reach for the adapter if is has fallen into water. Unplug immediately before retrieving it. Failure to unplug the adapter may result in an electric shock! C Never use the adapter if it has a damaged cable or plug, it isn’t working properly, or has been submerged in water. If that happens, unplug the adapter immediately. C Never pull the adapter out of the socket by the cable. Always remove it by taking hold of the adapter. C Place the adapter cable in such a way that it does not pose a tripping hazard. C Do not kink the adapter cable and do not lay it over sharp edges. C Do not leave the device submerged in bath or shower water for more than 20 minutes. PURE UM EU124 1166E inside ED578-02 release combined.indd 3PURE UM EU124 1166E inside ED578-02 release combined.indd 3 15/06/2020 11:36:3215/06/2020 11:36:324

C Do not attach wet brush heads when charging the device. C Do not allow face wash to accumulate on the brush heads. C The device is only to be used with the power supply unit provided. C If a battery has leaked, avoid contact with the skin, eyes and mucous membranes. If necessary, rinse the aected areas with water and seek medical assistance. C Do not clean the device or any of its parts in the dishwasher. C Do not dispose with household waste! The WEEE directive requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices. For details, see section "11. Disposal". C The battery must be removed from the appliance before it is scrapped. C The appliance must be disconnected from the supply mains when removing the battery. PURE UM EU124 1166E inside ED578-02 release combined.indd 4PURE UM EU124 1166E inside ED578-02 release combined.indd 4 15/06/2020 11:36:3215/06/2020 11:36:325

C The battery is to be disposed of safely. C Attention should be drawn to the environmental aspects of battery disposal. Don’t throw used batteries in a dustbin. Please contact your retailer in order to protect the environment. Battery Removal To remove the battery, the device must be broken apart. The device will no longer function after this procedure, nor can it be repaired. Any warranty will be void when the appliance housing is broken and the battery is removed. It is strongly recommended to wear safety protective goggles and gloves. Silk'n is not liable for any physical or material damages as a result of performing this procedure. To remove the battery place the device on a hard, strong surface. Use a hammer to hit the appliance on the seam and continue to do so along the whole seam on both sides of the device. Once the seam is suciently broken, use pliers or a screwdriver to take the housing apart. Unscrew the PCB (printed circuit board) and remove the battery by disconnecting the plug from the PCB. PURE UM EU124 1166E inside ED578-02 release combined.indd 5PURE UM EU124 1166E inside ED578-02 release combined.indd 5 15/06/2020 11:36:3215/06/2020 11:36:326

Contraindications C This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. C Children must not play with the device or any of its parts. C Cleaning and maintenance must not be done by children without supervision. C For hygienic reasons, do not share the device with others. C Avoid contact with the eyes. C Do not use a dry brush head on the face or neck, because it may cause skin irritation. Do not use this device if you have: C sore or injured skin on the face or neck. C a pacemaker. PURE UM EU124 1166E inside ED578-02 release combined.indd 6PURE UM EU124 1166E inside ED578-02 release combined.indd 6 15/06/2020 11:36:3215/06/2020 11:36:327

Consult your physician if you have: C any medical condition or any kind of sensitivity. C acne or any other skin disorder. C a rash, redness or itching during or after use.

2. Safety with Silk'n Pure (Deluxe)

Silk'n Pure (Deluxe) has been tested for water ingress to the extent covered by IPX7. This means your device is waterproof and suitable for use in the shower or while taking a bath, but do not leave it submerged in water for more than 20 minutes. The device also has an overcharge protection. This means that you can safely leave the adapter in the device even if it is connected to the electricity supply, without the risk of damage.

3. Get to know Silk'n Pure (Deluxe)

This user manual refers to both Silk'n Pure and Silk'n Pure Deluxe.Silk'n Pure (Deluxe) eectively cleanses the skin and removes the outer layer of dry and aky skin cells. It lifts out impurities from within the pores as well as any build-up of debris from within the folds of ne lines and wrinkles. The device uses vibrations to help smooth the skin's surface, and massages your skin to improve blood circulation. Silk'n Pure (Deluxe) removes up to 6 times more makeup than manual cleansing, leaving your skin clean, smooth and soft.Silk'n Pure (Deluxe) is an electrical device and should be used with special attention to safety. Before use, it is important that you read and understand the instructions on how to use the device including after-use procedures, and follow them strictly. We recommend you re-familiarise yourself with the instructions in this manual before each treatment.3.1 Package contents y Your Silk'n Pure (Deluxe) device y Adapter y 2 brush heads (Regular, Soft) y User manual y Face brush stand PURE UM EU124 1166E inside ED578-02 release combined.indd 7PURE UM EU124 1166E inside ED578-02 release combined.indd 7 15/06/2020 11:36:3215/06/2020 11:36:328

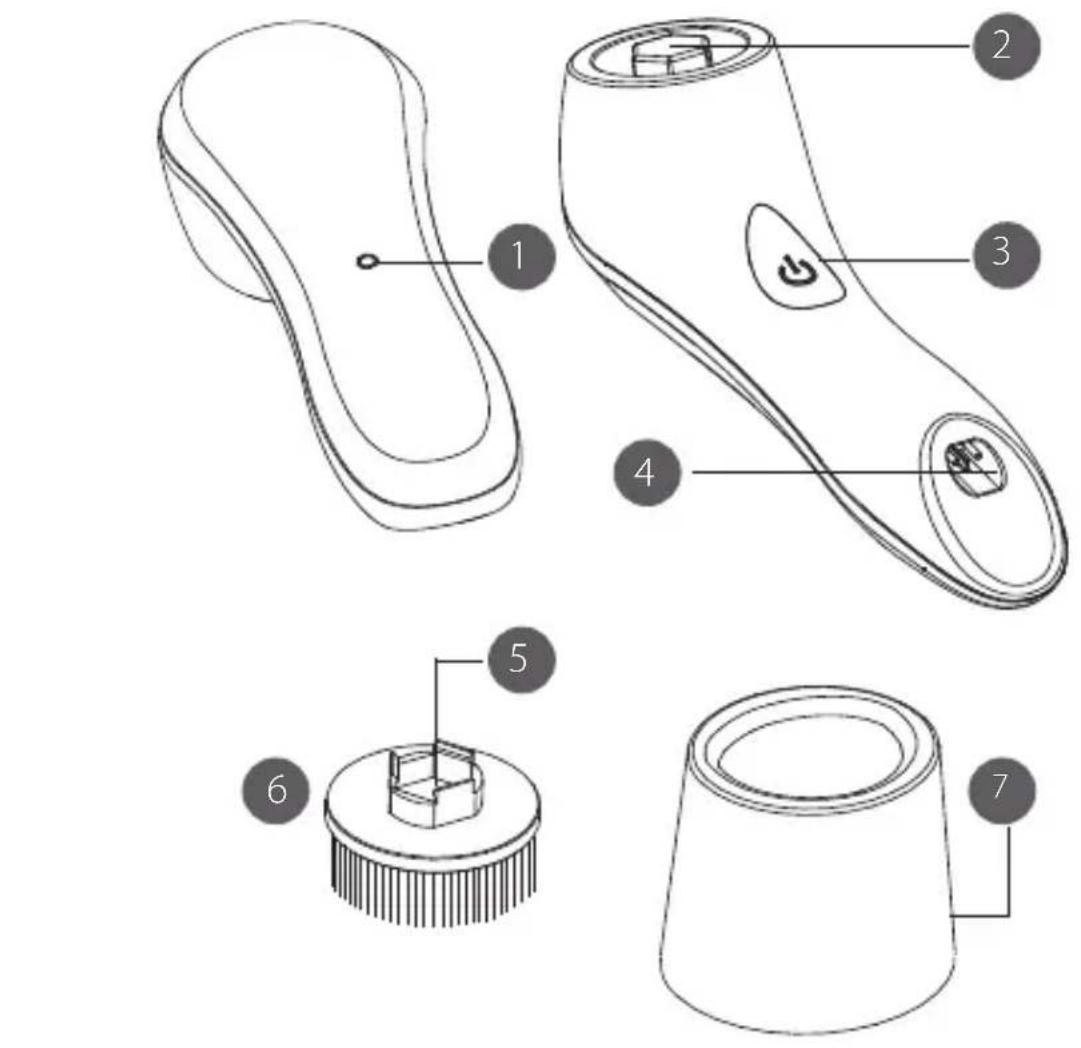

Silk'n Pure (Deluxe) is a small, hand-held, electrically powered skin cleanser. Refer to the diagram at the front of this manual to see the location of each feature. y Charging light (#1) y Face brush stand (#7) y Brush attachment point (#2) y Travel case (#8) * y Control button (#3) y Face wash travel bottle (#9) * y Adapter socket (#4) y Face Massage brush head (#10) * y Brush head center (#5) y Eye Massage brush head (#11) * y Brush head (#6)* Silk'n Pure Deluxe

Silk'n Pure (Deluxe) is an over the counter device intended for cleansing your face and neck, and massaging your skin. Do not use for any purpose other than as described in this manual.

Before rst use, your device needs to be fully charged. For best results, charge your Silk'n Pure (Deluxe) for 6 hours before using it for the rst time, even if there is some residual charge left in the device as a result of quality control procedures.1. For your safety, make sure the device is completely dry before charging. 2. Connect the adapter to the device and the electricity supply.

3. When charging, the charging light is red and blinks continously. When fully

charged, the charging light is constant red. If you are charging for the rst time but the charging light is constant red, you still need to charge the device for 3 hours.

4. We recommend you unplug the device and store the adapter after each full

charge until you need to charge the device again. PURE UM EU124 1166E inside ED578-02 release combined.indd 8PURE UM EU124 1166E inside ED578-02 release combined.indd 8 15/06/2020 11:36:3215/06/2020 11:36:329

We recommend you charge the device fully at least every 3 months to sustain battery life. C Do not attach wet brush heads when charging the device.

4.2 Indicator lights and function settings

Your Silk'n Pure (Deluxe) is easy to use and has one control button and one indicator light. Refer to the diagram at the front of the manual to see the location of each feature.Button Action Function / ModeControl button (#3) Press x 1 Vibrates - low speedPress x 2 Vibrates - high speedPress x 3 Pulsates - low speedPress x 4 Pulsates - high speedPress x 5 Device switches o Charging light (#1) Light is red and blinks for 10 seconds Low batteryLight is red and blinks continuously ChargingLight is constant red (visible only when connected to the electricity supply)Fully charged. The light will go out when the device is disconnected from the adapter, or when you remove the adapter from the electricity supply.

For daily use, but not more than twice a day. We recommend cleansing in these areas: forehead, nose, chin, cheeks and neck. The recommended treatment time is 10 seconds per area. Silk'n Pure (Deluxe) is designed to cleanse your skin in just 1 minute. We recommend that you do not to exceed this time. PURE UM EU124 1166E inside ED578-02 release combined.indd 9PURE UM EU124 1166E inside ED578-02 release combined.indd 9 15/06/2020 11:36:3215/06/2020 11:36:3210

1. Select the brush head suitable for your skin type. Gently push the brush head onto the brush attachment point, until you hear a click. 2. Dampen your face with lukewarm water.3. Moisten the brush head with lukewarm water and apply the face wash of your choice onto the brush head. C Do not use a dry brush head on the face or neck, because it may cause skin irritation.

4. Press the control button to turn on the device. The device automatically starts in

the low speed vibration mode.5. To select the desired mode, keep pressing the control button to cycle through the modes (see section "4.2 Indicator lights and function settings").

6. Gently press the brush head against your skin and move it in an upward circular

motion. There's no need to apply any pressure. a Try to avoid delicate skin areas such as around the eyes or lips.

7. To nish, rinse your skin with water, and pat dry with a towel.

The device is set to switch o automatically after 1 minute. However, if you change modes during a treatment, the timer will reset to zero and will start again.

6.1 Silk'n Pure Deluxe accessories

In addition to the handy travel case and face wash travel bottle, Silk'n Pure Deluxe includes two additional treatment accessories. Both are suitable for daily use. The Face Massage brush head improves blood circulation and cleanses the skin mildly, leaving your skin fresher and brighter. Follow the steps in section "6. Get started!" The Eye Massage brush head helps reduce puness and dark circles around the eyes. To use this accessory, follow these steps:1. Cleanse your face and make sure the skin is clean and dry. 2. Place the metal part on the area underneath your eyes and then slide from left to right. Do this for 30 seconds to a 1 minute in one area. You can also use it with your favourite eye serum, lotion or cream. PURE UM EU124 1166E inside ED578-02 release combined.indd 10PURE UM EU124 1166E inside ED578-02 release combined.indd 10 15/06/2020 11:36:3215/06/2020 11:36:3211

Use warm water up to a maximum of 45ºC / 113º F.

7.1 Cleaning the brush heads

Clean the Regular and/or Soft brush head(s) after each use. Make sure the device is switched o. Rinse with warm water and mild soap to remove any build-up that may have accumulated. Then shake o any excess water.

Dry the brush head with a clean cloth. You can also dry the brush head by switching the device back on, and rubbing it against a clean cloth for 5-10 seconds. For hygienic reasons, we recommend you replace used brush heads every 3 months, or earlier if you see that they are worn. C Do not allow face wash to accumulate on the brush heads.

7.2 Cleaning Silk'n Pure Deluxe accessories

Wash the Face Massage brush head with warm water, and remove any build-up that may have accumulated. Then dry it with a clean cloth. Wipe the Eye Massage brush head with a damp cloth using a mild detergent. Alternatively, wash it with warm water and remove any build-up that may have accumulated. Then dry it with a clean cloth.

7.3 Cleaning the device and the face brush stand

We recommend that you clean the device after each use, and the face brush stand once a month. Before cleaning: Disconnect the device from the adapter. Do not use abrasive cleaners or chemicals to clean any parts. Clean the device or face brush stand with a damp cloth using a mild detergent, then wipe it dry with a clean cloth. C Do not clean the device or any of its parts in the dishwasher. PURE UM EU124 1166E inside ED578-02 release combined.indd 11PURE UM EU124 1166E inside ED578-02 release combined.indd 11 15/06/2020 11:36:3215/06/2020 11:36:3212

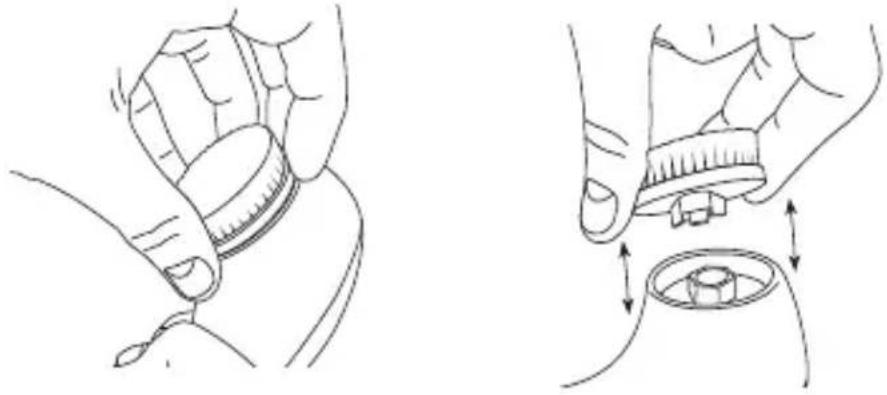

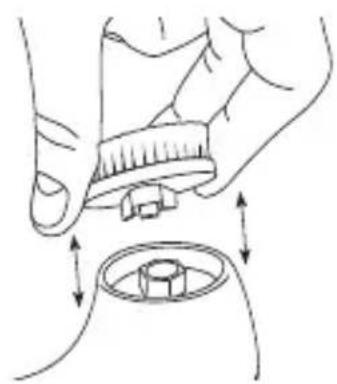

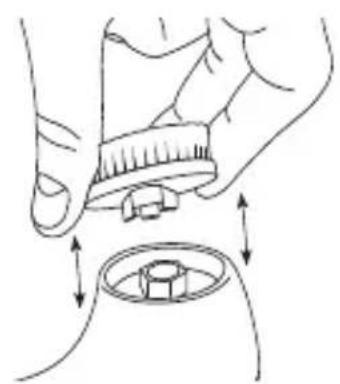

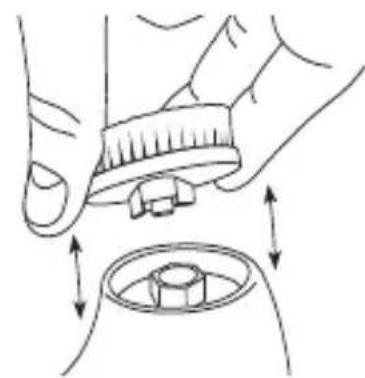

7.4 Replacing the brush head

1. To remove the brush head, simply grip the outer plastic base of the brush head

with one hand, and the device handle with the other, and pull upwards until it snaps loose.

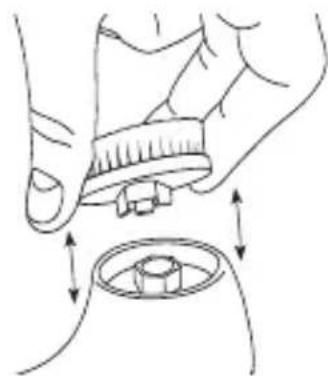

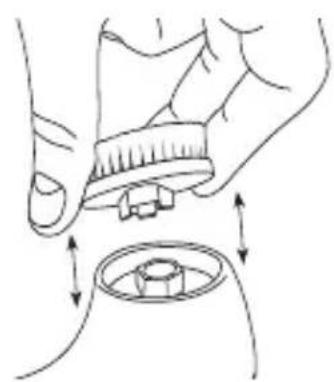

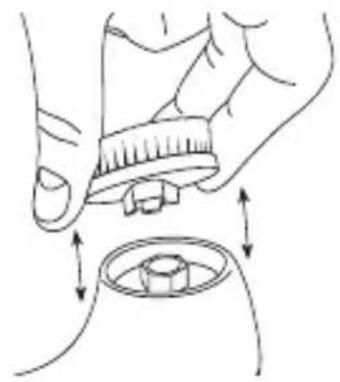

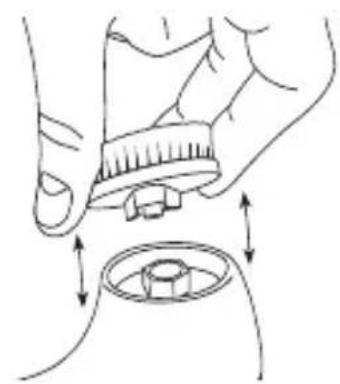

2. To attach a brush head, place the center of the brush head on the brush

attachment point.3. Gently press the brush head and push down until it clicks into place.

You can leave the device in the face brush stand and use it as a counter top stand. If you don't plan to use the device for some time, we recommend you store it in a dry place.

Do not attempt to repair or open sealed parts of your device. You may expose yourself to dangerous components and cause serious harm to yourself. It will also void your warranty. C Only authorized personnel are permitted to perform repairs. For problems or queries, please contact Silk'n Customer Service.Problem ActionThe device does not start.Make sure the device is properly charged. Attach the adapter to the device and the electricity supply and leave the device to charge for at least 6 hours before the next use.The device does not charge.Make sure the adapter is connected correctly to the device and the electricity supply. Unplug the adapter and then reconnect it again to completely reset the device. If the problem persists, contact Customer Service. PURE UM EU124 1166E inside ED578-02 release combined.indd 12PURE UM EU124 1166E inside ED578-02 release combined.indd 12 15/06/2020 11:36:3215/06/2020 11:36:3213

Problem ActionThe device shuts o all the time.Make sure the device is properly charged. Attach the adapter to the device and the electricity supply, and charge the device for at least 6 hours before the next use.

9. Parts & consumables

You can purchase replacement brushes through the retailer where you bought the device, or you can order directly from our website: www.silkn.eu.

Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and lm via the recyclable material collection service. Do not dispose with household waste! The WEEE directive requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices. This ensures that the device is recycled professionally, and prevents the release of harmful substances into the environment. Make sure that the device is in an uncharged state before disposal. PURE UM EU124 1166E inside ED578-02 release combined.indd 13PURE UM EU124 1166E inside ED578-02 release combined.indd 13 15/06/2020 11:36:3315/06/2020 11:36:3314

The following symbols and signal words are used in this user manual, on the device or on the packaging. Declaration of Conformity: Products labelled with this symbol meet all applicable provisions of the European Economic Area. Protected against water immersion for up to 30 minutes at a depth of 1m. Do not dispose with household waste! The WEEE directive requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices. This symbol identies electrical devices that belong to the protection class II. The word “GS” stands for tested safety. Products marked with this symbol meet the requirements of the German Product Safety Act (ProdSG) (EU adapter). Devices marked with this symbol are only suitable for household use (dry indoor rooms). IPX7 PURE UM EU124 1166E inside ED578-02 release combined.indd 14PURE UM EU124 1166E inside ED578-02 release combined.indd 14 15/06/2020 11:36:3315/06/2020 11:36:3315

The adapter is equipped with a short-circuit proof safety transformer IP20 The adapter is protected against solid objects up to 12 mm. The adapter has a switching power supply. The international eciency mark indicates that the power supply meets the level VI requirements. This symbol indicates the polarity of the pins in the adapter. The product fulls national and international safety standards (GB adapter).

What Does This Warranty Cover? Home Skinovations, its applicable aliates (hereinafter: Home Skinovations) or the authorized dealer from whom you purchased your Silk'n product (hereinafter: the Device) shall repair or replace the Device, if any material defects caused by Home Skinovations are discovered in the Device during the warranty period, whether in the body of the Device or its operation.Who is entitled to warranty by virtue of this warranty certicate? Only you, the original buyer of the Device who purchased the Device from Home Skinovations or its authorized dealers, are entitled to receive the warranty specied in this warranty certicate. In order to be entitled to the warranty service, you need to provide a proof that you are the original buyer of the Device by presenting an original receipt for purchase of the Device. This warranty is not an international warranty. The warranty will only be honored in the country in which the authorized dealer or the Home Skinovations entity from whom you purchased the Device, are located. For a list of Home Skinovations’ authorized dealers see: www.silkn.com/For_International_Visitors. PURE UM EU124 1166E inside ED578-02 release combined.indd 15PURE UM EU124 1166E inside ED578-02 release combined.indd 15 15/06/2020 11:36:3315/06/2020 11:36:3316

What period does this warranty certicate cover? The warranty covers repair requests received within one year (1) from the Device’s original purchase date. Repair requests after one year (1) from the date of purchase are not covered by this certicate of warranty. Repair requests regarding a Device that was repaired or replaced must be submitted no later than: (a) one year (1) from the original purchase date of the Device or (b) ninety (90) days from the date that the repaired or replaced Device was returned to you, the later to occur. If a sticker is attached to your Device stating a warranty period longer than that indicated above, the warranty period mentioned on the sticker will apply, and the Device will be repaired or replaced as part of the warranty until such period expires. If you purchased the Device in an EU country, you have an additional year (according to the EU- Directive 1999/44) to claim for deciencies or malfunctioning of your Device, which were present at the time of purchase, but were not apparent then, as determined by Home Skinovations or the authorized dealer. In order to make this extended warranty eective you must contact the authorized dealer from whom you purchased the Device or the local service center and notify them about the production fault immediately, and no later than 60 days after detecting the fault. How to get service for the warranty? For further instructions how to obtain warranty service and for contact details of the service centers close to you, visit: www.silkn.com/For_International_Visitors, or contact your local authorized dealer, or call our Help Desk at: North America: Tel: 1-877-DO-SILKN (1-877-367-4556) / Email: [e-mail] European countries: (Including all member states of the European Union, Switzerland, Norway and Russia) Tel: [phone] / Email: [e-mail] Japan: Tel: [phone] / Email:[e-mail] Israel: Tel: [phone], Email: [e-mail] Other countries: Email: [e-mail] When asking for customer services you may be asked to ll in a form for returning the product and you shall receive a reference number. In case of a defect that is not covered by the warranty for whatever reason, Home Skinovations can charge you for the shipping and repair costs if you agreed to repair the Device at your expense. What is not covered by this certicate of warranty? This warranty does not cover any damage resulting from an accident, misuse (including using the Device other than as described in the use instructions accompanying the Device), defective use, lack of reasonable care, irregular and unreasonable use including without limitation commercial or professional use, adding parts not supplied together with the Device, losing parts, using unauthorized spare parts or exposing the Device to any electrical current other than the indicated current. The warranty will be cancelled if the Device was treated by anyone not authorized by Home Skinovations and Home Skinovations will not be liable for any damage resulting from repairs performed by anyone not authorized by Home Skinovations. The warranty does not include replacing used non-durable parts. WARRANTY DISCLAIMER AR PURPOSE. THIS WARRANTY IS THE SOLE AND EXCLUSIVE REMEDY FOR ANY DEFECT OF THE DEVICE. PURE UM EU124 1166E inside ED578-02 release combined.indd 16PURE UM EU124 1166E inside ED578-02 release combined.indd 16 15/06/2020 11:36:3315/06/2020 11:36:3317

Home Skinovations Ltd. All rights reserved. Legal Notice Home Skinovations Ltd reserves the right to make changes to its products or specications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd. Data is subject to change without notication. Home Skinovations Ltd has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specications are subject to change without notice. Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd, Tavor Building, Shaar Yokneam P. O. Box 533, Yokneam 2069206, ISRAEL. PURE UM EU124 1166E inside ED578-02 release combined.indd 18PURE UM EU124 1166E inside ED578-02 release combined.indd 18 15/06/2020 11:36:3315/06/2020 11:36:3319
