Product type	2-in-1 high chair and baby swing
Recommended age (swing)	From birth to sitting unaided (max 9 kg)
Recommended age (high chair)	Up to 3 years or 15 kg (sitting unaided)
Power supply	Included mains adapter or 4 AA batteries (not included)
Swing functions	8 speeds, voice detection, timer (8, 15, 30 min)
Music and sounds	Built-in music, USB playback, bird songs, water sound
Seat adjustments	6 heights, 4 backrest reclines, 3 tray positions, 4 footrest positions
Restraint system	Adjustable 5-point safety harness
Care instructions	Hand wash (30°C max), no bleach, wipe frame with damp cloth
Safety	Complies with standards EN 14988:2017+A1:2020 and EN 16232:2013+A1:2018
Spare parts	Use only manufacturer-approved parts
Warranty	Details available on manufacturer's website
Manufacturer	BrandLine Group Sp. z o. o.
Model number	Niles

Frequently Asked Questions - Niles Lionelo

How to assemble the Niles high chair?

Assembly is detailed in the manual. Start by connecting the front and back tubes of the base to the frame tubes until they click. Insert the swing arms into the chair guides, then lock. Attach the arms to the frame. The tray and toy bar insert into their guides until they lock. See figures 1 to 8 in the manual.

How to adjust the seat height?

Press the adjustment buttons located on the side armrests of the chair and adjust the height. Six positions are available (figure 12).

How to use the swing function?

Place the seat in the lowest position, then release the lock by pressing the lower central button on the swing lock. You can choose from 8 speeds. During swinging, do not change the seat height (figures 14-15).

How to clean the fabric parts?

Hand wash them in water at 30°C maximum. Do not use bleach or a washing machine. Wipe the frame with a damp cloth. Always unplug the device before cleaning.

What type of batteries to use for the swing?

Use 4 non-rechargeable AA batteries. Do not mix old and new batteries, or different types of batteries. Remove batteries if the device is not used for a long time.

Up to what weight can the child use the swing?

The swing is designed for babies weighing up to 9 kg who cannot sit up unaided. For the high chair, the maximum weight is 15 kg (up to 3 years).

What to do if the product seems unstable?

Check that all parts are properly assembled and that the locks are engaged. If the problem persists, do not use the product and contact customer service at [e-mail].

Can a USB stick be used with the swing?

Yes, the USB port allows connecting a USB stick with music. Use the mode change button to select USB mode, then control playback with the Play/Stop and Next buttons.

How to adjust the music volume?

Press and hold the 'Next music track' button to adjust the volume. You can also use the timer for automatic shutdown after 8, 15 or 30 minutes.

What to do if a part is missing or damaged?

Do not use the product. Contact the manufacturer at [e-mail] to obtain approved spare parts. Do not use unauthorized accessories.

USER MANUAL Niles Lionelo

High chair and baby swing

Krzesetko do karmienia i bujaczek

Line drawing of a baby boom chair with a tray labeled 'lionelo' (no other text or symbols)

Technical line drawing of a mechanical device with zoomed-in detail view (no text or symbols)

Three technical line drawings of a vehicle chassis showing internal components (no text or symbols)

21

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Before you start using the product, please read this manual carefully.

The product has been tested and complies with the standard:

EN 14988:2017+A1:2020, EN 16232:2013+A1:2018

Note: Only an adult is allowed to assemble the product.

Producer:

BrandLine Group Sp. z o. o.

Warnings for infant swing:

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING:

• Never leave the child unattended.
• Do not use this product once your child can sit up unaided or weighs more than 9 kg.
• This product is not intended for prolonged periods of sleeping.
• Never use this product on an elevated surface (e.g. a table).
• Always use the restraint system.
• To avoid injury ensure that children are kept away when unfolding and folding this product.
• Do not let children play with this product.
• Do not move or lift this product with the baby inside it.

• When the product is connected to a music player, ensure that the volume of the music player is set to a low value.

• This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

• Do not use the product if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer

Warnings for highchair:

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING:

• Never leave the child unattended.
• Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted.
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use the product until the child can sit up unaided.
• Do not use the product if any part is broken, torn or missing.
• Keep children away when unfolding and folding the product to avoid injury.
• The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.

How to assemble:

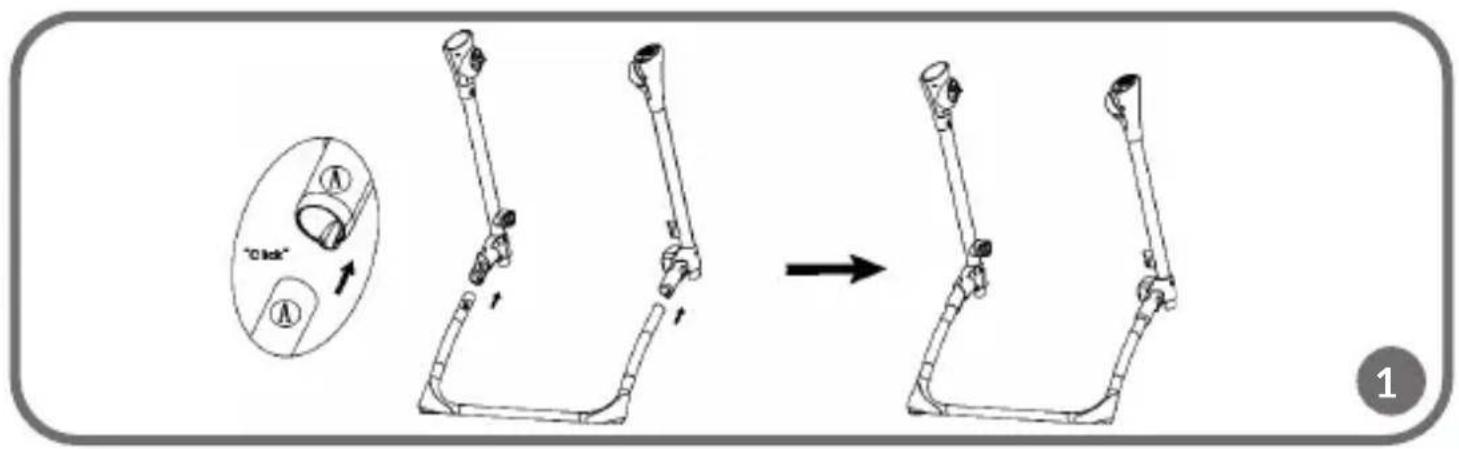

1. Connect front tubes of the base (A) to frame tubes (A); a successful connection will be signaled with a click (fig. 1).

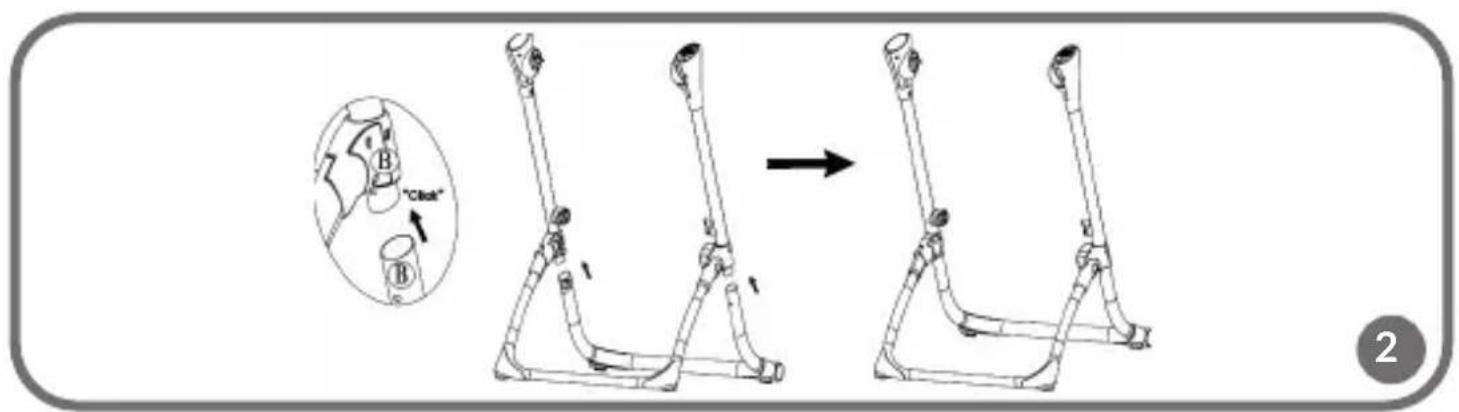

2. Connect rear tubes of the base (B) to frame tubes (B); a successful connection will be signaled with a click (fig. 2).

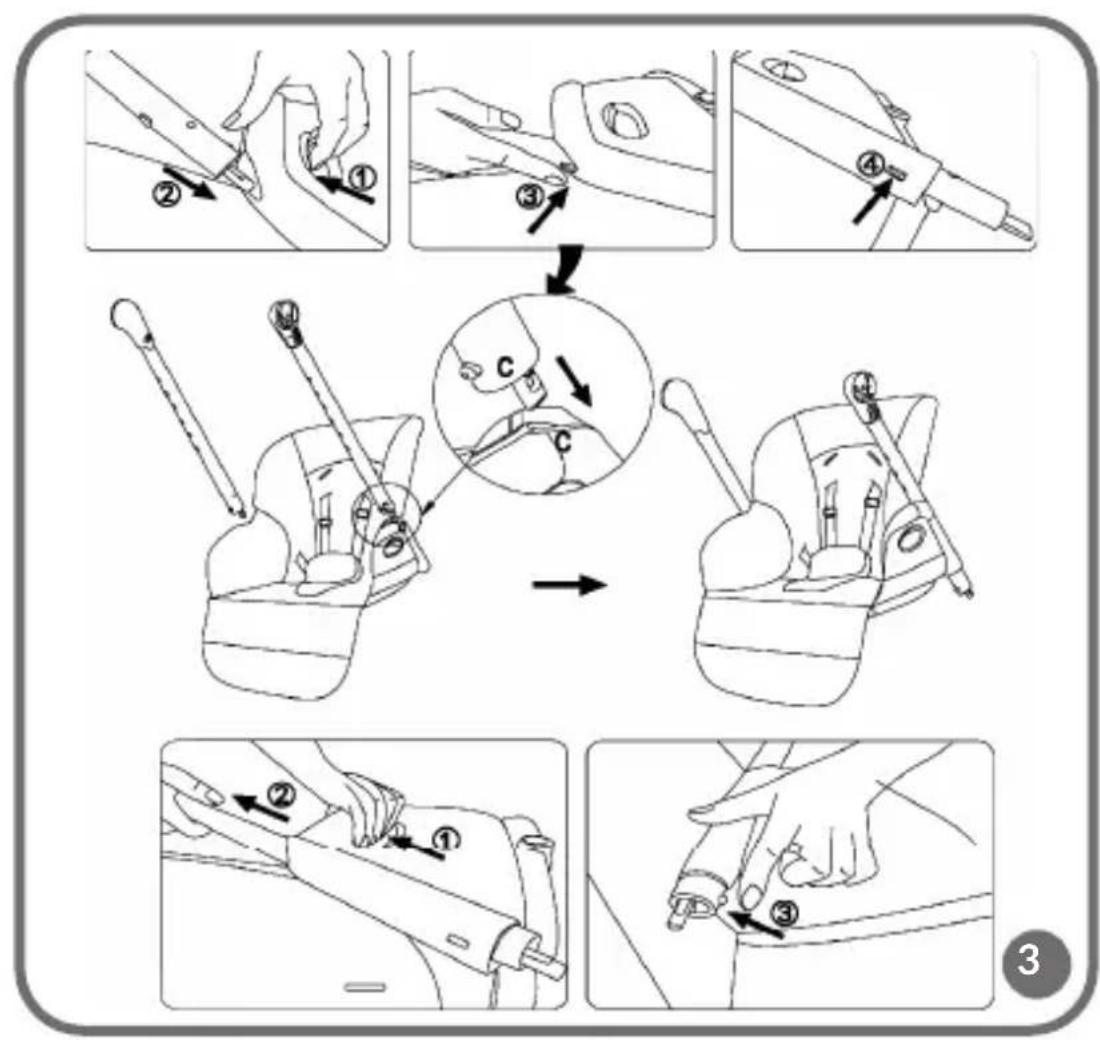

3. Insert the rocking chair arms (C) in the chair guides (C) (fig. 3).

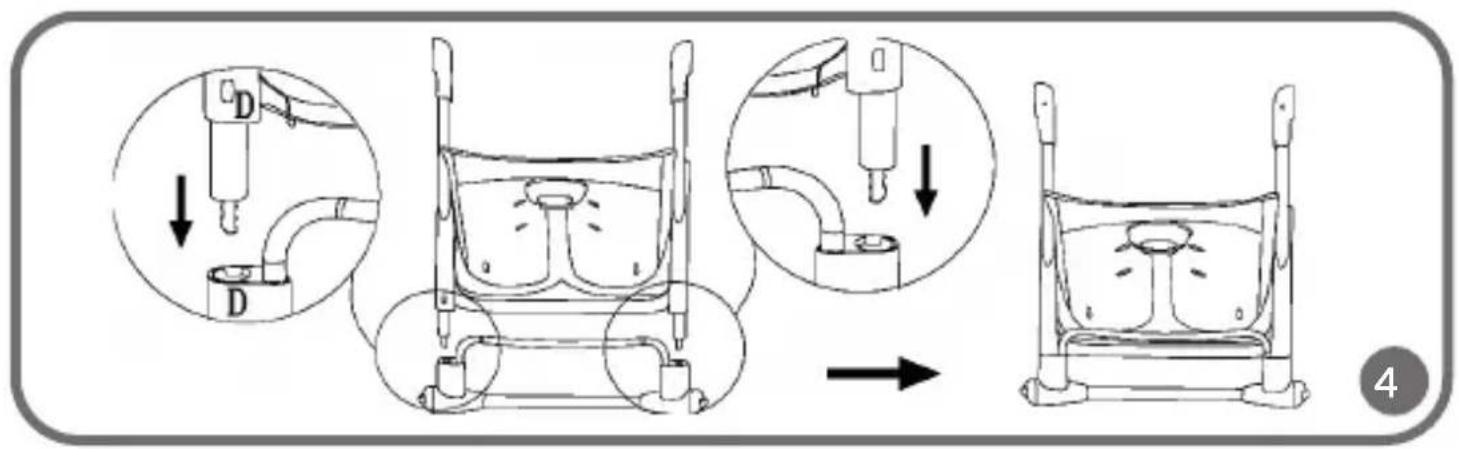

4. Connect the rocking chair interlock (D) to arm tips (D) (fig. 4).

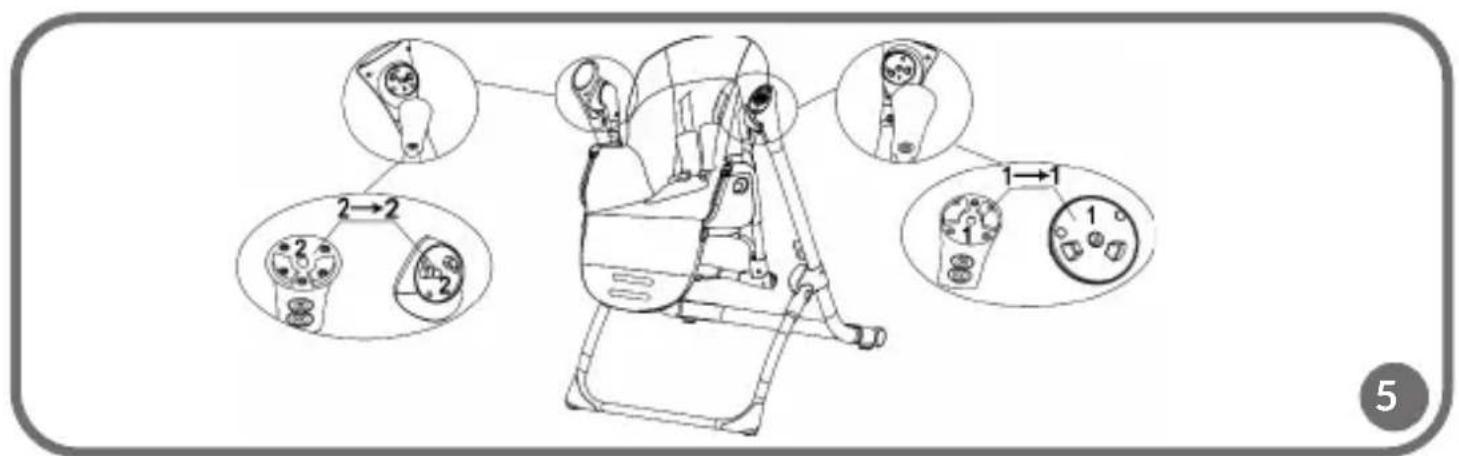

5. Connect left and right arm to the frame (fig. 5).

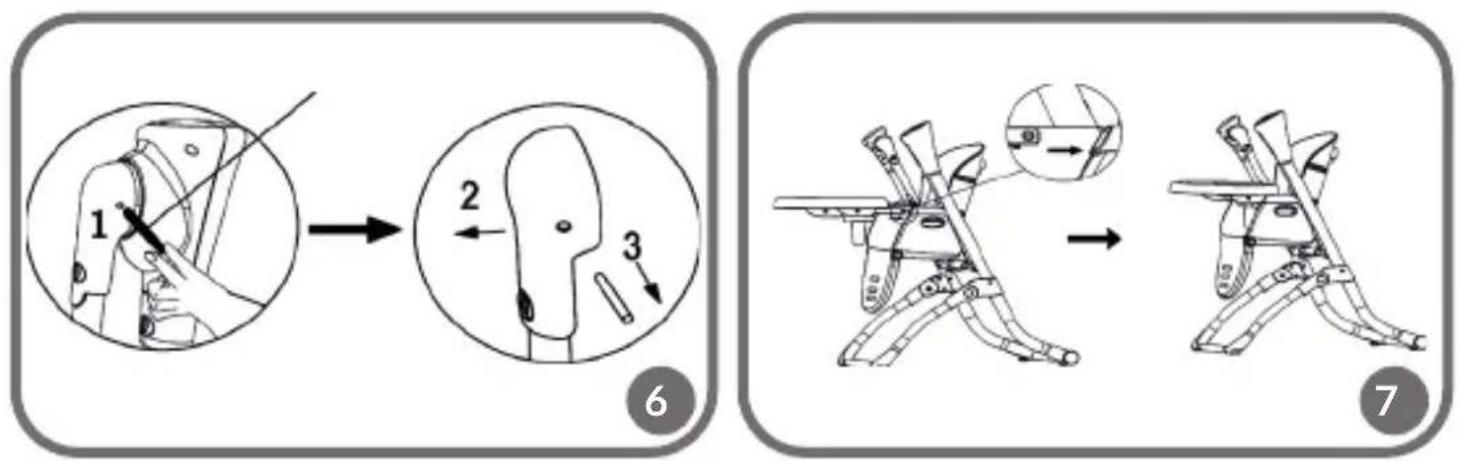

6. To disconnect arms from the frame, use a thin 4-mm tool (e.g. screwdriver), press the interlock and pull the arms out (fig. 6).

7. To fix the tray, insert it in the guide until locked in the handle (fig. 7).

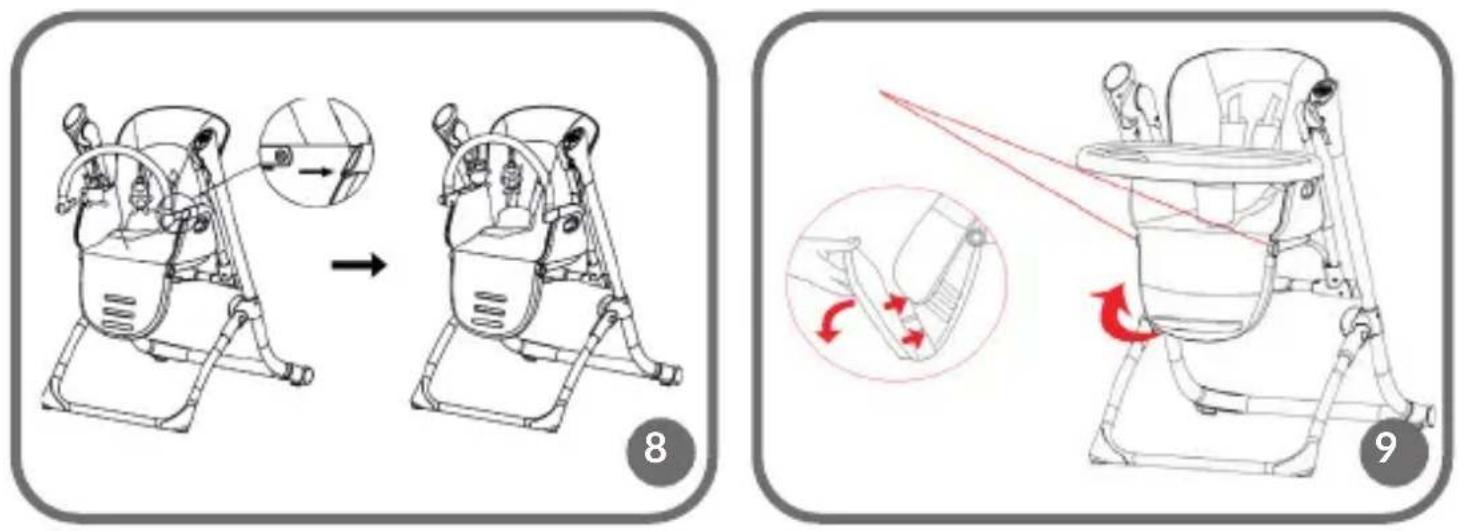

8. To fix the toy bar, insert the tips of the bar in the guides until locked in the handle (fig. 8).

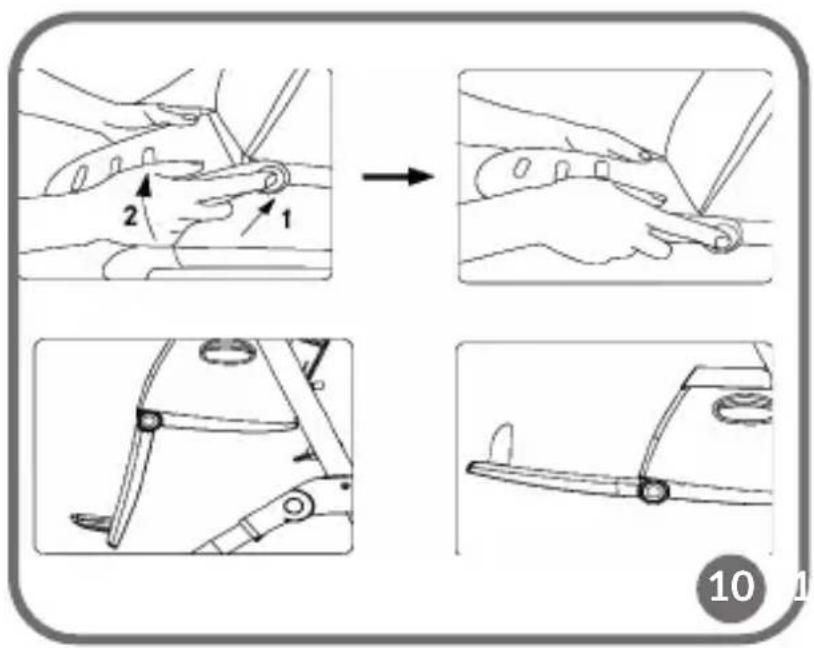

9. LO-Niles allows adjusting leg rest in four positions. To change the backrest inclination angle, press buttons on the sides (left and right side) of the seat and set a suitable position (fig. 9, 10).

10. Before changing the backrest inclination angle, please take the child out of the chair and lock arms. Next, press the backrest adjustment button (the button is in the back of the rest in the upper area) and change backrest inclination angle. 4 adjustment levels are available (fig. 11).

11. 6 chair heights are available. To change the chair height, press chair height adjustment buttons located on side backrests and adjust the height (fig. 12).

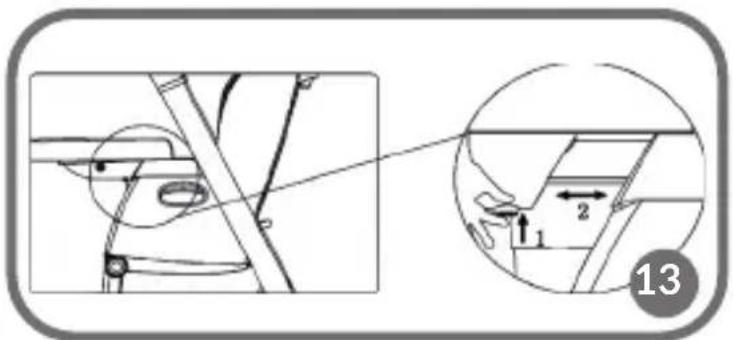

12. 3 tray levels are available. To adjust the tray location, press buttons located at the bottom of the tray and set a suitable distance between the tray and seat (fig. 13).

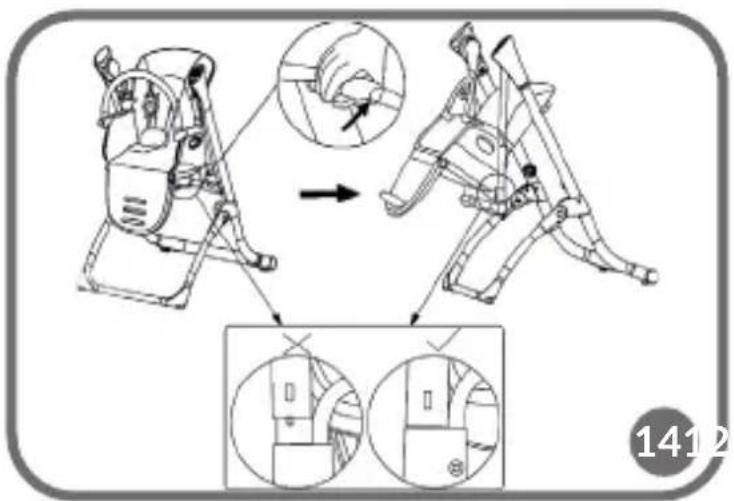

13. To activate a rocking feature, the lowest position of the seat must be adjusted. Next release the protection by pressing the button in the center and lower part of the rocking chair interlock (fig. 14).

Note: when the chair is rocking, you cannot change the seat height.

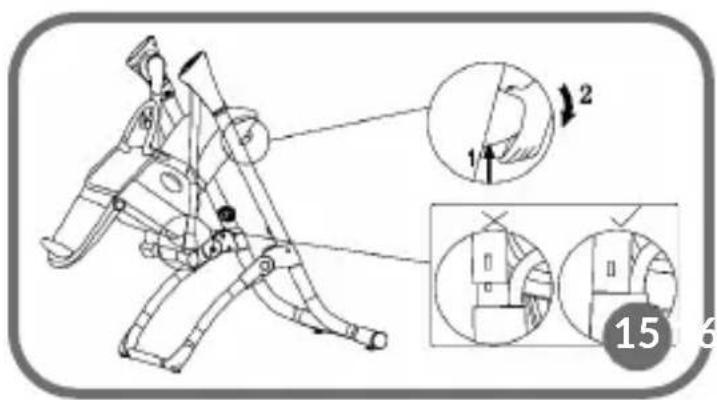

1. When the chair is rocking, you can choose two available positions of the backrest (fig. 15).

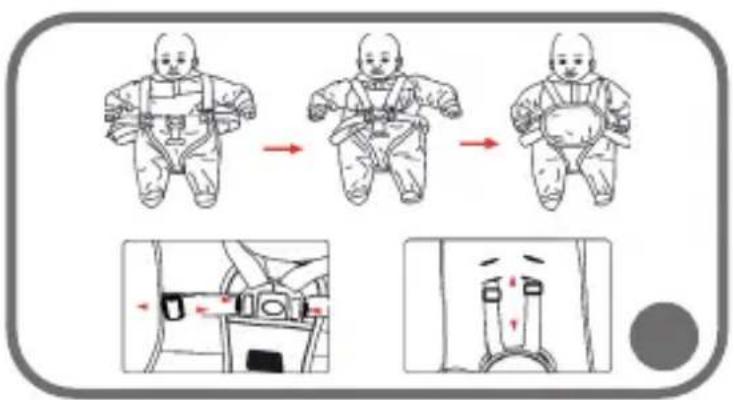

2. When you have placed your child in the chair, please secure it with safety belts. The length of belts can be adjusted by means of buckles (fig. 16).

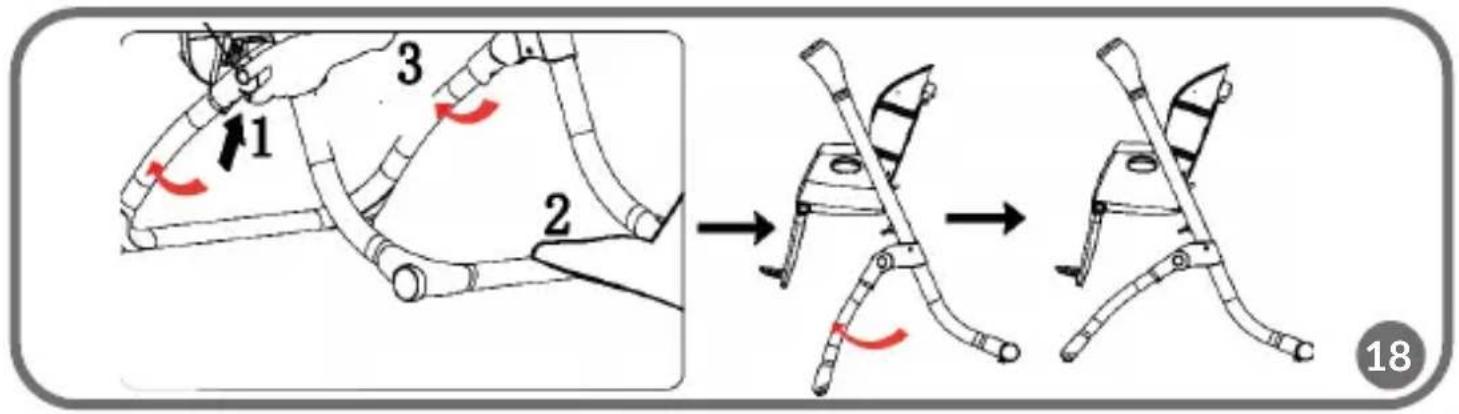

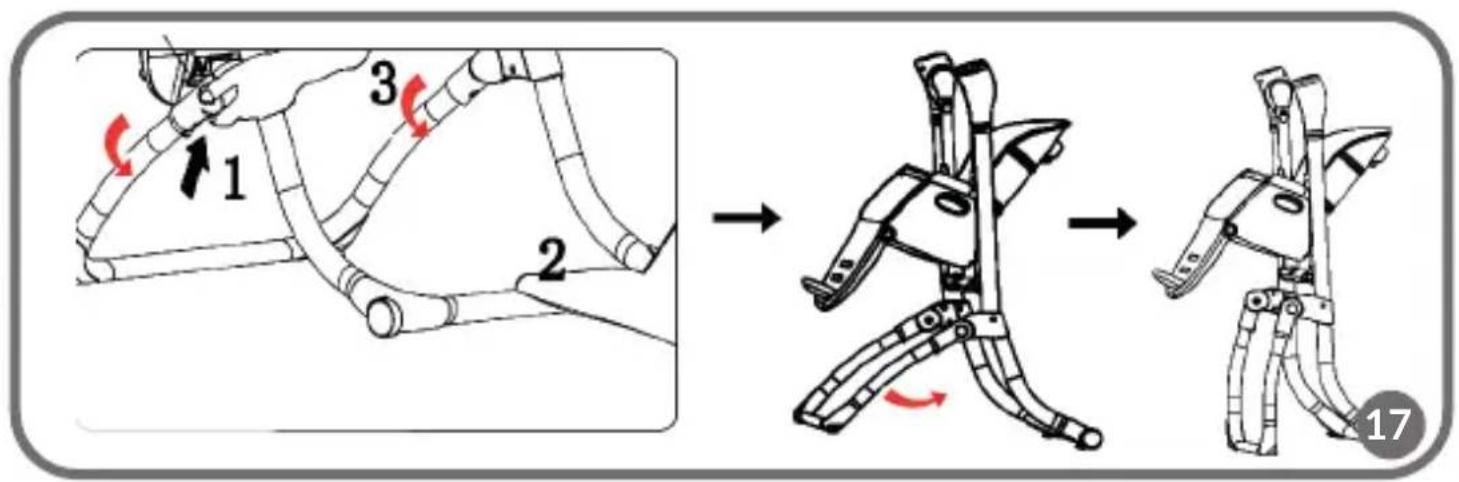

3. To fold the base, press buttons on front connectors of the base and fold the lower part by moving it to the center (fig. 17).

4. To unfold the base, press buttons on front connectors of the base and unfold the lower part by moving it to the outside (fig. 18).

5. LO-Niles rocking chair can be provided with power supply in two ways.

a. Supply through a supplied feeder cable (fig. 19).

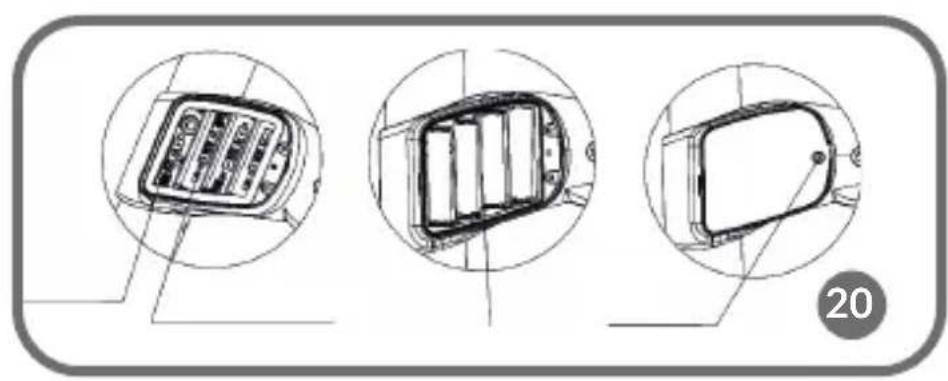

b. Supply through batteries AA (4 pieces) (fig. 20).

WARNING:

- To replace the batteries in the product, remove the battery compartment cover and replace the batteries. Replace the cover.

• Do not charge single-use batteries.
• Only an adult is allowed to charge storage batteries.
• Storage batteries must be removed from the device before charging.

- Do not mix used batteries with new batteries.

- Do not use various types of batteries.

- Place the battery in accordance with proper battery terminals.

- Worn-out batteries must be removed from the device.

- Use the supplied feeder cable only.

- Keep batteries and feeder cable out of reach of children.

- If you do not use the device for a long time, remove the battery and disconnect the feeder cable.

- Transformers used with the infant swing are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.

- The infant swing shall only be used with the recommended transformer.

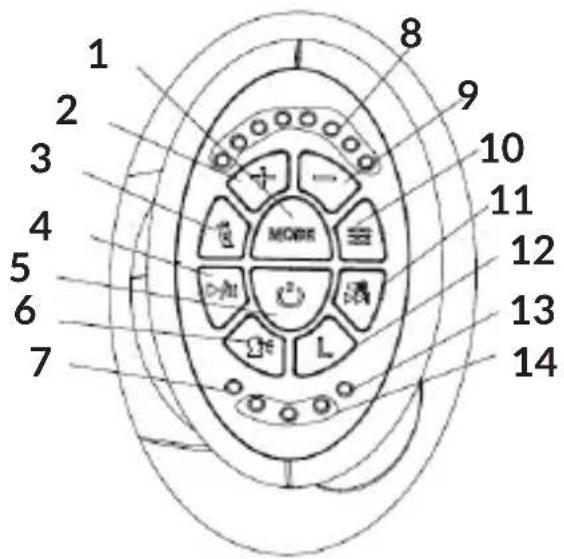

Control panel (fig. 21)

1. Mode change
2. Rocking gear up
3. Birds sounds
4. Play/ pasuse music
5. On/ Off switch
6. Voice detection
7. Voice detection indicator

8. Rocking speed indicator

9. Rocking gear down

10. Swoosh of water sound
11. Next track/ volume key
12. Timer
13. Power supply
14. Timer indicator

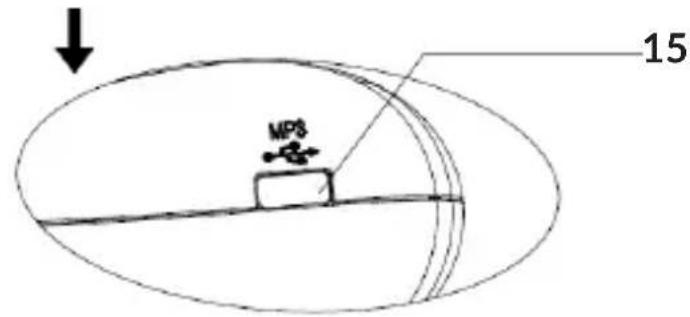

15. USB port

16. Rocking mode:

a. There are eight rocking speeds available. The current speed is displayed on the 8-LED rocking speed indicator.

b. To change rocking speed, press + or -.

1. Timer:

There are three timer settings. Press once to set 8 minutes, twice to set 15 minutes and thrice to set 30 minutes. The device will switch off once the settings have been done.

1. USB port is intended to connect USB carrier with music.

2. You can control music via Play/Pause button, Next track button. Press and hold Next track button to adjust volume.

3. Birds sounds and swoosh of water sounds buttons play sound effects. Press the button again to deactivate sounds.
4. Voice detection:

Press the voice detection button to make the rocking chair listen to child's sounds. If two or more subsequent sounds are detected, the rocking chair will start rocking slowly and play average-volume music.

1. The mode change button switches between:

a. Rocking mode – music is played from the device memory.
b. USB mode – music is played from the USB carrier.

Cleaning and maintenance:

• Do not wash the device in the washing machine.
• Do not use bleach to clean the device.
• Material elements can be washed by hand at the temperature of max. 30°C.
• Before you start cleaning, unplug the device.
• Wipe the frame with a wet cloth.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.
