USER MANUAL 60.5017.01 TFA

Instruction manual Thank you for choosing this instrument from TFA. Before you use this product

Please make sure you read the instruction manual carefully.

The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/downloads/instruction-manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to in- correct use.

Please take particular note of the safety advice!

Please keep this instruction manual safe for future reference.

• Radio-controlled projection alarm clock

2. Range of application and all the benefits of your new instrument at a glance

• Digital projection of the radio-controlled time (DCF) or indoor temperature or both options alternately onto a wall or ceiling

• Display of time and weekday written in full letters or abbreviated with date

• Indoor climate with room temperature and humidity

• Highest precision radio-controlled clock

• With time zone and manual setting option

• Alarm with snooze function

• Backlight with 4 brightness levels and adjustable dimming function

• Projection with 2 brightness levels, can be rotated by 270°

• Languages for weekdays and menu: German, English, Spanish, French

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions. Caution! Risk of electrocution!

• Plug the device only into a mains socket installed within your country’s electrical safety regulations and with a correct mains voltage (see nameplate).

• The mains socket must be located near the equipment and it must be easily acces- sible.

• Unplug the device immediately if any fault occurs.

• The device and the power adapter must not come into contact with water or mois- ture. Suitable for indoor use only.

• Do not use the device if the housing or the power adapter are damaged.

• Operate the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.

• Only use the supplied power adapter.

• Do not pull the plug out of the socket by its cable.

• Route the mains cable so it does not come into contact with sharp-edged or hot objects. Radio controlled projection alarm clock with indoor climate WARNING! Risk of injury!

• Keep this device and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old).

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time. Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

5.1 Getting the projection alarm clock started

• The projection alarm clock can be operated with 3 x 1,5 V AAA batteries (not included). The batteries maintain the clock operation in the event of blackout or other power failure. In pure battery operation, the backlight is briefly activated with the SNOOZE/LIGHT button and the projection with the Projection HIGH/LOW/OFF button. For a permanent backlight and projection and to conserve battery power, use the supplied power adapter.

• Fold out the projector arm. Insert the power adapter pin into the device jack and connect the plug to a wall socket.

• The device is ready for use.

• The device will alert you with a beep and all LCD segments will be displayed for a short moment.

• Optional: Open the battery compartment and insert three new AAA 1.5 V batteries, polarity as illustrated. Close the battery compartment.

5.2 Reception of the DCF frequency signal

• The clock will now scan the DCF frequency signal and the DCF symbol flashes. Radio controlled projection alarm clock with indoor climate

• When the time code is successfully received after 3-10 minutes, the radio-con- trolled time and the DCF symbol will be shown steadily on the display. If the recep- tion fails, scanning stops and will be repeated every 2 hours.

• The DCF reception always takes place at 1:00, 2:00 and 3:00 o'clock in the morn- ing. If the signal is not successfully received, further attempts will be taken at 4:00 and 5:00 o'clock.

• You can also activate the DCF reception manually. Press briefly the SET button in normal mode. The DCF reception symbol will be flashing.

• Press the SET button again to stop the reception process. The DCF reception sym- bol disappears.

• There are 3 different reception symbols: flashing symbol - reception is active solid - reception is successful no symbol – no DCF reception

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting dis- tance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock (see: “Manual settings”). Note on radio-controlled time

• The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjust- ment of Daylight Saving Time and Standard Time is also automatic.

• Avoid being close to possible sources of interference that may affect radio reception (see “Location and mounting”).

• During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second.

• Press and hold the + or – button in setting mode for fast mode.

• Press the SNOOZE/LIGHT button to quit the setting mode. The device will automati- cally quit the setting mode if no button is pressed for 10 seconds. The device will automatically use the settings you have made so far.

6.2 Manual setting of the clock and calendar

• Press and hold the SET button for three seconds to enter the setting mode.

• Confirm with the SET button and go to the next setting. TFA_No. 60.5017_Anl_09_22 21.09.2022 10:33 Uhr Seite 12– 24 – – 25 – Radio controlled projection alarm clock with indoor climate

• If you select ENGLISH, the display will now appear in English.

• Press the + or – button to activate (BEEP ON) or deactivate (BEEP OFF) the button tone in setting mode.

• By default, the DCF reception is activated (DCF ON) and after successful reception of the DCF signal no manual time setting is necessary.

• Press the + or – button in setting mode if you want to deactivate the DCF reception (DCF OFF).

• The DCF reception symbol disappears.

• Once the DCF time reception is deactivated the clock must be manually set. No time zone will appear.

• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.

6.2.3 Setting of the time zone

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

• Press the + or – button to make the time zone correction (+12/-12). .

6.3 Optional display

• With the CALENDAR button you can toggle the display in normal mode: – Weekday written in full letters – Weekday (3 digits) with date – Alarm time

• Press and hold the ALARM button for three seconds to enter the setting mode. The alarm symbol and ALARM appear on the display. Radio controlled projection alarm clock with indoor climate

• The hour digits flash.

• Press the + or – button to set the desired time.

• Confirm the setting with the ALARM button.

• Set the minutes in the same way.

• Confirm the setting with the ALARM button.

• The current time and the alarm symbol appear on the display.

• The newly set alarm time appears in the optional display.

• The alarm is activated.

7.2 Activate and deactivate the alarm

• To deactivate and activate the alarm function, press the ALARM button in normal mode.

• The last adjusted alarm time appears for 2 seconds on the display.

• The alarm symbol and ALARM ON appear on the display, if the alarm is activated.

• ALARM OFF appears on the display, if the alarm is deactivated.

• Wait some seconds until the display returns to normal mode to confirm the setting.

• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The alarm symbol flashes.

• If the alarm is not stopped manually, the ascending alarm tone automatically turns off after two minutes and it will be reactivated at the same set time on the following day.

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function is activated.

• The alarm will be interrupted for 10 minutes. The snooze symbol flashes on the display.

• Press any button (except SNOOZE/LIGHT) and the alarm will stop. GOOD DAY appears briefly on the display.

• The alarm symbol remains on the display.

8. Projection and light

Note: Continuous illuminated backlight and projection only works when using the power adapter.

• Press and hold the Projection HIGH/LOW/OFF button for three seconds to enter the setting mode.

• The first option flashes on the display.

• Use the + or – button to make the desired setting, while the value flashes.

• To confirm the setting, press the Projection HIGH/LOW/OFF button or wait some seconds until the display returns to normal mode. TFA_No. 60.5017_Anl_09_22 21.09.2022 10:33 Uhr Seite 13– 26 – – 27 – Radio-controlled projection alarm clock

• The sequence is shown as follows: – TIME – IN TEMP indoor temperature – TIME/TEMP time/indoor temperature alternating

• Press the Projection HIGH/LOW/OFF button to adjust the projection brightness in 2 levels or to switch it off.

• If the projection is switched on, the last selected display and the alarm symbol (if the alarm is activated) appear on the wall or ceiling.

• Set the projection arm to the respective position.

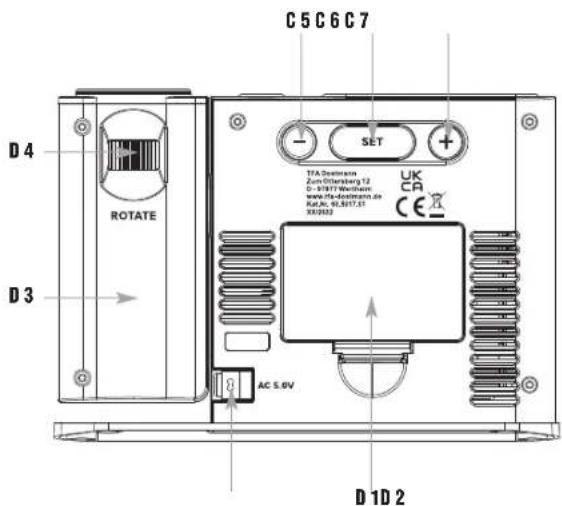

• With the ROTATE dial you can rotate the image by 270°.

• Press the SNOOZE/LIGHT button to adjust the brightness in 4 levels (BACKLIGHT 1-

4) or to switch it off (OFF).

• Wait some seconds until the display returns to normal mode to confirm the setting.

• If the auto-dim mode is activated, the weak backlight (level 1) turns on automati- cally for the set time. After that, the backlight goes to level 4.

• Press and hold the SNOOZE/LIGHT button for 2 seconds. AUTO DIM appears on the display.

• By default, the automatic dimming function is disabled. OFF flashes on the display.

• To activate the function, press the + or – button (ON). The AUTO DIM symbol appears on the display.

9. Battery replacement

• Change the batteries when the battery symbol appears on the display (optional). Radio-controlled projection alarm clock

10. Location and mounting

• Place the projection alarm clock at your chosen location.

• Avoid being close to possible sources of interference that may affect radio recep- tion. It is recommended to keep a distance of at least 2 metres to possibly interfer- ing sources (TV, computer, microwave, wireless phones, baby monitors) and large metal objects (e.g. refrigerator). Within solid walls, especially ones with metal parts, the transmission range can be reduced considerably. In extreme cases, please place the unit close to a window to improve reception.

• Check whether the DCF radio clock signal can be received.

• If necessary, choose another position.

• Do not use the product in the vicinity of radiators, other sources of heat or in direct sunlight.

11. Troubleshootingtigung

Problem Solution No display on the ➜ Control the power adapter projection alarm clock Battery operation ➜ Ensure the batteries' polarities are correct ➜ Change the batteries No permanent projection ➜ Press Projection HIGH/LOW/OFF button ➜ Connect the device to the power adapter No permanent backlight ➜ Press the SNOOZE/LIGHT button. ➜ Connect the device to the power adapter No DCF reception ➜ Activate (DCF ON) the DCF reception in setting mode. ➜ Activate reception manually (press SET button briefly) ➜ Wait for an attempt reception during the night ➜ Change the location (interference!) ➜ Set the clock manually Incorrect indication ➜ Restart the device Battery operation ➜ Change the batteries If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice. TFA_No. 60.5017_Anl_09_22 21.09.2022 10:33 Uhr Seite 14– 28 – – 29 – Radio-controlled projection alarm clock

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated col- lection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place! Disposal of the batteries Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate col- lection site depending on national or local regulations in order to protect the environment. The return service is free of charge. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Measuring range Temperature 0 °C… +50 °C Resolution 0.1°C Display HI/LO Outside measuring range Measuring range Humidity 10…99% RH Resolution 1% RH Power consumption Power supply (included) Input: 230-240V AC 50Hz 50mA Radio-controlled projection alarm clock Output: 5.0V AC 0.15A 0.75W Average active efficiency: ≥53.50% No-load power consumption: ≤0.21 W 3 x AAA 1,5 V batteries (not included) Housing dimension 149 x 38 x 104 mm Weight 175 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.5017 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the fol- lowing internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany Commercial registration number: Reg. Gericht Mannheim HRA 570186 09/22 TFA_No. 60.5017_Anl_09_22 21.09.2022 10:33 Uhr Seite 15– 30 – – 31 – Réveil projecteur radio-piloté avec climat intérieur
