USER MANUAL SpotLight Steady 120 II HAMA

The Bluetooth® word mark an d logos areregistered trade marks owned by Bluetooth SIG, Inc.and any use of such marks byHama GmbH & Co KGis under license.Other trademarks and trade names arethose of their respective owners. www.hama.com/nep

Button On/Off Open Battery compartment

Close Battery compartment

Battery compartment cover2

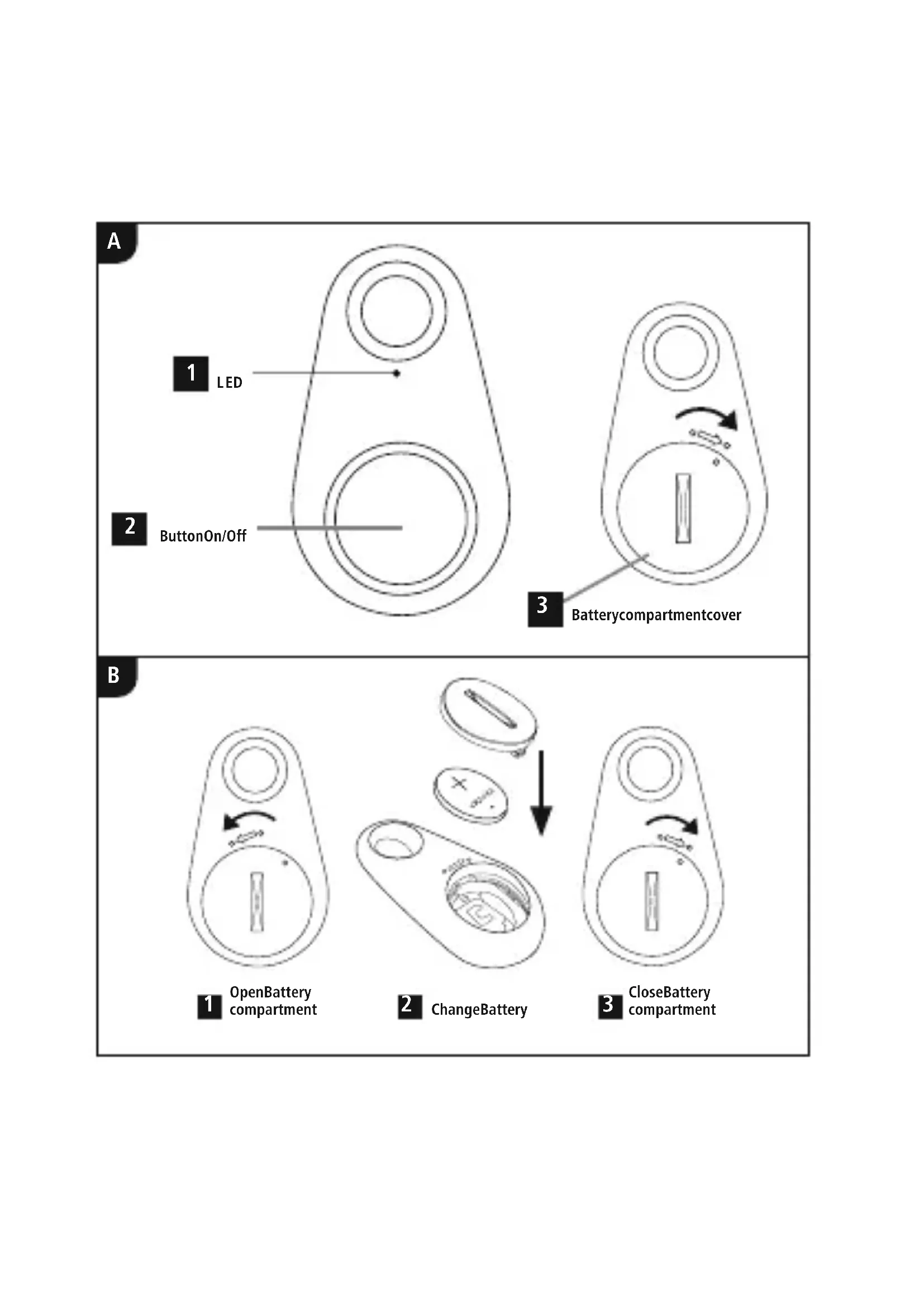

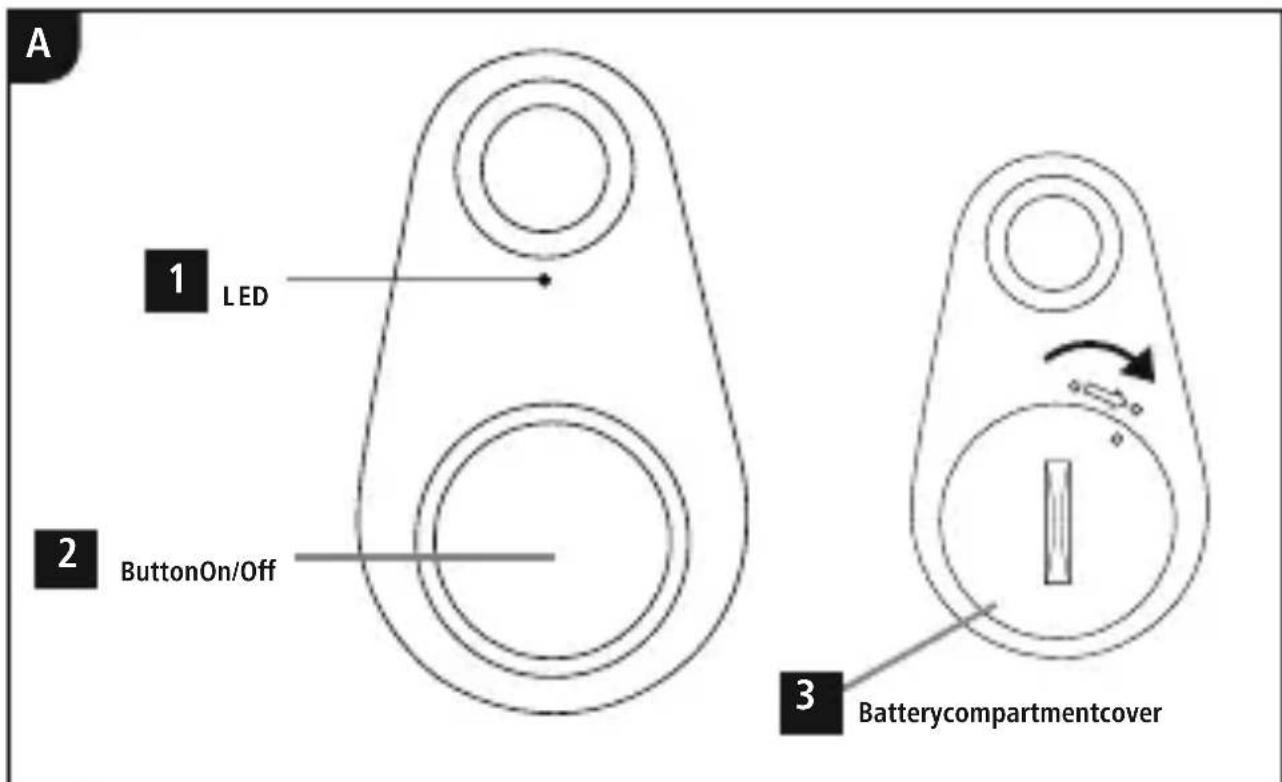

Operating instruction Controls and Displays (A)

3. Battery compartment cover

1. Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specic hazards and risks. Note This symbol is used to indicate additional information or important notes.

• These operating instructions

• Protect the product from dirt, moisture and overheating, and only use it in a dry environment.

• Do not use the product in areas where the use of electronic devices is not permitted.

• Do not use the product in moist environments and avoid splashes.

• Do not drop the product and do not expose it to any major shocks.

• Dispose of packaging material immediately according to locally applicable regulations.3

• Do not modify the product in any way. Doing so voids the warranty.

• Use the product for its intended purpose only.

• This product is intended for private, non-commercial use only.

• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.

• Keep this product, as all electrical products, out of the reach of children!

• Do not operate the product outside the power limits given in the specications.

• Do not attempt to service or repair the product yourself. Leave any and all service work to qualied experts.

• Do not open the device or continue to operate it if it becomes damaged. Warning - batteries / button cells

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.

• Only use batteries that match the specied type. Keep the instructions for the correct choice of batteries included with the operating instructions of devices safe for future reference.

• Before you insert the batteries, clean the battery contacts and the polarity contacts.

• Do not allow children to change batteries without supervision.

• Replace all the batteries in a set at the same time.

• Do not mix old and new batteries, or batteries of different types or from different manufacturers.4 Warning - batteries / button cells

• Remove the batteries from products that are not being used for an extended period (unless these are being kept ready for an emergency).

• Do not short-circuit batteries.

• Do not charge batteries.

• Do not burn batteries or heat them up.

• Never open, damage or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals.

• Remove spent batteries from the product and dispose of them without delay.

• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).

• Ensure that batteries with damaged housings do not come into contact with water.

• Keep batteries out of the reach of children.

• Do not swallow batteries or button cells. Burning hazard from hazardous substances.

• If the battery compartment will no longer close securely, stop using the product and keep it away from children.55 Warning - batteries / button cells

• This product contains button cells. If the button cell is swallowed, serious internal burns can occur within 2 hours and ultimately lead to death.

• If you suspect that a button cell has been swallowed or is in any part of the body, seek medical attention immediately.

• Keep new and used button cells out of the reach of children.

remote release supports Bluetooth

-capable terminal devices such as smartphones and tablet PCs that run the iOS 6 or Android 4.2.2 (or newer) operating systems. Note

• Note that support of the Bluetooth

remote release depends on your terminal device.

• Please refer to the operating instructions for the device you are using.

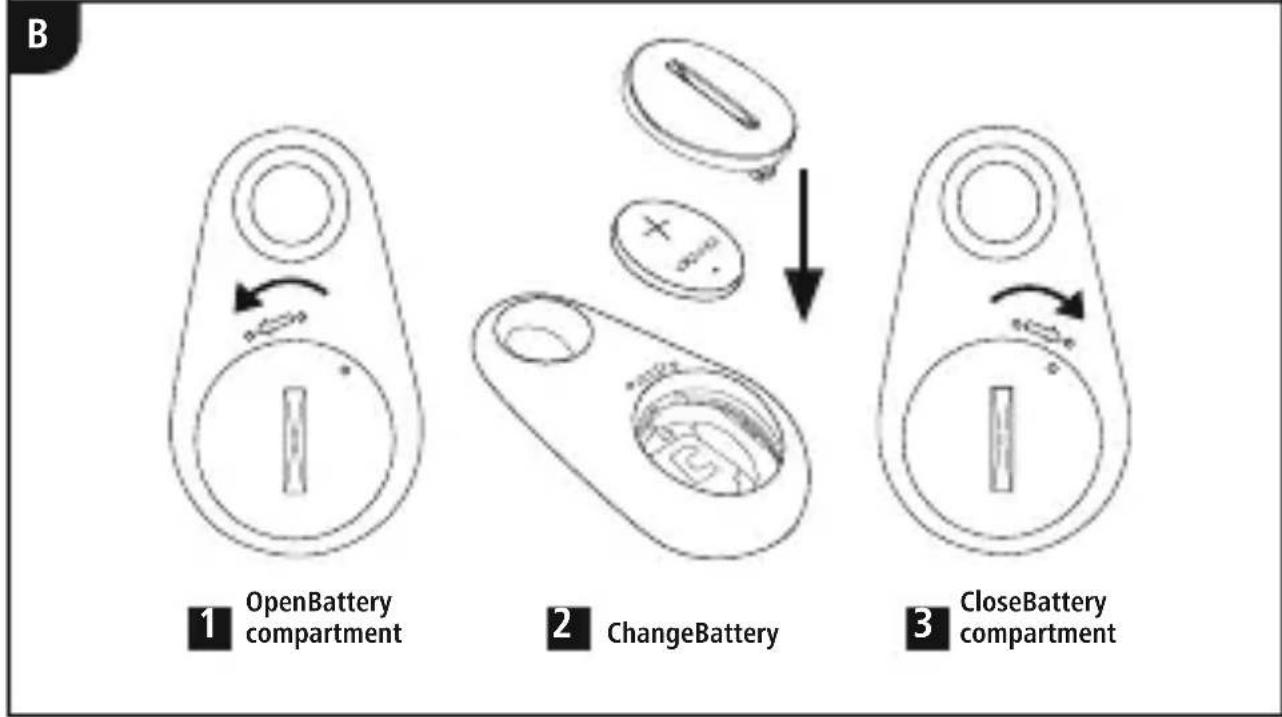

5. Getting Started (B)

• Open the battery compartment by turning the battery compartment cover (1) anticlockwise using a coin.

• Remove the battery compartment cover (2) and insert a CR2032 battery with the correct polarity.

• Close the battery compartment by turning the battery compartment cover (3) clockwise using a coin.6

• The functions described in this section are only available for Bluetooth

• Note that the maximum range for Bluetooth

is 10 metres without obstacles such as walls, people, etc. 6.1. Bluetooth

• Make sure that your Bluetooth

-capable terminal device is on and Bluetooth

• Make sure that your Bluetooth

-capable terminal device is visible for other Bluetooth

• For more information, please refer to the operating instructions of your terminal device.

• Press and hold the Power/Release button (2) for about 3 seconds to switch on the Bluetooth

remote release. The LED indicator light (1) will begin to ash.

• This means the Bluetooth

remote release is searching for a Bluetooth

settings on your terminal device and wait until hama BRS3 appears in the list of Bluetooth

• Select hama BRS3 and wait until the Bluetooth

remote release is listed as connected in the Bluetooth

settings on your terminal device. The LED indicator light (1) goes out.

• You can now use the Bluetooth

connection (after successful pairing) (A) Note

• Make sure that your Bluetooth

-capable terminal device is on and Bluetooth

• Make sure that your Bluetooth

-capable terminal device is visible for other Bluetooth

• For more information, please refer to the operating instructions of your terminal device.

remote release remains connected to the Bluetooth

device it was last paired with.

• Press and hold the Power/Release button (2) for about 3 seconds to switch on the Bluetooth

remote release. The LED indicator light (1) will begin to ash.

• You can now use the Bluetooth

remote release. To switch off, press the Power / Trigger button (2) for approx. 5 seconds. The LED pilot light (1) goes out.8 Note – Connection impaired After the devices have been paired once, the connection is then established automatically. If the Bluetooth

connection is not established automatically, check the following:

settings of your terminal device to see whether hama BRS3 is connected. If not, repeat the steps listed under 6.1. Bluetooth

• Check whether obstacles are impairing the range. If so, move the devices closer together.

• The performance can also be affected by a weak battery. Change the battery if necessary.

device can be connected at a time. If there is an active connection to another device, deactivate this connection and try again. 6.3. Replacing the batteries The battery has been designed to last for up to 2,000 shots, although this depends on the conditions of use. If the Bluetooth

remote release does not respond after you press the release button (2), or does not connect to the terminal device, etc., change the battery as follows: See (B).

7. Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents. Make sure that water does not get into the product.

8. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.9

Class Class 2 Range Max. 10 m Dimensions (W x L x H) 52 x 30 x 12 mm Weight Approx. 10 g Battery type CR2032

10. Declaration of Conformity

Hereby, Hama GmbH & Co KG declares that the radio equipment type [00004639] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://uk.hama.com/00004639/ Downloads Frequency band(s) 2.402 GHz ~ 2.480 GHz Maximum radio-frequency power transmitted
